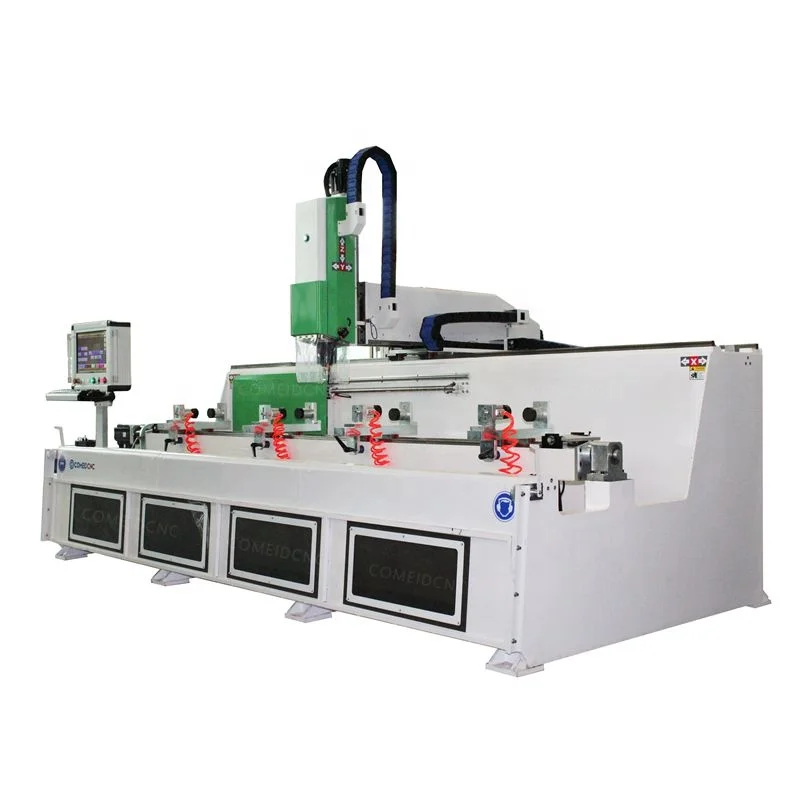

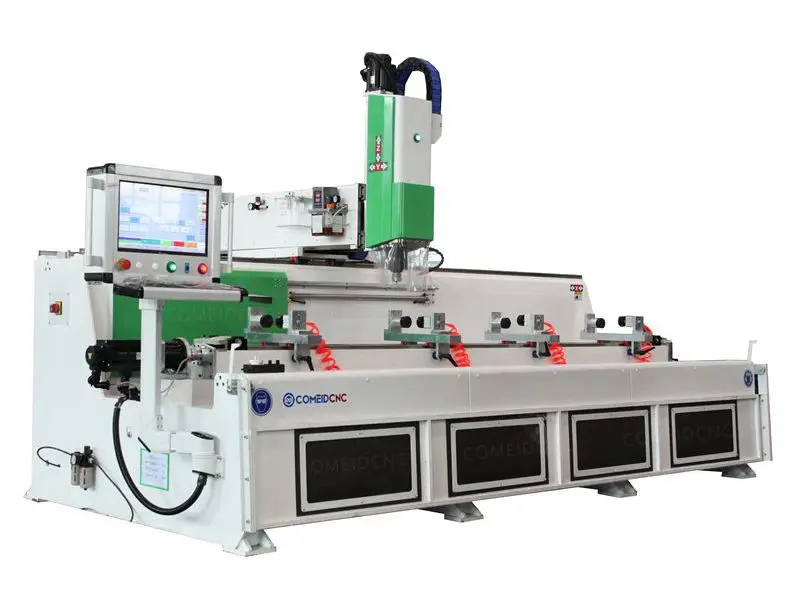

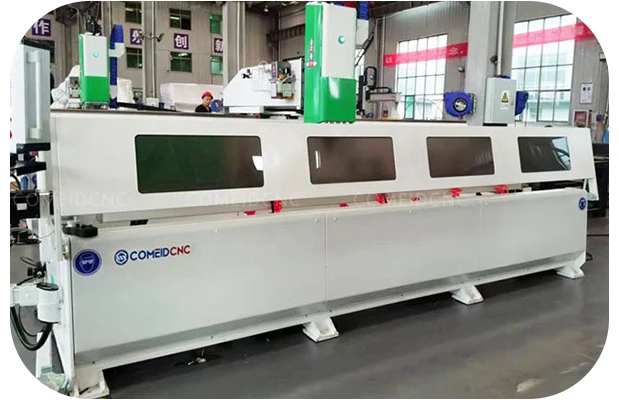

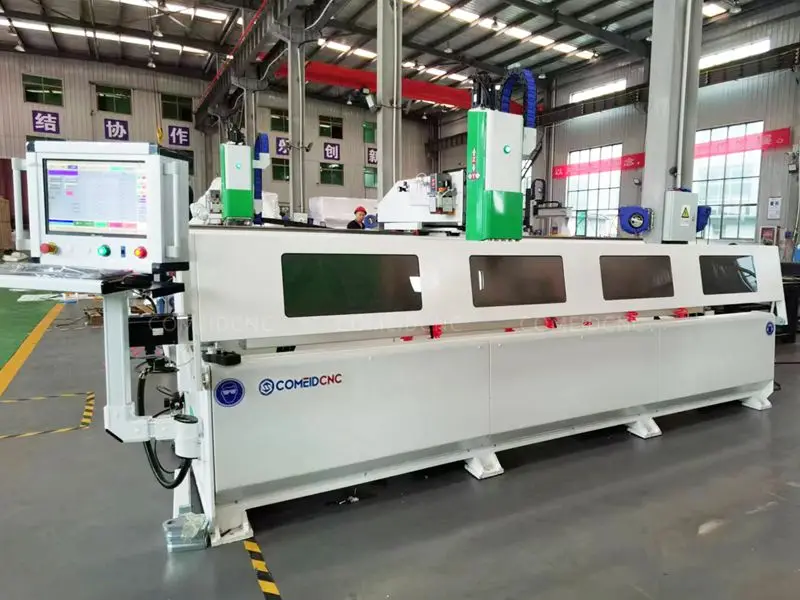

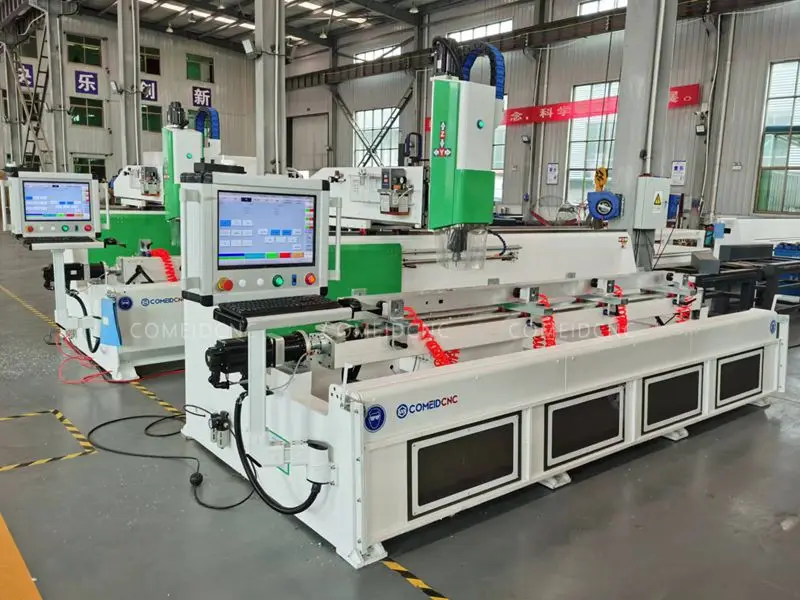

4 Axis Machine for Aluminium Profile Window Lock Hole Single Head CNC Controller English Version
- Category: >>>
- Supplier: Jinan Comeid CNC Equipment Co. Ltd.
Share on (1600967742663):
Product Overview
Description
Features
4 Axis Machine for Aluminium Profile Window Lock Hole Single Head CNC Controller English Version
Application:
1. The rotary work table is able to change among the -90°,0°, and 90°,
It can milling and drilling processing at three surfaces.

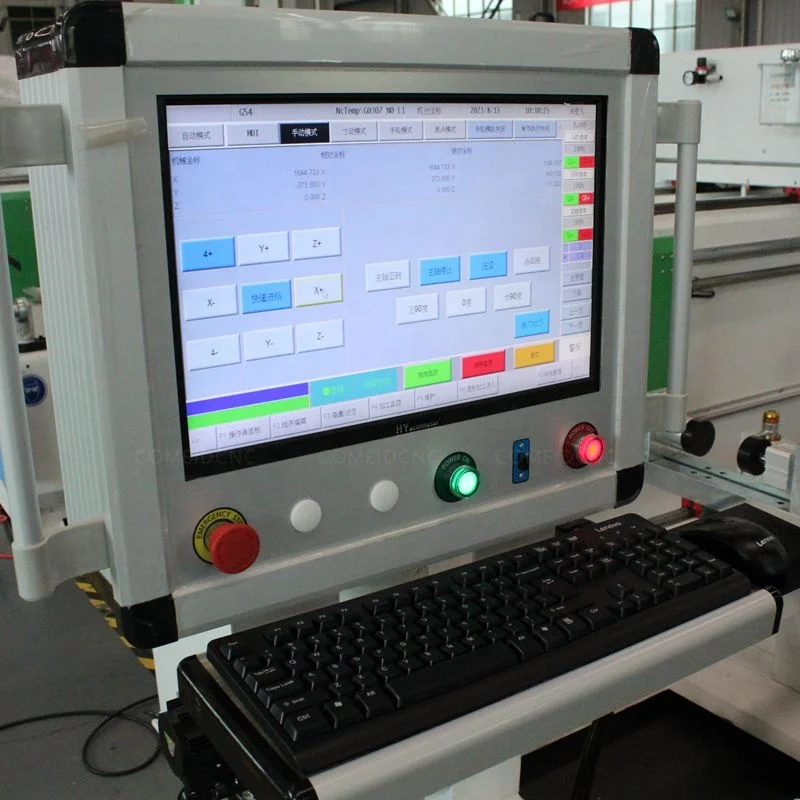

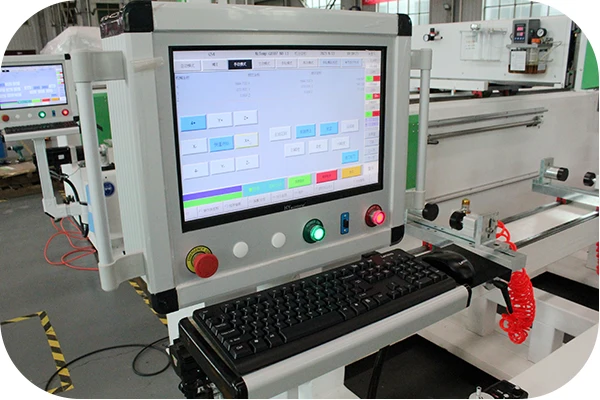

2. SYNTEC intelligent CNC system
3. Working profile 300*200*200mm

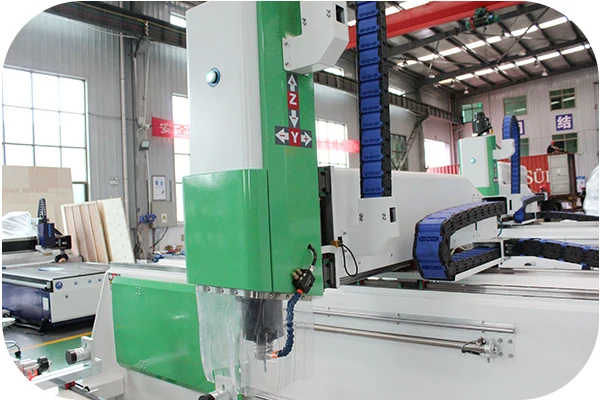

4. 9kw large power spindle motor with ATC auto tool changer

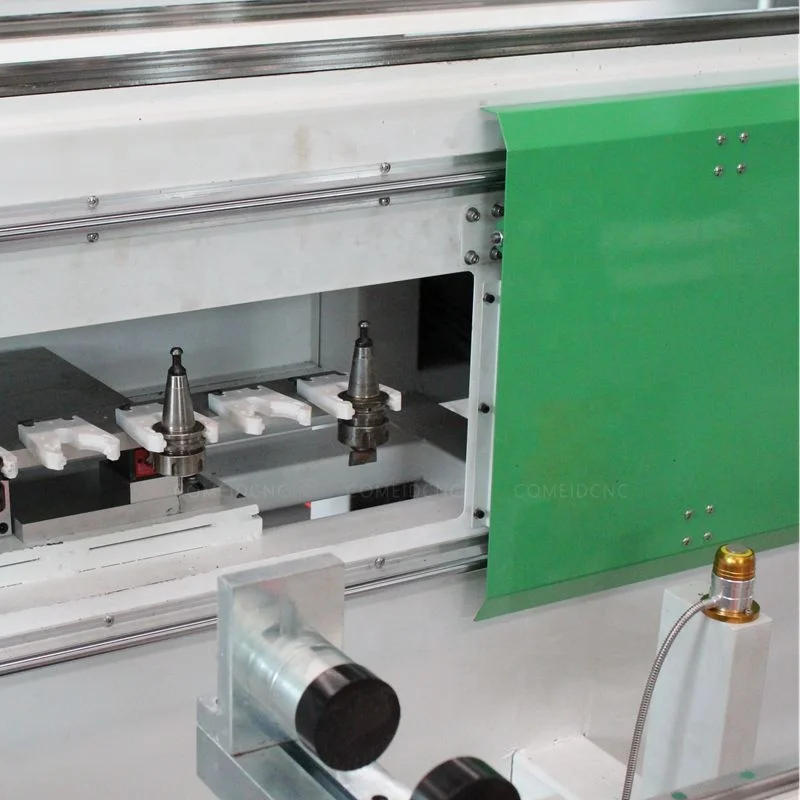

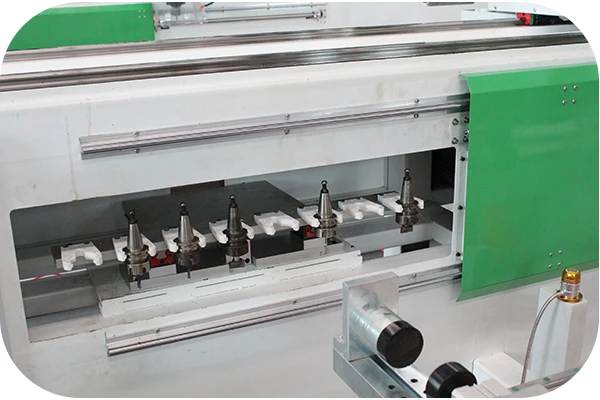

5. 8 pcs with hidden linear tool store
6. Japan SHIMPO speed reducer

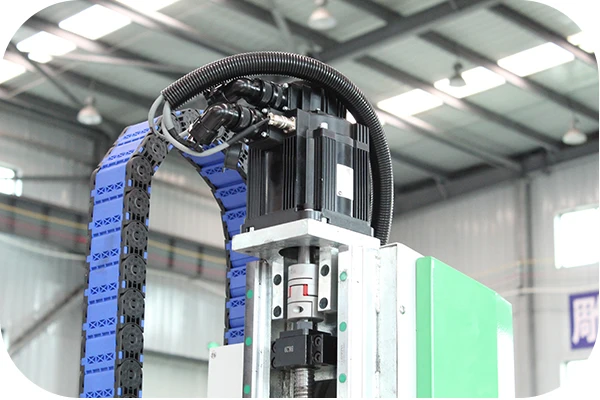

7. LEADSHINE 1500W AC servo motors and drivers
Machine Name | Drilling and milling machine |
Working on Profile | 3000*200*200mm |
Control System | Taiwan Syntec 60CA Controller |

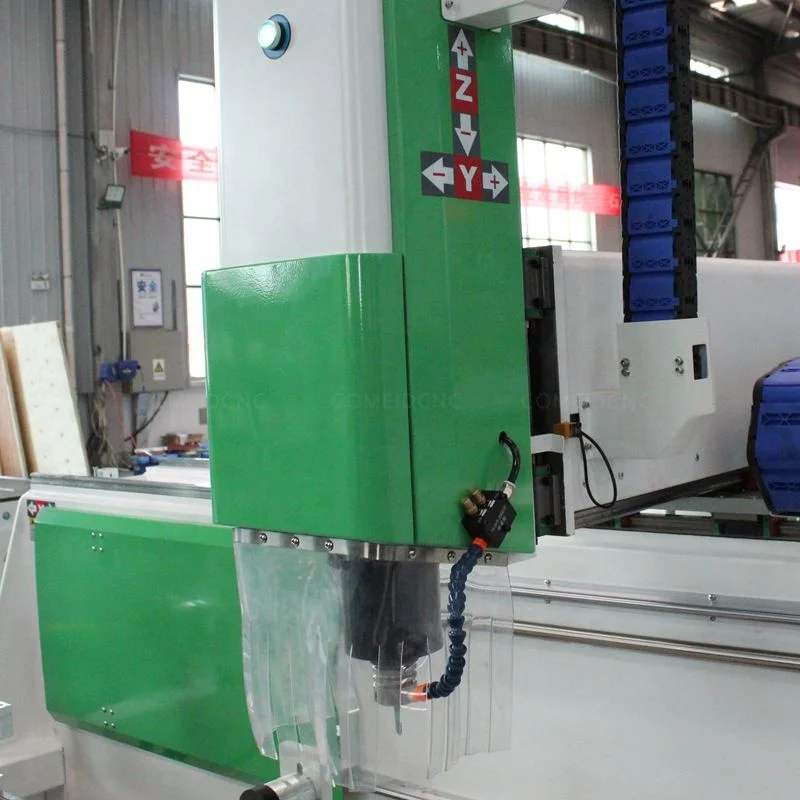

Spindle Motor | HQD 9kw air cooling spindle |
Motor and Driver | LEADSHINE 1500w servo motor and driver |
Inverter | FULING 11kw inverter |
Reducer | Japan SHIMPO reducer |
Rail | (X/Y/Z) Taiwan HIWIN 25/25/25, (Z) TBI 3025 screw |
Max. Speed | X/Y/Z 65/65/20 m/min |
Voltage | 380V/3PH/50HZ |
Oil mist device | yes |
Auto Tool sensor | yes |
 | SYNTEC controller famous brand made in Taiwan,China |
 | Rotate table with 0, -90, +90 degree 3 sides |
 | 9kw ATC spindle motor big power |
 | 8 pcs linear tool store for multi -functions |
 | AC Servo motor system 1500W table use 2000W servo motor |

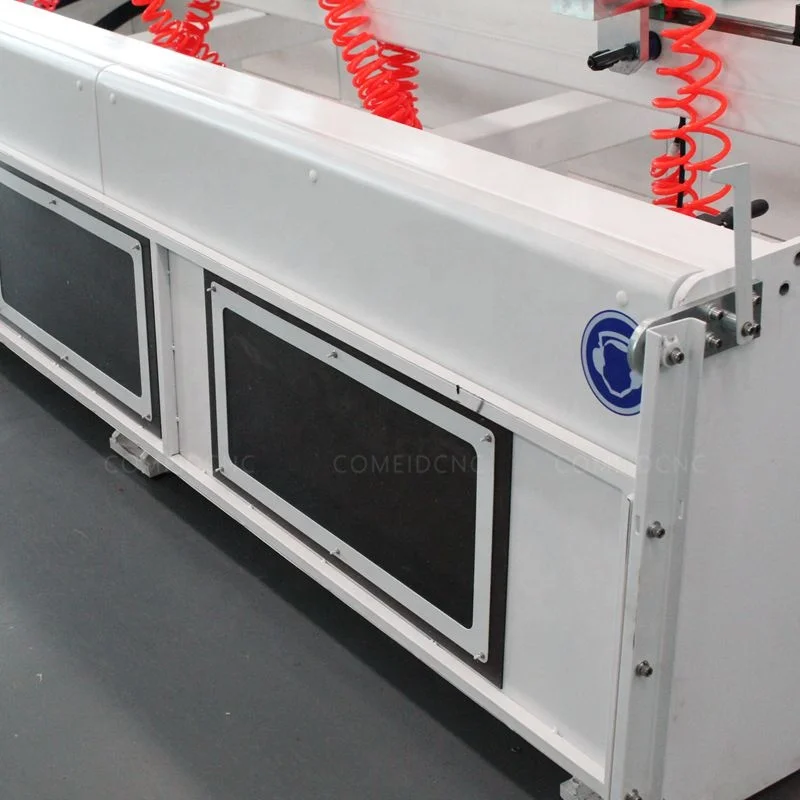

 | Protect Door unique design |
Applicable material:
Packaging & Shipping

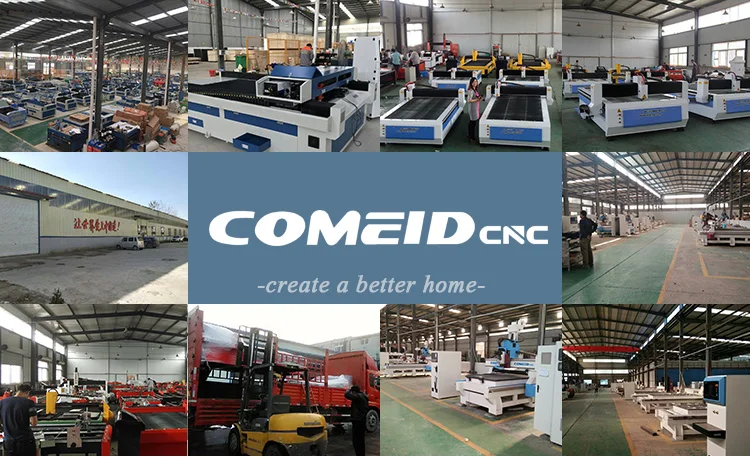

Company Information
Since 2009 our company began production and sales of CNC equipment. It accumulated customers and dealers from all around the world. Their feedback help improving product value-added.
Publicity, sales, production, inventory, quality control, R & D departments perForm their duties orderly. Product design with good operation, important parts carefully selected, low failure rate.
Production of 50 per month production capacity, each machine manufactured before the rigorous testing and 8 hours uninterrupted operation.
It provides excellent service. According to customer needs to choose the most suitable products. 24-hour telephone, mail, WeChat in a timely manner. Software and mechanical engineers accumulated years of experience, they offer quick and effective after-sale problem-solving.
FAQ
1.How about the documents after shipment?
After shipment, we will send original documents to you by DHL which including Packing List,
Commercial Invoice, Bill of Landing, and other certificates as required by Clients.
2.How long is the delivery time?
For standard machines, it would be 7-10 days; For special ordered machines, it would be 15 to 30 days depends on the factory arrangement.
3.Do You Arrange Shipment For The Machines?
Yes, we will arrange shipment for you with FOB and CIF tem as you required.
4.How is the packing?
Waterproof plastic film package with foam protection in each corner. Plywood Wood Case Package with Steel Belt. It save space as much as possible for container loading.
5.Payment terms:
--TIT : 30% TIT in advance and pay the balance 70% against goods ready before shipping.
—Western Union :Total amount should be below than $5000USD Warranty: 1 year except consumables as the cutting nozzles.
Skype ID: rose.huango7 Leave me message please. I will reply you as soon as possible.
