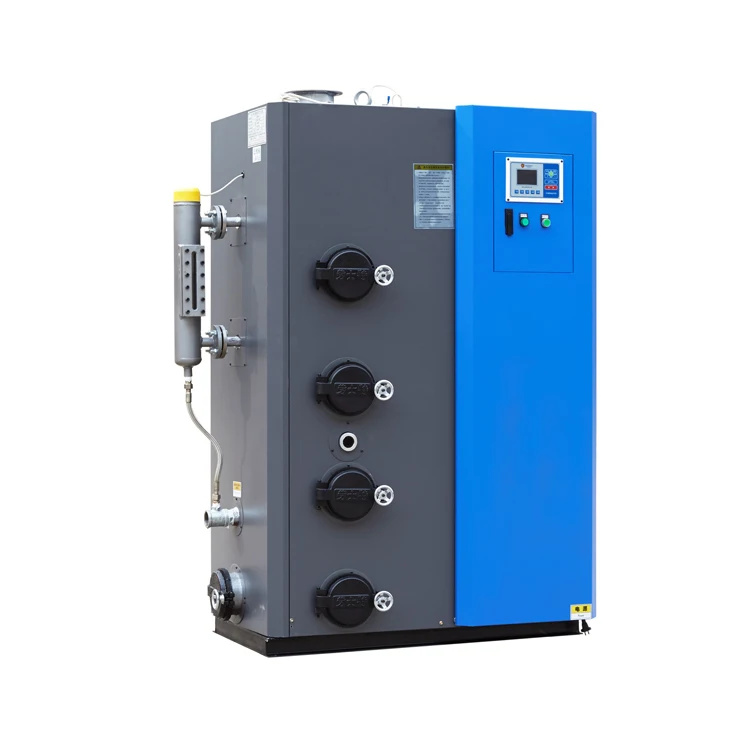

100kg 200kg 300kg 600kg Small Biomass /Wood Pellet Fired Steam Generator Boiler

Product Overview

Description

100kg 200kg 300kg 600kg Small Biomass /Wood Pellet Fired Steam Generator Boiler

Biomass steam generator adopts multi-tempering pipe structure, which has longer service life and lower maintenance cost than ordinary water pipe structure.It is equipped with energy-saving devices,make full use of flue gas waste heat, thermal efficiency up to 90%, steam production speed greatly improved. Furnace bile adopts high quality silicate insulation material to prevent heat dissipation;The overall appearance design adopts spraying technology,which is beautiful and generous.

Model	LSG0.1-0.7-M	LSG0.2-0.7-M	LSH0.3-0.7-M	LSH0.6-0.7-M	QXG1.0-0.8-SCIII
Rated steam capacity(KG/h)	100	200	300	600	1000
Rated steam pressure(Mpa)	0.7Mpa				0.8Mpa
Thermal efficiency	≥92%
Fuel bunker capacity(KG)	90	110	150	300	400
Hourly fuel consumption(KG/H)	12-19	26-33	50-55	100-110	180-190
Transport weight(KG)	650	1000	1200	2400	7000



Product Advantages:

1. Forced circulation structure, fast water flow speed, and high heat transfer efficiency.
2. Full touch screen controller, intelligent operation, adjustable 5-speed firepower size
3. The combination of built-in energy-saving device and external waste heat recovery device can double absorb the heat of flue gas, making it more energy-efficient.
4. The steam production speed is fast, and after normal fuel combustion, it only takes 4-5 minutes to increase the pressure to 0.4Mpa
5. Specially designed large furnace with wide fuel applicability.
6. High temperature flue gas flows through the large channel, making it easy to clean the ash. Multiple cleaning and maintenance ports are installed to ensure that there are no dead corners in the later cleaning and maintenance.

Product Application:

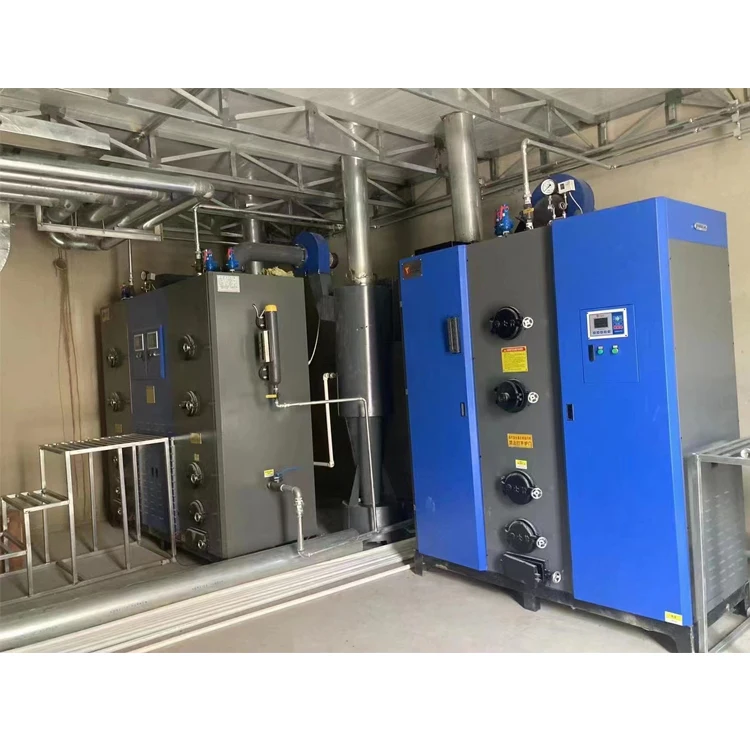

Biomass steam generator widely used in plants greenhouses supply heating; Hotels, guesthouses, sauna bath center, beauty salon, villas, factories, schools and enterprises and institutions,scouring bath,heating and drying with hot water.
