Product Overview

Description



Product Overview

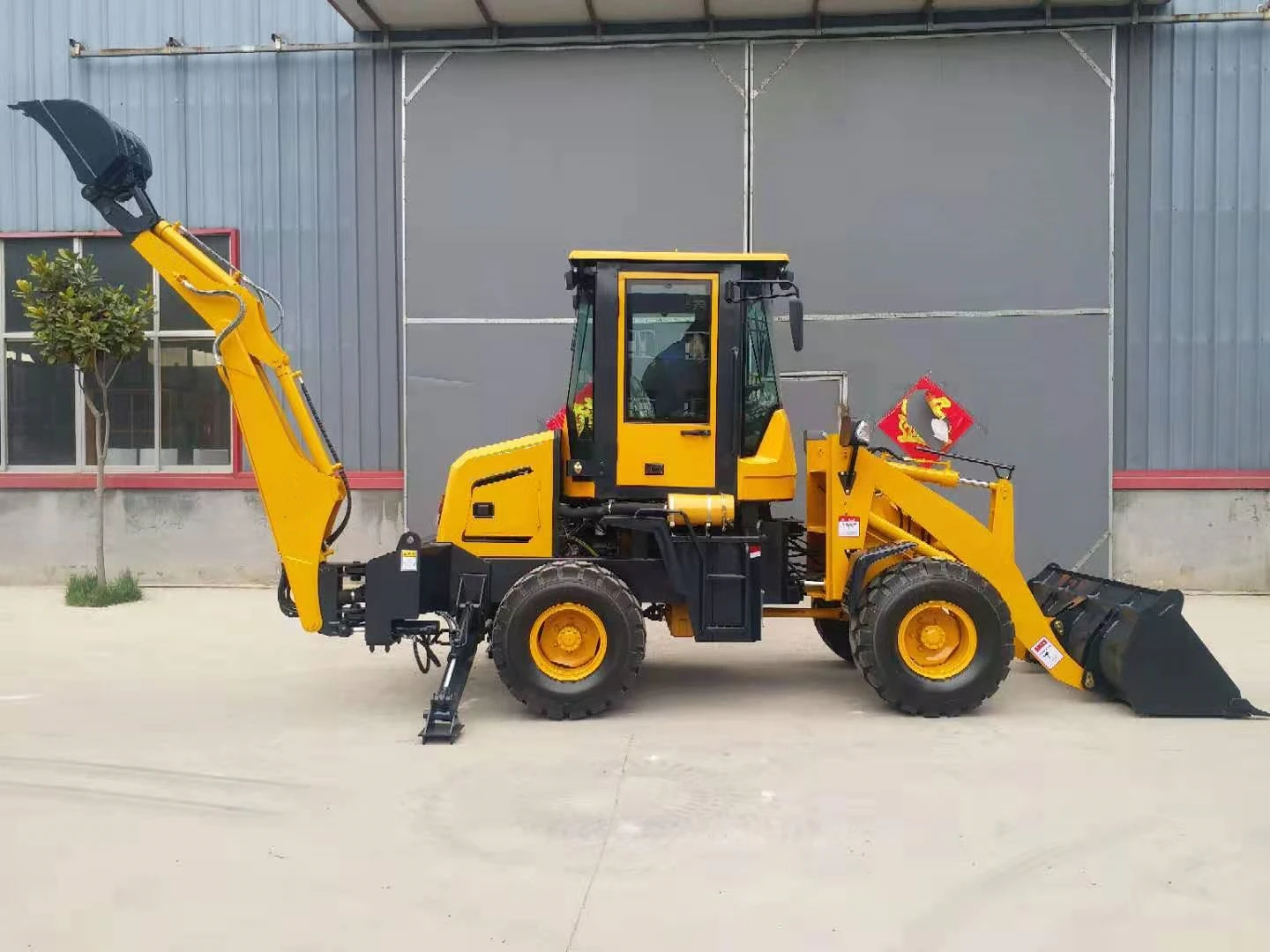

Chinese Cheap Backhoe Loaders
Small backhoe excavator features, shovel transport to ensure that the original load function is not affected, when the excavation part folding weight, excavation load part chassis support, the two parts do not affect each other, but also can help each other.Power is mainly equipped with a four-cylinder 490 engine, more than 50 horsepower, energy-saving and efficient, enough power 30% throttle can be normal excavation.When excavating, loading and exchanging, the seat rotates at any time, with wide sight and simple operation.The chassis part adopts isuzu weight axle, four-wheel drive is equipped with engineering tires, which has good cross-country assability.







Product Details








Model
AW10-50
AW10-20
AW15-26
AW15-28
AW25-30
Dimensions
6000*1410*2400mm
5500*1720*2650mm
5800*1850*2750mm
6200*1960*2850mm
6800*2040*2850mm
Operating Weight
2690 kg
3400 kg
4800 kg
5400 kg
6000 kg
Power
20 kw(27hp)
37 kw (50 hp)
55 kw (75 hp)
76 kw (104 hp)
92 kw (125 hp)
Gradeability
30°
30°
30°
30°
30°
Travel Speed
0 - 13 km/h
0 - 26 km/h
0 - 26 km/h
0 - 30km/h
0 - 30km/h
Working Pressure
16 MPa
16 MPa
16 MPa
16 MPa
16 MPa
Wheel Tread
1630 mm
1630 mm
1550 mm
1630 mm
1630 mm
Wheel Base
1780 mm
2670 mm
2670 mm
2670 mm
2670 mm
Tire Model
16.5-10
20.5 - 16
23.5 - 16
16/70 - 20
16/70 - 20
Tire Pressure
250 KPa
250 KPa
250 KPa
250 KPa
250 KPa
Transmission Type
Hydraulic
Hydraulic
Hydraulic
Hydraulic
Hydraulic
Braking System
Oil brake
Air Assist
Air Assist
Air Assist
Air Assist
Min. Turning Radius
4500mm
3500 mm
4000 mm
4500 mm
4500 mm
Loading Parameters
Rated Load
1000kg
1500 kg
2000 kg
2500 kg
3000 kg
Loader Capacity
0.8 cbm
0.75 cbm
1.0 cbm
1.25 cbm
1.5 cbm
Loader Max. Dumping Height
2200mm
2800 mm
3300 mm
3500 mm
3500 mm
Loader Max. Dumping Distance
1000mm
800 mm
900 mm
900 mm
900 mm
Loader Max. Breakout Force
42kn(4284 kg)
36 kn (3672 kg)
36 kn (3672 kg)
42 kn (4284 kg)
42 kn (4284 kg)
Excavation Parameters
Bucket Capacity
0.1cbm
0.1 cbm
0.15 cbm
0.2 cbm
0.3 cbm
Max. Excavation Depth
1500mm
2000 mm
2700 mm
2600 mm
2600 mm
Max. Excavation Height
3000mm
3300 mm
4200 mm
4300 mm
4400 mm
Max. Excavation Radius
2700mm
2900 mm
4600 mm
4600 mm
4600 mm
Max. Dumping Height
1600mm
1850 mm
2200 mm
2300 mm
2300 mm
Max. Breakout Force
28 kn (2856 kg)
25 kn (2550 kg)
28 kn (2856 kg)
28 kn (2856 kg)
28 kn (2856 kg)

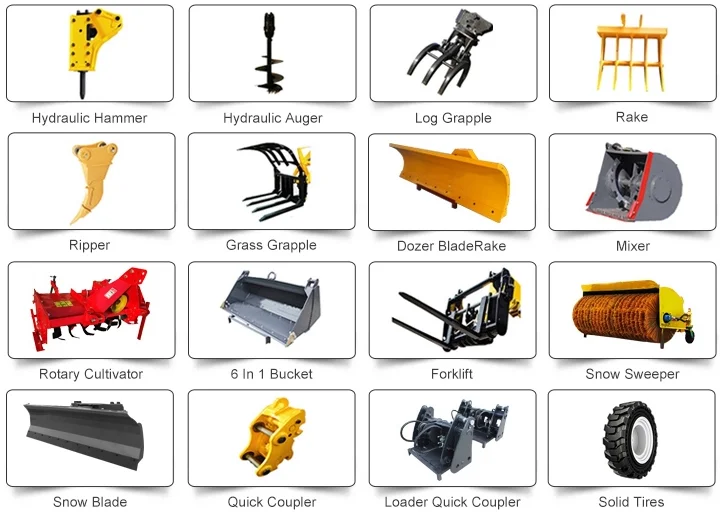

Attachment






Company Profile




Jining Aowei Machine Co., Ltd. is a modern enterprise which is specialized in producing all kinds of Mini excavators,Road rollers,Self Dumpers ,Skid steer loaders, wheel loaders, Tractors and Forklifts etc. Our products are exported to clients in such countries and regions as United States, Southeast Asia, Australia, Europe, Russia, the Middle East, Africa. We also welcome OEM and ODM orders. Our company locates in Jining city, Shandong province, which is the "Home of Confucius and Mencius, the State of Etiquette”,and also Jining is one of four Chinese construction machinery bases famous of Shantui and Komatsu brand. Our company offers bulk export processing trade products, and other services to meet customer's needs.We hope to cooperate with you mutual success and we can be your trustworthy friend in the future!
