Manufacturer Lowest Price Refractory 68% 75% 80% 92% Inert Al2O3 Grinding Polishing High Alumina Refractory Ball For Ball Mill
- Category: >>>
- Supplier: Henan Rongsheng Xinwei New Material Research Institute Co. Ltd.
Share on (1600967790438):
Product Overview
Description

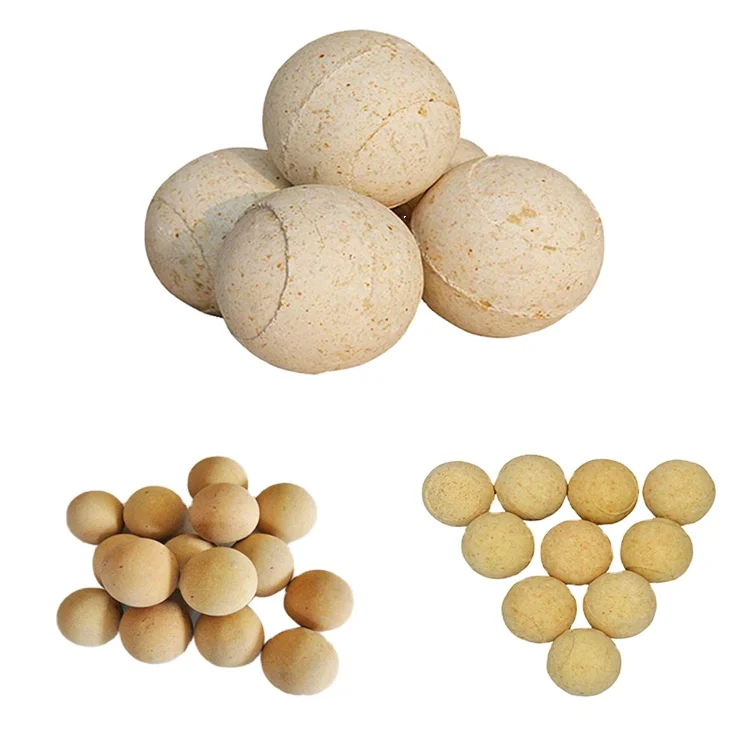

High Alumina Refractory Ball
Refractory materials with an Al2O3 mass fraction greater than 45% and based on alumina or aluminosilicate are called high-aluminum refractory materials. High-aluminum refractory products have different mineral compositions due to different Al2O3 contents. As the Al2O3 content increases, the mullite and corundum crystal phases in the product increase, while the glass phase decreases correspondingly, and the refractoriness increases accordingly. Generally, the refractory degree of high-aluminum refractory balls is not less than 1750~1790℃, and the temperature at which the ball begins to soften under load is not less than 1400~1530℃.
High alumina | Low creep | Mullite | Corundum | |
Size(mm) | 40-80 | 40-80 | 40-80 | 40-80 |
AL2O3(%) | 65 | 70 | 75 | 95 |
Refractoriness under load(°C) | 1450 | 1460 | 1530 | 1650 |
Apparent Porosity(%) | 25 | 23 | 22 | 18 |
Bulk Density(g/cm3) | 2.3 | 2.4 | 2.5 | 3.1 |
Cold crushing strength(Mpa) | 13 | 14 | 32 | 36 |
Thermal shock resistance (1100°Cwater cooling) cycle ≥ | 15 | 10 | 20 | 7 |
Refractoriness(°C) | 1710 | 1750 | 1800 | 1800 |
High Alumina Ceramic Ball | ||||||||
≥90 | ≥92 | ≥95 | ≥99 | |||||
Fe2O3% | ≤0.28 | ≤0.25 | ≤0.15 | ≤0.10 | ||||
SiO2% | ≤6 | ≤4 | ≤2 | ≤0.3 | ||||
Refractoriness% | ≥1750 | ≥1780 | ≥7800 | ≥1850 | ||||
Compressive Strength, MPa | ≥90 | ≥120 | ≥150 | ≥180 | ||||
Waterabsorption,% | ≤5 | ≤5 | ≤5 | ≤5 | ||||
Acid resistance% | ≥98.5 | ≥98.5 | ≥98.6 | ≥98.8 | ||||
Alkali resistance% | ≥90 | ≥92 | ≥93 | ≥95.5 | ||||
Thermal Shock Resistance, ℃ | 800 | 820 | 850 | 900 | ||||
Bulk Density, g/cm3 | ≥2.8 | ≥3.0 | ≥3.1 | ≥3.2 | ||||
High Aluminum Balls
High-aluminum balls are produced from high-temperature alumina powder and can be subdivided into four series: 90, 92, 95 and 99.
High aluminum balls are available in two types: inert and active. Active high-aluminum balls can be used to absorb impurities and purify products. Inert high alumina balls can be used for grinding or as chemical fillers.
High aluminum balls are available in two types: inert and active. Active high-aluminum balls can be used to absorb impurities and purify products. Inert high alumina balls can be used for grinding or as chemical fillers.
High Alumina Ceramic Balls
High alumina ceramic balls are mainly used in ceramic factories. The data shows that using natural ball stones and grinding balls with a content of 10% can shorten the ball milling time by about 15%. Using medium aluminum balls and 30% high alumina ceramic ball grinding balls can shorten the ball milling time compared with grinding with only medium aluminum balls. About 15%. The milling time can be shortened by about 30%.
High Purity Aluminum Refractory Balls
1. High hardness and mechanical strength.
2. Fine crystals, high-density polycrystalline composition, excellent wear resistance, especially excellent corrosion resistance to fluids and powders.
3. Stable chemical properties and good acid and alkali corrosion resistance.
4. High purity, suitable for processing high-purity materials
5. High thermal conductivity and very low content of radioactive isotopes
2. Fine crystals, high-density polycrystalline composition, excellent wear resistance, especially excellent corrosion resistance to fluids and powders.
3. Stable chemical properties and good acid and alkali corrosion resistance.
4. High purity, suitable for processing high-purity materials
5. High thermal conductivity and very low content of radioactive isotopes
Refractory balls Alumina ceramic balls are used in high and low temperature reformers, reformers, hydrogenation, desulfurization tanks and methanation furnaces in fertilizer plants to disperse liquids and support, cover and protect catalysts. They can also be used in ironmaking , heating furnaces for iron making, etc. In the steel industry and transformation equipment, ordinary refractory balls are suitable for converters and transformation furnaces in the sulfuric acid and fertilizer industries, while high-aluminum refractory balls are suitable for equipment in the steel, urea, hot blast furnaces, heating and transformation furnaces and other industries.
By applying these refractory materials to preheat gas (blast furnace) and air, the flue gas volume of the regenerative heating furnace can be reduced to 20-50%, the flue gas temperature can be reduced to below 150 degrees, and the output can be increased by 15- 20%, heating time is reduced by 50%, oxidation and burning loss are reduced, and environmental protection and energy saving are 30-50%.
By applying these refractory materials to preheat gas (blast furnace) and air, the flue gas volume of the regenerative heating furnace can be reduced to 20-50%, the flue gas temperature can be reduced to below 150 degrees, and the output can be increased by 15- 20%, heating time is reduced by 50%, oxidation and burning loss are reduced, and environmental protection and energy saving are 30-50%.
High Aluminum Refractory Ball Process Notes
1. The technical department conducts sample trial burning of the raw materials of the refractory balls, tests the physical and chemical indicators of the products after the trial burning, processes the raw materials that meet the requirements into 0-3 particle size and 180 mesh powder, and passes them through a 16000 high magnetic iron remover. Remove iron and enter the silo for use.
2. The mold workshop makes molds according to the mold production drawings and scaling ratios issued by the technical department. The dimensions of the semi-finished products must be checked and heated after confirmation.
3. In the molding workshop, the particle size and fineness of the raw materials are randomly inspected using a sample sieve. After passing the test, the raw materials are proportioned through the electronic batching truck and then entered into the mixer for mixing. The raw materials are locked out of the pot in 10-15 minutes, 2-4 After forming, it is installed in the kiln.
4. In the firing workshop, the semi-finished refractory balls entering the kiln must be inspected for size burrs and brown eyes. Only after the inspection is correct can the kiln be installed and the sintering temperature adjusted.
5. The finished refractory balls will be inspected for size and appearance, a self-inspection test report will be issued, and the physical and chemical indicators will be verified before shipment.
2. The mold workshop makes molds according to the mold production drawings and scaling ratios issued by the technical department. The dimensions of the semi-finished products must be checked and heated after confirmation.
3. In the molding workshop, the particle size and fineness of the raw materials are randomly inspected using a sample sieve. After passing the test, the raw materials are proportioned through the electronic batching truck and then entered into the mixer for mixing. The raw materials are locked out of the pot in 10-15 minutes, 2-4 After forming, it is installed in the kiln.
4. In the firing workshop, the semi-finished refractory balls entering the kiln must be inspected for size burrs and brown eyes. Only after the inspection is correct can the kiln be installed and the sintering temperature adjusted.
5. The finished refractory balls will be inspected for size and appearance, a self-inspection test report will be issued, and the physical and chemical indicators will be verified before shipment.
Customer Photos
Exhibition
Henan Rongsheng Xinwei New Materials Research Institute Co., Ltd.
1.Has More Than 20 Years Of Experience In Refractory Production And Export In China.
3.A State-Of-The-Art Logistic System And Warehouse Facilities and Strong And Friendly Marketing Team.
2.Covering a Full Range Of Shaped And Unshaped Refractory Products. Such As High Alumina Seriesbricks. Mullite Bricks, Corundum Series Bricks, Silica Series Bricks, Andalusite Bricks, Magnesiaseries Brick Carborundum Brick, Insulating Series Brick,
Insulating And Dense Castables.
3.A State-Of-The-Art Logistic System And Warehouse Facilities and Strong And Friendly Marketing Team.
Product packaging
FAQ
Q1.You Are a Manufacture Or a Trading Company?
A: We Are Truly a Manufacture,Our Factory Is In Xinmi,Zhengzhou City,Henan Province.We Not Only Can Provide The High Quality Products With The Best Price,But Also Can Offer The Best Pre-Sale Service And After-Service.
Q2.What Kind Of Product Can You Offer?
A: Our Company Can Offer a Series Products For Kiln Construction.For Example:Refractory Brick,Refractory Castable,Refractory Materials,Ceramic Fiber Products,and so on.
A: We Are Truly a Manufacture,Our Factory Is In Xinmi,Zhengzhou City,Henan Province.We Not Only Can Provide The High Quality Products With The Best Price,But Also Can Offer The Best Pre-Sale Service And After-Service.
Q2.What Kind Of Product Can You Offer?
A: Our Company Can Offer a Series Products For Kiln Construction.For Example:Refractory Brick,Refractory Castable,Refractory Materials,Ceramic Fiber Products,and so on.
Q3.Can Your Company Provide Samples Or Can We Have a Visit To Your Factory?
A: Of Course,Samples Are Available,And You Are Welcome To Visit Our Factory At Anytime,We Will Arrange Professional Reception Personnel To Patiently Explain To You.
Q4.Why Choose You Over Other Suppliers?
A: We Are Truly a Manufacture.We Have a Large Scale, Strong Strength, And Rich Experience, Professional Technology, And Perfect Customer Service, And Have Obtained Various Certifications Such As CE/ISO9001/ISO45001.
Q5. Do You Accept OEM?
A: Yes, We Support OEM.
Q6. How Long Is Delivery Time?
A: The Delivery Time Usually Depends On The Order Quantity, Usually Around 7-12 Days.
7. How Are Your Products' Quality?
A: The Products Will Be Strictly Inspected Before Shipment, So The Quality Could Be Guaranteed.
A: Of Course,Samples Are Available,And You Are Welcome To Visit Our Factory At Anytime,We Will Arrange Professional Reception Personnel To Patiently Explain To You.
Q4.Why Choose You Over Other Suppliers?
A: We Are Truly a Manufacture.We Have a Large Scale, Strong Strength, And Rich Experience, Professional Technology, And Perfect Customer Service, And Have Obtained Various Certifications Such As CE/ISO9001/ISO45001.
Q5. Do You Accept OEM?
A: Yes, We Support OEM.
Q6. How Long Is Delivery Time?
A: The Delivery Time Usually Depends On The Order Quantity, Usually Around 7-12 Days.
7. How Are Your Products' Quality?
A: The Products Will Be Strictly Inspected Before Shipment, So The Quality Could Be Guaranteed.
