Optical patch cord Multimode 3.0mm OFNR Duplex Patch Cord OM3 Fiber Patch Cord E2000 connectors
- Category: >>>
- Supplier: JFOPT CO. LTD.
Share on (1600967795342):
Product Overview
Description
MM 50/125 Aqua fiber optic patch cord 2.0 3.0mm FO E2000-E2000 connector PVC LSZH jacket patch cord OM3
PATCH CORD MODE
E2000-E2000 OM1&OM2
E2000-E2000 OM3&OM4

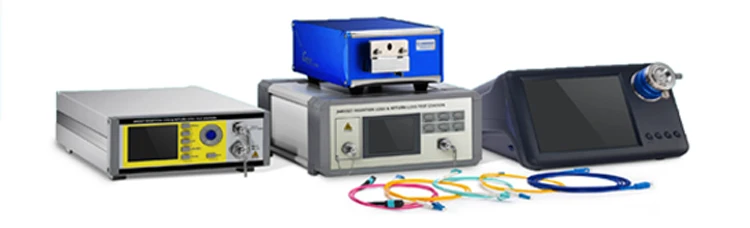

JFOPT has more than 20 years of experience in the production of fiber optic patch cords. The products comply with TIA 604 (FOCIS), IEC 61754 and YD / T industry standards. Each patch cord is 100% rigorously tested. JFOPT can provide fiber optic patch cord that comply with OS2, OM1, OM2, OM3, OM4, and OM5 standards, which can meet the requirements of Gigabit Ethernet, 10 Gigabit Ethernet and high-speed Fibre Channel applications. JFOPT patch cord products have been widely used in data center, enterprise, FTTx, LAN and WAN, cable TV networks, and telecommunications network applications.
ORDERING INFORMATION
Item | Parameter |
Mode | SM/OM1/OM2/OM3/OM4/OM5 |

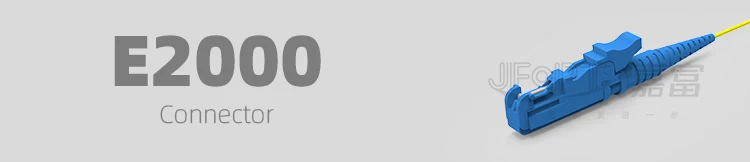

Connector | E2000 |
Jacket Material | PVC/LSZH/PU/PE or customized |
Jackt Color | Blue/Orange /Green /Brown /Gray /White /Red/Black/Yellow/Purple/Pink /Aqua |
Fiber Count | Duplex |
PRODUCT DETAILS
Technical Performance | ||||||||
Connector Characteristics | Connector Type | E2000 | ||||||
Polish Type | SM: UPC/APC；MM: UPC | |||||||
Ferrule Type | Grade A zirconia ceramic ferrule | |||||||
Matching Cable Outer Diameter | 0.9mm/2.0mm/3.0mm | |||||||

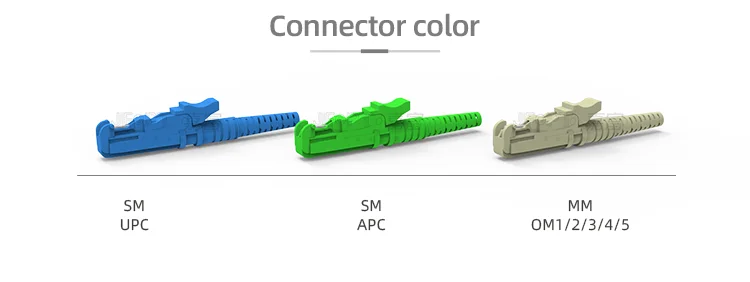

Connector Color | Blue/Green/Beige | |||||||
Insertion Loss | ≤0.3dB | |||||||
Return Loss | SM: UPC≥50dB; APC≥60dB; MM: ≥25dB | |||||||
Repeatability | ≤0.2dB | |||||||
Interchangeability | ≤0.2dB | |||||||
Cable Characteristics | Fiber Type | OS2/OM1/OM2/OM3/OM4/OM5 | ||||||
Fiber Count | Simplex/Duplex/Multi-core | |||||||
Jacket Material | PVC/LSZH/PU/PE or customized | |||||||
Jackt Color | blue/orange /green /brown /gray /white /red/black /yellow/purple/pink /aqua | |||||||
Temperature Characteristics | Operating Temperature | -20~70℃ | ||||||
Storage Temperature | -40~80℃ | |||||||
Transmission Performance | ||||||
Optical fiber type | Wavelength | Attenuation | Unit | |||
G652 | 1310nm | ≤0.32 | dB/km | |||
1550nm | ≤0.18 | dB/km | ||||
1625nm | ≤0.20 | dB/km | ||||
G654 | 1550nm | ≤0.19 | dB/km | |||
1625nm | ≤0.21 | dB/km | ||||
G655 | 1550nm | ≤0.22 | dB/km | |||
1625nm | ≤0.24 | dB/km | ||||
G656 | 1310nm | ≤0.38 | dB/km | |||
1383nm | ≤1.00 | dB/km | ||||
1460nm | ≤0.28 | dB/km | ||||
1550nm | ≤0.21 | dB/km | ||||
1625nm | ≤0.24 | dB/km | ||||
G657 | 1310nm | ≤0.35 | dB/km | |||
1550nm | ≤0.21 | dB/km | ||||
1625nm | ≤0.23 | dB/km | ||||
62.5/125um (OM1) | 850nm | ≤2.7 | dB/km | |||
1300nm | ≤0.6 | dB/km | ||||
50/125um （OM2） | 850nm | ≤2.3 | dB/km | |||
1300nm | ≤0.6 | dB/km | ||||
OM3 | 850nm | ≤2.4 | dB/km | |||
1300nm | ≤0.6 | dB/km | ||||
OM4 | 850nm | ≤2.4 | dB/km | |||
1300nm | ≤0.6 | dB/km | ||||
OM5 | 850nm | ≤2.4 | dB/km | |||
953nm | ≤1.7 | dB/km | ||||
1300nm | ≤0.6 | dB/km | ||||

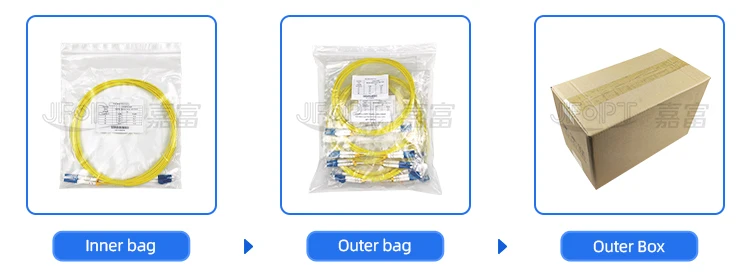

PRODUCT PACKING
