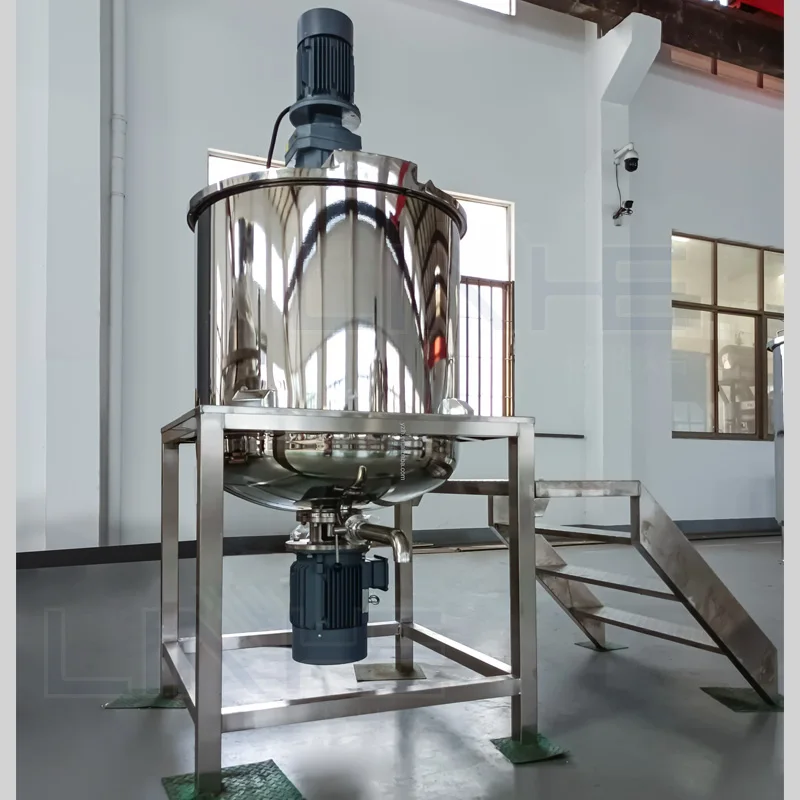

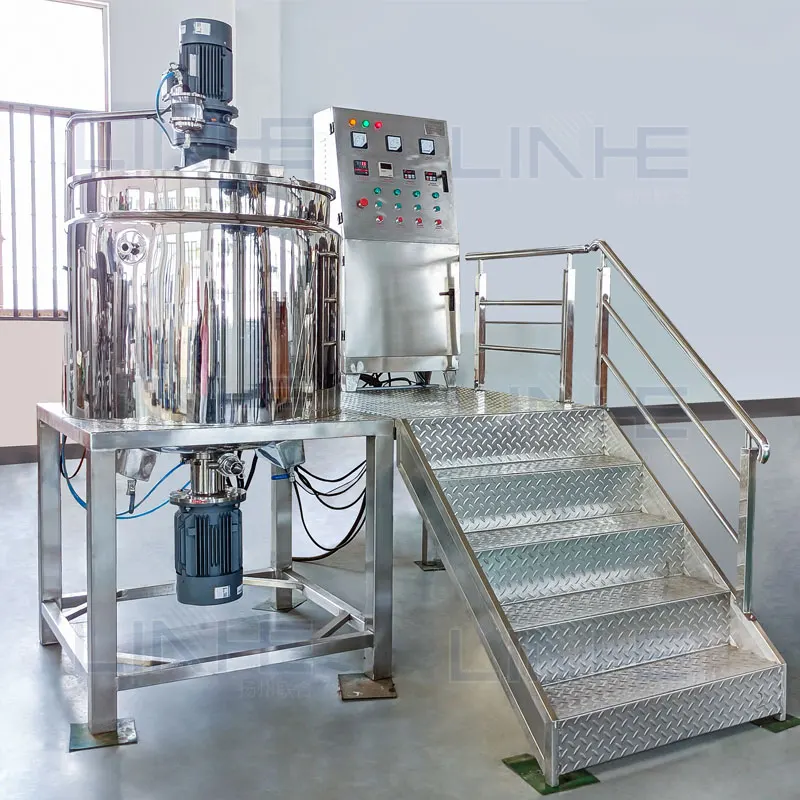

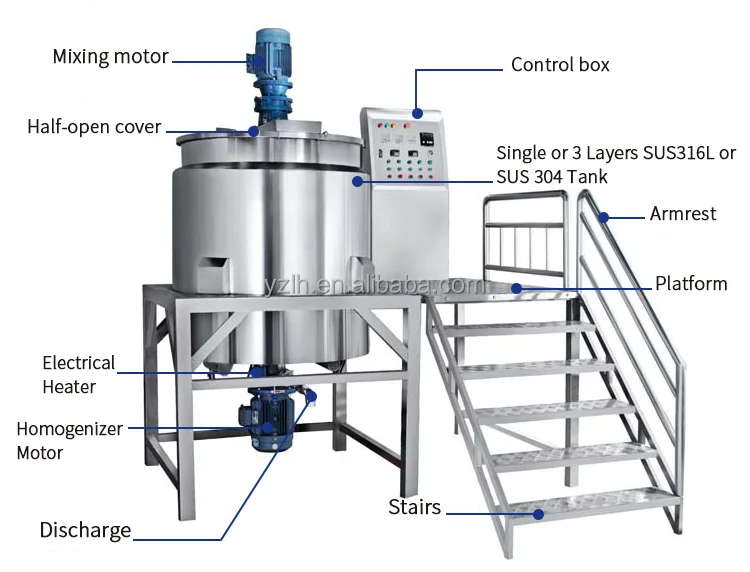

50 100 200 500 1000 Gallon Stainless Steel Stirrer Jacketed Electric Heating Liquid Homogenizer Mixing Tank with Agitator
- Category: >>>
- Supplier: Yangzhou Lianhe Chemical Machinery Co. Ltd.
Share on (1600967847079):
Product Overview
Description
VR
Product Description
Product Name | Hair Crepe Developer Shampoos Conditioner Dishwasher Liquid Soap Mixing Homogenizing Mixer Tank | ||||||
Material | SUS 304/316L | ||||||
Capacity | 50L-5000L, can be customized | ||||||
Application | This liquid mixing machine is mainly applied for manufacturing liquid washing products, such as shampoo, detergent, liquid soap,shower gel, etc. | ||||||
Feature 1 | Finished products can be discharged by valve or match a screw pump. | ||||||
Feature 2 | double mixing systems: top wall scraper mixer and high shear bottom homogenizer | ||||||
Feature 3 | heating systems: electric heating or steam heating optional, or without heatingmovable design: the mixing tank can be small batch products mixing | ||||||
Feature 4 | Industrial mixer/mixing equipment/mixing tank with agitator has high speed dispenser, mixing and disperse viscosity, solid and liquid, etc. Various kind of raw material will be dissolve which is such as AES, AESA LSA, during liquid production which can save energy consumption and shorten production period. | ||||||
Product Feature
Model | Capacity | Mixing Power/Speed | Homogenizer Power/Speed | Heating Method | ||||
PMC-100L | 100 Liter | 0.75KW / 0-60RPM | 1.5KW / 0-3000RPM | Steam heating energy conservation and environmental protection, selected according to need | ||||
PMC-200L | 200 Liter | 1.5KW / 0-60RPM | 2.2KW / 0-3000RPM | |||||
PMC-300L | 300 Liter | 1.5KW / 0-60RPM | 2.2KW / 0-3000RPM | |||||
PMC-500L | 500 Liter | 2.2KW / 0-60RPM | 4KW / 0-3000RPM | |||||
PMC-1000L | 1000 Liter | 4KW / 0-60RPM | 7.5KW / 0-3000RPM | |||||
PMC-2000L | 2000 Liter | 5.5KW / 0-60RPM | 11KW / 0-3000RPM | |||||
PMC-3000L | 3000 Liter | 7.5KW / 0-60RPM | 18KW / 0-3000RPM | |||||
PMC-5000L | 5000 Liter | 11KW / 0-60RPM | 22KW / 0-3000RPM | |||||
The parameters for reference ONLY, all the machines can be customized accordingly. | ||||||||
Motors can be Siemens or ABB brand optional;

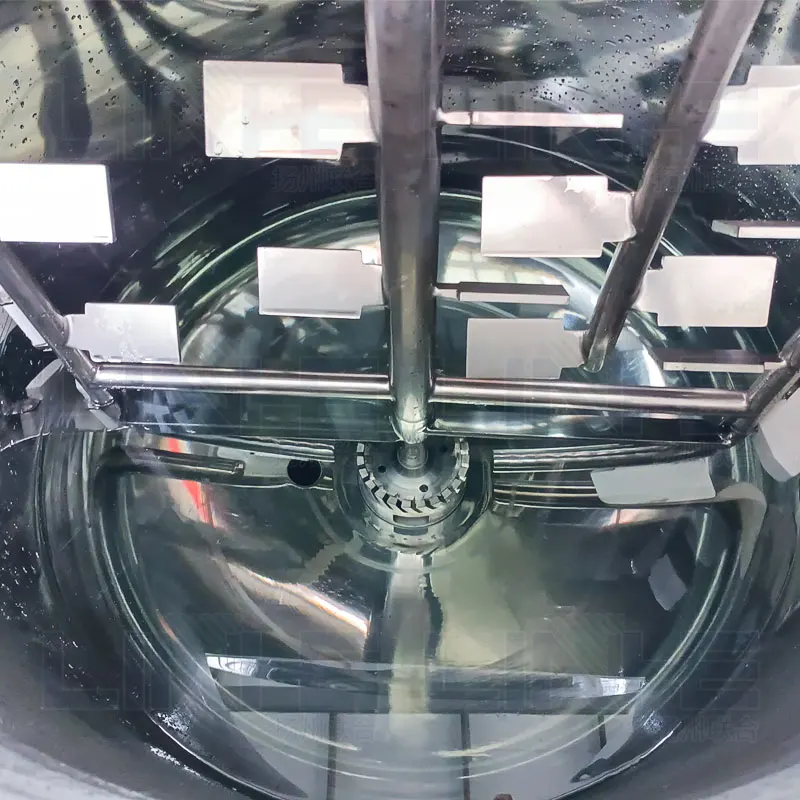

1. top wall-scraper mixer with teflon scraper, mixing speed 0-60RPM adjustable;

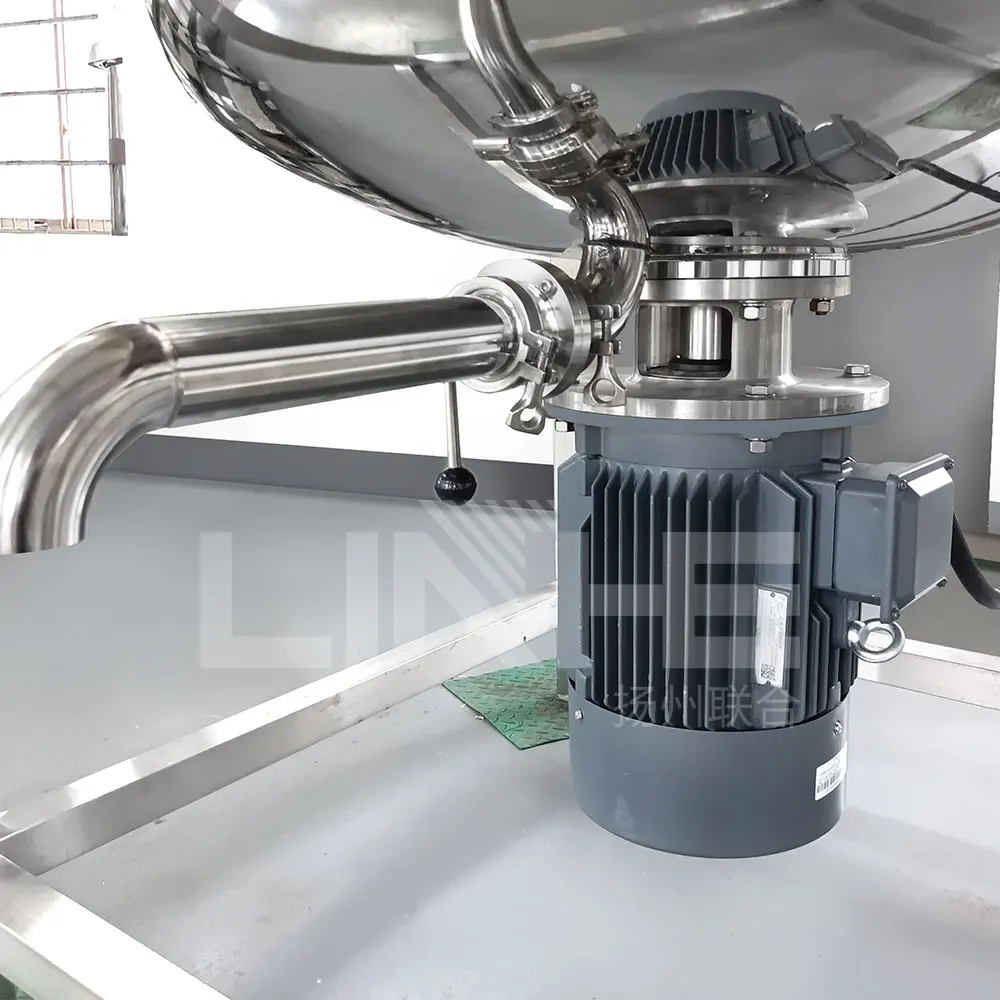

2. high shear bottom homogenizer 0-3000RPM speed adjustable
Control Box in stainless steel 304
DELIXI electronics, Delta VFD, other brand optional;
Bottom Discharge Port controlled by manual ball valve; easy to operate ON/OFF;
Different models for choosing
Application
Dear all, thank you for visiting our web. Hope you can find what you need here. For a more efficient communication, please refer to the following question when sending the inquiry.
1. What is your product? (liquid soap, or shampoo or ?)
2. What is the capacity you need?
3. Is your product highly corrosive?
4. Does the product needs heating when mixing?
1. What is your product? (liquid soap, or shampoo or ?)
2. What is the capacity you need?
3. Is your product highly corrosive?
4. Does the product needs heating when mixing?
Company Profile
FAQ
Q1: Are you a factory or trading company?
A1: We are a factory specialized in daily cosmetic and perfume equipment and other pressure vessels. Such as, water treatment,vacuum emulsifier, shampoo and liquid soap mixers , perfume making machine, storage tank, filling and packing machines etc. And we have relative pressure certificate to remove your worries.
Q2: Where is your factory location? How can I visit there?
A2: Our factory is located in Jiangsu, China, welcome to visit us at any time. You can take the plane to Shanghai and then take the highway to Zhenjiang Station(1 hour and 40 minutes), then we will pick u up.
Q3: How does your factory do regarding quality control?
A3: Quality is priority. We always attach great importance to quality controlling from the beginning to the end. We support to inspect machine before shipment.
Q4: What’s the guarantee if we purchase from you?
A4: All the equipment ordered from us will provide one year guarantee from the delivery date .If there is any wearing part be broken within the warranty and isn’t caused by improperly operation then we would offer the new parts for free.
Q5: How about the after service?
A5: There’s no problem we could send our engineer to install or fix the machine locally in due course but customer need to pay the round air tickets cost and arrange the hotel accommodation for our engineer.
Q6:Can you make the machine as per our request?
Yes, customized machines are acceptable. We can make the machine as per your request.
A1: We are a factory specialized in daily cosmetic and perfume equipment and other pressure vessels. Such as, water treatment,vacuum emulsifier, shampoo and liquid soap mixers , perfume making machine, storage tank, filling and packing machines etc. And we have relative pressure certificate to remove your worries.
Q2: Where is your factory location? How can I visit there?
A2: Our factory is located in Jiangsu, China, welcome to visit us at any time. You can take the plane to Shanghai and then take the highway to Zhenjiang Station(1 hour and 40 minutes), then we will pick u up.
Q3: How does your factory do regarding quality control?
A3: Quality is priority. We always attach great importance to quality controlling from the beginning to the end. We support to inspect machine before shipment.
Q4: What’s the guarantee if we purchase from you?
A4: All the equipment ordered from us will provide one year guarantee from the delivery date .If there is any wearing part be broken within the warranty and isn’t caused by improperly operation then we would offer the new parts for free.
Q5: How about the after service?
A5: There’s no problem we could send our engineer to install or fix the machine locally in due course but customer need to pay the round air tickets cost and arrange the hotel accommodation for our engineer.
Q6:Can you make the machine as per our request?
Yes, customized machines are acceptable. We can make the machine as per your request.
