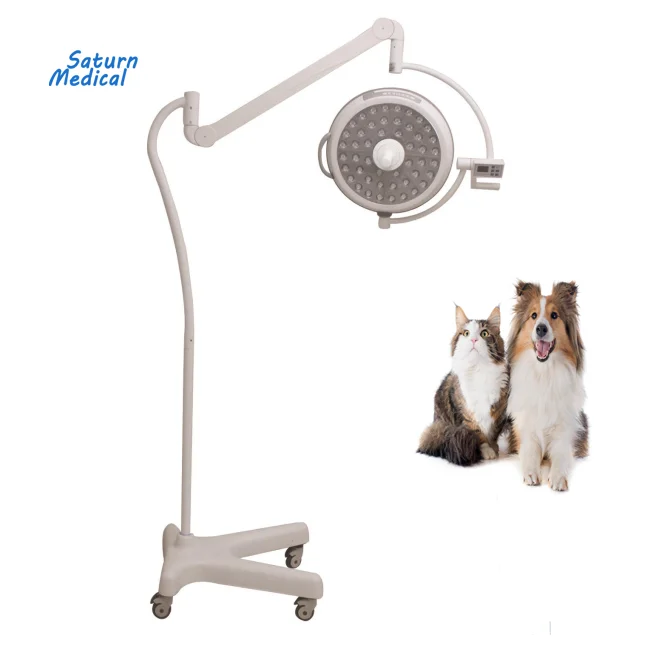

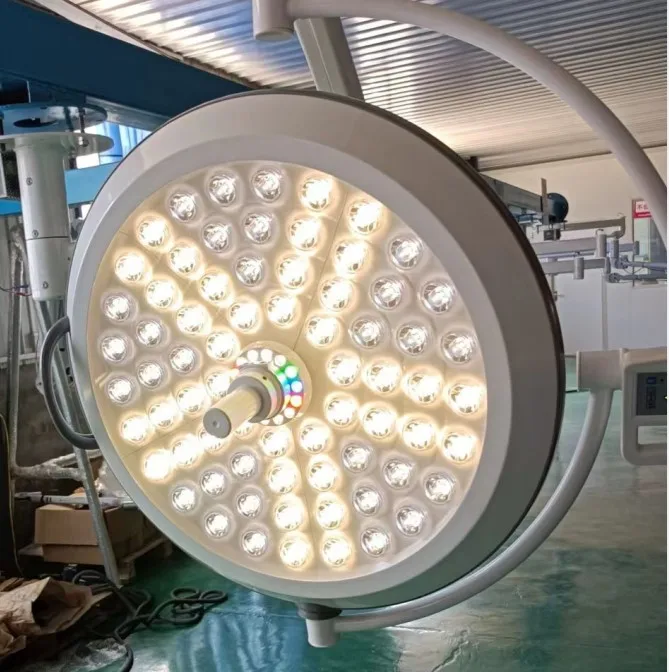

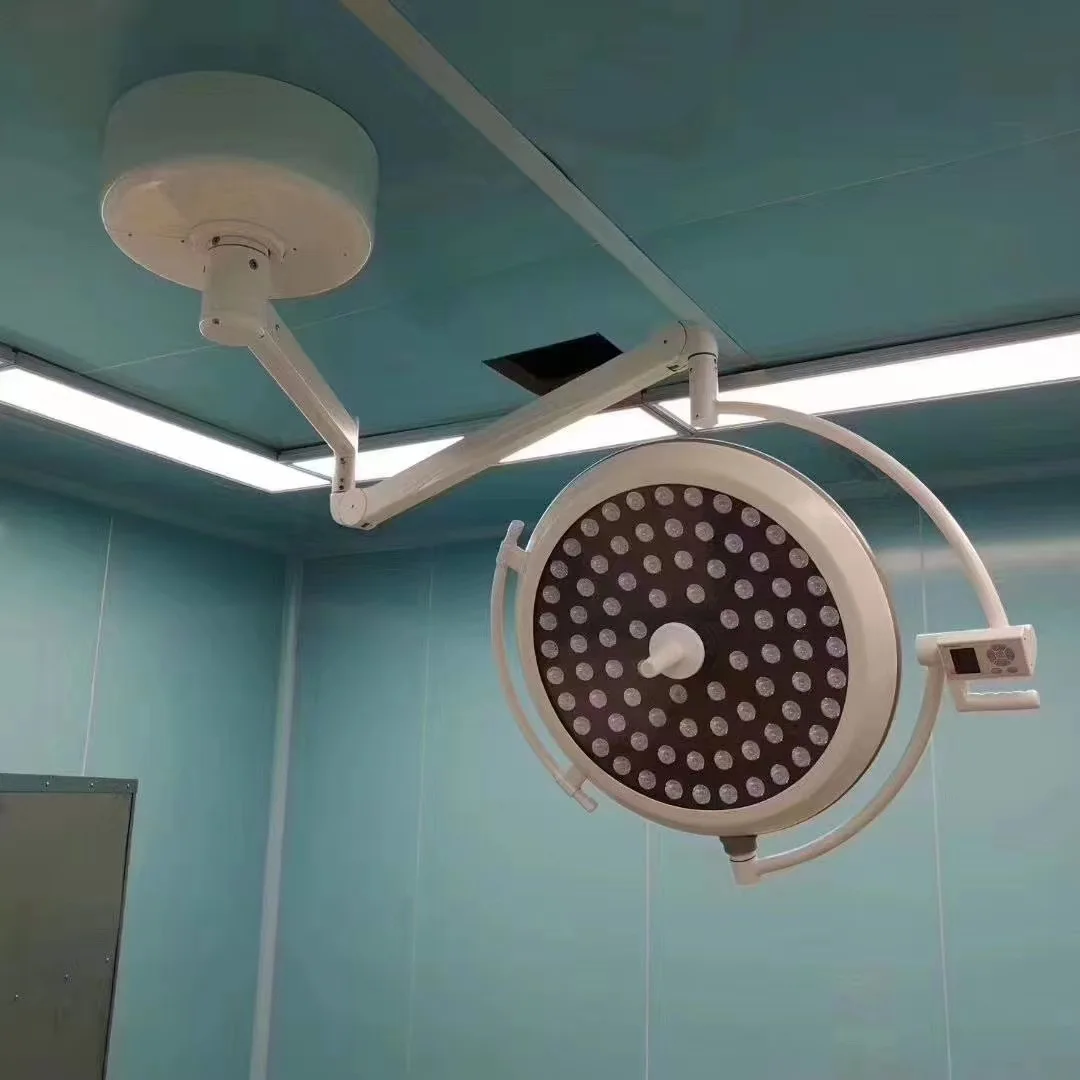

Vertical mobile standing LED shadowless surgical operation operating lamp for veterinary vet pet animal hospital clinic

Technical parameters

Adopting a new type of LED cold light source, the lifespan can reach over 65000 hours without the need to replace the light bulb. It is superior to traditional halogen lamps and can meet the requirements of energy conservation and environmental protection.

Adopting a new type of LED cold light source, there is no ultraviolet or infrared radiation in the spectrum, neither heat nor radiation. The temperature rise of the doctor's head and wound area is ≤ 1 ℃, with almost no temperature rise.

 The fully enclosed streamlined lamp cap design conforms to the design principle of aerodynamics, completely eliminates the flow dead angle in purified air, meets the high standard laminar flow requirements of modern operating rooms, and is conducive to the aseptic requirements of operating rooms.

 The lighting brightness can be changed according to the hospital's needs for different surgical lighting. A new type of LED touch LCD control panel can be selected to achieve lighting switch and adjustment of illumination, color temperature, and brightness mode.

The overall design of the LED lamp head concentrates the light beam into a high brightness uniform beam, ensuring a soft and uniform deep gathering effect, and ensuring the high brightness and depth lighting requirements for surgery.

The color temperature of the SHD-LED500 surgical shadowless lamp can be adjusted from 3000K to 6700K in six levels, making diagnosis more accurate and avoiding eye fatigue caused by long-term work for medical staff.

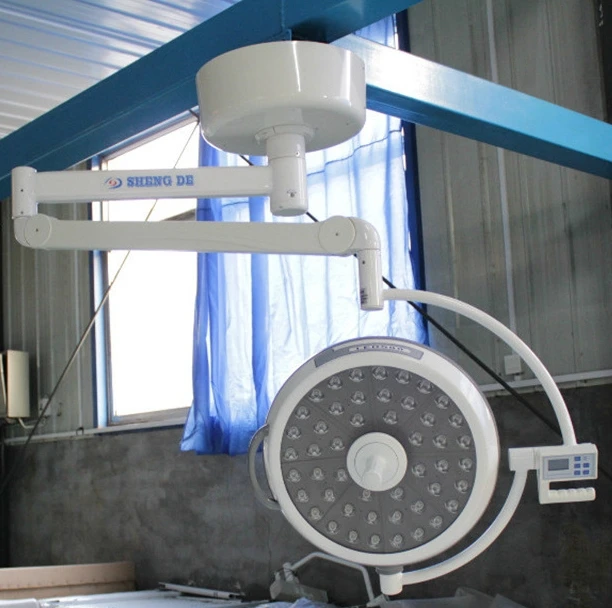

 Lightweight and high-quality balance arm suspension system (optional with imported arms), six sets of universal joint linkage, 360 degree all-round design, can meet the needs of various heights, angles, and postures during surgery, with convenient movement and accurate positioning.

 Equipped with manual focusing technology, the operation is simple and lightweight, overcoming the technical difficulties in focusing LED surgical shadowless lamps, and achieving stepless focusing function; Detachable handle, capable of high-temperature sterilization treatment (≤ 160 ℃).

The light beam emitted by the LED light source is focused and converged through a specially designed high-performance lens in the surgical area to meet the lighting requirements for surgery; The maximum illumination level can reach 160000LUX. The brightness of the LED is steplessly controlled through digital means, and the illumination level of each lamp head can be adjusted separately.

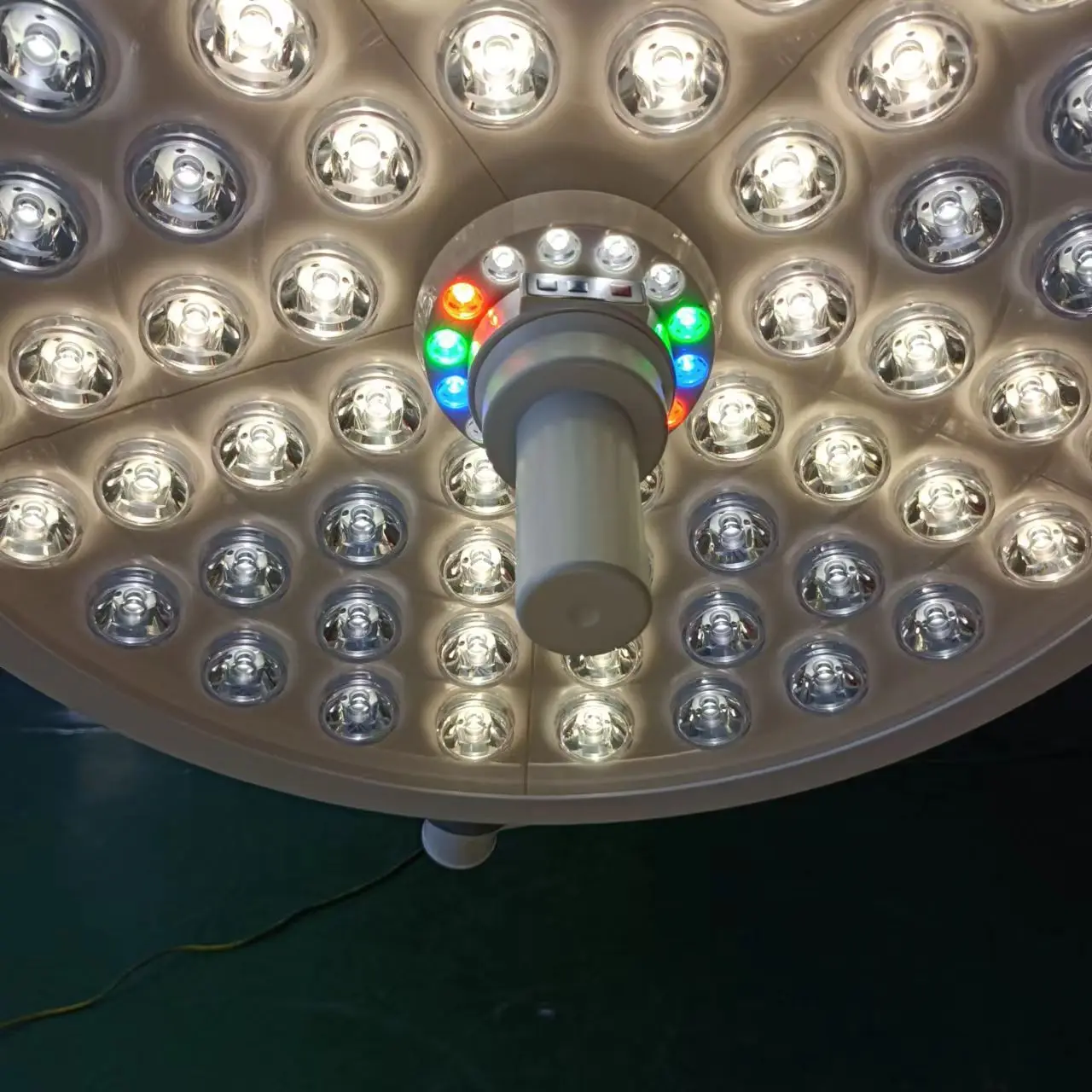

Each LED module contains 6 LED beads, and each module contains an independent electronic control system. The lamp cap has a very low failure rate, and the failure of a single LED will not affect the function of the lamp cap.

The greater advantage of LED is that it produces less heat because it emits almost no infrared or ultraviolet radiation.

 The shadowless lamp is equipped with 4 medical silent universal wheels with brakes, with a station tube height of 2 meters, a balancer with no rotation up or down ≥ 800mm, a bent pipe rotating 560 ° around the lamp head, and a lamp head rotating 340 ° around the bent pipe.

When the external current is abnormal or there is a power outage, the relay in the lightbox will automatically switch to the backup power supply to ensure the smooth progress of the surgery.

After the surgery, please turn off the power switch and charge it in a timely manner for future use.

The charging port is located behind the distribution box and parallel to the power cord, which is the charging port.

The voltage of the battery can allow the lamp to be used for about 6 hours without external voltage.

 please click here to get latest price!

Saturn medical is a professional global provider of medical devices,and we have been focusing on medical field for more than 10 years.

We are committed to offering medical devices with competitive price,high quality and good after-sale service.

Our business covers more than 90 countries.

Our products, including ultrasound machine,patient monitor,centrifuge,sterilizer,hematology analyzer, chemistry analyzer,veterinary products,comply with ISO or CE

We can also provide OEM and ODM service.

Our mission is “providing the whole world with the best medical devices”.

Packing

Packed in carton box.

Delivery

Goods could be shipped by express,by air or by sea,depends on customers‘ requirements.

Lead time

Our normal lead time is within 7-14 days after payment.

Every year,we will attend the exhibitions all over the world,

Sincerely invite you to visit our booth.

 1.What's your advantages ?
1) We only focus on medical field,more than 10 years in medical experience.

2) Our business covers more than 90 countries.

3) We offer you competitive price,our aim is to achieve win-win.

4) 24 hours online service for you.

5) On time delivery

2.What certifications your products have.

CE ,ISO,FSC

3. Do you accept OEM service.

Yes.

4.What is your lead time?

Order quantity <5 sets: about 7-14 days after receipt of 100% T/T payment.
Mass order:about 15 days after receipt of 50% T/T deposit payment.

5. How is your warranty?

1-2 years depends on different machines. Lifetime maintain.

6.What about your after-sale service?

1) All products will be strictly Quality Checked and be well packed before shipping.

2)We have professional after sales service team,experienced engineers to help you solve any problem you meet

7. Can you offer the technical support, online or site training ?
We will offer technical support like operating manual, operating videos For some machines, we can offer you oversea training.
