T990D Automotive and Truck Service Centers fully automatic tyre changers
- Category: >>>
- Supplier: Yancheng Dayang Machinery Co. Ltd.
Share on (1600967889041):
Product Overview
Description

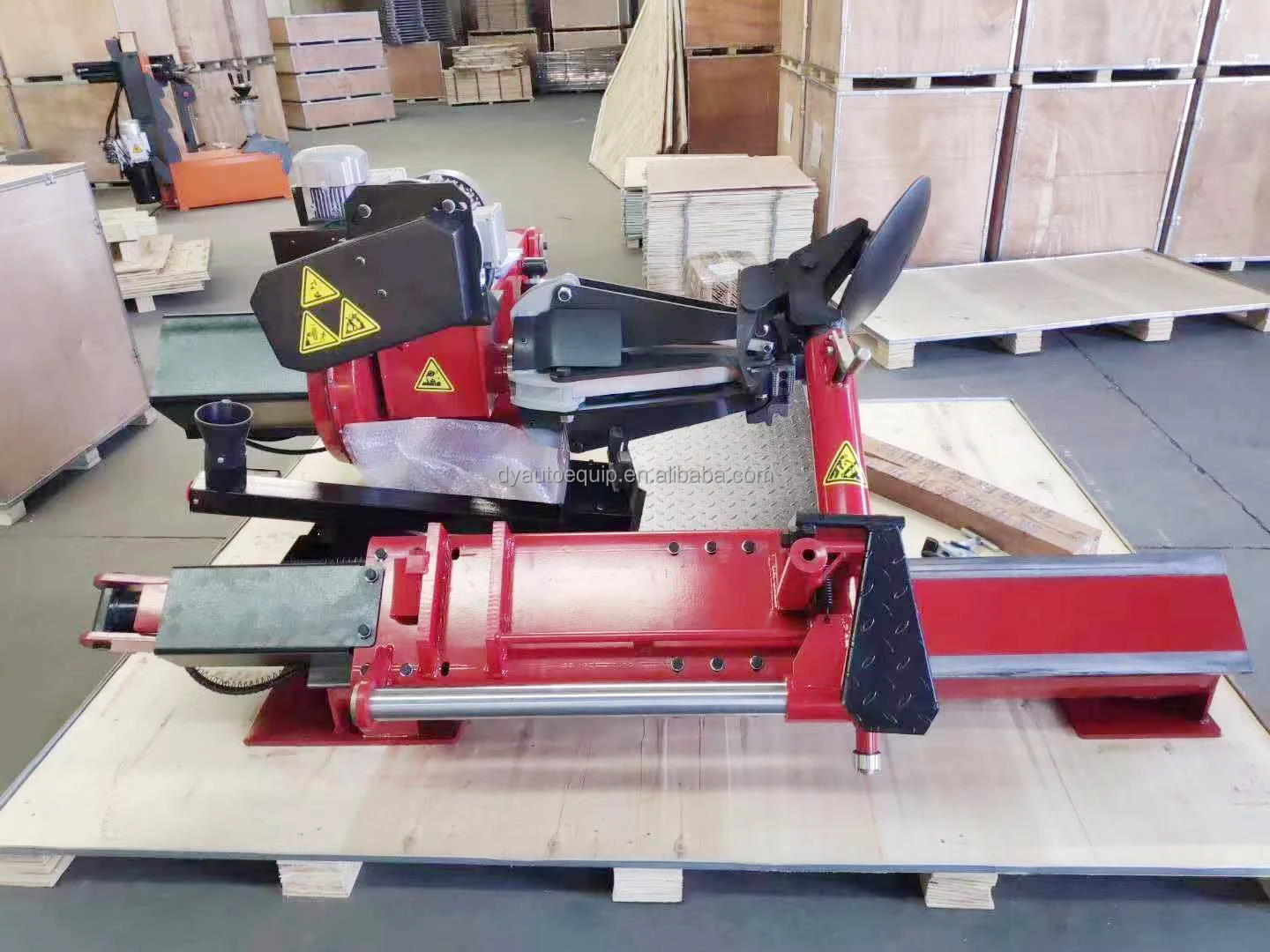

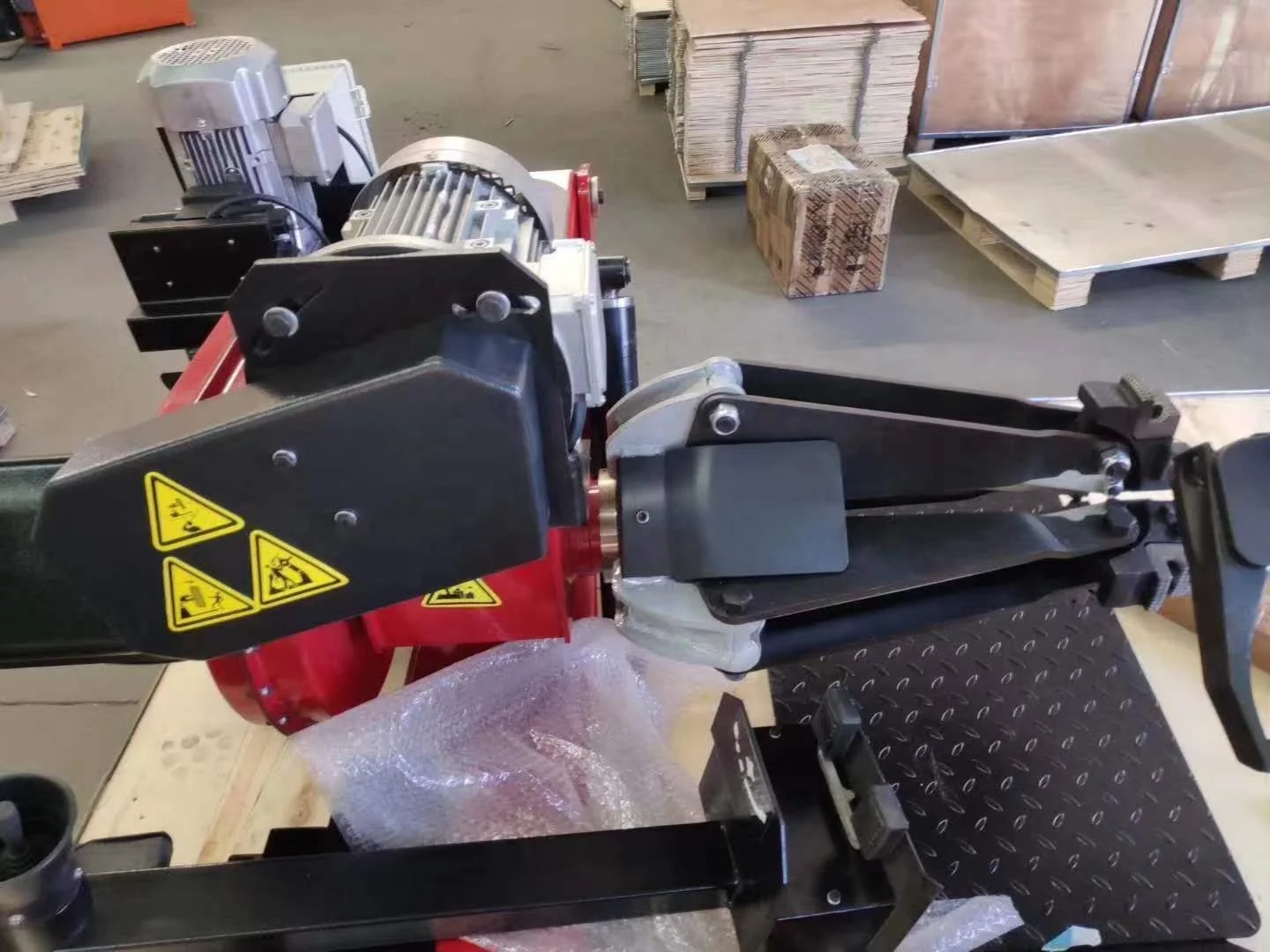

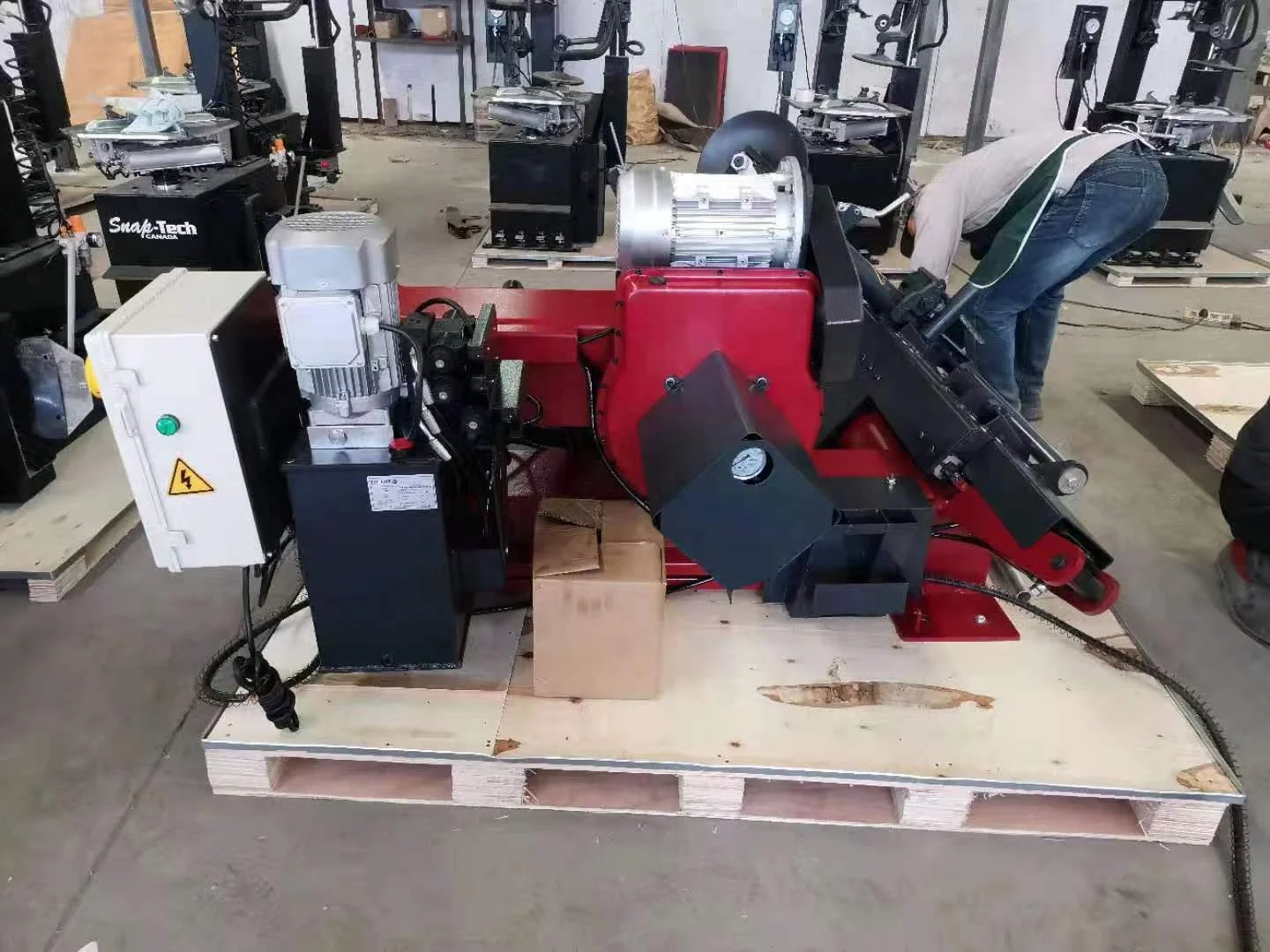

1. Pictures of truck tire changer
2. Main features of truck tire service equipment
1. Applicable for truck, bus and OTR tires rim diameter 14” -46” ( expand to 56”)
2. Operation on control panel is low-pressure and mobiled.
3. The assembly arm is equipped with pendular assembly round plate and assembly hook.
Tool bracket lifting arm and gripper are controlled by hraulic system.
Specifications
Max. wheel diameter-----------------------2300mm
Handles wheels rim from-----------------------14" to 46" (56”)
Max. wheel width----------------------------1065mm
Max. wheel weight--------------------------1500kg
Hydraulic pump motor-------------------------1.5KW
Gear box motor------------------------1.5KW/2.2KW two speed (380V)
Working pressure-----------------------150-180 bar
Net weight-----------------------------------770kg

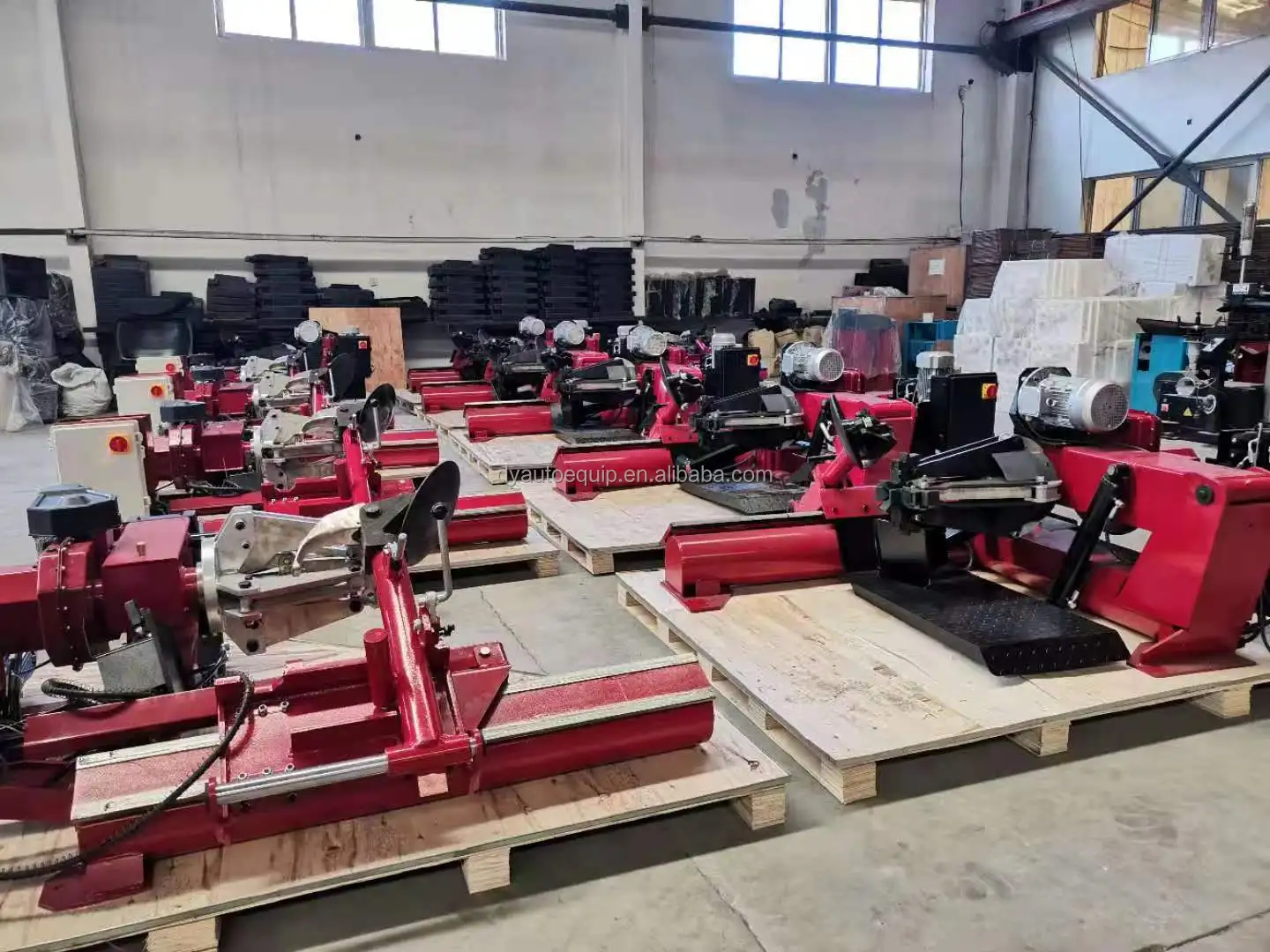

4. Factory
5. Our machines in worldwide
6. Delivery
Our Services
Warranty will continue to be valid for a period of 12 months provided the following warranty conditions are observed.
Warranty Conditions:
1. This warranty is valid from the date of receiving equipments.
2. This warranty is given for the benefit of the first owner only and claims by parties other than the original purchaser will not be recognized, as the warranty is not transferable.
3. This warranty is only valid when the product has been used in accordance with the Installation, Operation, Maintenance and Instruction Manual and by a competent person trained in its use.
4. This warranty does not apply to damage or deterioration, which is caused by human.
5. During warranty period, shipping cost of replacement products or parts are our responsibility.
6. Beyond the warranty period, we provide spare parts to customers at factory cost.
