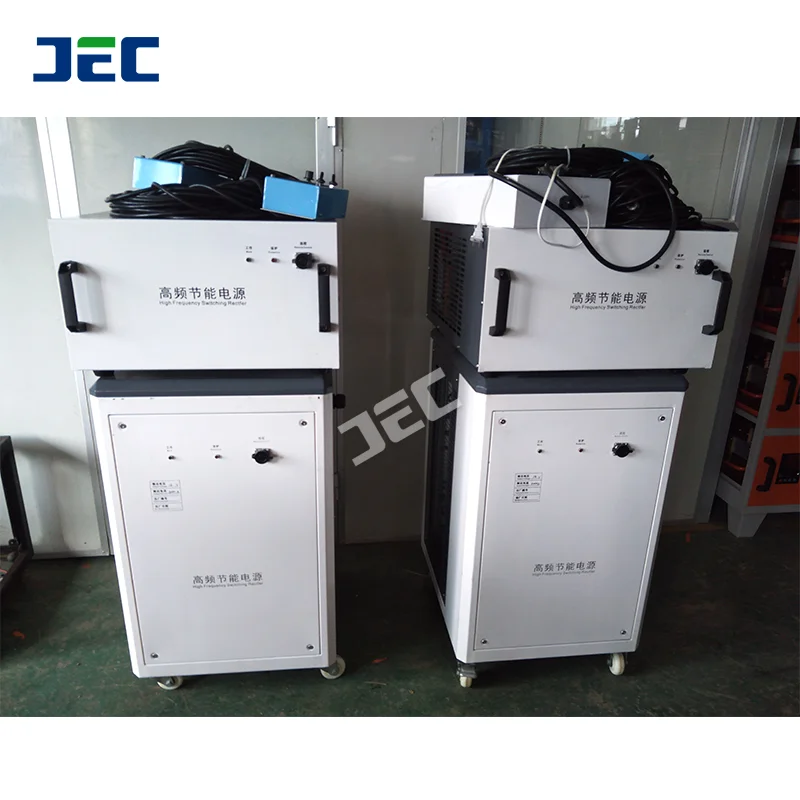

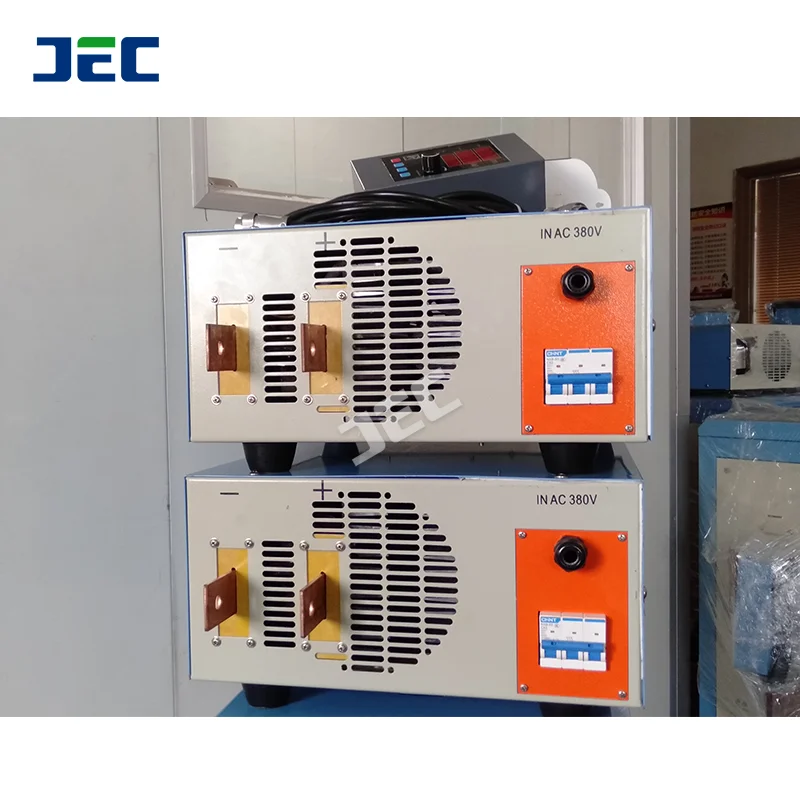

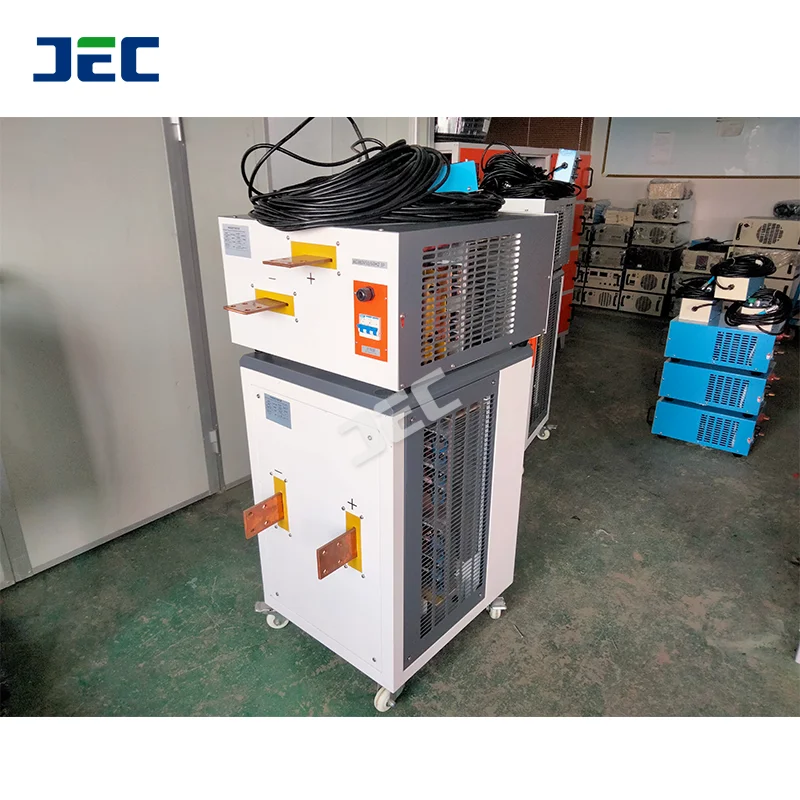

Anodising igbt electroplating rectifiers ac dc plating rectifier 0 50v rectifier module with phase shift voltage

Technical Parameters

1

AC Input Voltage

380V, 50/60Hz

2

AC Input Current

10A

3

AC Input Power

6.6KW

4

DC Output Voltage

0-12V Continuous Adjustable

Can be customized

5

DC Output Current

0-500A Continuous Adjustable

6

DC Output Power

6KW

7

Overall Ripple Factor

Ripple effective value 0.2%

8

Constant current and constant voltage conversion

Precision of constant current 0.5%, precision of constant pressure 0.5%.

9

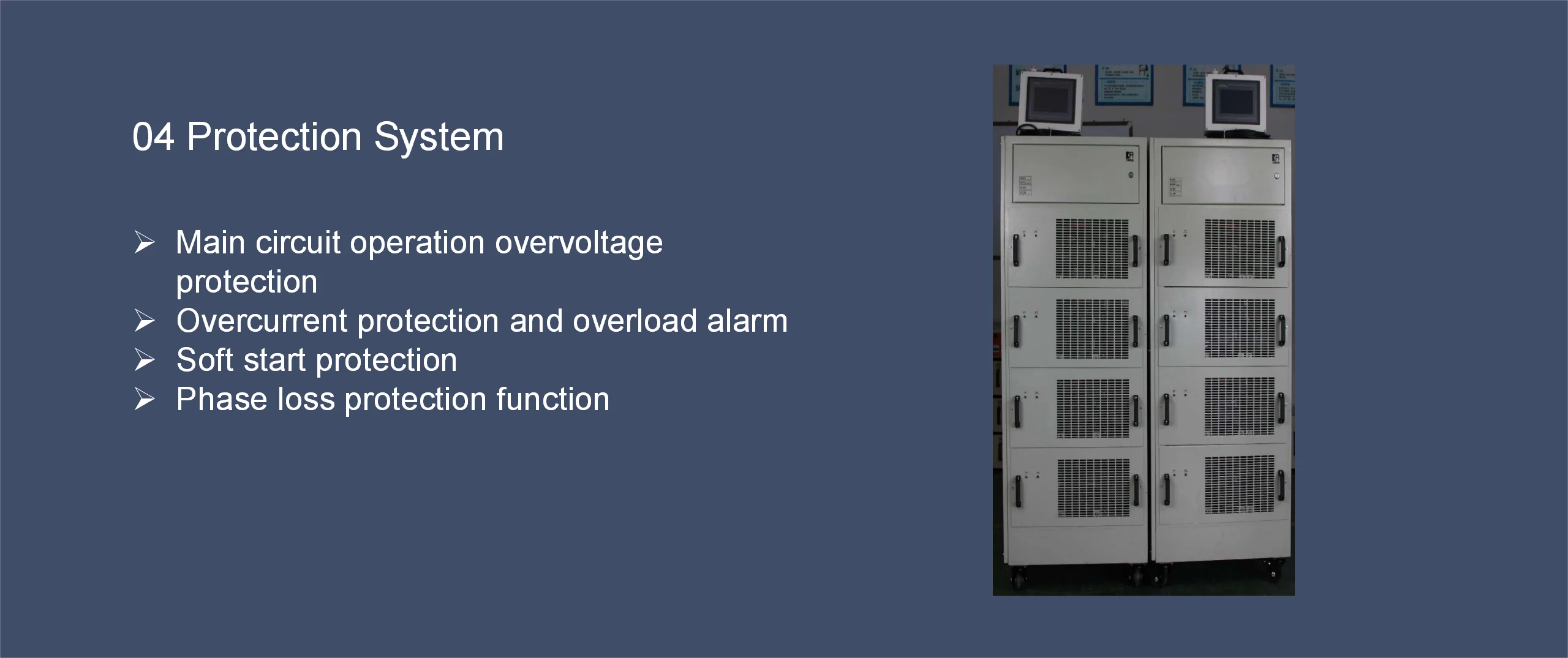

Defensive Function

Under Voltage, over voltage, overload, short circuit protection, thermal protection.

10

The power factor

0.9

11

Overload protection time

105~120% Rated output current.

12

Short-circuit protection

Circuit transient short circuit natural protection. Automatic recovery when short circuit is eliminated.

13

Operating temperature range

-20℃~50℃

14

Way of working

Continuous running

15

Insulation level

Level 1

16

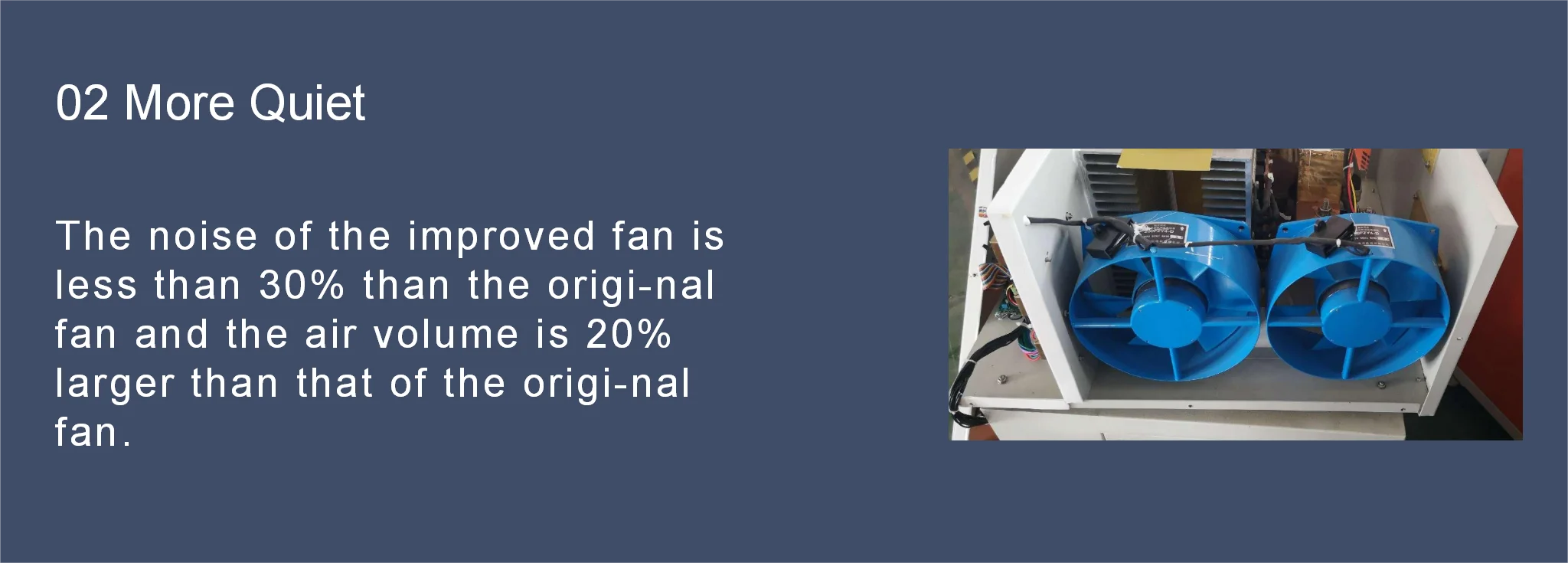

Type of cooling

Air-cooling

17

Optional function

Timing, steady voltage, steady current

18

Machine size (L * W * H)mm

650*515*250(mm)

19

Outer box size (L * W * H)mm

780*550*260(mm)

20

Rectifier weight approx.

45KG
