tft LCD RGB LVDS screen AT070TN94 LCD Driver controller board for RGB TTL LVDS NJ070NA-23A ZJ070NA-01B G070ACE-L01


DESCRIPTIONS:

Default delivery, support LVDS 40pin：
NJ070NA-23A ;
HJ070NA-13A/13B
EJ070NA01-1024X600 resolution
EJ080NA04B-1024X768 resolution
ZJ070NA-01, a universal 40PIN high-definition LCD screen model
EJ101NA-01G
EJ080NA-01E
EJ080NA-04C

Optional support ：RGB TTL 50pin
ZJ050NA-08C
EJ050NA-08C
AT070TN92,
AT065TN14
AT080TN52
AT090TN12
AT090TN10
AT070TN90
AT070TN93
AT070TN94

1 PCB800809 *1
keyboard (Optional)

Before placing an order, please send the LCD model or picture so that we can tell you whether it is compatible. Otherwise, the buyer shall be fully responsible for the disputes caused by incompatibility.

It only supports 800 * 480 1024*600 LVDS 40pin LCD by default


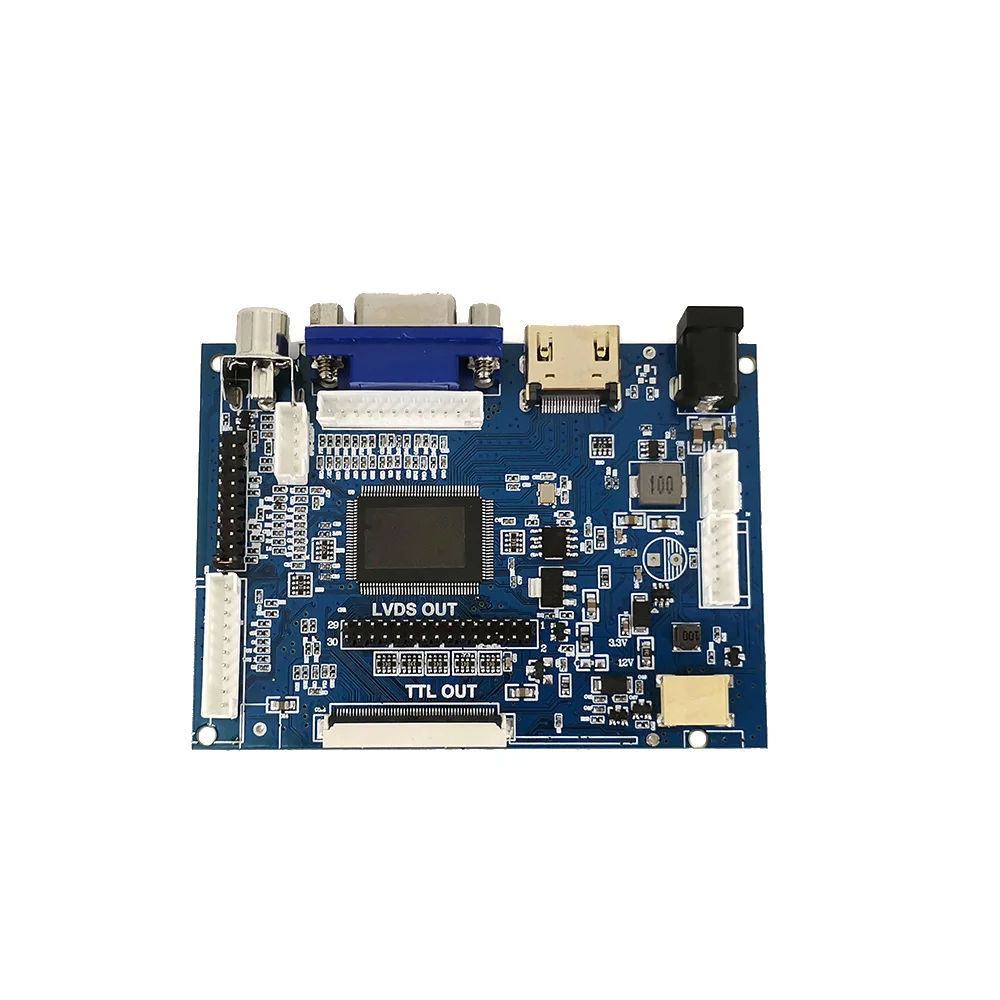

LCD Controller Board:

HD MI VGA 2AV LCD Board Work for 50pin RGB TTL / 40pin LVDS Interface LCD Screen
50Pin TTL Connector for 7inch~10.1inch LCD Screen
40pin LVDS connector for 7inch~10.1inch lcd screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD MI VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:91mm x 66mm x 12mm


Product Paramenters




tft LCD RGB LVDS screen AT070TN94 LCD Driver controller board for RGB TTL LVDS NJ070NA-23A ZJ070NA-01B G070ACE-L01

Interface description


Video input
Features
parameter
HD MI
Resolution: Max 1920x1200
VGA
Resolution: Max 1920x1080
AV(CVBS)
PAL/NTSC/SECAM; 1.0vp-p ±5%
Video system
NTSC/PAL/SECAM
Power supply
Working voltage
5~18V
Panel voltage select
3.3V/5V/12V
Standby consumption
0.5W   ;  10-40mA
Other
Key function
Power / Menu / Source / UP / Down / Left / Right
Language
English German French Italian Spanish Russian Arabic
Storage temerature
-40~85°C

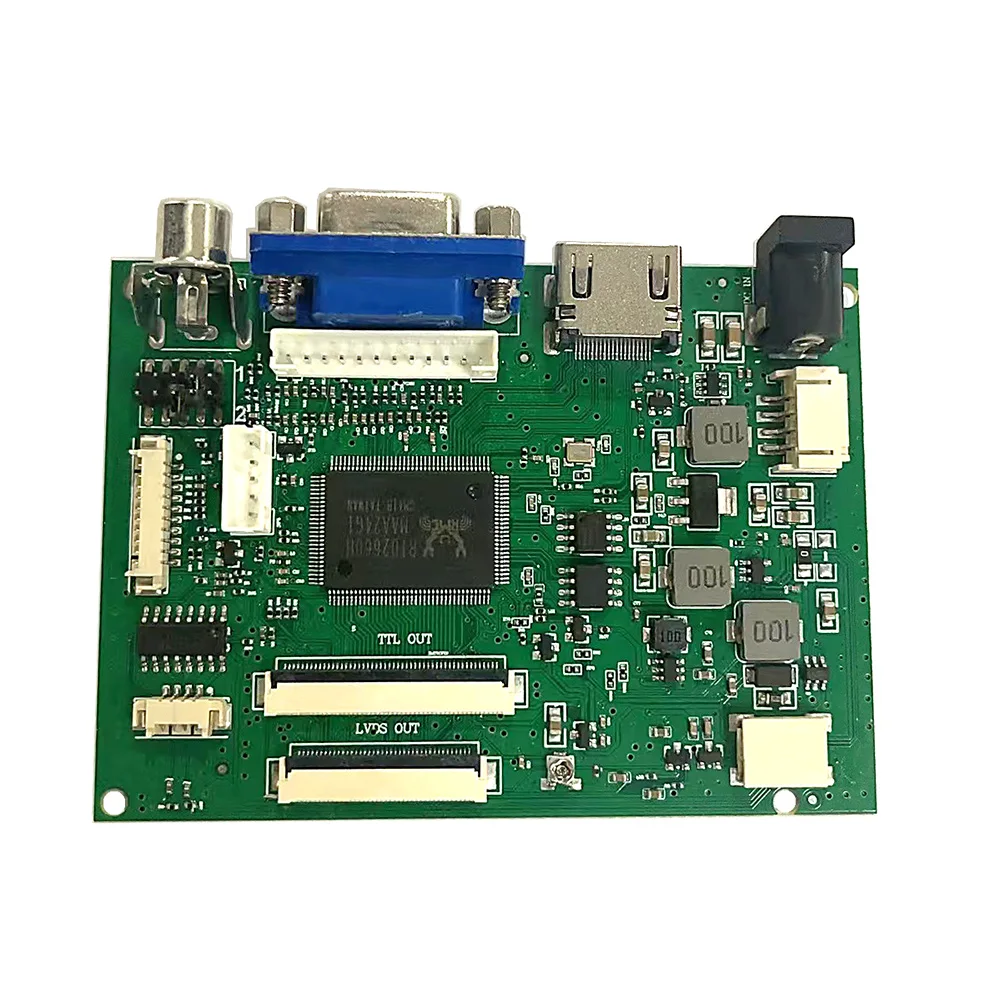

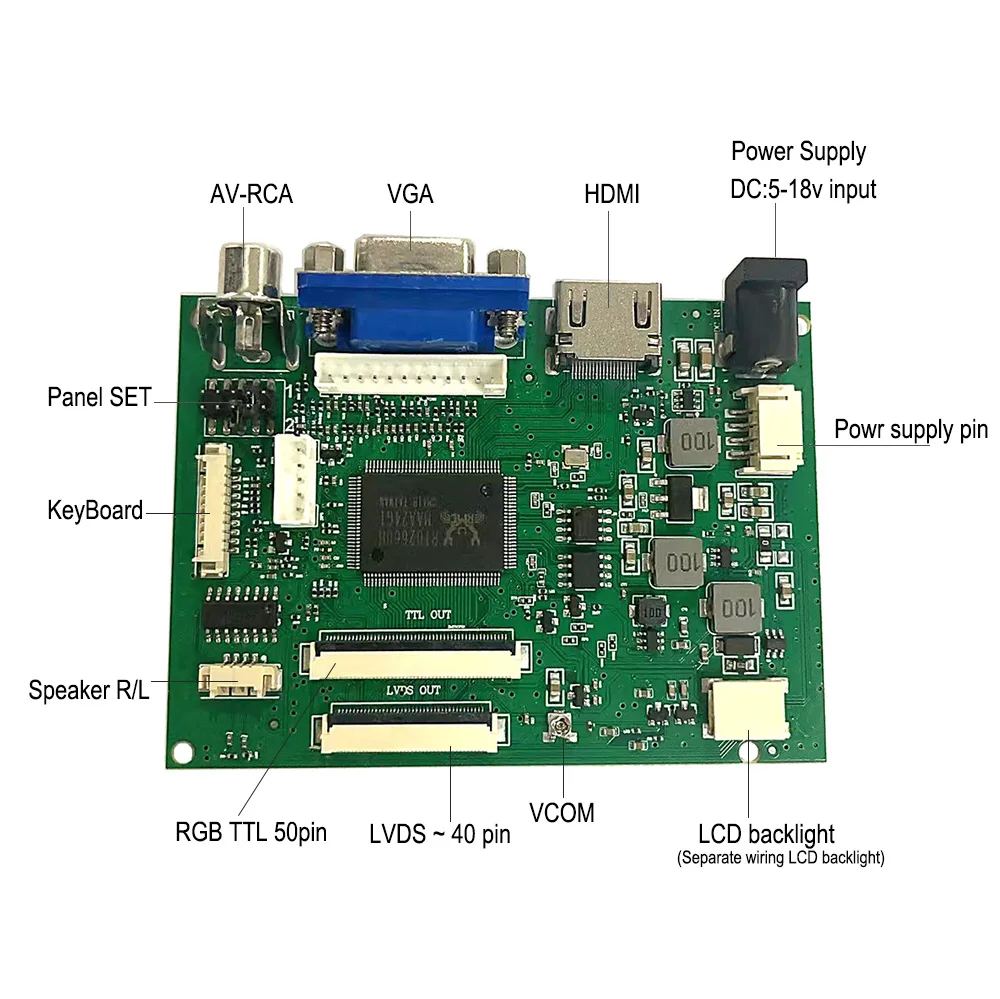

1. Power Supply input connector designator: J3 ~ DCIN (2.0mm DC-JACK)
Pin definition:


Pin number
name
description
1
12V
+12V(5V~18V) power supply
2
12V
+12V (5V~18V) power supply
3
GND
4
GND


2. HDMI connector: HDMI input


3. VGA connector: VGA input
Pin definition:


Pin number
name
description
1
GND
GND
2
V
Vertical synchronization signal
3
H
Horizontal synchronization signal
4
GND
GND
5
R
Red component signal
6
GND
GND
7
G
Green component signal
8
GND
GND
9
B
Blue component signal
10
GND
GND
11
SDA
SDA  Software upgrade usage
12
SCL
SCL  Software upgrade usage


4. AV RCA connector:
AV Pin definition:


Pin number
name
description
1
ACC
AV2  video mirroring
2
AV1
AV1 input
3
GND
AV1 GND
4
AV2
AV2 input
5
GND
AV GND


5. Keyboard connector
Pin definition:


Pin no.
name
description
1
IN-VCC
Power
2
GND
3
IR
Remote signal input
4
Power
On/off
5
MENU
Menu key
6
CH+
Program addition / direction
7
CH-
Program minus key / direction
8
SOURCE
Source select
9
LED-G
Green / normal work
10
LED-R
Red / normal work


6. Audio output: Speaker
Speaker：R / L output


7. 50P RGB TTL Interface connector:
Pin definition:


Pin NO.
Symbol
unction
1
Vlek+
Power for LEK backlight(Anode)
2
Vlek+
Power for LEK backlight(Anode)
3
Vlek-
Power for LEK backlight(Cathode)
4
Vlek-
Power for LEK backlight(Cathode)
5
GND
Power Ground
6
Vcom
Common voltage
7
DVDD
Power for Digital Circuit
8
MODE
KE/SYNC mode select
9
DE
Data Input Enable
10
VS
Vertcal Sync Input
11
HS
Horizontal Sync Input
12
B7
Blue data
13
B6
Blue data
14
B5
Blue data
15
B4
Blue data
16
B3
Blue data
17
B2
Blue data
18
B1
Blue data
19
B0
Blue data
20
G7
Green data
21
G6
Green data
22
G5
Green data
23
G4
Green data
24
G3
Green data
25
G2
Green data
26
G1
Green data
27
G0
Green data
28
R7
Red data
29
R6
Red data
30
R5
Red data
31
R4
Red data
32
R3
Red data
33
R2
Red data
34
R1
Red data
35
R0
Red data
36
GND
Power Ground
37
DCLK
Sample clock
38
GND
Power Ground
39
L/R
Left/right selection
40
U/D
Up/down selection
41
VGH
Gate ON Voltage
42
VGL
Gate OFF Voltage
43
AV DD
Power for Analog Circuit
44
RESET
Global reset pin.
45
NC
No connection
46
VCOM
Common Voltage
47
DITHB
Dithering function
48
GND
PowerGround
49
NC
No connection
50
NC
No connection


8. 40P LVDS Interface connector:
Pin definition:


Pin NO.
Symbol
unction
1
VCOM
Common Voltage
2
VDD
Power Supply Input Voltage
3
VDD
Power Supply Input Voltage
4
NC
No connection
5
Reset
Global reset pin
6
STBYB
Standby mode
7
GND
Ground
8
RXIN0-
- LVDS differential data input
9
RXIN0+
+ LVDS differential data input
10
GND
Ground
11
RXIN1-
- LVDS differential data input
12
RXIN1+
+ LVDS differential data input
13
GND
Ground
14
RXIN2-
- LVDS differential data input
15
RXIN2+
+ LVDS differential data input
16
GND
Ground
17
RXCLKIN-
- LVDS differential clock input
18
RXCLKIN+
+ LVDS differential clock input
19
GND
Ground
20
RXIN3-
- LVDS differential data input
21
RXIN3+
+ LVDS differential data input
22
GND
Ground
23
NC
No connection
24
NC
No connection
25
GND
Ground
26
NC
No connection
27
DIMO
Backlight CABC controller signal output
28
SELB
6bit/8bit mode select
29
AVDD
Power for analog circuit
30
GND
Ground
31
LED-
LED Cathode
32
LED-
LED Cathode
33
L/R
Horizontal inversion
34
U/D
Vertical inversion
35
VGL
Gate OFF Voltage
36
CABCEN1
CABC  H/W enable
37
CABCEN0
CABC H/W enable
38
VGH
Gate ON Voltage
39
LED+
LED Anode
40
LED+
LED Anode


9. LCD Backlight connector:
Pin definition:


Pin number
name
description
1
Backlight A
2
Backlight B


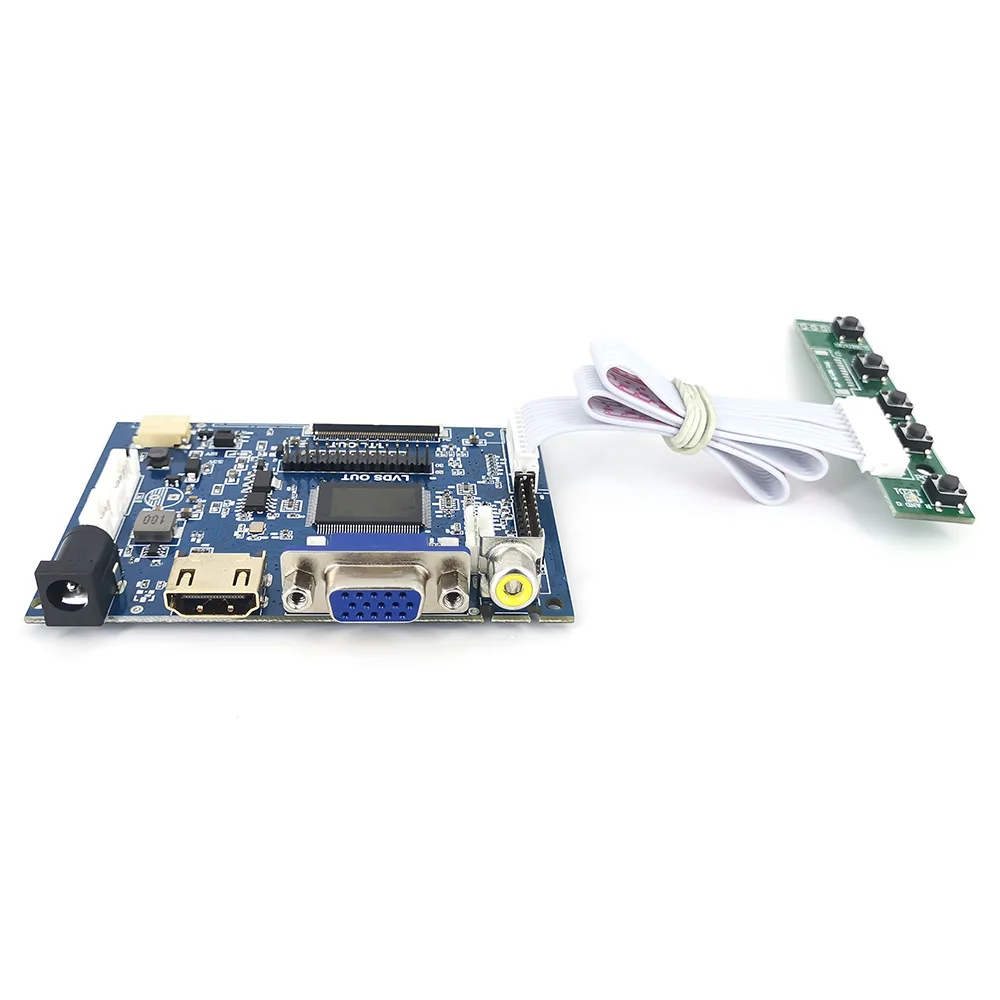

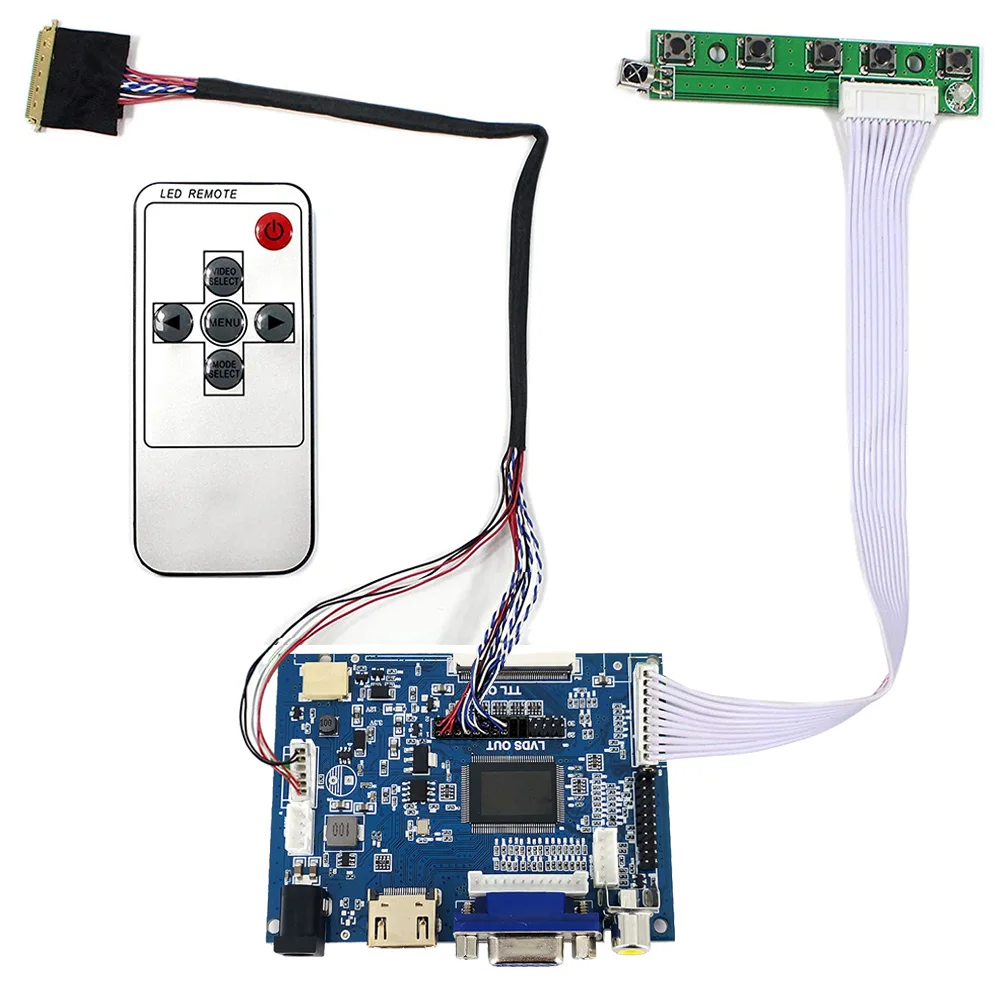

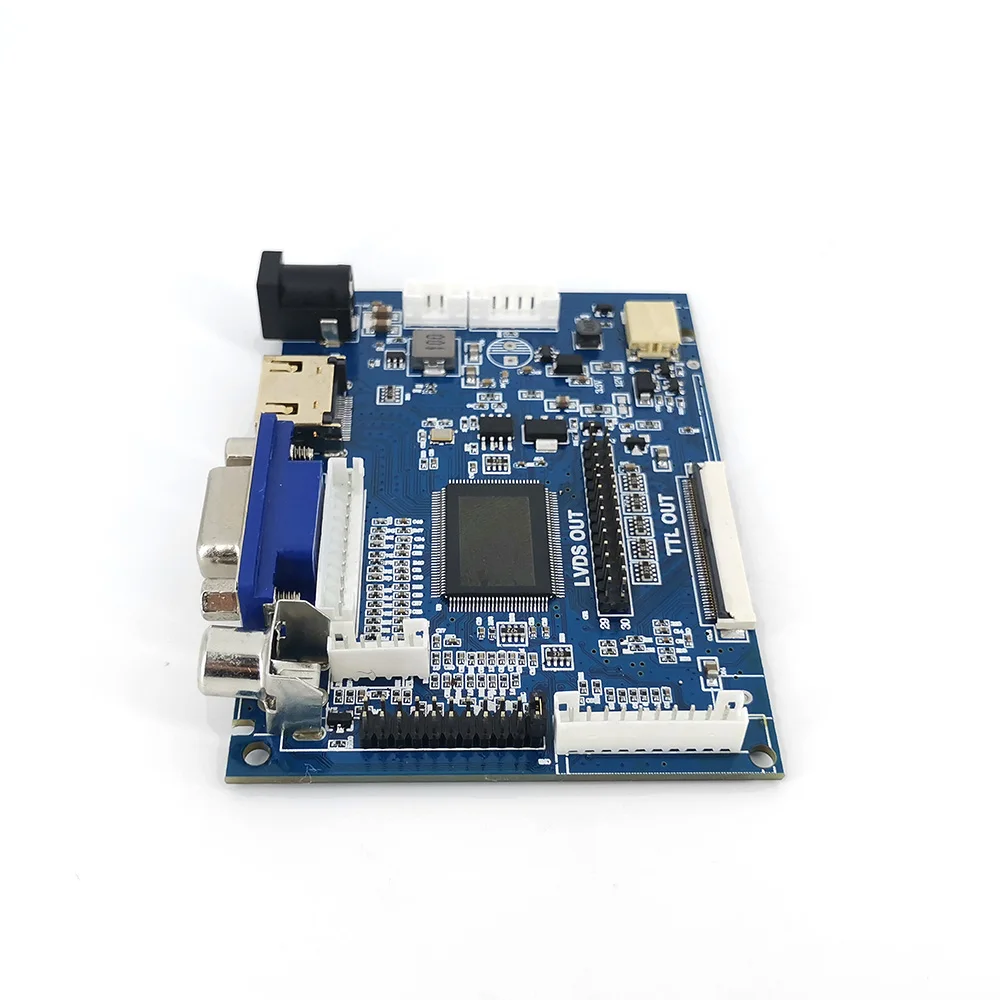

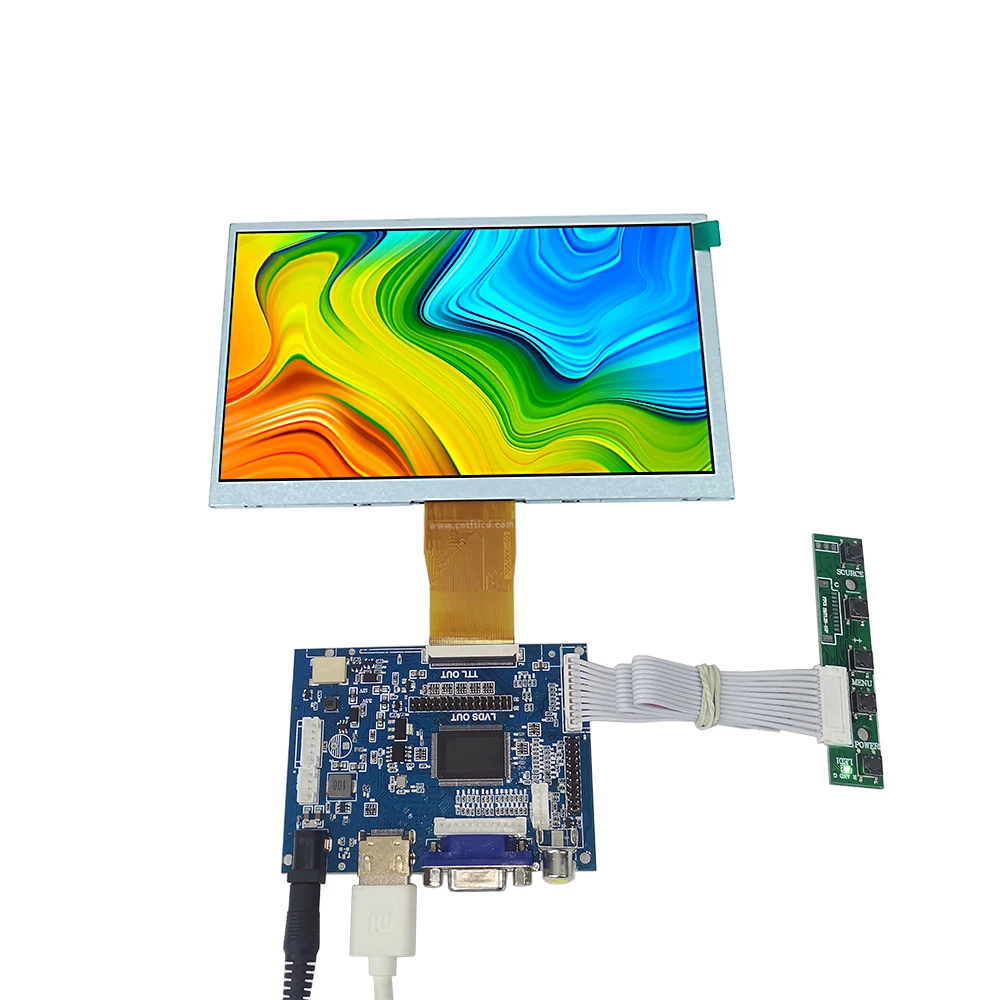

Details Images


tft LCD RGB TTL screen AT070TN94 LCD Driver LVDS controller board for RGB TTL LVDS NJ070NA-23A ZJ070NA-01B G070ACE-L01




NJ070NA-23A , HJ070NA-13A/13B, EJ070NA01-1024X600 resolution, EJ080NA04B-1024X768 resolution, ZJ070NA-01, a universal 40PIN high-definition LCD screen model
EJ101NA-01G EJ080NA-01E EJ080NA-04C




Product packaging


Packing Details for volume production order:
(1) Packed the Monitor into air bubble bag/film
(2)Put the above together into box
(3) Packed the box into a carton box to protect the Driver Board during transportation.
(4) Seal the carton by tape


Industrial Grade 15 - 32 inch VGA HDMI to LVDS universal LED LCD TV panel Driver Board with USB
1，LVDS Driver board 1pcs



Recommend Products




Our Advantages


Provide professional OEM / ODM


FAQ


Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.

Q: 2. What is the lead time for sample?
A: Current sample needs 1-3 days, customized sample needs 15-20 days.

Q: 3. Do you have any MOQ limit?
A: Our MOQ is 1PC.

Q: 4.How long is the warranty?
A:12 Months.

Q: 5. what express do you often use to send the samples?
A: We usually ship samples by DHL, UPS, FedEx or SF. It usually takes 3-5 days to arrive.

Q: 6. What's your acceptable payment term?
A: Our usually payment term is T/T. Others can be negotiated.

Q: 7. How to proceed the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, and next we will produce a real sample for
your second confirmation. if sample is ok, finally we will go to mass production.

For more detailed information about our TFT LCD module, please feel free to contact us:
Ms. Brittany Zhang
Mob: +8617818325201 (whatsapp and wechat)
Skype: betty8492
Web: //www.cntftlcd.com
