Product Overview

Description

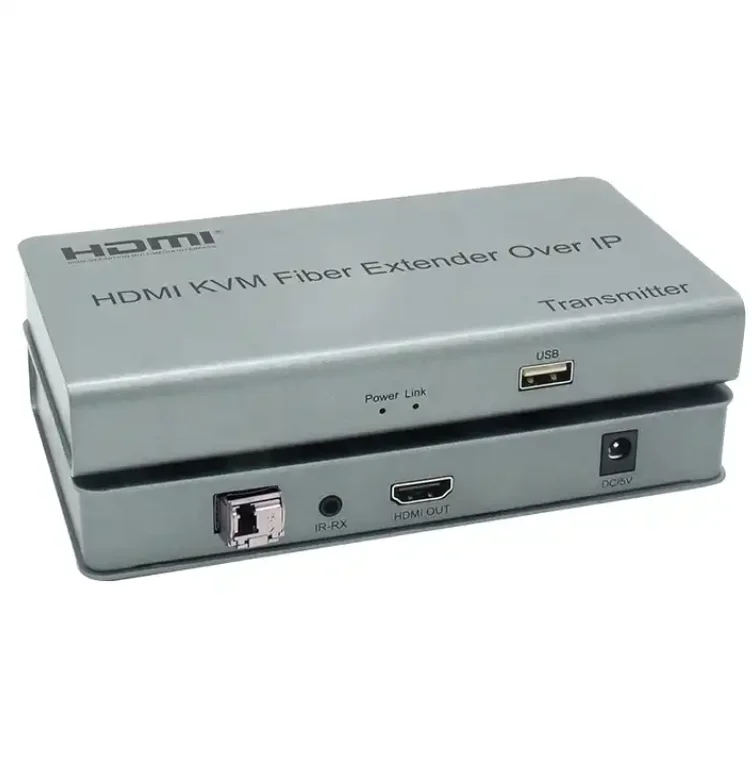

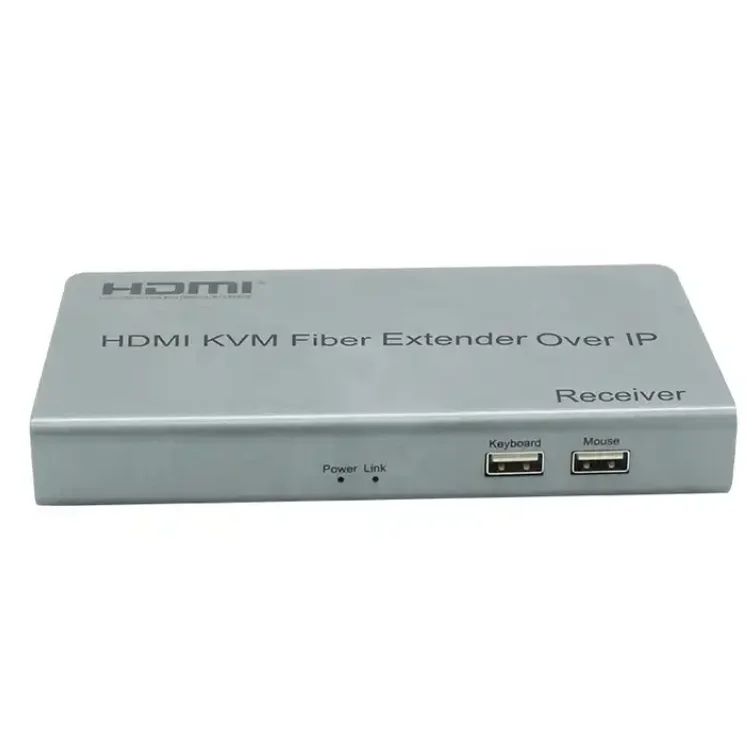

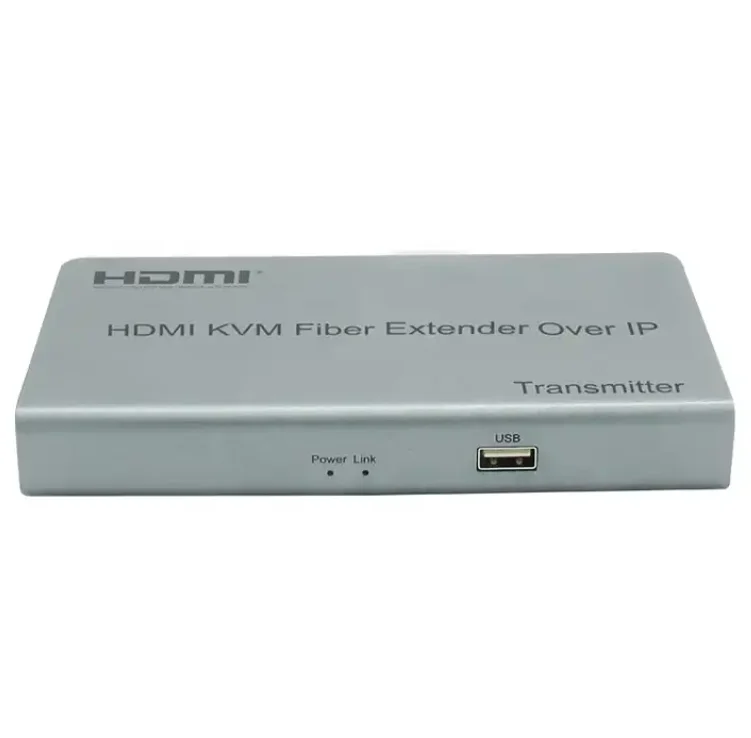

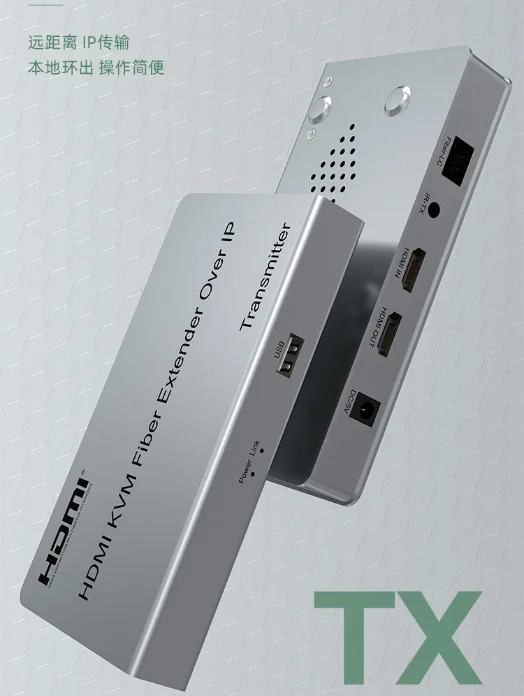

HDMI KVM Fiber Extender over IP support 20KM one to multipoint ,support one to one and one to many mode extender








Features


* Support HDMI 1080p 60Hz.


* It supports one-to-one or one to many transmission mode and can pass through fiber switch.


* Support single-mode single fiber LC, SC interface module, factory  default is LC interface module.


* TX side supports HDMI loop out.


* Support KVM function.


* Support IP transmission.


* Pure hardware design, plug and play, no need to install additional software.





 Specification


HDMI input........................................................................ 1080p / 720p / 480p


HDMI output ......................................................................1080p / 720p / 480p


Optical fiber wavelength...................................1310nm/1550nm;1550nm/1310nm


Maximum power consumption..........................................................TX4w; RX3W


Power adapter specification.......... Input (50 Hz, 60 Hz) 100v-240 V; Output 5V / 1A


Operating temperature range .........................................................(0 to + 45 ℃)


Working range ................................................ 5% to 90% RH(non-condensation)


Dimensions (L x W x H) ........................................................... 163x86x24 (mm)


TX weight................................................................................................ 510g


RX weight................................................................................................ 450g





1. Connect the HDMI signal to the HDMI Transmitter with HDMI cable


2. Connect the HDMI receiver to the HDTV display with HDMI cable


3. Use one fiber cable up to 20km to connect the Fiber-LC type port of Transmitter and  Receiver.


4. Connect two pieces of 5V power supply to the transmitter and receiver, power supply  for the equipment and the LED indicator light on. When Link lamp on, equipment  starts normal

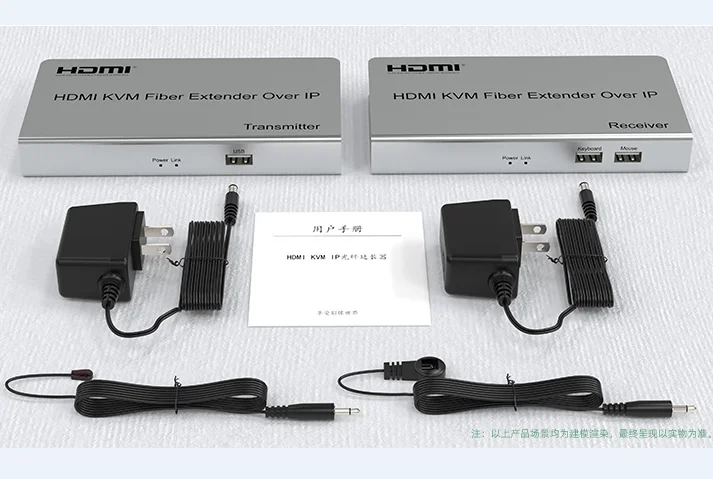

PACKAGE CONTENTS





1: HDMI fiber extender transmitter  1PCS

2: HDMI fiber extender receiver  1PCS


3: DC 5V power supply  2PCS

4: User’s Manual  1PCS

5:IR cable   1PCS
