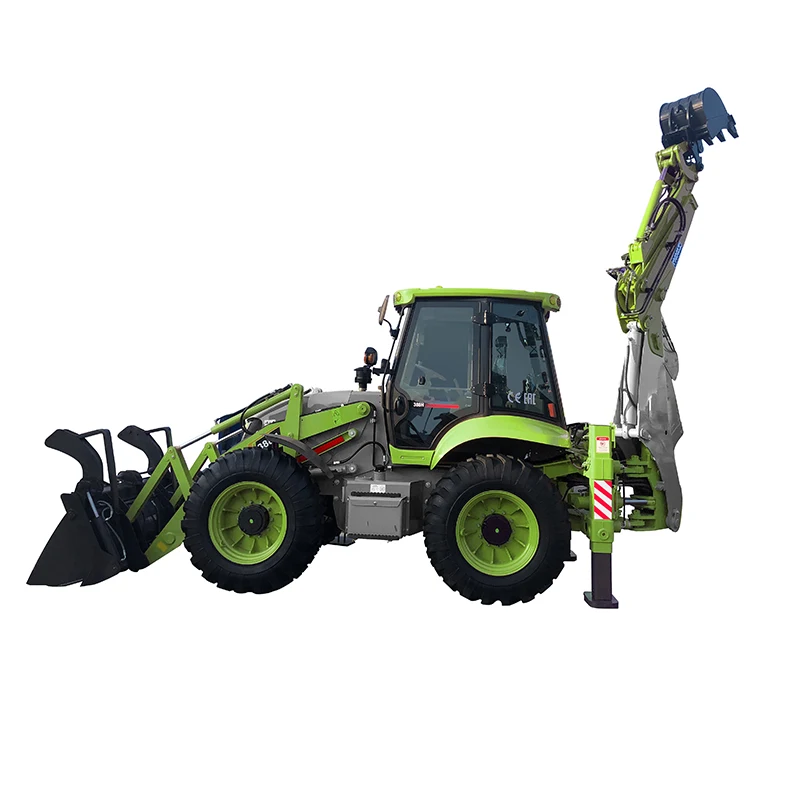

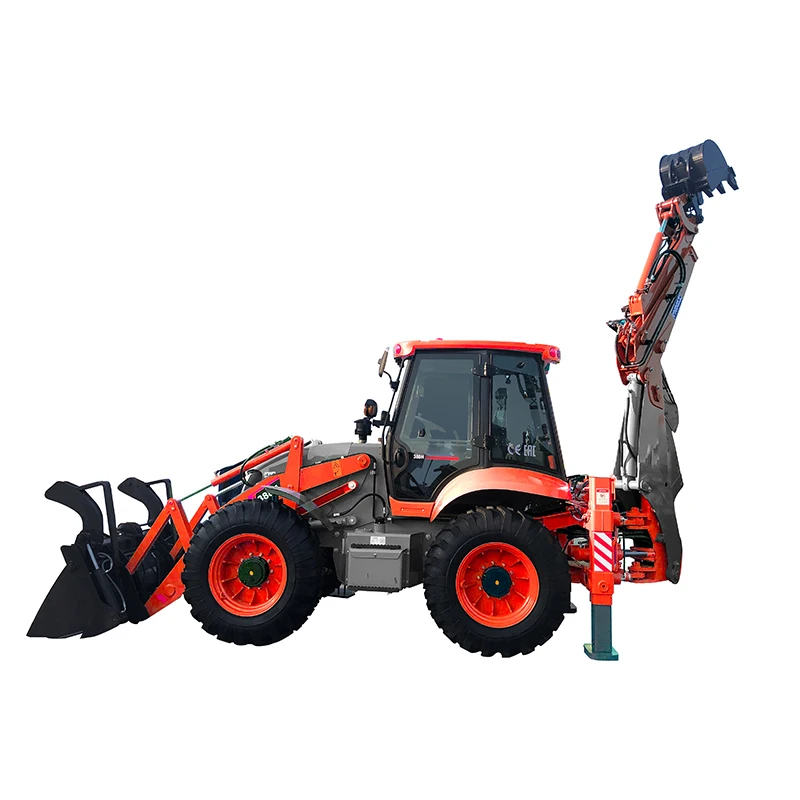

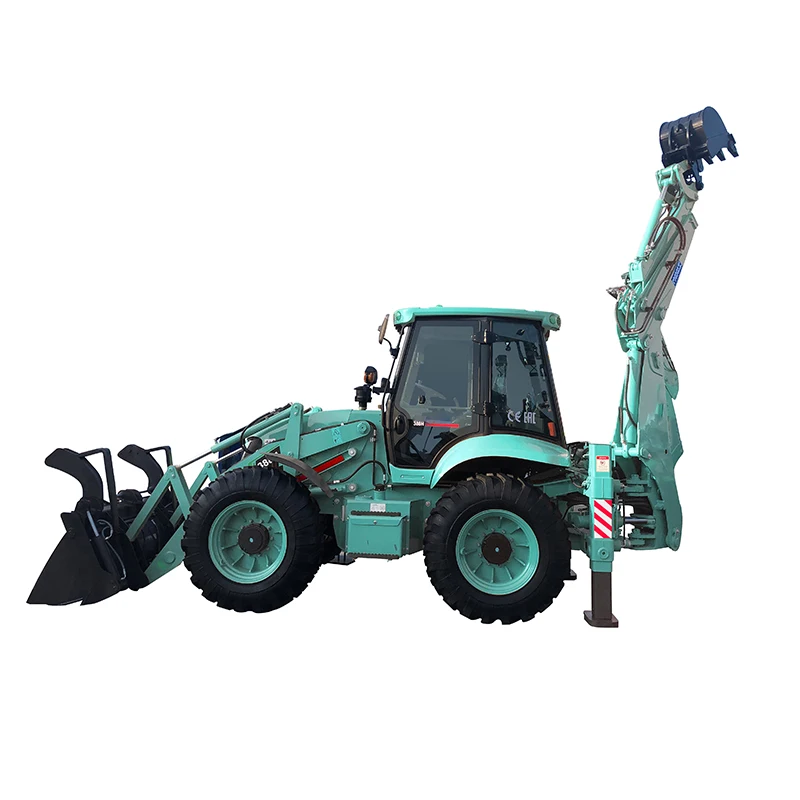

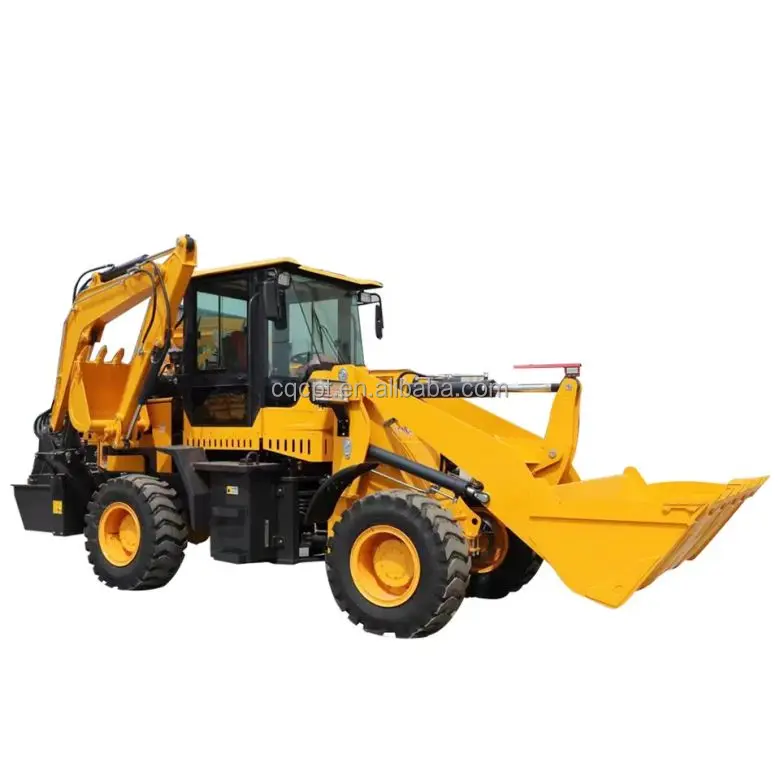

China Engineering & Construction Machinery 2ton mini garden wheel loader backhoe ZL20F With Standard Bucket

Manufacturer garden trucking Biuloo wheel loader 500KG 1 ton 3 ton 5 ton earth-moving machinery used wheel loaders

Advantage:

1. Convenient operation: The operation of the loader is simple and clear, and the user can adjust the length and angle of the arm according to different tasks, which is very convenient.

2. High safety: the two-way driver has a wide field of vision, which increases the monitoring of the working area. The machine also has a variable amplitude power limiting control system to ensure that no overload occurs.

3. Versatile: can provide vertical lifting capacity and horizontal extension capacity, suitable for many projects that require fast movement and high count.

4. Strong flexibility: the is installed at the front end of the frame, which can be turned easily, and it is easier to adapt to the needs of the site, and there is no problem with the turning radius of the front wheel.

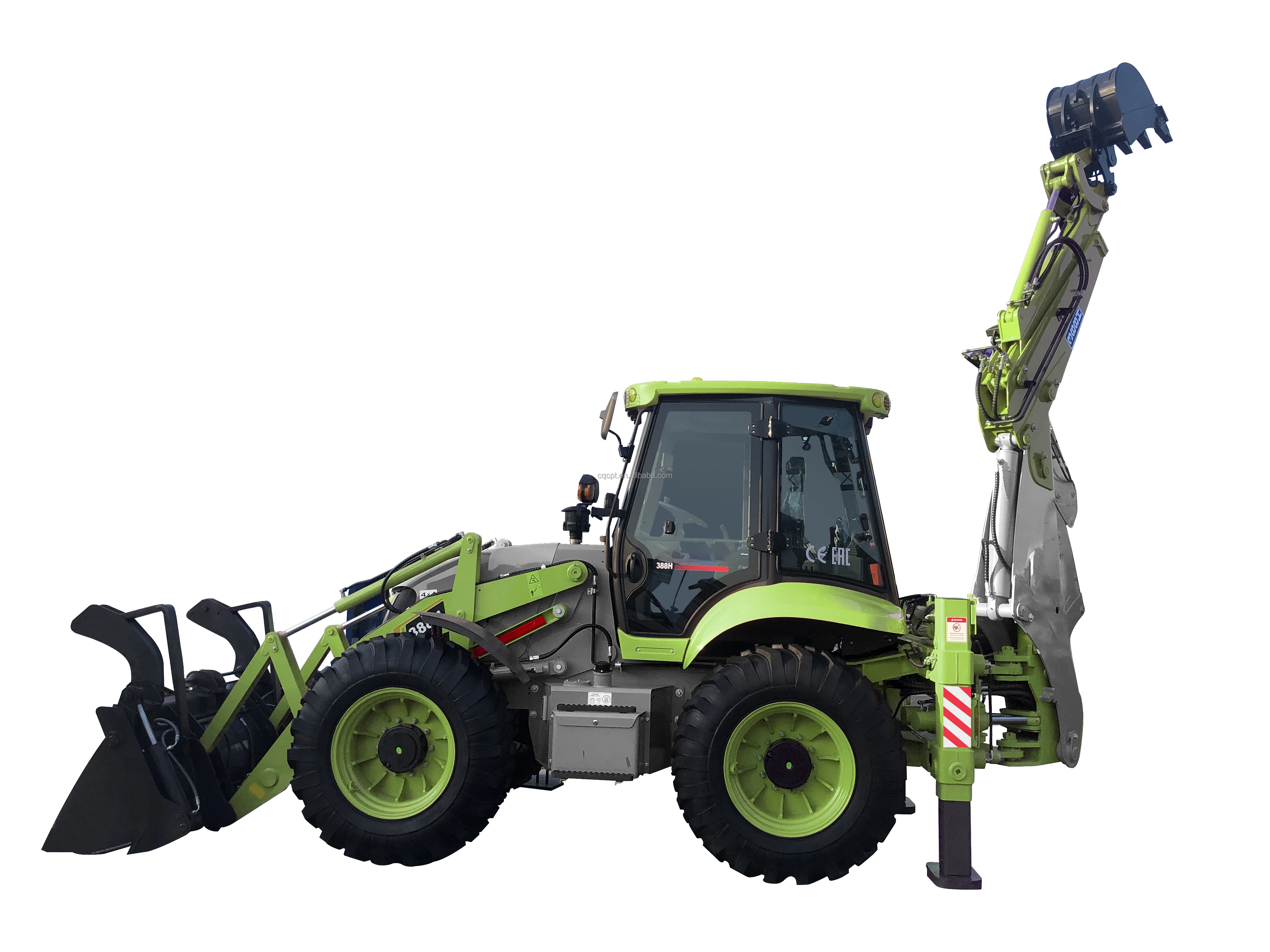

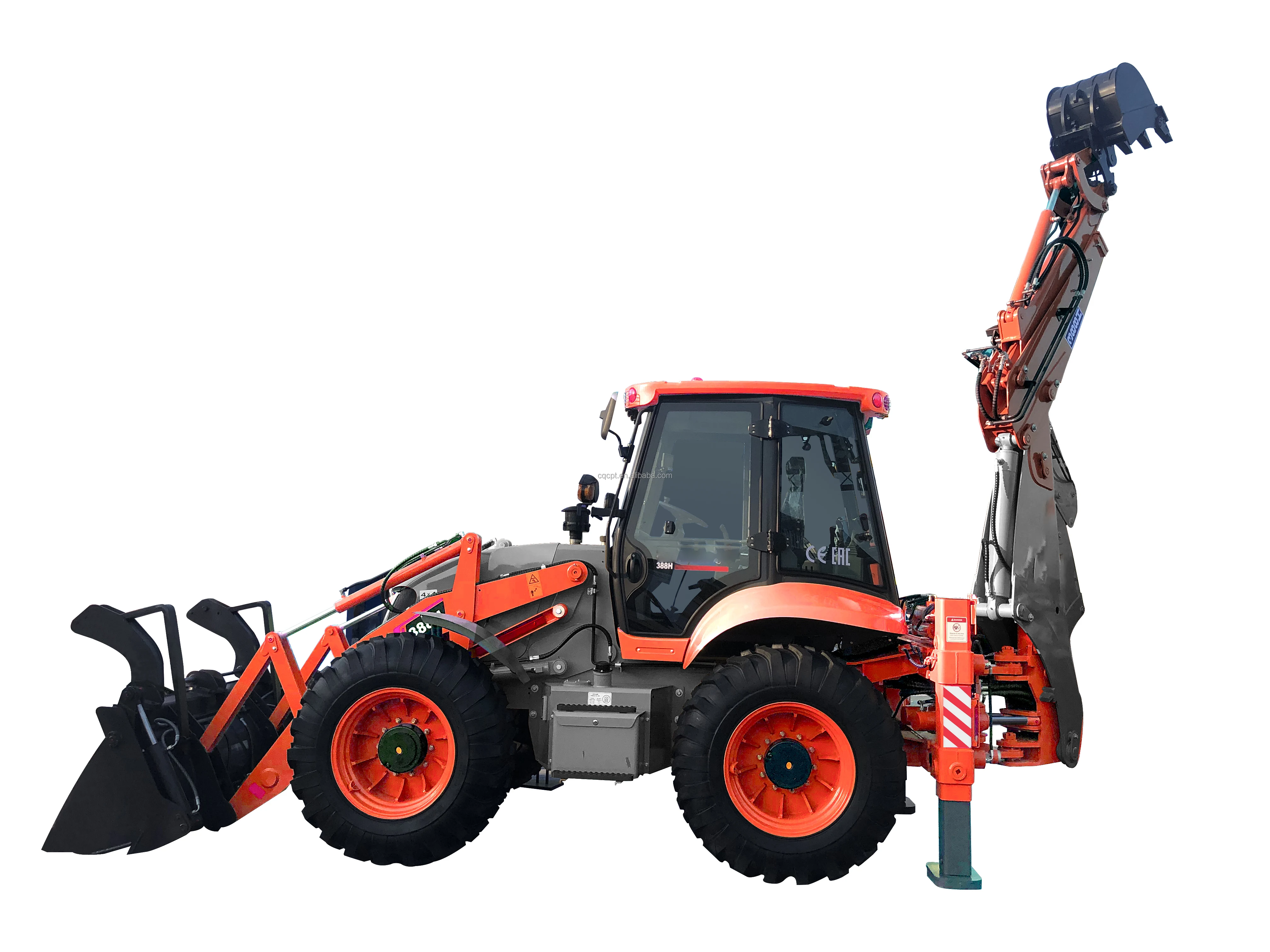

5.Colors can be customized





Overall Operating Weight	8200KG	Final Reducer	Single Stage Final Red
Transport Dimension		Rated Loader of Axle	22.5t,18.5t
L ' W ' H mm	6050×2465×3100	Transmission System
Wheel base	2280mm	Torque Converter
Min.Ground Clearance	300mm	Model	B90
Bucket Capacity	1.0m³	Type	Sngle-stage Three E
Breakout Force	47KN	Max. Efficiency	84.4%
Loading Lifting Capacity	2500KG	Inlet Pressure	0.4Mpa-0.65Mpa
Bucket Dumping Height	2650mm	Outlet Pressure	1.5Mpa-1.8 Mpa
Bucket Dumping Distance	1025mm	Cooling Method	Oil cooling Pressure Circu
Digging Depth	52mm	Gearbox
Backhoe Capacity	0.3m²	Type	Fixed Shalt Power Transr
Max.Digging Depth	4085mm	Oil Pressure ofCutch	1373Kpa-1569 Kpa
Swing Angle of Excavator Grab	180°		Twesked,1n
Max. Pulling Force	60KN		24Km/h
Engine		Tyre
Model	YuchaiYC4A1062-720	Model	14-17.5/19.5L-24
Type	urbocharging Four-Stoke	Pressure of Front wheel	0.4Mpa
(yingerlnsid: Diamiter"mr	4-108×132		0.35Mpa
Rated Power	75KW	Brake System
Rated Speed	2200r/min		Air Over Oil Caliper E
Min.Fuel Consumption	230g/km.h		Extemal Type
MaxTorque	400N,m	Service Brake	Self-regulation
Displacement	4.837L		Self-balance
Steering System		Emergency Brake	Operation Power Implementing brake
Model of Steering Device	BZZ5-250		Manual Operatic ower Terminating Brake
Steering Angle	±36°	Hydraulic System
Min. turning radius	6581mm		50KN
Pressure of the system	12Mpa	Digging Power of Dipper	31KN
Axle		Bucket Lifting Time	6.85
Manufacturer	Feicheng Axle Factory	Bucket lowering Time	3.1S
Main Transmission Type	Double Reduction	Bucket Discharge Time	2.05



Overall Operating Weight	10500KG	Final Reducer	Single Stage Final Reducer
Transport Dimension		Rated Loader of Axle	13t
L ' W ' H mm	6420*2530*3120	Transmission System
Wheel base	2335mm	Torque Converter
Height excavation arm folding)	3120mm	Model	Biuloo-320
Bucket Capacity	1.2m³	Type	Single-stage Three Elements
Breakout Force	47KN	Max.Efficiency	84.4%
Loading Lifting Capacity	2500KG	Inlet Pressure	0.4~0.65Mpa
Bucket Dumping Height	3050mm	Outlet Pressure	1.6Mpa-1.9Mpa
Bucket Dumping Distance	870mm	Cooling Method	Oil-cooling Pressure Circulation
Wheel base	2050 mm	Gearbox
Backhoe Capacity	0.3m³	Type	Mechanically operated hydraulic synchronous shift
Max. Digging Depth	3820mm 4770mm	Model	ZL15
Swing Angle of Excavator Grab	180°	Gears	Four Gears Ahead, Four Gears Astern
Maximum Digging Force	50KN	Max.Speed	36 Km/h
Engine		Tyre
Model	YUCHAI YC4A105Z-T20	Model	16.9-28
Type	In Line Direct njection Four-Stroke and njection Combustion Chamber	Pressure of Front wheel	0.35Mpa
Cylinder Inside Diameter"Stroke	4-108*132	Pressure of Back Wheel	0.35Mpa
Rated Power	75KW	Brake System
Rated Speed	2200r/min		Gas pushed oil
Min. Fuel Consumption	≤230g/km.h		built-in
Max.Torque	≥400N.M	Service Brake	Self-regulation
Displacement	4.8L		Self-balance
Steering System		Emergency	Operation Power mplementing brake
Model of Steering Device	BZZ5-250	Brake	Manual Operation Power Terminating Brake
Steering Angle	±35°	Hydraulic System
Min. turning radius	6950mm	Working pump discharge	63ml/r
Pressure of the system	14Mpa	Working pump pressure	20Mpa
Axle		Type of steering gear	BZZ5-250
Manufacturer	Feicheng Axle Factory	Hydraulic tank capacity	130L
Model	WZL100DF	Diesel tank capacity	130L
The parameters are subject to change without notice





Overall Operating Weight	8200KG	Rated dynamic/static Load of front axle	7.5t/18.75t
Performance		Transmission System
L ' W ' H ( m m )	6050×2465×3100	Torque Converter
Wheel base	2280mm	Model	TLB1-4WD
Min.Ground Clearance	300mm	Type	Sngle-sage Thee Elements
Bucket Capacity	1.0m³	Max. Efficiency	84.4%
Breakout Force	47KN	Inlet Pressure	0.5Mpa
Loading Lifting Capacity	2500KG	Outlet Pressure	1.1Mpa-1.3 Mpa
Bucket Dumping Height	2780mm	Cooling Method	Oil - cooling PressureCirculation
Bucket Dumping Distance	880mm	Gearbox
Digging Depth	52mm	Type	Fixed Shaft Power Transmission
Backhoe Capacity	0.3m³	Oil Pressure ofClutch	1373Kpa—1569 Kpa
Max. Digging Depth	4085mm	Gears	four Gears Ahead four Gears Astern
SwingAngle of Excavator Grab	180	Max. speed	38Km/h
Max, Pulling Force	60KN	Tyre
Engine		Model	14-17.5/19.5L-24
Model	WeichaiWP4G95E221	Pressure of Front wheel	0.4 Mpa
Type	InLne Directinjettion For mke and Injecion Combustan Chamber	Pressure of Back Wheel	0.35 Mpa
Cylinder-Inside Diameter'Stroke	4-105×130	Brake system
Rated Power	70KW/95HP	Service Brak	wet-type
Rated Speed	2200r/min		internal type
Min. Fuel Consumption	230g/km.h		self-regulation
Max.Torque	380N.m/1400-1600rpm		self-balance
Displacement	4.5L	Emergency Brake	Manual brake
Steering System			terminating brake through hydraumatic
Model of Steering Device	BZZ5-250	Hydraulic System
Steering Angle	±36	Digging Power of Excavator Grab	50KN
Min, turning radius	6581mm	Digging Power of Dipper	31KN
Pressure of the system	14Mpa	Bucket Lifting Time	6.8S
Axle		Bucket Lowering Time	3.1S
Manufacturer	Carraro	Bucket Discharge Time	2.05
Rated dynamic/ static Load of front axle	9t/22.5t



1.How long have you engaged in this industry?
We have been engaged in this industry for more than 20 years, our hot products sold at home and abroad through our own foreign trade department and some trading company.
2.Do you support OEM&ODM service?
Yes,we can provide to OEM&ODM service to you.
3.How long the product warranty period?
The product warranty period is 12 months.
4.What's your payment terms?
T/T, L/C, Alibaba Trade Assurance, PayPal, Western Union, Credit Card etc
5.Do you have after-sales service?
Yes, we have.

6. How can I make sure business go smoothly without any cheating?

Based on your recognized machies, a serious sales contract will be signed. Besides, as an Alibaba-approved golden supplier and 20-year professional seller, we make sure the whole procedure is transparent and buyers can know every single detail of business between each other. Buyers can easily stay involved with the whole business process, including machine testing, contracts making, packaging and shipping.

7.What's loading port?
Chongqing,Qingdao, Shanghai, Tianjin, Ningbo, Xiamen, Shenzhen, Guangzhou, Dalian.
