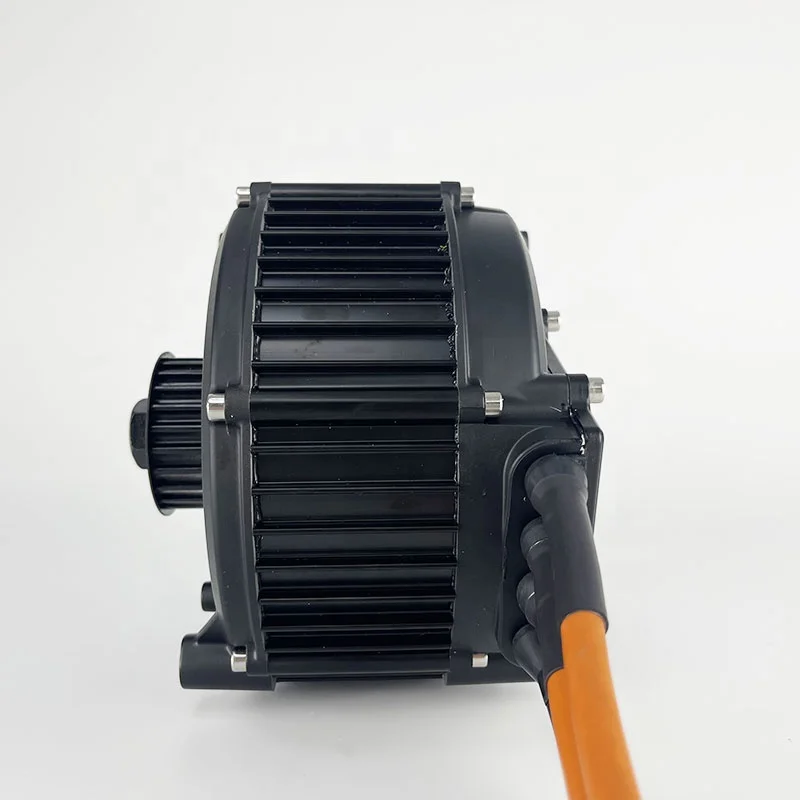

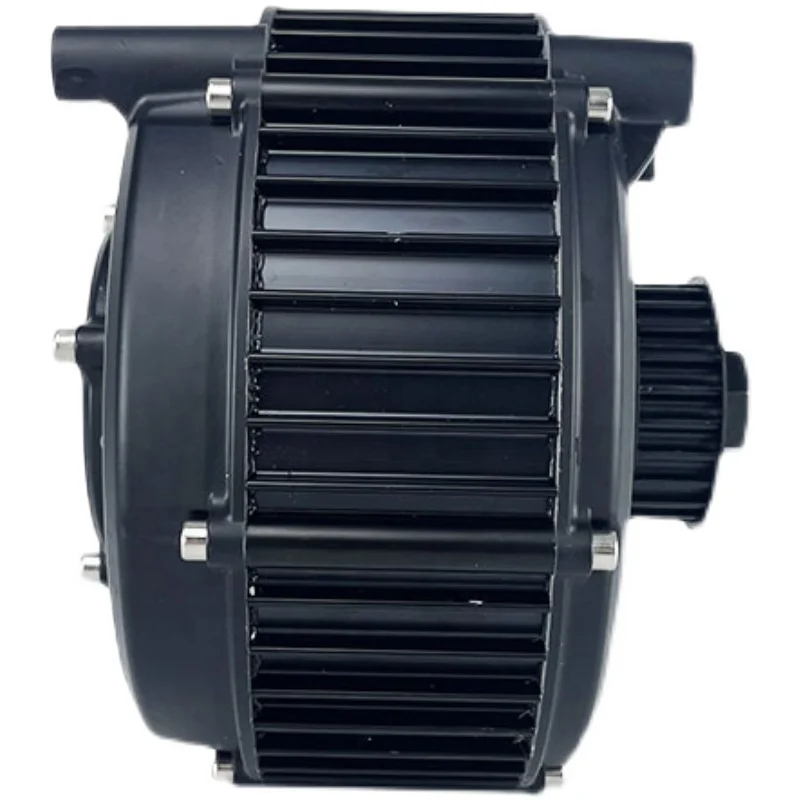

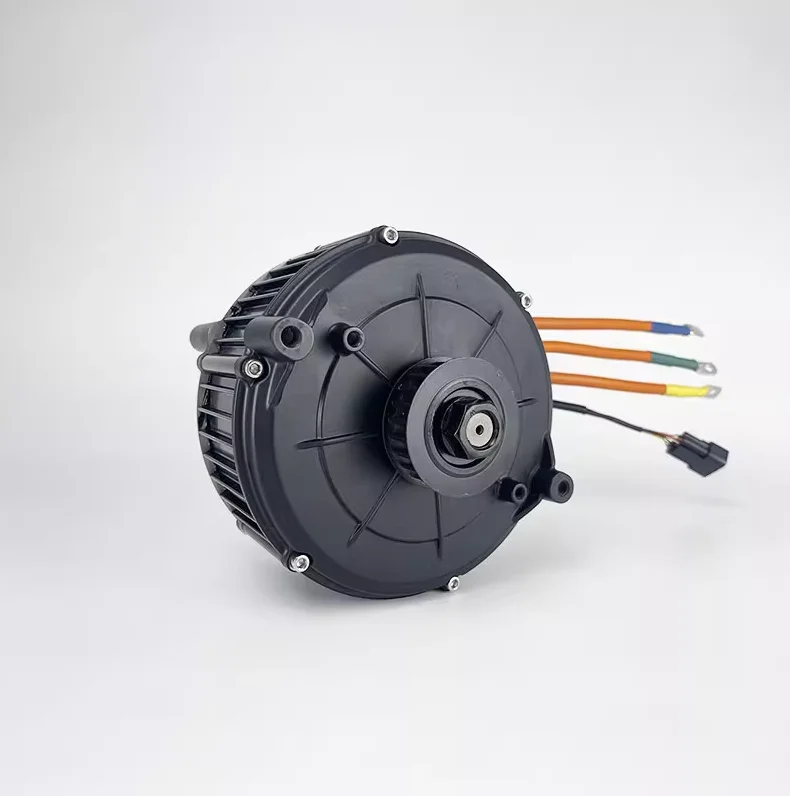

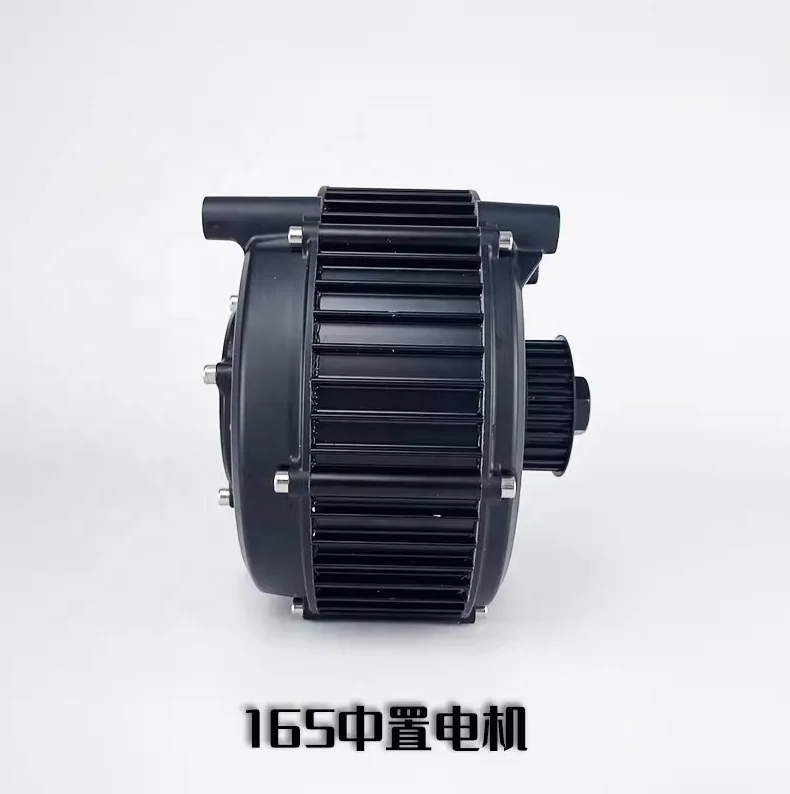

QS165 V2.0 35H 72V 5000W Mid drive IPM PMSM motor
- Category: >>>
- Supplier: Hangzhou Reacher Technology Co. Ltd.
Share on (1600968123295):
Product Overview
Description
QS165 V2.0 35H 72V 5000W Rated Power Encoder Mid drive Motor It could be used for electric motorcycle, which could be 72V 100KPH. e.g. Electric Motorcycle E-motorcycle Key Features 1) Light weight and small dimension compare to hub motor 2) High performance benefit from flux weakening 3) High efficiency during climbing, and better acceleration 4) Support regenerative braking | ||
Motor type | PMSM Inner Rotor Motor | |
Motor Design | Single axle | |
Pole Pairs | 5 pole pairs | |
Rated Power | 5000W | |
peak power | 10000W | |
Rated Voltage | 72V, can be custom made from 48V-96V | |
Motor Rated rpm | 5000RPM-6500RPM | |
Peak Torque | 50N.m | |
Cooling Method | Air Cooling | |
Max Efficiency | 93% | |
Winding Resistance Temperature | Glade F<=150 Centigrade ; Glade H<=180 Centigrade | |
Sensor Type | Encoder | |
Phase Wire | 16mm2 Cross Section ( not include insulation layer) | |
Waterproof Grade | IP67 | |
N.W./G.W. | 8.4kg / 10.5kg | |
Packing Demension | 32cm *32mm * 37cm | |
