Made in China factory tax included Ftth olt 4 uplink ports epon xpon mini epon 4pon olt epon with 4 PX20 PON SFP moules

Share on (1600968129920):


Price:US$150.00 - US$215.00

Quantity:


Product Overview

Description



Product Description


  • HA7004S MINI EPON OLT

  • without sfp

Feature
(1)Supply 4 SFP PON ports, 4 1000M RJ45 Uplink ports
(2)Each PON port support 1.64 split ratio, total 256 ONUs access
(3)Distance can reach 20km under 1:32 split ratio
(4)Better for large area, integrated network access and surveillance transmission

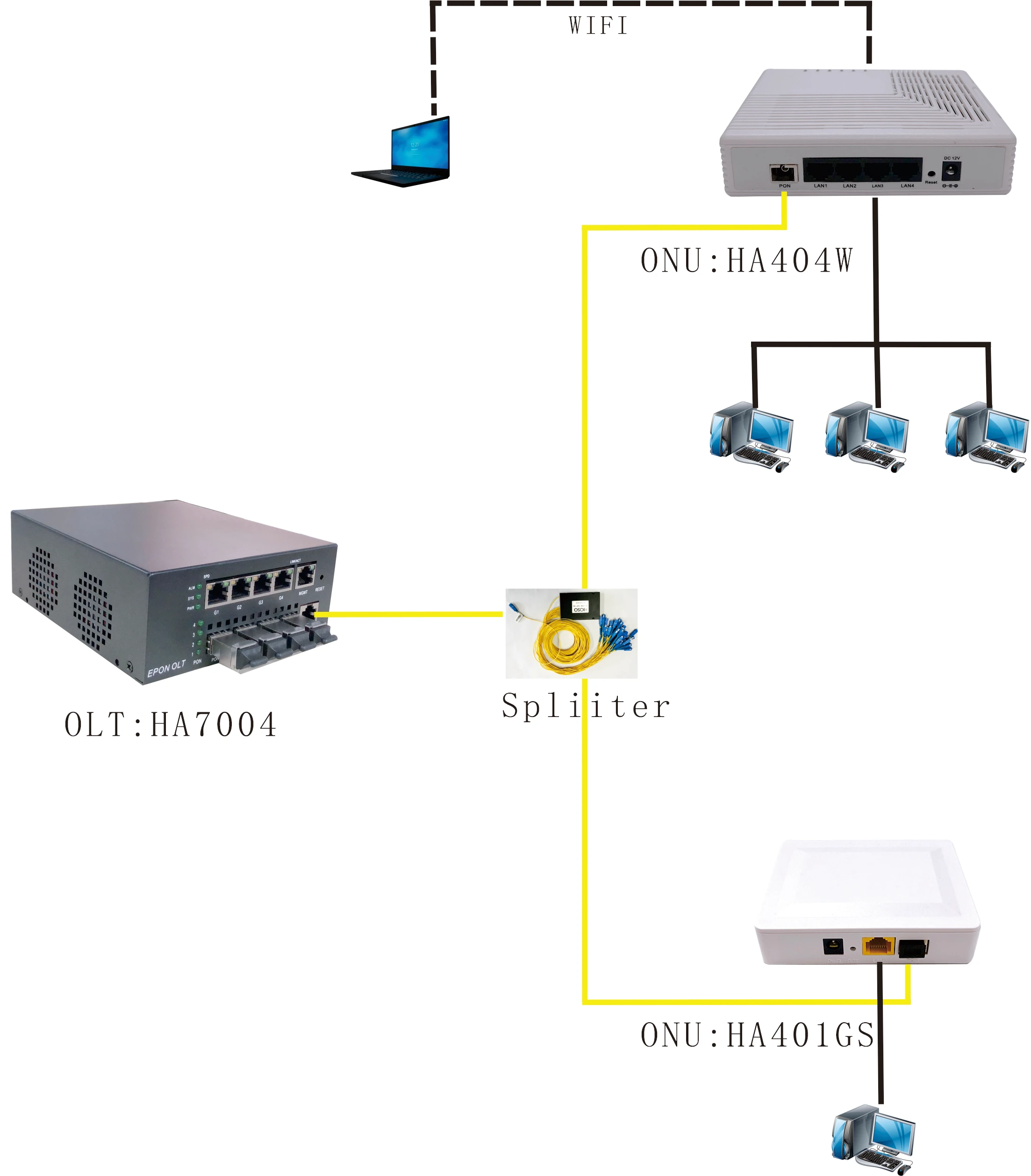

Application
1000M point to multi-point optic passive network




Product Name
HA7004S EPON OLT
Wavelength
1310(RX)/1490(TX)
Optical power
+2.5~ +7dBm
Receiving Sensitivity
-27dBm
Maximum distance
20km
Maximum optic ratio
1:64
Capacity
4PON System, 256 ONUs
MAC
16K


Port
4 Gigabit SFP PON ports
4 GE Uplink ports
1 FE management port
1 RS232 DB9 serial port
MTBF
100000 hours





Feature
Support IEEE802.3ah
Support DBA with minimum1Kbps granularity adjustable
Support 1Gbps up link and down link symmetrical bandwidth
Support AES-128 encryption to each Logical Link Identifier
Support powerful OAM function, implement telnet management, maintenance and upgrade
Support auto discovery and auto register of ONU (real-time operation)


Standard
Support IEEE802.3, IEEE802.3u, IEEE802.3ab
Support IEEE802.1Q VLAN
Support IEEE 802.1P QoS
Network
management
Support GUI management based on SNMP (work with rack)
Support WEB / CLI
