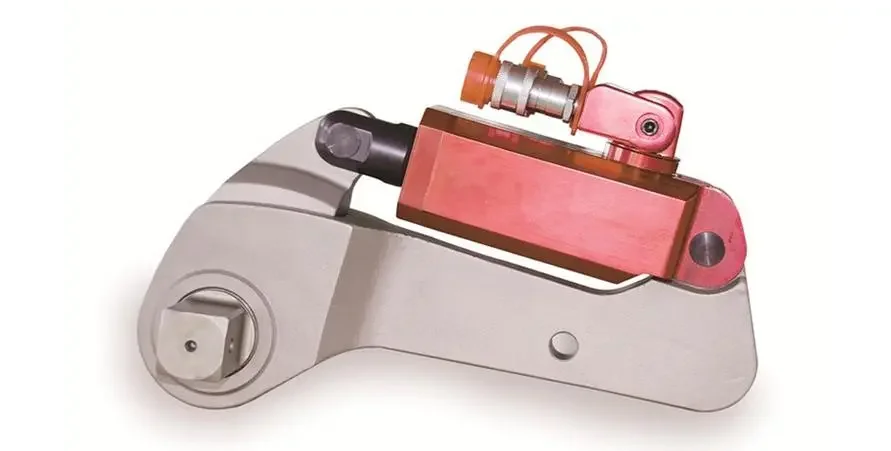

Super torque hydraulic wrench
- Category: >>>
- Supplier: Wavor Precision Machinery (Shanghai) Co. Ltd.
Share on (1600968154067):
Product Overview
Description
Product Description
1. Made of high-tech aerospace materials (aluminum titanium alloy and special alloy steel)
2.360x180 ° rotary joint, not limited by usage space
3. Direct push drive shaft reversing, simple and fast
4. Using precision wheels, with an accuracy of up to ± 3%
5. It can be equipped with large and ultra long sleeves to meet the requirements of different working conditions, with a super large torque design, and can be made into 180000Nm and larger torque

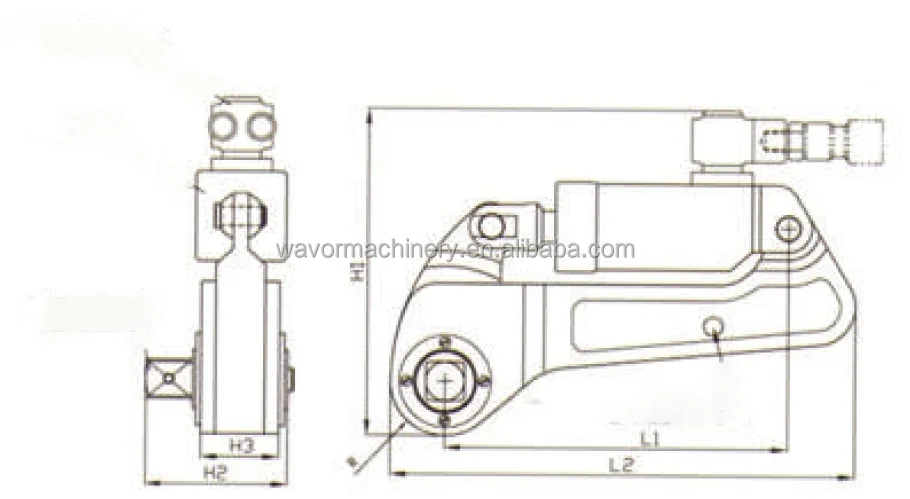

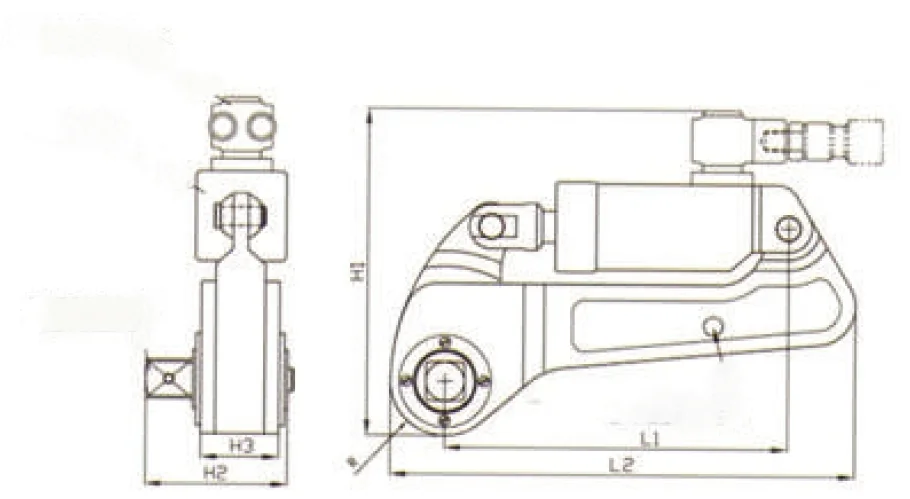

| Model | HTW-B03 | HTW-B05 | HTW-B10 | HTW-B20 | HTW-B40 | HTW-B60 | HTW-B80 | HTW-B120 | HTW-B160 | HTW-B180 |
| Max Torque(Nm) | 3190 | 5032 | 10135 | 20130 | 39601 | 63857 | 79390 | 115783 | 156687 | 180000 |
| Min Torque(Nm) | 228 | 503 | 1014 | 2013 | 3960 | 6386 | 7939 | 11578 | 15668 | 18000 |
| Square Size | 1" | 1" | 1-1/2" | 2" | 2-1/2" | 2-1/2" | 3-1/2" | 3-1/2" | 4" | 4" |
| L1 (mm) | 183 | 219 | 255 | 284 | 337 | 365 | 396 | 446 | 500 | 505 |
| L2 (mm) | 247 | 297 | 353 | 398 | 480 | 525 | 583 | 645 | 720 | 758 |
| H1 (mm) | 173 | 210.5 | 246 | 291.5 | 488 | 365 | 413 | 462 | 498 | 513 |
| H2 (mm) | 89 | 91 | 124.5 | 141.5 | 174 | 185 | 216 | 245 | 268 | 270 |
| H3 (mm) | 48 | 50 | 69 | 78 | 96 | 104 | 118 | 138 | 150 | 150 |
| H4 (mm) | 133 | 165 | 184 | 207 | 216 | 241 | 256 | 293 | 315 | 326 |
| R (mm) | 30 | 35 | 45 | 52 | 70 | 80 | 88 | 100 | 110 | 124 |
| Weight (Kg) | 4.3 | 6.5 | 14 | 19.5 | 37 | 40 | 55 | 91 | 122 | 176 |
