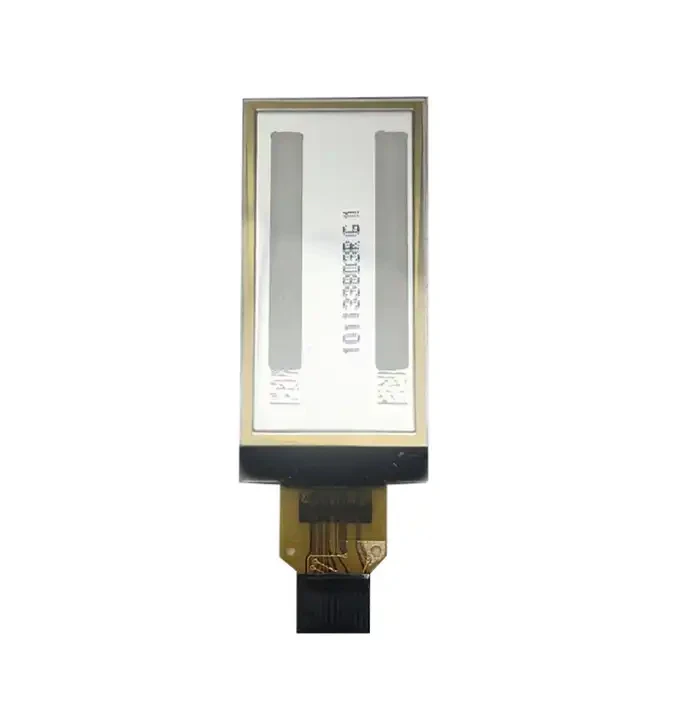

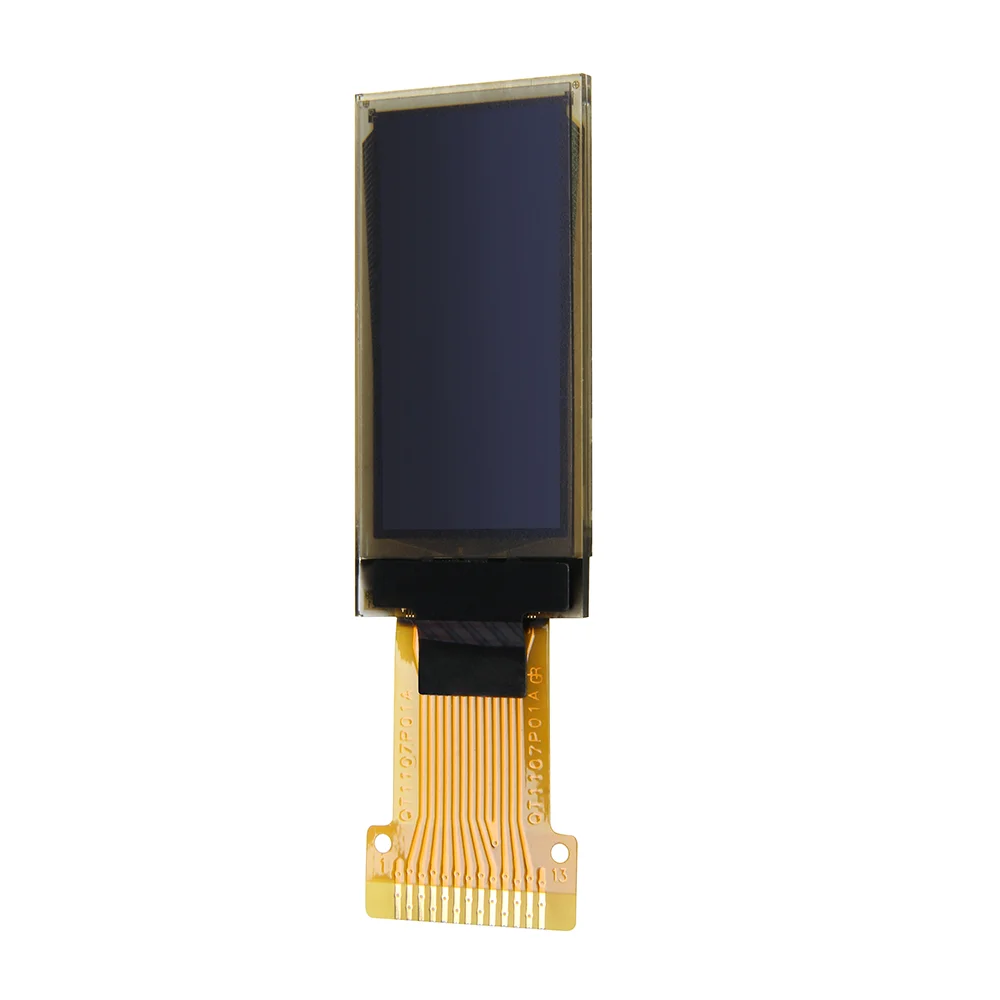

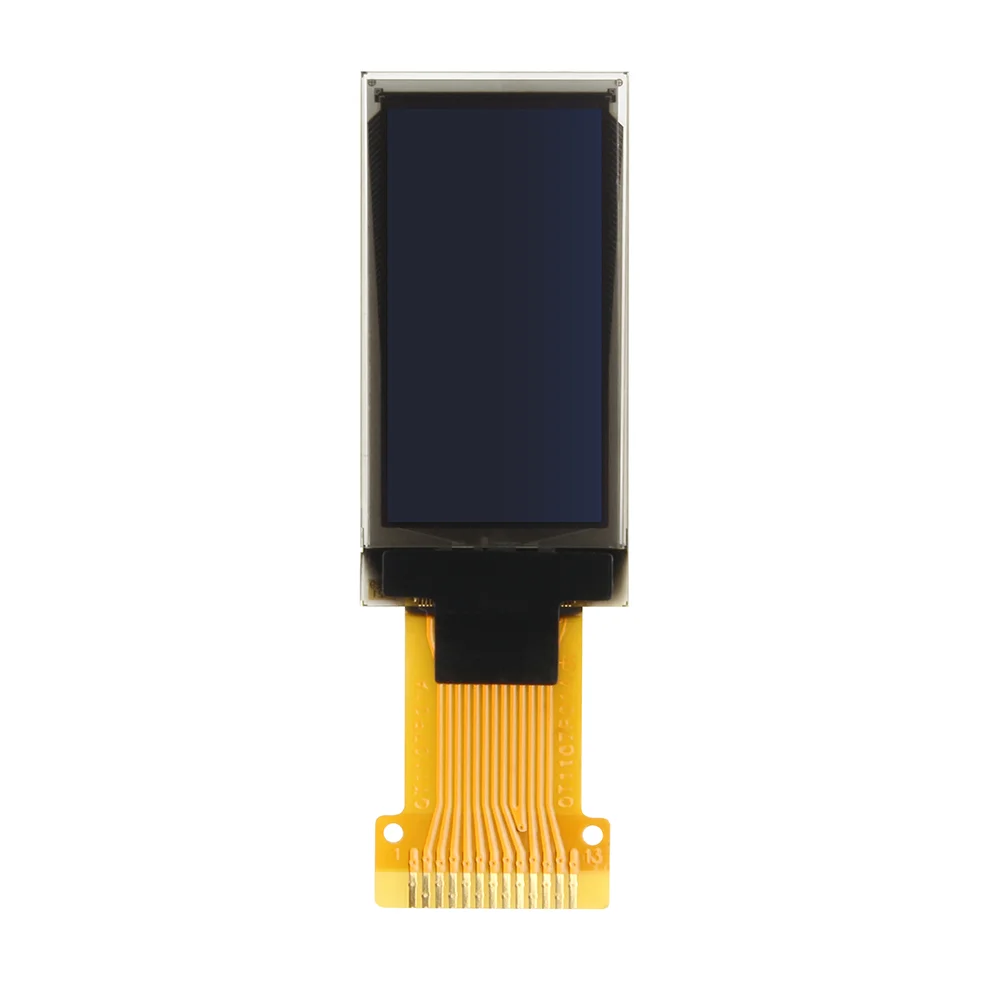

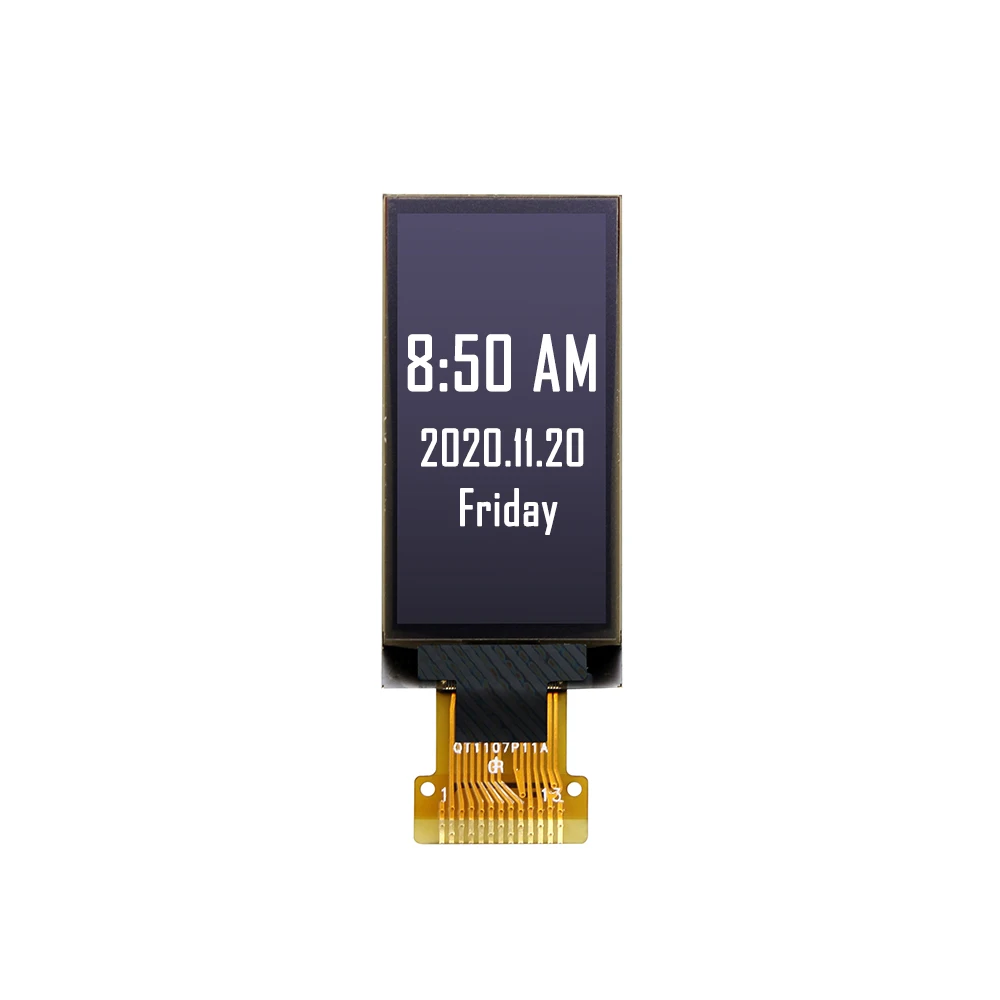

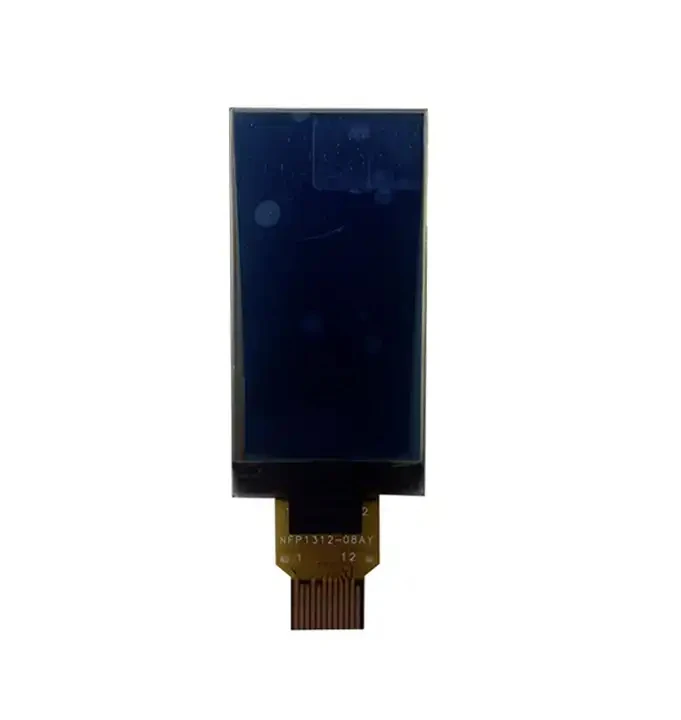

1.3 inch Oled white Display Lcd Panel 64x128 dots Oled Screen Module,1.3 inch oled display raspberry pi
- Category: >>>
- Supplier: Dongguan Shineworld Innovations Technology Co. Ltd.
Share on (1600968172279):
Product Overview
Description
Display General Description
The GLO13-D-M2010, produced by SWICN, is a versatile 1.3-inch graphic OLED display module. It presents a visually attractive display in white with a resolution of 64x128 pixels. The module employs the efficient SSD1312 controller IC and supports 4-wire SPI and I2C interfaces for seamless communication.
Operating as an OLED display, it operates without the need for a backlight, resulting in reduced power consumption. This
characteristic enhances contrast and widens the viewing angle, ensuring dependable performance across various temperature conditions.
The module's FPC (Flexible Printed Circuit) is designed with a connector type, featuring 12-pin connections. This enables easy and direct connection to your PCB, simplifying the integration process and ensuring a secure and reliable connection.
The SWI GLO13-D-M2010 is compatible with various MCUs, including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. This adaptability makes it suitable for a wide range of applications, including embedded systems, industrial devices, wearables, MP3 players, e-cigarettes, security systems, medical equipment, consumer electronics, and handheld devices.
Shineworld Innovations Limited provides customization options for the display solution, such as customized FPC, integrated cover lenses, touch screens, or driver boards. This flexibility ensures that customers receive an optimized display solution tailored precisely to their specific needs and preferences. Additionally, if required, Shineworld Innovations Limited can also provide customized demo kits for customers.
Operating as an OLED display, it operates without the need for a backlight, resulting in reduced power consumption. This
characteristic enhances contrast and widens the viewing angle, ensuring dependable performance across various temperature conditions.
The module's FPC (Flexible Printed Circuit) is designed with a connector type, featuring 12-pin connections. This enables easy and direct connection to your PCB, simplifying the integration process and ensuring a secure and reliable connection.
The SWI GLO13-D-M2010 is compatible with various MCUs, including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. This adaptability makes it suitable for a wide range of applications, including embedded systems, industrial devices, wearables, MP3 players, e-cigarettes, security systems, medical equipment, consumer electronics, and handheld devices.
Shineworld Innovations Limited provides customization options for the display solution, such as customized FPC, integrated cover lenses, touch screens, or driver boards. This flexibility ensures that customers receive an optimized display solution tailored precisely to their specific needs and preferences. Additionally, if required, Shineworld Innovations Limited can also provide customized demo kits for customers.
General Data
NO. | ITEM | SPECIFICATIONS | UNIT |
1 | Display Mode | PMOLED | |
2 | Diagonal Size | 1.3 | inch |
3 | Resolution | 64(H) x 128(V) | Dots |
4 | Active Area | 14.06(W) x 29.42(H) | mm |
5 | Outline Dimension | 17.1(W) x 35.8(H) | mm |
6 | Thickness | 1.43 + 0.2 | mm |
7 | Pixel Pitch | 0.23(W) x 0.22(H) | mm |
8 | Pixel Size | 0.21(W) x 0.20(H) | mm |
9 | Display Driver IC | SSD1312 | - |
10 | Touch Driver IC | NO Touch | - |
11 | Display Color | White | - |
12 | Gray Scale | 1 | Bit |
13 | Brightness | 160(min) | cd /m2 |
14 | Contrast Ratio | 2000:1 | - |
15 | Interface | 4-wire SPI/I2C | - |
16 | IC Package Type | COG | - |
17 | Module Connecting Type | Connector | - |
18 | Weight | TBD | g |
19 | Duty | 1/128 | - |
20 | Pins | 12 | Pins |
21 | Operating Temperature | -40~70 | ℃ |
22 | Storage Temperature | -40~85 | ℃ |

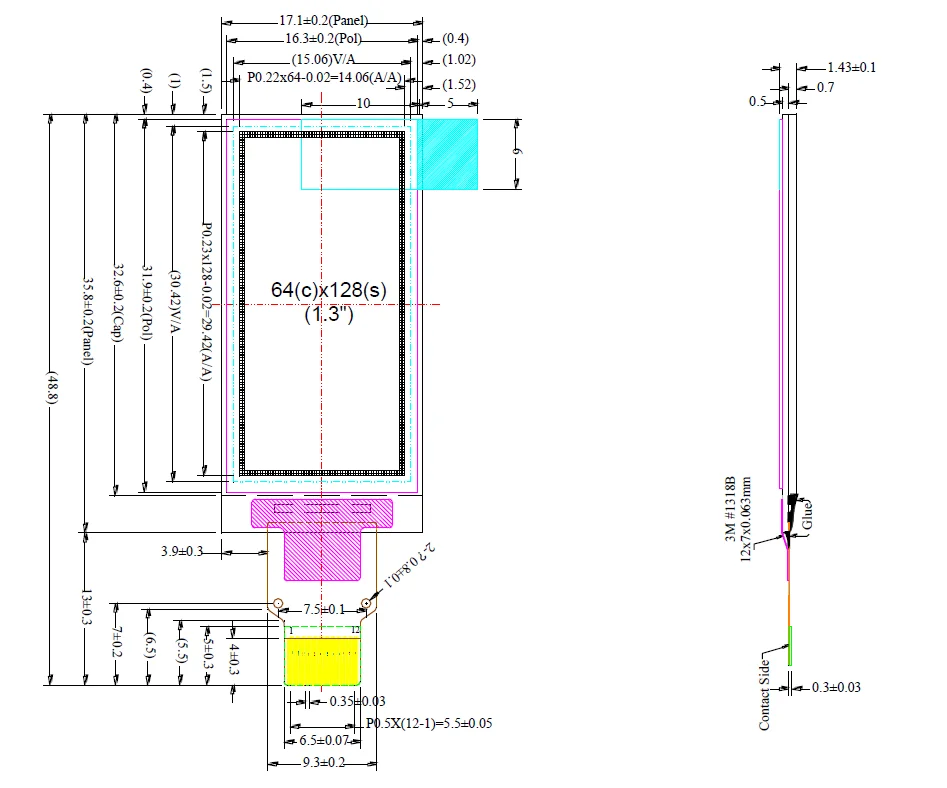

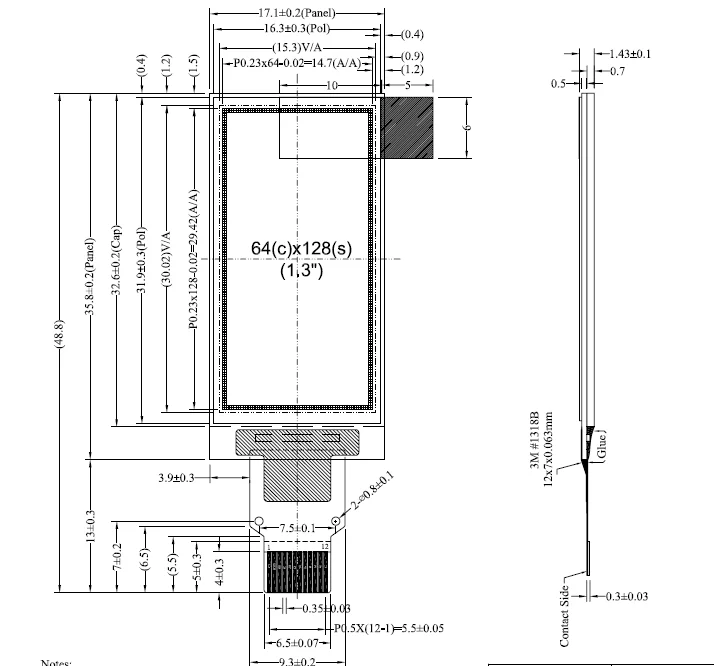

Drawings
Product Details
More OLED Screen Size Options Available
Size (inch) | Color | Display Mode | Resolution | Active Area (HxV mm) | Outline Dimension (HxVxD mm) | Interface |
0.33'' | White | Passive Matrix | 32x62 | 3.82x7.42 | 6.93x13.68x1.02 | 4-wire SPI/I2C |
0.42'' | W/B | Passive Matrix | 72x40 | 9.196x5.18 | 12.0x11.0x1.25 | 4-wire SPI/I2C |
0.49'' | W/B | Passive Matrix | 64X32 | 11.18x5.58 | 14.5x11.6x1.2 | 4-wire SPI |
0.5'' | White | Passive Matrix | 48x88 | 11.244x6.124 | 17.1x8.93x1.227 | I2C |
0.54'' | White | Passive Matrix | 96x32 | 12.46x4.14 | 18.52x7.04x1.22 | I2C |
0.6'' | Color | Passive Matrix | 64x64 | 10.73x10.73 | 15.0x17.5x1.20 | 4-wire SPI |
0.63'' | White | Passive Matrix | 120x28 | 15.58x3.62 | 21.54x6.62x1.22 | I2C |
0.66'' | W/B | Passive Matrix | 64x48 | 13.42x10.06 | 18.46x18.1x1.45 | Parallel/4-wire SPI/I2C |
0.69'' | W/B | Passive Matrix | 96x16 | 17.26x3.18 | 26.3x8x1.3 | I2C |
0.71'' | White | Passive Matrix | 48x64 | 10.54x14.7 | 13.9x22x1.2 | I2C |
0.75'' | White | Passive Matrix | 128x128 | D=19.18 | 23.15x25.93x1.21 | 4-wire SPI/I2C |
0.78'' | White | Passive Matrix | 80x128 | 9.68x17.26 | 12.13x23.6x1.22 | 4-wire SPI |
0.87'' | White | Passive Matrix | 128x32 | 21.35x5.32 | 29.0x8.7x1.2 | 4-wire SPI/I2C |
0.91'' | W/B | Passive Matrix | 128x32 | 22.38x5.58 | 30.0x11.5x1.2 | 4-wire SPI/I2C |
0.95'' | Color | Passive Matrix | 96x64 | 20.14x13.42 | 25.7x22.2x1.45 | MIPI 1 Lane/4-wire SPI |
0.96'' | W/B/Y | Passive Matrix | 128x64 | 21.74x11.175 | 26.7x19.26x1.45 | Parallel/4-wire SPI/I2C |
0.96'' | White | Passive Matrix | 96x96 | 17.26x17.26 | 24x25.7x1.2 | 4-wire SPI |
0.96'' | White | Passive Matrix | 64x128 | 10.86x21.74 | 14x28x1.22 | 4-wire SPI/I2C |
0.96'' | Color | Passive Matrix | 64x128 | 10.86x21.73 | 14.86x28.4x1.02 | Parallel/4-wire SPI |
1.09'' | White | Passive Matrix | 64x128 | 10.86x25.58 | 14x31.96x1.22 | 4-wire SPI |
1.1'' | Yellow | Passive Matrix | 96x96 | 20.14x20.14 | 27x42.11x1.61 | Parallel/SPI/I2C |
1.1'' | Color | Passive Matrix | 126x294 | 10.96x25.57 | 12.96x30.94x0.78 | MIPI 1 Lane/SPI |
1.12'' | White | Passive Matrix | 128x128 | 20.14x20.14 | 27x30.1x1.25 | Parallel/SPI/I2C |
1.12'' | Color | Passive Matrix | 96x96 | 19.85x19.85 | 25.9x30.1x1.2 | Parallel/4-wire SPI |
1.2'' | Color | Passive Matrix | 390x390 | D=30.42 | 33.22x33.75x0.68 | MIPI 2 Lane/SPI |
1.29'' | Color | Passive Matrix | 128x96 | 26.279x19.70 | 33x25.8x1.2 | Parallel/SPI |
1.29'' | White | Passive Matrix | 128x64 | 29.42x14.7 | 32.42x21.36x1.43 | Parallel/4-wire SPI/I2C |
1.3'' | W/B | Passive Matrix | 128x64 | 29.42x14.7 | 34.5x23.0x1.4 | Parallel/SPI/I2C |
1.3'' | White | Passive Matrix | 64x128 | 14.1x28.82 | 17.1x35.8x1.43 | 4-wire SPI/I2C |
1.3'' | Color | Active Matrix | 360x360 | D=32.94 | 35.34x36.07x0.67 | MIPI 2 Lane/SPI/MCU |
1.32'' | White | Passive Matrix | 128x96 | 26.86x20.14 | 32.5x29.2x1.61 | Parallel/SPI/I2C |
1.45'' | Color | Passive Matrix | 160x128 | 28.78x23.024 | 35.8x30.8x1.6 | Parallel/4-wire SPI/I2C |
1.47'' | Color | Active Matrix | 194x368 | 17.46x33.12 | 19.36x36.17x0.78 | MIPI 1 Lane/SPI |
1.5'' | Color | Passive Matrix | 128x128 | 26.85x26.86 | 33.8x34x1.6 | Parallel/SPI |
1.5'' | White | Passive Matrix | 128x128 | 26.85x26.85 | 33.9x37.3x1.44 | Parallel/4-wire SPI/I2C |
1.54'' | W/B/Y | Passive Matrix | 128x64 | 35.05x17.516 | 42.04x27.22x1.4 | Parallel/4-wire SPI/I2C |
1.6'' | Yellow | Passive Matrix | 128x64 | 36.45x18.21 | 41.9x28.0x1.61 | Parallel/4-wire SPI/I2C |
1.69'' | Color | Passive Matrix | 160x128 | 33.57x26.86 | 39.9x34x1.6 | Parallel/4-wire SPI/I2C |
1.77'' | Color | Passive Matrix | 160x128 | 35.01x28.01 | 42.7x33.4x2 | Parallel/SPI |
1.83'' | W/B | Passive Matrix | 256x32 | 46.06x5.74 | 52x11.5x1.81 | Parallel/4-wire SPI/I2C |
1.92'' | White | Passive Matrix | 128x160 | 28.90x39.34 | 32.9x118.4x1.22 | Parallel/SPI/I2C |
2.08'' | White | Passive Matrix | 256x64 | 51.18x12.78 | 62.5x20.6x1.6 | Parallel/4-wire SPI/I2C |
2.23'' | W/B | Passive Matrix | 128x32 | 55.02x13.1 | 62x24x2 | Parallel/4-wire SPI/I2C |
2.4'' | W/Y | Passive Matrix | 128x64 | 55.01x27.49 | 60.5x37x1.82 | Parallel/4-wire SPI/I2C |
2.42'' | W/B/Y/G | Passive Matrix | 128x64 | 55.01x27.49 | 60.5x37x1.8 | Parallel/4-wire SPI/I2C |
2.7'' | W/Y | Passive Matrix | 128x64 | 61.41x30.69 | 73x41.86x2.0 | Parallel/4-wire SPI |
3.12'' | W/B/Y/G | Passive Matrix | 256x64 | 76.78x19.18 | 88x27.8x2.0 | Parallel/SPI |
3.2'' | W/Y | Passive Matrix | 256x64 | 76.78x19.18 | 88x27.8x2.0 | Parallel/SPI |
5.5'' | Green | Passive Matrix | 256x64 | 135x33.89 | 146x45x2.0 | Parallel/SPI |
About OLED
OLED displays offer several advantages, including ultra-thin designs (eliminating the need for a backlight), wide viewing angles, clear and bright displays, and reduced power consumption.
At SWI, we offer a range of standard small-sized OLED displays and also specialize in customized designs. Our customization options include tailored Flexible Printed Circuits (FPCs), integrated touch sensors, cover lenses, and choices for flexible and transparent configurations.
Our product lineup includes various types of OLEDs, such as Transparent OLEDs, Flexible OLEDs, Monochrome OLEDs, Character OLEDs, Segment OLEDs, Area Color OLEDs, Full Color OLEDs, and custom-designed OLEDs, covering sizes from 0.42 inches to 5.5 inches.
Leveraging the unique advantages of OLED technology, our OLED products find applications in a wide array of industries, including Consumer Electronics, Medical Devices, PC Peripherals, Automotive, Communication Devices, and Industrial Equipment.
0.42“-5.5” Sizes Character | Graphic | Monochrome | Color | Bendable | Transparent
Dot Matrix: 48 x 88, 64×32, 64×48, 64 x 64, 64×128, 96×16, 96×32, 96×64, 96×39, 96×96, 120 x 28, 120 x 240, 128×32, 128×64, 128×96, 128×128, 160×128, 180×120, 256×32, 256×64, 320×360, 390×390, 360×360, 454 x 454
At SWI, we offer a range of standard small-sized OLED displays and also specialize in customized designs. Our customization options include tailored Flexible Printed Circuits (FPCs), integrated touch sensors, cover lenses, and choices for flexible and transparent configurations.
Our product lineup includes various types of OLEDs, such as Transparent OLEDs, Flexible OLEDs, Monochrome OLEDs, Character OLEDs, Segment OLEDs, Area Color OLEDs, Full Color OLEDs, and custom-designed OLEDs, covering sizes from 0.42 inches to 5.5 inches.
Leveraging the unique advantages of OLED technology, our OLED products find applications in a wide array of industries, including Consumer Electronics, Medical Devices, PC Peripherals, Automotive, Communication Devices, and Industrial Equipment.
0.42“-5.5” Sizes Character | Graphic | Monochrome | Color | Bendable | Transparent
Dot Matrix: 48 x 88, 64×32, 64×48, 64 x 64, 64×128, 96×16, 96×32, 96×64, 96×39, 96×96, 120 x 28, 120 x 240, 128×32, 128×64, 128×96, 128×128, 160×128, 180×120, 256×32, 256×64, 320×360, 390×390, 360×360, 454 x 454
Display Sizes: 0.42”, 0.49”, 0.5'', 0.6'', 0.63'', 0.66”, 0.69”, 0.71”, 0.75”, 0.87”, 0.91”, 0.95”, 0.96”, 1.09'', 1.1'', 1.12”,
1.29”, 1.3”, 1.45'', 1.46”, 1.47'', 1.5”, 1.54”, 1.6”, 1.19”, 1.29'', 1.39”, 1.41”, 1.69”, 1.77”, 1.83”, 2.08'', 2.23”, 2.4”,
2.42”, 3.12”, 5.5”
Font Color: White, Blue, Yellow, Green, Full Color
1.29”, 1.3”, 1.45'', 1.46”, 1.47'', 1.5”, 1.54”, 1.6”, 1.19”, 1.29'', 1.39”, 1.41”, 1.69”, 1.77”, 1.83”, 2.08'', 2.23”, 2.4”,
2.42”, 3.12”, 5.5”
Font Color: White, Blue, Yellow, Green, Full Color
OLED Features
High Contrast Ratio (10,000:1)
Free Viewing Angle
Fast Response Time (≤15μs)
Thinner, Lighter, and Durable
Wide Operating Temperature Range (-40℃ to +85℃)
Self-emitting, No Backlight Required
Versatile Integration Across Industries
