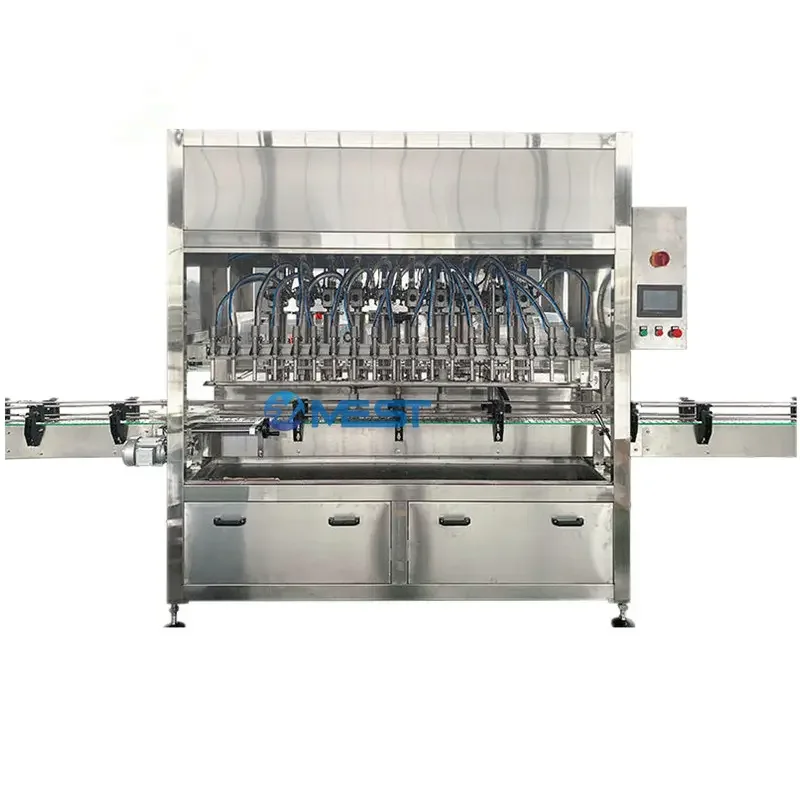

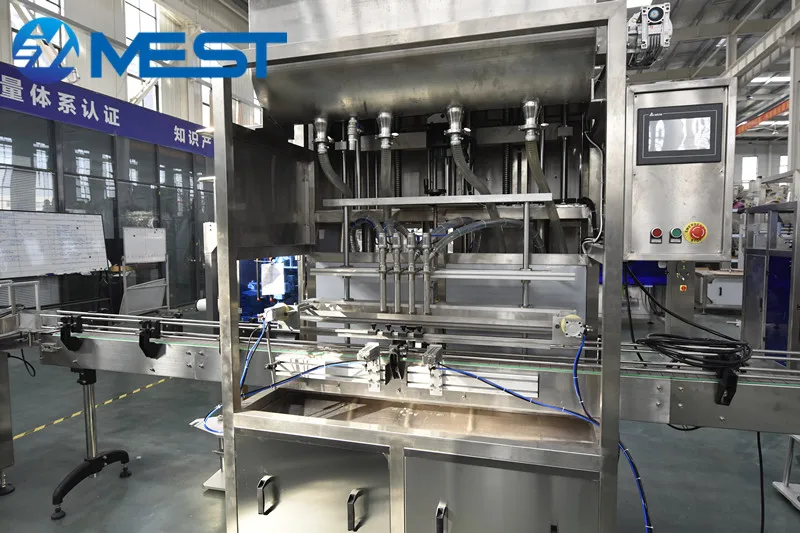

Automatic Fruit Beverage Juice Production /pet bottle dosing liquid water/vodka/vinegar/soy sauce/wine filling machine
- Category: >>>
- Supplier: Kaifeng Mest Machinery Equipment Co. Ltd.
Share on (1600968200770):
Product Overview
Description
Automatic Fruit Beverage Juice Production /pet bottle dosing liquid water/vodka/vinegar/soy sauce/wine filling machine
Product Description
Machine Introduction:
This liquid filling machine is widely used in food, chemical industry, daily chemical industry, such as honey, ketchup, rice wine, seafood sauce, grease, lubricating oil, etc., The filling of a viscous liquid, such as detergent, laundry fluid, etc.. The contact parts are made of stainless steel, and the composite GMP standard.
Machine Characteristics:
1.Servo motor driven the piston to achieve accuracy filling.
2. A special three-way valve for each filling nozzle.
3. The filling volume is adjustable on LCD touch screen; simple and convenient.
4. The bottles are automatically enters, fills, and exits.
5. Skip or stop filling if without bottles.
6. The filling volumes are accurate and has a counting function.
7. Equipped with filling nozzle to prevent dripping and drawing.
8. Equipped with a diving filling system to ensure that the filling process does not foam and prevent the filling material from overflowing.
9. Sanitary valve piping. Quick installation connection, easy disassembly and installation.
Specification
Model | MEST-SFGZ-L4 | MEST-SFGZ-L6 | MEST-SFGZ-L8 | MEST-SFGZ-L12 | MEST-SFGZ-L16 | ||||
Filling head | 4heads | 6heads | 8heads | 12heads | 16heads | ||||
Filling range | 50-1000ml or 500-3000ml（5Lfilling two times） | ||||||||
Filling accuracy | ±1%（＞100ml） | ||||||||
Capacity （filling 500ml） | 500-1000bottles/h | 800-1600bottles/h | 1000-2000bottles/h | 1500-3000bottles/h | 2000-4000bottles/h | ||||
Air pressure | 0.5-0.7mpa | ||||||||
Air consumption | 20L/t | 30L/t | 40L/t | 60L/t | 100L/t | ||||
Power | 2.0KW | 2.0KW | 2.0KW | 2.5KW | 2.5KW | ||||
Weight | 300kg | 400kg | 500kg | 700kg | 900kg | ||||
Size (cm) | 400*110*210 | 400*110*230 | 400*115*230 | 600*100*230 | 600*100*230 | ||||

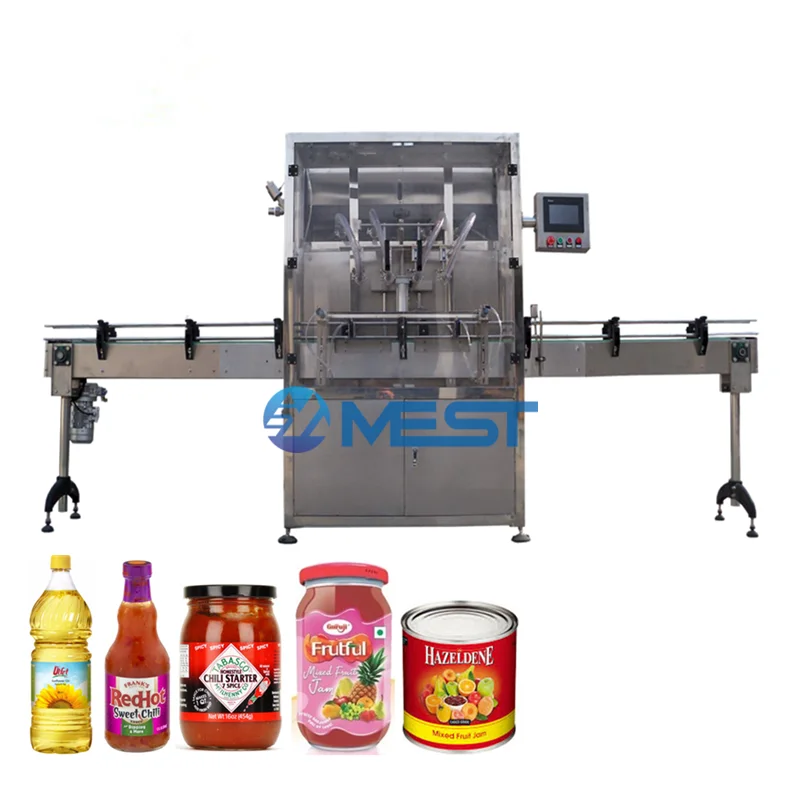

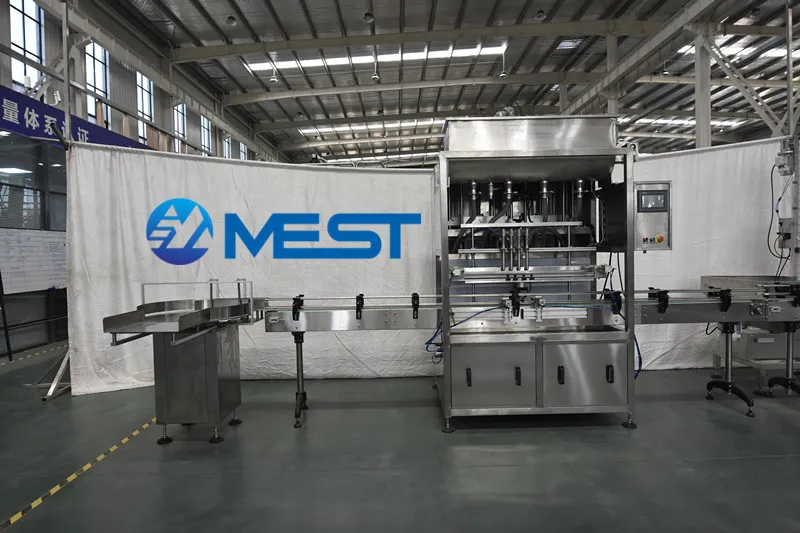

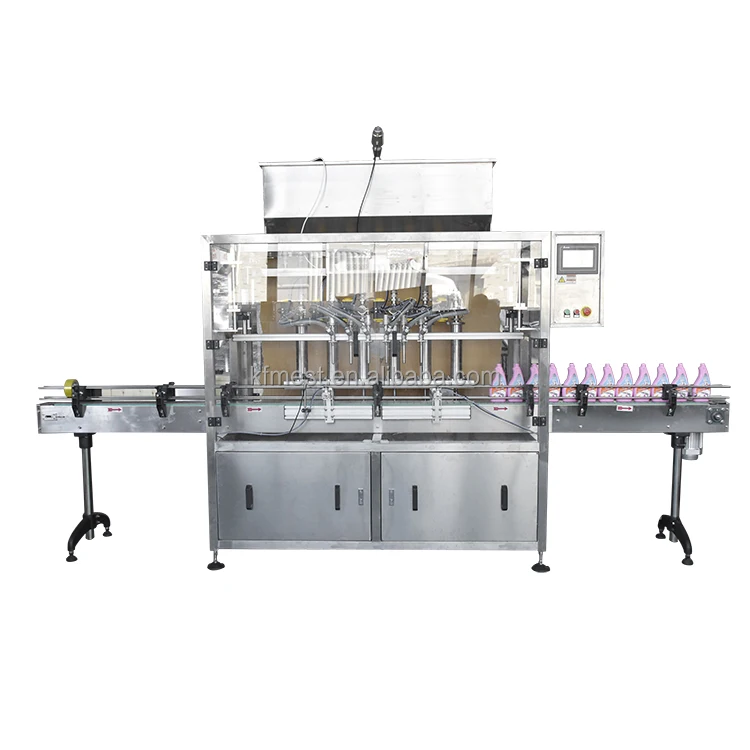

Details Images
Suitable For
Packing & Delivery
Fumigation-free wooden case

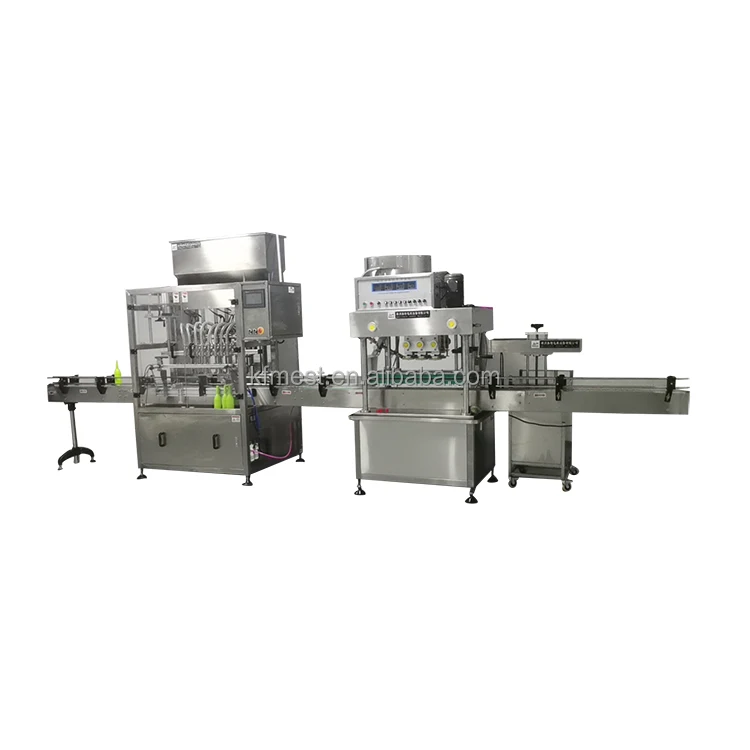

Related Products
FAQ
1. Q: Are you trading company or manufacturer ?
A: We are manufacturer since 1995. You can also check this from Alibaba Certified Business Types.
2. Q: What’s the guarantee of the machine?
A: We have 2 year’s guarantee of the machine. We would like to send you new one since we have two years warranty. You also can buy from your market if more convenient. And we will take videos and pictures to teach you how to replace it. Engineers available to service machinery overseas. (You need to pay tickets, food, hotel and salary), but anyway it's up to you. But according to my experience, there's nearly no wearing parts.
3. Q: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. Or it is 10-20 days if the goods are not in stock, it is according to
quantity.
4. Q: How to install the machine after we received the machine?
A: When you received the machine, just connect it with electric and air compressor then can run it. (It will cost a little more if you need our team to your place (you need to pay tickets, food, hotel and salary), but anyway it's up to you. We’ll test the machine and make sure the machine runs well before shipment. (We’ll send the testing video for your checking)
5. Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment.
A: We are manufacturer since 1995. You can also check this from Alibaba Certified Business Types.
2. Q: What’s the guarantee of the machine?
A: We have 2 year’s guarantee of the machine. We would like to send you new one since we have two years warranty. You also can buy from your market if more convenient. And we will take videos and pictures to teach you how to replace it. Engineers available to service machinery overseas. (You need to pay tickets, food, hotel and salary), but anyway it's up to you. But according to my experience, there's nearly no wearing parts.
3. Q: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. Or it is 10-20 days if the goods are not in stock, it is according to
quantity.
4. Q: How to install the machine after we received the machine?
A: When you received the machine, just connect it with electric and air compressor then can run it. (It will cost a little more if you need our team to your place (you need to pay tickets, food, hotel and salary), but anyway it's up to you. We’ll test the machine and make sure the machine runs well before shipment. (We’ll send the testing video for your checking)
5. Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment.
