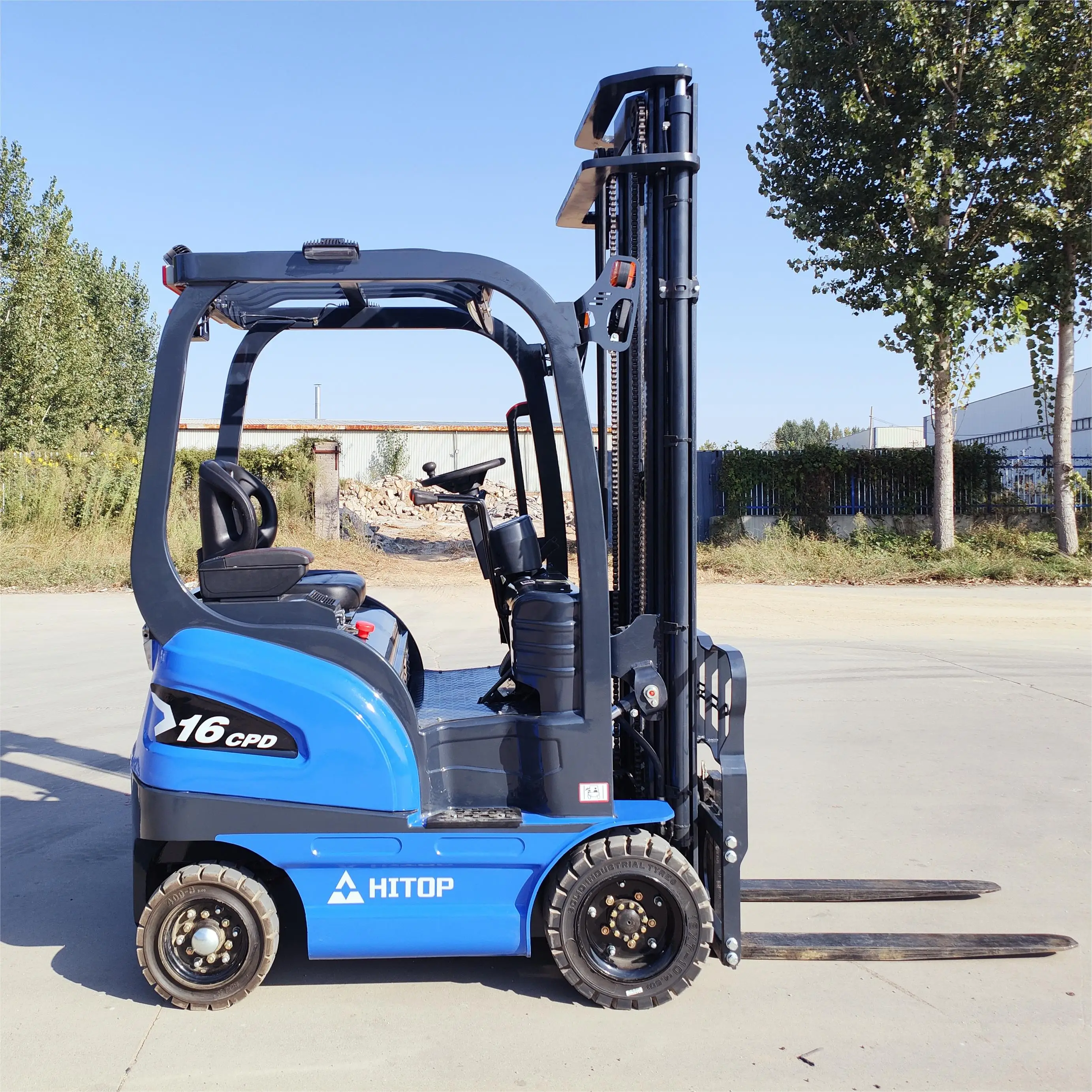

Super Short Wheelbase Forklift 2.5 Ton 2 Ton 1.8 Ton 1.5 Ton Li ion Small Electric Forklift Narrow Aisle Forklift Truck
- Category: >>>
- Supplier: Hitop Machinery Co. Ltd.
Share on (1600968202307):
Product Overview
Description
Product Description

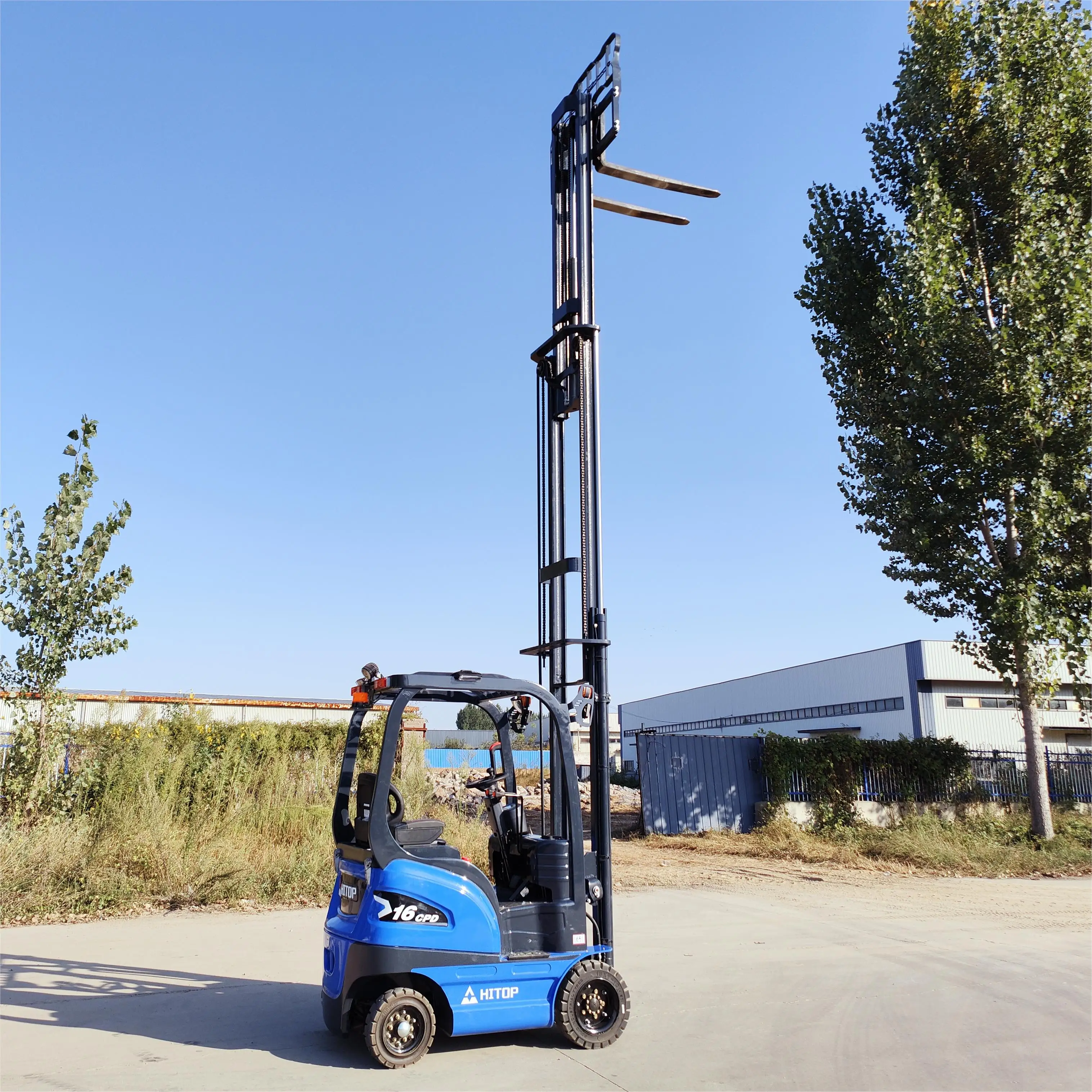

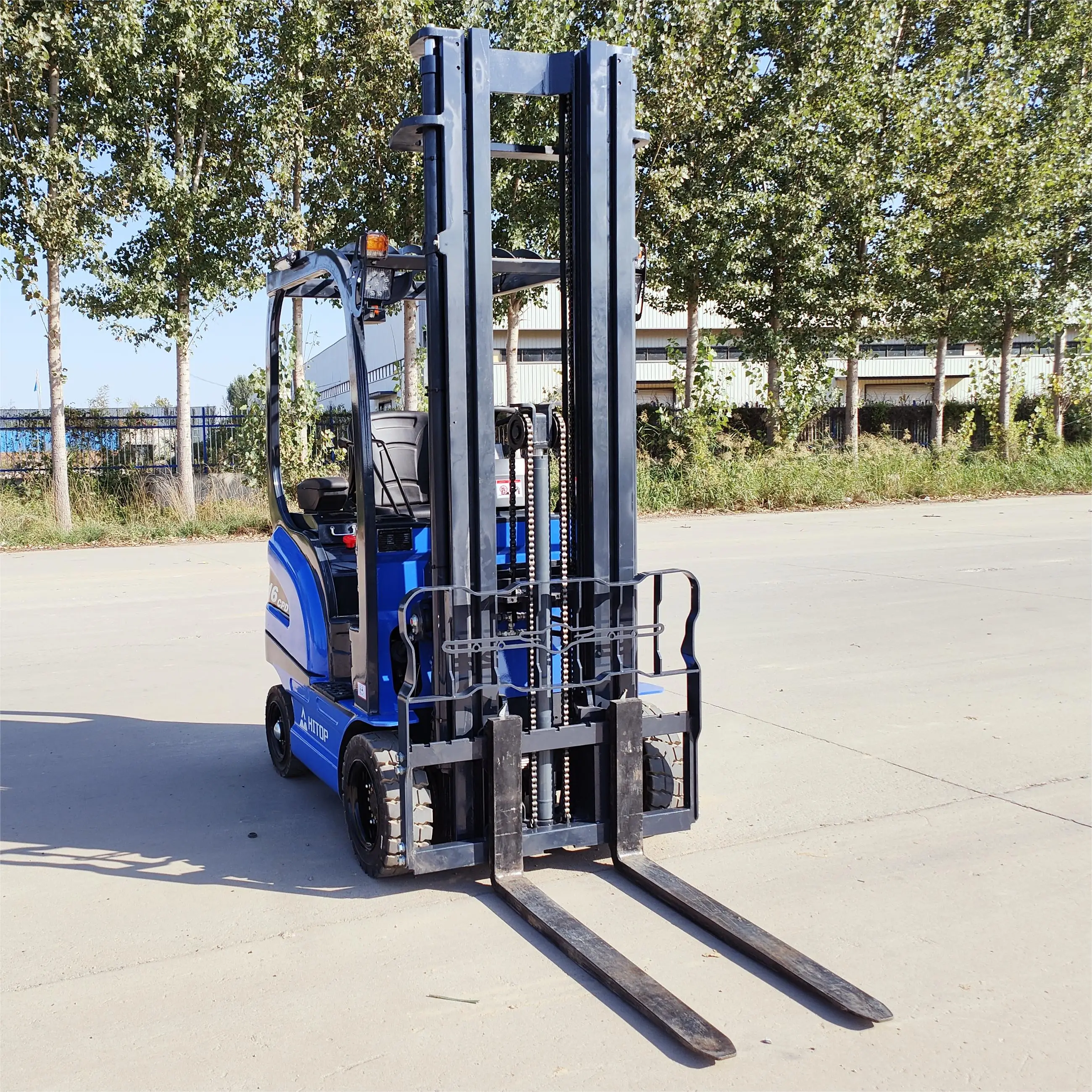

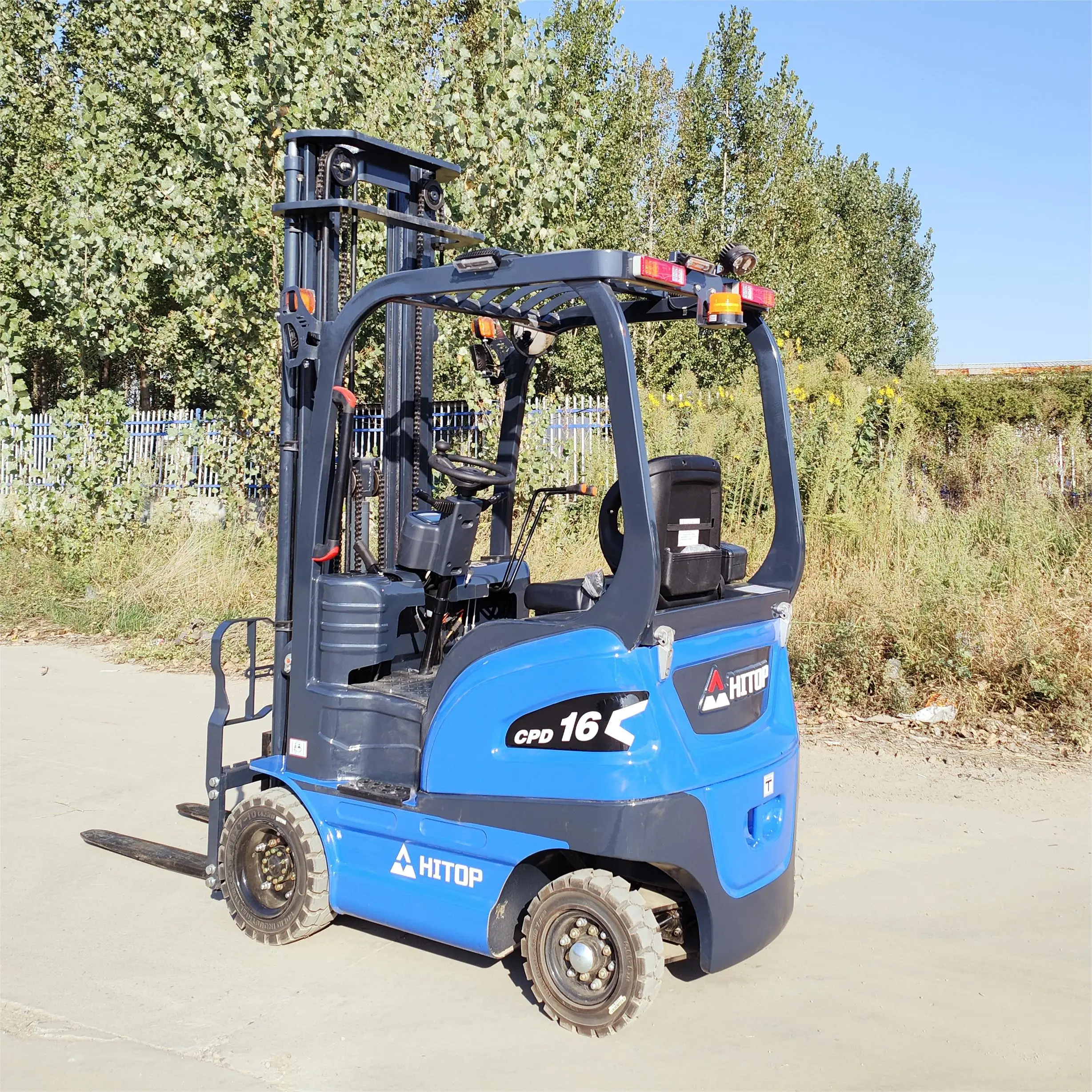

Super Short Wheelbase Forklift 2.5 Ton 2 Ton 1.8 Ton 1.5 Ton Li-ion Small Electric Forklift Narrow Aisle Forklift Truck

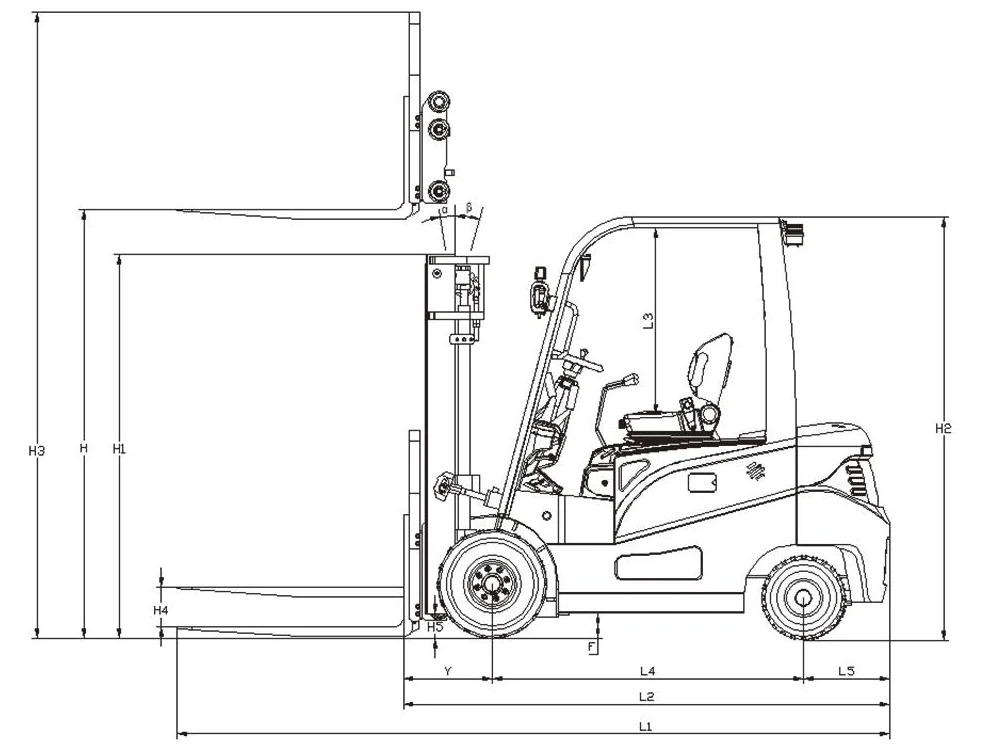

Specification
SPECIFICATIONS of 1.5 - 3Ton Electric Forklift | ||||||||||||||
Main Information | ||||||||||||||
1.1 | Brand | HITOP | ||||||||||||
1.2 | Model | CPD16 | CPD20 | CPD25 | CPD30 | |||||||||
1.3 | Operation type | Driven in seat | ||||||||||||
1.4 | Load capacity | kg | 1500 | 2000 | 2500 | 3000 | ||||||||
1.5 | Load center | mm | 500 | 500 | 500 | 500 | ||||||||
1.6 | Weight with battery | kg | 2200 | 3000 | 3400 | 4200 | ||||||||
Tire,chassis | ||||||||||||||
2.1 | Tire Type,Driving wheel/Load wheel | Solid tyre | ||||||||||||

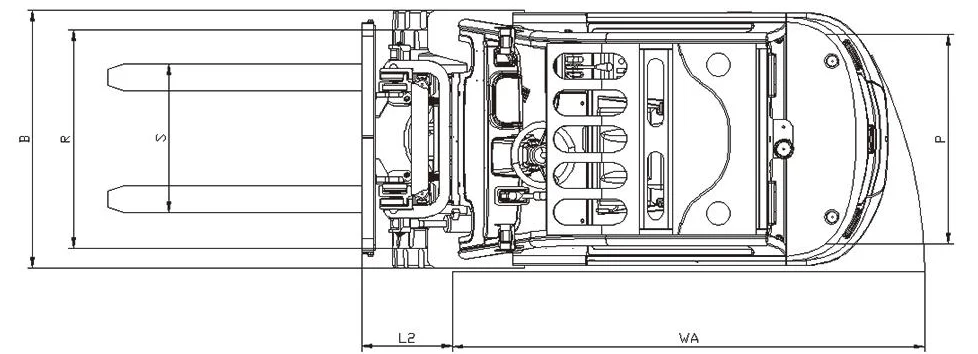

Size | ||||||||||||||
3.1 | Mast tilt,Forward/backward | α/β（°） | 6/12 | 6/12 | 6/12 | 6/12 | ||||||||
3.2 | Mast height after mast fall | mm | 2130 | 2130 | 2160 | 2180 | ||||||||
3.3 | Free lift height | mm | 120 | 150 | 150 | 150 | ||||||||
3.4 | Standard Mast height | mm | 3000 | 3000 | 3000 | 3000 | ||||||||
3.5 | Overhead guard height | mm | 2050 | 2050 | 2100 | 2100 | ||||||||
3.6 | Overall length | mm | 3260 | 3410 | 3600 | 3860 | ||||||||
3.7 | Vehicle width | mm | 1100 | 1100 | 1120 | 1220 | ||||||||
3.8 | Fork size | mm | 1070*125*45 | 1070*125*45 | 1070*125*45 | 1070*125*45 | ||||||||
3.9 | Channel width, with 1000X1200mm pallet | mm | 3970 | 4210 | 4210 | 4520 | ||||||||
3.10 | Channel width, with 800X1200mm pallet | mm | 4015 | 4260 | 4260 | 4560 | ||||||||
3.11 | Turning radius | mm | 1860 | 2230 | 2320 | 2480 | ||||||||
Mini Electric Forklift Features
High safety
1. Tailless body structure, low center of gravity and high lateral stability.
2. The rear axle rotation point is set high to improve the lateral stability of the vehicle.
3. Driver assistant technology, it monitors the forklift's speed and steer angles.
If the truck is moving too fast, the system will automatically decelerate the forklift truck, avoid the incorrect operations to cause a forklift to roll sideways or tip forwards or backwards
Human comfort operation
1. Standard steering wheel start steering function to reduce steering operation steps.
2. A wide-view mast is standard to enhance the driving experience, and the mast and hose pulley are more compact.
3. The large arc top guard and the grid frame with better angle increase the driver's upper field of vision.
4. Optimized battery layout and counterweight design to increase rear vision.
5. The operating space under the foot increases, the accelerator pedal area increases, and the brake pedal area increases.

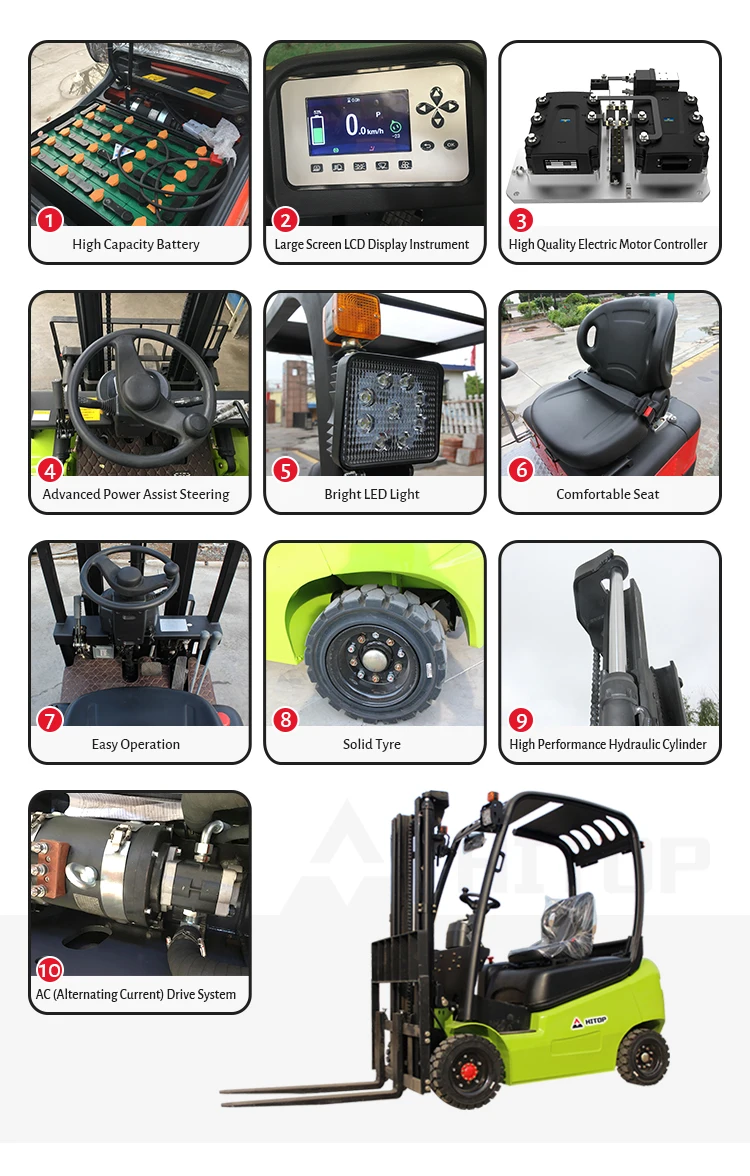

Simpler maintenance
1. Equipped with a large-screen LCD display instrument, which can intuitively display the vehicle running status, with fault display and misoperation alarm functions.
High safety
1. Tailless body structure, low center of gravity and high lateral stability.
2. The rear axle rotation point is set high to improve the lateral stability of the vehicle.
3. Driver assistant technology, it monitors the forklift's speed and steer angles.
If the truck is moving too fast, the system will automatically decelerate the forklift truck, avoid the incorrect operations to cause a forklift to roll sideways or tip forwards or backwards
Human comfort operation
2. A wide-view mast is standard to enhance the driving experience, and the mast and hose pulley are more compact.
3. The large arc top guard and the grid frame with better angle increase the driver's upper field of vision.
4. Optimized battery layout and counterweight design to increase rear vision.
5. The operating space under the foot increases, the accelerator pedal area increases, and the brake pedal area increases.
Simpler maintenance
1. Equipped with a large-screen LCD display instrument, which can intuitively display the vehicle running status, with fault display and misoperation alarm functions.
2. Remove the rear cover of the counterweight, and you can directly inspect the electrical control.
High reliability
1. Both driving and pump motors are maintenance-free AC motors.
2. International famous brand electric motor controller (SANTROLL, INMOTION, ZAPI, CURTIS, etc.), which is superior in intelligence.
3. Longer operational life.
Environment Friendliness
1. Zero emission, no pollution.
High reliability
1. Both driving and pump motors are maintenance-free AC motors.
2. International famous brand electric motor controller (SANTROLL, INMOTION, ZAPI, CURTIS, etc.), which is superior in intelligence.
3. Longer operational life.
Environment Friendliness
1. Zero emission, no pollution.
2. Low noise, quiet.
3. Energy efficiency, super low cost power consumption.
4. Professional matching design of vehicle components, with the use of AC controlling renewable energy technologies, the forklift is more energy saving, and working hour of the battery life is extended by about 10%~15%.
3. Energy efficiency, super low cost power consumption.
4. Professional matching design of vehicle components, with the use of AC controlling renewable energy technologies, the forklift is more energy saving, and working hour of the battery life is extended by about 10%~15%.

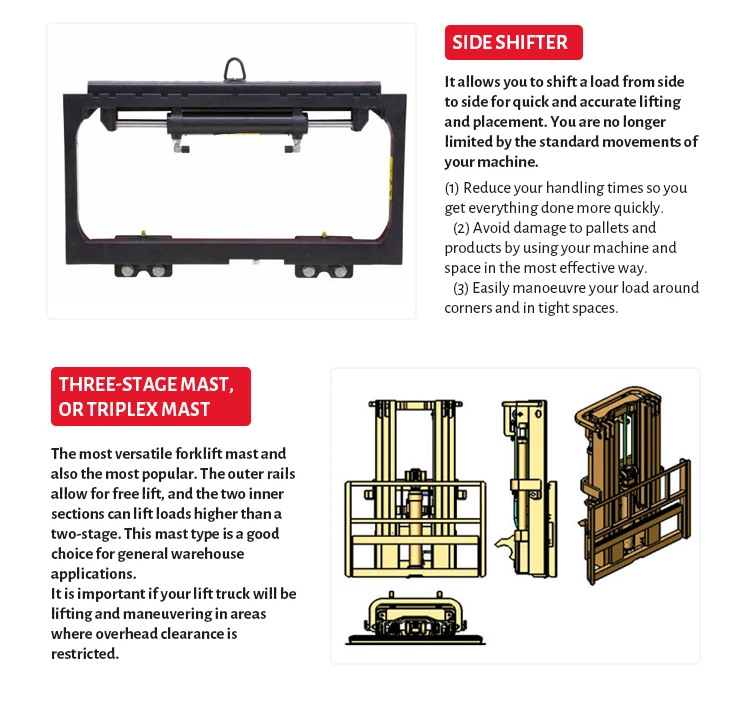

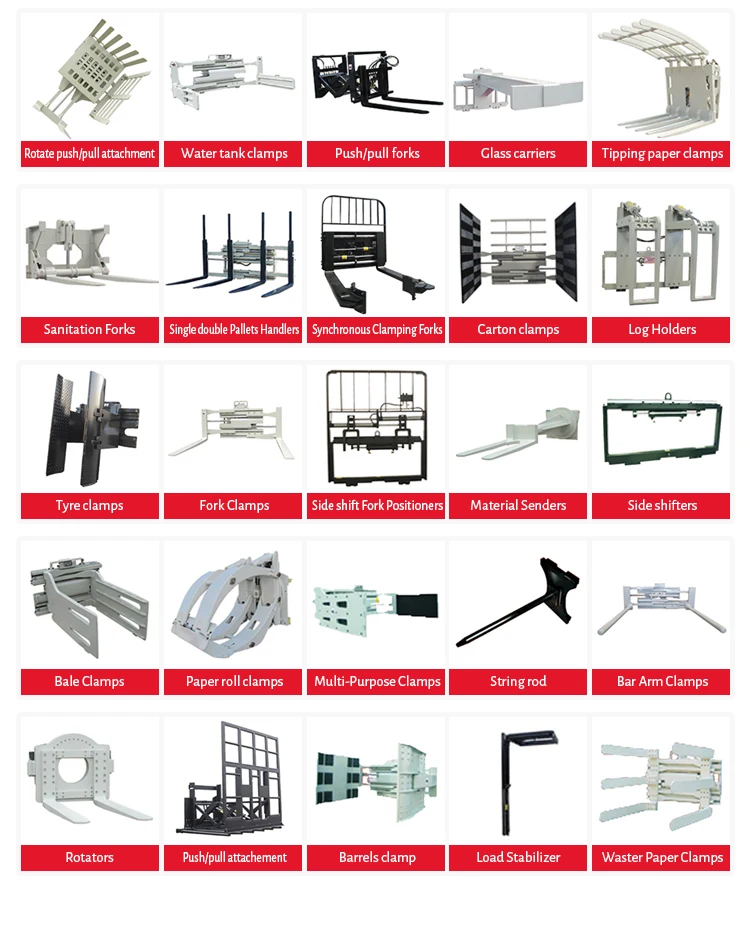

Optional attachment

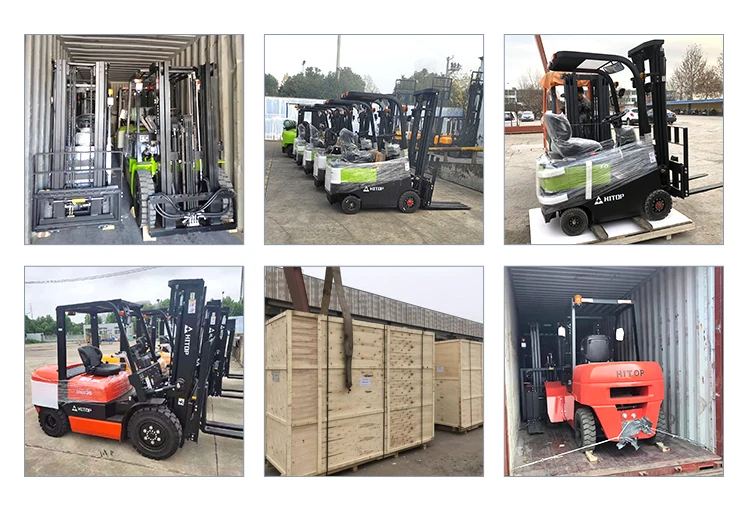

Packing & Delivery
Company Profile

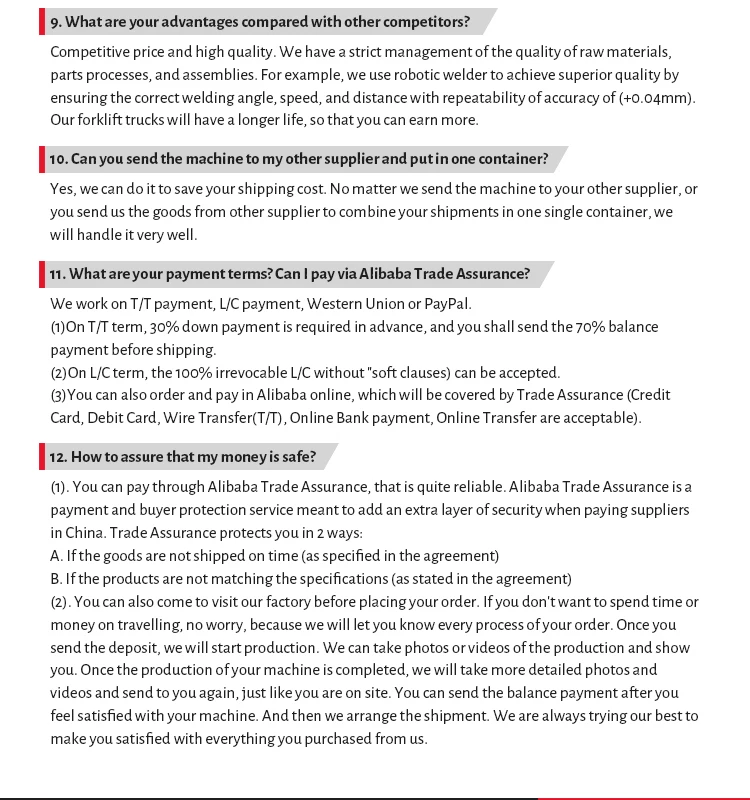

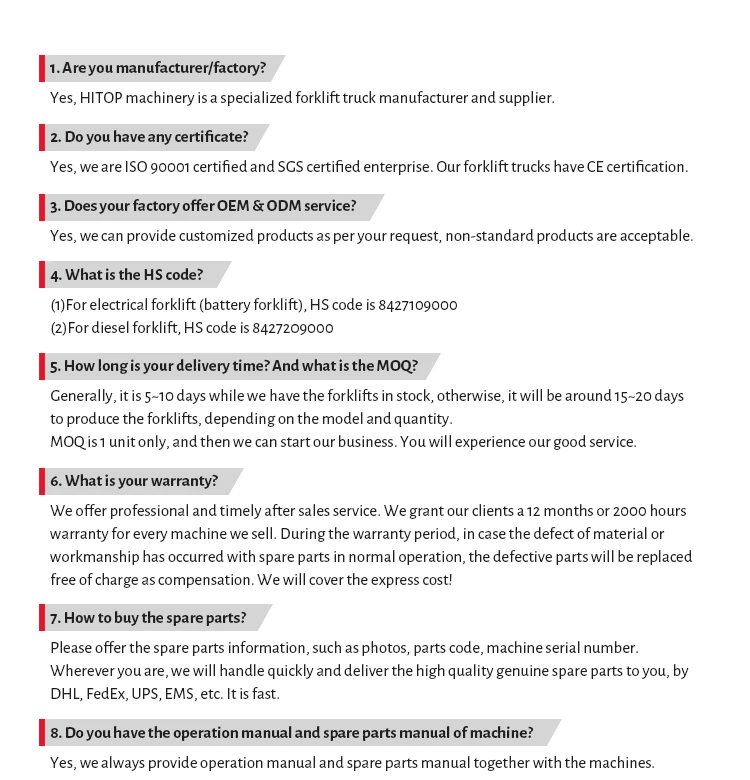

FAQ
