Virtualization optimized Network Appliance for vCPE, uCPE, SD WAN and SD Security NCA 2510A NCA 2510B NCA 2510A

Lanner NCA-2510A

NCA-2510B

NCA-2510C

NCA-2510D

Email: jacky110922 (@) 163.com

Whatsapp: +8613530642251

 Overview

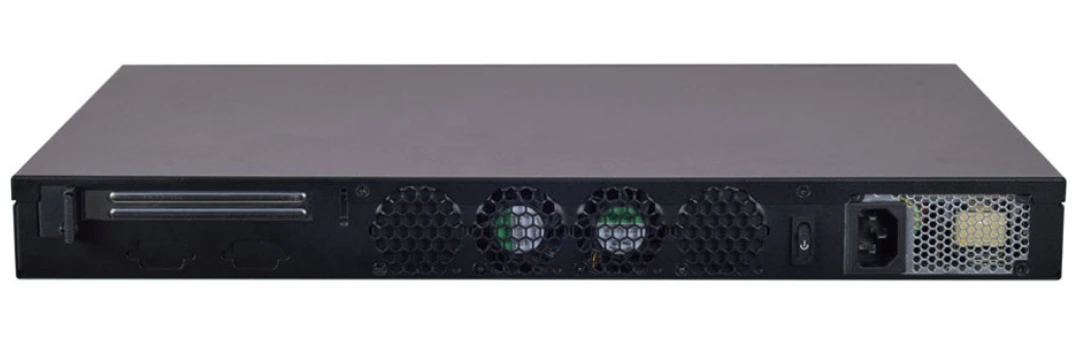

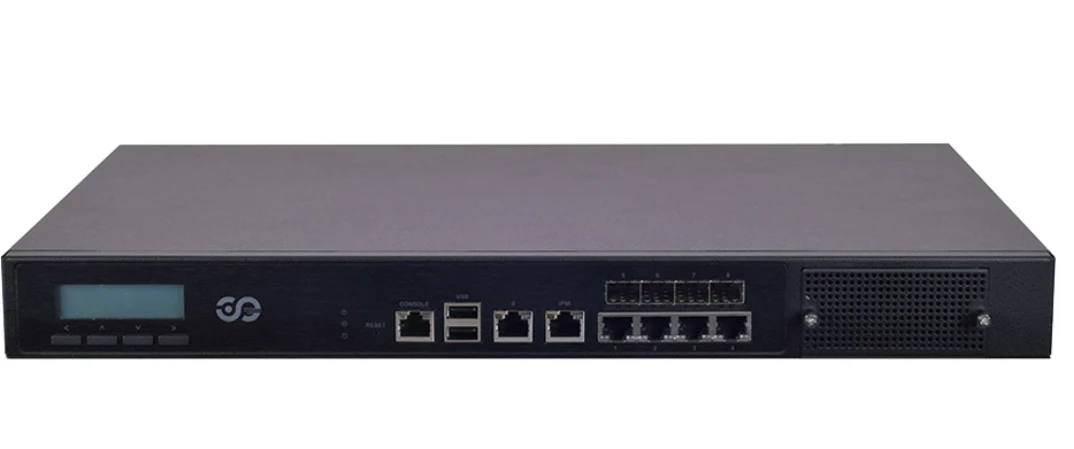

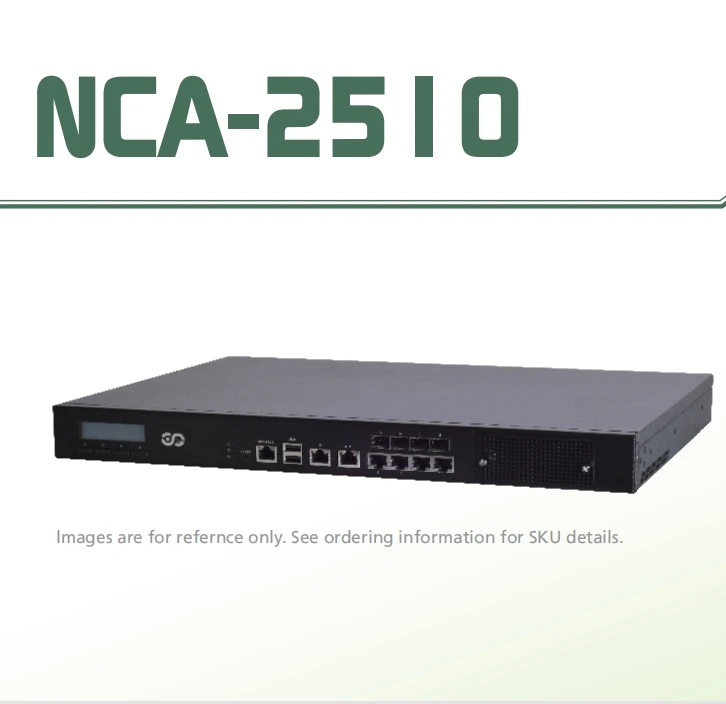

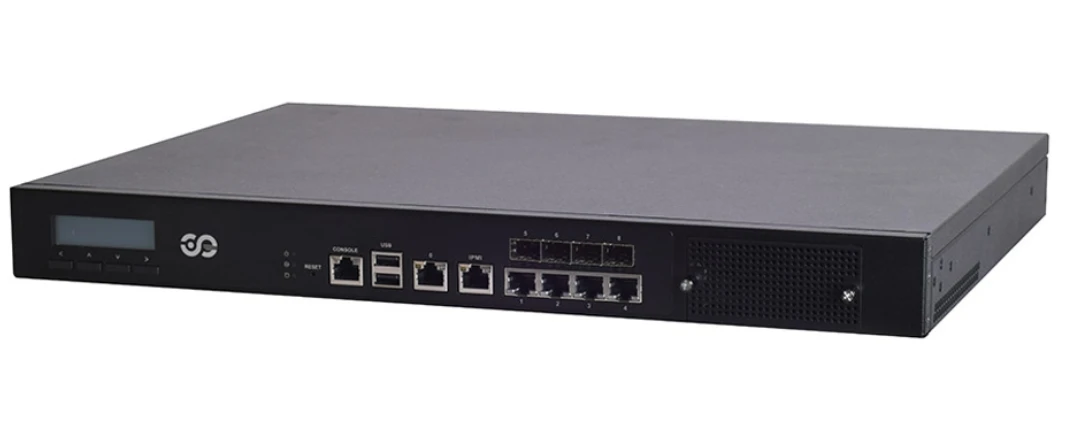

     The NCA-2510 is a 1U 19” rackmount network appliance with virtualization optimized design and Intel® Atom™ C3958, C3758 or C3558 CPU (codenamed Denverton). It offers up to 16 cores of processing prowess, 10G interface for SFP+, SR-IOV support, Intel® AES-NI and Intel® QuickAssist Technology, making it the ideal solution for vCPE, uCPE, SD-WAN and SD-Security on Intel® architecture servers.

Features
Virtualization-optimized Network Appliance for vCPE, uCPE, SD-WAN and SD-Security

• Intel® Atom™ C3958, C3758 or C3558 CPU (4 ~16 Cores)


• 4x 288-pin DIMM DDR4 2400MHz, Max. 128GB or 64GB


• 5x GbE RJ45, 4x SFP+, 2x Pairs of Gen3 Bypass (By SKU)


• 10G interface for SFP+, 1x NIC Module Slot, 2x USB 2.0


• Intel® QuickAssist Technology


• SR-IOV, Intel® AES-NI Support


• 2x 2.5” HDD/SSD Drive Bays, 1x mSATA


• 1x PCI-E*8 HH/HL (Optional)


• 2x Cooling Fans

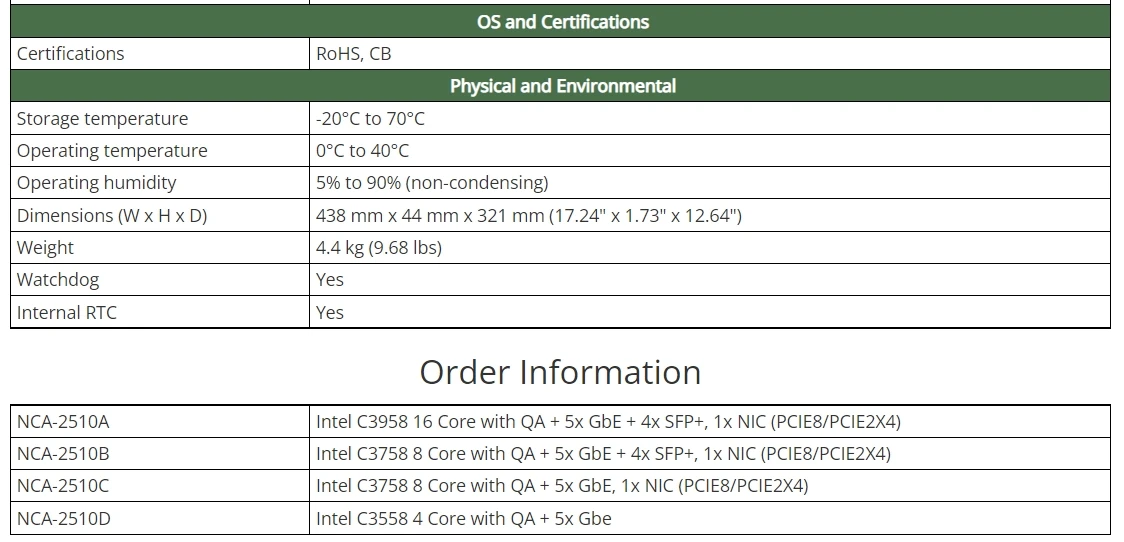

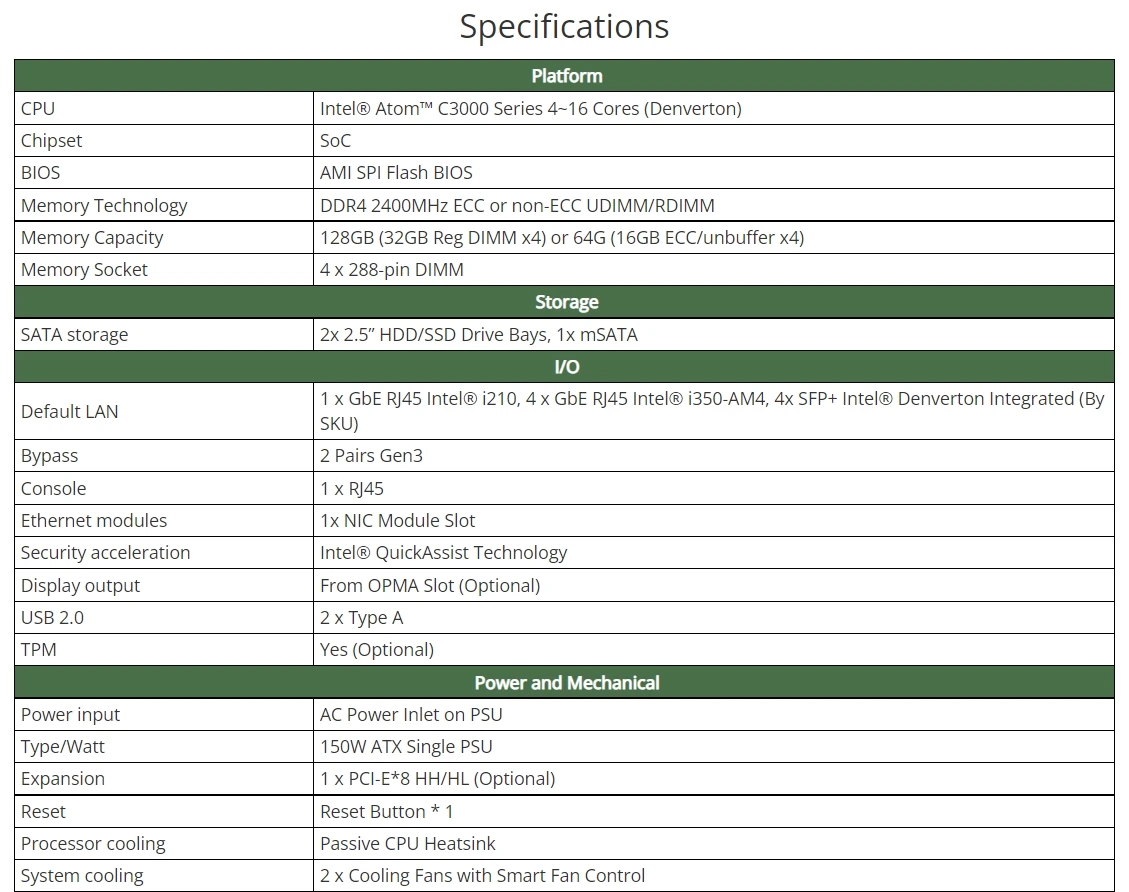

Specifications

 For more information please contact
