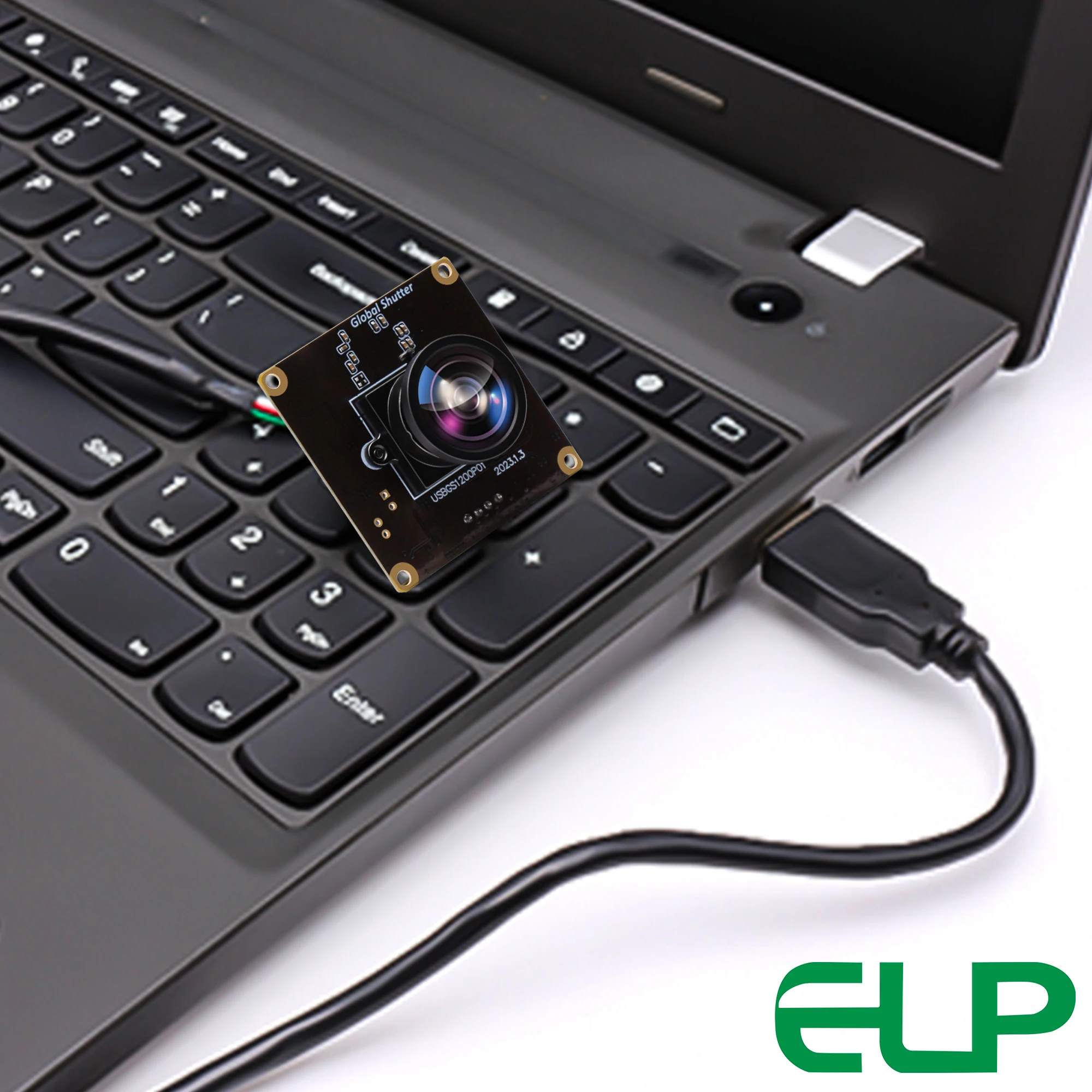

ELP High Speed Wide Angle Global Shutter USB Camera Module 1080P 90FPS Mini UVC USB2.0 Webcam Module with 120degree Lens For PC
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd
Share on (1600968239657):
Product Overview
Description
Product Description
General Description:
This model is a new member of ELP's USB camera family. It's a 2MP, based on the 1/2.6" global shutter Aptina AR0234 image sensor, UVC compliant, high speed, low distortion USB 2.0 camera. No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera so that it does not require extra drivers to be installed. Theglobal shutter sensor's excellent low-light sensitivity makes it crisp, sharp, and accurate colorful images even for high-speedmoving objects.
Why Choose Global Shutter Cameras ?
A global shutter camera is a type of digital camera that captures an image by exposing the entire sensor at once, rather thanscanning the sensor line-by-line as in a rolling shutter camera. This means that all pixels in the image are exposed
simultaneously, resulting in an image that is free of distortion caused by motion during exposure.
Main Features:
2.Resolution: Full HD 1920*1200 High Resolution 2.3MP Global Shutter USB Camera;
3.High Speed: Mjpeg 90FPS@1920*1200, Mjpeg 90FPS@1920*1080,Mjpeg 90FPS@1600*1200, Mjpeg 90FPS@1280*960*1200, etc.;
4.Megapixel No Distortion Lens: High Quality 126 degree No Distortion Lens, FOV 65~130 degree No Distortion Lens optional
5.High Quality Image: Super Image reality, real color reproduction, without interpolation;
6.UVC Support: Free Driver , Plug and Play, easily used on different systems;
7.Support Systems: Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi...;
8.OTG Support: can be used on Android smartphone, recommended app "USB Camera".
9.Wide Application: Well used for High Speed- sports photography, AI object recognition, Industrial inspection, Video
applications, Industrial automation, robotics, or scientific imaging. Some can also be used for Augmented and virtual reality, gesture and eye tracking, depth and motion detection.... and so on.
6.UVC Support: Free Driver , Plug and Play, easily used on different systems;
7.Support Systems: Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi...;
8.OTG Support: can be used on Android smartphone, recommended app "USB Camera".
9.Wide Application: Well used for High Speed- sports photography, AI object recognition, Industrial inspection, Video
applications, Industrial automation, robotics, or scientific imaging. Some can also be used for Augmented and virtual reality, gesture and eye tracking, depth and motion detection.... and so on.
Specification
Model | ELP-USBGS1200P01-H120 (H120 lens, HFOV 126 degree) |
Optional Models | ELP-USBGS1200P01-H110 (H110 lens, HFOV 112 degree) ELP-USBGS1200P01-H100 (H100 lens, HFOV 101 degree) ELP-USBGS1200P01-V8003 (V100 lens, HFOV 85 degree) ELP-USBGS1200P01-V100 (V100 lens, HFOV 85 degree) ELP-USBGS1200P01-LC1100 (LC1100 lens, HFOV 68 degree) |
Sensor | Aptina AR0234 (1/2.6”) Global Shutter |
Max Resolution | 1920 (H) *1200 (V) |
Sensor Size | 1/2.6 inch (4:3) |
Pixel Size | 3.0μm |
Compression Format | MJPEG/YUV2 (YUYV) |
1920x1200 @ 90fps MJPEG/ 1920x1080 @ 90fps MJPEG 1600x1200 @ 90fps MJPEG/ 1280x960 @ 90fps MJPEG 1280x720 @ 90fps MJPEG/ 1024x768 @ 90fps MJPEG 960x720 @ 90fps MJPEG/ 800x600@ 90fps MJPEG 640x480 @ 90fps MJPEG/ 320x240 @ 90fps MJPEG | |
Surface Mount Technology | SMT |
Focus | Fixed |
Central Definition | 600LW/PH (Center) |
S/N Ratio | 37dB |
Dynamic Range | 70dB |
Sensitivity | 1.4V/lux-sec@550nm |
Min iIllumination | 0.3lux |
Shutter | Global Shutter |
Interface | USB2.0 High Speed |
AEC/AWB/AGC | Support |
Adjustable Parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Back light Compensation, Exposure |
Lens Parameters | H120 Wide Angle No Distortion Lens, (HFOV 126 degree) Optional 2.1mm/2.8mm/2.9mm/6mm/8mm/12mm/16mm/25mm... No Distortion Lens (FOV 65~130 degree optional)Fisheye lens 150 degree /180 degree etc. |
LED board power connector | Support 2P-2.0mm socket |
Power Supply | USB BUS POWER 4P-2.0mm socket |
Operating Voltage | DC5V |
WorkingCurrent | 160mA- 190mA |
Dimension | 38mm x 38mm |
Storage Temperature | -20°C to 80°C |
Working Temperature | 0°C to 60°C |
USB Cable | 3M(1M/2M/5M ... Optional ) |
Operating System Request | WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Product Images

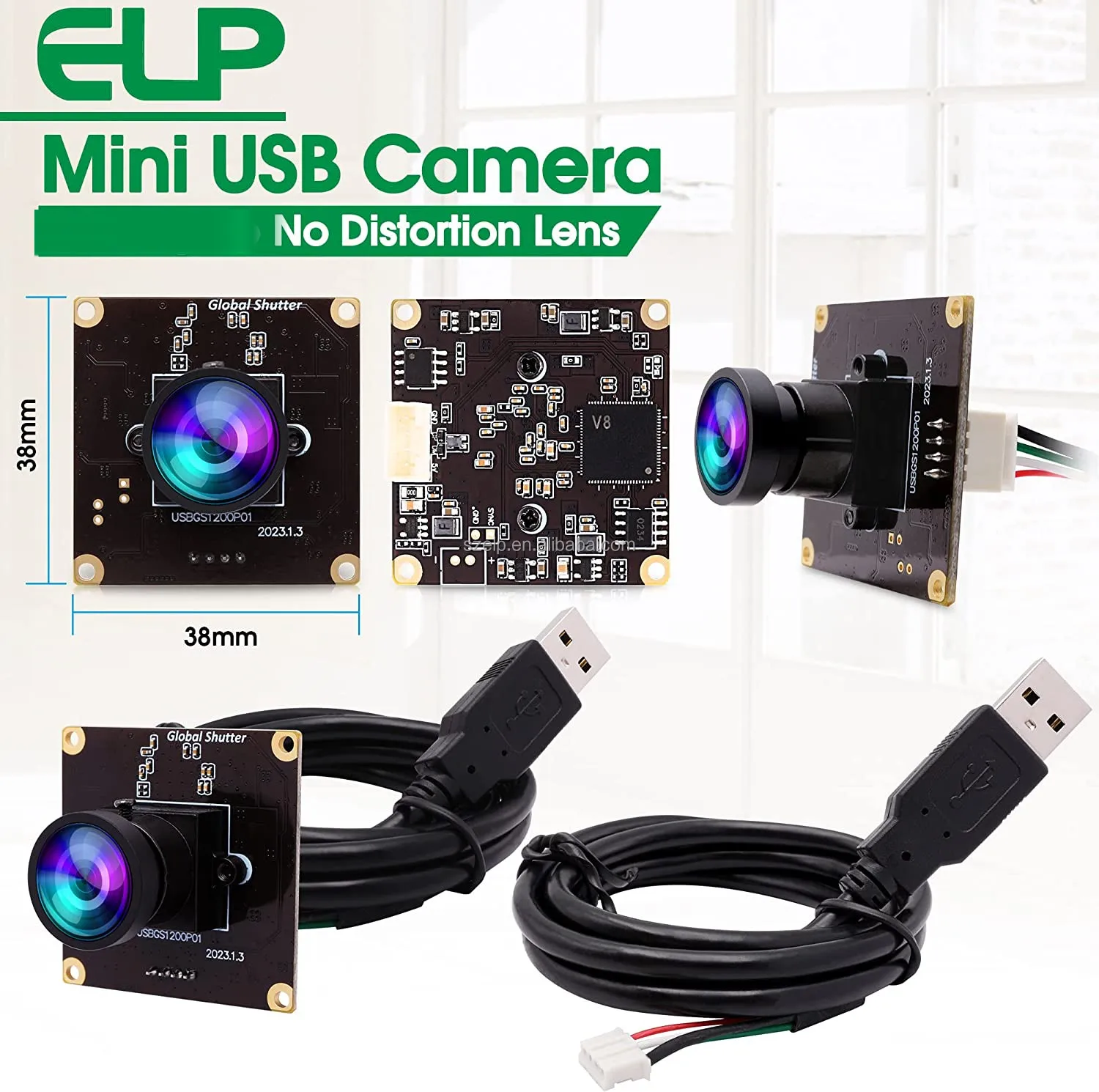

Mini Size 38mmx38mm camera board can be installed in most hidden and narrow position

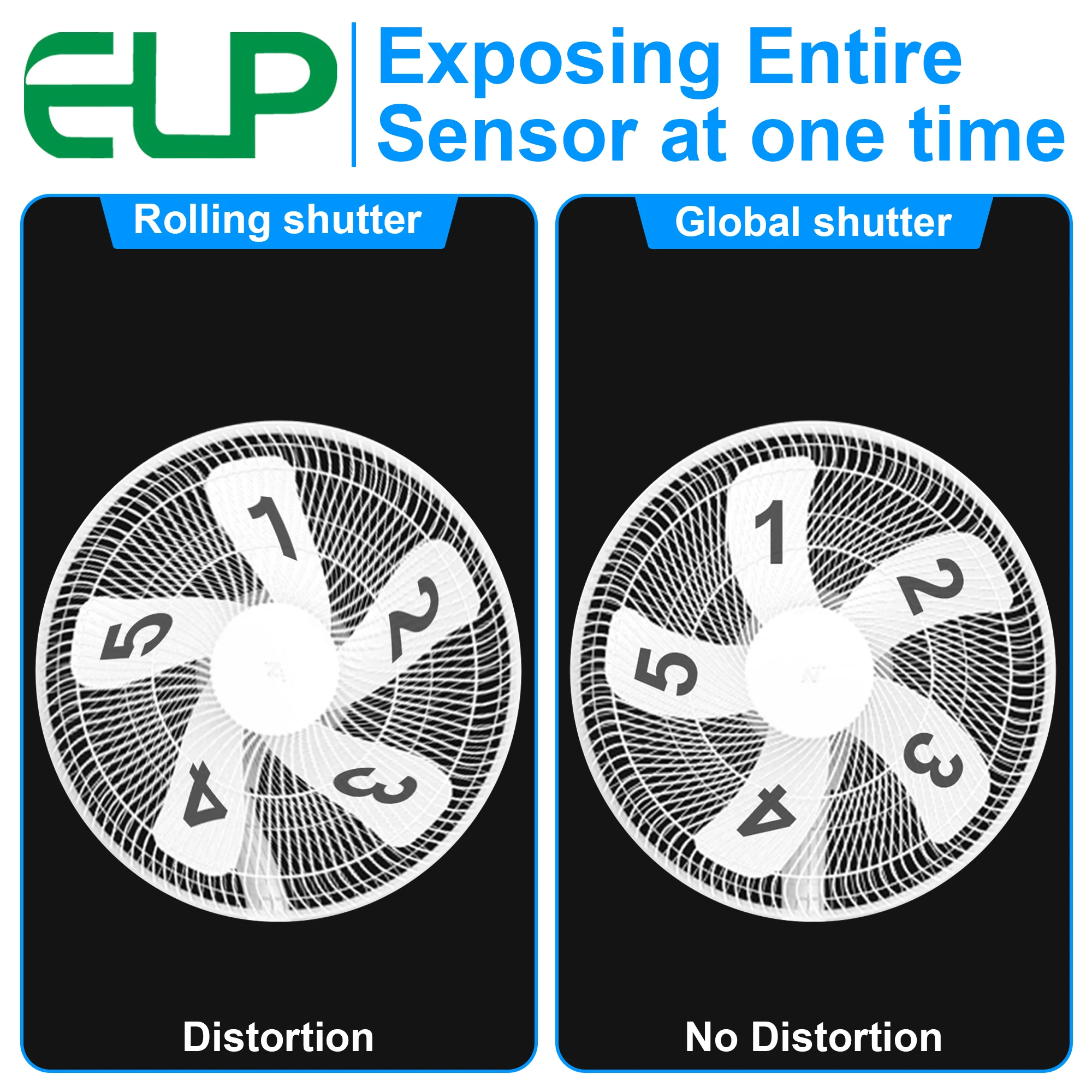

Global Shutter, Exposing entire sensor at one time,free of distortion.
Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter cameras.
High Frame@90fps Fast frame for for high-speed moving objects shooting, perform better in any application that needs gesture and eye tracking, iris and physiognomy recognition, depth and motion detection.

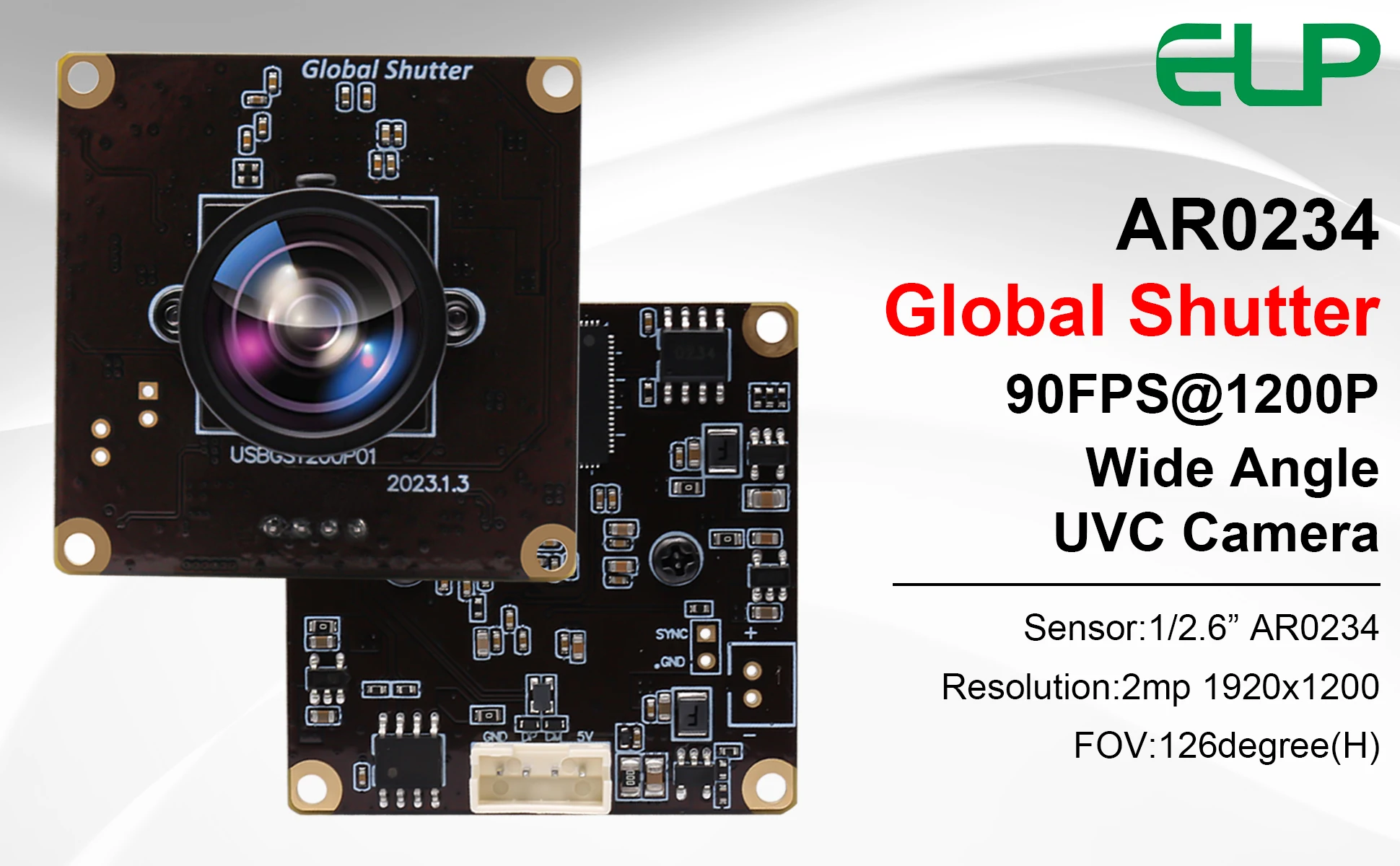

Max Resolution 1920HX1200V, 2megapixel high pixel technology with Aptina AR0234 sensor for sharp image and accurate color reproduction.

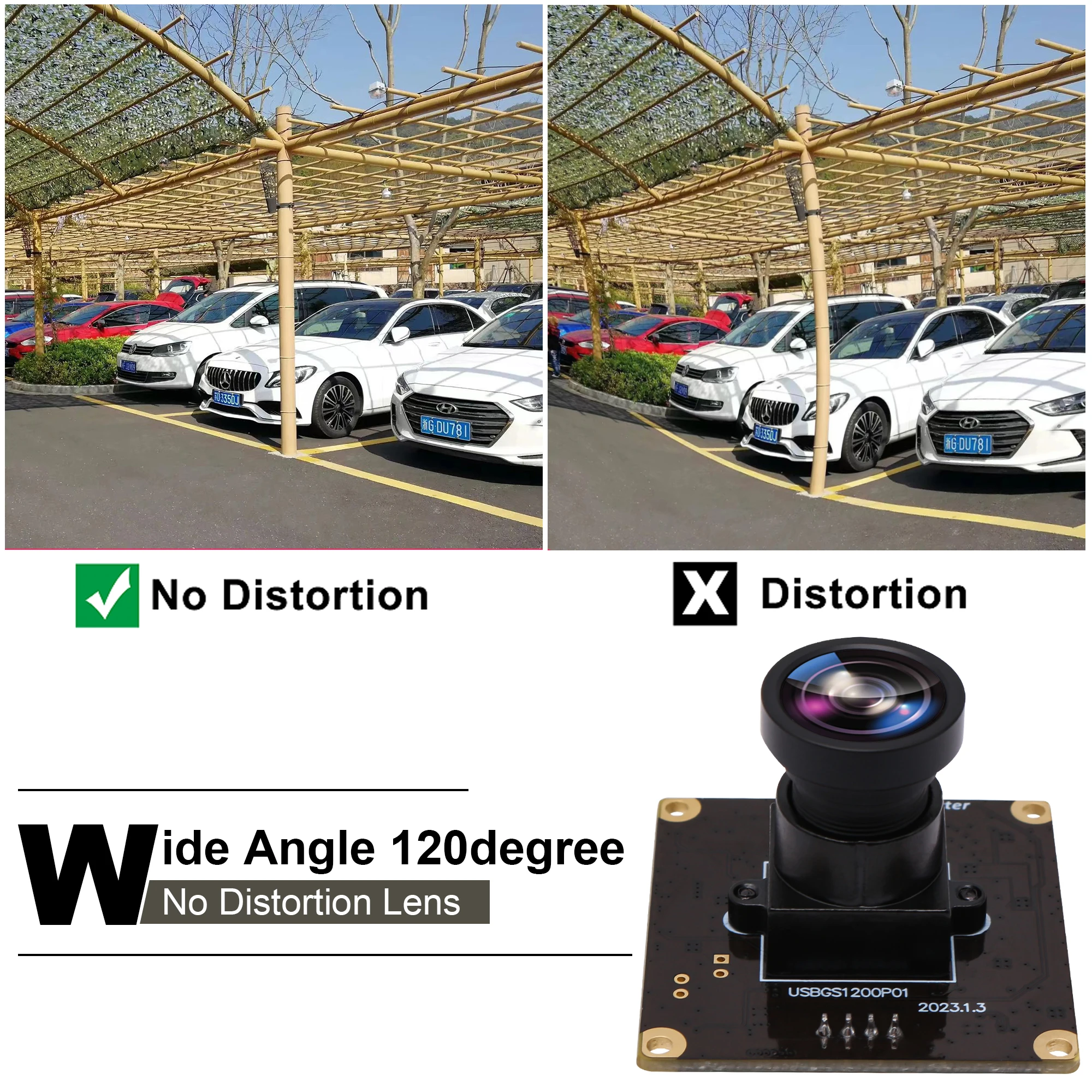

Wide Angle H120 no distortion lens, Mini USB camera with none-distortion lens, HFOV is about 126degree. Wider angle of view.
Plug and play,Free driver,UVC compliant, OTG Support
FOR PC:Support windows,linux,mac,Android,raspberry Pi
Very easy to use,UVC compliant,free driver,just plug in and go.
FOR RASPBERRY PI:
It can work with already preinstalled camera software instead of builtin camera.
Support Android development board,Raspberry Pi development board,Jetson Nano,etc.
It can work with already preinstalled camera software instead of builtin camera.
Support Android development board,Raspberry Pi development board,Jetson Nano,etc.
Applications
Global shutter cameras are commonly used in applications where distortion is a concern, such as in sports photography or industrial inspection,general photography or video applications, industrial automation, robotics, or scientific imaging, gesture and eye tracking, iris and physiognomy recognition, depth and motion detection
