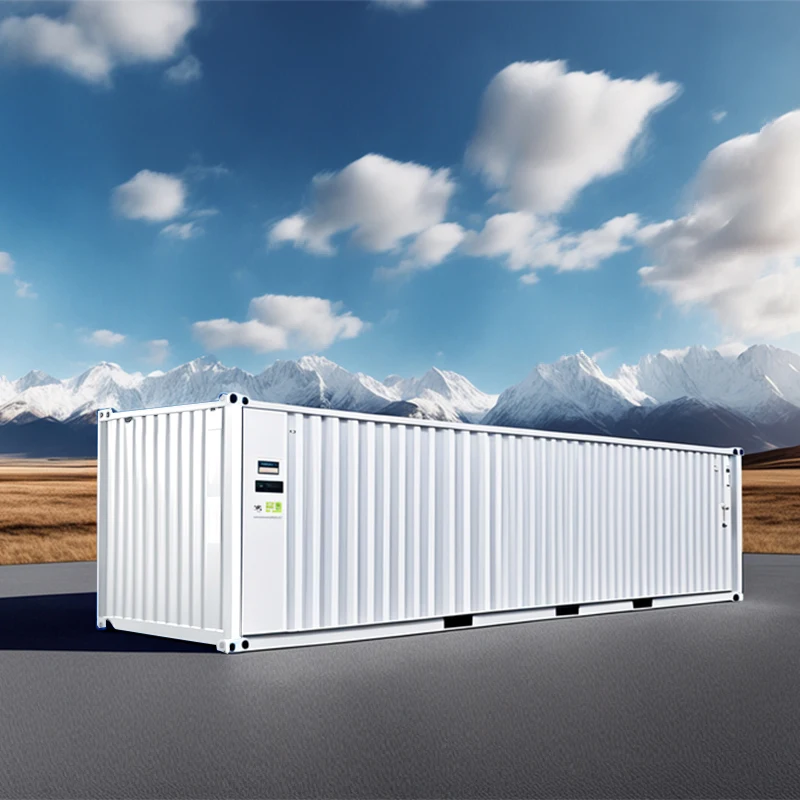

High quality containerized water electrolysis hydrogen plant for hydrogen fueling station
- Category: >>>
- Supplier: Guangzhou Renepoly Energy Technology Co. Ltd.
Share on (1600968308415):
Product Overview
Description
Products Description
Modular Hydrogen Fuel Cell Stack & Water Electrolyzer
Hydrogen Generation and Fuel Cell Generation products offer a sustainable and economic alternative long-term
energy storage solution in off grid or remote locations.
From construction sites to rural home, hydrogen storage solution can store long-term hydrogen as needed, from days to weeks, and it is a all-in-one energy storage system, suitable for schools,hotels, small industrial parks and resorts, etc.
From construction sites to rural home, hydrogen storage solution can store long-term hydrogen as needed, from days to weeks, and it is a all-in-one energy storage system, suitable for schools,hotels, small industrial parks and resorts, etc.
Long Term Energy Storage
Low cost hydrogen storage tanks for 3 days ~ weeks.
Reliable & flexible
Support multi-machine parallel connection; Flexible layout on the site and easy to extend during life time.

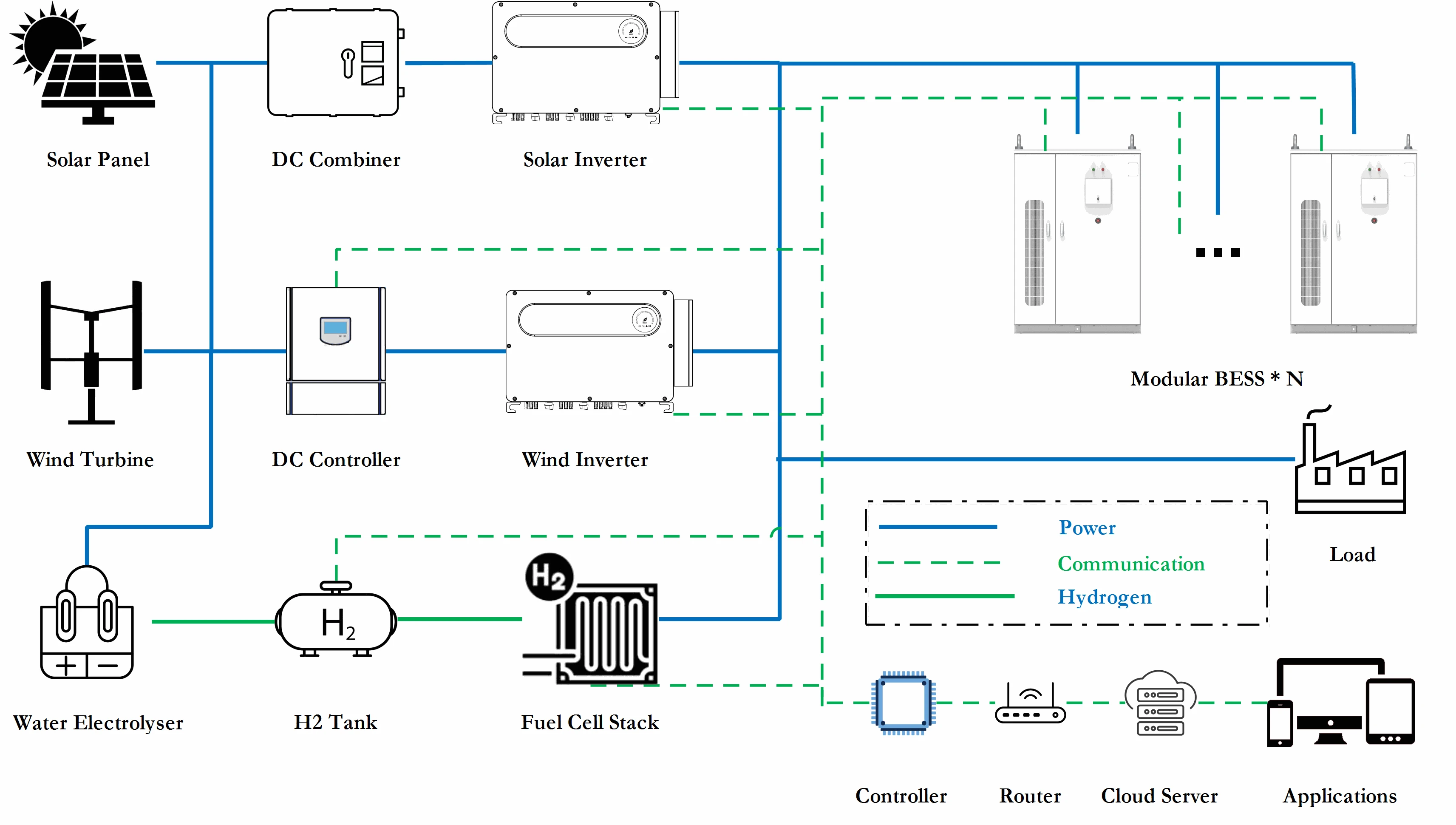

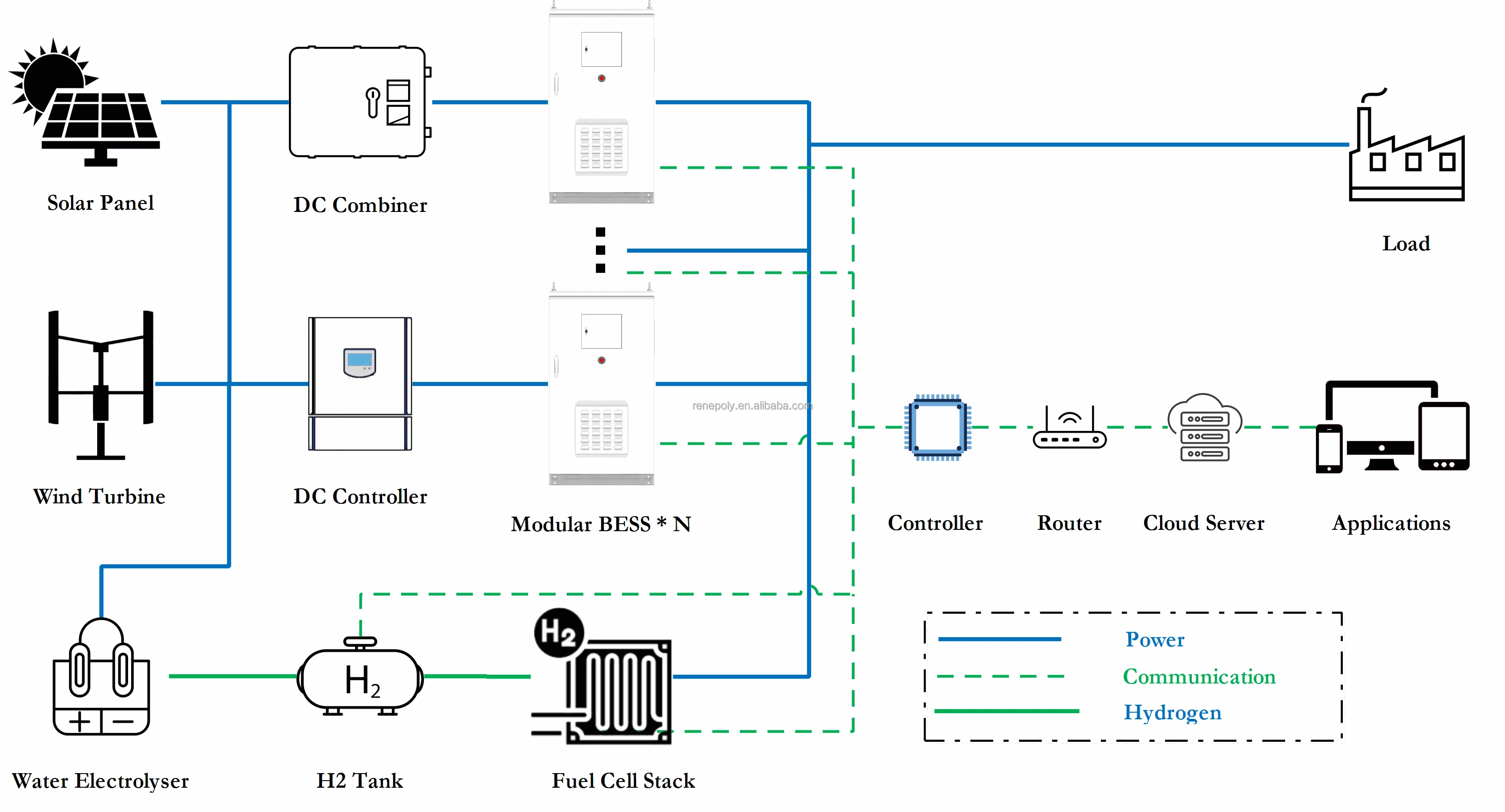

System overview and Remote control
Hydrogen storage status/present power consumption, etc.; Monitor the system from anywhere; Remote control feature is also
available.
available.
Manufacturing Technique

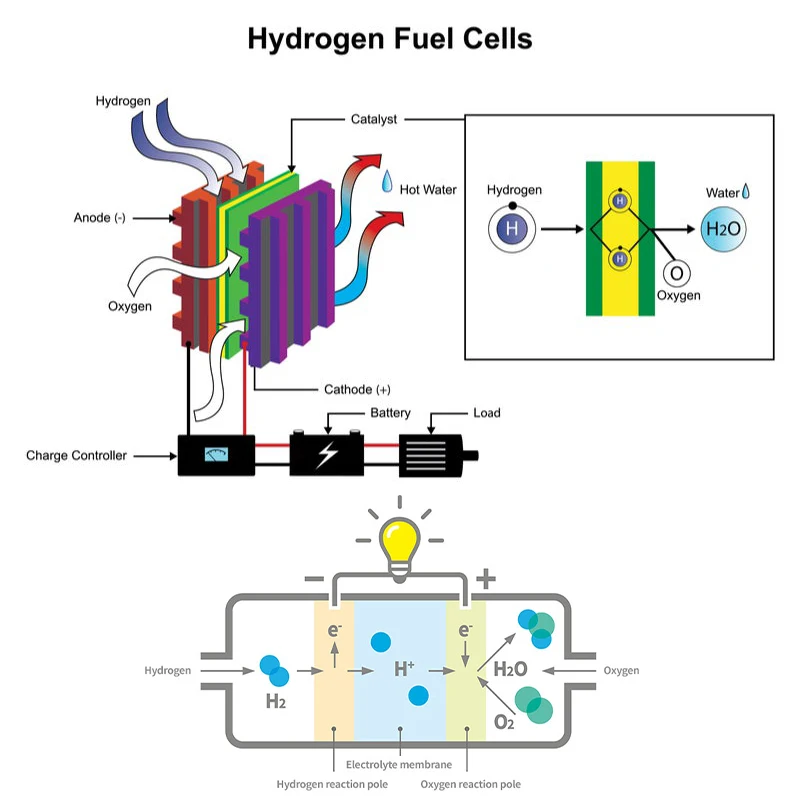

Hydrogen Fuel Cells
– How do they work?

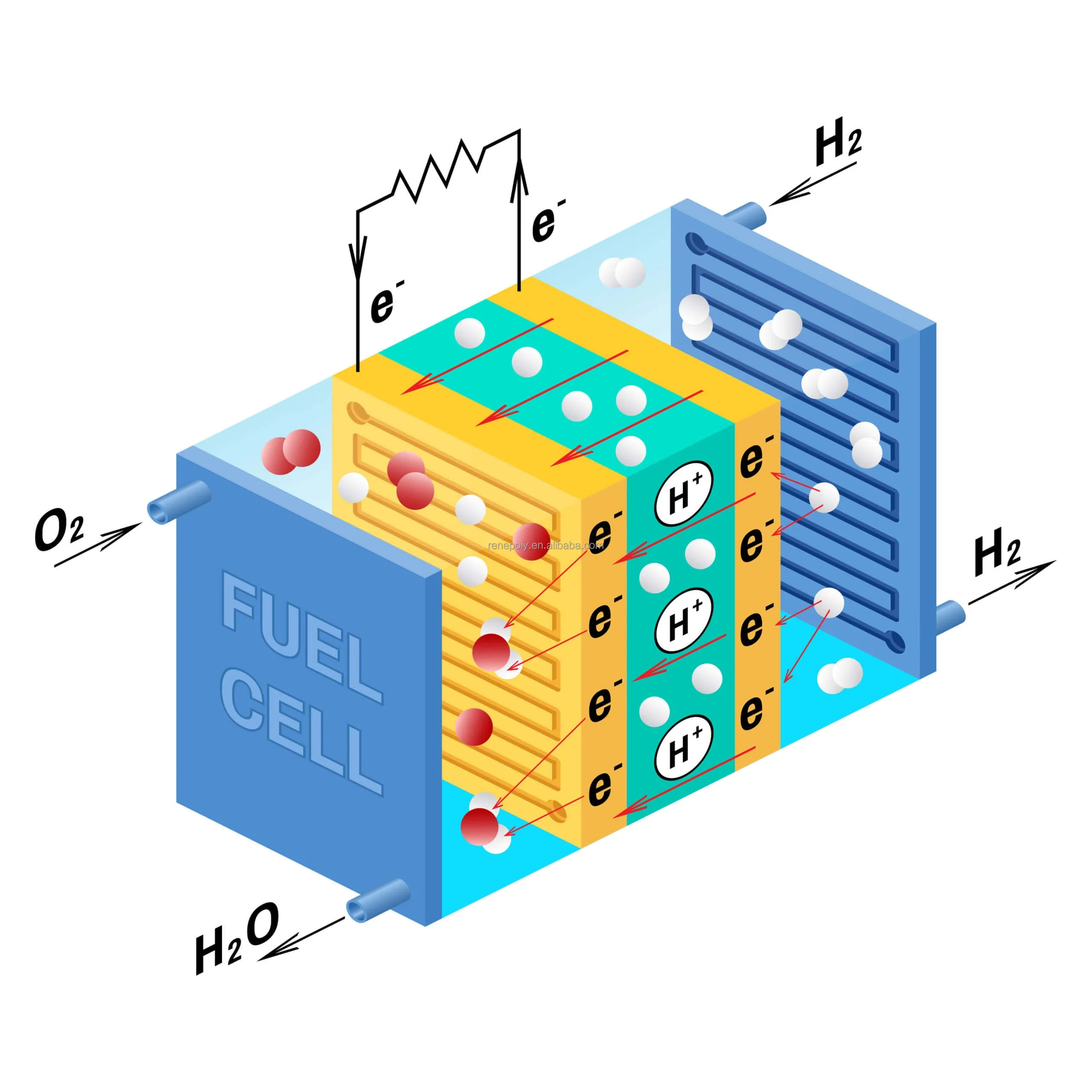

A fuel cell is a device that converts the chemical energy of a fuel into electrical energy. In a hydrogen fuel cell, the fuel is
hydrogen gas. The device consists of an anode and a cathode separated by an electrolyte. Hydrogen gas is fed into the anode, and
oxygen from the air is fed into the cathode. When hydrogen gas comes into contact with the anode, it splits into protons and
electrons. The protons pass through the electrolyte to the cathode, while the electrons flow through an external circuit,
generating an electric current. At the cathode, the protons and electrons combine with oxygen to form water vapor, which is the
only emission from the fuel cell.
hydrogen gas. The device consists of an anode and a cathode separated by an electrolyte. Hydrogen gas is fed into the anode, and
oxygen from the air is fed into the cathode. When hydrogen gas comes into contact with the anode, it splits into protons and
electrons. The protons pass through the electrolyte to the cathode, while the electrons flow through an external circuit,
generating an electric current. At the cathode, the protons and electrons combine with oxygen to form water vapor, which is the
only emission from the fuel cell.
Advantages
Hydrogen fuel cells have the potential to play a significant role in the global energy system.
Energy Security
Hydrogen is abundant in the universe, and it can be produced from a variety of sources, including water, natural gas, and biomass.This makes it a reliable and secure source of energy.
Clean Energy
Hydrogen fuel cells produce electricity without emitting harmful pollutants or greenhouse gases. The only byproduct of hydrogen fuel cells is water vapor, making them a clean energy source.
Scalability
Hydrogen fuel cells can be scaled up or down to suit different energy needs. Small fuel cells can be used to power portable devices like laptops and cell phones, while larger fuel cells can be used to power homes, buildings, and even entire cities.
Versatility

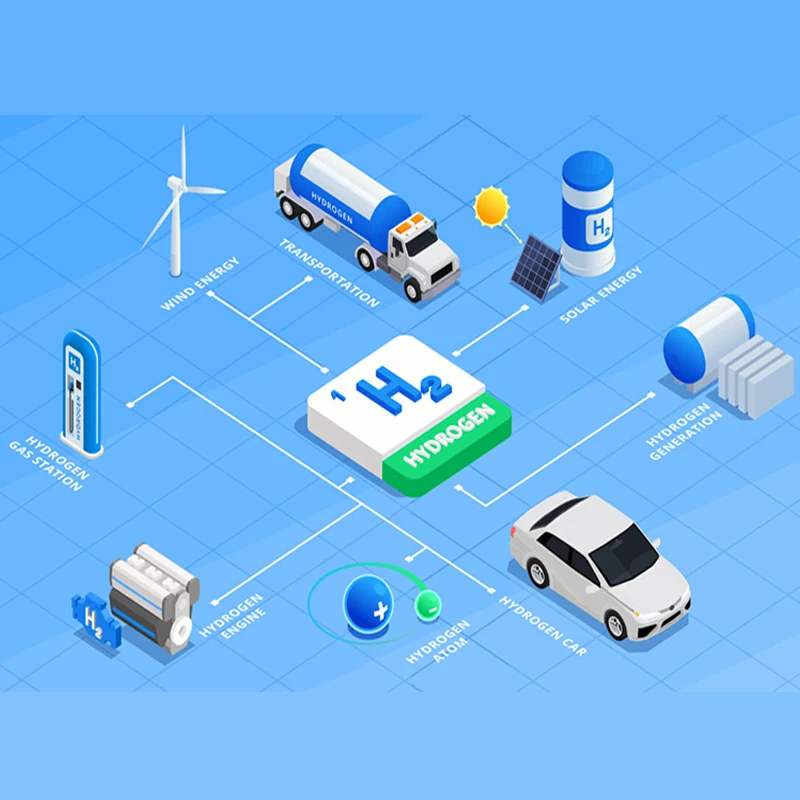

Hydrogen can be used in a variety of ways, making it a versatile fuel source. It can be used to generate electricity, heat buildings, power vehicles, and even produce fertilizers.
Efficiency
Hydrogen fuel cells are highly efficient, converting up to 60% of the energy in hydrogen fuel into electricity. This is
significantly more efficient than combustion engines, which typically convert less than 40% of the energy in fossil fuels into mechanical energy.
Hydrogen is abundant in the universe, and it can be produced from a variety of sources, including water, natural gas, and biomass.This makes it a reliable and secure source of energy.
Clean Energy
Hydrogen fuel cells produce electricity without emitting harmful pollutants or greenhouse gases. The only byproduct of hydrogen fuel cells is water vapor, making them a clean energy source.
Scalability
Hydrogen fuel cells can be scaled up or down to suit different energy needs. Small fuel cells can be used to power portable devices like laptops and cell phones, while larger fuel cells can be used to power homes, buildings, and even entire cities.
Versatility
Hydrogen can be used in a variety of ways, making it a versatile fuel source. It can be used to generate electricity, heat buildings, power vehicles, and even produce fertilizers.
Efficiency
Hydrogen fuel cells are highly efficient, converting up to 60% of the energy in hydrogen fuel into electricity. This is
significantly more efficient than combustion engines, which typically convert less than 40% of the energy in fossil fuels into mechanical energy.

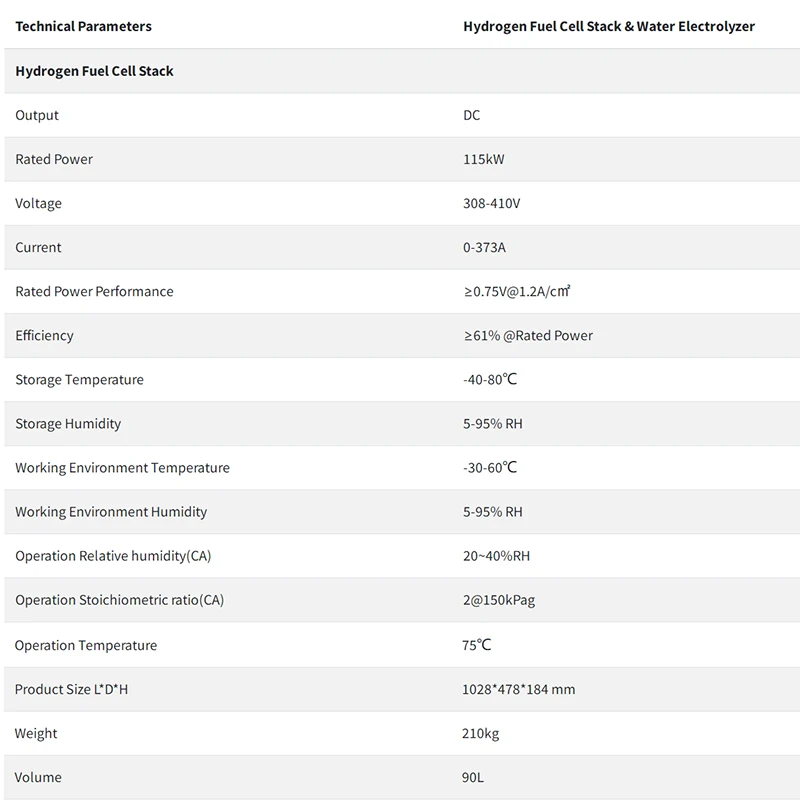

Product Paramenters
Modular Hydrogen Fuel Cell Stack & Water Electrolyzer | ||
Technical Parameters | Hydrogen Fuel Cell Stack & Water Electrolyzer | |

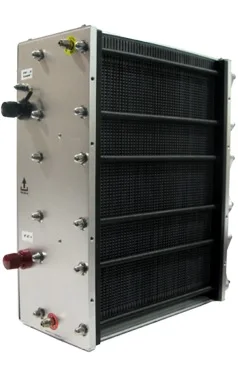

Hydrogen Fuel Cell Stack | ||
Output | DC | |
Rated Power | 115kW | |
Voltage | 308-410V | |
Current | 0-373A | |
Rated Power Performance | ≥0.75V@1.2A/c㎡ | |
Efficiency | ≥61% @Rated Power | |
Storage Temperature | -40-80℃ | |
Storage Humidity | 5-95% RH | |
Working Environment Temperature | -30-60℃ | |
Working Environment Humidity | 5-95% RH | |
Operation Relative humidity(CA) | 20~40%RH | |
Operation Stoichiometric ratio(CA) | 2@150kPag | |
Operation Temperature | 75℃ | |
Product Size L*D*H | 1028*478*184 mm | |
Weight | 210kg | |
Volume | 90L | |
PEM water electrolyzer system | ||
Rate of hydrogen production | 30m3/h | |
Rate of oxygen production | 15m3/h | |
Hydrogen purity | ≥99.99% | |
Oxygen purity | ≥99.99% | |
Operation pressure | ≤3MPa | |
Operation temperature | 60-90℃ | |
Electricity consumption | 4.55kW·h/m3H2 | |
Total current | 1250A | |
Total voltage | 110V | |
Company Profile
GUANGZHOU RENEPOLY ENERGY TECHNOLOGY CO.，LTD
Renepoly is dedicated to secure our customer an economic and stable energy supply system. We integrate renewable energy sources to create microgrid and polygeneration one-stop solutions Renepoly outstands itself in the following service lines:
2. Sophisticated expert in technical consultancy to renewable energy systems: microgrid,battery storage system, hydrogen gener-ation system, hydrogen driven fuel cells and polygeneration system.
3. High standard engineering consultancy services to renewable energy investment and construction project；proiect lifecycle man-agement service( from proiect feasibility study contracts preparation to due diligence& project testing and commissioning).
1.The creative manufacturer of classic container & modular batery storage system and intelligent energymanagement system
2. Sophisticated expert in technical consultancy to renewable energy systems: microgrid,battery storage system, hydrogen gener-ation system, hydrogen driven fuel cells and polygeneration system.
3. High standard engineering consultancy services to renewable energy investment and construction project；proiect lifecycle man-agement service( from proiect feasibility study contracts preparation to due diligence& project testing and commissioning).
