0 10V/4 20ma Corrosion resistant, mercury free and environmentally friendly Melt Pressure Transmitter

Product Overview

Description

PT3XX6 Series Environmental Mercury-Free Melt Pressure Transducers







Product Introduction:

PT3xx6 Series Environmental Melt Pressure Transducers. This series of products adopting safe structure & non-toxic, pollution-free transmission medium are used for food, beverage, wine, medicine machines. All of the constituent componets are safe and can directly contact with food since they do not produce any harmful toxic substances.

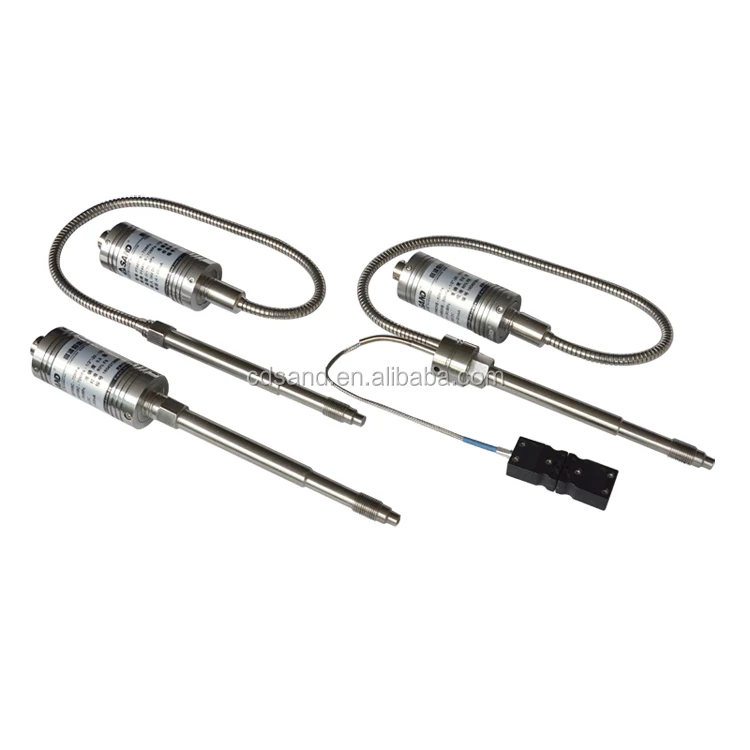

Pictures:















Pictures:

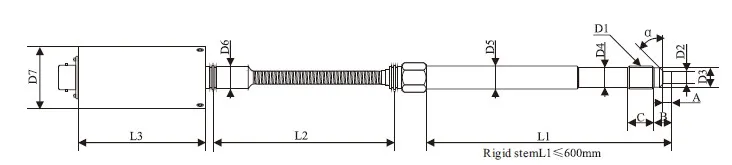

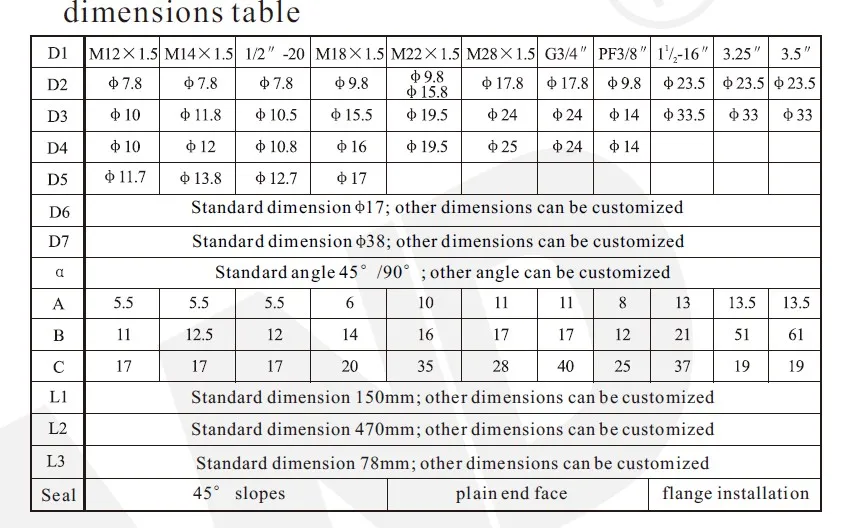

 Dimensions



Rigid stem type

Flexible stem type

Flexible stem & Temperature type



Narrow space type





Performance Parameters:

Pressure Range	0 ~ 5 MPa ~ 150 MPa ( 0 ~ 750psi ~ 20000psi )
Accuracy	±0.5% FS
Power	24VDC ( 10 ~ 36 V DC )
Output Signal	0-10V (Default), 4-20mA(Optional) etc.
Probe Heat Resistance	PT3516B Series: 300°C; PT3616B and PT3626B Series: 400°C
Temperature Drift	<=0.15 MPa/100°C
Insulation Resistance	>=500MΩ/500VDC
Mechanical Connections	1/2"-20UNF, M10x1.5, M12x1.5, M14x1.5, M18x1.5, M22x1.5 etc. (Optional)
Electrical Connections	6PIN (SD02106P/SD02106S)
Thermometric Config	Thermocouple: E, J, K, S type etc.; (PT4626 Series Optional) Thermal Resistance: Pt100 etc. (PT4626 Series Optional)



Features:

* Anticorrosive wear-resisting coating: apply to high concentrations of rough media pressure measurement,

can improve the service life of 3 to 5 times (optional);
* Special requirement can make to order, delivery date 7 ~ 15 working days;
* Optional supporting intelligent digital pressure meter:

PS1016-43x series, PS4810-43x series, PS4812-43x series and PS9016-43x series.

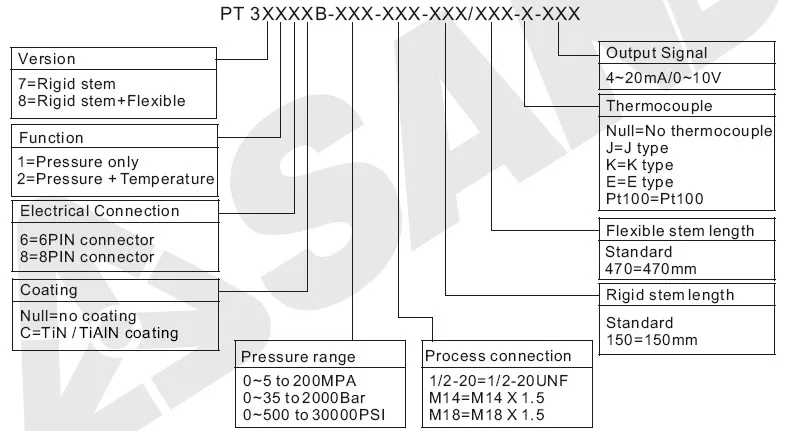

Order Format:



Example1:

PT3516-350bar-M18-150-3.33mV/V

Note:

Product design Model "PT3516".
Function code "Null" stands for melt pressure transducer.
Coating code "Null" stands for without coating .

Pressure range: 0 ~ 350bar.
Thread size : M18 * 1.5.

Rigid stem length:150mm .
Pressure output signal: 3.33mV/V.



3 YEARS WARRANTY!
