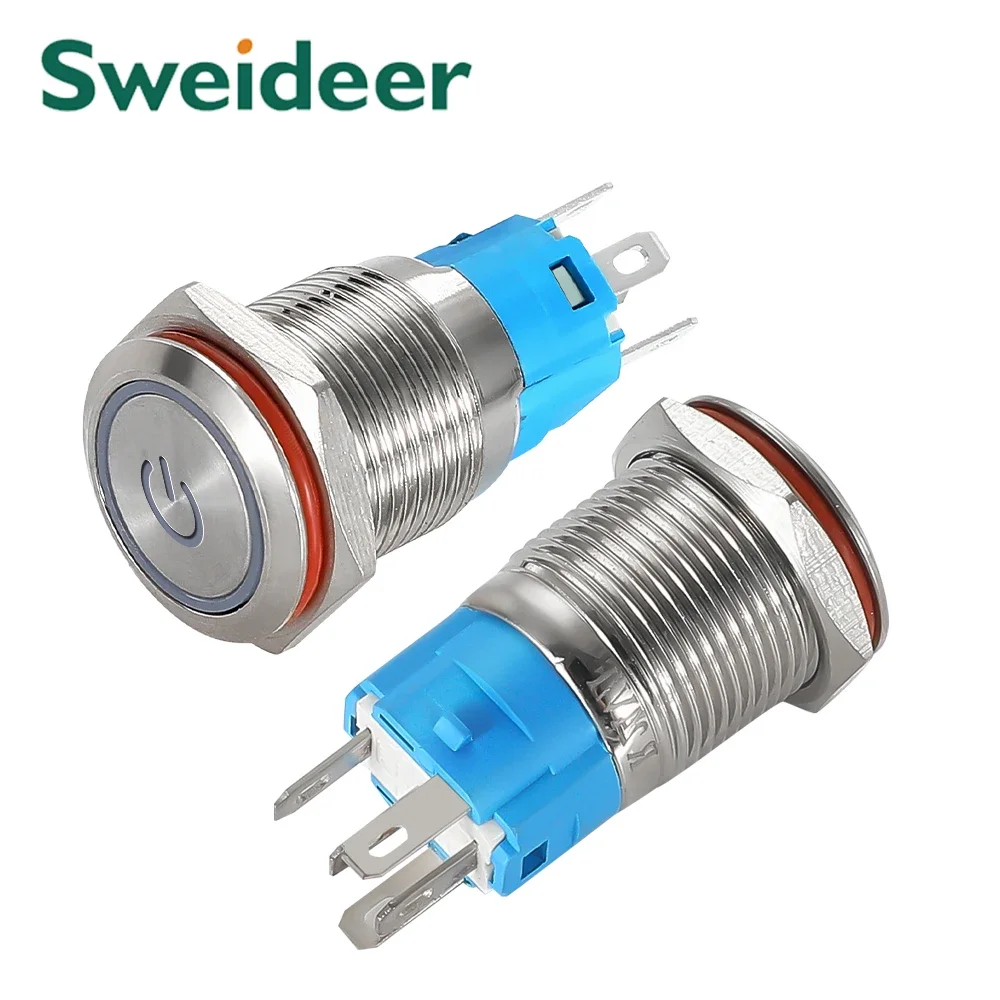

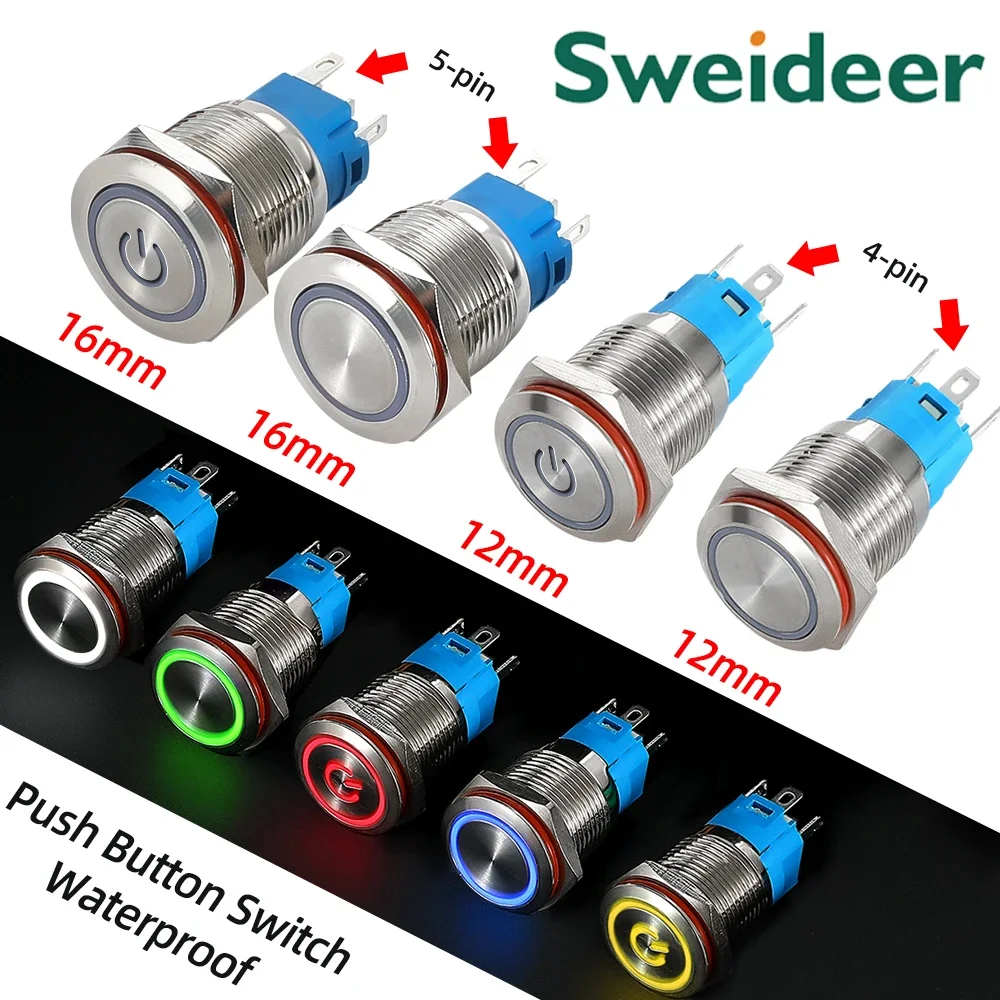

Hot selling 12/16mm Waterproof LED Light Momentary Latching Power Switch Metal Push Button Switch for Mechanical Equipment

Product Overview

Description

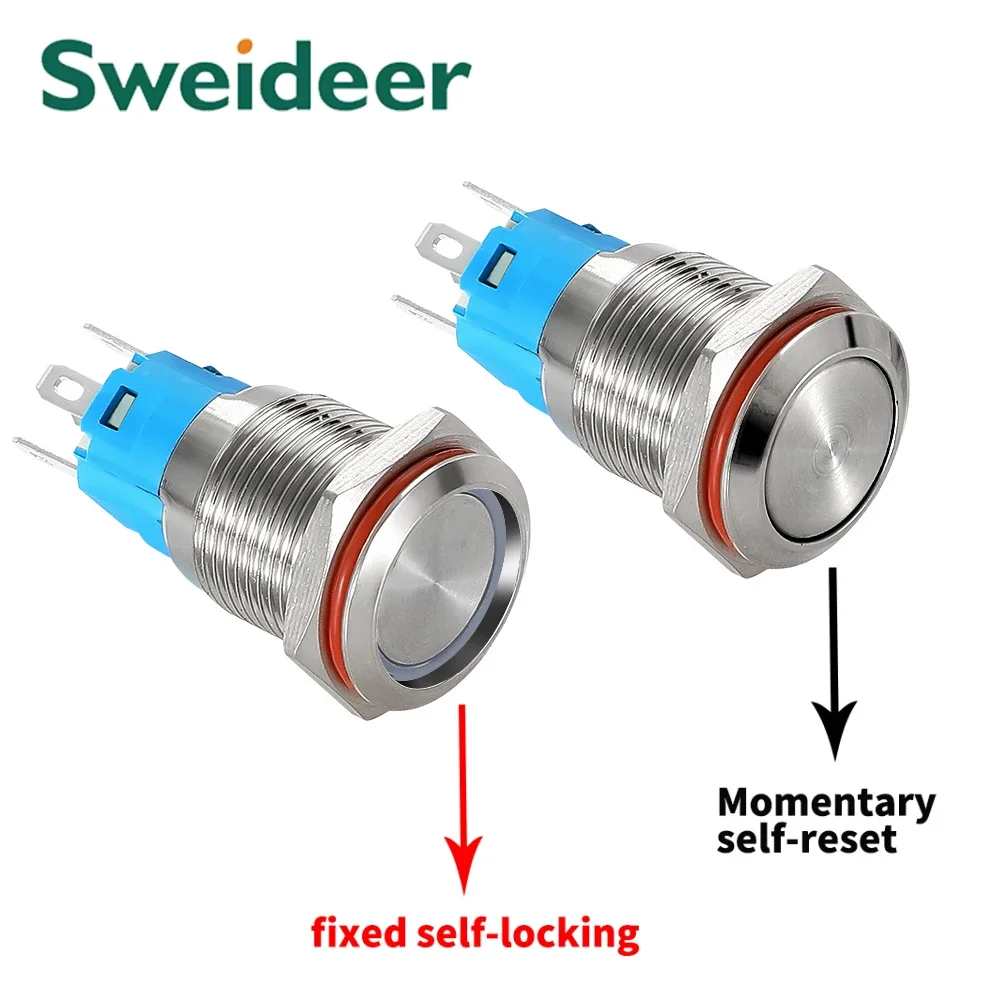

Difference between Momentary self-reset button and self-locking button:

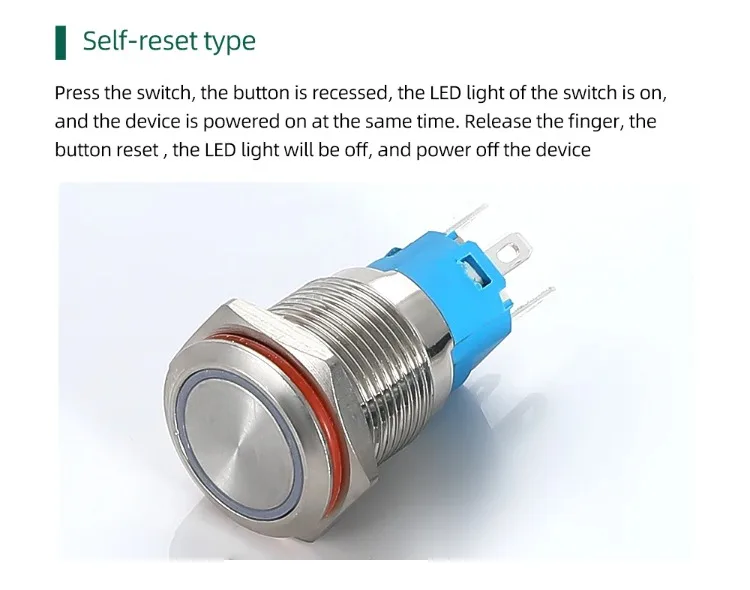

1. Momentary self-reset button: press this button to turn on the power (light on);
Release your hand, the power will appear and turn off automatically (the light goes out)

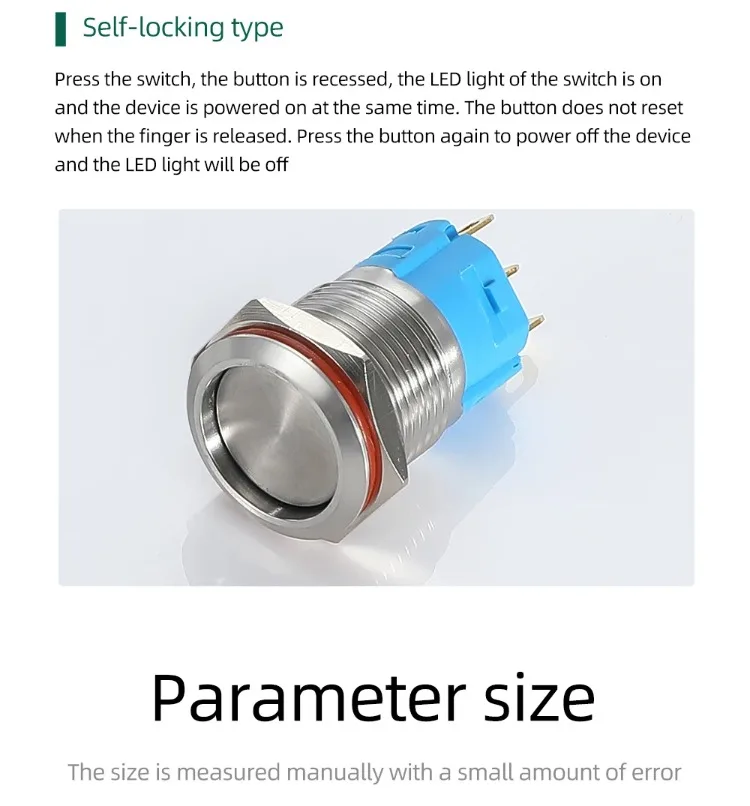

2. Self-locking button: press the power button, release your hand, and keep the button stationary (lit);
Press the button again to display and turn off the power (the light goes out).

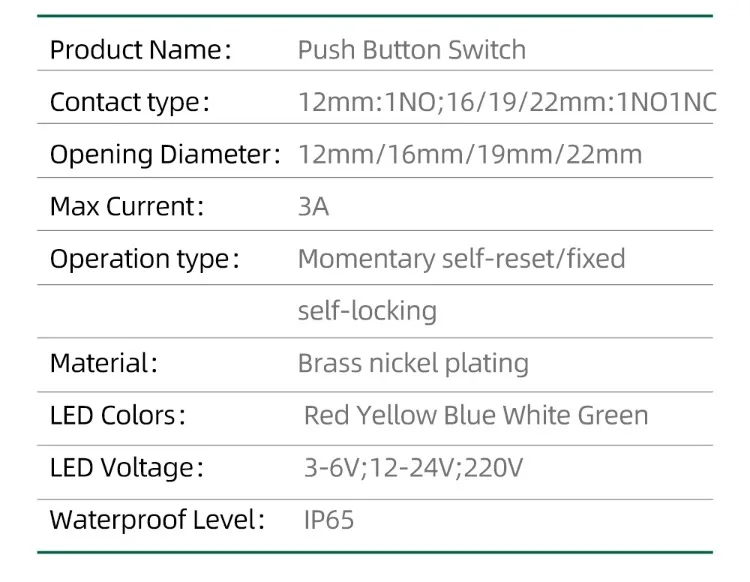

Product Specification

Product Name	Push Button Switch

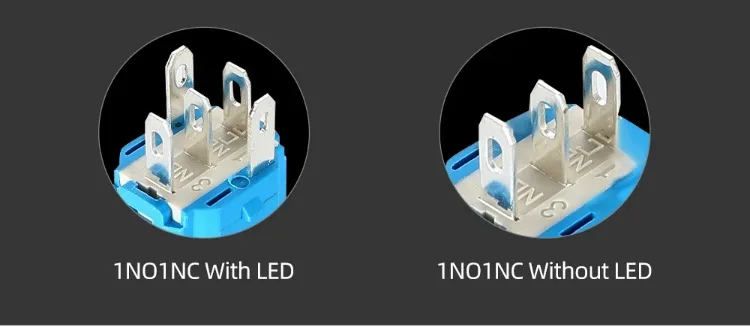

Contact type	12mm:1NO ; 16mm:1NO1NC

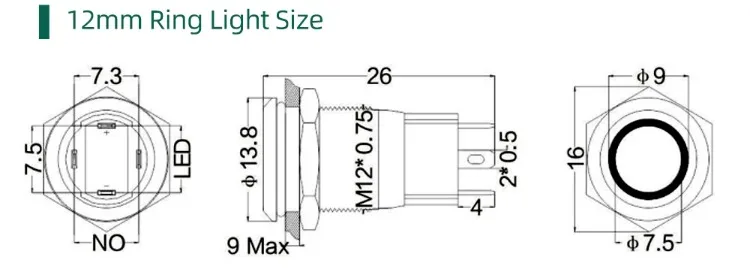

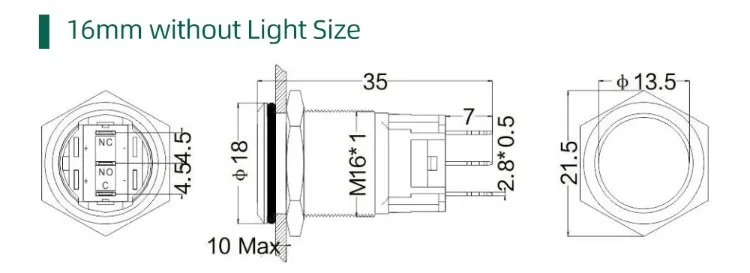

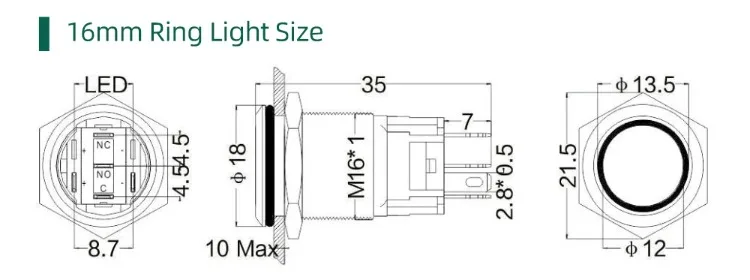

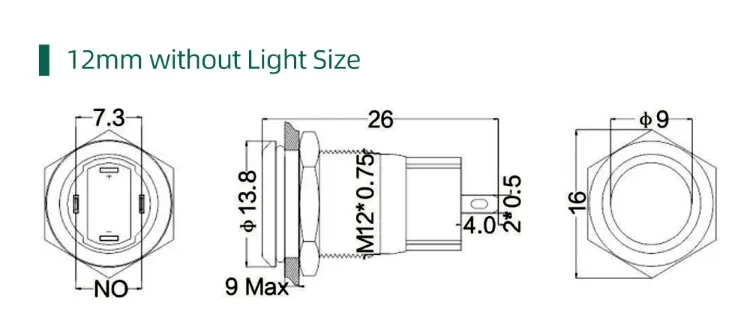

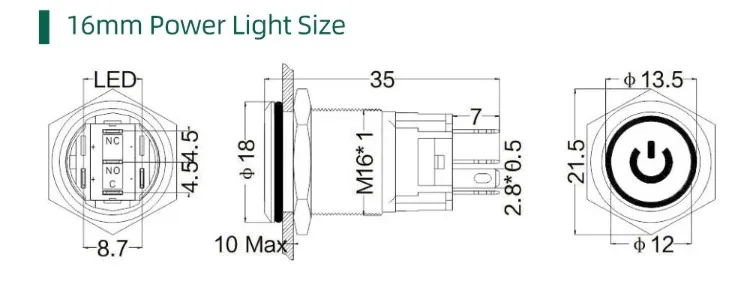

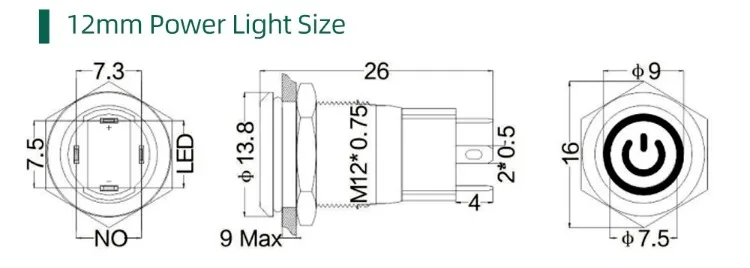

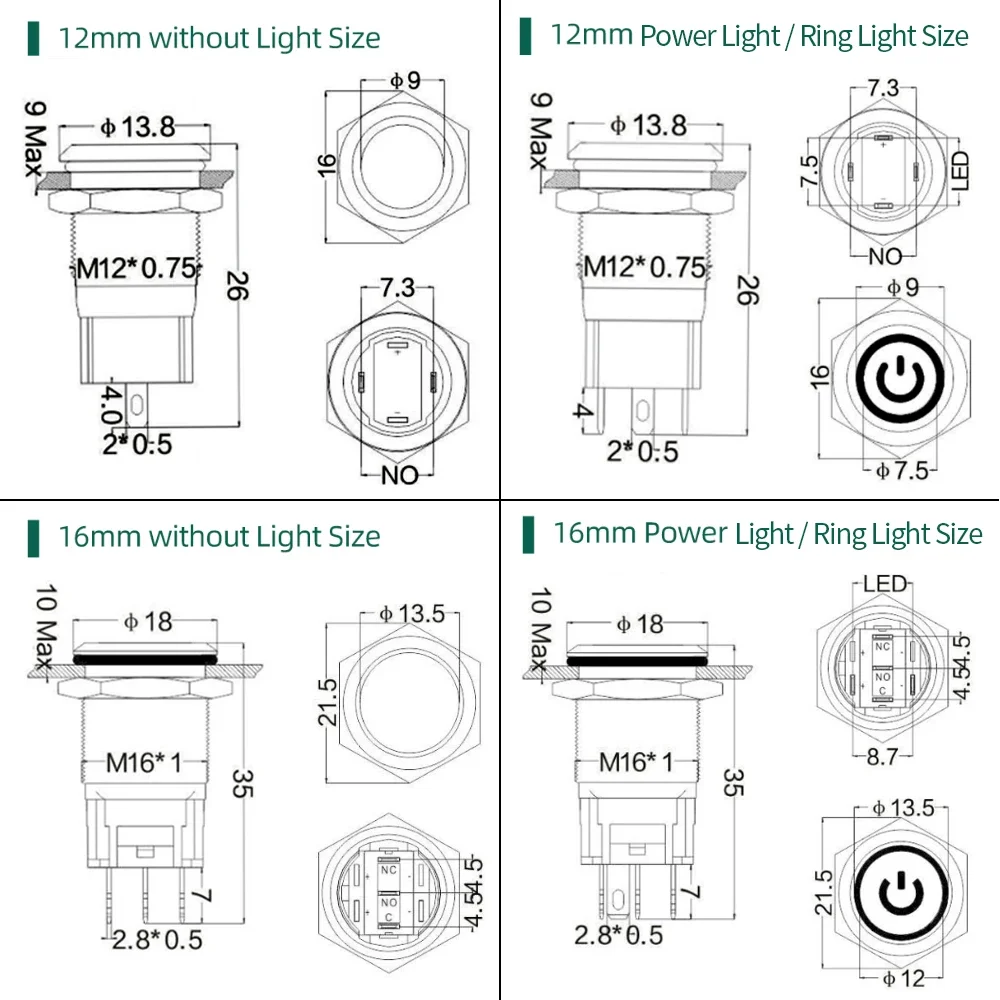

Opening Diameter	12mm/16mm
Max Current	3A
Operation type	Momentary self-reset / fixed self-locking

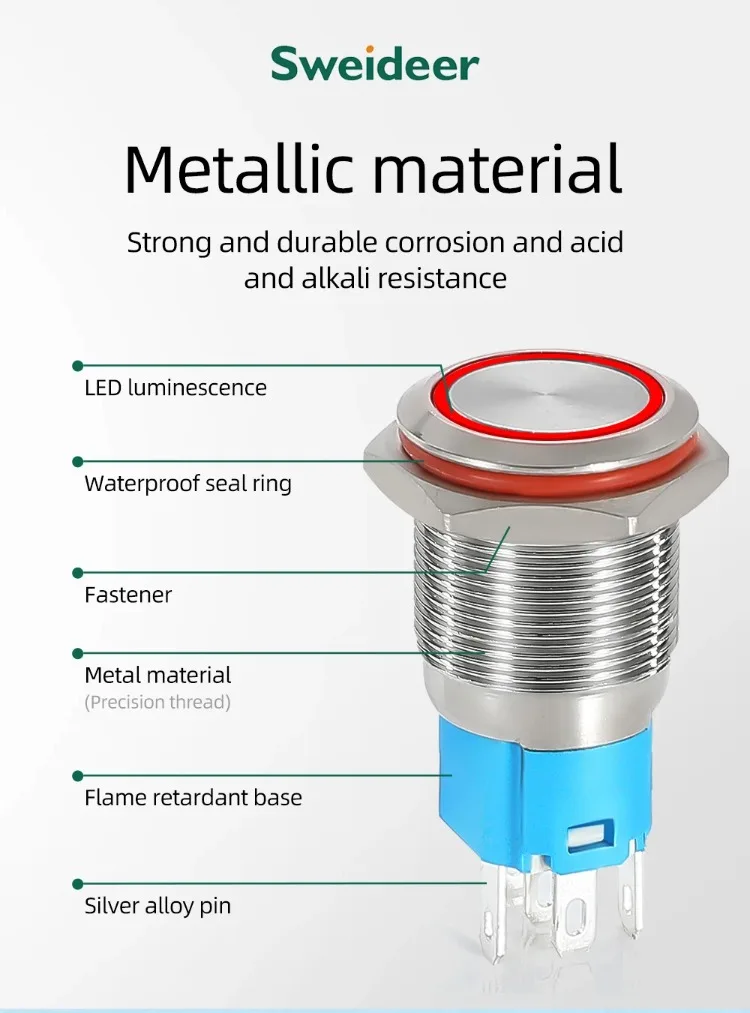

Material	Brass nickel plating

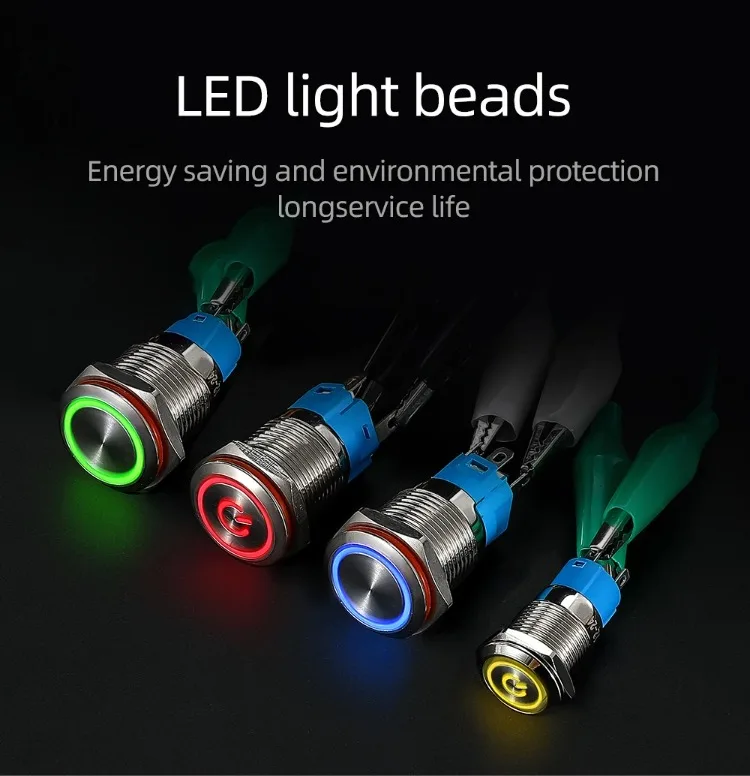

LED Colors	Red Yellow Blue White Green
LED Voltage	3-6V;12-24V;220V

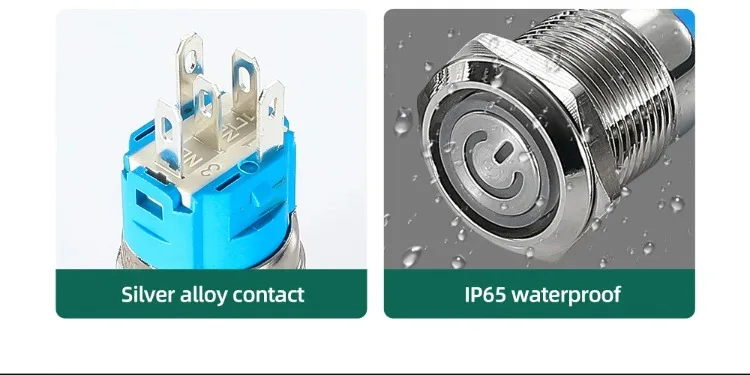

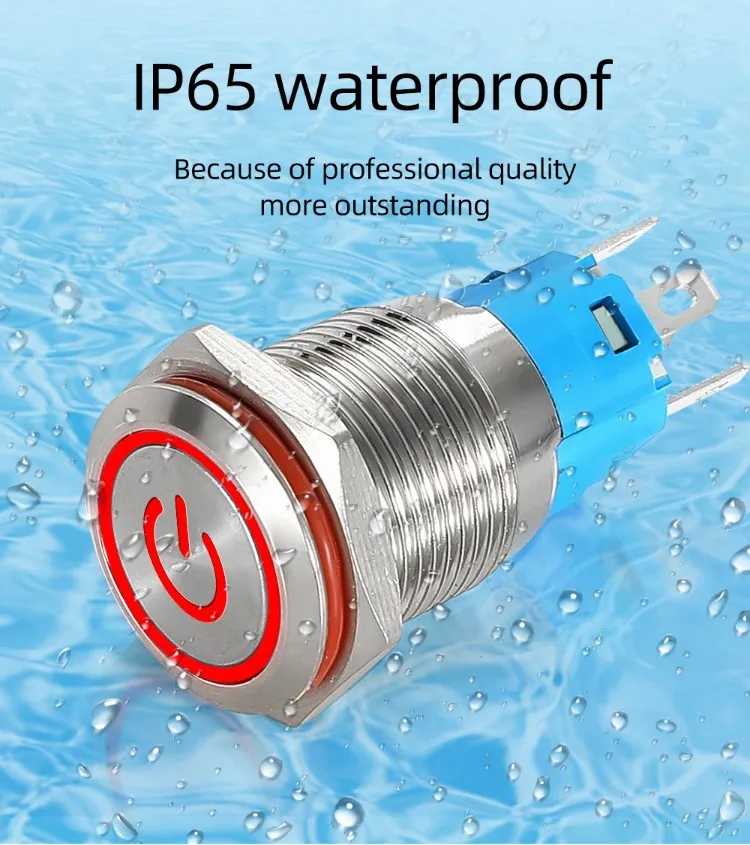

Waterproof Level	IP65

Package Content
No wire Metal Push Button Switch: Only metal button switch, no wire connector

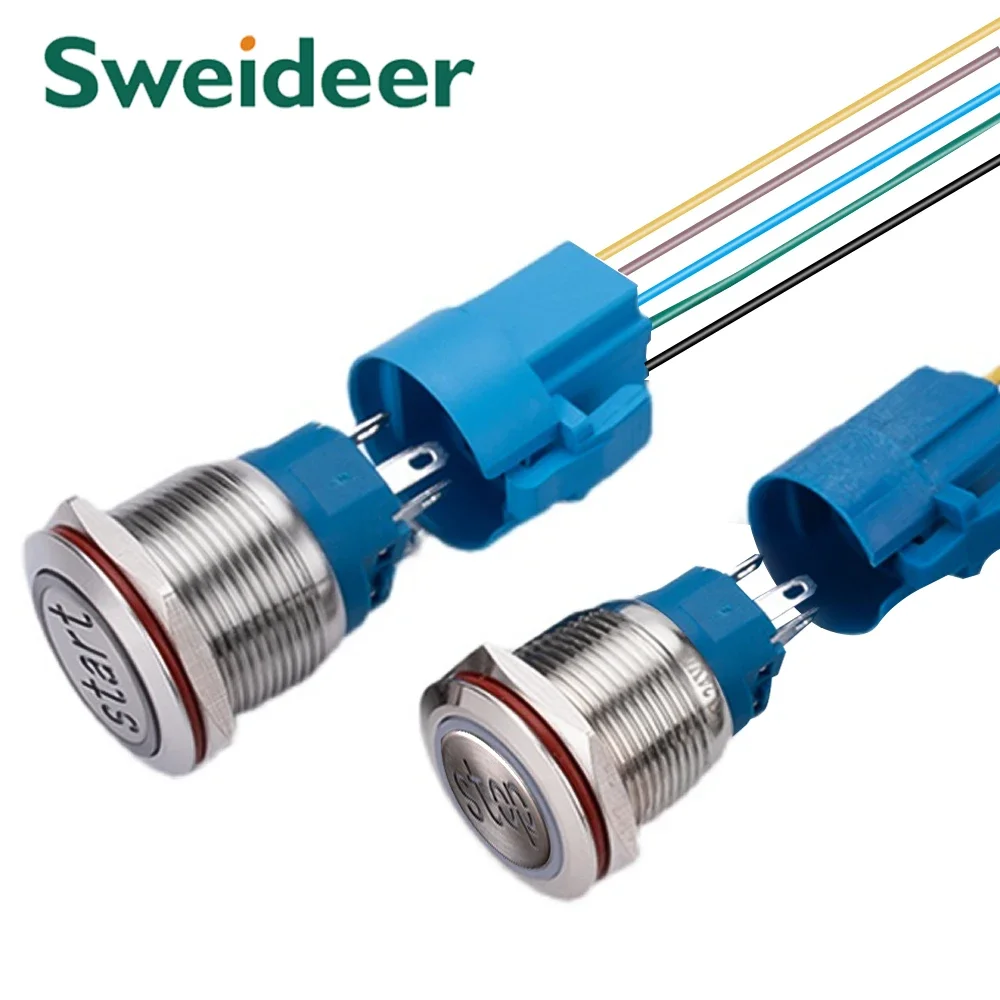

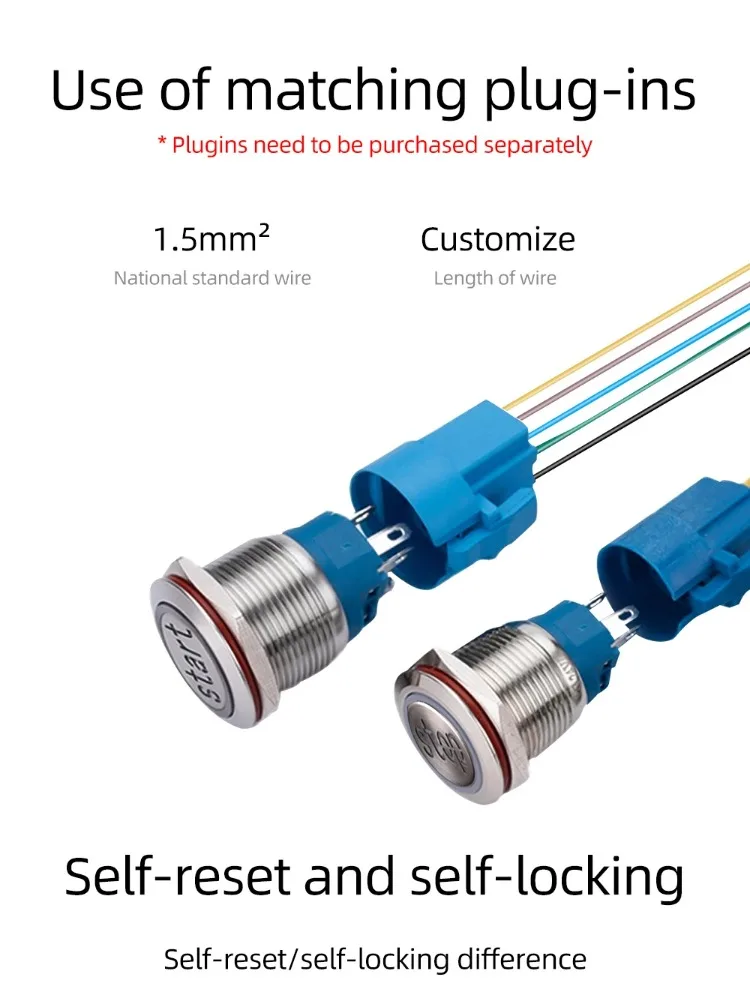

With wire Metal Push Button Switch: Have metal button switch and 15cm wire connector

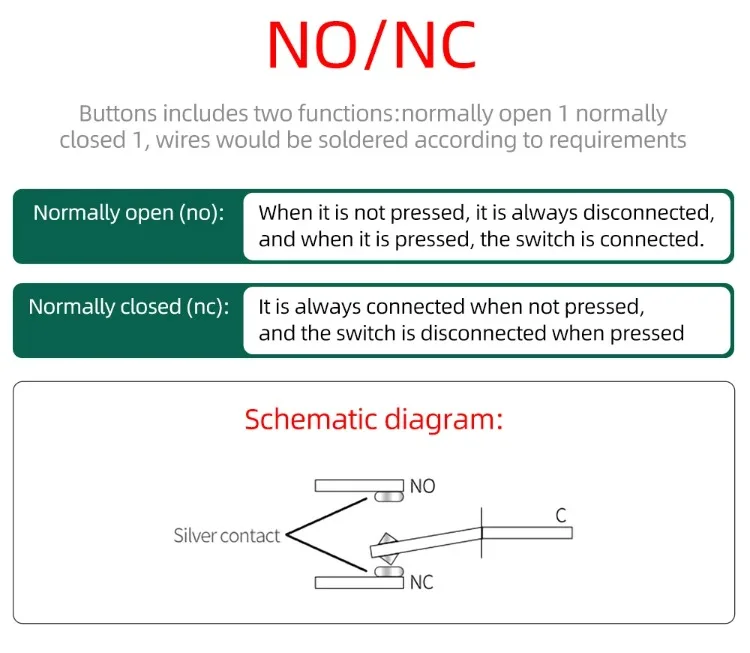

1.What does the signal "NC" and "NO" means?
"A" "+": positive pole of the led
"LED" " - ": negative pole of the led
" NC ": Normal Close
" NO ": Normal Open
" C "   : Common

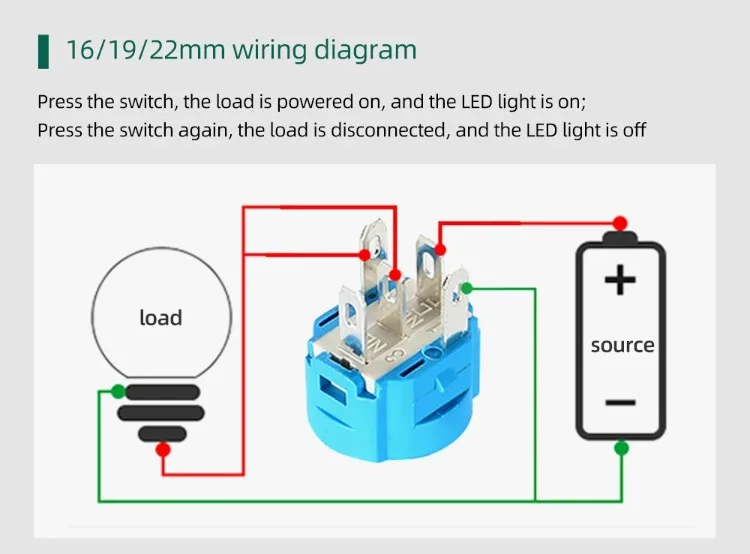

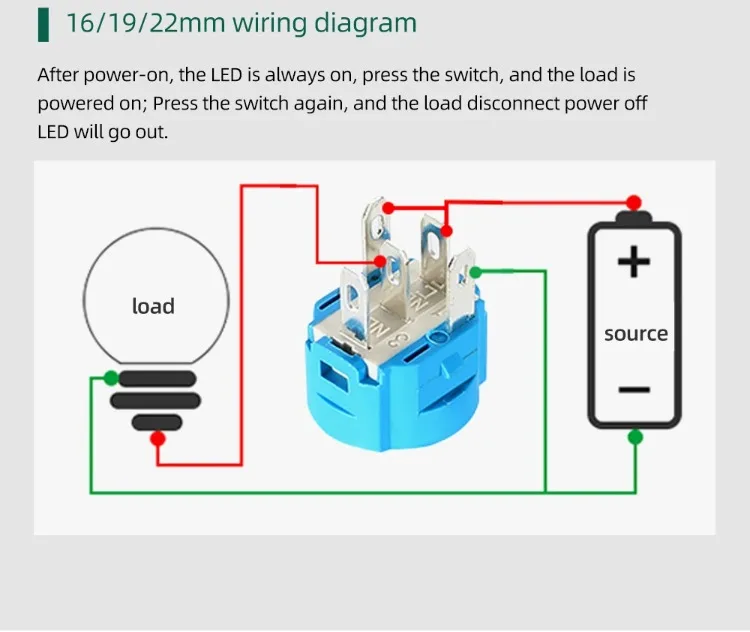

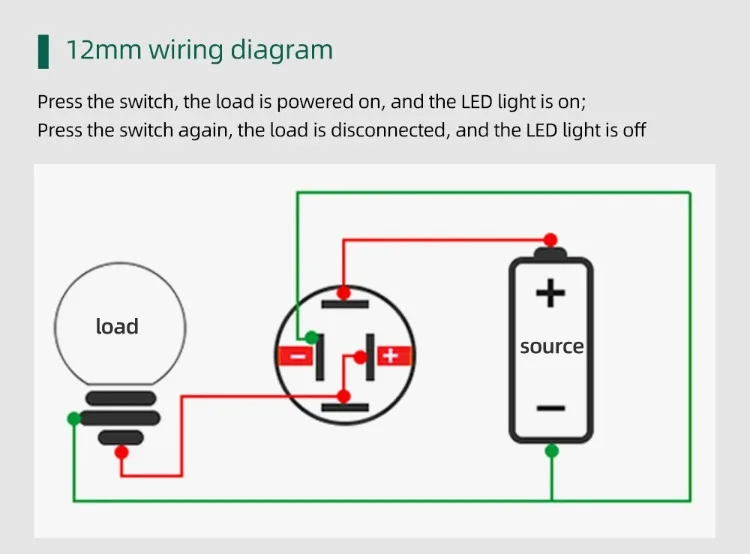

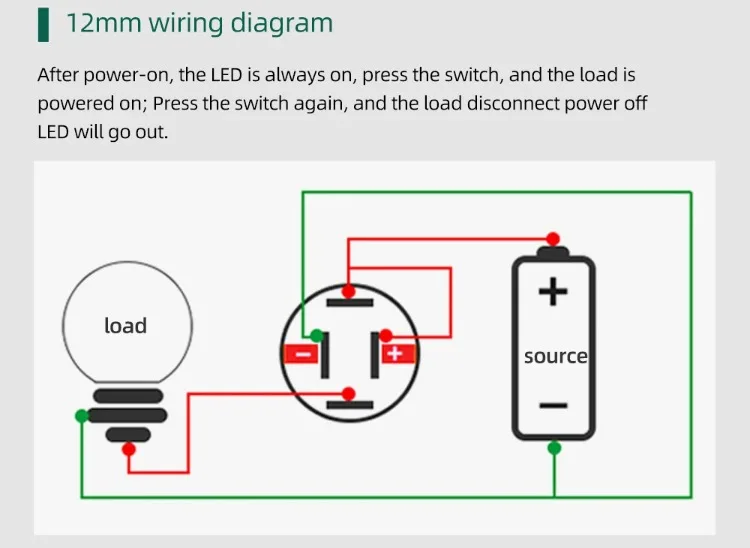

2.How to connect?
1.Connect " NO "  and " C " : The circuit is alway open unless press the button.
2.Connect " NC "  and " C " : The circuit is alway close unless press the button.

3. Can Customization it?
Yes , please leave a message to us.



Q1: How could I get a sample?

A: Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.



Q2: Sample time?

A: Existing items: Within 5 days.



Q3: Whether you could make our brand on your products?

A: Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.



Q4: Whether you could make your products by our color?

A: Yes, The color of products can be customized if you can meet our MOQ.



Q5: What products does your company mainly sell?

A: Our company main products include LED indicator lights, button switches, buzzers, warning lights and LED components etc.



Q6: How long I can get the goods?

A: Most goods we have stock for it, delivery time about 1-5 days after received payment.For customzied requirement switch, time will be a longer.



Q7: What kind of logistics do you use for delivery?

A: We mainly deliver goods by DHL, UPS,FEDEX,EMS and other express delivery. we will choose the most cost-effective logistics for customers.Also supported goods picked by your forwarder.



Q8: What certificates have you obtained for your products?

A: Most of the products have passed CE RoHS and IP65.



Q9:  How to guarantee the quality of your products?

A: 1) Strict detection during production.

    2) Strict sampling inspection on products before shipment and intact product packaging ensured.
