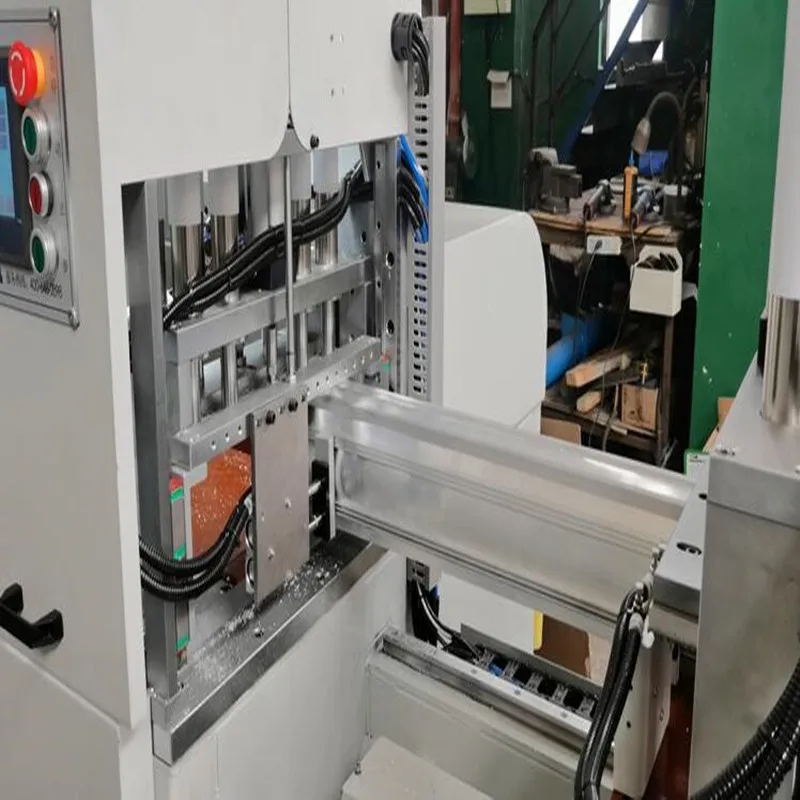

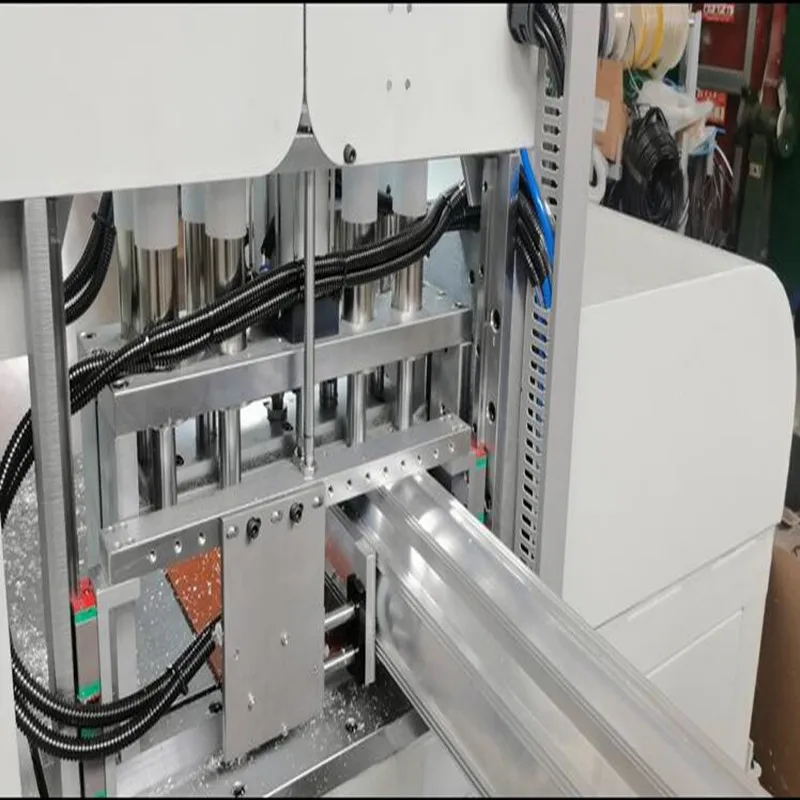

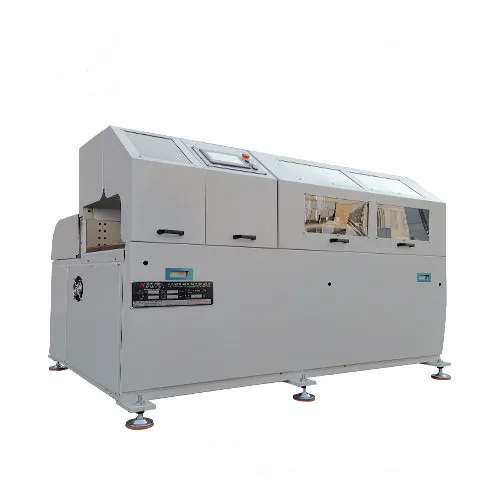

CNC Aluminium Saw Cutting Machine With High Cutting Precision 0.1mm
- Category: >>>
- Supplier: Kunshan DS Precision Machinery Co. Ltd.
Share on (1600968396004):
Product Overview
Description
Product Description
Product Name:
CNC Aluminium Saw Cutting Machine With High Cutting Precision 0.1mm
Cutting height:150mm
Cutting width:400mm
Spindle prcision: 0.01mm
Sizing precision: 0.1mm
Sizing precision up to 0.1mm
Patented blade splitting system, automatic separation after cutting, avoiding return blades with material
Shortest tails,tails can be controlled within 50mm.
Main Features

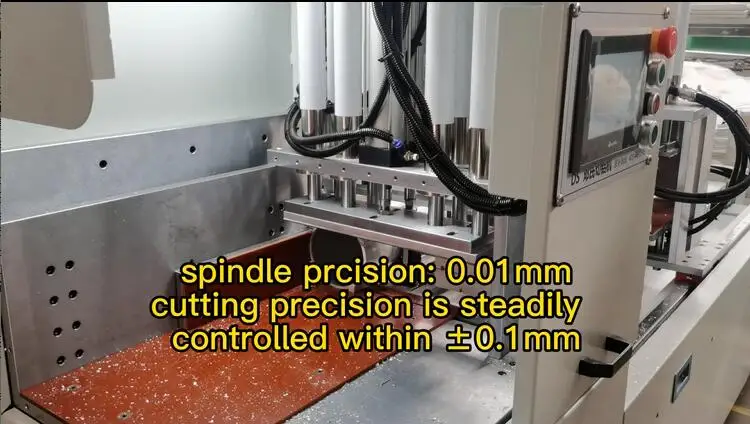

1. Spindle precision is within 0.01mm and the workpiece cutting precision is steadily controlled within ±0.1mm.

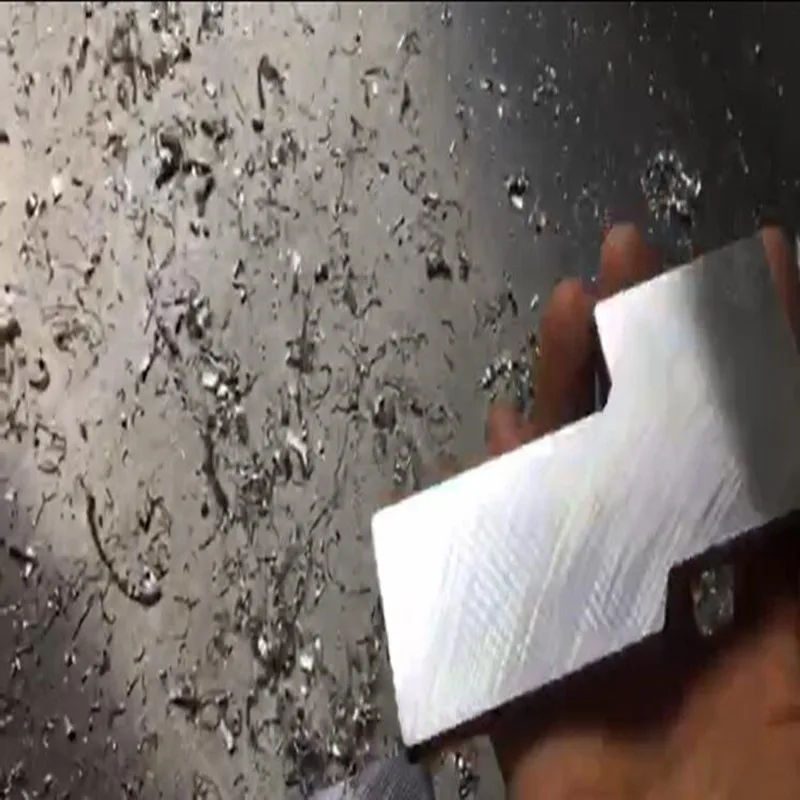

2. The patented blade separation system, when workpiece is finished cutting, the pallet will move away slightly to both sides, cutting off the workpiece before the saw blade retires to implement automatic separation, avoiding the saw blade retires to cut the workpiece again and cause the cutting surface is not smooth or burr (more than 80% of the current market equipment is not equipped with the action of material separation after cutting, resulting in the cutting surface is not very smooth), to ensure that the workpiece cutting surface is smooth and burr-free.

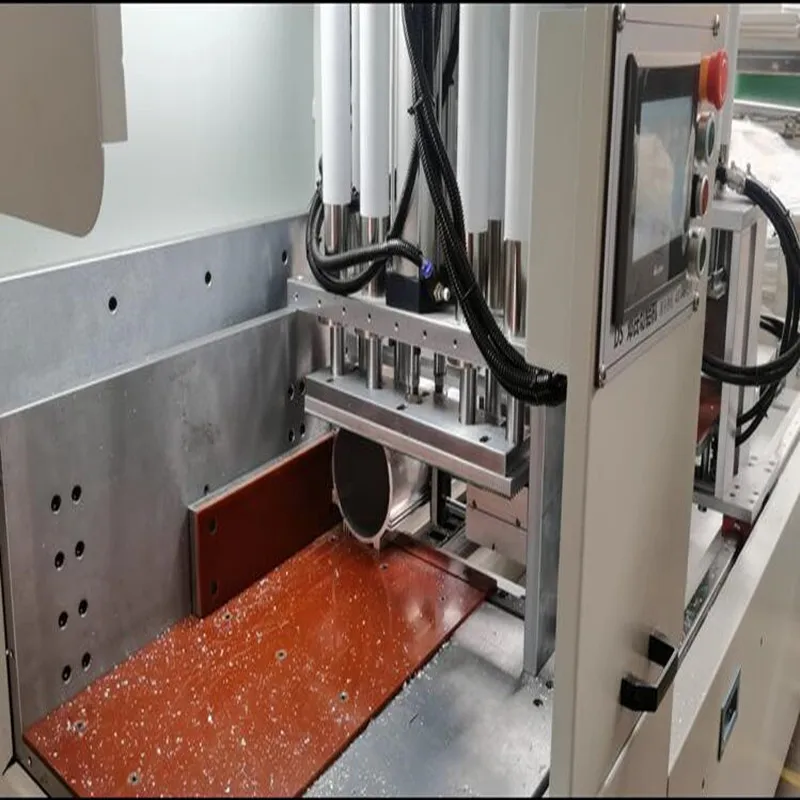

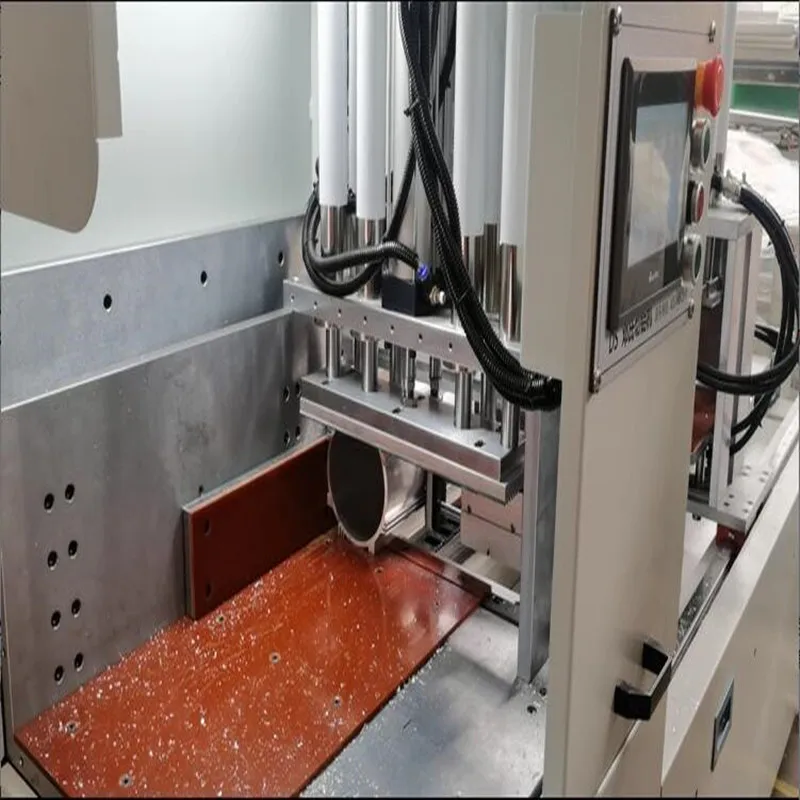

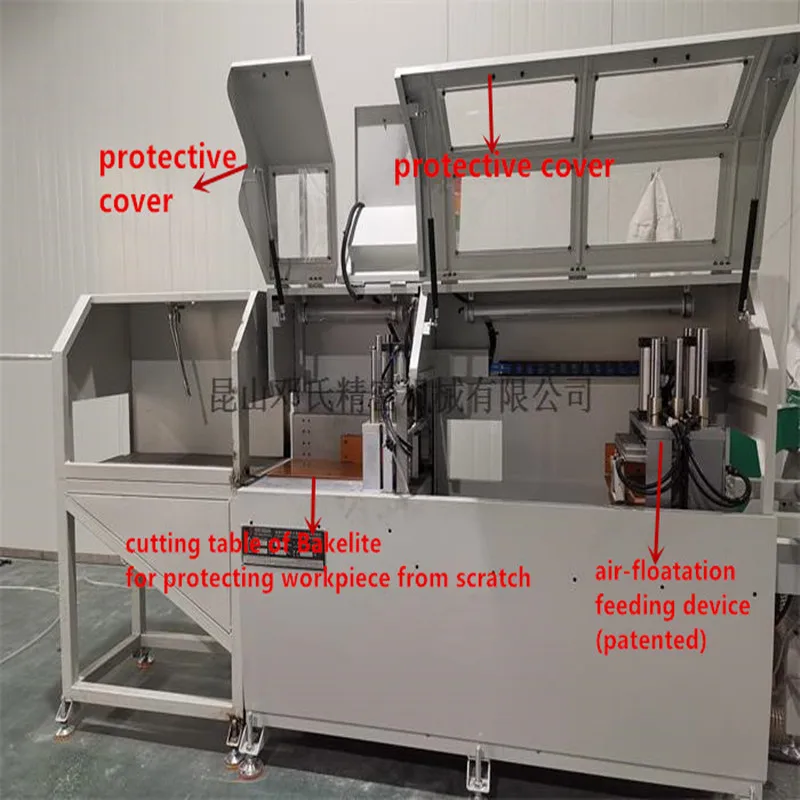

3. The working panel of the machine is made of bakelite, which effectively protects the cutting product and prevents the saw blade from scratching the cutting surface when retracting.
4.Specially with Fujire ultra-thin saw blades, each cut can save more than 1.5mm of material, saving material and increasing output .

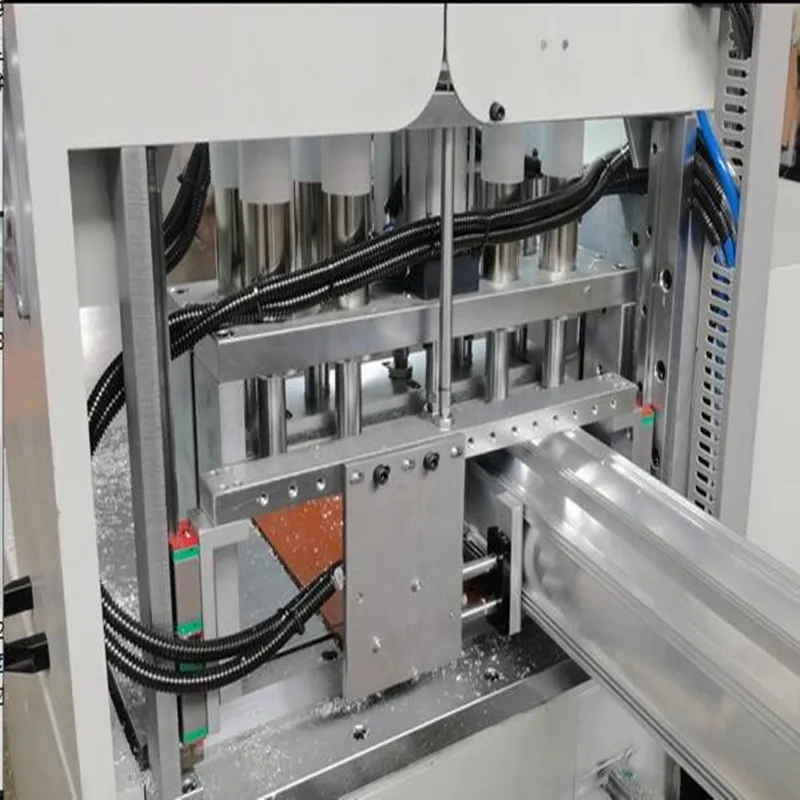

5. All feeding and cutting pushing forwarding are made with imported square ball linear guides to ensure the stability of the sawing process.

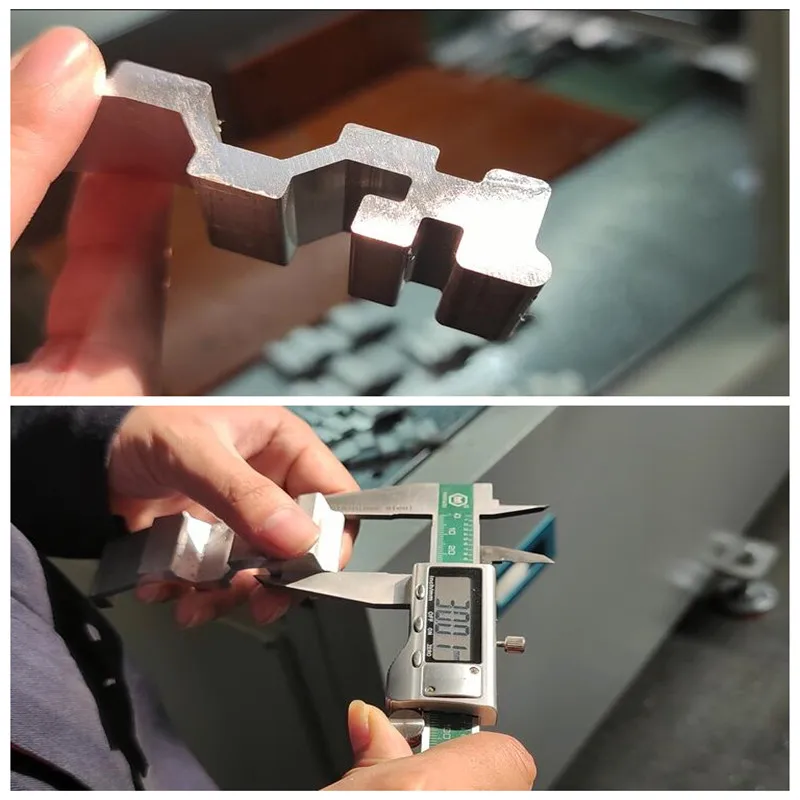

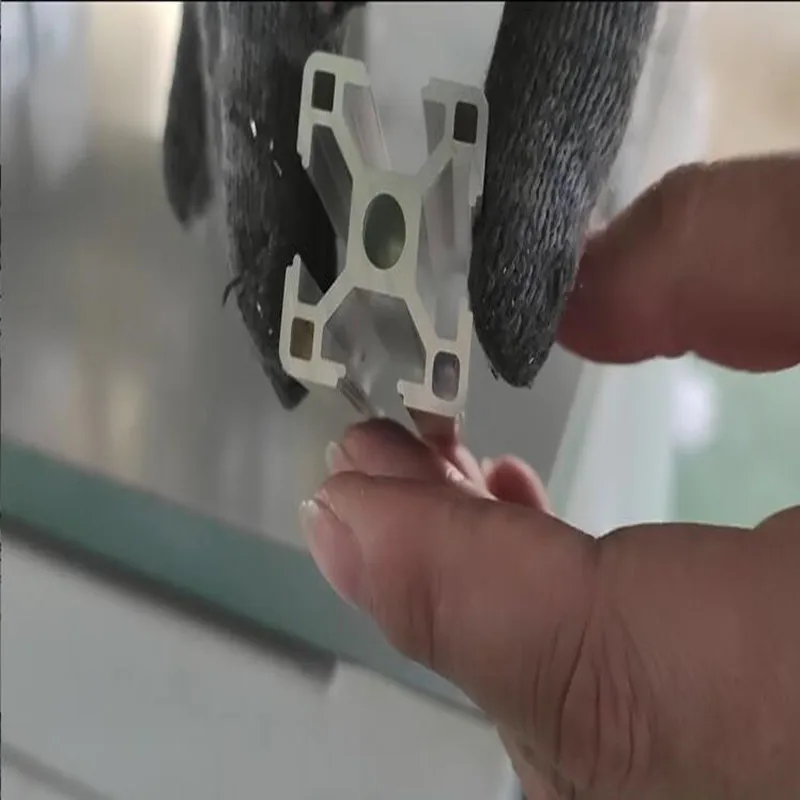

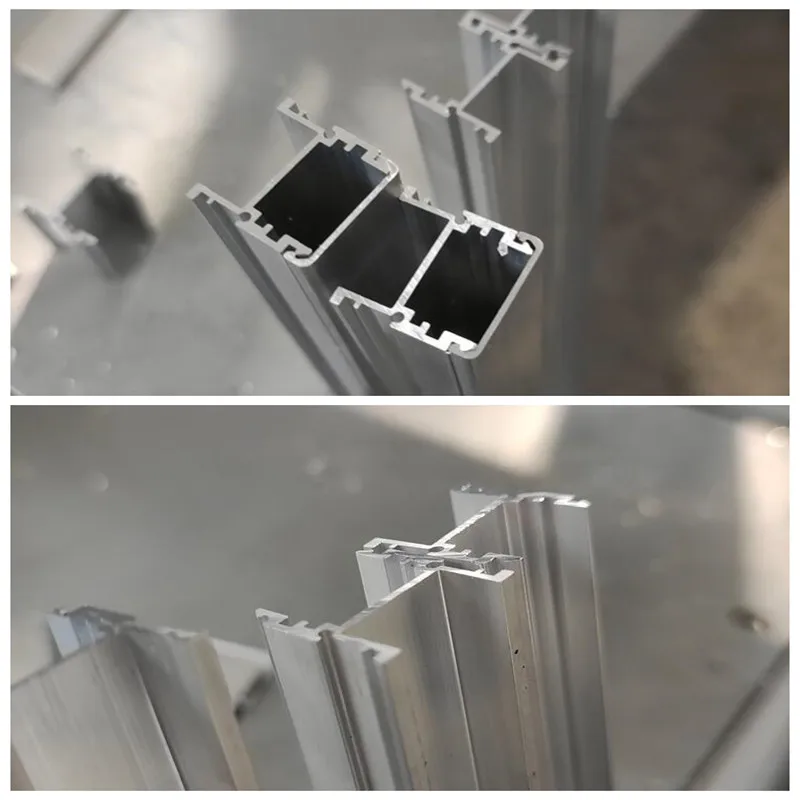

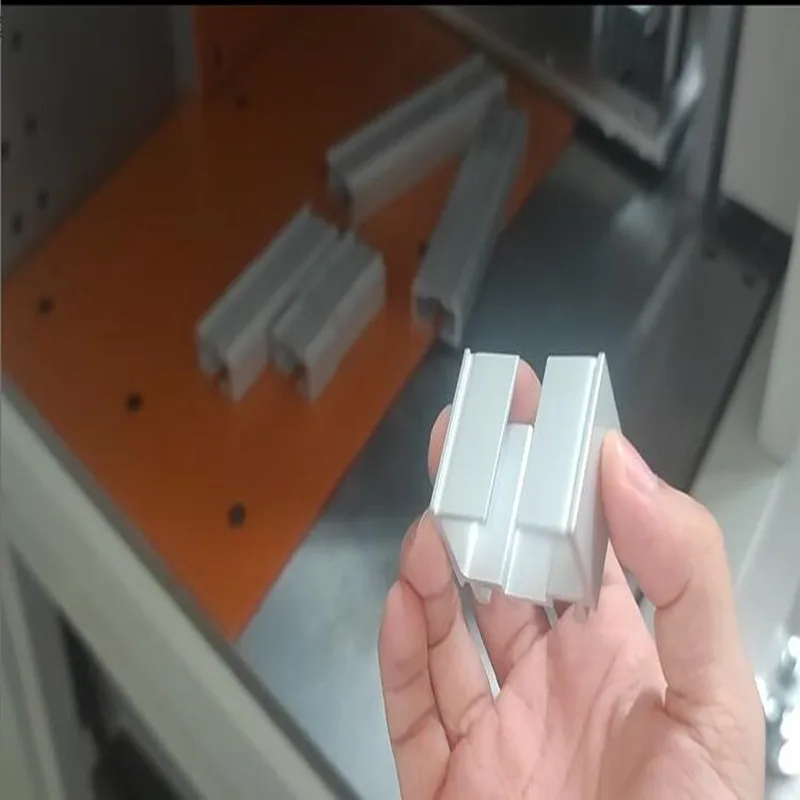

Cutting Materials
Specification
Power Supply | 380V/50Hz or Customized | Model | DS2-A550-3A |
Cutting Height | 150mm | Cutting Width | 400mm |
Motor RPM | 3000r/min | Motor Power | 7.5KW |
Cutting Flatness | 0.1mm | Cutting Verticality | 0.1mm |
Working Pressure | 0.6-0.8MPa | Spindle Precision | 0.01mm |
Spindle Diameter | 30mm | Blade Diameter | 550mm |
Cooling Device | Micro-lubrication Device | Sawing Direction | Cross Feed |
Driving Force | Servo Motor + Screw Rod | Automatic Feed Length | 8-1200mm |
Weight | 1200kg | Dimension (L*W*H) | 2600*1500*1530mm |
Details Images
Why Choose Us
1. After nearly two decades of hard work and precipitation, DS Machinery has obtained more than 30 inventions, utility models and appearance patents and a number of software copyrights.
2. During the period, it obtained ISO9001: 2015 quality system certification, and at the same time obtained the honors of high-tech enterprises, private technology enterprises in Jiangsu Province, and Suzhou City for abiding by contracts and keeping promises, issued by the government.

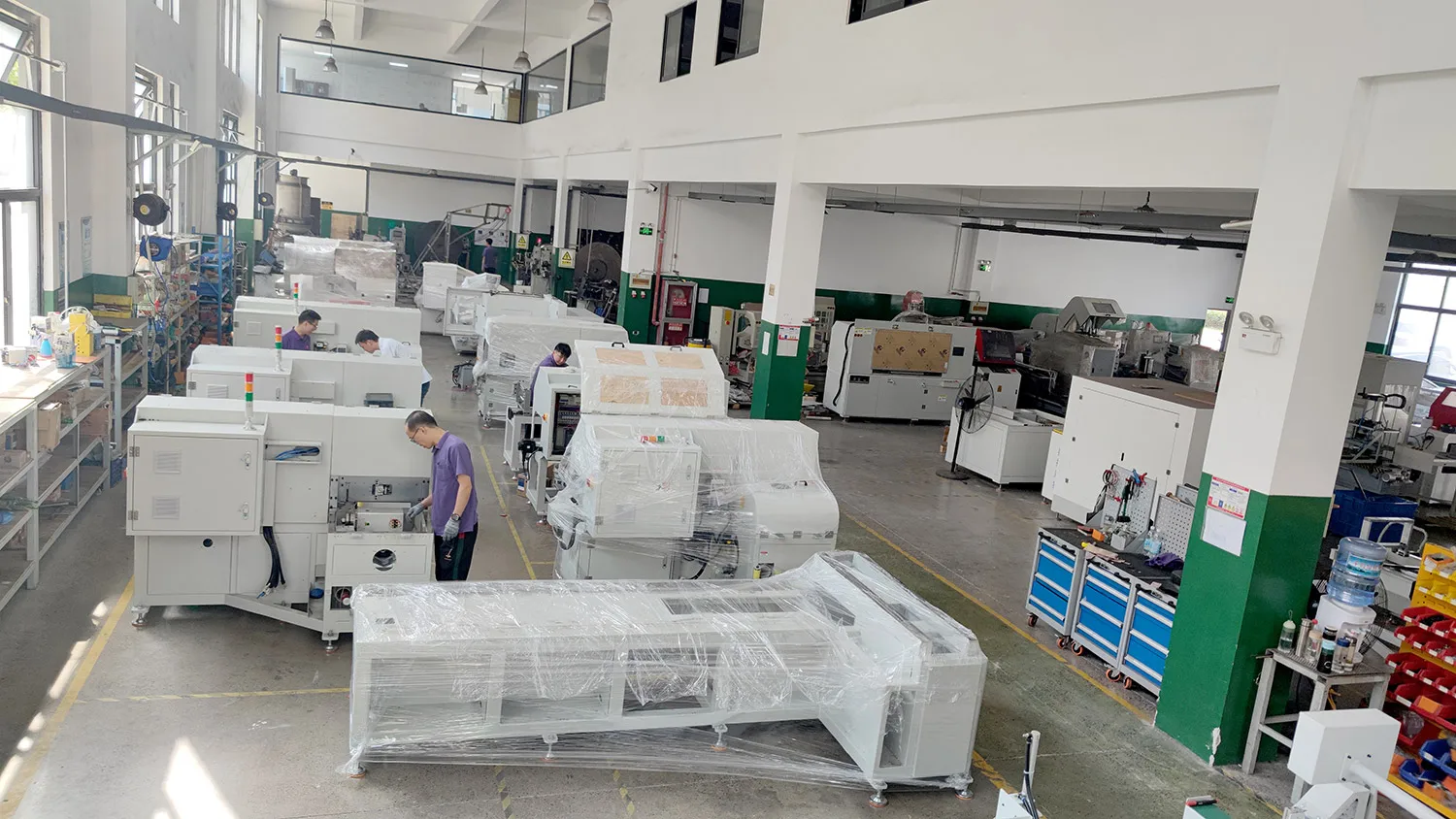

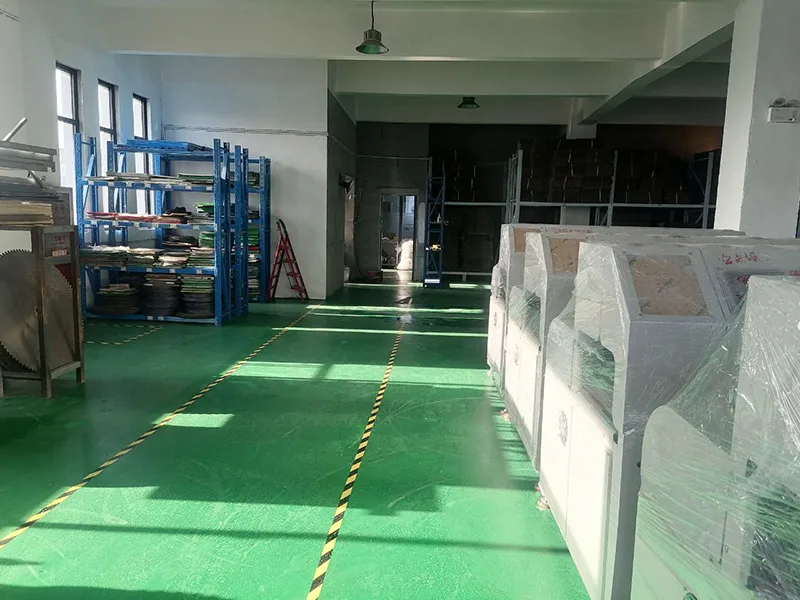

3. DS owns 3,500 square meters of workshops, and has established two R&D centers in Huzhou, Zhejiang and Kunshan, Jiangsu, and three service bases in Jiangsu, Zhejiang, and Guangdong.
4. The products are exported to Southeast Asia, the Middle East, Europe, Africa and other places, and more than 3,800 customers have been served worldwide.
2. During the period, it obtained ISO9001: 2015 quality system certification, and at the same time obtained the honors of high-tech enterprises, private technology enterprises in Jiangsu Province, and Suzhou City for abiding by contracts and keeping promises, issued by the government.
3. DS owns 3,500 square meters of workshops, and has established two R&D centers in Huzhou, Zhejiang and Kunshan, Jiangsu, and three service bases in Jiangsu, Zhejiang, and Guangdong.
4. The products are exported to Southeast Asia, the Middle East, Europe, Africa and other places, and more than 3,800 customers have been served worldwide.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q: Are you manufacturer or trading company?
Q: Do you have overseas service? How to provide after-sales service？
A: We are a professional manufacturer dedicated to the research and producing of high quality aluminum cutting machines and saw blades for 20 years.
Q: Can I have your quotation?
A: First, please offer us the information of your cutting material and its size,without these parameter, we are not able to recommend you the suitable machine.
Q: Do you have overseas service? How to provide after-sales service？
A: Yes, we normally help our customers to solve the problems through phone, Email, skype, internet video. Very high efficiency.
Q: How long is the equipment warranty？
A: We offer one year guaranteen for main parts, within one year, if component of the machine broken, we freely offer the component, but the delivery fee should be paide by client.
Q: What is the voltage and Hertz in your country?
A: In China,the Voltage is 380V(3 Phase), the Hertz is 50Hz, we can change the voltage and Hertz according to your requirment.
Q: What is the delivery lead-time?
A: Aluminum cutting machine: normally 5-30 days upon receipt of your orders and its deposit.
Saw blade: 5-30 days(depending on availability of saw blade stock or material stock) upon receipt of your order and deposit.
Q: What is your payment terms?
A: We accept L/C, T/T, D/P, Western Union and PayPal. As T/T, 30% deposit, 70% of balancepaid before shipment.
Q: Can you customize for us?
A: Yes.
Q: Can you OEM/ODM for us?
A: Yes
Q:Can I get a discount?
A:Yes, for the yearly order quantity of more than 5 sets, please contact us to get the best price.
Q:Do you inspect the finished products?
A:Yes, each step of production and finished products will be coming out inspection by the QC department before shipping.
Q: Do you provide equipment operation training? Do you have the operation instruction book in English?
A: Currently we can do on-line technical operation training for customer's staff. Yes, we have English version operation instruction book for each cutting machine.
