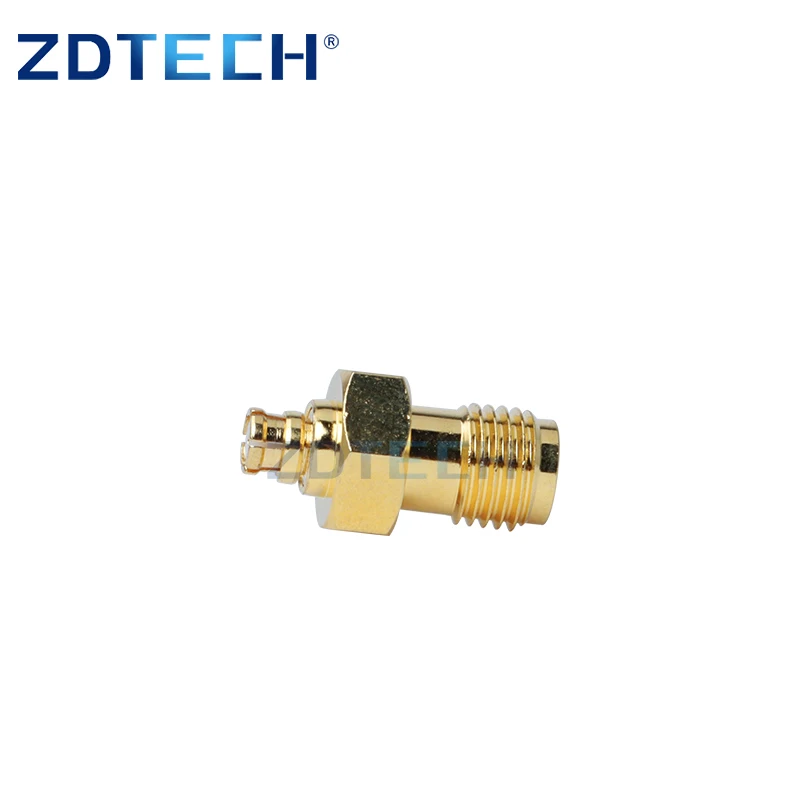

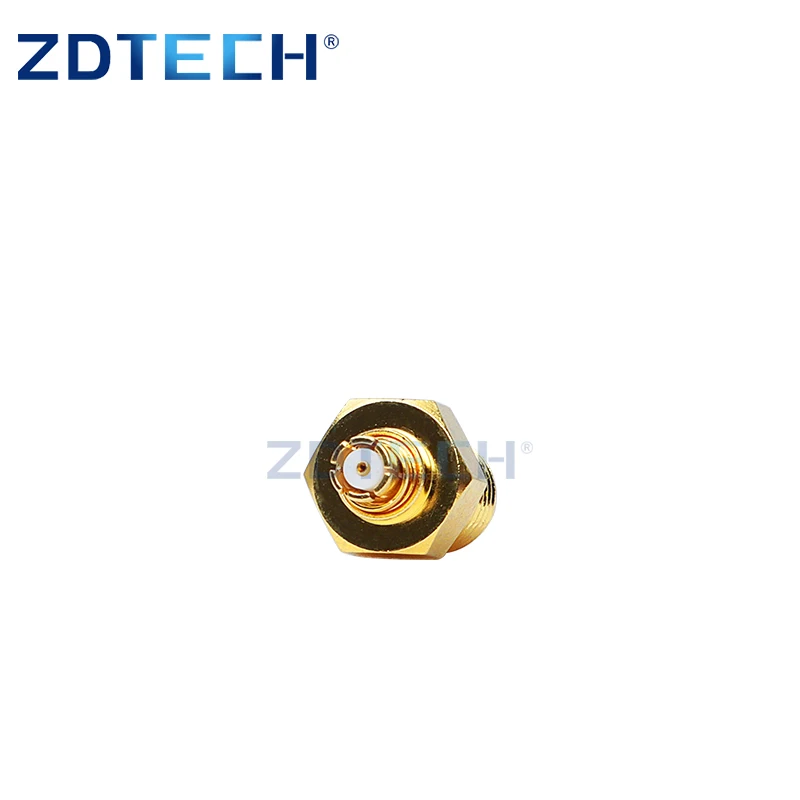

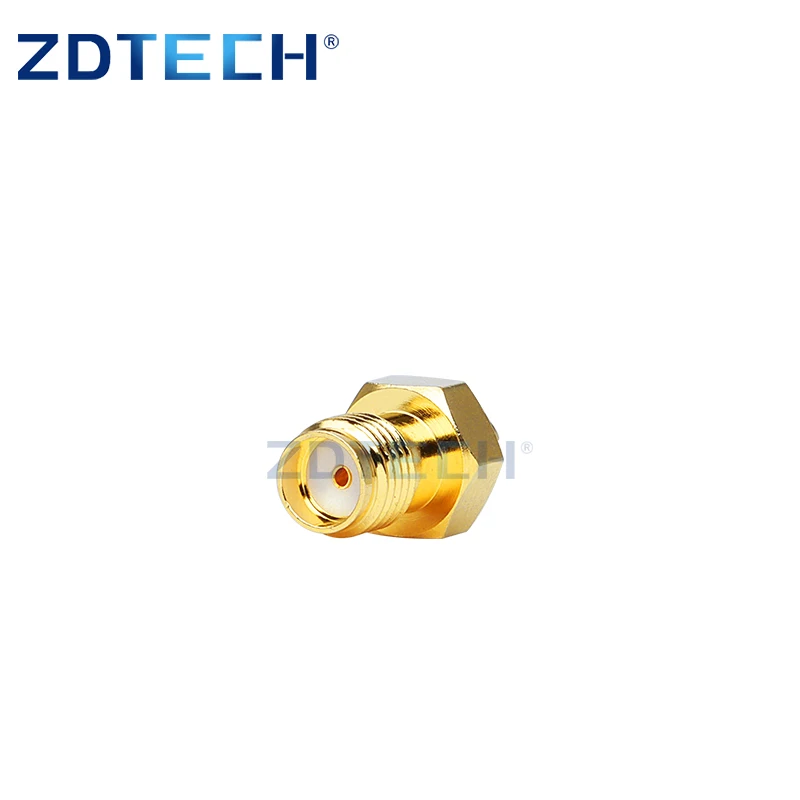

SMP female to SMA Female Jack Plug Adaptor RF 50ohm Coaxial Microwave
SMP female to SMA Female Jack Plug Adaptor RF 50ohm Coaxial Microwave
SMP female to SMA Female Jack Plug Adaptor RF 50ohm Coaxial Microwave
SMP female to SMA Female Jack Plug Adaptor RF 50ohm Coaxial Microwave
SMP female to SMA Female Jack Plug Adaptor RF 50ohm Coaxial Microwave
SMP female to SMA Female Jack Plug Adaptor RF 50ohm Coaxial Microwave
SMP female to SMA Female Jack Plug Adaptor RF 50ohm Coaxial Microwave

SMP female to SMA Female Jack Plug Adaptor RF 50ohm Coaxial Microwave

Share on (1600968424600):


Price:US$ 5.00 - US$ 6.00

Quantity:


Product Overview

Description







Specification

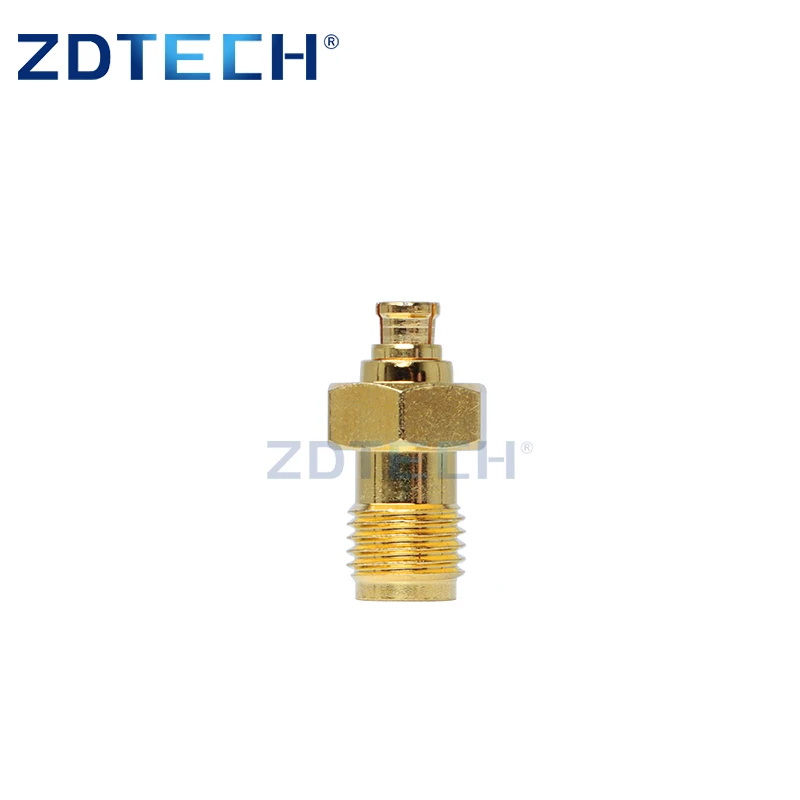

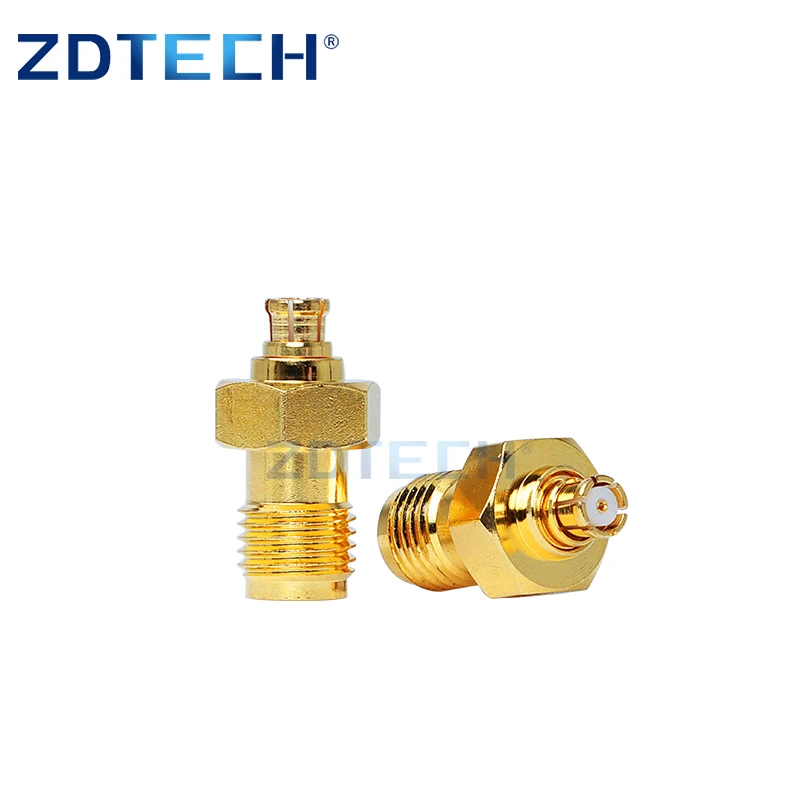

SMP Female to SMA Female Adapter
1. Material and Plating
Center contact
Tin-bronze/ Silver Plated
Outer contact
Tin-bronze/ Silver Plated
Body
Brass/ Silver Plated
Dielectric
PTFE
Gasket
Silicon Rubber
Nut
Brass/ Nickel Plated
2. Electrical Characteristics
Characteristics Impedance
50 Ohm
Frequency Range
DC,2.5GHz
Insulation Resistance
≥10000 MΩ
Center contact
5 MΩ
Outer contact
≤1.O MΩ
Dielectric Strength
2500V rms
Working voltage
1400V rms
Insertion Loss
≤0.10dB@DC'3GHz
VSWR
≤1.20@DC'3.0GHz
Durability (matings)
≥500 cycles
Temperature Range
-40~+85℃
RoHS
Compliant
