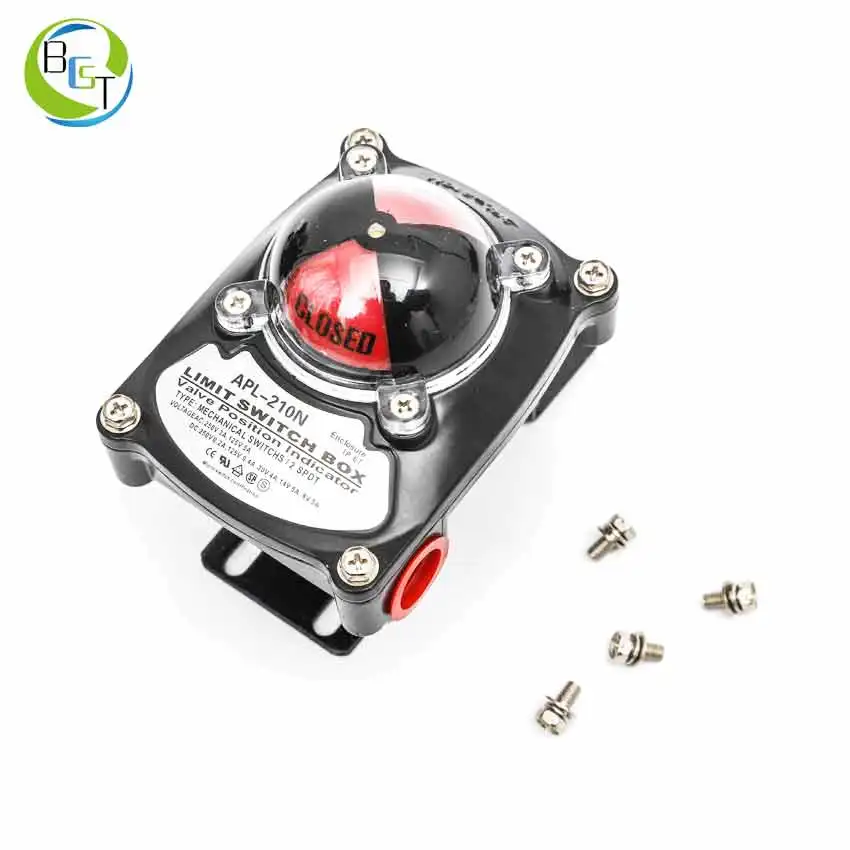

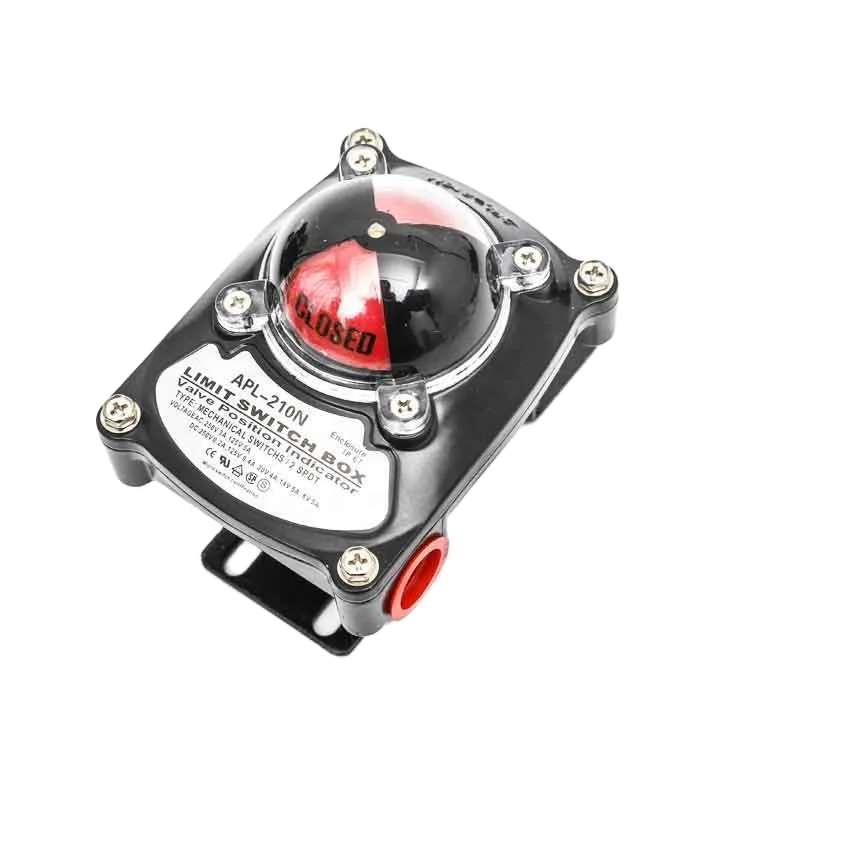

Weatherproof IP67 limit switch valve position monitor

Product Overview

Description

weatherproof IP67 limit switch valve position monitor



Valve position monitor and limit switch actuator accessories are made of an aluminum die cast body that has been powder coated for protection. 2x 1/2" conduit entries, NAMUR mounting as a standard and fully adjustable spring loaded cams. Corrosion resistance and durable.



Valve position indicators/limit switch box are electrical switching devices that mount directly on a valve actuator, or indirectly on a transfer case. They are used in conjunction with a valve positioner.



Types of Valve Position Indicators



Valve position indicators are used with both rotary actuated valves and linear actuated valves and provide two basic switching options: non-contact and mechanical.



Non-contact switches or proximity sensors use inductive or transistor-transistor logic (TTL) and include reed switches.



Mechanical switchers are activated by energized arms connected to a moving stem or shaft. There is a mechanical linkage to the actuator.



Valve Position Indicator Specifications



Valve position indicators differ in terms of display, the number of indicated positions, the number of switches, and pole and throw specifications. Shaft diameter and operating temperature are additional considerations. Most suppliers specify shaft diameter in English units such as inches (in) or metric units such as centimeters (cm). Operating temperature is measured in either degrees Fahrenheit (°F) or degrees Celsius (°C).



Display



Some valve position indicators display information on a rotating dial or sliding scale. Other products feature a light emitting diode (LED) indicator. Valve position indicators with position transmitters are also available. These devices provide continuous, signal-based information about a valve’s open, closed, or intermediate positions.





Features



1.Solid and flexible design

Aluminium die-casting housing and powder coating

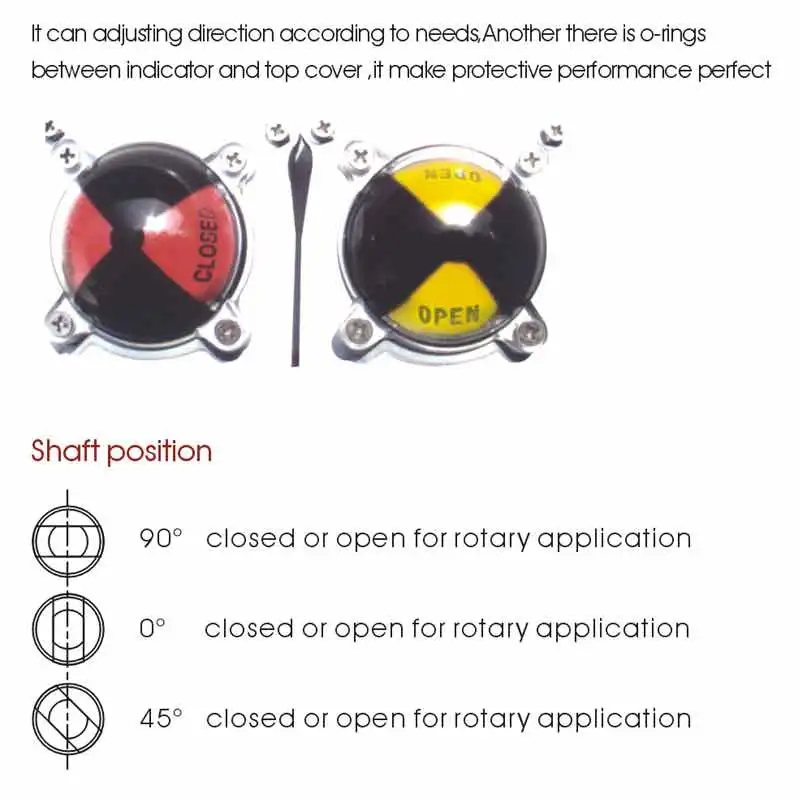

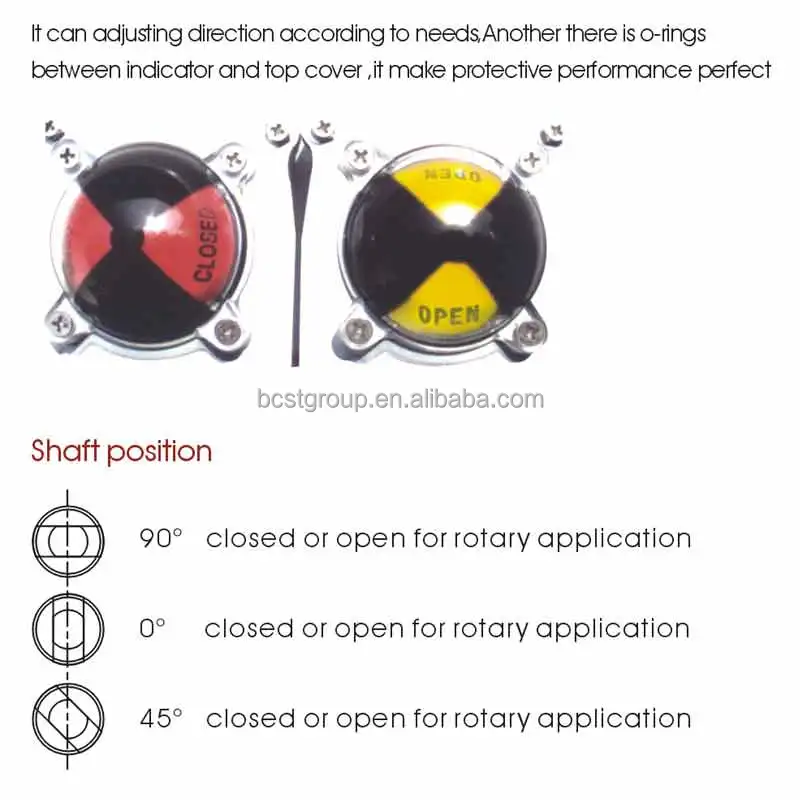

2.Bolts on visual position indicator

3.Quick-set cam

Spring loaded splined cam

No need to adjust again after initial setting

Easy setting without too

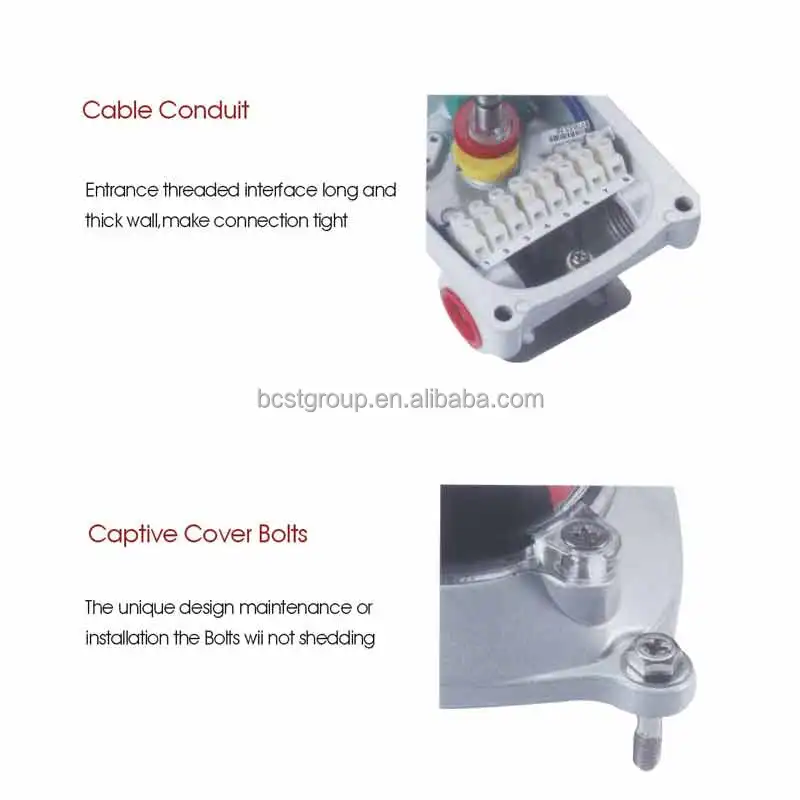

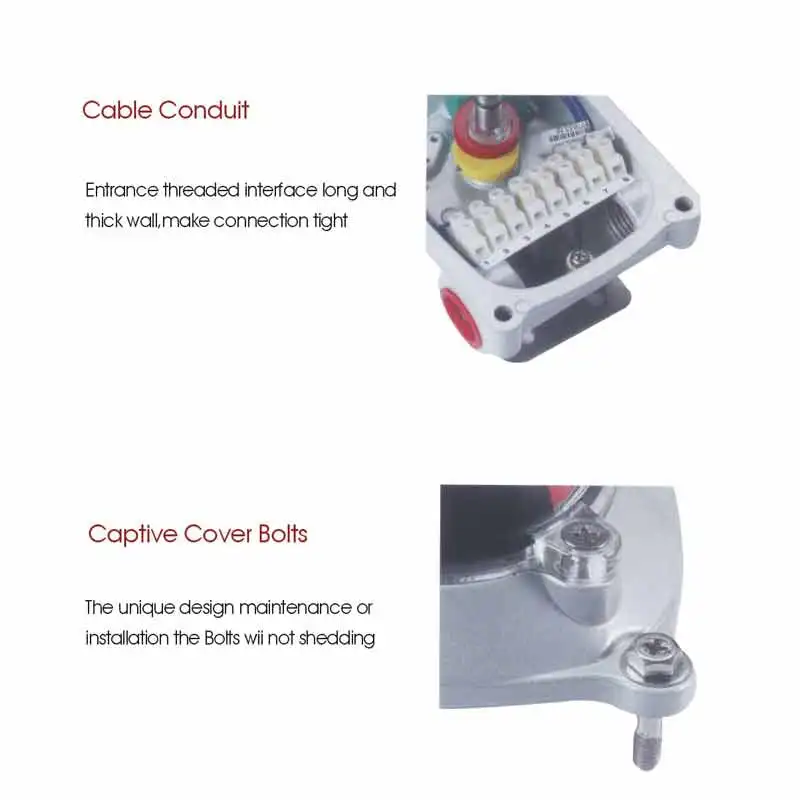

4.Dual cable entries

5.Captive cover bolts

No worry to loose bolts while cover open

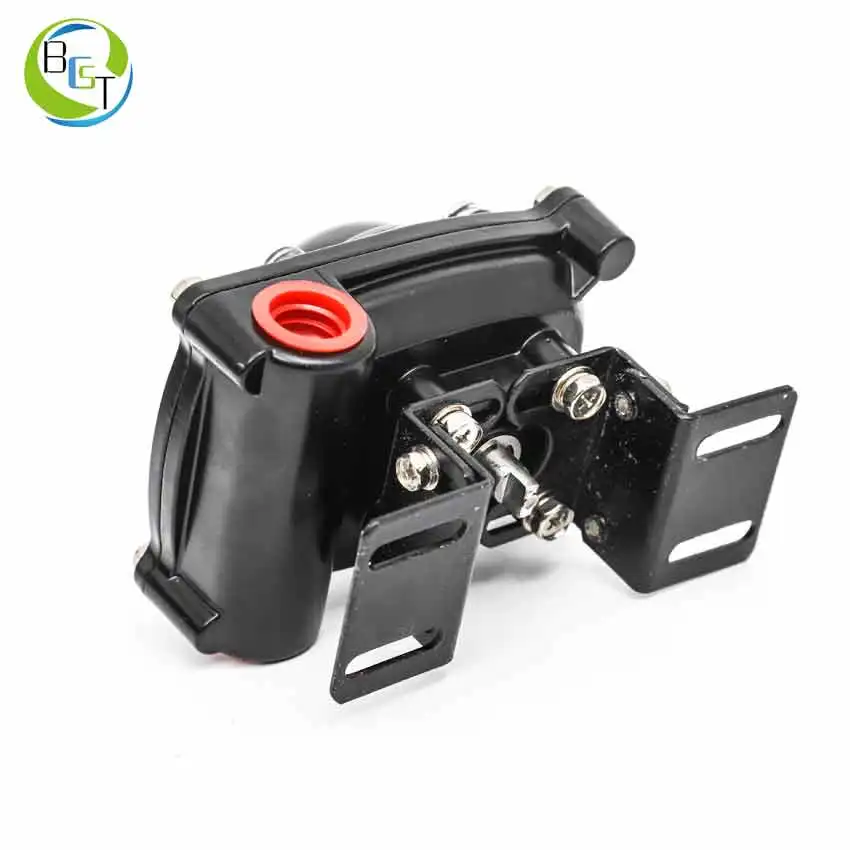

6.Easy mounting bracket

NAMUR standard stainless steel shaft and bracket





Technical Specification

Model Specification	APL-210N	APL-220S
Enclosure	Weatherproof IP67	Weatherproof IP67
Cable entries	Two NPT1/2’’	Two NPT 3/4’’ Max.4
Ambient temperature	-20℃~80℃	-20℃~80℃
Hazardous Area		ExdII BT6
Terminal strips	8 points(0.08~2.5mm2)	8 points(0.08~2.5mm2)
Position indicator	0~90*(90*turn free join)Close:red open,yellow	0~90*(90*turn free join)Close:red open,yellow
Switches	Mechanical switchx2	Mechanical switchx2
	Proximity sensorx2	Proximity sensorx2
Painting	Chromate polyester podwer coating(black)	Chromate polyester podwer coating(black)







Technical Parameter



Model Specification	APL-210N	APL-210S
Cable entries	Two PF1/2’’,PT1/2’’	Two PF3/4’’,PT3/4’’ Max.4
	M20,PG13.5	M20,M25
Terminal strips	16 points(0.08~2.5mm2)	20 points(0.08~2.5mm2)
Position indicator	Three position	Three position
Switches	Mechanical switchx4	Mechanical switchx4
	Proximity sensorx4	Proximity sensorx4
Potentiometer	1k ohm standard	1k ohm standard
	5k ohm.0-10ohm	5k ohm.0-10ohm
Painting	Black	Black

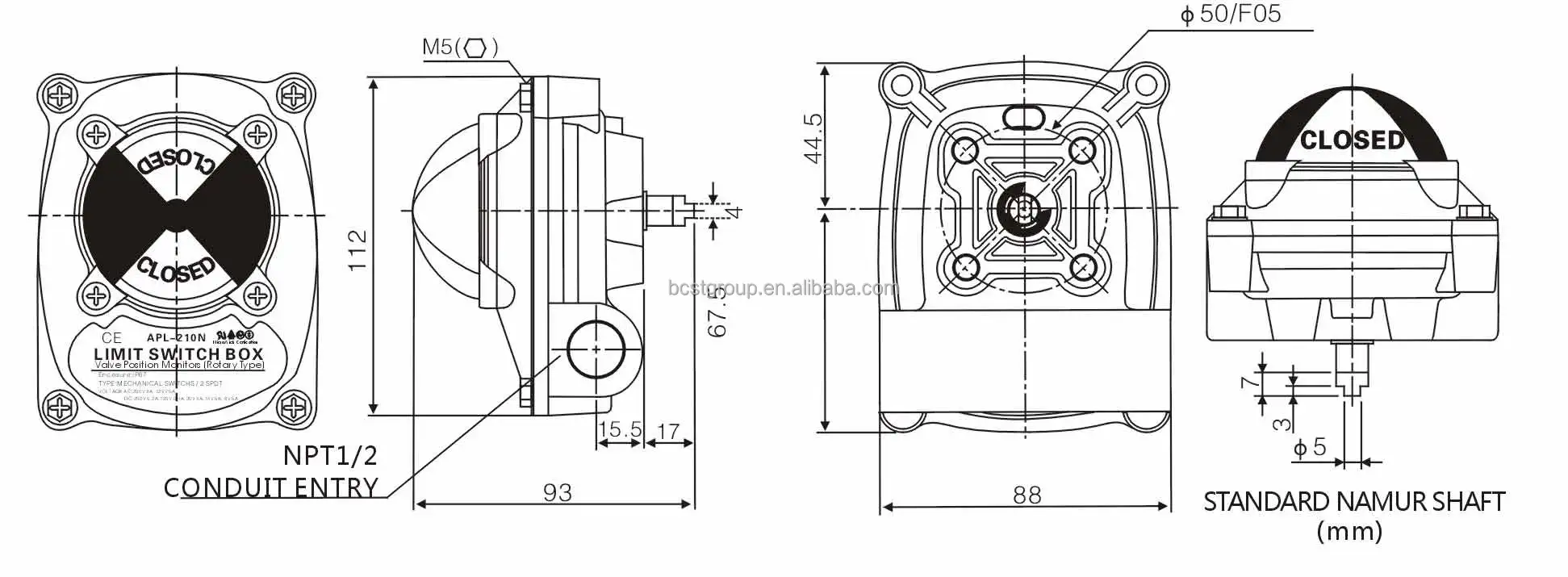

Design Features
