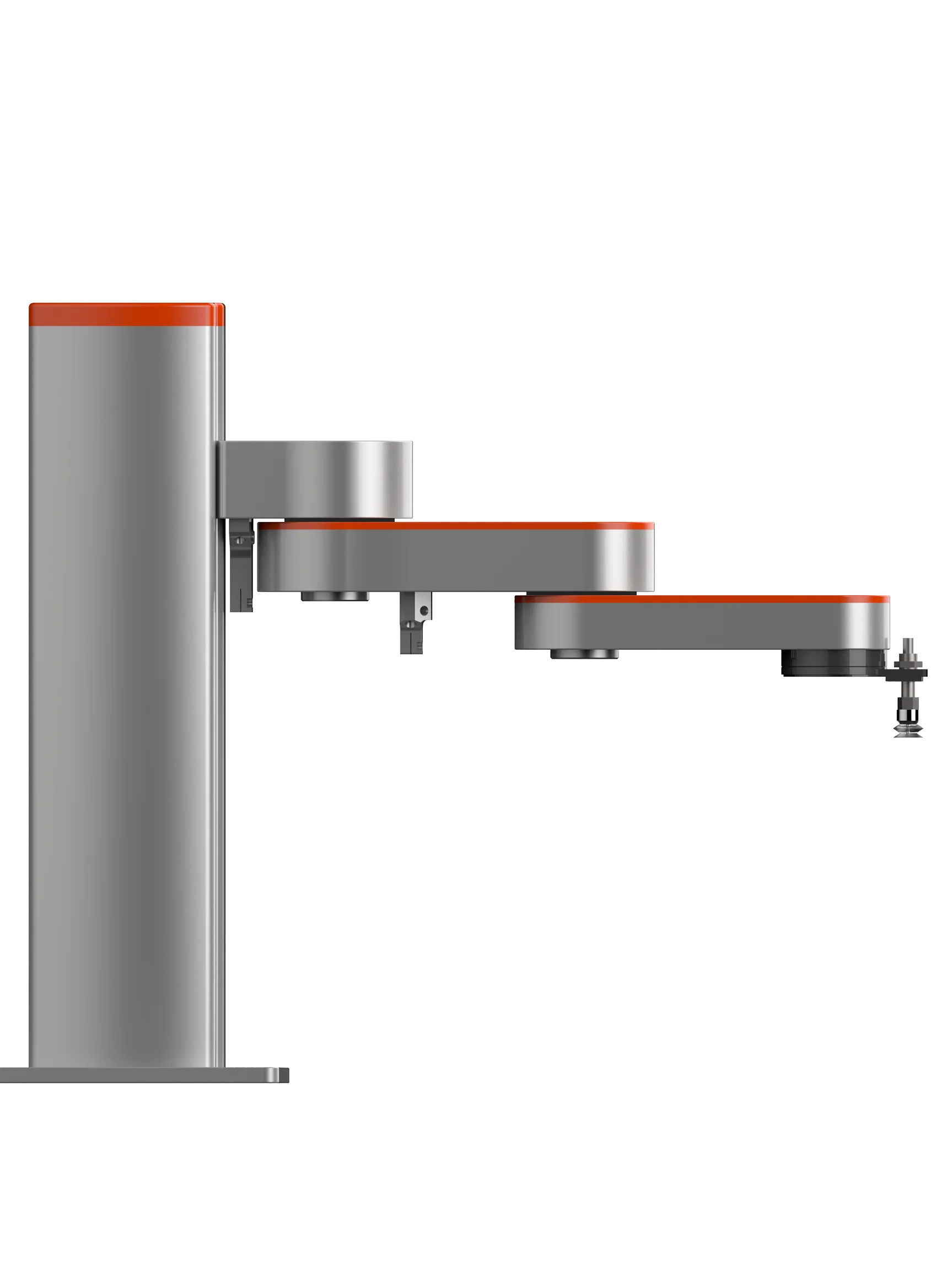

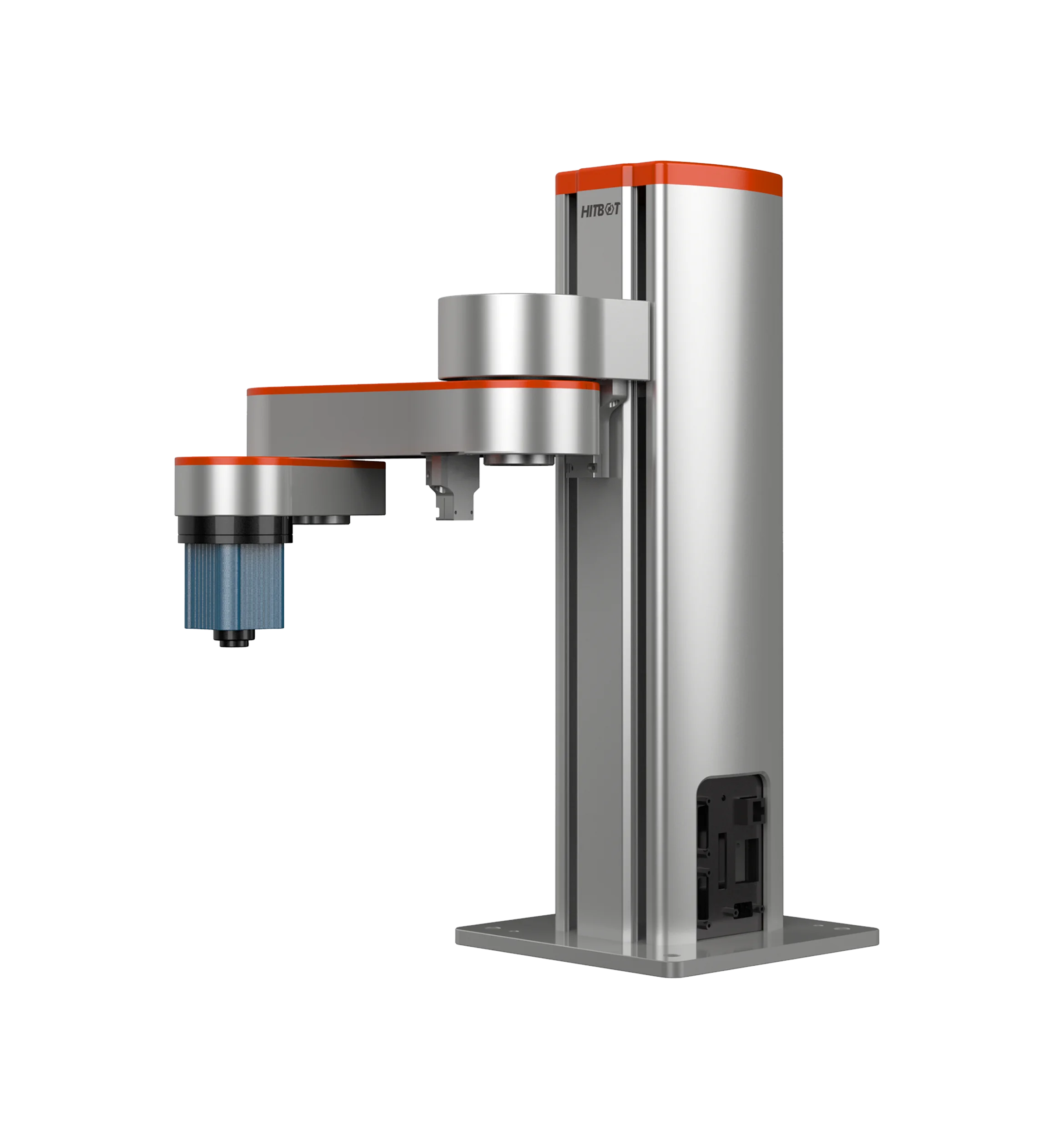

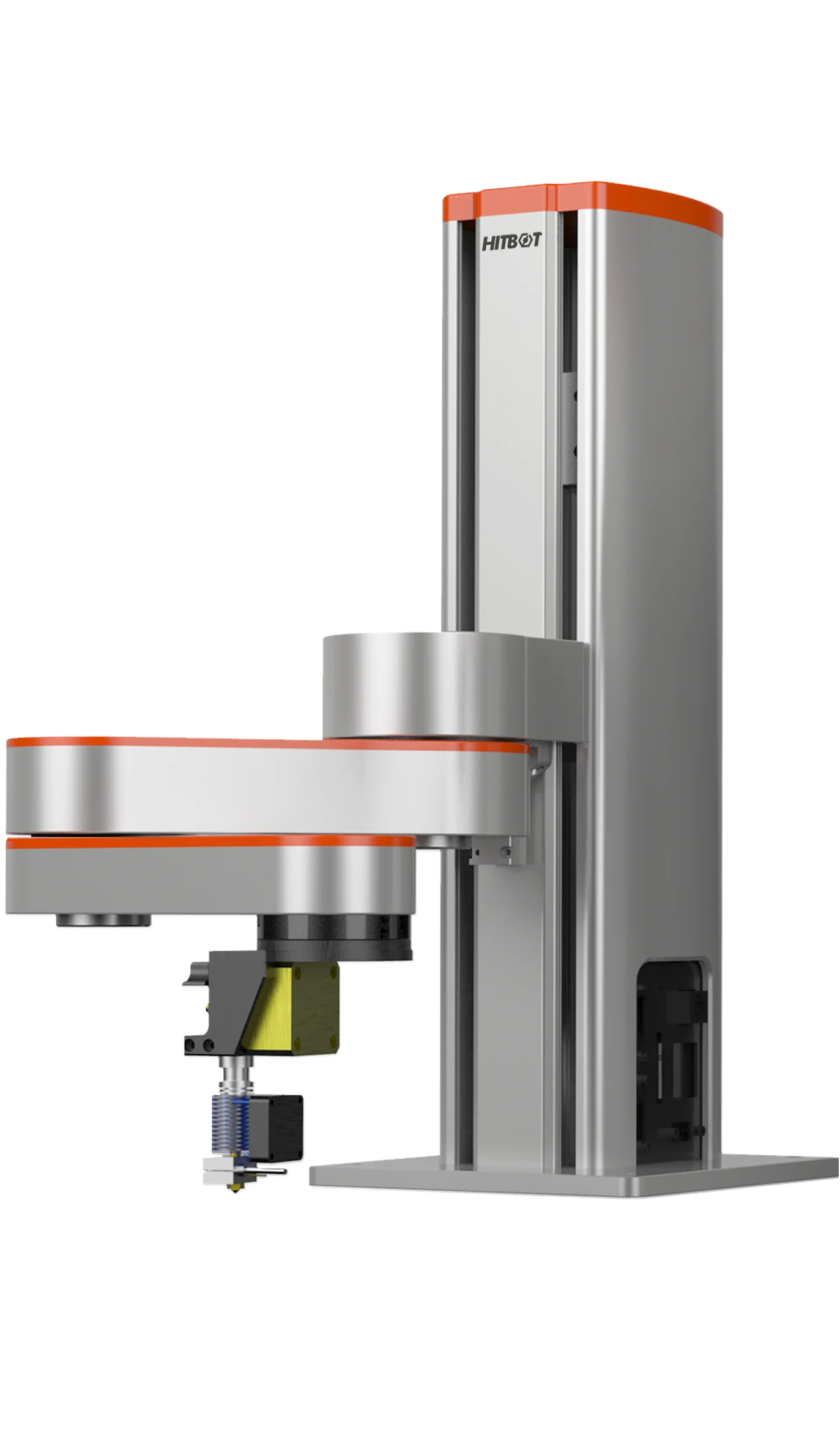

China Arm Robot HITBOT Z arm 1832 China Low Cost Industrial Arm Robot 4 Axis Robot for Assembly
- Category: >>>
- Supplier: Huiling-Tech Robotic Co. Ltd.
Share on (1600968437161):
Product Overview
Description
Product Description
Products Description
Item | Value | |

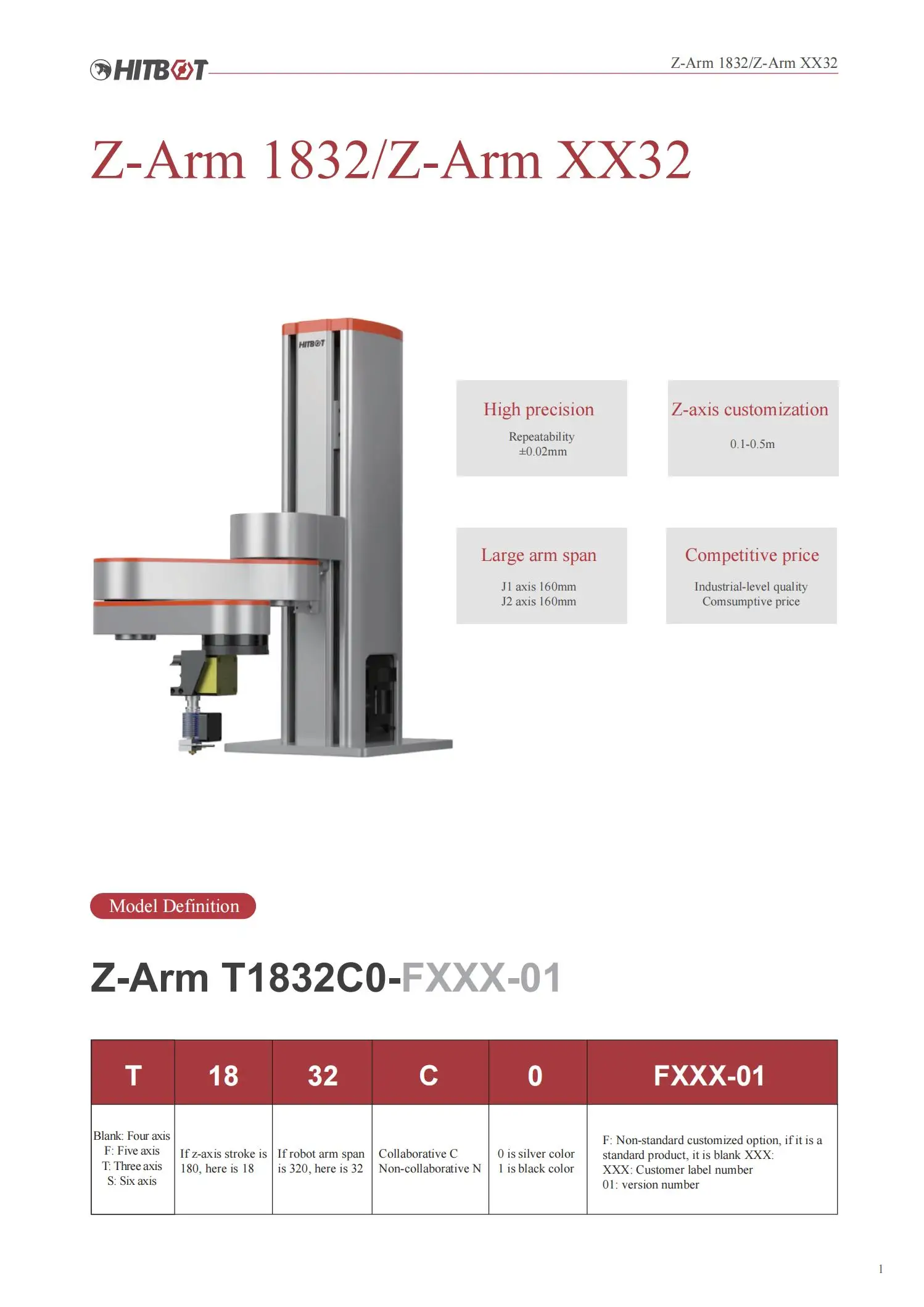

Item No. | Z-Arm 1832 | |
Z Axis Reach | 180mm | |
R Axis Reach | ±1080° | |
Number of axis | 4 | |
Height | 500mm | |
Weight | 11KG | |
Machine Base Size: Footprint | 200*200*10mm | |
Rated Payload | 0.5KG | |
Maximum Payload | 1KG | |
Linear Velocity | 1017mm/s | |
Repeatability | ±0.02mm | |
Voltage | 220V/110V 50-60Hz DC24V/Power 320W | |
Communication | Ethernet | |
Customizable Z-axis height | 0.1-0.5 meter | |
Supportable HITBOT Grippers | Z-EFG-8S / Z-EFG-12 / Z-EFG-20 / Z-EFG-20S | |
Working Environment | Temperature: 0-45℃, Humidity: RH20-80 (No Frost) | |
Applications
Company Profile
Established in 2015, HITBOT is 5-year experienced collaborative robot manufacturer, mainly specializing in designing and producing light-weight table-top collaborative robot and electric robot grippers.
With over 10 years of technology research and development, HITBOT has successfully lowered the threshold of automation transformation for small and medium-sized enterprises from the dimensions of cost and applicability. HITBOT has got over 50 patents and utilized them to optimized the machine performance and user experience, such as the easiest way of programming by graphic teaching, APP teaching, drag teaching.
HITBOT has a production facility of over 10,000 square meters, achieving an annual output of 20,000 pieces. Starting overseas business in 2018, HITBOT cobots and grippers have all been certificated with CE and FC, and sold to over 20 countries such as the US, CA, JP, SG, UK, DE, and etc.
In the future, HITBOT will continue dedicating efforts in cobot innovation to promote realizing the transformation of Industry4.0 for small and medium-sized enterprises.
