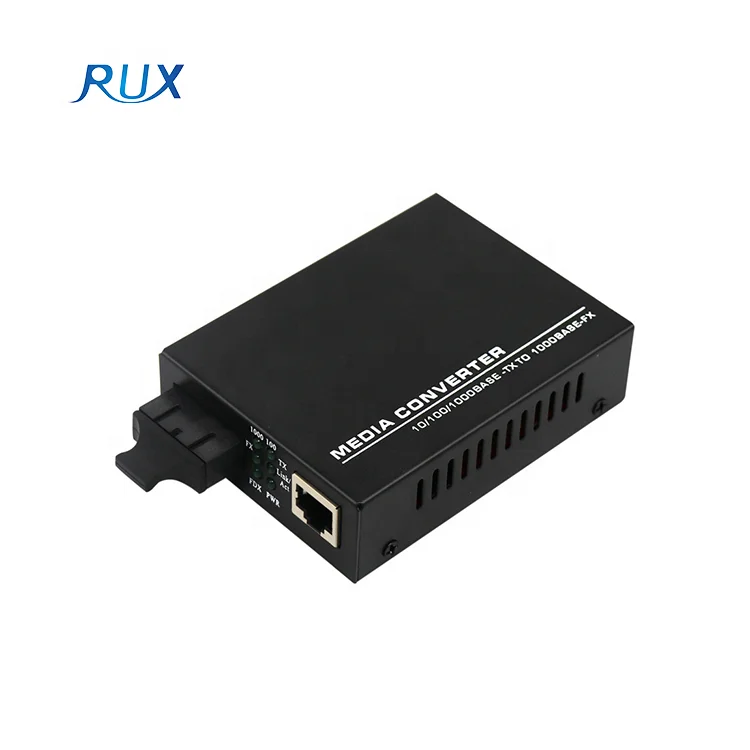

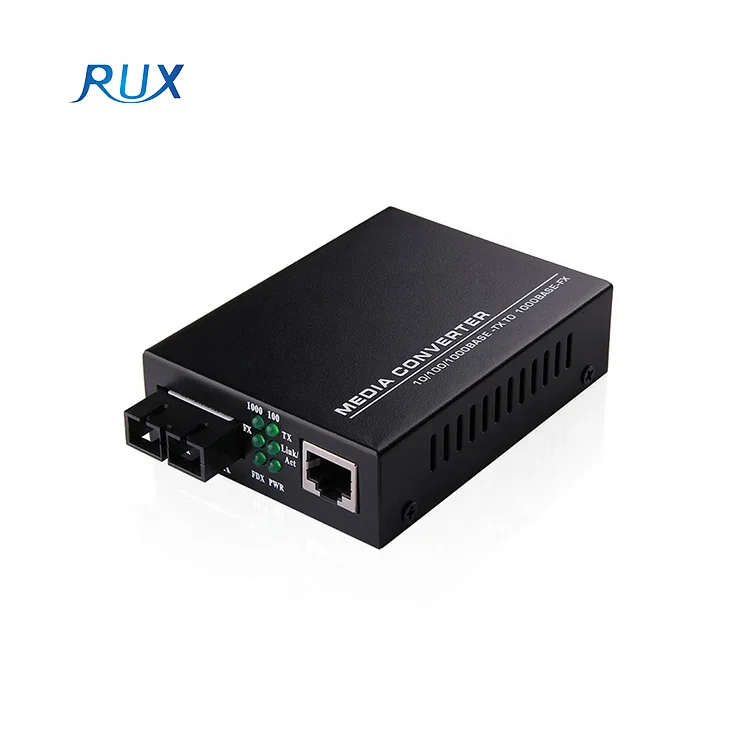

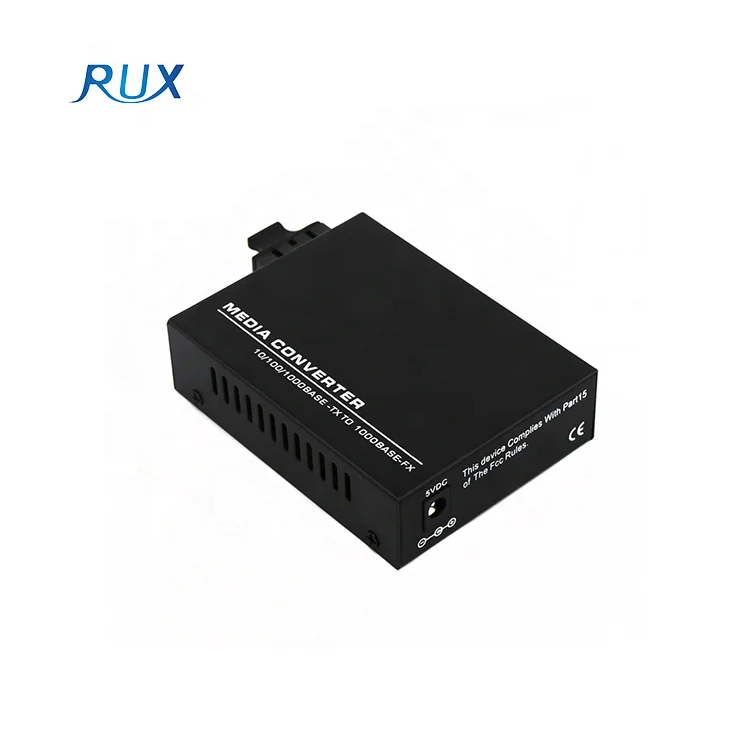

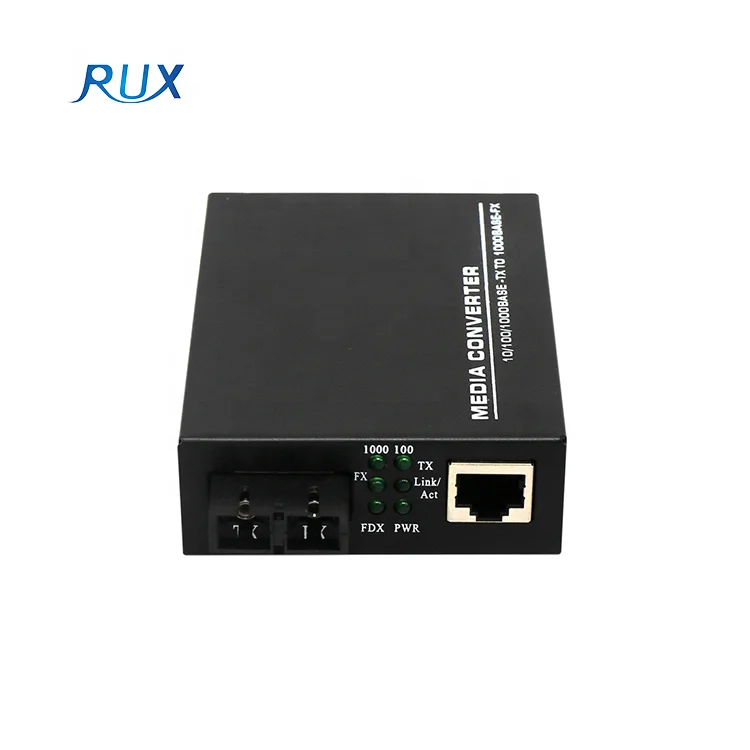

Gigabit 10/100/1000M Ethernet Duplex SC/UPC Fiber Port Optical Fiber Media Converter
- Category: >>>
- Supplier: Shenzhen Runxiang Telecommunication Technology Co. Ltd.
Share on (1600968443095):
Product Overview
Description
Gigabit 10/100/1000M Ethernet Duplex SC/UPC Fiber Port Optical Fiber Media Converter
Media converters can be used anywhere in the network to integrate newer technology with existing equipment to support new applications, technologies and future growth. Instead of costly, across-the-board upgrades, media converters can extend the productive life of the existing cabling as well as the active equipment.
Technical Data
ITEM | Technical Parameters |
Data Rate | 1000Mbit/s |
Wavelength | 1310nm/1550nm |
Transmission Rate | self-adaptive 10/100/1000M |
Connector | Duplex SC/UPC |
Fiber Type | Single-mode Fiber |
Distance | 2~120km |
Ethernet interface | RJ45 |
Power supply | AC220V, DC5V/1A |
Working temperature | 0~50°C |
Storage temperature | -40°C~70°C |
Products Features
* Built-in high-performance kernel, Broadcast storm control, Flow control, CRC error checking.
* 100Base-FX fiber-optic transmission standard, Can be interconnected with other products
* Support IEEE802.1D Function
* Completely compatible with IEEE802.3/802.3u auto-negotiation function
* The UTP port supports the connection of MDI/MDI-X auto crossover.
* Singlemode Fiber: the max distance up to 60km
* Supporting the max 1536 byte Ethernet packet
* The UTP port supports the connection of MDI/MDI-X auto crossover.
* Singlemode Fiber: the max distance up to 60km
* Supporting the max 1536 byte Ethernet packet
Application
* FTTH system, CATV Network

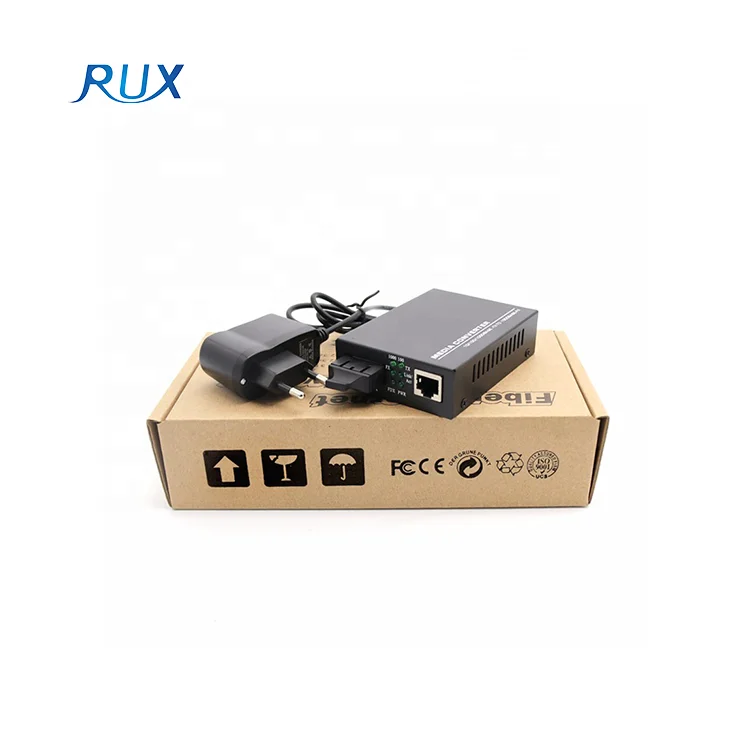

Details Images
We have first-class production line and strict quality management system.
We can give customers the most competitive price to meet your budget.
We have big production capacity to guarantee fast delivery and on-time shipment.
We have professional team to provide comprehensive one-stop service for you.
We can give customers the most competitive price to meet your budget.
We have big production capacity to guarantee fast delivery and on-time shipment.
We have professional team to provide comprehensive one-stop service for you.
Q1: Where is your factory located How can I visit there?
A1: Our factory is located in Shenzhen City, Guangdong Province, China. All our clients, from home or abroad, are warmly welcome to visit us.
Q2: How many years experience in producing?
A2: More than 15 years, and our engineers have more than 20 years product experience.
Q3: Can provide sample to us?
A3: Yes, sample below 30m can be provided freely, but you need pay freight cost.
Q4: How is quality for your fiber optic cable?
A4: Firstly, we use top quality raw material(best fiber and friendly sheath material etc),Then surveyor will do the test, such as raw material quality test, fiber optic attenuation test and high or low temperature test etc.
Q5: How to do if don't need your company brand name?
A5: We have own factory, OEM is available; If need other brand name, it is okay. please give us letter of authorization.
A1: Our factory is located in Shenzhen City, Guangdong Province, China. All our clients, from home or abroad, are warmly welcome to visit us.
Q2: How many years experience in producing?
A2: More than 15 years, and our engineers have more than 20 years product experience.
Q3: Can provide sample to us?
A3: Yes, sample below 30m can be provided freely, but you need pay freight cost.
Q4: How is quality for your fiber optic cable?
A4: Firstly, we use top quality raw material(best fiber and friendly sheath material etc),Then surveyor will do the test, such as raw material quality test, fiber optic attenuation test and high or low temperature test etc.
Q5: How to do if don't need your company brand name?
A5: We have own factory, OEM is available; If need other brand name, it is okay. please give us letter of authorization.
