M2M Openwrt Industrial Vpn gateway 4G Lte 5G Router Multi Sim Card Wireless Wifi Modem
- Category: >>>
- Supplier: Shenzhen Ex-Link Technology Co. Ltd.
Share on (1600968452580):
Product Overview
Description
M2M Openwrt Industrial Vpn gateway 4G Lte 5G Router Multi Sim Card Wireless Wifi Modem
Product Description
Specification | |
Product Name | 4G 5G industrial router |
aterial | iron shell and PCB |
Function | 4g 5g signal access and transmision |
CPU | MTK7621A |
MEMORY | FLASH 16MByte, DDR3 64MByte |
Hardware interface | 1*WAN/4* LAN gigabit Ethernet port. 1*RS232( Pins ) /1*RS485 or 2*RS485 port, 1*USB2.0 port. |
Watchdog | Built-in watchdog feature. |
Temperature | Operating Temperature. -20 ºC ~+70ºC, Storage Temperature. -30 ºC ~+75ºC |
Dimension | 155mm * 105mm * 25mm |
Software | specification |
WLAN | IEEE 802.11b/g/n/ac. Supports 20MHz, 40MHz,80MHz in 5GHz band, and 20MHz,40MHz bandwidth in 2.4GHz band. Max bandwidth 300Mbps in 2.4GHz band. Max bandwidth 867Mbps in 5GHz band. |
Wireless mode | Access Point (AP), Client |
WIFI Speed | 300 Mbps @2.4GHz, 867Mbps @5GHz. |
Wireless security | Supports WPA, WPA2,WPAI, WEP, TKIP encryption. |
WIFI Frequency | 2.4 GHz/5GHz |
Antenna | 2*2 MIMO,2 * SMA male antenna connectors with 50 Ω impedance. 4G version :2 *4G antenna and 2* WIFI external antenna 5G version 4* 5G antenna & 2* WIFI external antenna |
WIFI user | Supports more than 60 users to share WIFI internent access. |
Protocol | Supports PPTP,L2TP,IPSEC VPN,TCP,UDP,DHCP,HTTP,DDNS,TR-069,HTTPS,SSH,SNMP etc protocol. |
Bridge | Supports 4G/5G bridge mode feature. |
APN | Supports multiple APN access network. |
5G NR Bands:
SA & NSA:
n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48 / n66/n71/n77/n78/n79
Compatible below bands:
FDD :B1/B2/B3/B4/B5/B7/B8/B12(B17)/B13/B14/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
TDD: B34/B38/B39/B40/B41/B42/B43/B48
LAA :B46
SA & NSA:
n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48 / n66/n71/n77/n78/n79
Compatible below bands:
FDD :B1/B2/B3/B4/B5/B7/B8/B12(B17)/B13/B14/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
TDD: B34/B38/B39/B40/B41/B42/B43/B48
LAA :B46
Product Usage

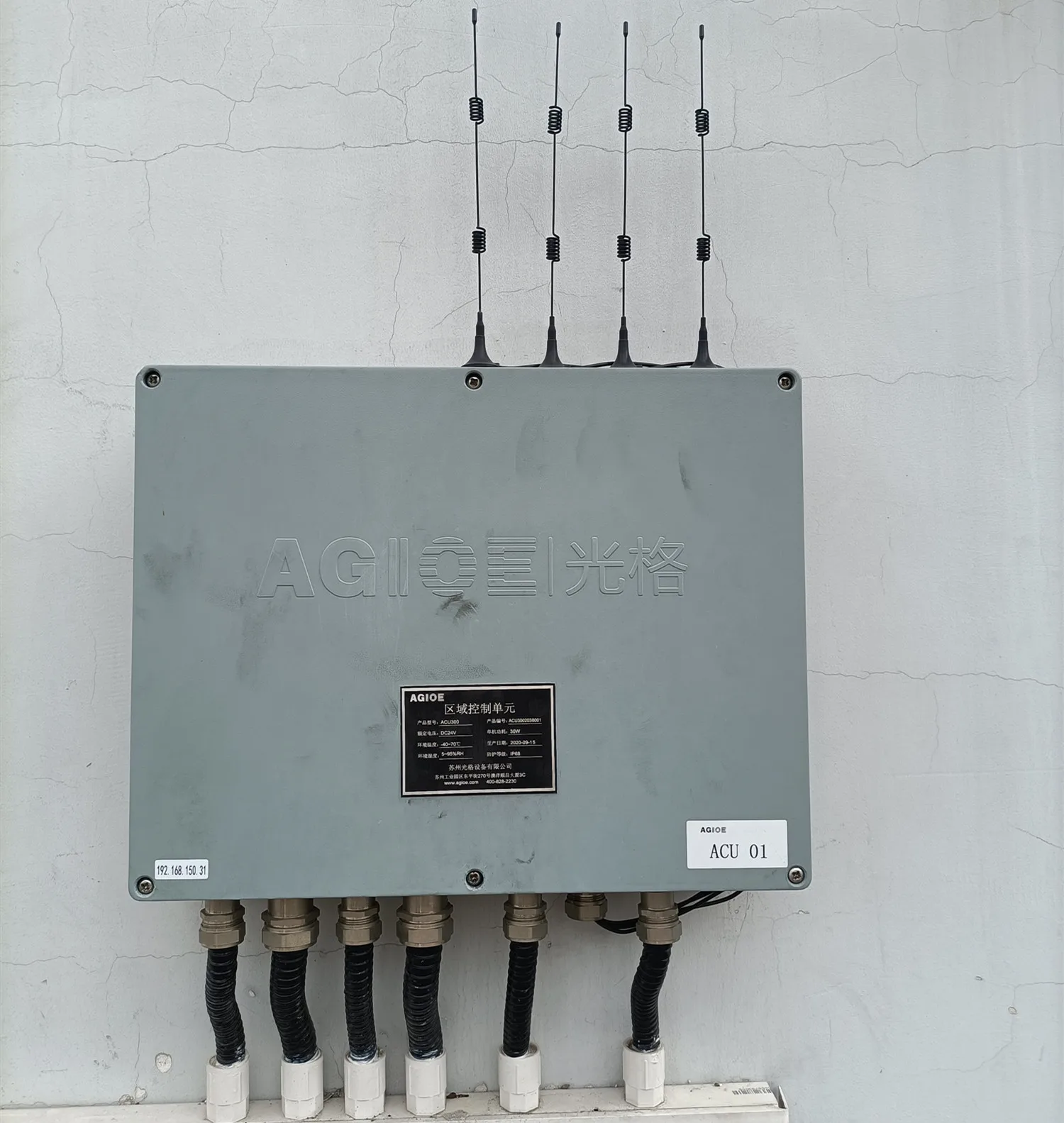

4G router use on ATM
use on charging station
use on indutry
Related Products
4G industrial gateway with GPIOs
4G ODU
5G CPE with WIFI 6E
Company Introduction
Shenzhen Ex_link Technology Co., Ltd. was established in 2011. It is a team of senior experts who have been engaged in the wireless communication industry for many years. They have many years of implementation experience in broadband, IOT, and in-vehicle product development and application. The company focuses on R&D and sales of 3G/4G/5G/WIFI industrial routers, 4G LTE/5G CPE, 4G/5G edge gateway, 4G DTU, LORA/433M/BT/WIFI collector, 4G/CAT 1 tracker, 4G vehicle T-BOX, driving recorder and other terminals.
FAQ
1. Are you trading company or factory ?
We are factory with our own hardware and software engineer , due to direct sell, we provide our customer cheaper factory price . and quick engineer service after sell .
2. Do you provide customer's Logo and package design?
Yes, we can provide customized logo and design .
3.Do you accept PCBA orders only?
Of course, we can provide PCBA in a short time with good quality.
4.Do you provide firmware support?
Sure , unlike other companies which are buying solutions from design company, we have our own firmware development team to support
you in 100%.
5.How does your factory do regarding quality control?
We promise to use all new material to produce. Production is strictly monitored, and 100% QC inspection is done before shipment.
Yes, we can provide customized logo and design .
3.Do you accept PCBA orders only?
Of course, we can provide PCBA in a short time with good quality.
4.Do you provide firmware support?
Sure , unlike other companies which are buying solutions from design company, we have our own firmware development team to support
you in 100%.
5.How does your factory do regarding quality control?
We promise to use all new material to produce. Production is strictly monitored, and 100% QC inspection is done before shipment.
