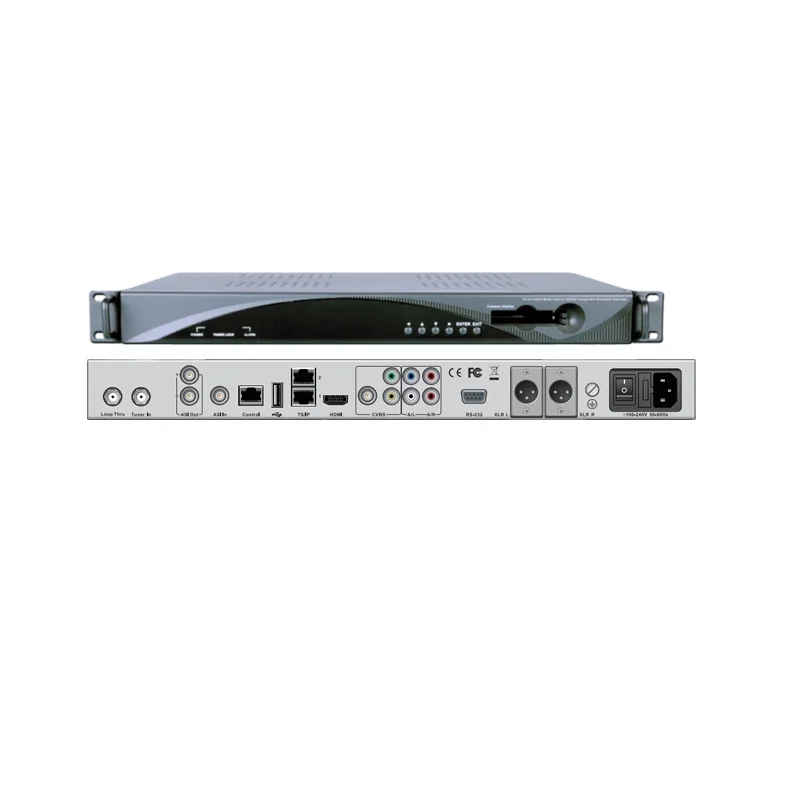

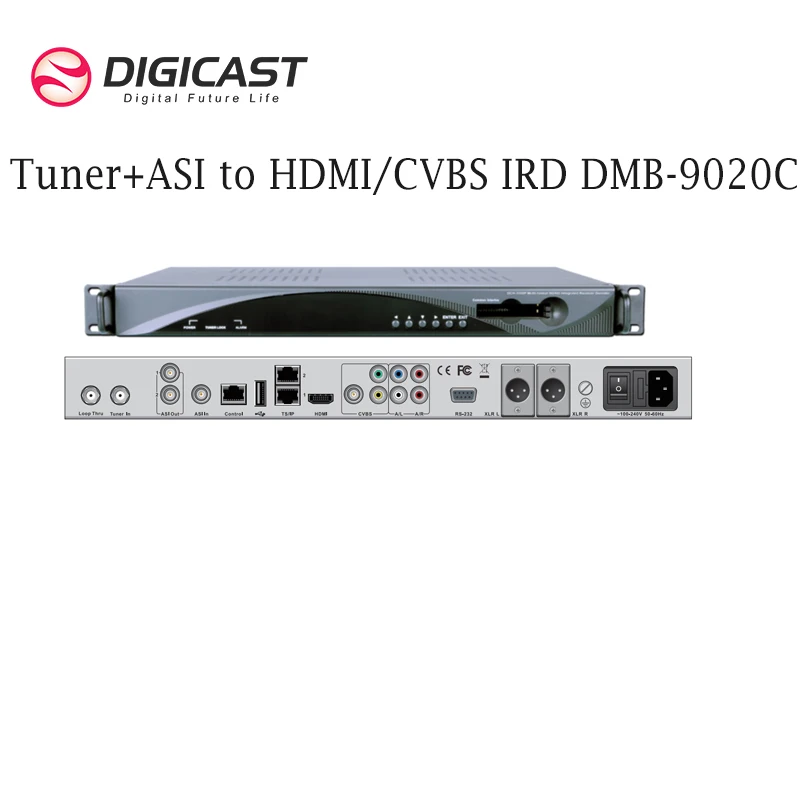

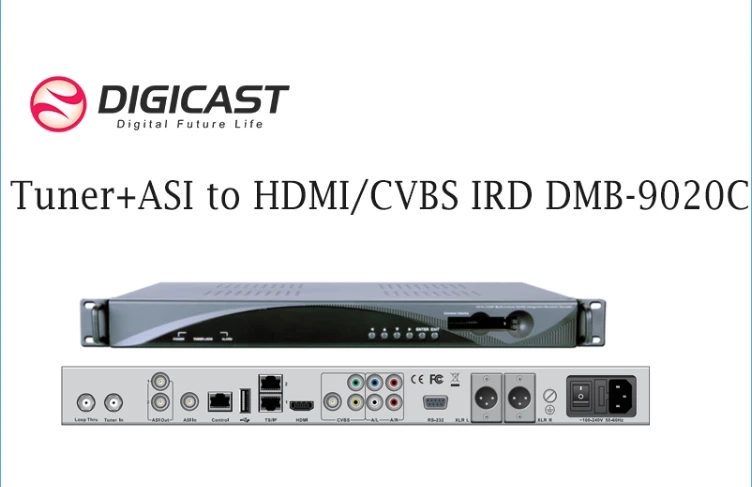

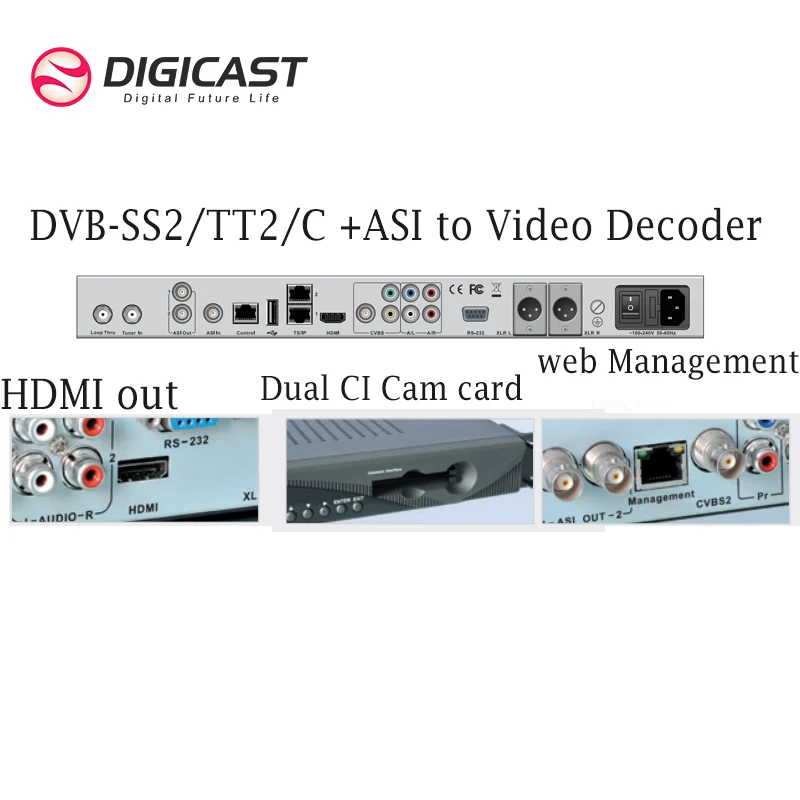

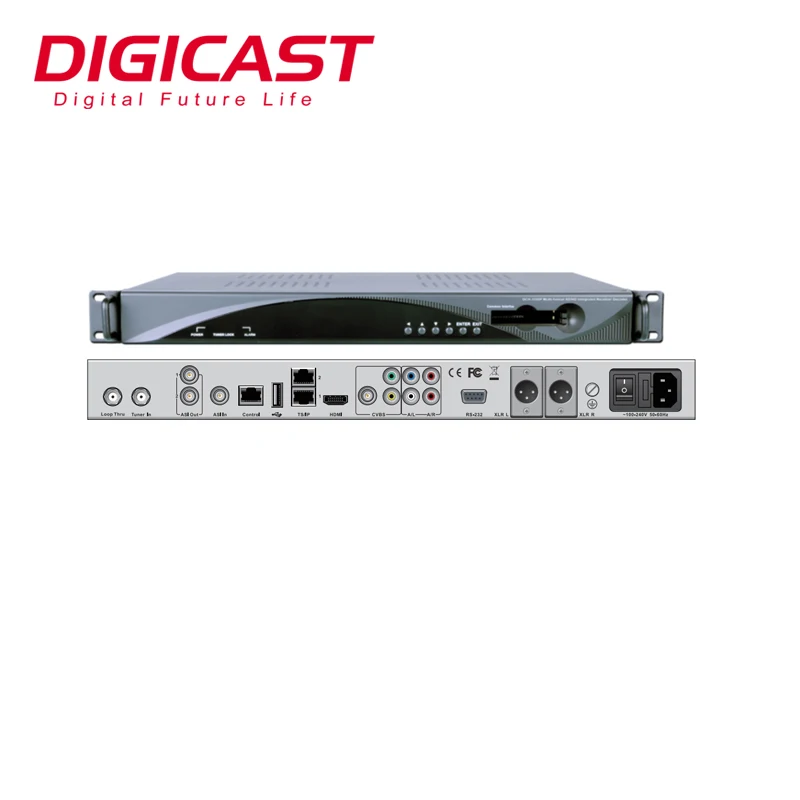

DMB-9020C Professional Receiver

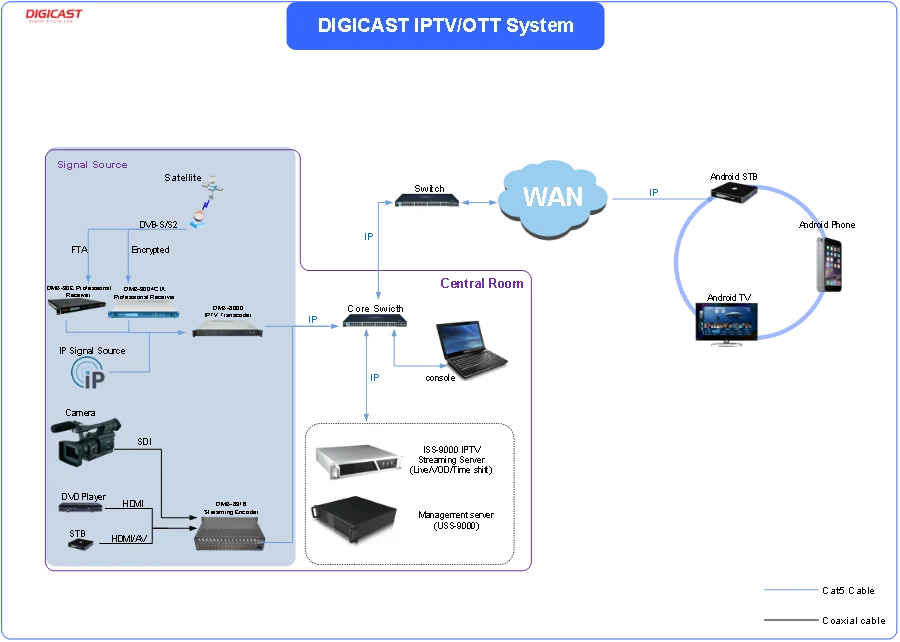

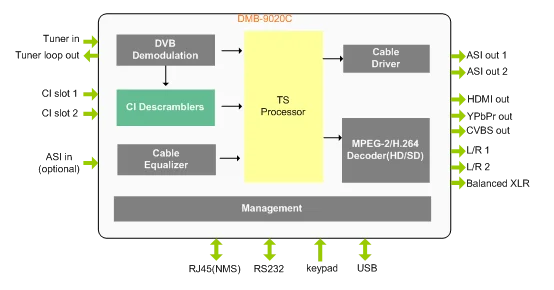

The DMB-9020C HD Professional IRD integrates broadcast level Receiver, Demodulator, Descrambler and Decoder. The Rich variety of INPUTS models options enables it to meet the diversified broadcast applications and distribution applications, supporting the sources from satellite (DVB-S/S2), terrestrial (DVB-T), Cable network (DVB-C) or ASI for options. Moreover, the DMB-9020C adopts the state-of-the-art decompression technology, capable of decoding Multiple Format Transport Stream(TS) with ultra-low latency which involves HD and SD,MPEG-4 AVC/H.264 and MPEG-2, decoding and output the Composite video,Component(YPbPr),HDMI signal and two Audio signals(2 Audio PID) which can be selected by NMS based on the actual needs. Meanwhile, the security of content is all important, the HD Professional IRD supports all major Condition Access Systems including BISS 1,BISS E ,Irtedo, Viaccess and Conax etc. with 2 DVB-CI slots(Common Interface). All of above features simplify the digital TV headend system and distribution system,enhancing the stability of broadcast system, saving the cost and space for broadcasters, digital TV operators, video service providers.
Features
* ASI Input or Tuner(DVB-S2/S,DVB-C and DVB-T optional) Input for options
* The module of DVB-S2 receiver reduces the satellite bandwidth expense.
* Multi-services descrambling: BISS mode 1 and E, 2xDVB-CI slots(for CAM)
* Multi-Format decoding with automatic format detection includes MPEG-2 and H.264, SD and HD.
* Rich Analog and Digital Outputs including CVBS, YPbPr, HDMI, XLR,L/R
* Output 2 Audio PID via two digital audio channels decoding of MPEG1 Layer II and AAC
* Output Audio mode: Left, Right, Dual mono, Stereo.
* Providing 2 independence ASI outputs
* Remote Control and management by SNMP, HTTP WEB and Proprietary HDMS software
* Dynamic PMT auto detection and updating
* Support Closed Caption, VBI TELETEXT, EBU/ DVB Subtitle
* Capable of power-off memory
* The module of DVB-S2 receiver reduces the satellite bandwidth expense.
* Multi-services descrambling: BISS mode 1 and E, 2xDVB-CI slots(for CAM)
* Multi-Format decoding with automatic format detection includes MPEG-2 and H.264, SD and HD.
* Rich Analog and Digital Outputs including CVBS, YPbPr, HDMI, XLR,L/R
* Output 2 Audio PID via two digital audio channels decoding of MPEG1 Layer II and AAC
* Output Audio mode: Left, Right, Dual mono, Stereo.
* Providing 2 independence ASI outputs
* Remote Control and management by SNMP, HTTP WEB and Proprietary HDMS software
* Dynamic PMT auto detection and updating
* Support Closed Caption, VBI TELETEXT, EBU/ DVB Subtitle
* Capable of power-off memory
* LCD/Keyboard and web-based B/S management
* Updates via web
* Updates via web
Specification
RF Input for option
DVB-T/T2 Tuner Input
Connector Type: 1×F type female 75Ω for Input
1×Ftype female 75Ω for loop through output
Input FrequencyRange: 104~862MHz (VHF/UHF)
Input Level: -20~-70dBm (Quasi Error Free, QEF)
Constellation: QPSK, 16-QAM, 64-QAM
Bandwidth 6MHz, 7MHz, 8MHz
FFT Mode: 2K, 8K
Guard Interval: 1/4, 1/8, 1/16, 1/32
FEC Code Rate: 1/2, 2/3, 3/4, 5/6, 7/8
Input Return Loss: 7dB (typ.)
DVB-S/S2 Tuner Input
Connector Type: 1×F type female 75Ω for Input
1×Ftype female 75Ω for loop through output
Input Frequency Range: 950~2150MHz
Input Level -25~-65dBm
Symbol Rate: 5~45MBaud/s for QPSK
10~31MBaud/s for 8PSK
Roll Off Factor: DVB-S QPSK: 0.35
DVB-S2 8PSK: 0.35, 0.25, 0.2
FEC Code Rate:DVB-S QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6,8/9, 8/10
DVB-S2 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9,9/10
LNB Polarity Selection Voltage: 0, 13V, 18V (optional)
LNB Band Selection Tone: 0/22KHz selectable
Satellite Selection Command: DiSEqC 1.0
Transport Stream Output
Video
Decoding format: MPEG-2/MPEG 4/H.264 AVC/H.265(HEVC)/AVS+
Audio
Decoding format: MPEG-1 LayerI/II, MPEG-2 layer II, MPEG-2 AAC, MPEG-4 AAC LC, 2-CHANNEL/5.1 CHANNEL AC3/DRA/EAC3
HDMI: 1 *HDMI
Resolution & frame rate:1080P60/1080P50/1080I60/1080I5/720P60/720P50/576P /576I/480P /480I
DVB-C Tuner Input
Connector Type: 1×F type female 75Ω for Input
1×Ftype female 75Ω for loop through output
Input FrequencyRange: 48~860MHz
Input Level: 45~75dBμV
Symbol Rate: 1~7MBaud (ITU J.83 Annex A)
Constellation: 16/32/64/128/256QAM
Bandwidth: 6MHz, 7MHz, 8MHz
Input Return Loss: 7dB (typ.)
Connector Type: 1×F type female 75Ω for Input
1×Ftype female 75Ω for loop through output
Input FrequencyRange: 48~860MHz
Input Level: 45~75dBμV
Symbol Rate: 1~7MBaud (ITU J.83 Annex A)
Constellation: 16/32/64/128/256QAM
Bandwidth: 6MHz, 7MHz, 8MHz
Input Return Loss: 7dB (typ.)
DVB-T/T2 Tuner Input
Connector Type: 1×F type female 75Ω for Input
1×Ftype female 75Ω for loop through output
Input FrequencyRange: 104~862MHz (VHF/UHF)
Input Level: -20~-70dBm (Quasi Error Free, QEF)
Constellation: QPSK, 16-QAM, 64-QAM
Bandwidth 6MHz, 7MHz, 8MHz
FFT Mode: 2K, 8K
Guard Interval: 1/4, 1/8, 1/16, 1/32
FEC Code Rate: 1/2, 2/3, 3/4, 5/6, 7/8
Input Return Loss: 7dB (typ.)
DVB-S/S2 Tuner Input
Connector Type: 1×F type female 75Ω for Input
1×Ftype female 75Ω for loop through output
Input Frequency Range: 950~2150MHz
Input Level -25~-65dBm
Symbol Rate: 5~45MBaud/s for QPSK
10~31MBaud/s for 8PSK
Roll Off Factor: DVB-S QPSK: 0.35
DVB-S2 8PSK: 0.35, 0.25, 0.2
FEC Code Rate:DVB-S QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6,8/9, 8/10
DVB-S2 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9,9/10
LNB Polarity Selection Voltage: 0, 13V, 18V (optional)
LNB Band Selection Tone: 0/22KHz selectable
Satellite Selection Command: DiSEqC 1.0
Transport Stream Output
Video
Decoding format: MPEG-2/MPEG 4/H.264 AVC/H.265(HEVC)/AVS+
Audio
Decoding format: MPEG-1 LayerI/II, MPEG-2 layer II, MPEG-2 AAC, MPEG-4 AAC LC, 2-CHANNEL/5.1 CHANNEL AC3/DRA/EAC3
HDMI: 1 *HDMI
Resolution & frame rate:1080P60/1080P50/1080I60/1080I5/720P60/720P50/576P /576I/480P /480I
SDI: HD/SD-SDI, 2*BNC, 75Ω
* SD-SDI output:SMPTE 259M, 270Mb/s(10bit)
* HD-SDI resolution: SMPTE 292M, 1.485 Gbit/s(20bit)
Analog video output
Connector: 1*YPbPr, RCA interface, 75Ω
1*CVBS, BNC/RCA interface, 75Ω
Video Standard: NTSC, PAL, and SECAM
YPbPr Resolution: 1080i×30, 1080i×29.97, 1080i×25,
720p×60, 720p×59.94,
720p×50, 480p×60, 576p×50,
576i×25, 480i×29.97
Signal Level: I.0 Vp-p±5%
Frequency Response <±I dB, at 5.5 MHz for PAL/SECAM,
4.2MHz for NTSC and 15MHz for HDYPbPr
Chroma-Luma Delay <±30 ns
Field Time Distortion <2%
Line Time Distortion <1%
Short Time Distortion <2%
Differential Gain <3%
Differential Phase <2°
Signal to Noise Ratio >55 dB (luminance weighted)
Input interface:
ASI
* Input: 1*BNC input, 75Ω; 2*BNC output, 75Ω
* Input/output bitrate: ≤200Mb/s
* TS over IP:
* Interface: 1*RJ-45, 100/1000 Base-T
* IP Protocol:UDP/RTP, Unicast, Multicast
Descrambling
* CAM/CI Qty: 2
* BISS Mode: Mode 1, Mode E
System
Local and remote management
* Interface:1*RJ-45, 10/100 Base-T
* Remote management: HTTP Web
* Local management: Front pannel button and LED
* SD-SDI output:SMPTE 259M, 270Mb/s(10bit)
* HD-SDI resolution: SMPTE 292M, 1.485 Gbit/s(20bit)
Analog video output
Connector: 1*YPbPr, RCA interface, 75Ω
1*CVBS, BNC/RCA interface, 75Ω
Video Standard: NTSC, PAL, and SECAM
YPbPr Resolution: 1080i×30, 1080i×29.97, 1080i×25,
720p×60, 720p×59.94,
720p×50, 480p×60, 576p×50,
576i×25, 480i×29.97
Signal Level: I.0 Vp-p±5%
Frequency Response <±I dB, at 5.5 MHz for PAL/SECAM,
4.2MHz for NTSC and 15MHz for HDYPbPr
Chroma-Luma Delay <±30 ns
Field Time Distortion <2%
Line Time Distortion <1%
Short Time Distortion <2%
Differential Gain <3%
Differential Phase <2°
Signal to Noise Ratio >55 dB (luminance weighted)
Input interface:
ASI
* Input: 1*BNC input, 75Ω; 2*BNC output, 75Ω
* Input/output bitrate: ≤200Mb/s
* TS over IP:
* Interface: 1*RJ-45, 100/1000 Base-T
* IP Protocol:UDP/RTP, Unicast, Multicast
Descrambling
* CAM/CI Qty: 2
* BISS Mode: Mode 1, Mode E
System
Local and remote management
* Interface:1*RJ-45, 10/100 Base-T
* Remote management: HTTP Web
* Local management: Front pannel button and LED
