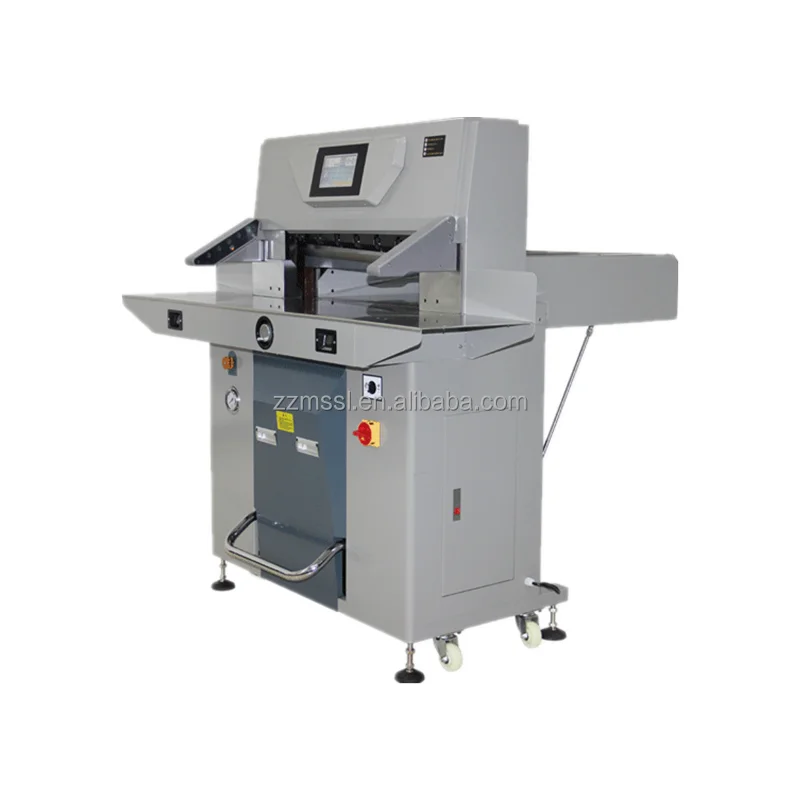

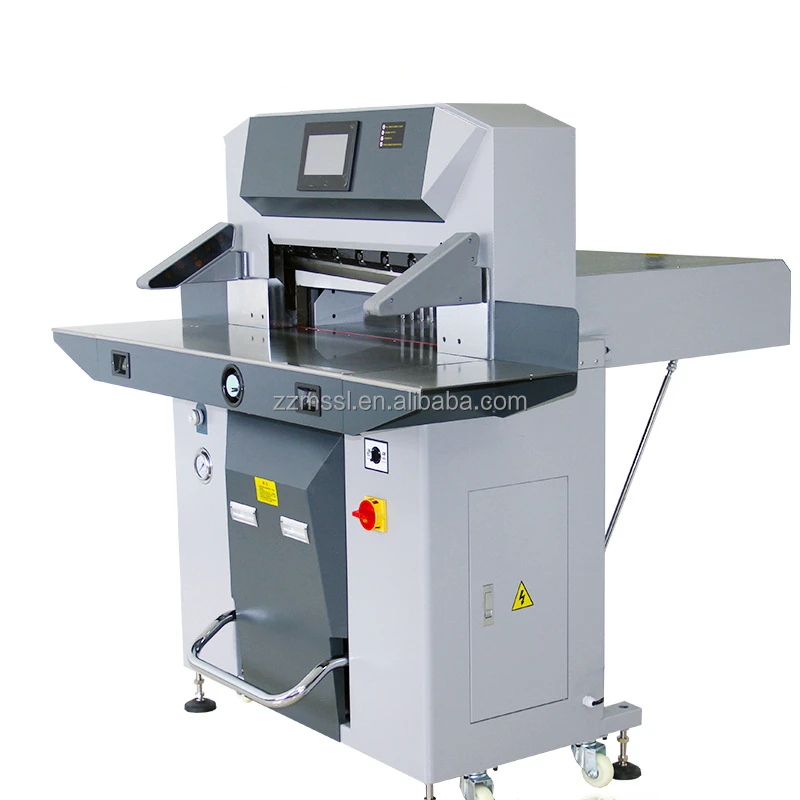

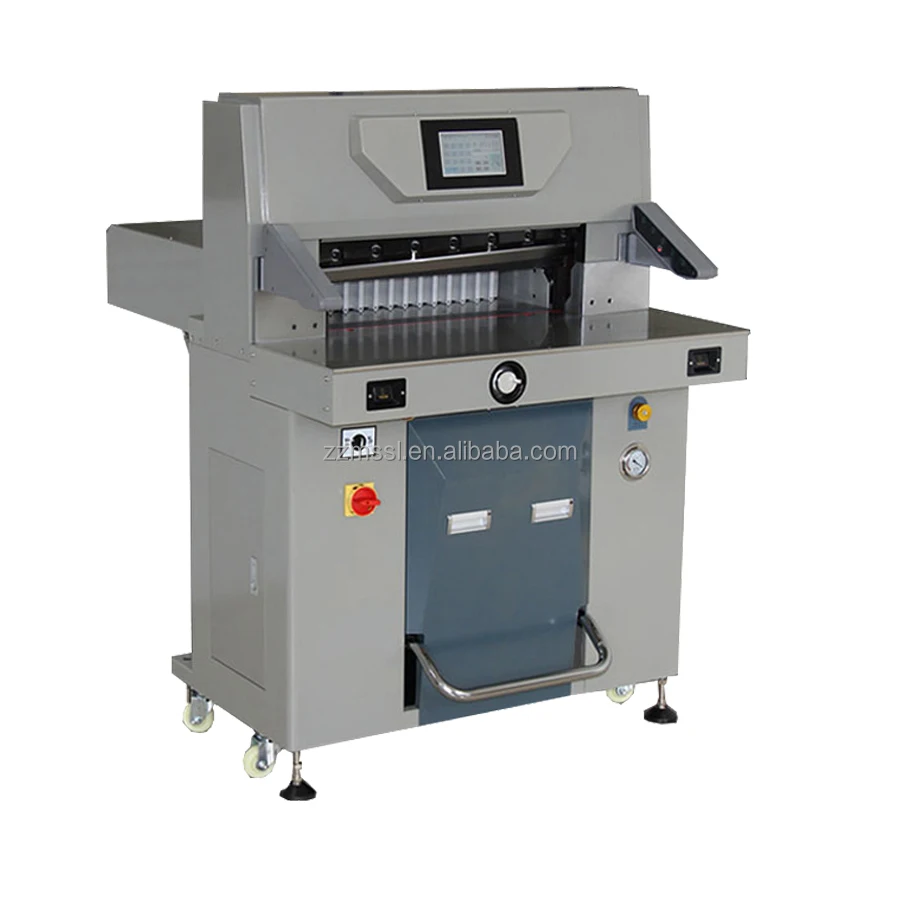

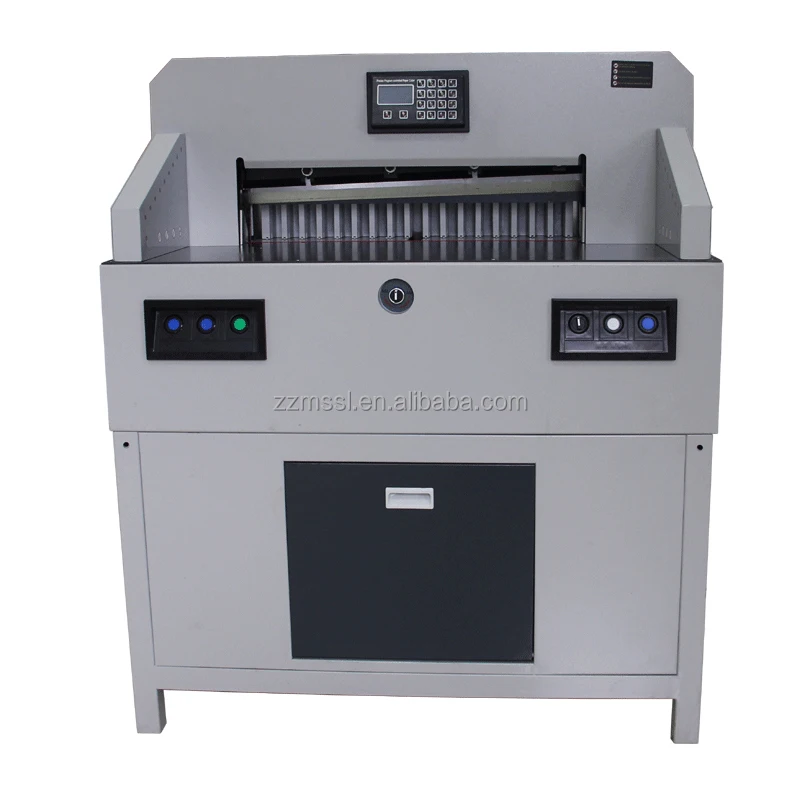

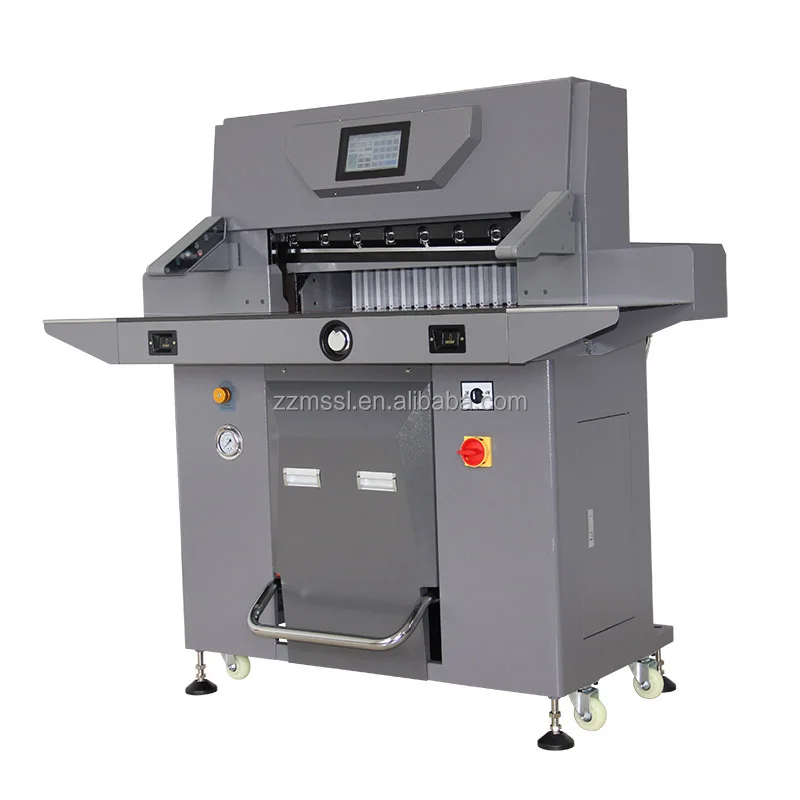

Leading Lower Price Bulk Paper Cutter Manual Guillotine Automatic Paper Die Cutting Machine Paper Trimmer Cutting Machine
Description:
(1) A4 Paper Cutter Office Paper Cutting Machines With Good Quality is specialized in cut the printing paper of various kinds, paper products, plastic, thin film, leather, slice of non-ferrous metal, etc. (2) It adopts 7’’ ATM Brand color liquid crystal touch screen from Taiwan and OMRON button.It is equipped with imported whole set computer controlling system. The computer can do self-diagnose while there is malfunction,and do self protection while wrong operation.
(3) It adopts the Panasonic brand frequency,stable and reliable.
(4)The program storage capacity is 100 programs.Every program can store 200 items cutting size.Data resolution ratio is less 0.01mm,the locating error is less 0.05mm,Max.back speed is 12m/min.
(5) With English and Chinese two language,metric system and English system two units.
(6) Clamp press paper stack through hydraulic system,the spring re-position.
(7) Worm gear drive mechanism,hydraulic clutch,mechanical brake.
(8) Hydraulic system adopts Germany advanced technology,the hydraulic units are ISO approved.
(3) It adopts the Panasonic brand frequency,stable and reliable.
(4)The program storage capacity is 100 programs.Every program can store 200 items cutting size.Data resolution ratio is less 0.01mm,the locating error is less 0.05mm,Max.back speed is 12m/min.
(5) With English and Chinese two language,metric system and English system two units.
(6) Clamp press paper stack through hydraulic system,the spring re-position.
(7) Worm gear drive mechanism,hydraulic clutch,mechanical brake.
(8) Hydraulic system adopts Germany advanced technology,the hydraulic units are ISO approved.
Specification
Model | MT-7208HD | MT-4808HD | MT-7210PX |
Max cutting width | 720mm | 480mm | 720mm |
Min cutting width | 30mm | 30mm | 30mm |
Max cutting thickness | 80mm | 80mm | 100mm |
Cutting speed | 5-15times/min | 5-15times/min | 5-15times/min |
Clamp paper | Electric | Electric | Electric |
Protection | Infrared | Infrared | Infrared |
Pressing style | Program-control | Program-control | Program-control |
Cutting style | Oblique knife | Oblique knife | Oblique knife |
Voltage | 220/110V,50/60Hz, AC | 220/110V,50/60Hz, AC | 220/110V,50/60Hz, AC |
Dimension | 1250*1450*1290mm | 1000*1110*930mm | 1390*1100*1470mm |
Weight | 280kg | 202kg | 280kg |
Feature:
*MT-5210TX & 6710PX & 7210PX are double hydraulic technology. The hydraulic pressure is adjustable. Not only is the power strong,but also fast and low noise when cut paper. There is also a separate paper pressing pedal, which can be pressed first, and then cut after confirmation.
*MT-5210TX & 6710PX & 7210PX are double hydraulic technology. The hydraulic pressure is adjustable. Not only is the power strong,but also fast and low noise when cut paper. There is also a separate paper pressing pedal, which can be pressed first, and then cut after confirmation.
*Double rail push paper, infrared protection, laser indicating positioning, high speed alloy steel miter cutter cutting, fault code display. The computer adjusts various functions such as the depth of the cutter.
*The appearance of the machine is simple and beautiful, the technology is exquisite, the fault is less, and it can easily cope with various work strengths.
Details Images

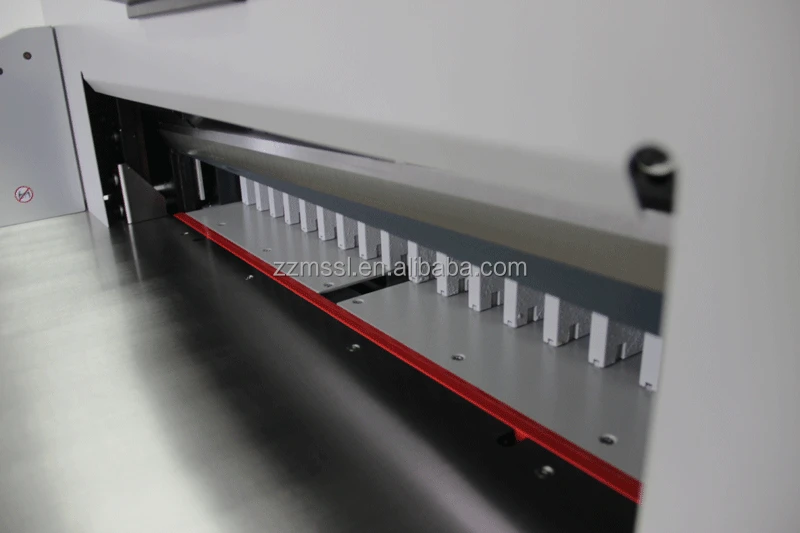

Paper pressing and paper cutting work independently, with distinct movements.

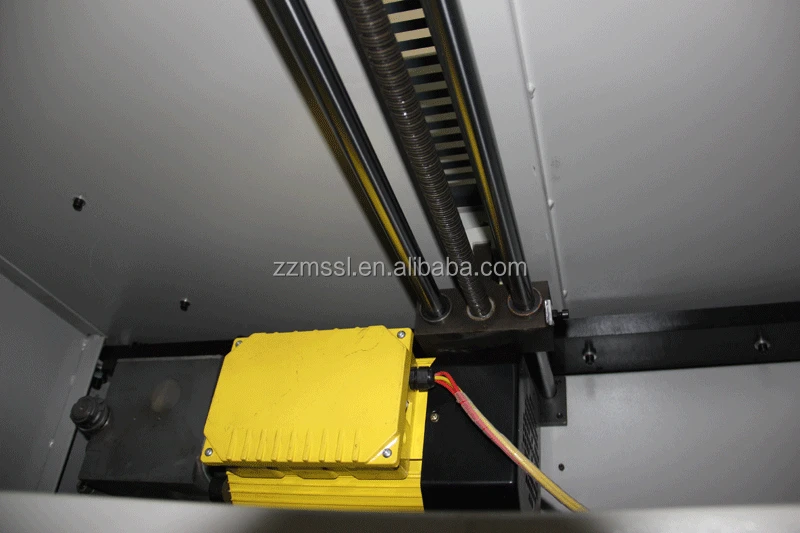

Linear guide paper pushing structure.

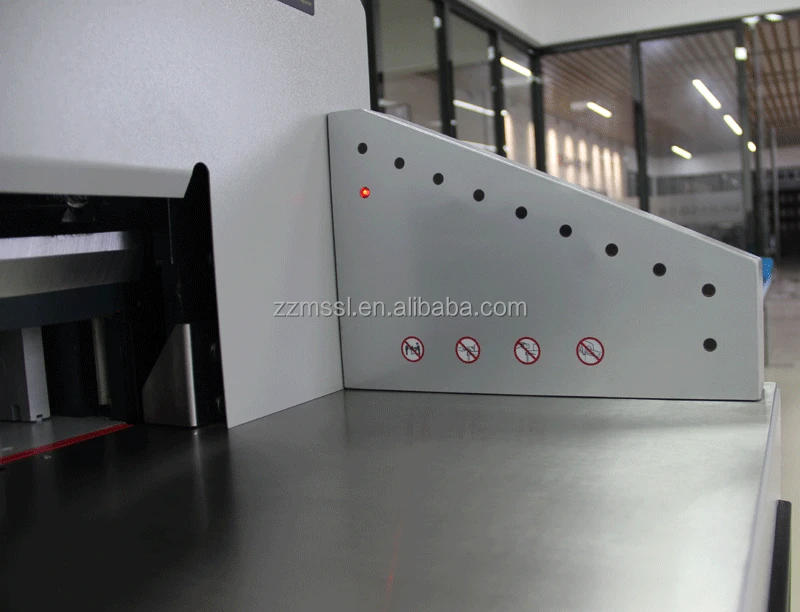

When an object is sensed during work, it will automatically stop immediately. Operational safety.
Humanized design

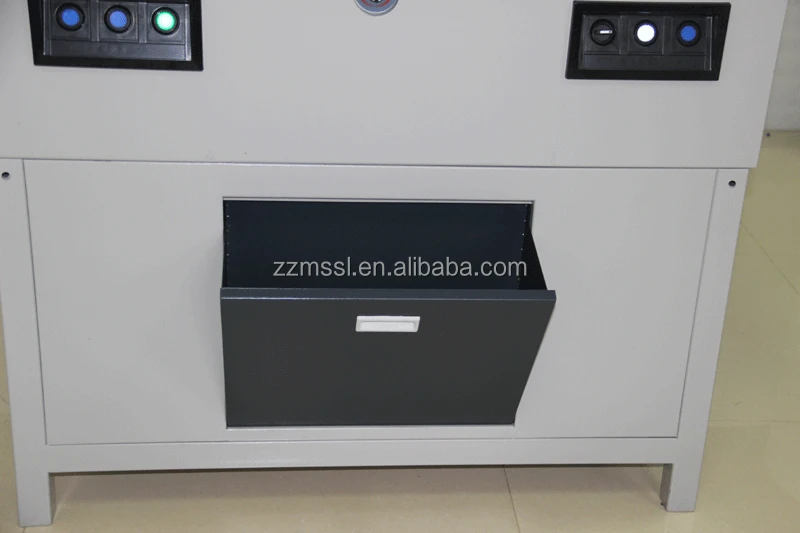

Waste paper storage box.
Easy to use and protect the environment.
Program control can set 99 sets of *7 knife programs.
Multiple self-checking functions, fault code display, counting function.
Rugged and durable frame with stable performance.
