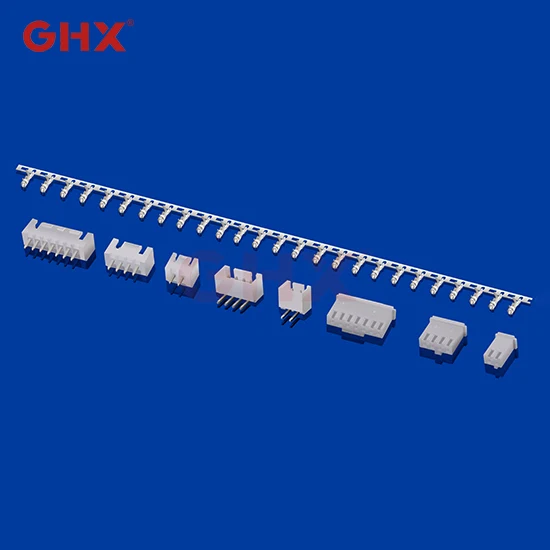

XHB connector 2.5mm pitch YEONHO SMH250 NN plastic electrical wire to board connectors male female electrical pin
- Category: >>>
- Supplier: Zhejiang Yuelong Electric Co. Ltd.
Share on (1600968481563):
Product Overview
Description
Product Description
Overview of Wire-To-Board Connectors
Wire to board connectors connect a wire to a PCB or Printed Circuit Board, enabling connectivity in two or more circuits.
Our wire to board connectors focus on flexibility and reliability, and are suitable for small-size plug-in and safe termination.With GHX wire to board connectors, you can easily find the connector that meets your application requirements.
GHX can help you come through from ideas to products with our rich experience on OEM ODM connectors. Most of wire to board connectors we listed were replace of brand connectors like Molex, Jst, Hirose, Jae, AMP, Dupont and more. And we can also offer ORIGINAL connectors according to your request when you need cable assemblies.
If you’re looking for a reliable and customizable wire to board connectors solution, contact us today. We would be happy to help you come up with the perfect solution and at a much affordable, down-to-earth prices for your needs.
Our wire to board connectors focus on flexibility and reliability, and are suitable for small-size plug-in and safe termination.With GHX wire to board connectors, you can easily find the connector that meets your application requirements.
GHX can help you come through from ideas to products with our rich experience on OEM ODM connectors. Most of wire to board connectors we listed were replace of brand connectors like Molex, Jst, Hirose, Jae, AMP, Dupont and more. And we can also offer ORIGINAL connectors according to your request when you need cable assemblies.
If you’re looking for a reliable and customizable wire to board connectors solution, contact us today. We would be happy to help you come up with the perfect solution and at a much affordable, down-to-earth prices for your needs.
Benefits of GHX’s Wire-To-Board Connectors
GHX wire to board connectors are used in a wide range of industries including automotive, appliance, industrial, data & telecommunications, consumer electronics, and more.
Compared with other methods of connecting PCBs, such as soldering or screw terminals, the advantages of wire to board connectors include quicker and easier assembly, as well as the ability to easily disassemble and repair the connection. In addition, they have the characteristics of polarized housing helping prevent mismatches, protective housing for safety and contact protection, contact insulation for long life cycle applications, designed to save board space and reinforced large system of joint.
Feature:

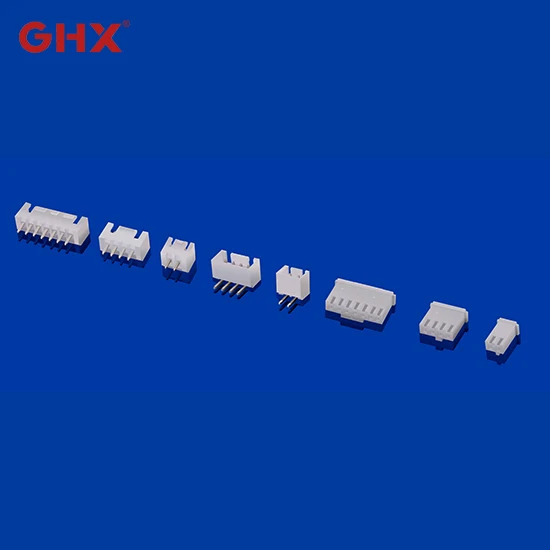

XHB Connector 2.5mm Pitch is replacement of YEONHO SMH250-NN connectors. 2.5mm pitch.lt’s widely used in wire to board connectors.Fully shrouded header, crimp style.
Component and Its Material:

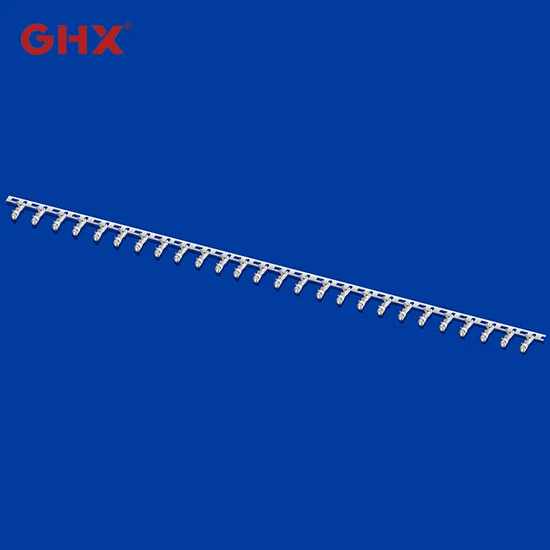

Terminal: Phosphor bronze
Housing: Nylon 66 UL94V-0
Wafer: Nylon 66 UL94V-0 & Brass/Tin-plated
Housing: Nylon 66 UL94V-0
Wafer: Nylon 66 UL94V-0 & Brass/Tin-plated
Specification
Name | XHB Connector Series |
Gender | Male |
Contact Pitch | 2.5mm |
No.of Contacts | 02 to 20 positions |
Current Rating | 3.0A AC,DC |
Voltage Rating | 250V AC,DC |
Material | PA66 and Brass Tin |
Row | Single Row |
Color | White |
Temperature Range | -25°C to+85℃ |
Contact Resistance | ≤20mΩ |
Insulation Resistance | ≥1000mΩ |
Withstand Voltage | 1000V AC/minute |
Applicable Wire | AWG #30 to #22 |
Applicable PC Board Thickness | 1.2 to 1.6mm |
Compatible | Cross YEONHO SMH250-NN Connector Series |
FAQ
1. When I can receive quotation and detail information after send the enquiry?
Reply will be sent in 24hours.
2. Do you provide samples ? Is it free or extra?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
3. Can I get a sample for test before place order?
Of course!
4. What is the payment terms ?
We accept T/T, Western union, Trade Assurance.
5. Can you customize the products ?
Of course! Please let us know your requirements.
6. You have any agent in our country?
We still not have any agent around the word,as we have any requirements of the agent of us,but we are willing you to be our distributor or agent is possible
7. Can I delivery the goods from other supplier to your factory? then load together?
Yes, it is ok and you can let them cargo the items to our factory. We can load together in the container.
8. If we find the quality is bad when we receive the goods , how can I do ?
Contact us. We'll give you a solution in 24 hours
Reply will be sent in 24hours.
2. Do you provide samples ? Is it free or extra?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
3. Can I get a sample for test before place order?
Of course!
4. What is the payment terms ?
We accept T/T, Western union, Trade Assurance.
5. Can you customize the products ?
Of course! Please let us know your requirements.
6. You have any agent in our country?
We still not have any agent around the word,as we have any requirements of the agent of us,but we are willing you to be our distributor or agent is possible
7. Can I delivery the goods from other supplier to your factory? then load together?
Yes, it is ok and you can let them cargo the items to our factory. We can load together in the container.
8. If we find the quality is bad when we receive the goods , how can I do ?
Contact us. We'll give you a solution in 24 hours
Packing & Delivery
Standard seaworthy package.

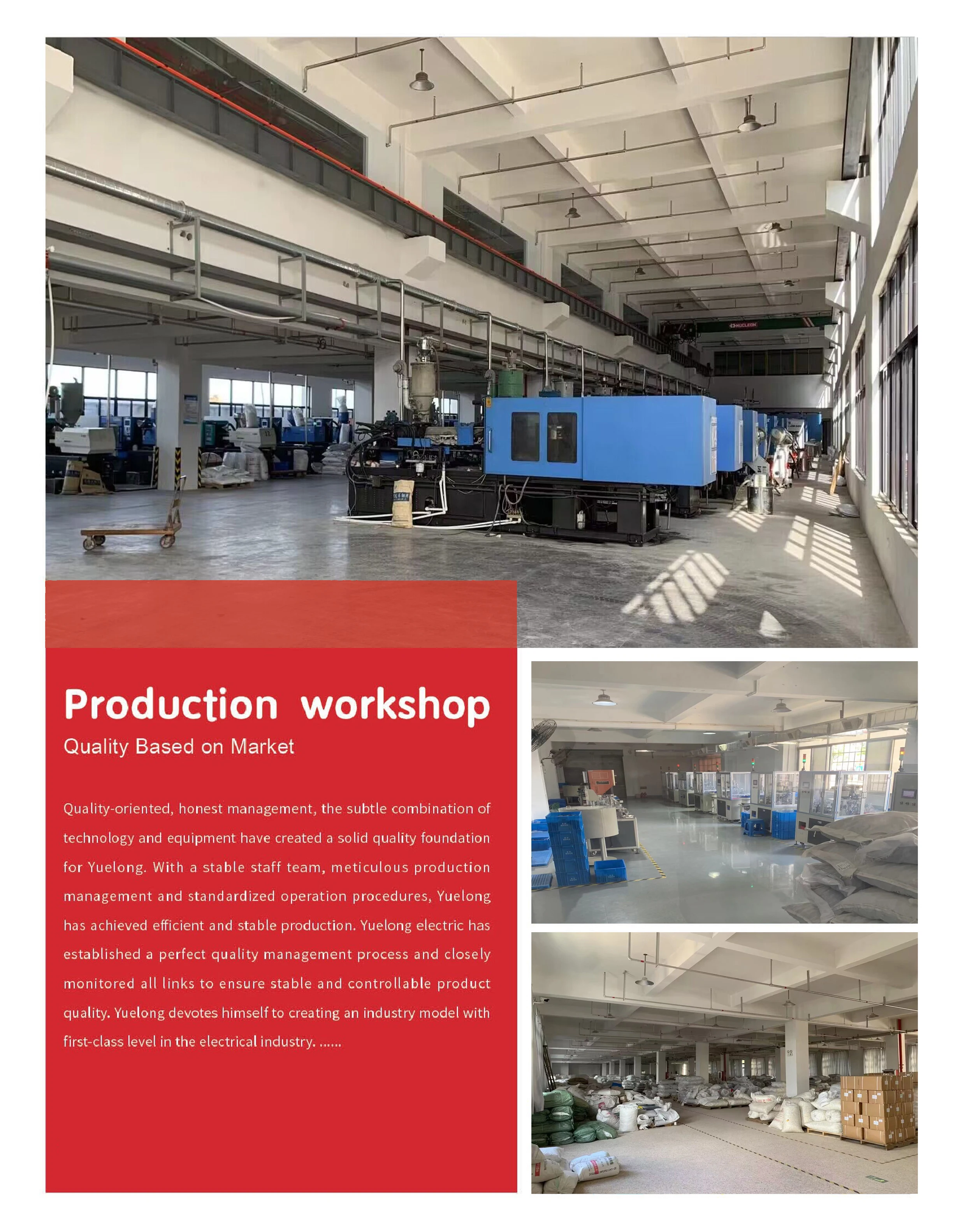

Company Profile
