Product Overview
Description
Product Description

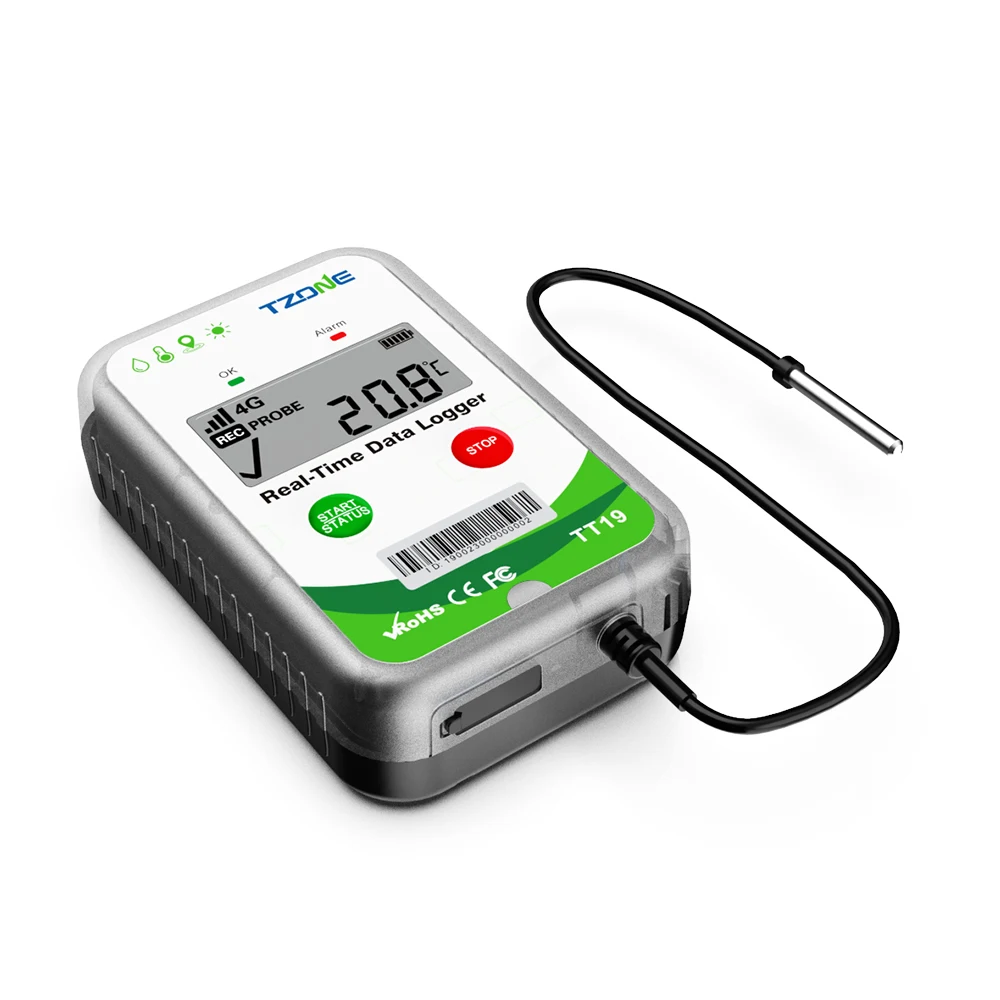

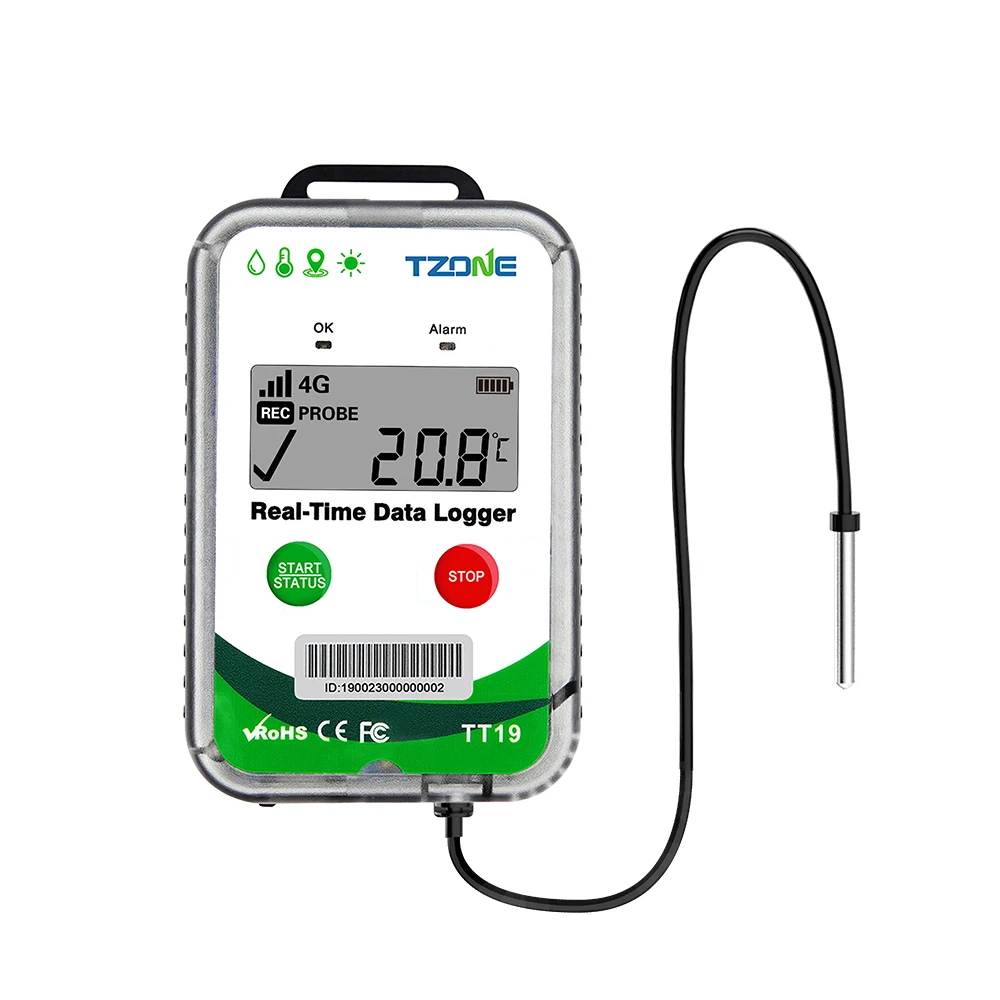

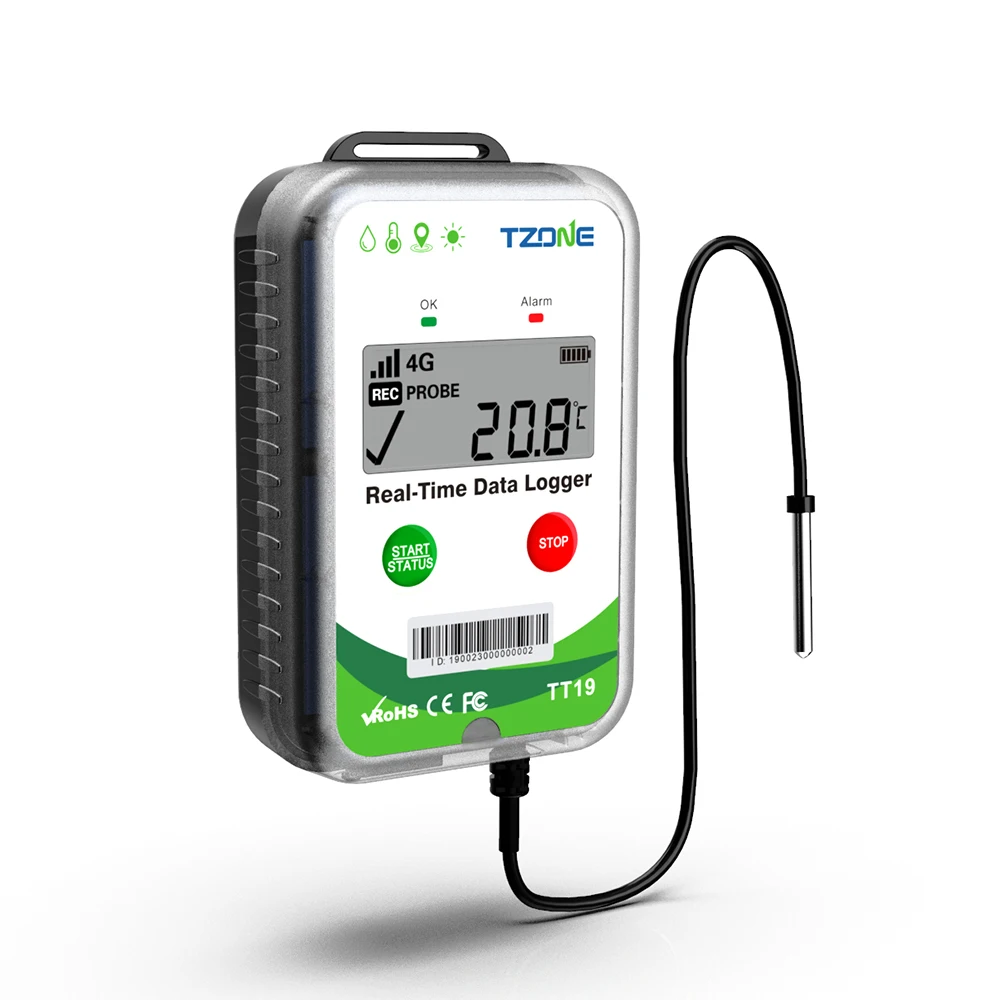

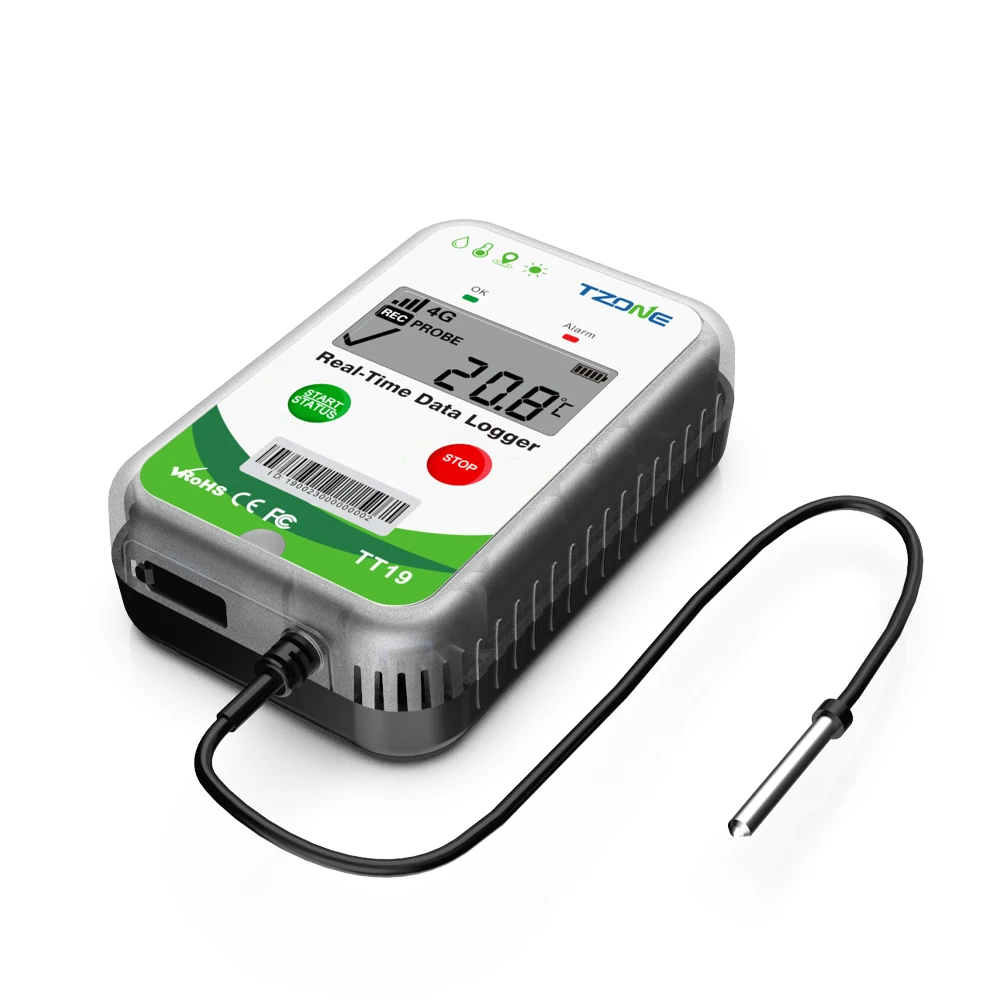

TT19 is a global 4G real-time temperature and humidity data logger with high-quality sensitive components and high measurement accuracy. It is embedded with 4G modules, GPS modules and WiFi modules. The data is sent to the cloud through the 4G network for monitoring and analysis, and it’s also with the function of automatically generating PDF reports. With 4000mAh large capacity battery and low power consumption design, once charge, TT19 can work
for a long time, it’s greatly adapt to different transportation temperature monitoring requirements.
for a long time, it’s greatly adapt to different transportation temperature monitoring requirements.
Considering about the data security, TT19 not only uploads data to cloud, but also stores data into flash. And for emergency use, the user can easily connect the USB C port to automatically generate PDF report. With a complete cold chain visibility, traceability monitoring (temperature, humidity, light, shock, location) system, the TT19 is helping customers digitize their supply chain, prevent the loss of shipments with in-transit visibility and alerts, automate and increase
compliance, and speed up product release, extremely improve transportation efficiency and reduce product losses.
compliance, and speed up product release, extremely improve transportation efficiency and reduce product losses.

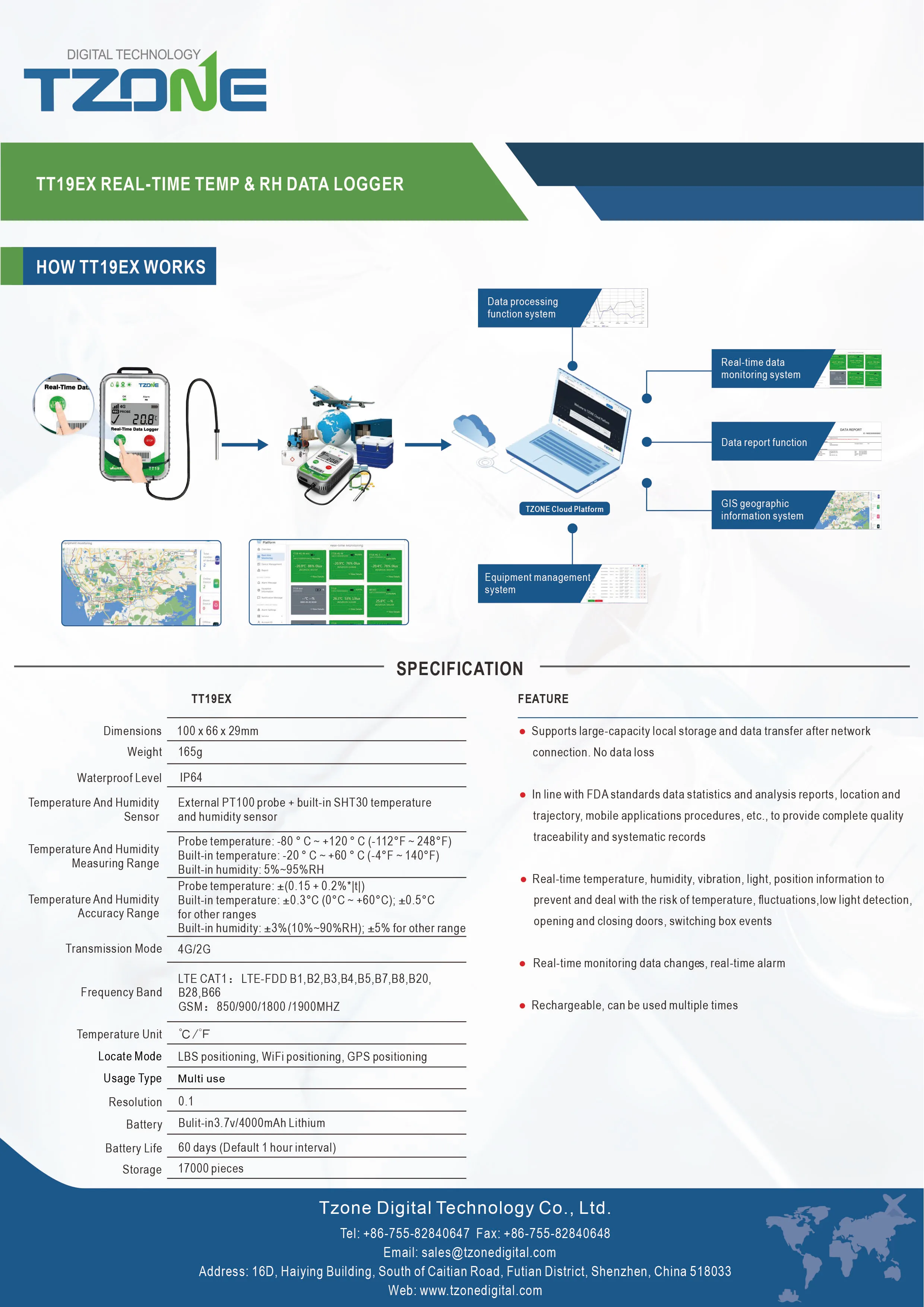

TZONE real-time data loggers TT19EX supports GPS, WiFi and LBS multiple positioning, positioning accuracy up to 2m.
Product Name | Real-time temperature and humidity GPS location data logger |
Memory capacity | 17,000 |
Network system | Global LTE 4G, with 2G fallback |
Usage time | Once fully charged, it can be used for 60 days based on sending interval of 60 min and GPS turned on. |
Sending interval | 5-1440min, configurable |
Battery specification | Bulit-in3.7v/4000mAh Lithium rechargeable |
How to use
Items | Functions |
OK Light | Indicate device status |
Alarm Light | Indicate device status |
LCD Screen | Display screen |

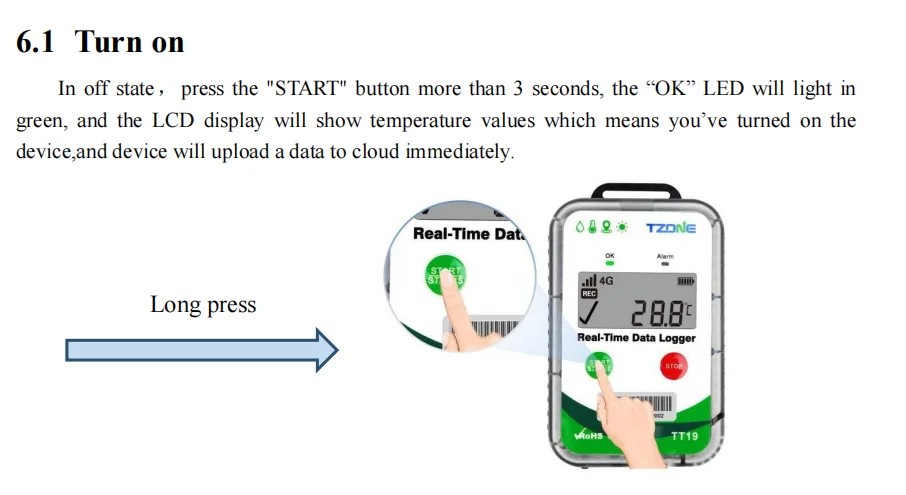

START/STATUS Button | Turn on/View Machine Status/Send Data |

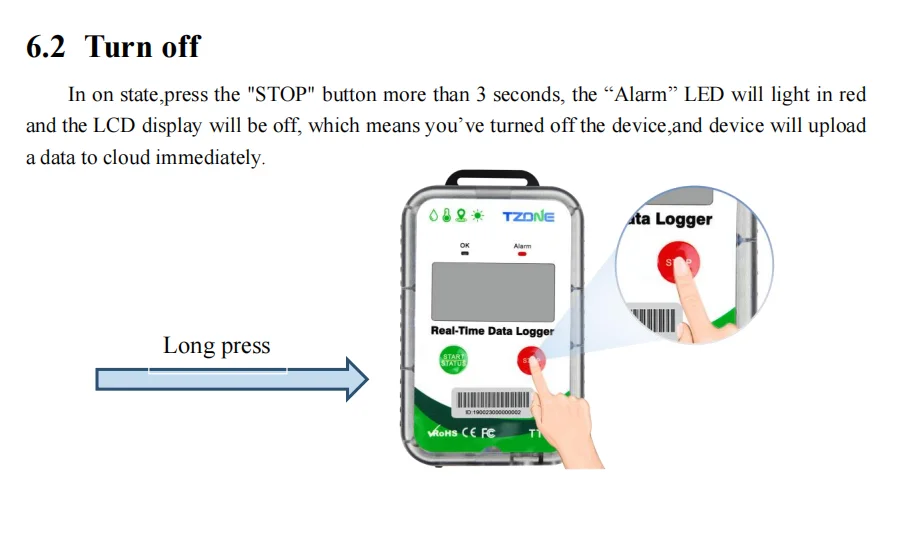

STOP Button | Turn off/View Machine Status |
ID | Device ID number |
Light Sensor | Light sensor |
USB-C | USB-C interface, for charging or automatically generating PDF report. The two LED will be on during charging and off when fully charged. |

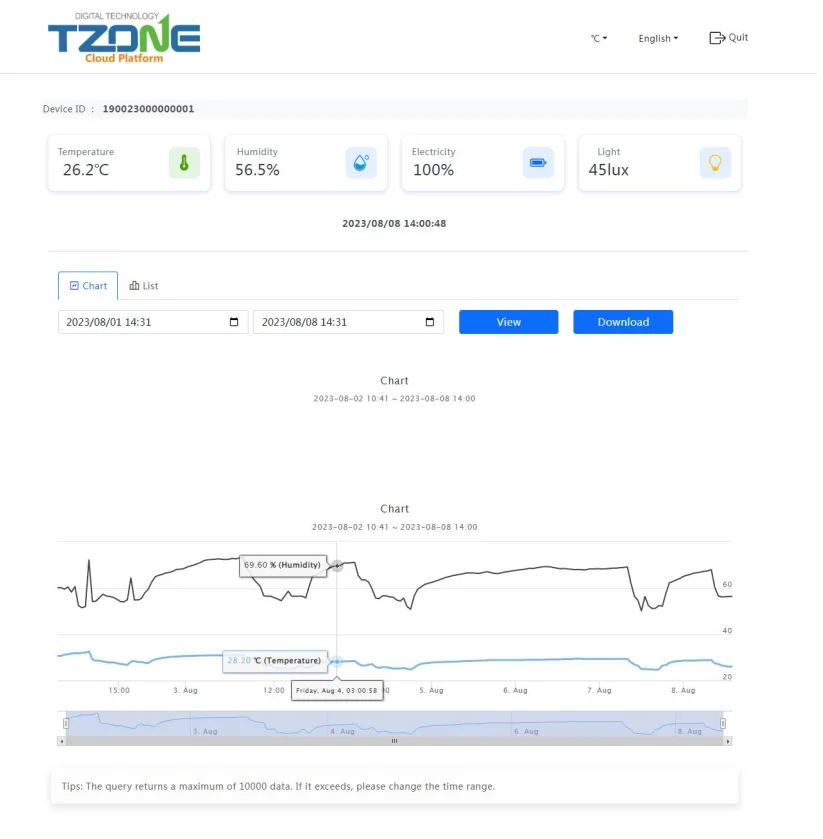

Cloud Platform
TT19EX 4G Real-Time Temperature and Humidity GPS TRACKER
Tzone temperature and humidity cloud platform website: //cloud.tzonedigital.com/ After turning on, the device data can be queried on TZONE cloud platform. Before entering the cloud platform, you will need to register an account. Once registered, log in and navigate to the "Device Management" section to add the TT19 ID.
Certificate
Certifications
All our procedure is in full compliance with the ISO9001 standard and all the products have passed certificates such as CE, FCC, ROHS and so on.
