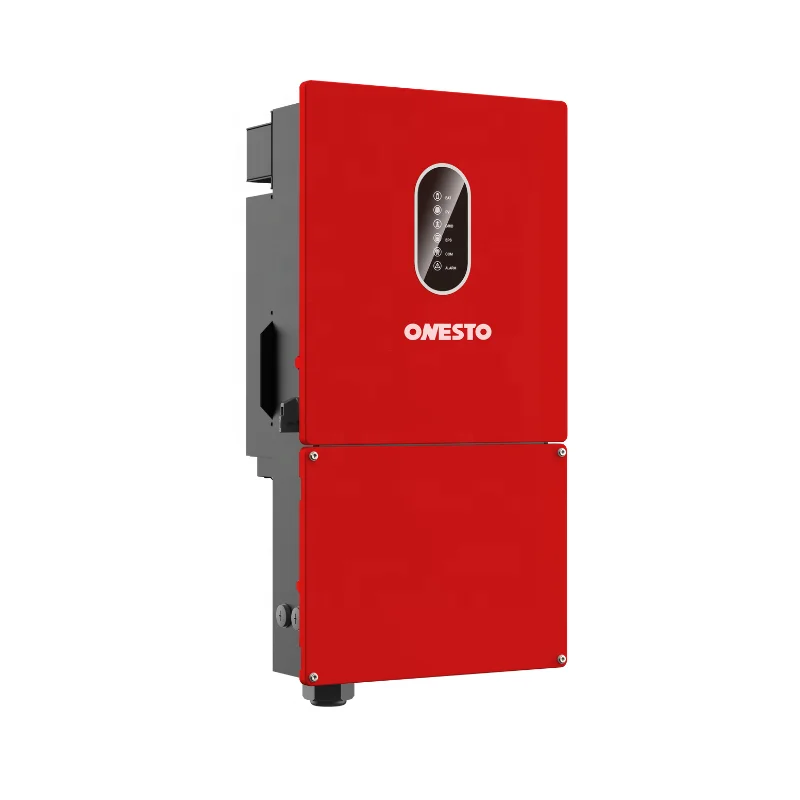

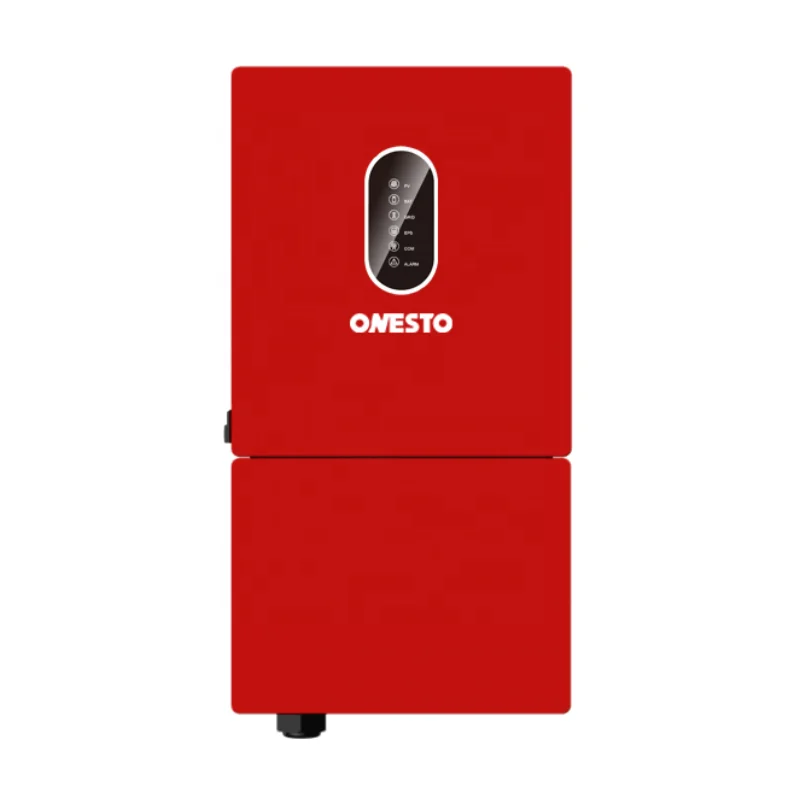

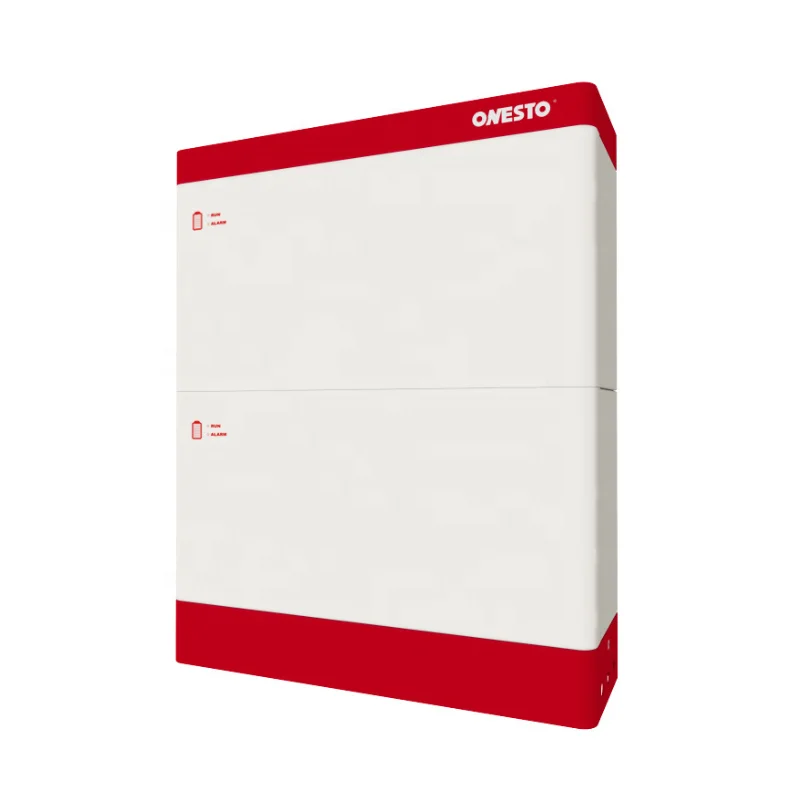

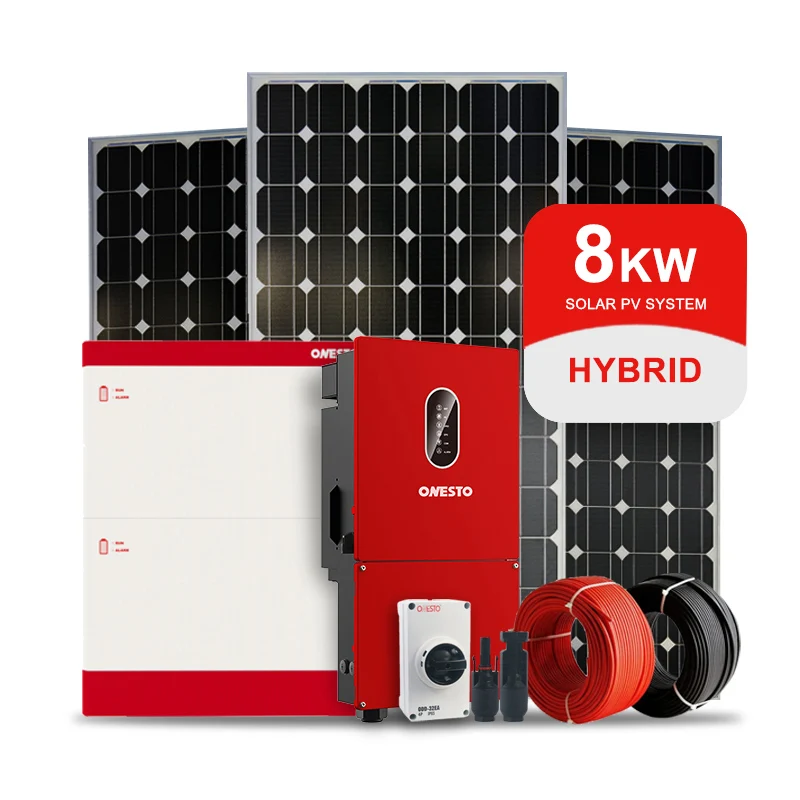

Onesto PV Solar Energy System 8kw 10kw Hybrid Solar Power System 2 MPPT hybrid inverter LiFePO4 Battery for pv system
- Category: >>>
- Supplier: Zhejiang Onesto Electric Co. Ltd.
Share on (1600968499705):
Product Overview
Description

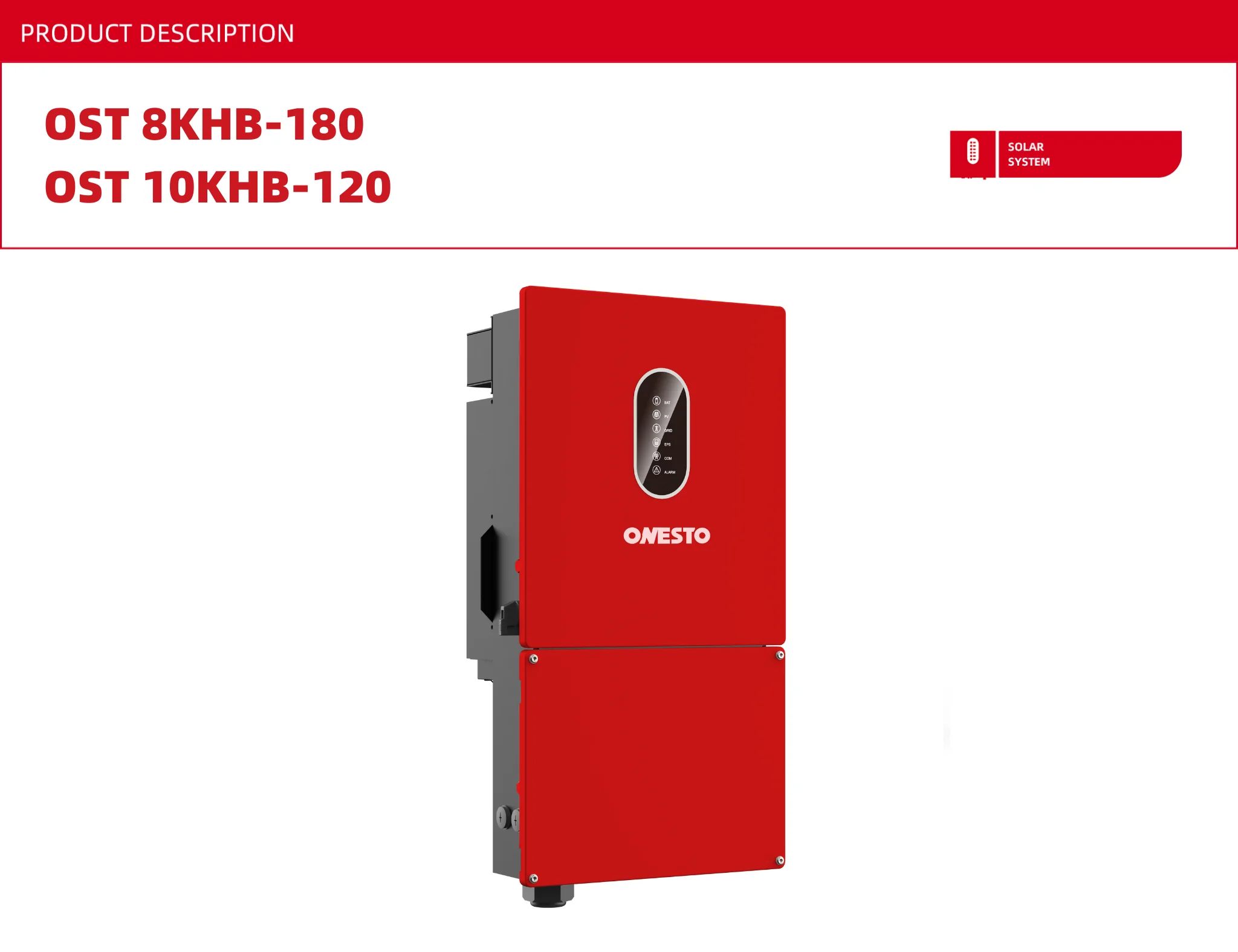

Model | OST 8KHB-180 | OST 10KHB-210 | |
Max. Efficiency(PV To AC) | 98.0% | ||
Max. Efficiency(Bat To AC) | 95.0% | ||
Max. PV Power | 12000W | 15000W | |
Max. Input Voltage | 600V | ||
Max. Input Current(PV-A/PV-B) | 30A/22A/22A | ||
Max. short current(input A/INPUT B)(A) | 40A/30A/30A | ||
Start operating voltage(V) | 90V | ||
MPPT Operating Voltage Range | 70V-540V | ||
No. of MPPT trackers | 3 | ||
String per MPPT tracker | 2 | ||
Compatible battery type | Lithium-ion/Lead-acid | ||
Nominal battery voltage | 48V | ||
Battery voltage range | 40V-64V | ||
Max. charge/discharge current | 210A/180A | 210A/210A | |
Max. charge/discharge power | 10000W/8000W | 10000W/10000W | |
Lithium battery charge curve | Self-adaption to BMS | ||
Nominal AC input power | 12000W | 15000W | |
Max. AC input current | 52.5A | 65.3A | |
Rated AC Voltage | 230V(Single phase) | ||
Nominal AC output power | 8000W | 10000W | |
Max.AC output apparent power | 8800VA | 11000VA | |
Max. AC output current | 40A | 50A | |
Rated AC Voltage | 230V, L+N+PE | ||
Max. operation altitude | 4000m | ||
Noise emission | <45dB | ||

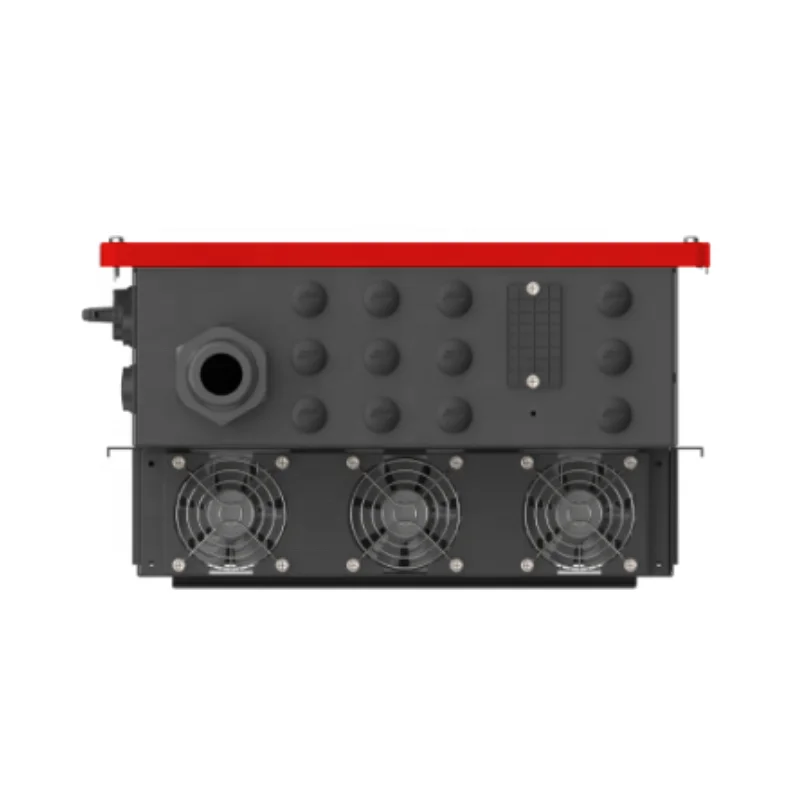

Cooling comcept | Fan Cooling | ||
Mounting | Wall Bracket | ||
Display | LED | ||

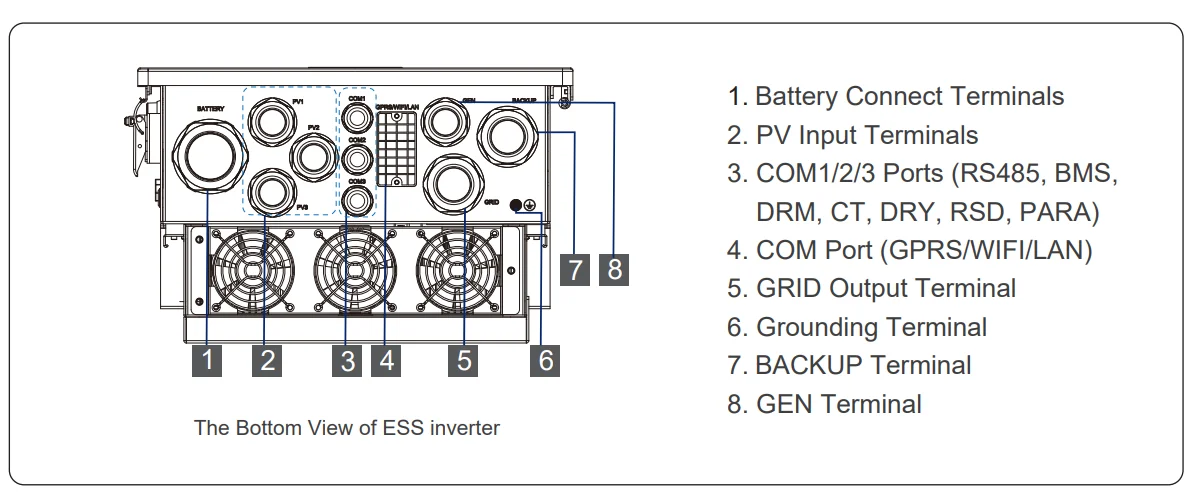

Communication interface | RS485/CAN(for BMS), DRM/RS485(for Meter), RS485, USB; Optional:WIFI/GPRS/LAN | ||
Grid | NRS 0-97 / IEC61727 / IEC62116 | ||
Q1:
What advanages do you have?
A1:

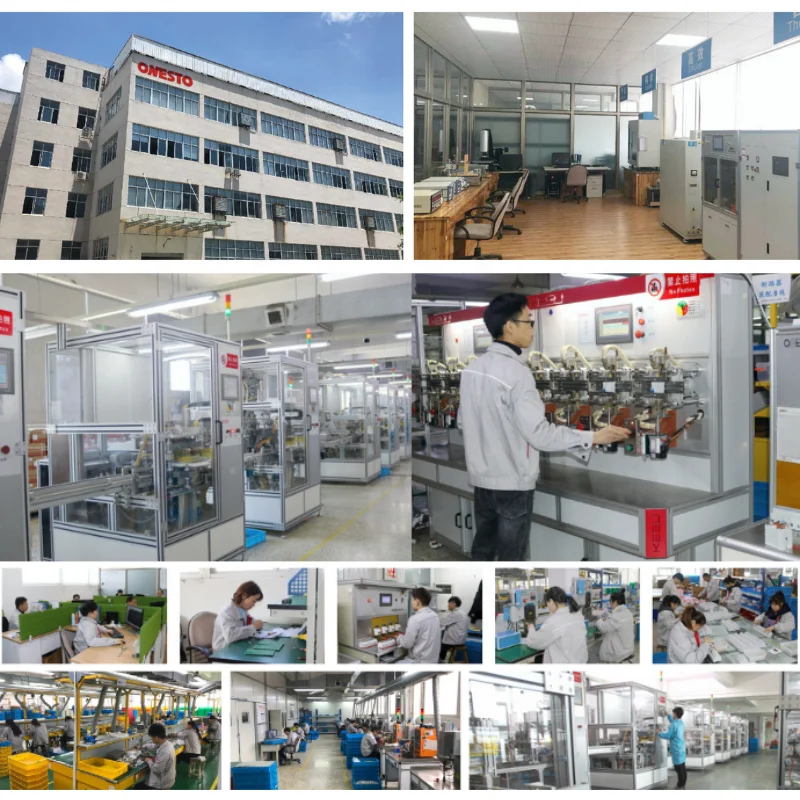

Onesto is a quality enterprise with more than 15 years experience in manufacturing low voltage electrical products. Our products
have been exported to over 50 countries and certified with CE,CB,TUV certificates.
Q2:
Can l have a free sample before bulk order?
A2:
Yes, an acceptable free sample can be orffered for your test and check.
Q3:
How long is the deliever time?
A3:
lt usually take 7-10days for sample order and 25-30days for big order.
Q4:
How long is the gurantee time?
A4:
24 months is guranteed and our products are 100% inspected.
Q5:
What payment terms do you offer?
A5:
We offer the payment terms such as T/T, paypal, Western Union and L/C at sight.
