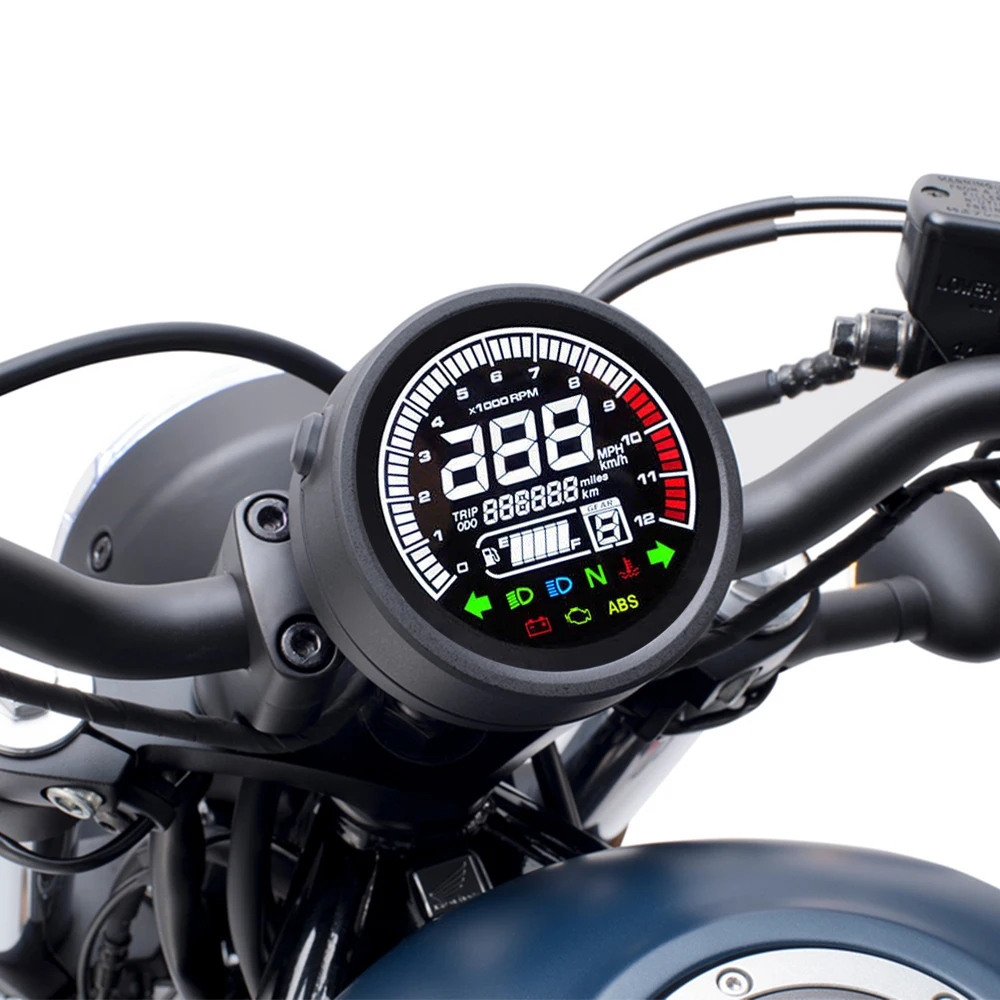

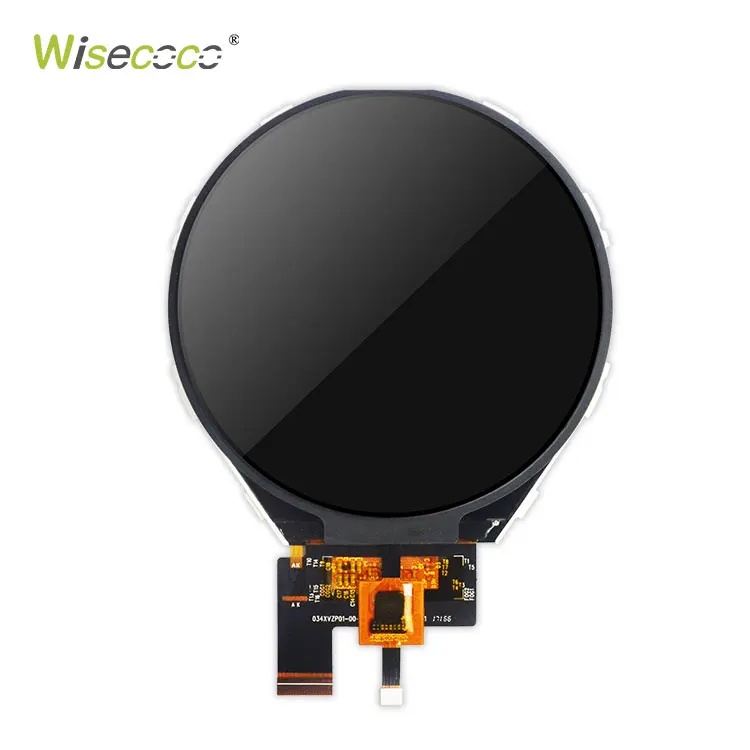

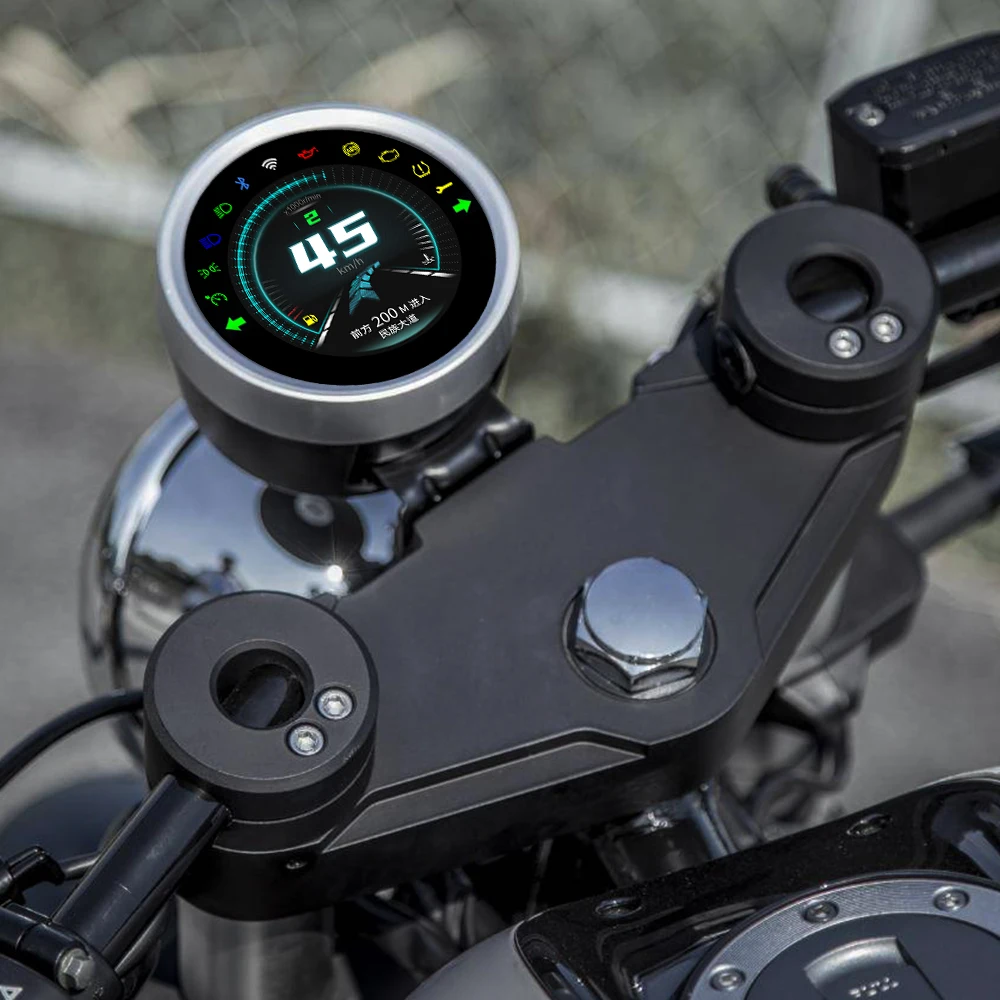

Wisecoco 3.4 Inch Ips Tft LCD Round Screen Controller Board For Meters Lcd Display Motorcycle Speedometer

General Features

Diagonal Size

3.4 inch

Type

a-Si TFT-LCD, LCM

Pixel Format

800(RGB)*800

Configuration

RGB Vertical Stripe

Active Area

87.6(W)*87.6(H) mm

Outline Dim.

99(W)*96.6(H)mm

Bezel Area

88.6(W)*88.6(H) mm

Treatment

Hard coating (7H)

Luminance

350 cd/m² (Typ.)

Contrast Ratio

800:1 (Typ.) (TM)

View Direction

Symmetry

Response Time

25 (Typ.)(Tr+Td)

Viewing Angle

80/80/80/80 (Typ.)(CR≥10)

Operating Mode

SFT, Normally Black, Transmissive

Support Color

16.7M   70% (CIE1931)

Light Source

WLED  [2S4P] , 30K hours , W/O Driver

Weight

TBD

Designed For

Industrial Application; meter; Raspbery Pi

Frame Rate

-

Touch Panel

PCAP

Interface Type

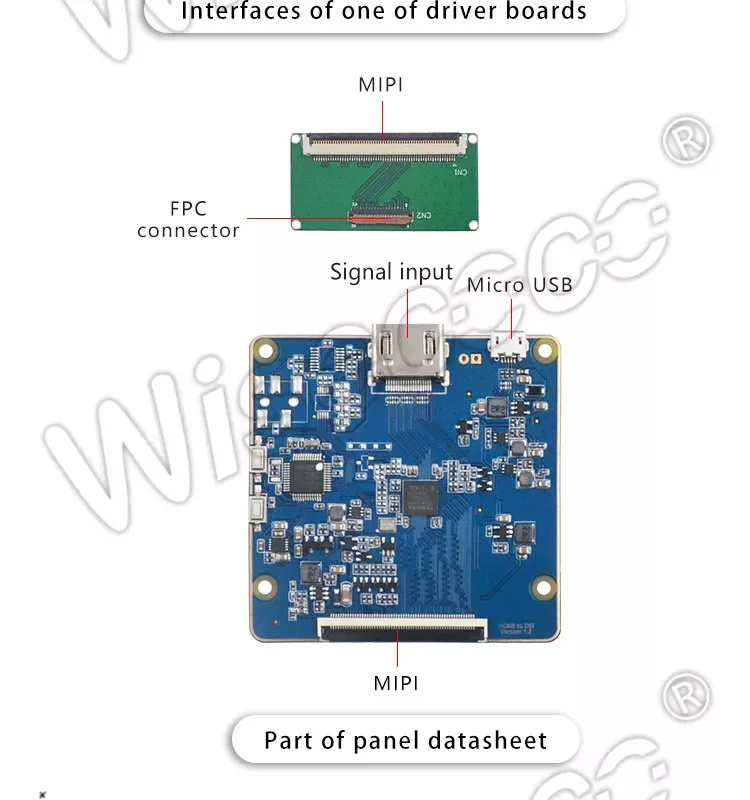

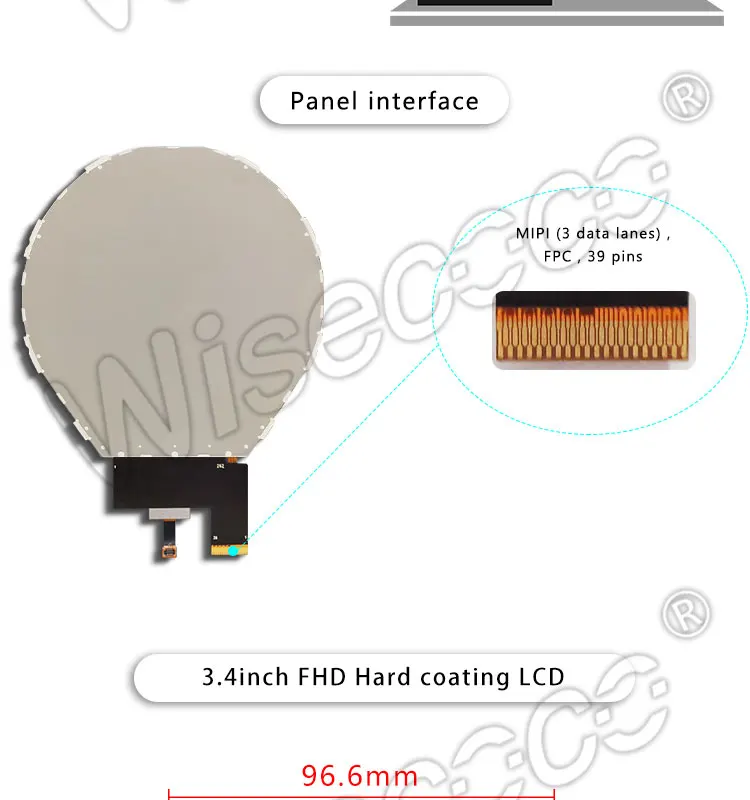

39 pins MIPI (3 data lanes) , FPC

Power Supply

1.8/5.0/-5.0V (Typ.)(IOVCC/VDD/-VDD)

Environment

Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
