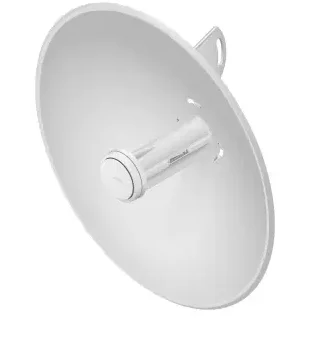

UBNT wireless network bridge PBE M5 400 Gigabit network port high power high gain long distance bridge

Product Overview

Description

UBNT wireless network bridge PBE-M5-400 Gigabit network port high power high gain long distance bridge





High noise resistance



Powerbeam makes the beam width of RF energy more compact. By focusing in one direction, powerbeam blocks or filters out noise in space, thus improving noise immunity. This function is particularly important in congested areas with the same or similar RF signals.



Integrated design



Innerfeeds from Ubiquiti ™ The technology integrates the wireless transmission system into the feeder horn of the antenna, so no cable is needed. Due to avoiding cable loss, the performance is improved.



Hardware overview

Innovative mechanical design

The built-in mechanical tilt fixture bracket easily provides up to 20 ° up and up to 20 ° down.

Rapid assembly reduces the number of fasteners and makes assembly easier. Tools are required only if the technician is installing the powerbeam on the post.

It is easy to remove the antenna feed device by pressing a key.

Corrosion resistance

The corrosion resistance of the geomet coating is stronger than that of the galvanized fastener.

The dish and bracket are made of powder coated galvanized steel with strong corrosion resistance.

The redesigned post support for the 400 mm disc and the positioning washer for the 300 mm disc prevent the coating of the metal bracket from being removed, thus improving corrosion resistance.





 Specifications

The main performance
The type of product	Wireless access point
Network standards	IEEE802.11b,IEEE802.11a,IEEE802.11g,IEEE802.11n,IEEE802.11ac
The highest transfer rate	150Mbps
Coverage	Global 5150-5875MHz;
Network interface	1 x 10M/100Mbps LAN port

Antenna
Antenna type	Built-in antenna
Antenna gain	25dBi

Other parameters
Status indicator	Power, start load, run, idle
The mode of power supply	24V,0.5A
Power supply	8W
Product size	420×420×275mm
The weight of the product	1.753kg
Environmental standards	Operating temperature: -40-70 degrees C Operating humidity: 5%-95% non-condensation
Other features	Wind resistance
