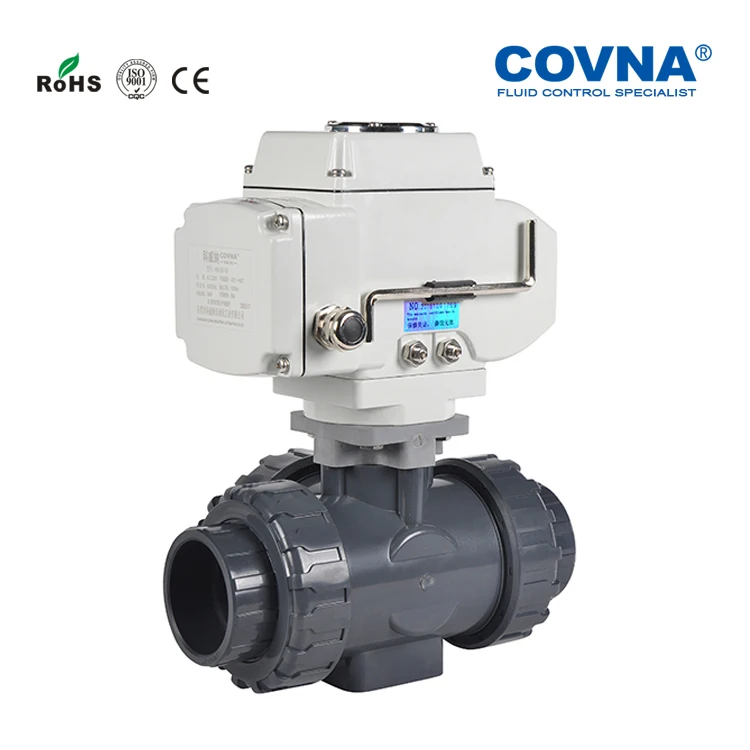

COVNA DN25 24V T Port or L Port PVC/UPVC 3 Way Motorized Ball Valve

Share on (1600968544802):


Price:

Quantity:


Product Overview

Description





Our Advantages









COVNA aims to provide our customers the best quality products with the most competitive pricing, on-time delivery and full warranty service.





24 YEARS manufacturer of actuated valves, MASS CUSTOMIZATION acceptable.





• 3 production base, large stock, SHORT LEAD TIME, same day shipping.




• German imported manufacturing facilities, 100% Q.C passed before shipping, quality assured. Industrial standard 1 YEAR (12 months) warranty.





• ISO 9001 certificated, with extra certifications include CE, TUV, RoHS, SGS, BV, explosion & fire safe.





OEM / ODM  service available.









GET A QUICK QUOTE


























































Model


HK60-Q-P-T


Voltage


24V DC


MOQ


1 Set


Actuator Type


On Off Control


Applicable Standard


GB


No. of Ways


3 Way


Port Size


1/2 inch


End Connection


True Union


Operating Pressure


0 to 1.0MPa


Media


Water, Air, Gas


Body Material


PVC


Temp. of Media


-10°C to 180°C


Valve Ball


PVC


Certification


ISO 9001, CE, TUV, SGS


Sealing Material


PTFE


Warranty


1 Year (12 Months)

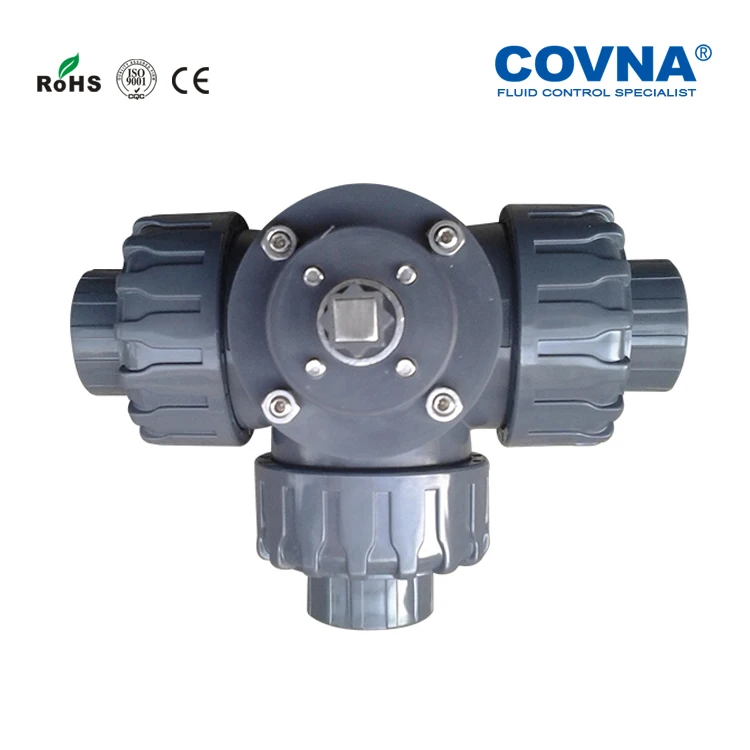

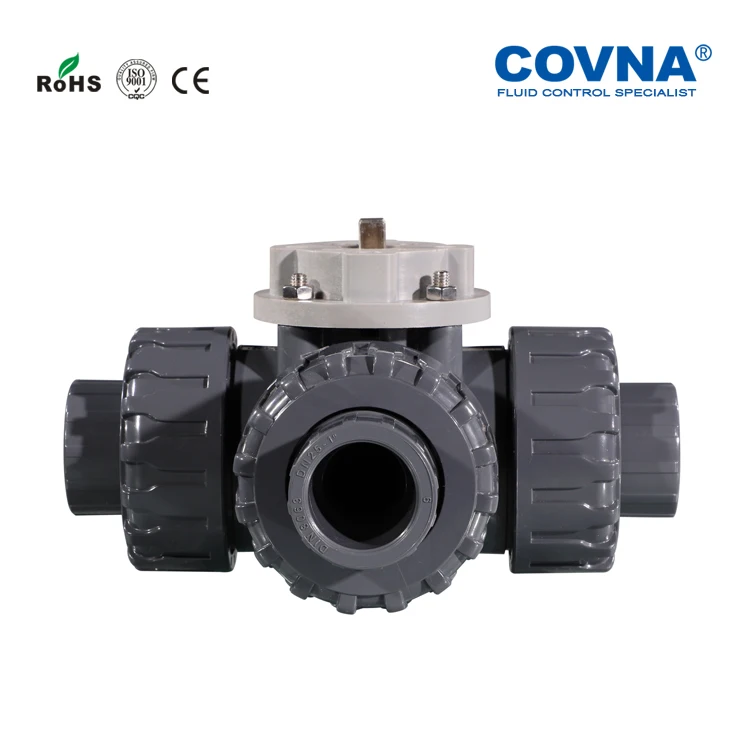

PVC 3 way, L port ball valve, with on off electric actuator, 1" slip ends, PTFE seat, EPDM seals, vacuum to 10bar pressure range. Commonly used in the aquaculture industry (sea water), chemical dosing, water treatment and pool filtration.












Dimension













3 Way PVC Ball Valve with Electric Actuator Dimension





Click to enlarge








Explosion-proof

With handwheel

Multiturn

IP68 Water-proof











ISO 5211 Mounting Pad













750-224









GET A QUICK QUOTE













C-05 Electric Actuator
















































































 Specification of COVNA C-05 On/Off Electric Actuator

Model


C-05 | C-10 | C-16 | C-30 | C-60 | C-125


Output Torque


50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm


Cycle Time


20s | 30s | 30s | 30s |60s | 100s


Rotation


0-90°


Rated Current


0.25A | 0.48A | 0.68A | 0.8A | 1.2A | 2A


Motor Power


10W/F | 25W/F | 30W/F | 40W/F | 90W/F | 100W/F


Weight


3.0KG | 5.0KG | 5.5KG | 8.0KG | 8.5KG | 15.0KG


Voltage Options


AC110V/220V/380V, AC24V, DC24V


Insulation Resistance


DC24V: 100MΩ/250V; AC110V/220V/380V: 100MΩ/500V


Withstand Voltage


DC24V: 500V/Minute; AC110/220V: 1500V/Minute; AC380V: 1800V/Minute


Protection Class


IP65


Electrical Connection


G1/2 Water-proof Cable Connectors, Electric Power Wire, Signal Wire


Ambient Temp.


-30°C~+60°C


Control Circuit



A: On/Off type with light indicator signal feedback


B: On/Off type with passive contact signal feedback


C: On/Off type with resistance potentiometer signal feedback


D: On/Off type with resistance potentiometer and neutral position signal feedback


E: Modulating type with servo control module


F: 12V DC / 24V DC direct on-off type


G: AC380V three-phase power supply with passive signal feedback


H: AC380V three-phase power supply with resistance potentiometer signal feedback











Wiring Diagram

















The left is On/Off type with passive contact signal feedback (B) while the right is Modulating type with servo control module (E).









GET A QUICK QUOTE










Actuator Selection Guide









































































Model
Number


Ball Valve
(Metal Seated)


Ball Valve
(Soft Sealing)


Butterfly Valve
(Metal Seated)


Butterfly Valve
(Soft Sealing)


C-05


DN15-DN25


DN15-DN40


DN50


DN50-DN65


C-10


DN32-DN40


DN50-DN65


DN65-DN80


DN80-DN125


C-16


DN40-DN50


DN65


DN100-DN125


DN125-DN150


C-30


DN65-DN80


DN80-DN100


DN125-DN150


DN150-DN200


C-60


DN80-DN100


DN100-DN125


DN200-DN250


DN250-DN300


C-125


DN125


DN150


DN250-DN300


DN300-DN400


C250


DN150-DN200


DN200-DN250


DN300-DN400


DN400-DN500





For larger size, please contact us! Our professional team will get back to you within 3 hours!
