CND hot sale universal lcd tv board lcd tv panel spare part samsung

Product Overview

Description





key feature

1.   Suitable for worldwide analog TV system PAL/NTSC/SECAM

2.   Reliable EMC and antistatic treatment measures

3.   Automatically detect input video format

4.   VGA +DVI +HDM I+USB inputs.

5.   Built-in superior quality stereo speakers.

6.   Support multi OSD languages.

7.   Max supports Full HD lcd tv main board 1920X1080 resolution TFT-LCD screen.

8. Rating of Audio loudspeaker output is 2W*2(8ohm)

9. universal LCD control board support any brand of panel





One Year Quality Warranty;

Flexible Software to meet any custom request;

Small order welcomed;

customized solution welcomed;

After sale service 24*7

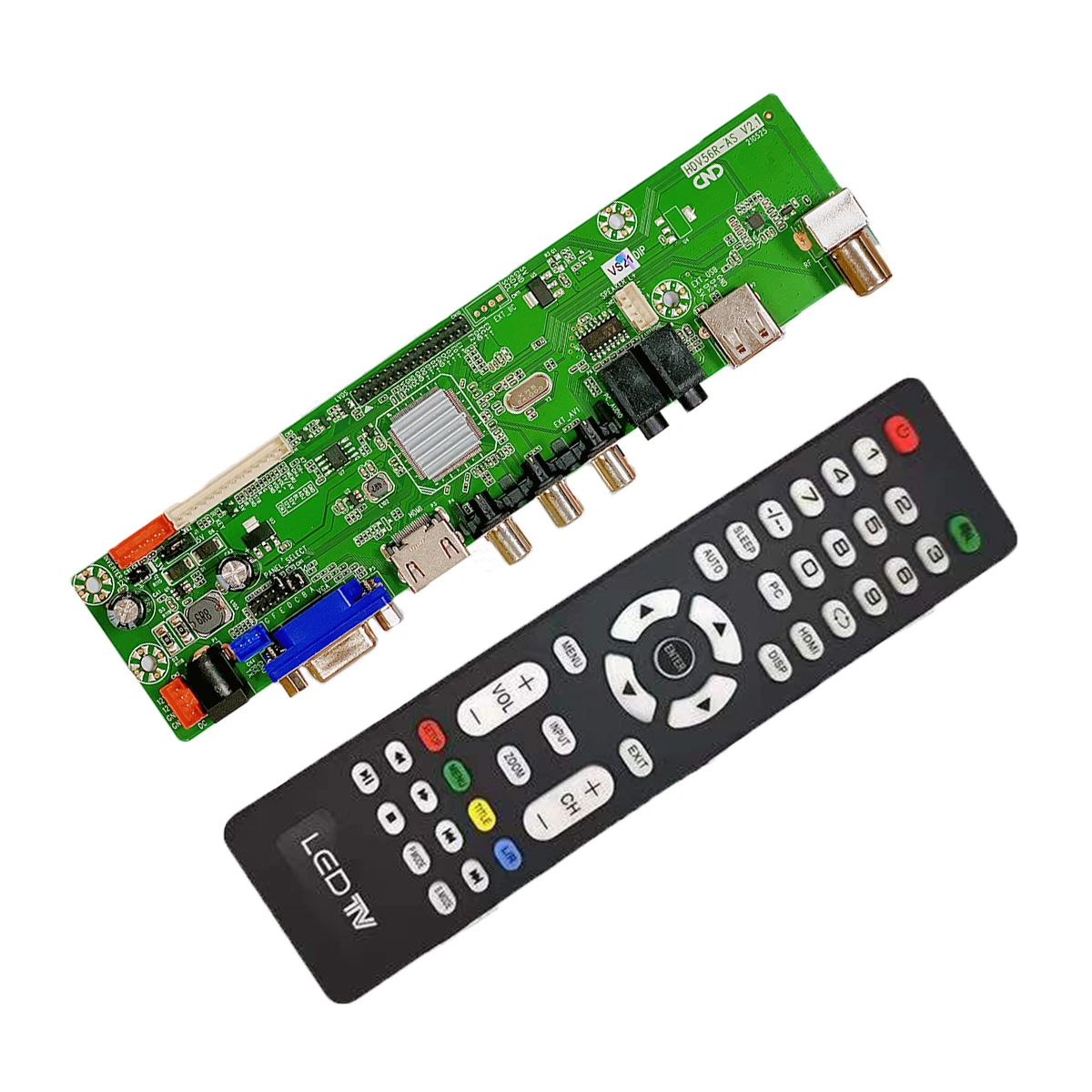

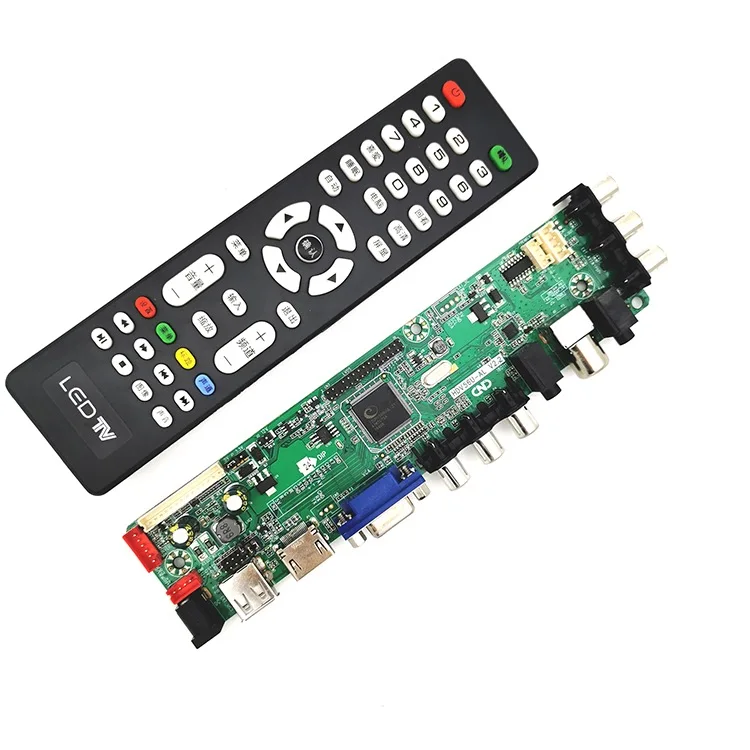

PRODUCT	V56 LCD TV Main board
OSD LANGUAGE	Default Chinese/English, French, German, Italian , Spanish , Portuguese
PANEL	Interface	Single Dual LVDS,2X15 needle
	Resolution	Max 1920x1080@60Hz
Video Input	TV	Received frequency	49MHz – 863MHz
		Input impedance	75
		Color system	PAL, SECAM/NTSC
		Sound system	BG, DK, I, L/M,N
	PC Input	R,G,B+H/V	Max 1920x1080@60Hz
	HDMI	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
	USB	USB document support format
	Video	Color system	PAL/SECAM/NTSC
		Video range	1.0 Vp-p ±5%
Audio input	Computer	Earphone input	0.2 – 1.5 Vrms
	Video	L/R RCA Input	0.2 – 1.5 Vrms
Audio output	Frequency Response	100Hz - 15000Hz  @±3dB (1KHz 0dB benchmark signal)
Power	Loudspeaker output	2x2W(8 ohm)    THD+N<10%
	Input requirement	Single +12v
	Screen power supply	3.3V,5V, 12V
	Power management	Low power consumption mode, stand by <1W(depending on the power supply)

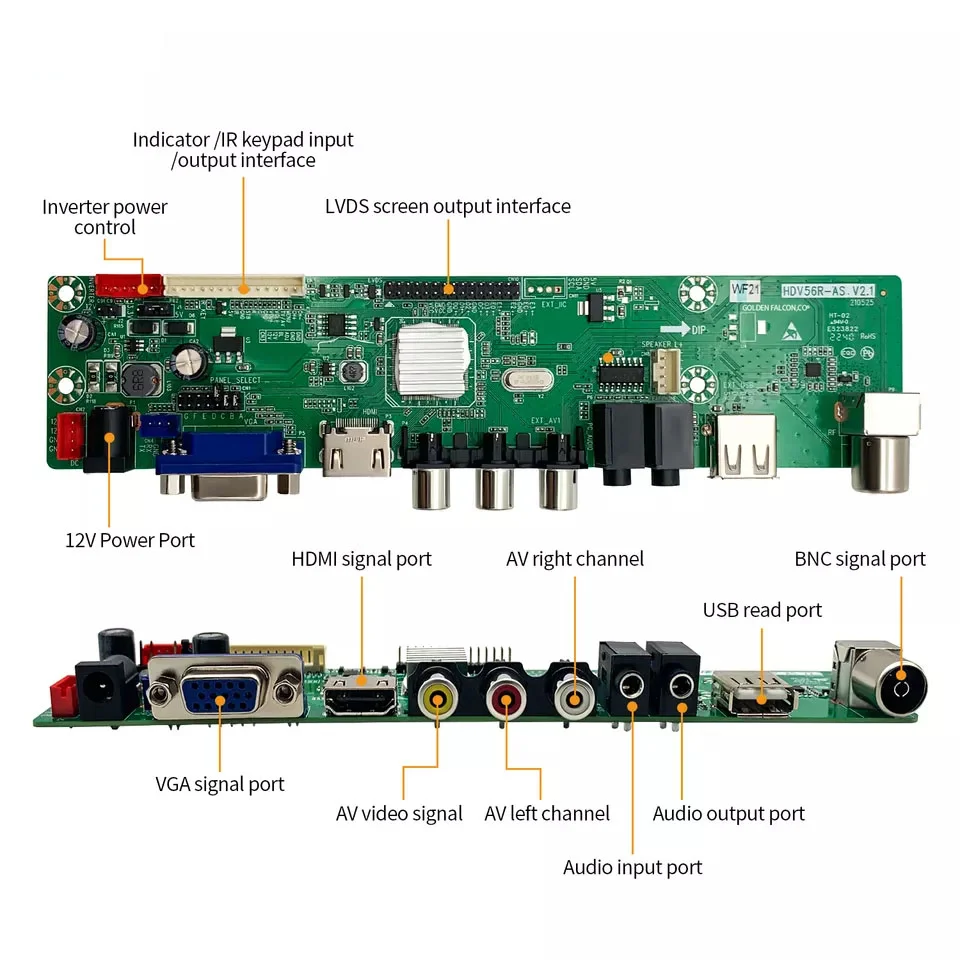

Port	Input	USB	1 USB horizontal socket
		HDMI	1 HDMI terminal
		Computer	1 D-SUB 15 pin terminal
		PC-RGB Audio	1 earphone socket(black)
		Video	1 RCA terminal(yellow)
		Audio	2 RCA terminals(white, red)
		TV	1 IEC connector 75
		Aberration	No
