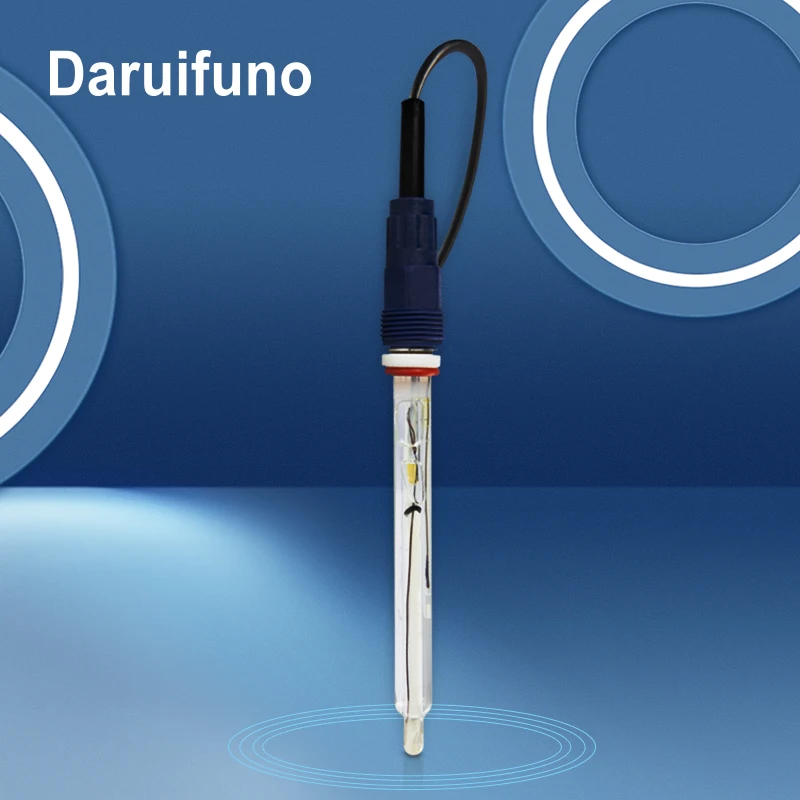

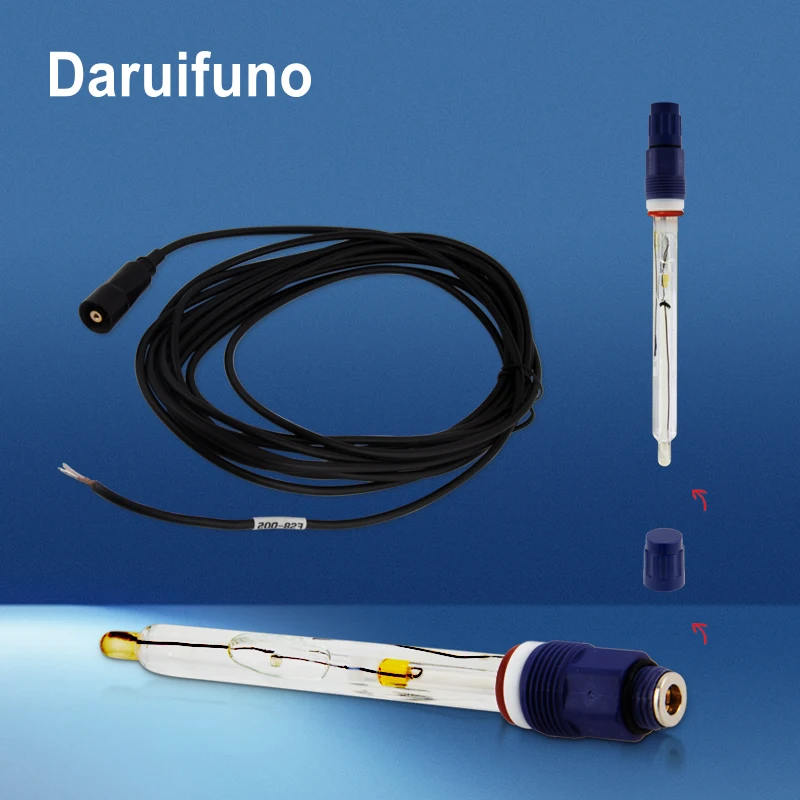

Hydrofluoric Acid Resistance Online Glass pH Sensor Electrode for Water
- Category: >>>
- Supplier: Suzhou Delfino Environmental Technology Co. Ltd.
Share on (1600968564672):
Product Overview
Description
Features Of pH Electrode
● Glass shell pH combination electrode;
● Low impedance cylindrical glass membrane;
● Large sensing area, fast response and high strength;
● The reference adopts a ceramic hole sand core, which is not easy to be blocked;
● The reference electrode is Ag/AgCl, and the reference is filled with KCL;
● The system is designed with double salt bridges;
● The tail of the electrode provides a PG13.5 size mounting thread for easier installation;

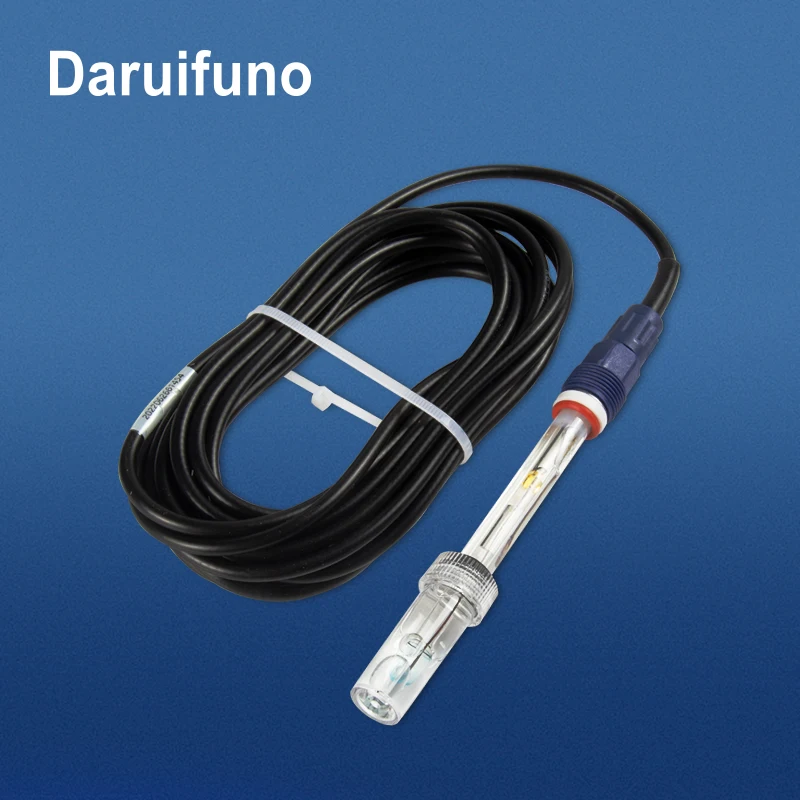

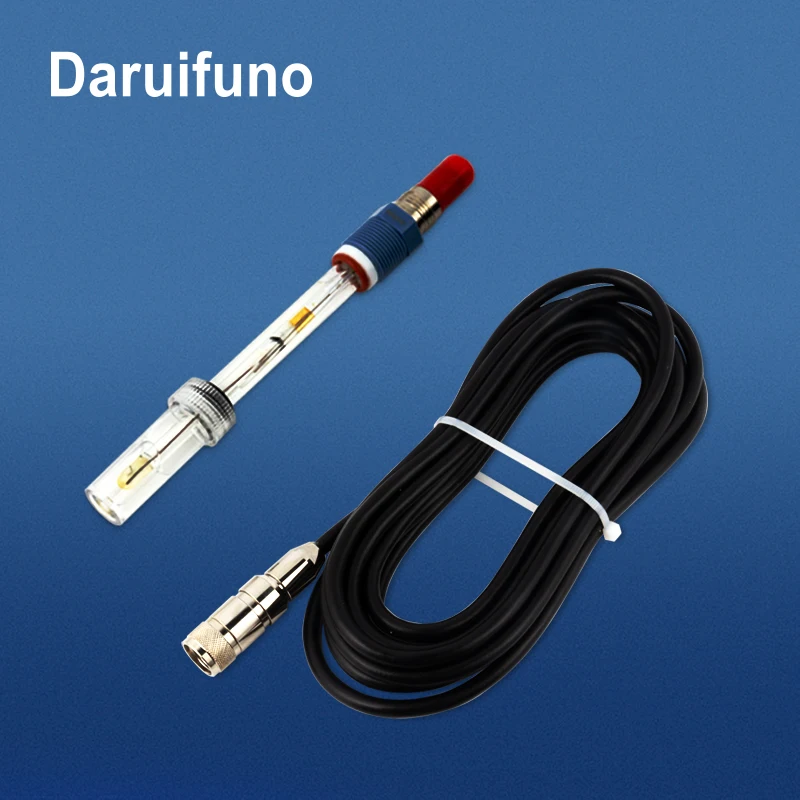

● Separate or integrated lead optional;
● Used in electronics, semiconductors, glass products, photovoltaics, etc., industries containing hydrofluoric acid in wastewater, hydrofluoric acid concentration ≤ 4000ppm;
● Optional with and without temperature unit, the temperature unit can be customized.
Specification Of pH Electrode
Product Name | PH sensor electrode |
Product Model | ASP124E |
Signal Type | Analog |
Measuring Range | 0~14pH |
Indicator Electrode | Low impedance cylindrical glass membrane |
Working Pressure | Medium and low temp environment: max. 0~6bar High temp environment: 0~3bar |
Operating Temperature | Medium and low temp environment: 0~80℃, continuously working High temp environment: 80~100℃, continuously working for less than 60 mins |
Sample Flow Rate | 0.5 m/s ≥ flow velocity ≥ 0.001 m/s |
Materials in contact with liquid | Glass+ceramic sand core |
Reference System | Ag/AgCl reference electrode, double salt bridge, KCl gel |
Shaft Material | glass |
Temperature Unit | PT100, PT1000, NTC10K customized |
Dimensions | Diameter 12mm / Length120mm (customized) |
Installation Dimensions | PG13.5 mounting thread or Anti-twist cap |
Zero（E0）pH | pH6.86 buffer solution：6.86±0.3 pH |
Slope（SLOP）% | pH4.01 pH6.86 buffer solution：>95% |
Signal Lead | Support orders within 60 meters |
Tail Lead | Integral or split |
