Ce Paste Guel/ Paint/ Motor Oil Homogenizing Mixing Tank With Agitatorlubricant Oil/adhesive/car Paint String Vessel
- Category: >>>
- Supplier: Yangzhou Boyou Machinery Co. Ltd.
Share on (1600968585302):
Product Overview
Description
Products Description

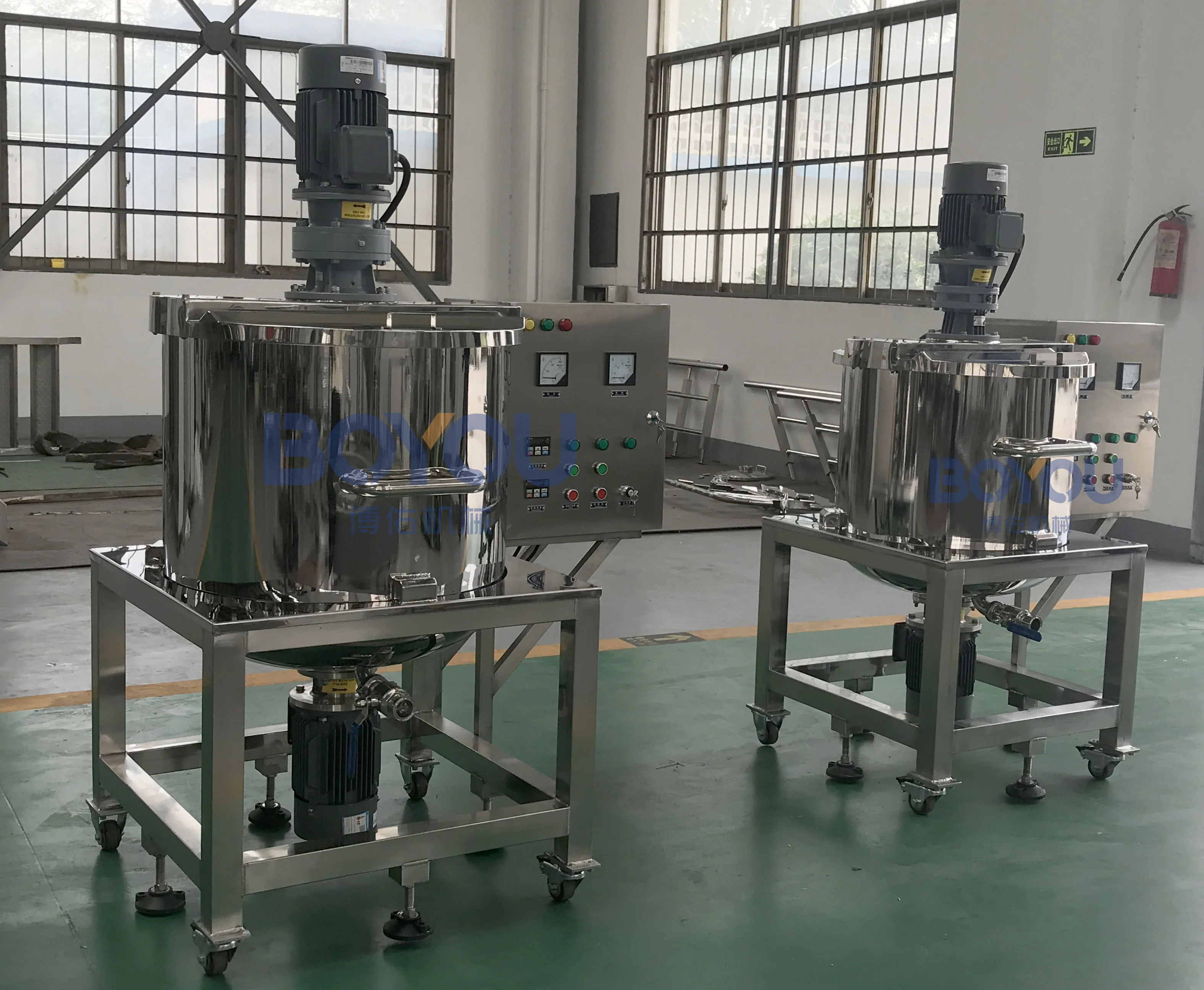

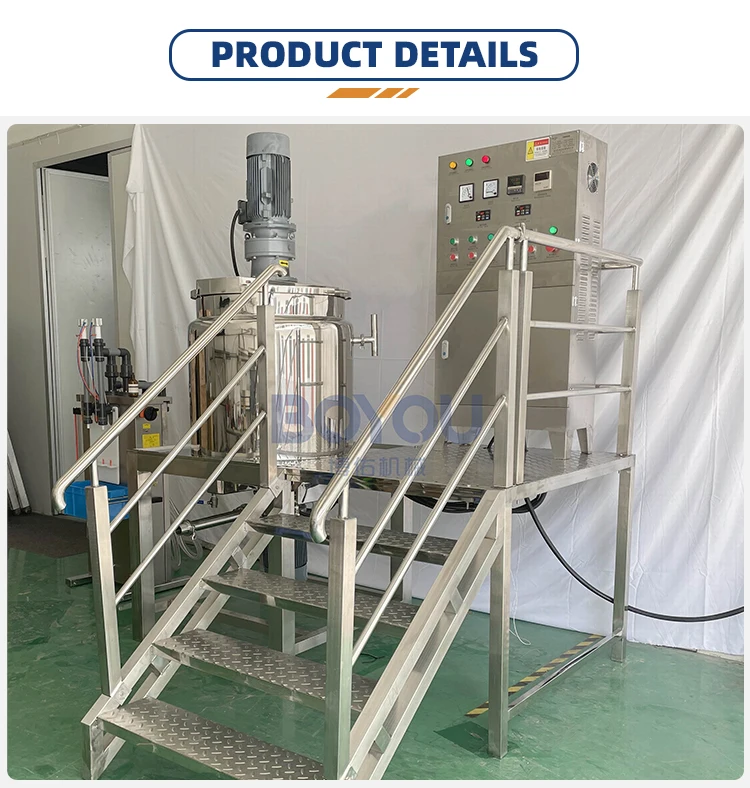

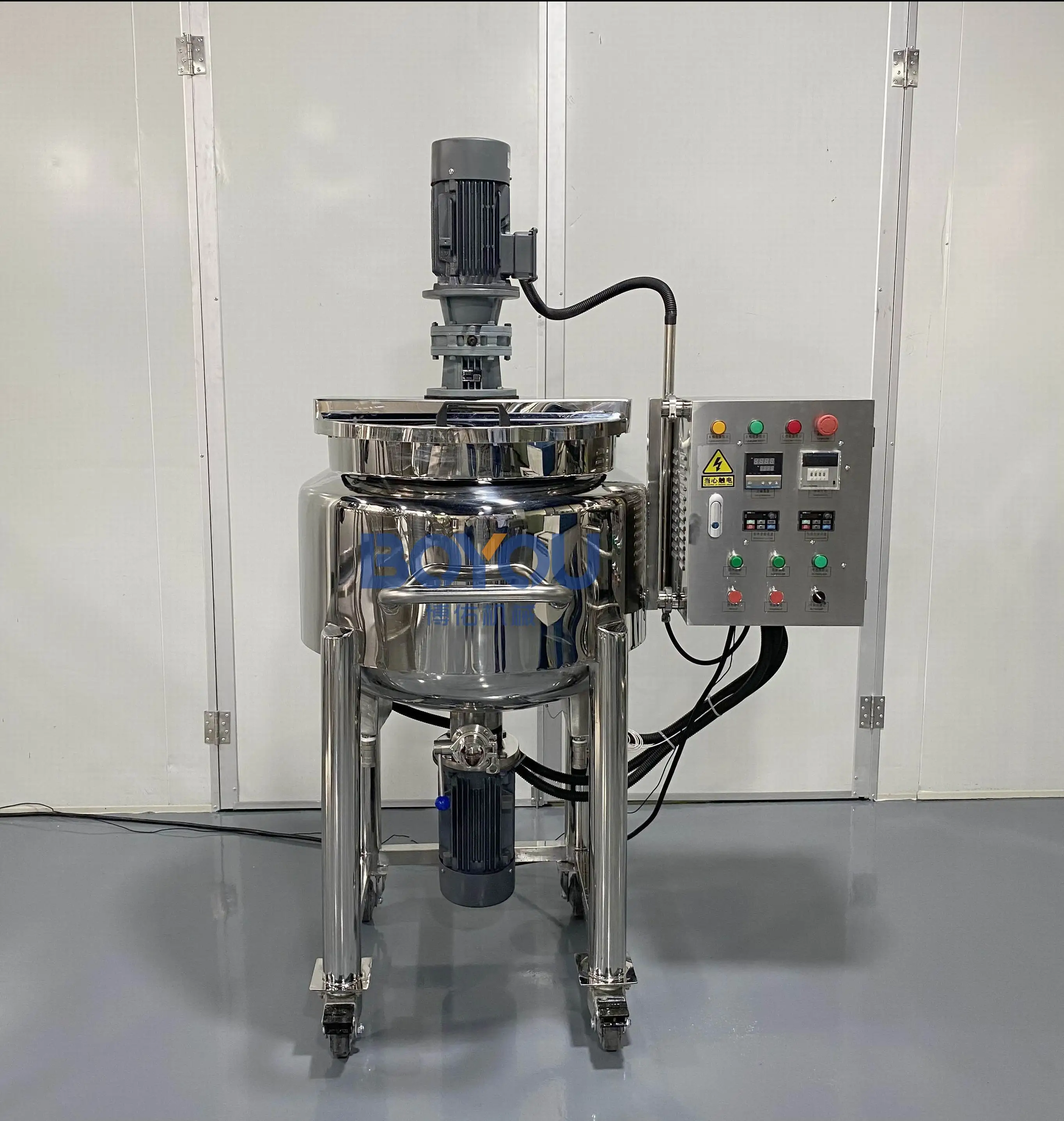

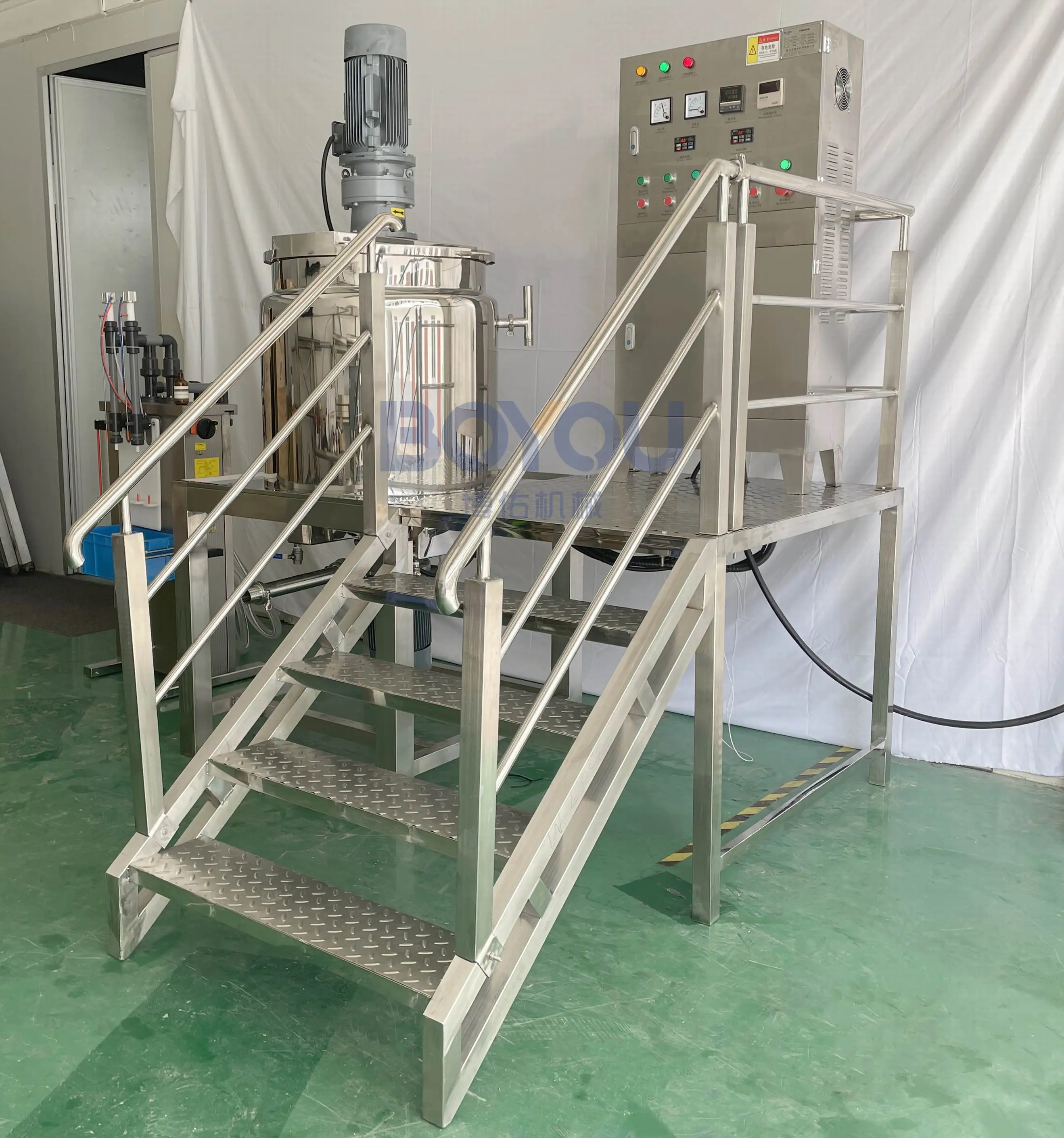

500L Jacketed Mixing Homogenizer Heating Reactor Emulsifying Mixer for Shampoo Detergent Liquid Soap Lotion Gel Production
The mixing tank is suitable for production of various types of liquid washing detergent, shampoo, body shower, gel, cosmetics, food and other industries.
The machine consists of:

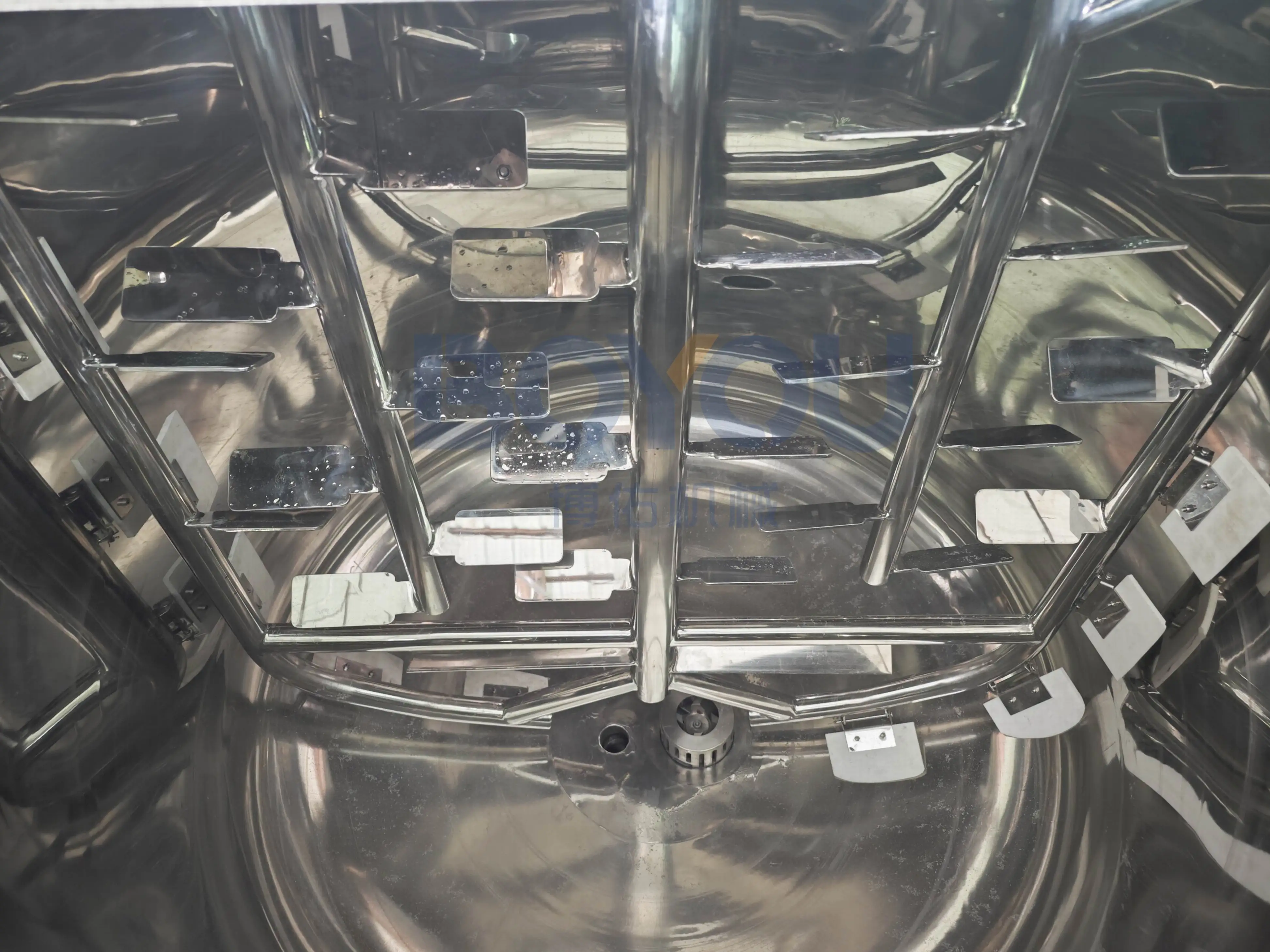

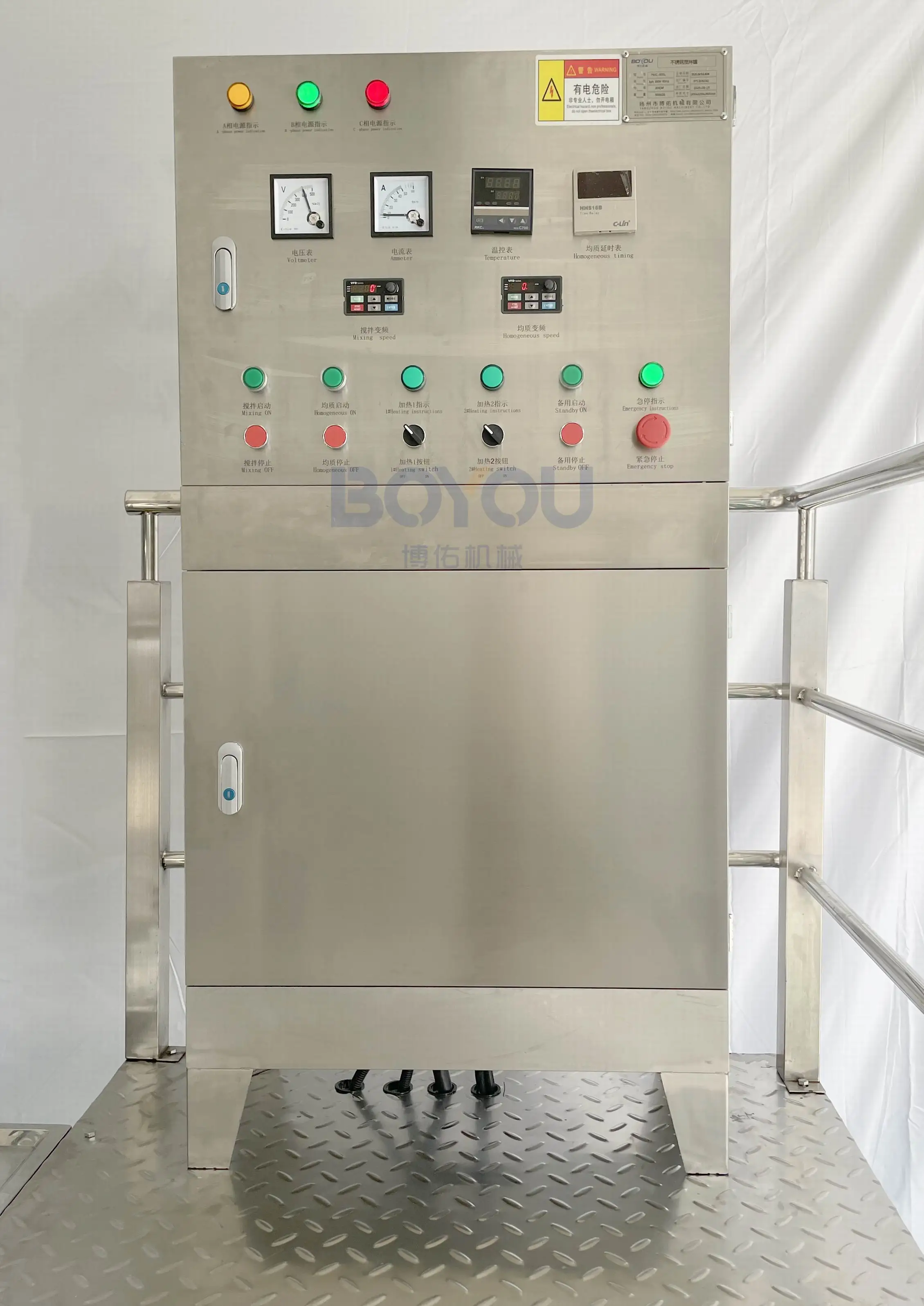

1. Top wall scraping mixing adopts the frequency converter for speed adjustment, so that high quality products of different processes can be met according to customer requirements.
2. Bottom high-speed homogenizer can powerfully mix solid and liquid raw materials and can rapidly dissolve many indissoluble materials such as AES , AESA , LSA , etc. during the liquid detergent production process so as to save energy
consumpion and shorten production period.

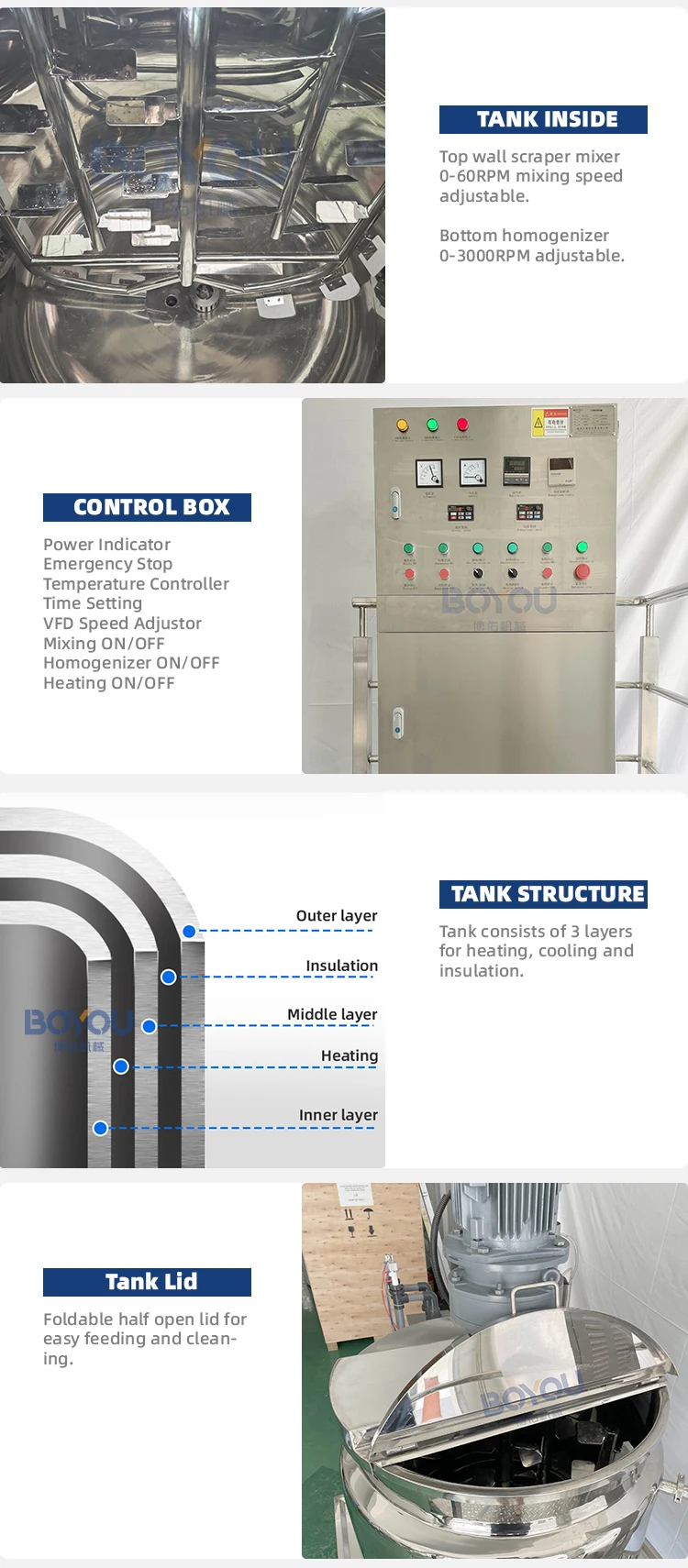

3. The pot body is welded by three-layer stainless steel plate. The tank body and the pipes adopt mirror polishing, which
fully conforms to GMP requirements.
4. According to customer requirement, the tank can heat and cool materials. The heating way including steam heating and electric heating.
fully conforms to GMP requirements.
4. According to customer requirement, the tank can heat and cool materials. The heating way including steam heating and electric heating.
5. Easy discharge, bottom direct discharge or by transfer pump.
Product Paramenters
Model | Capacity | Mixing Power/Speed | Homogenizer Power/Speed | Heating Method |
PMC-50L | 50 Liter | 0.55KW / 0-60RPM | 1.5KW / 0-3000RPM | |
PMC-100L | 100 Liter | 0.75KW / 0-60RPM | 2.2KW / 0-3000RPM | |
PMC-200L | 200 Liter | 1.5KW / 0-60RPM | 3.0KW / 0-3000RPM | |
PMC-300L | 300 Liter | 2.2KW / 0-60RPM | 4.0KW / 0-3000RPM | |
PMC-500L | 500 Liter | 2.2KW / 0-60RPM | 5.5KW / 0-3000RPM | |
PMC-1000L | 1000 Liter | 4KW / 0-60RPM | 11KW / 0-3000RPM | |
PMC-2000L | 2000 Liter | 5.5KW / 0-60RPM | 15KW / 0-3000RPM | |
PMC-3000L | 3000 Liter | 7.5KW / 0-60RPM | 18.5KW / 0-3000RPM | |
PMC-5000L | 5000 Liter | 11KW / 0-60RPM | 22KW / 0-3000RPM |
Product packaging
Company Profile
FAQ
1. Q: Are you factory?
A: Yes, we are a factory with more than 20 years manufacturing experience. Welcome to visit our factory. Only 1 hour fast train from Shanghai Train Station and 20 minutes from Yangzhou Airport.
2. Q: How long is the machine warranty? After warranty, what if we meet problem about the machine?
A: Our warranty is one year. After warranty we still offer you lifetime after-sales services. Anytime you need, we are here to
help. If the problem is easy to solve, we will send you the solution by email. If it doesn't work, we will send our engineers to
your factory.
3. Q: How do you control the quality before delivery?
A: We have our quality control department, they will do testing before shipment. Or we would like you to come to our factory to check the machines in person. If your schedule is busy, we can take a online video inspection for you.
4. Q: Are your machines difficult to operate? How do you teach us using the machine?
A: Our machines are installed well before shipment. When you get the machine, you only need to do some simple wiring connections. We also have marks on each wirings. And we also have the Manual to guide you to use the machine. You are welcome to contact us if you have any doubts on using the machine.
5. Q: Can you make the machine as per our request?
A: Yes, customized machines are acceptable. We can make the machine as per your request.
2. Q: How long is the machine warranty? After warranty, what if we meet problem about the machine?
A: Our warranty is one year. After warranty we still offer you lifetime after-sales services. Anytime you need, we are here to
help. If the problem is easy to solve, we will send you the solution by email. If it doesn't work, we will send our engineers to
your factory.
3. Q: How do you control the quality before delivery?
A: We have our quality control department, they will do testing before shipment. Or we would like you to come to our factory to check the machines in person. If your schedule is busy, we can take a online video inspection for you.
4. Q: Are your machines difficult to operate? How do you teach us using the machine?
A: Our machines are installed well before shipment. When you get the machine, you only need to do some simple wiring connections. We also have marks on each wirings. And we also have the Manual to guide you to use the machine. You are welcome to contact us if you have any doubts on using the machine.
5. Q: Can you make the machine as per our request?
A: Yes, customized machines are acceptable. We can make the machine as per your request.
