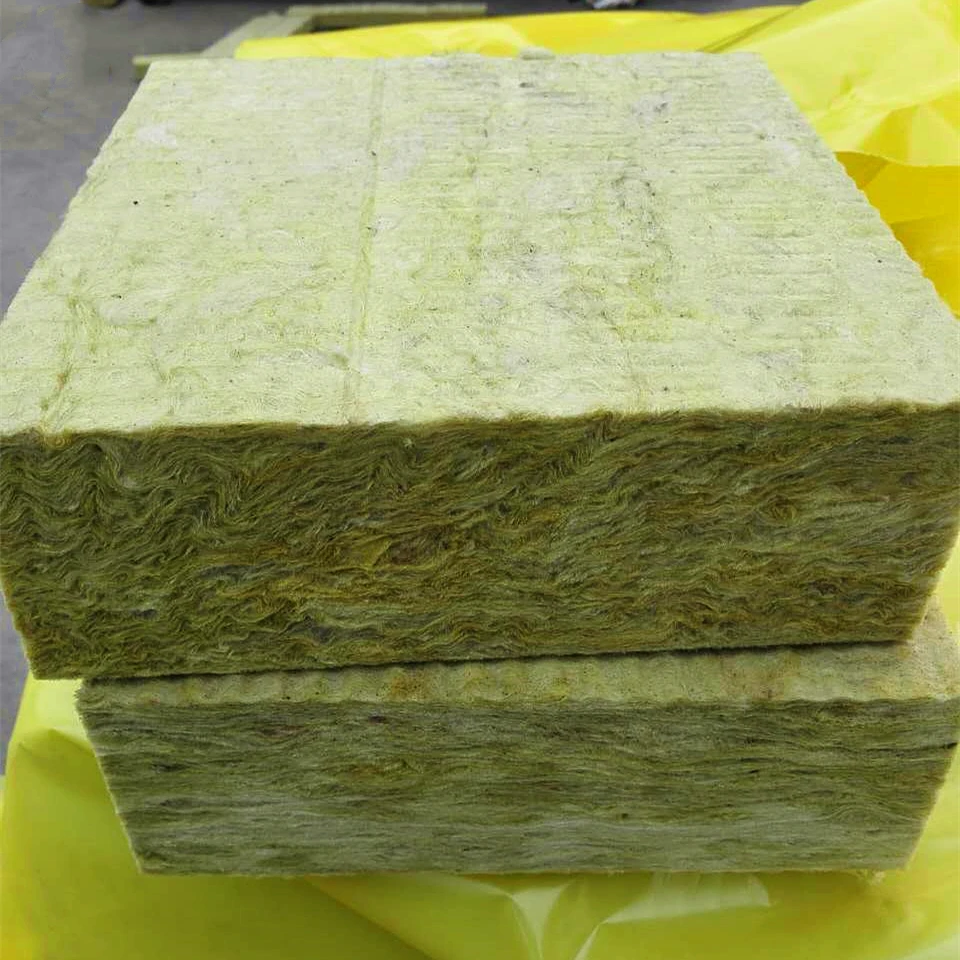

Luyang Marine and Offshore A60 A30 A15 Fire Resistant Basalt Rock Wool Panel
- Category: >>>
- Supplier: Luyang Energy-Saving Materials Co. Ltd.
Share on (1600968613168):
Product Overview
Description
Product Description

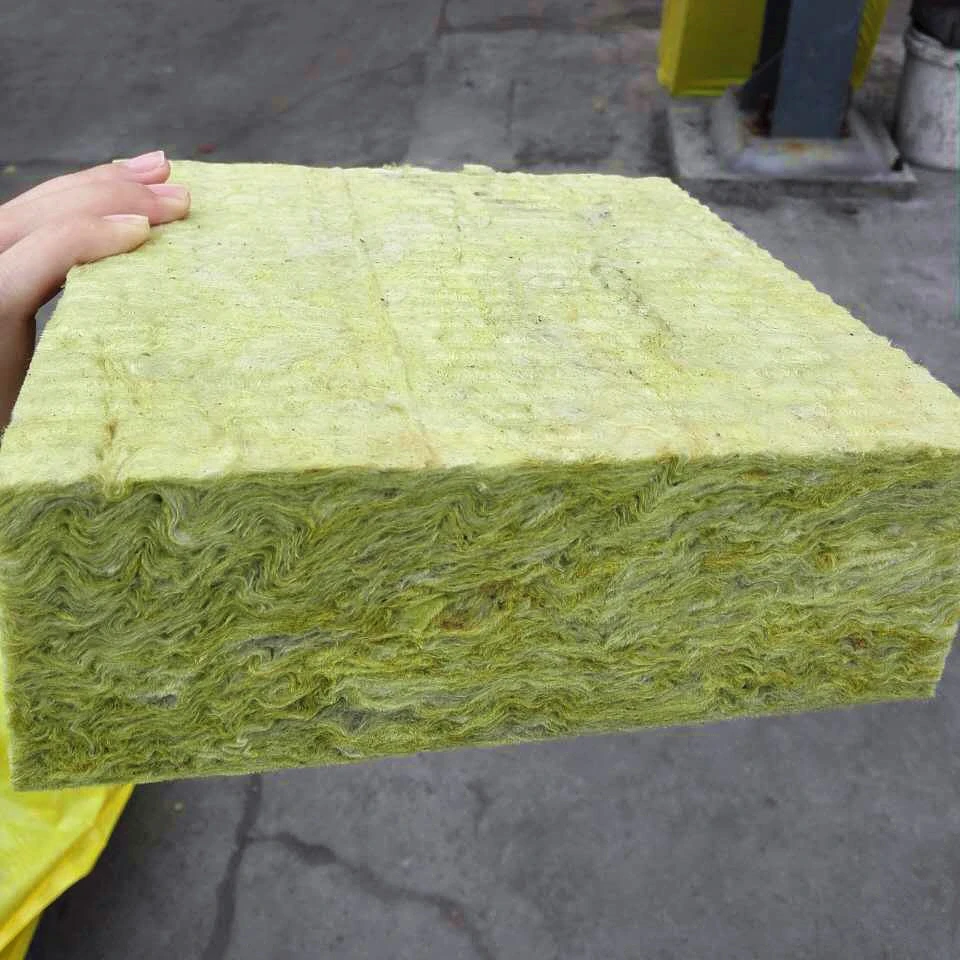

LUYANG Basalt Rock Wool
Luyang basalt rock wool is made of high-quality natural basalt ore as the main raw material, through high-temperature melting, high-speed centrifugal filament shaking, advanced three-dimensional production technology, adding a small amount of binder, and heat curing and setting.
Because of its natural rock material and porous structure, the product has excellent thermal insulation, sound insulation and fire resistance. In the case of fire, no smoke is produced, and the material is completely noncombustible. It can be used as the heat preservation, sound insulation and fireproof insulation of bulkhead, deck and equipment, pipeline, etc. It can also be used as the core material of the vessel sanitary unit, floating floor and composite wall. Its’ excellent compression and tensile properties,
very low water absorption, can meet the needs of various insulation ship.
Luyang basalt rock wool for marine can be based on customer demand, coated aluminum foil cloth or glass cloth and other decorative materials in the product surface.
Because of its natural rock material and porous structure, the product has excellent thermal insulation, sound insulation and fire resistance. In the case of fire, no smoke is produced, and the material is completely noncombustible. It can be used as the heat preservation, sound insulation and fireproof insulation of bulkhead, deck and equipment, pipeline, etc. It can also be used as the core material of the vessel sanitary unit, floating floor and composite wall. Its’ excellent compression and tensile properties,
very low water absorption, can meet the needs of various insulation ship.
Luyang basalt rock wool for marine can be based on customer demand, coated aluminum foil cloth or glass cloth and other decorative materials in the product surface.
Product Features
Thermal insulation: With low shot content, long and thin porous fiber structure, low thermal conductivity, excellent thermal
insulation effect.
Fireproofing: High quality raw materials, high temperature process, ensure the fireproof performance of products; will not produce fuel dripping, no toxic fumes produced.
Noise Reduction: A large number of internal rock wool fiber forming porous structure is communicated, high porosity, so that the rock wool products with high sound absorption characteristics.
Hydrophobic & Breathable: The hydrophobic technology of the product ensures that the rock wool is not damp absorbed and used for a long time on the ship, and the porous interconnection structure makes the product have good air permeability and moisture removal performance.
Good Strength: Three-dimensional production technologies is adopted to ensure the high pressure and high tensile strength of the product.
Healthy & Environment: No asbestos, non-carcinogenic, IARCY (International Agency for research on cancer) has been removed the rock wool from the list of "can cause cancer"; rock wool is chemically inert, neutral or alkaline water extract, no damage or corrosion and contact materials.
Applications: Products can be arbitrarily cut, convenient construction
insulation effect.
Fireproofing: High quality raw materials, high temperature process, ensure the fireproof performance of products; will not produce fuel dripping, no toxic fumes produced.
Noise Reduction: A large number of internal rock wool fiber forming porous structure is communicated, high porosity, so that the rock wool products with high sound absorption characteristics.
Hydrophobic & Breathable: The hydrophobic technology of the product ensures that the rock wool is not damp absorbed and used for a long time on the ship, and the porous interconnection structure makes the product have good air permeability and moisture removal performance.
Good Strength: Three-dimensional production technologies is adopted to ensure the high pressure and high tensile strength of the product.
Healthy & Environment: No asbestos, non-carcinogenic, IARCY (International Agency for research on cancer) has been removed the rock wool from the list of "can cause cancer"; rock wool is chemically inert, neutral or alkaline water extract, no damage or corrosion and contact materials.
Applications: Products can be arbitrarily cut, convenient construction
Products Technical Data
Item | Technical Data |
Density (kg/m3) | 45-150(±10%) |
Thermal conductivity(W/m.k) | ≤0.035 |
Organic content (%) | ≤3 |
Regular Size(mm) | 1200*600*(30-150) |
Application
Application | Scope | Density (kg/m3) | Thickness (mm) | Weight/M2 (kg/m2) | Package information | |||||
Fire division insulation | A60 deck | 45 | 50(stiffener30) | 2.25 | Can be one side or two side Covered With Aluminum Foil /or FG Cloth (Sewing /Stickup) | |||||
A60 bulkhead | 45 | 60(30+30) Stiffener30 | 2.70 | |||||||
A30 deck | 45 | 40(Stiffener30) | 1.6 | |||||||
A30 bulkhead | 45 | 30(Stiffener30) | 1.92 | |||||||
A15 deck | 45 | 30* | 0.96 | |||||||
A15 bulkhead | 45 | 30* | 1.6 | |||||||
Thermal and sound insulation | For wall and deck | 45-150 | 30-150 | 0.8-6.4 | ||||||
(* The stiffener of without any cover) | ||||||||||

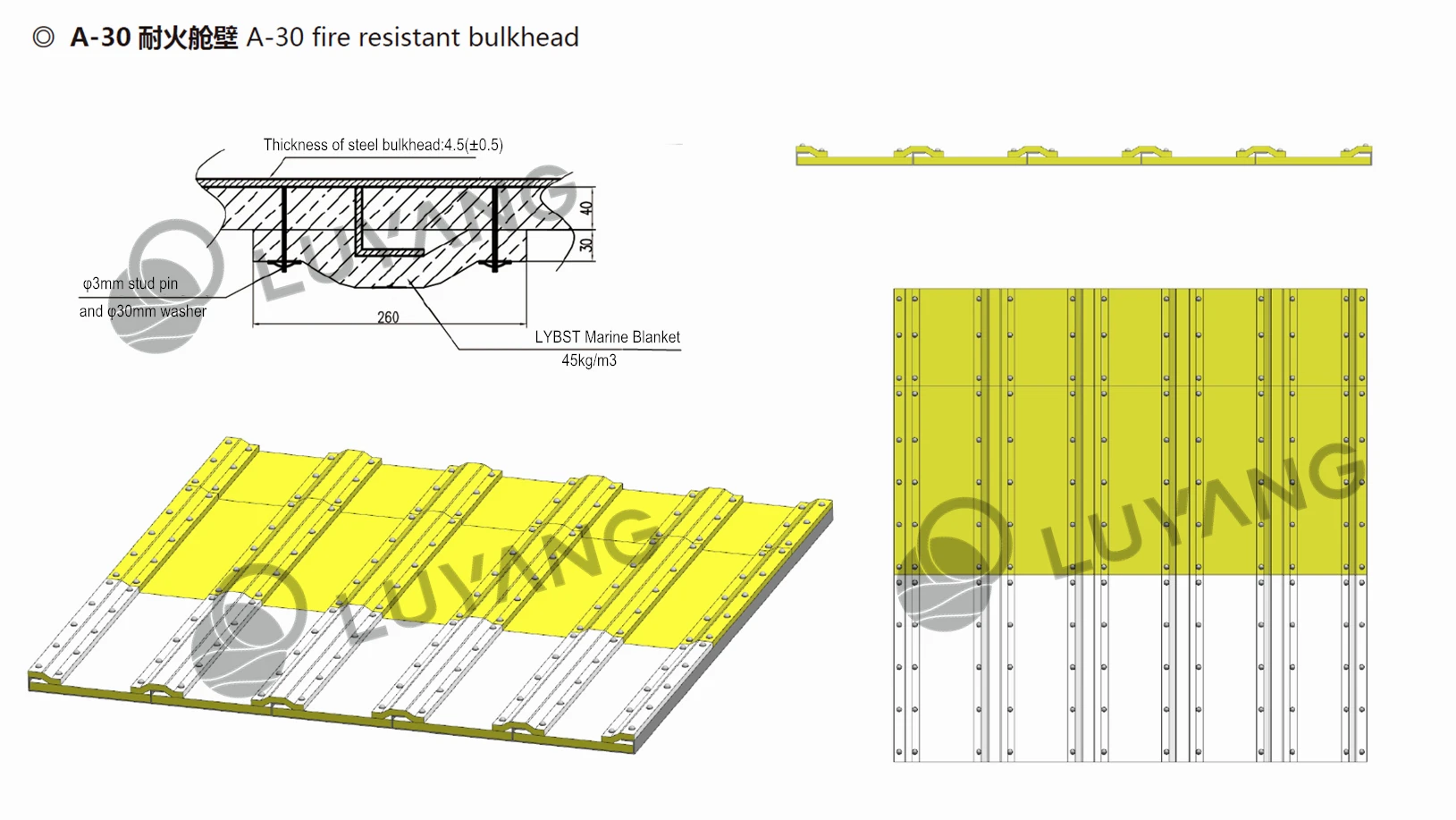

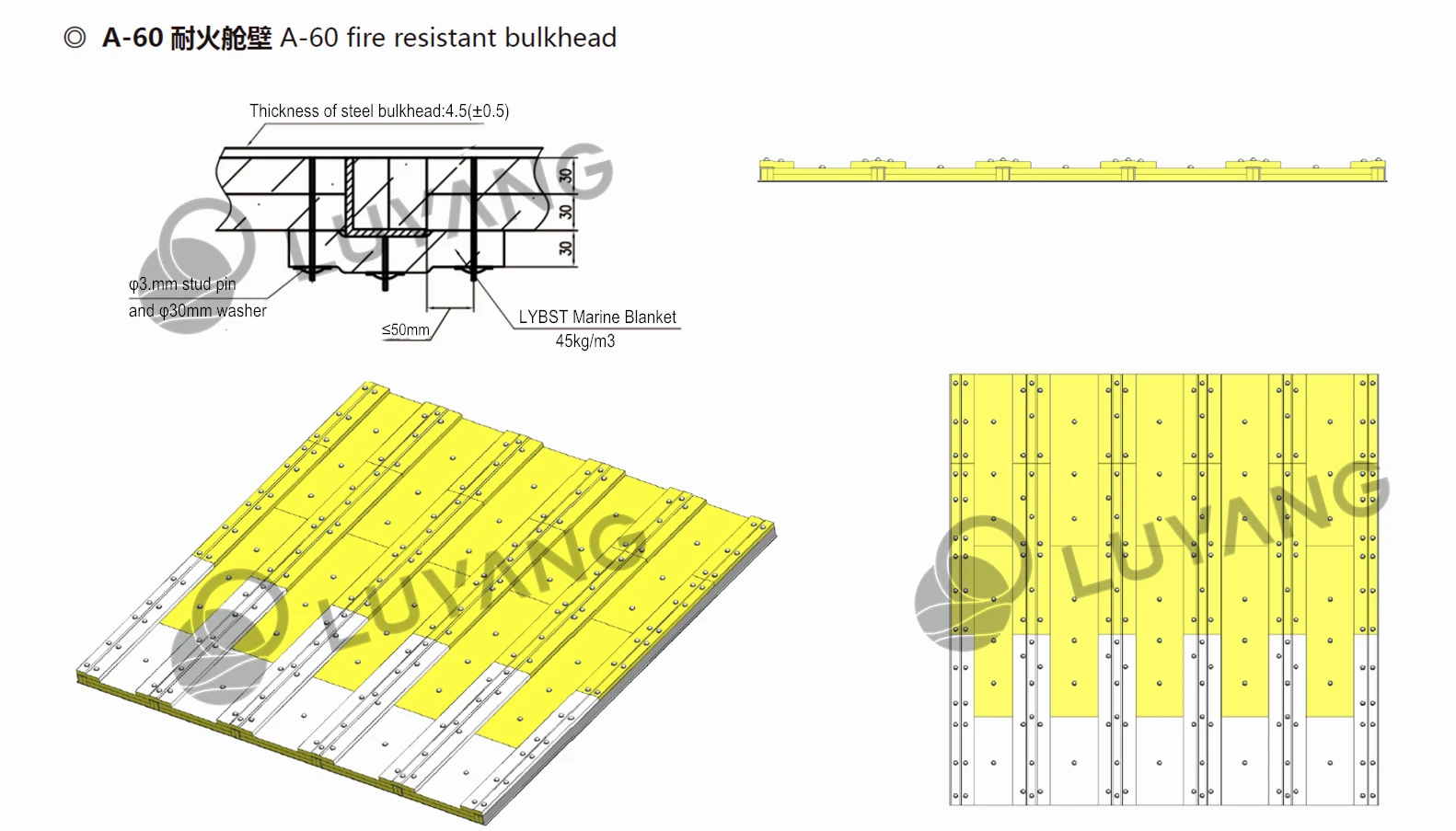

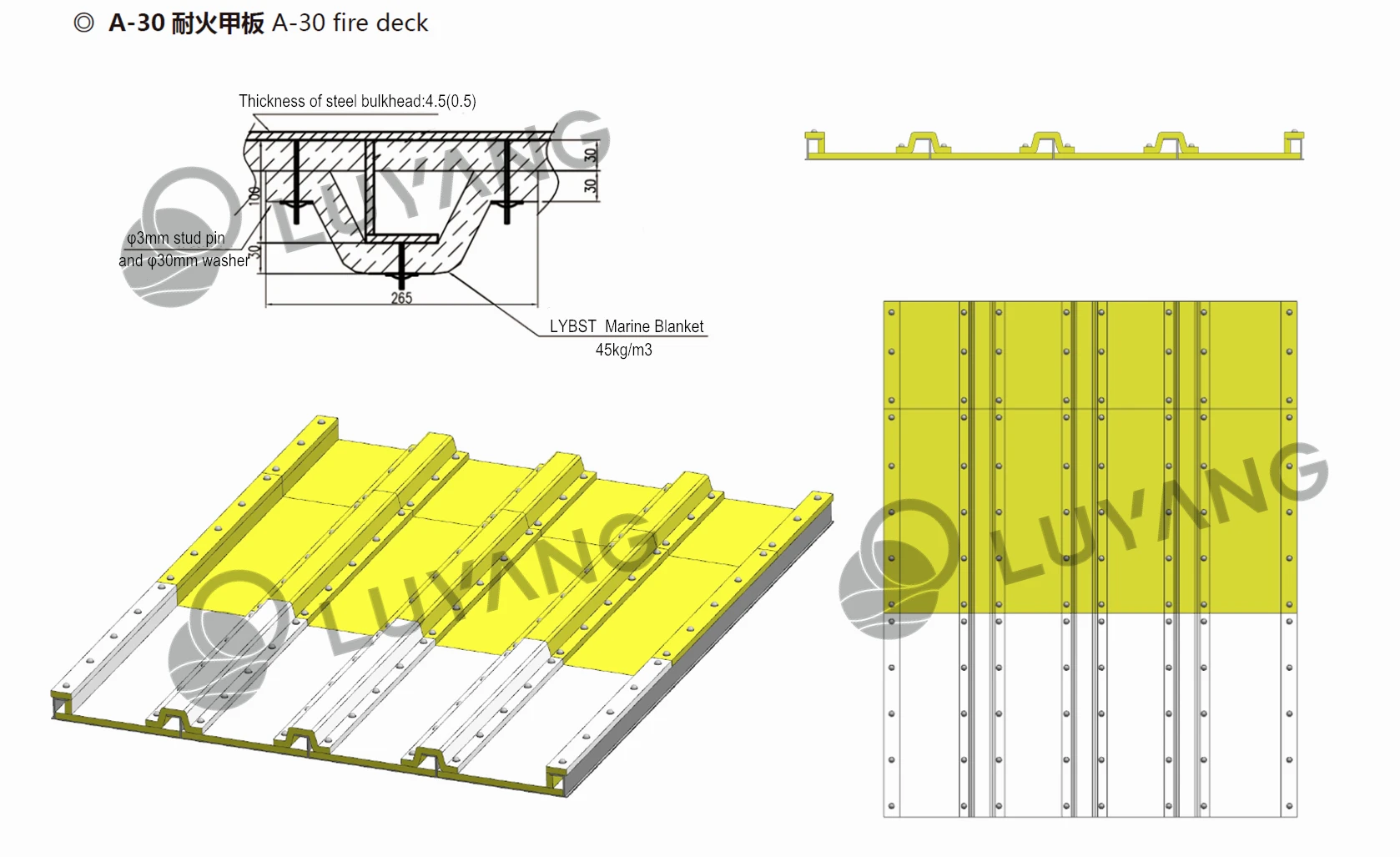

The installation diagram for A class system
Company Profile
Luyang Energy-saving Materials Co., Ltd. was established in 1984. Going through more than 35 years development, Luyang has become a world famous enterprise for new energy-saving materials researching, manufacturing and selling in the field of ceramic fibers, soluble fibers, alumina fibers, rock wool fibers and insulating firebricks.
Luyang has an annual output of 400,000 tons of various ceramic fiber products and 200,000 tons of rock wool products. Luyang has five production bases in Shandong, Inner Mongolia, Xinjiang, Guiyang and Suzhou.

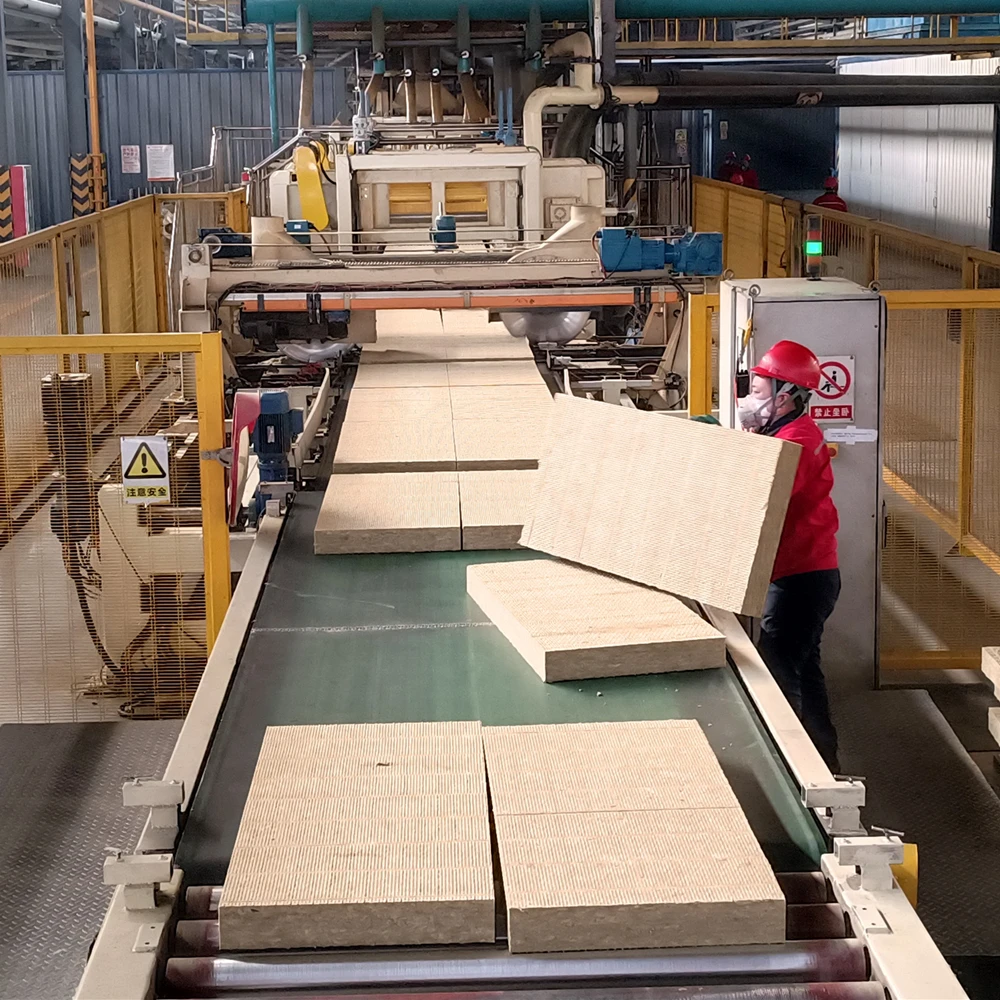

Production Line

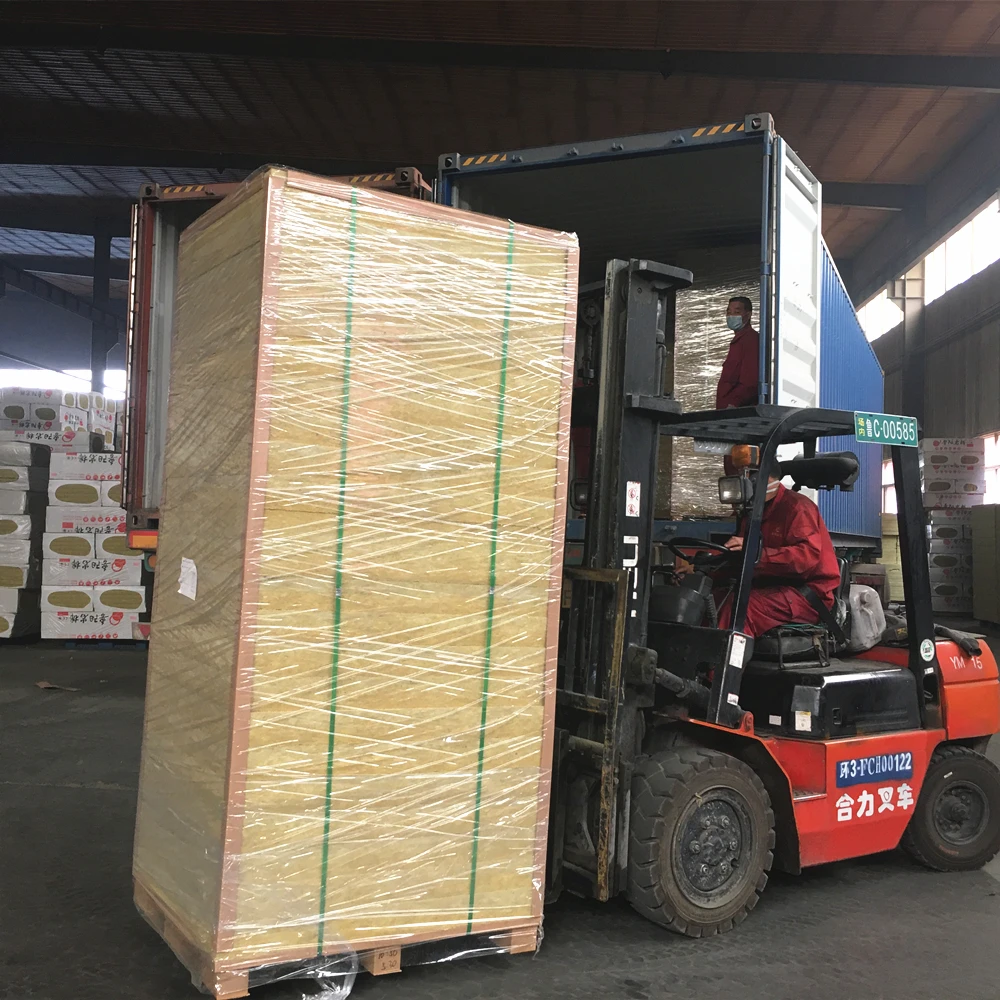

Packing & Delivery

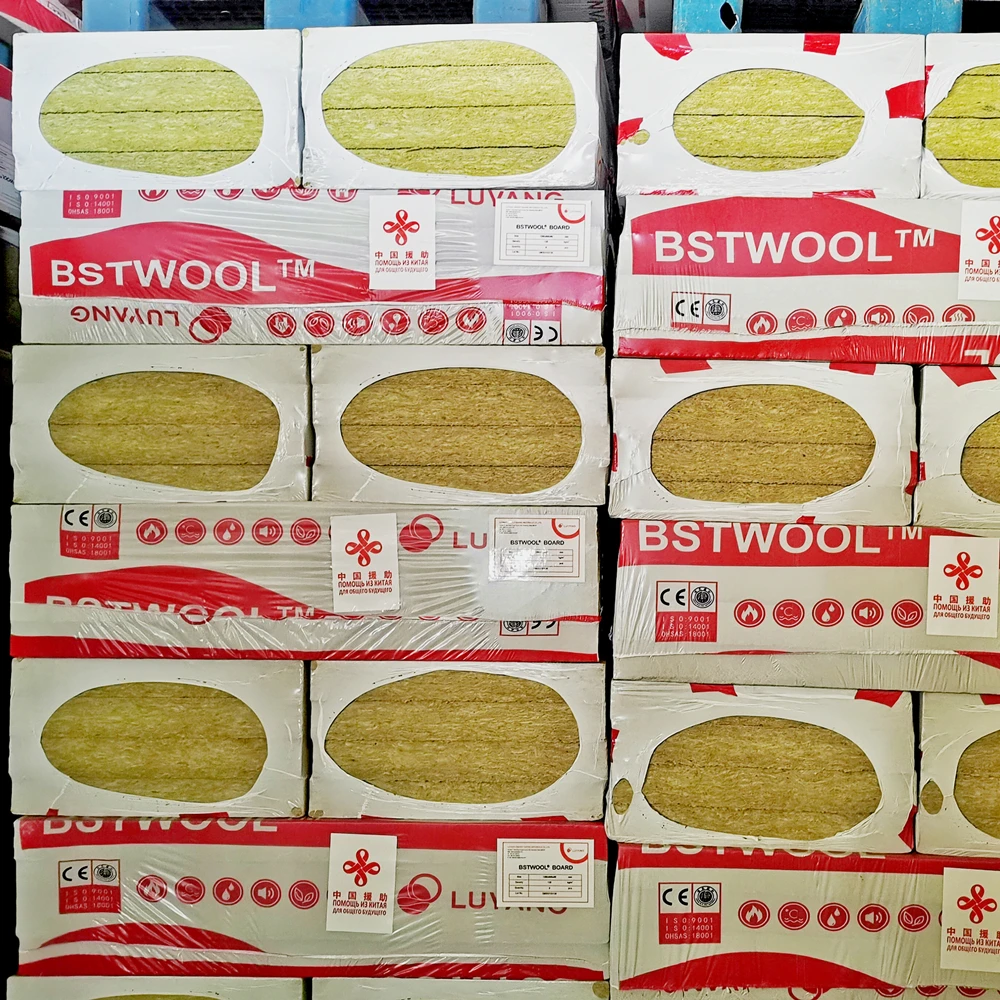

Luyang basalt rock wool board is wrapped by shrink film, or packed on pallet, or OEM. It's easy to load and un-load with forklift to save labor cost.
Luyang technology center has more than 30 professional researchers, identified as provincial technology center in 2007 and became national-recognized enterprise technology center in 2012. Luyang has 126 patents and 54 scientific and technological achievements.
We participate in more than 20 exhibitions at home and abroad every year. Through the exhibitions, we introduce our company's culture, our products and services we can provide, such as technical support, on-site construction support, etc.
FAQ
1.You are a manufacture or a trading company ?
5.Can we have a visit to your factory ?
We are a manufacturer founded in 1984, located in Shandong China, with 8 branches.We not only provide the high quality products with the best price, but also can offer the best pre-sale service and after-service.
2.What kind of product can you offer ?
Our company can offer all kind of refractory insulation materials. For example: Ceramic Fiber Products, Bio-Soluble Fiber Products, Alumina Fiber Products, Microporous Board, Insulating Firebricks, Calcium Silicate Products, Mineral Wool, Rock Wool Etc,.
3.Can you provide free samples ?
Free samples are available !
2.What kind of product can you offer ?
Our company can offer all kind of refractory insulation materials. For example: Ceramic Fiber Products, Bio-Soluble Fiber Products, Alumina Fiber Products, Microporous Board, Insulating Firebricks, Calcium Silicate Products, Mineral Wool, Rock Wool Etc,.
3.Can you provide free samples ?
Free samples are available !
4.What is your MOQ?
We don't have particular MOQ, we can accept any order for any different projects.Price depends on quantity.
We don't have particular MOQ, we can accept any order for any different projects.Price depends on quantity.
5.Can we have a visit to your factory ?
Yes! Of course,welcome to visit our factory at anytime on site or online !
6.What's the lead time?
Generally it is 5-15 days, or shorter, if the goods are in stock.Or it is 15-30 days, it is according to quantity.
Generally it is 5-15 days, or shorter, if the goods are in stock.Or it is 15-30 days, it is according to quantity.
