77Gzh 79G Millimeter Wave Radar Blind Spot Detection System BSD BSM LCA RCTA AOA Microwave Radar Blind Spot Monitoring Variable
- Category: >>>
- Supplier: Nanjing Energy Intelligent Co Ltd.
Share on (1600968664377):
Product Overview
Description
Product Description

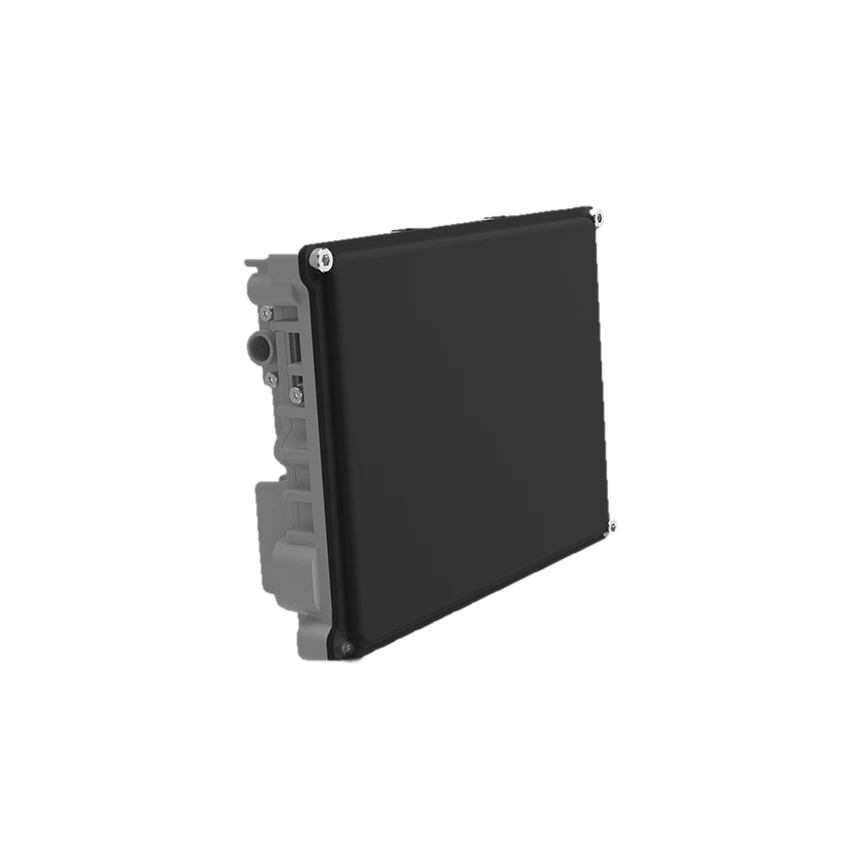

4D Imaging Radar Sensor- A1

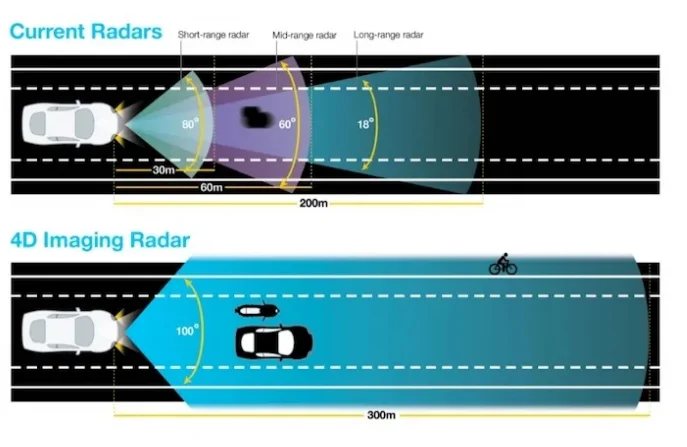

4D imaging radar is high-resolution, long-range sensor technology that offers significant advantages over 3D radar, particularly when it comes to identifying the height of an object. This technology is important in the development of advanced driver-assistance systems (ADAS) for some Level 2 and 3 functions, and is a key enabler for Level 4 and 5 automated vehicles.
☆High Resolution
☆High Sampling Points
★Long Detection Range
★Long Detection Range
★High Sampling Rate
☆High Point Cloud Density
☆High Point Cloud Density
☆Big Number Of Target Detection
★Working In Any Weather
★Working In Any Weather
★Low Cost
Maximum detection range | 350 m | Weight | < 500g |
Distance accuracy | 0.03 m | Size | 130 x 90 x 39 mm |
Resolution of range | 0.05 m | Interface | Ethernet + CAN-FD |
Horizontal maximum detection Angle | 120° | Voltage | 9~36V |
Horizontal Angle accuracy | 0.1° | Power | ≤ 20W |
Horizontal Angle resolution | 0.4° | Temperature | -40 ~ +85 |
Vertical maximum detection Angle | 60° | Anti-Dusk/Water | IP69K + IP67 |
Vertical Angle accuracy | 0.1° | Installation | Bracket Mounting |
Vertical Angle resolution | 0.8° | Power Supply Model | KL15 or KL30 Compatible |
Maximum velocity detection range | -360 to 180 kph | Frequency | 79 GHz |
Speed precision | 0.027 m/s | Instantaneous maximum current | 3A |
Resolution of velocity | 0.2 m/s | Quiescent current | ≤ 100μA |
Maximum point cloud output | 160,000/s | ||
Maximum target output | 256/cycle |
