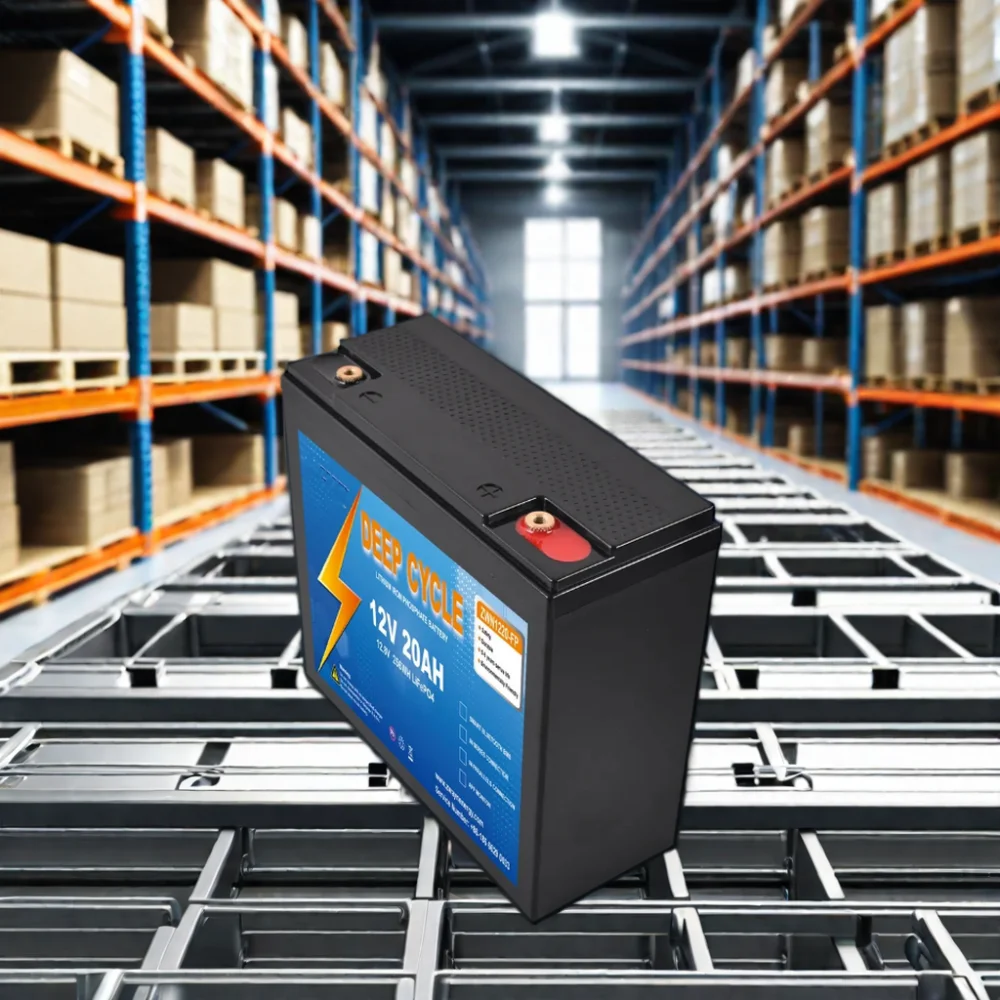

Deep Cycle 12V 24V 7AH 20AH 50AH 100AH 200AH 300AH Lifepo4 Li Ion Lithium Ion Battery for Home Energy Storage with BMS
- Category: >>>
- Supplier: Shenzhen Zooming Electronic Co. Ltd
Share on (1600968680487):
Product Overview
Description
Product Description
Model | ZWN-1207LFP | ZWN-1220FP | ZWN-1250FP | ZWN-12100FP | ZWN-12200FP | ZWN-12300FP | |||||
Nominal Voltage | 12.8V | ||||||||||
Nominal Capacity @25℃ | 7AH | 20AH | 50AH | 100AH | 200AH | 300AH | |||||
Nominal Energy @25℃ | 89.6WH | 256WH | 640WH | 1280WH | 2560WH | 3840WH | |||||
Battery Cell Type | Cylinder (32700 or 26650) | Prismatic 50Ah | Prismatic 100Ah | Prismatic 200Ah | Prismatic 300Ah | ||||||
tion (*S*P) | 4S1P | 4S3P | 4S3P | 4S1P | 4S2P | 4S3P | |||||
Max. Continous Charge Current @25℃ | 7A | 20A | 50A | 100A | 200A | 300A | |||||
Max. Continous Discharge Current @25°C,10s | 7A | 20A | 50A | 100A | 200A | 300A | |||||

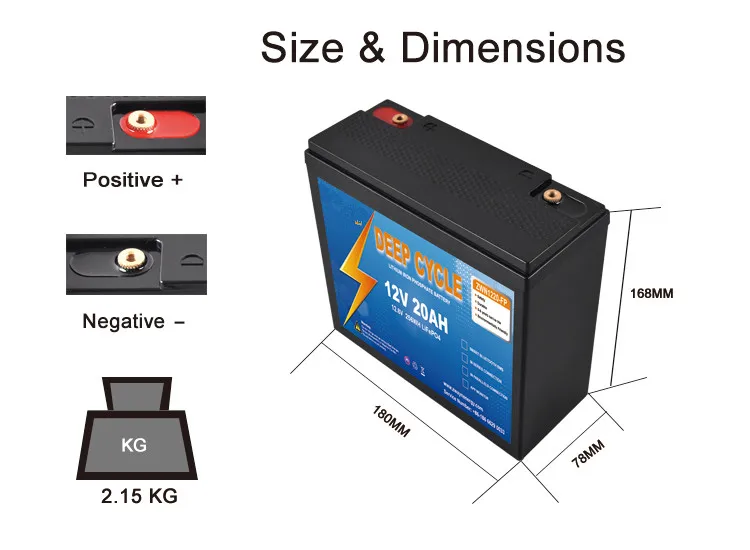

Dimension (mm) | 152*65*94mm | 180*172*77mm | 229*138*208mm | 326*171*215mm | 522*240*218mm | 520*240*218mm | |||||
Weight (KG) | 1.1KG | 3KG | 7KG | 13.5KG | 25KG | 30.5KG | |||||
DC Resistance | ≤10mΩ | ||||||||||
Full Charged Voltage | 14.6V | ||||||||||
Discharge Cut-off Voltage | 10V | ||||||||||
Operate Temperature Range | Charge: 0˚C~55˚C; Discharge: -20˚C~60˚C; Storage: -20˚C~45˚C | ||||||||||
Humidity (non-condensing) | Max. 95% | ||||||||||
Terminal Type | F1 terminal | Screw terminal | |||||||||
Cover Sealing type | Screw / gel sealing optional | ||||||||||
Waterproof | IP65 | ||||||||||
Cycle life | 100% DOD Cycles @ 25°C, 1C/1C: >2000 times; 80% DOD Cycles @ 25°C, 1C/1C: >3000 times 50% DOD Cycles @ 25°C, 1C/1C: >5000 times | ||||||||||
Service Life | 5-10 years | ||||||||||
Warranty | 3 years | ||||||||||

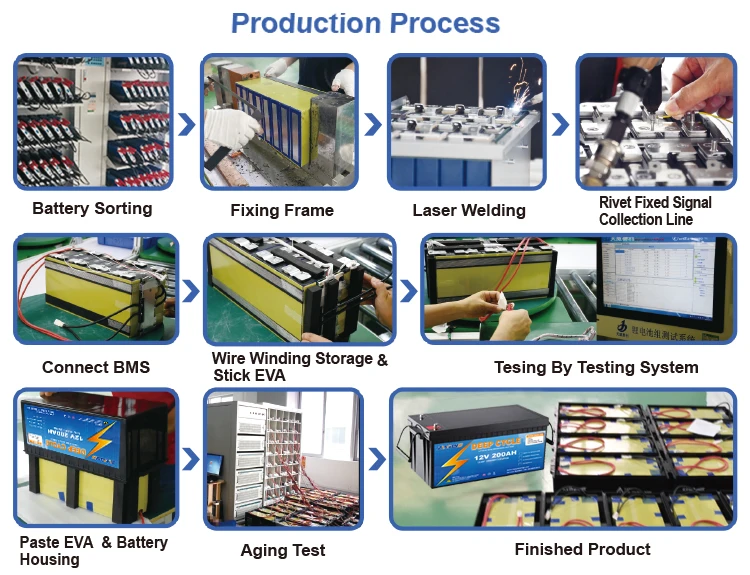

Factory Show
Battery capacity detector
Battery cell before assembling will be tested the capacity,internal resistant, etc. grading test.
Battery cell sorting
Automatic sorting machine,test voltage and inner resistance.
Automatic welder
Battery is assembled by battery plastic holder-orderly and good for heat radiation, etc.
Automatic welder welding battery pack.
Aging Testing
All battery pack will do two aging test, one is PVC packs, one is after housing.
Packing&Shipping
To solve the problems such as high transportation cost, unstable shipping schedule, or unable to transport battery products, we have professional and long cooperated battery transportation forwarders to solve international transportation problems for you.
FAQ
Q.What is special about lithium batteries?
A: With high energy density, it has reached 460-600Wh/kg, which is about 6-7 times that of lead-acid batteries. Long service life, life span can reach more than 6 years. Light weight, the weight is about 1/5-6 of the lead-acid product under the same volume.
Q.Are your batteries safe?

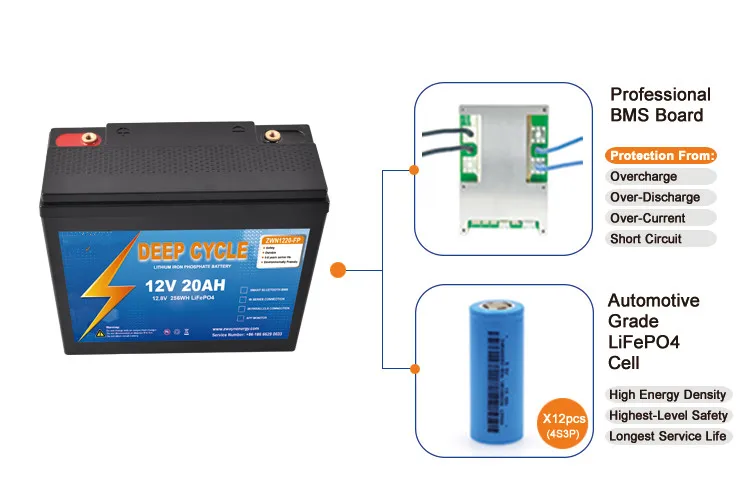

A: Our batteries are safe. All Apke batteries use the safest and most stable components, including a LiFePO4 cathode and a built-in Battery Management System (BMS). The BMS protects the cells against excessively high or low voltages, high currents,short circuits, and excessive heat or cold. These are the most common causes of battery failures, and we have taken every precaution to mitigate these risks in all of our batteries.
Q.Can these battery pack be compatible with my inverter? do you have a company list of the inverter which is compatible?
A:Yes,our battery pack can compatible with most brand of inverter on the market, such as Deye, MUST, SMA, Growatt,Solax,Solis,Sungrow, Sofar, Voltronic, Sorotec, Studer, etc. Contact us and let me tell you more.
Q: How long is the warranty period?
A: Our limited warranty is valid for a period of 5 years after delivery. It is restricted by specifications and warranty terms.
Q: Can we print our logo on products?
A: Of course, we can provide one to one customized OEM with a MOQ demand.
Q: How long is the estimated delivery time?
A: The delivery time is usually 28 days after receiving the payment.
Q: Are you able to handle shipment transportation?
A: Sure, we can arrange the shipment to most places as required.
Q: What kind of certification do you have?
A: In general, we have SGS TÜV Saar, IEC 62040-1, IEC 62109-1, IEC 62109-2, IEC 62619, UN38.3, IEC 62133, CEC, UL, MSDS, ISO 9001 certifications, but each type of product may be different.
Q.Are your batteries safe?
A: Our batteries are safe. All Apke batteries use the safest and most stable components, including a LiFePO4 cathode and a built-in Battery Management System (BMS). The BMS protects the cells against excessively high or low voltages, high currents,short circuits, and excessive heat or cold. These are the most common causes of battery failures, and we have taken every precaution to mitigate these risks in all of our batteries.
Q.Can these battery pack be compatible with my inverter? do you have a company list of the inverter which is compatible?
A:Yes,our battery pack can compatible with most brand of inverter on the market, such as Deye, MUST, SMA, Growatt,Solax,Solis,Sungrow, Sofar, Voltronic, Sorotec, Studer, etc. Contact us and let me tell you more.
Q: How long is the warranty period?
A: Our limited warranty is valid for a period of 5 years after delivery. It is restricted by specifications and warranty terms.
Q: Can we print our logo on products?
A: Of course, we can provide one to one customized OEM with a MOQ demand.
Q: How long is the estimated delivery time?
A: The delivery time is usually 28 days after receiving the payment.
Q: Are you able to handle shipment transportation?
A: Sure, we can arrange the shipment to most places as required.
Q: What kind of certification do you have?
A: In general, we have SGS TÜV Saar, IEC 62040-1, IEC 62109-1, IEC 62109-2, IEC 62619, UN38.3, IEC 62133, CEC, UL, MSDS, ISO 9001 certifications, but each type of product may be different.
