3SSH1.6/80 D36/400 solar water pump submersible pump with MPPT controller
- Category: >>>
- Supplier: Ningbo Jilu Leader Drive Technologies Co. Ltd.
Share on (1600969023976):
Product Overview
Description

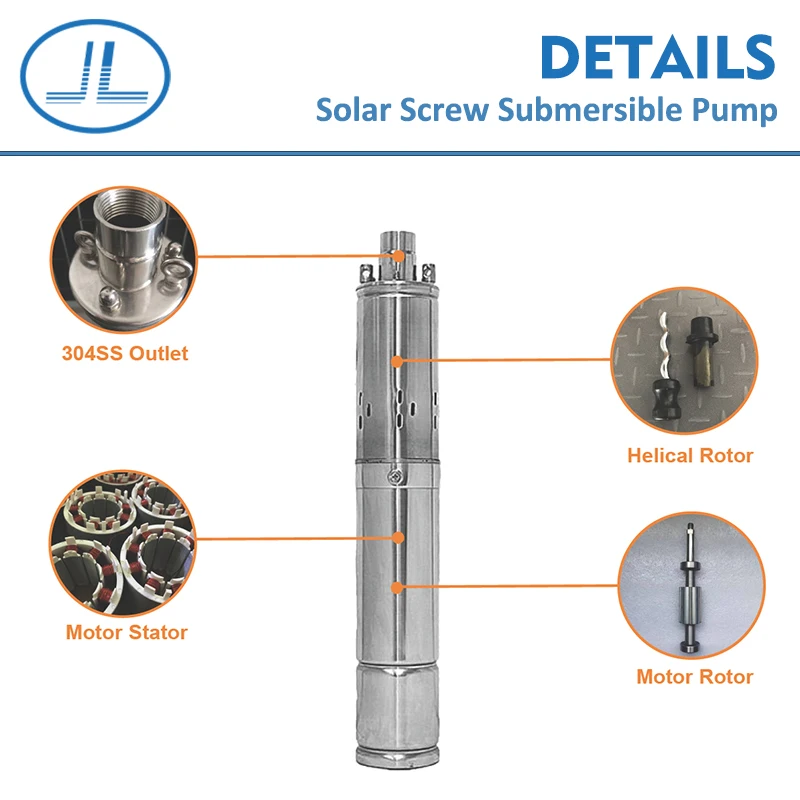

PUMP DETAILS
NEMA Standard
Coupling of pump end
NEMA Standard
Connection and splines
Outlet/Discharge
AISI 304SS
Helical Rotor
304SS and Rubber
Pump Tube
AISI 304 SS
NSK Bearing
1pc front bearing
★Double end bearing
Mechanical Seal
High sand resistance and IP68 protection degree.
Ceramics and Carbon
Sand Guard
Helps to prevent sand inside the water entering in mechanical seal then to motor.
Motor Rotor
Shaft - AISI 304 Stainless Steel
Rotor lamination - Higher than
required corresponding motor
power
Magnetic steel - N35UH NdFeB
Magnet
Motor Stator
Reinforced plastic bobbin
100% enamelled copper wire
Stator lamination - Higher than required corresponding motor power
Motor Pressure Test
Motor leakage test
5KGS pressure
90 seconds
Twice

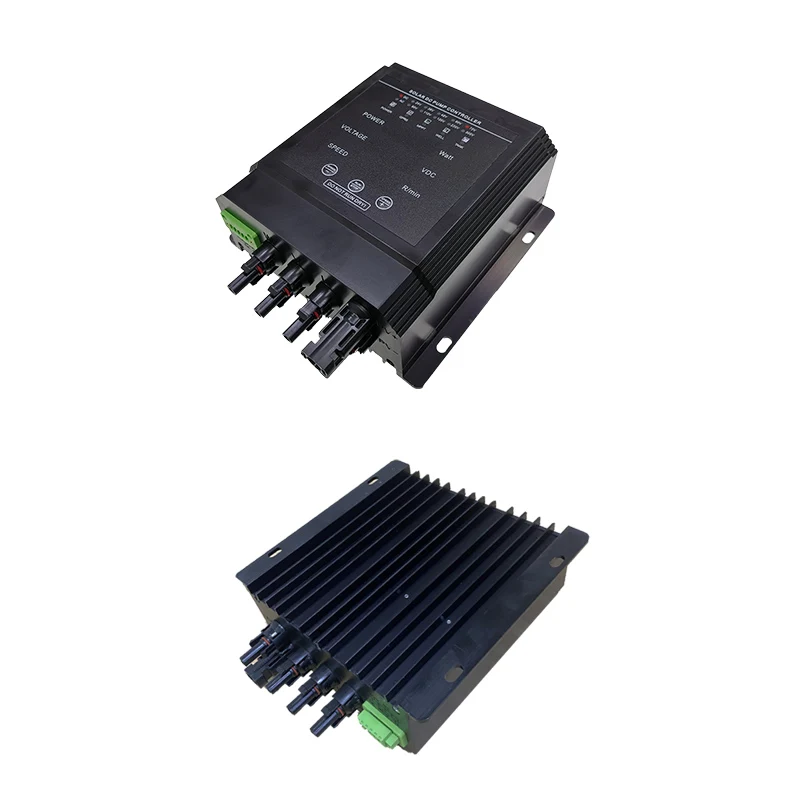

CONTROLLER DETAILS
Classic Version
Cable water joint
Lockhole for safe
Mounting holes

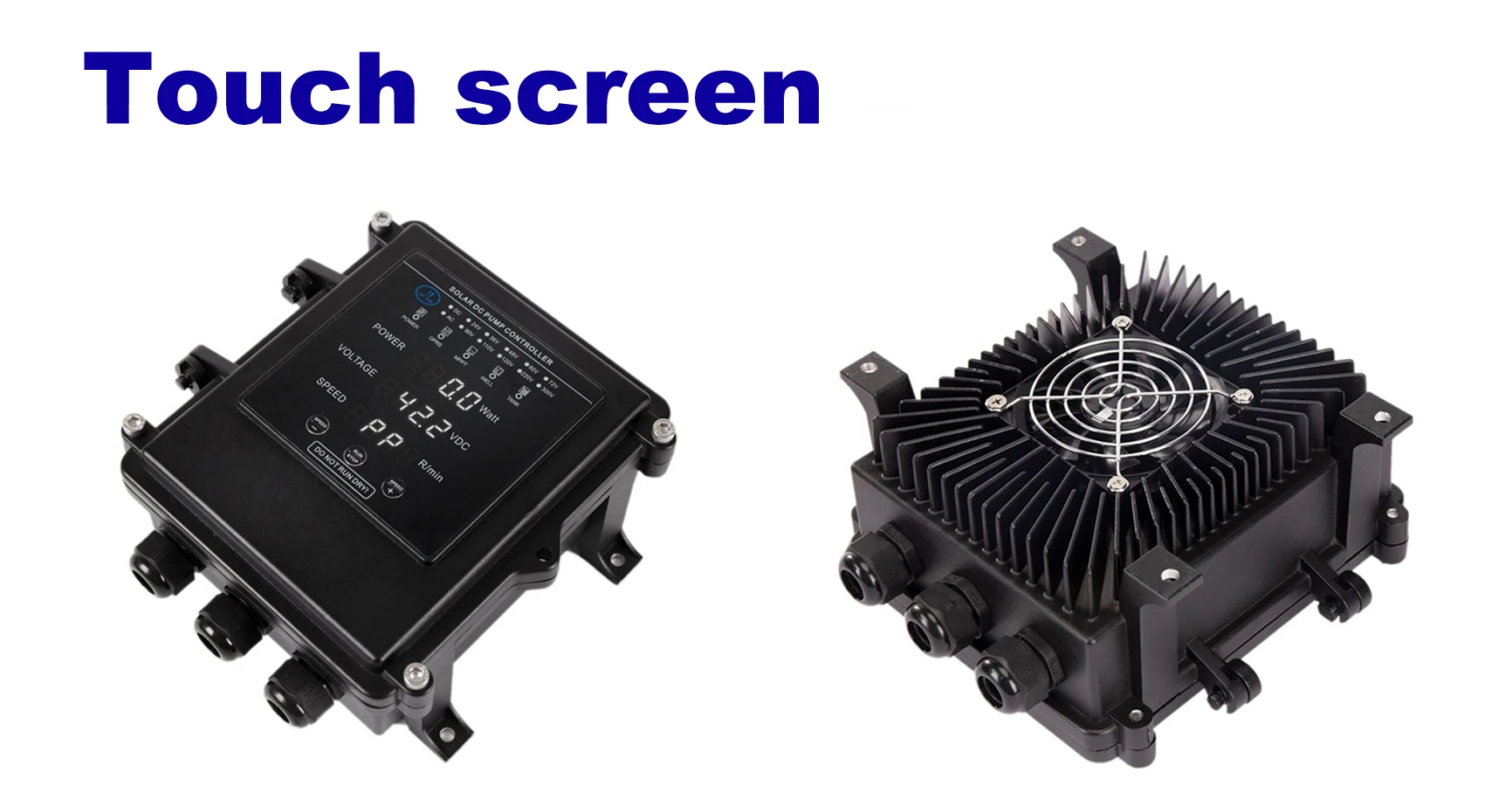

★ 2023 New Version Controller
PLUS FUNCTION:
◆ Interface: MC4 connector
◆ Digital display: Power, Voltage, Speed
◆ Error code display
◆Timing setting

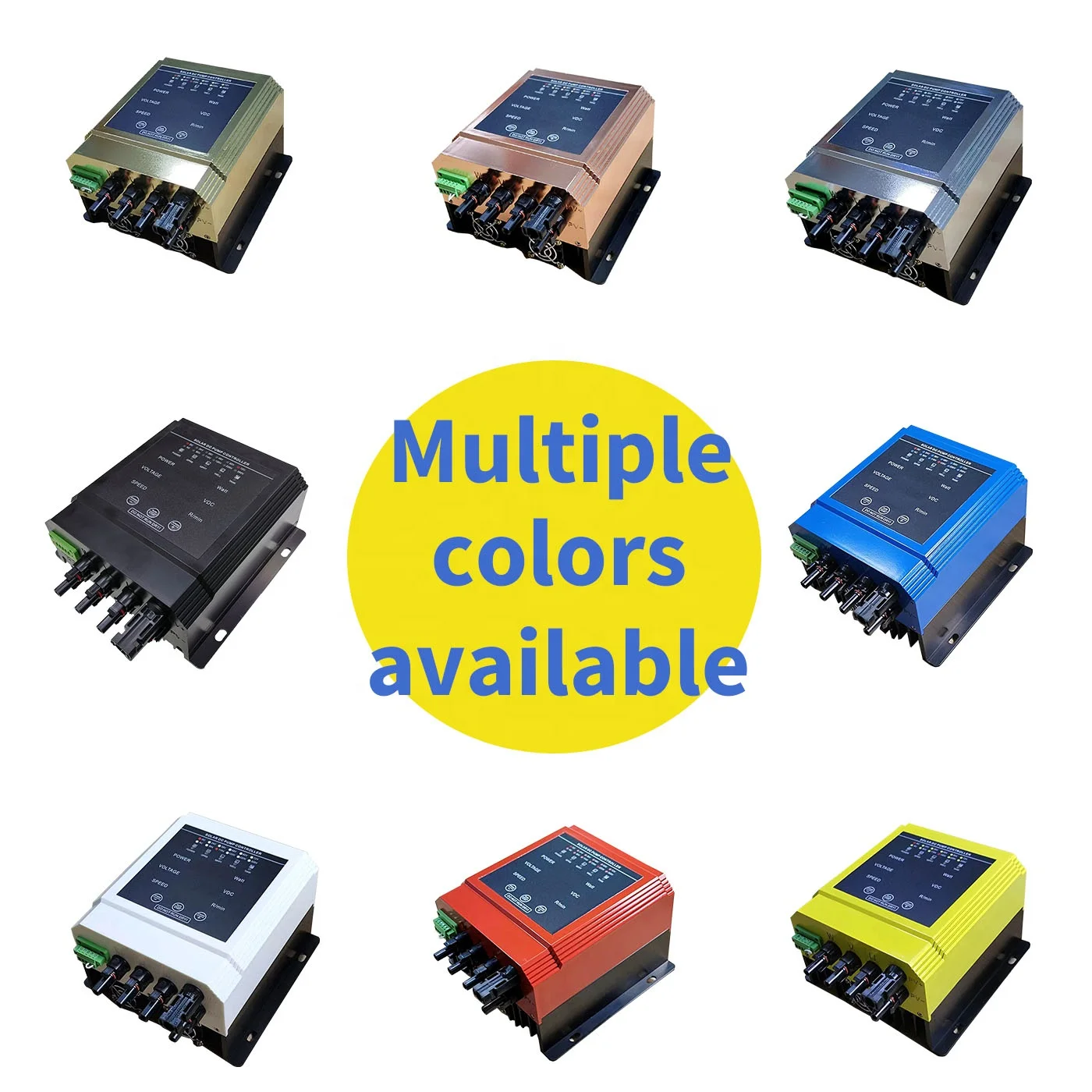

Note: The controller defaults to the 2023 black model. If you need any other color or style options, please contact customer
service staff or place an order with a note.
service staff or place an order with a note.

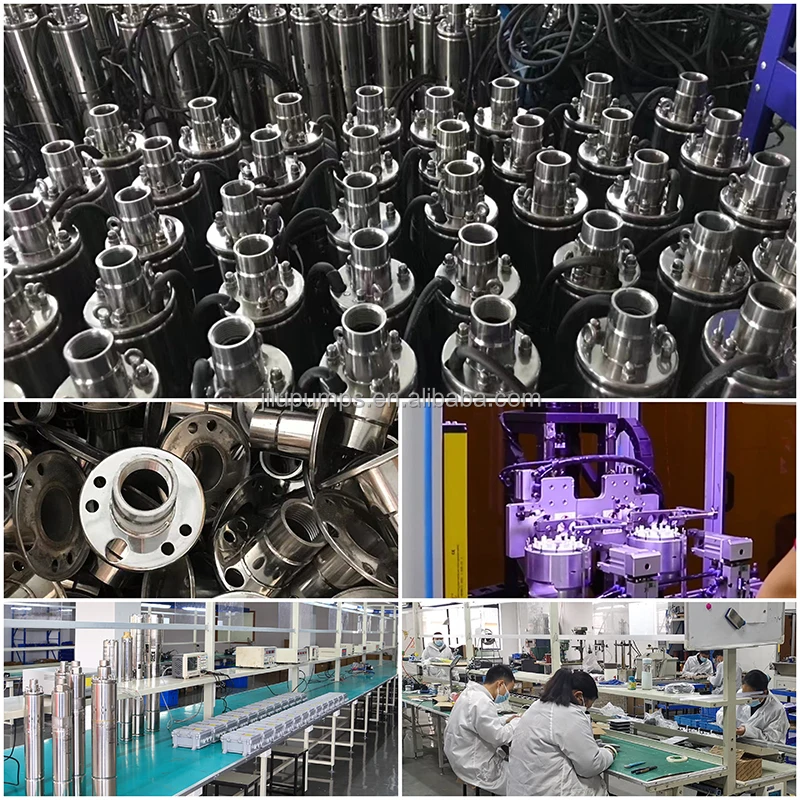

HOW WE PRODUCE
Automatic SMT Line
DIP Line
Semi-automatic Tin Stoves
Repair welding to check each board is qualified.
Burn-in Test
With panels on roof, we test each controller at least 48 hours to check the performance.

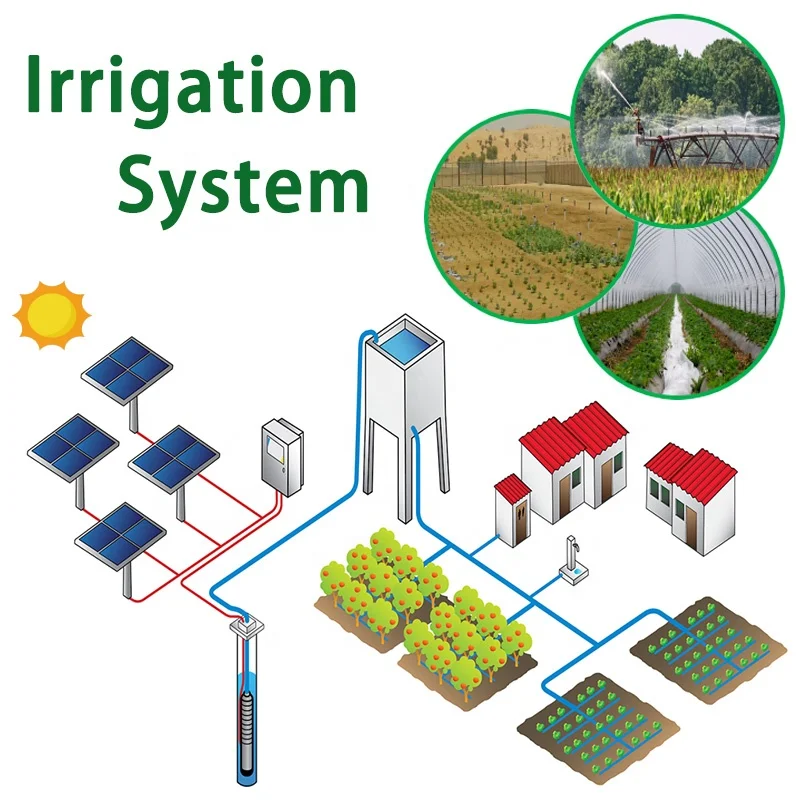

Installation
Pump installation
MPPT controller installation
Water pumping out !
Packing & Delivery
Package includes | Quantity |
Pump end (NEMA standard coupling) | 1PC |
Motor (NEMA standard connection) | 1PC |
MPPT pump controller | 1PC |
Well/Borehole level sensors | 1SET |
Tank level sensors | 1SET |

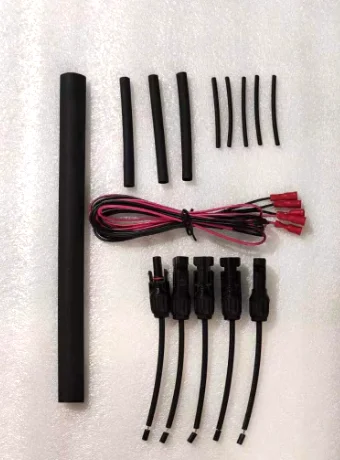

Heat-shrinkable tube | 1SET |
MC4 connector | 1SET |

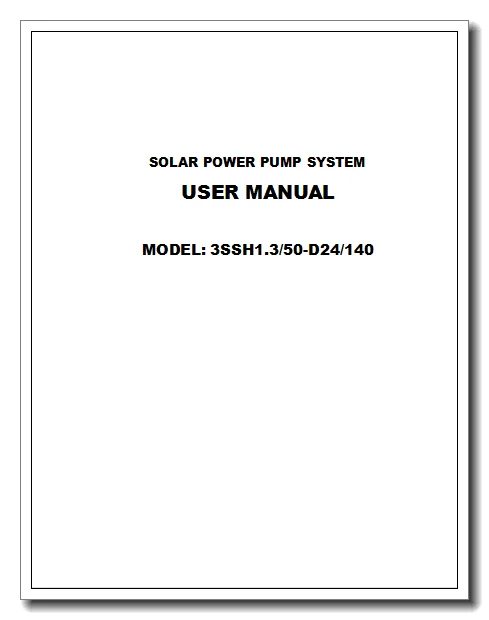

User manual | 1PC |

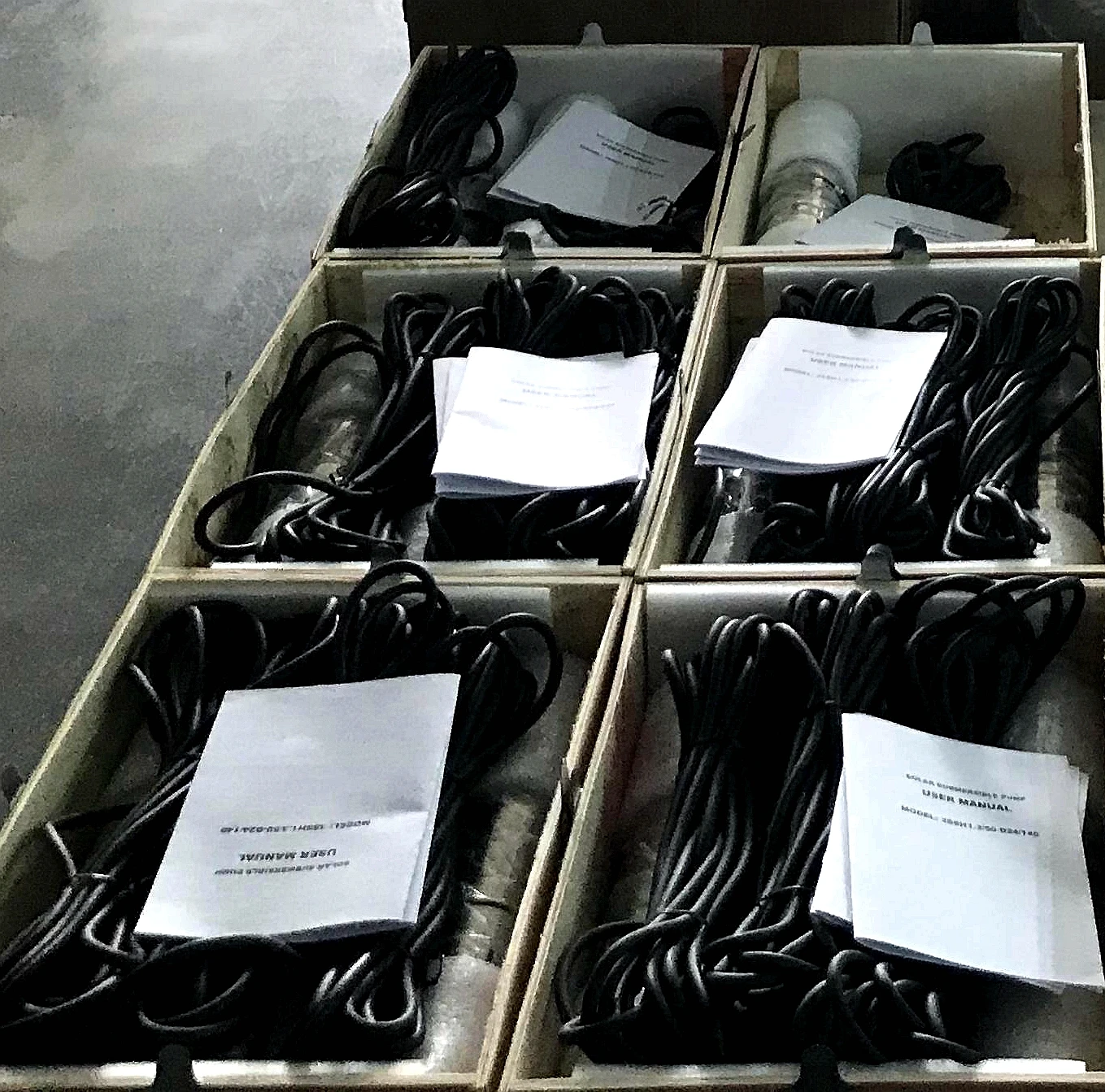

Strong Plywood Cases
Also
popular as:
Column Air Bag
Clear Model Name Print
Controller- Carton with pearl wool
Pump set- Tough Paper tube
1. Retail order, lead time ≤ 7 days.
2. Bulk order, please ask sales person at any time.
Delivery through Express (DHL, UPS, FedEx, ARAMEX), by Air, by Sea are all accepted, please contact us to advice best shipping way for you.
Our Service
Controller burn-in test
We test each controller for 72 hours or more connected with solar pump and solar panels.
Solar Panels on the roof
Solar panels are connected on our factory roof for our test of each model.
Pump performance test
We use this machine to test pump flow, head, power etc.
