Solar Panel Mounting System Stainless Steel Sus304 Pv Solar Ground Mounting Bracket System Cable Clip

Share on (1600969072726):


Price:$0.05 - $0.08

Quantity:


Product Overview

Description



Product Description

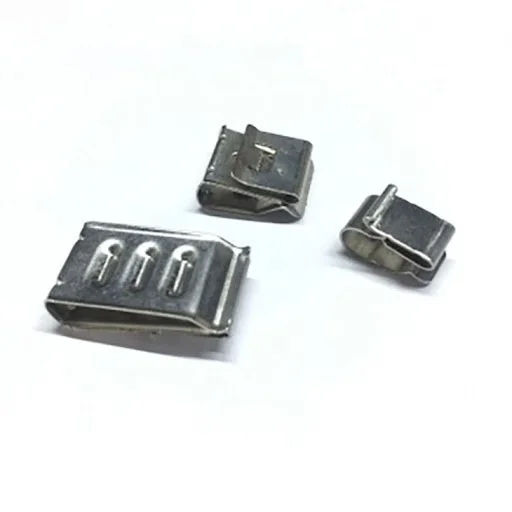

Tripsolar cable clip is widely used in solar panel array cable positioning, to protect the cable insulation from destroying. It is made from qualified SUS304 stainless steel,it is easy to install.


Tripsolar cable clips are easy to install and fit onto a wide range of module frames.
Tripsolar cable clips can be installed perpendicular on the module frame edge.
If you have special requirement(dimension or others), we accept customized
Own factory, mass production, factory price.

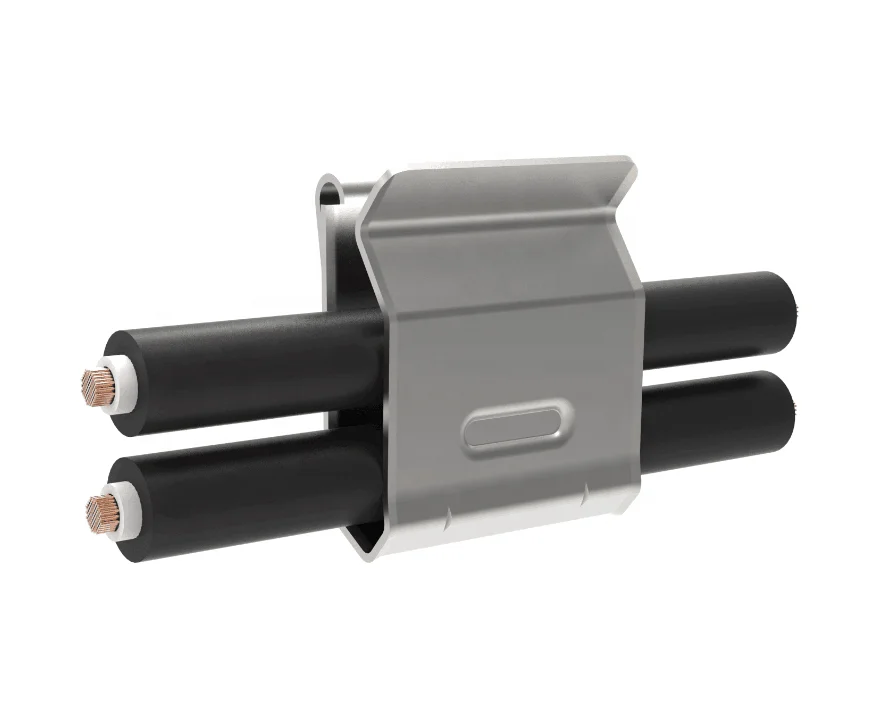

TP-CC-001
Natural colour
for two cable lines
Cable Φ max: 7.0 mm
Cable Φ min: 4.0 mm
Panel thickness: 1.5-2.0 mm

Packing: you can choose it or according to your standard
1000pcs/poly bag
100pcs/poly bag
4000pcs/carton

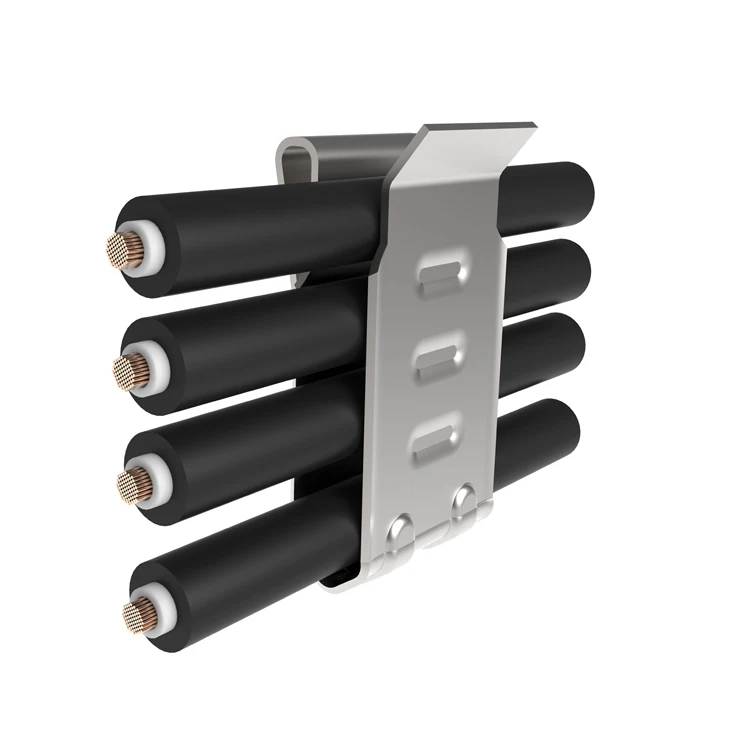

TP-CC-002
Natural colour

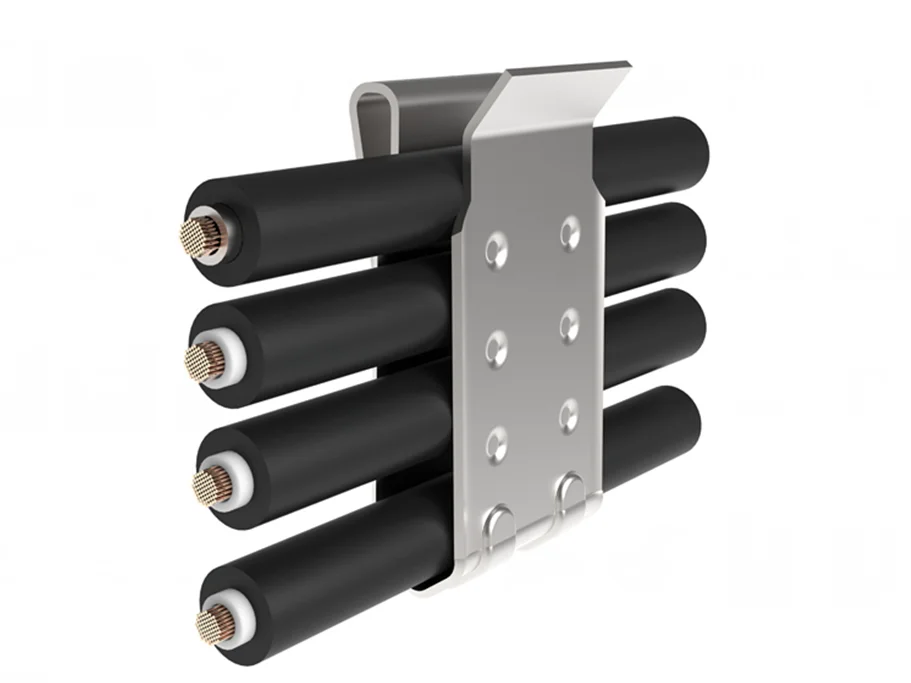

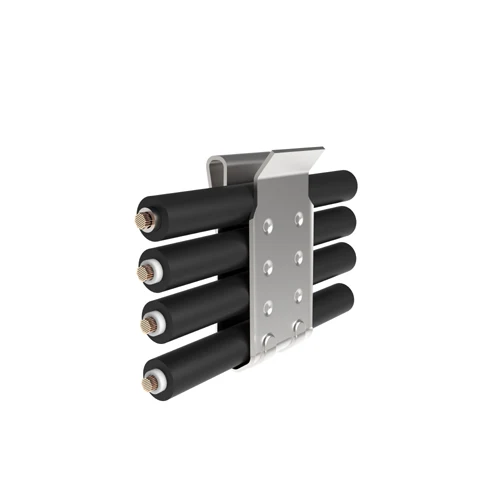

for four cable lines

Cable Φ max: 7.0 mm
Cable Φ min: 4.0 mm
Panel thickness: 1.5-2.0 mm

Packing: you can choose it or according to your standard
1000pcs/poly bag
100pcs/poly bag
5000pcs/carton




TP-CC-003
Natural colour

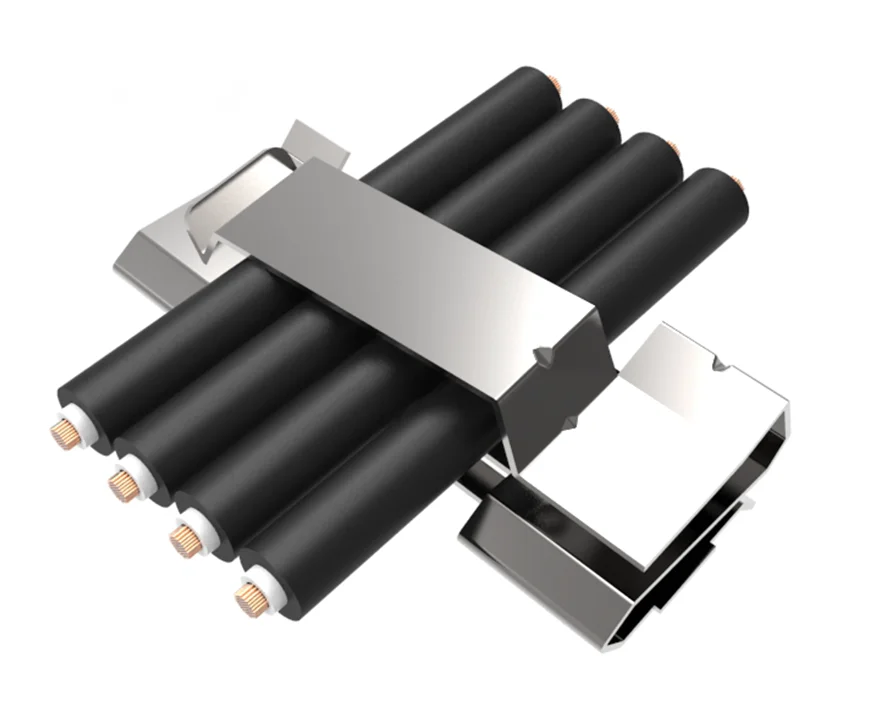

for four cable lines

Cable Φ max: 7.0 mm
Cable Φ min: 4.0 mm
Panel thickness: 1.5-2.0 mm

Packing: you can choose it or according to your standard
1000pcs/poly bag
100pcs/poly bag
5000pcs/carton

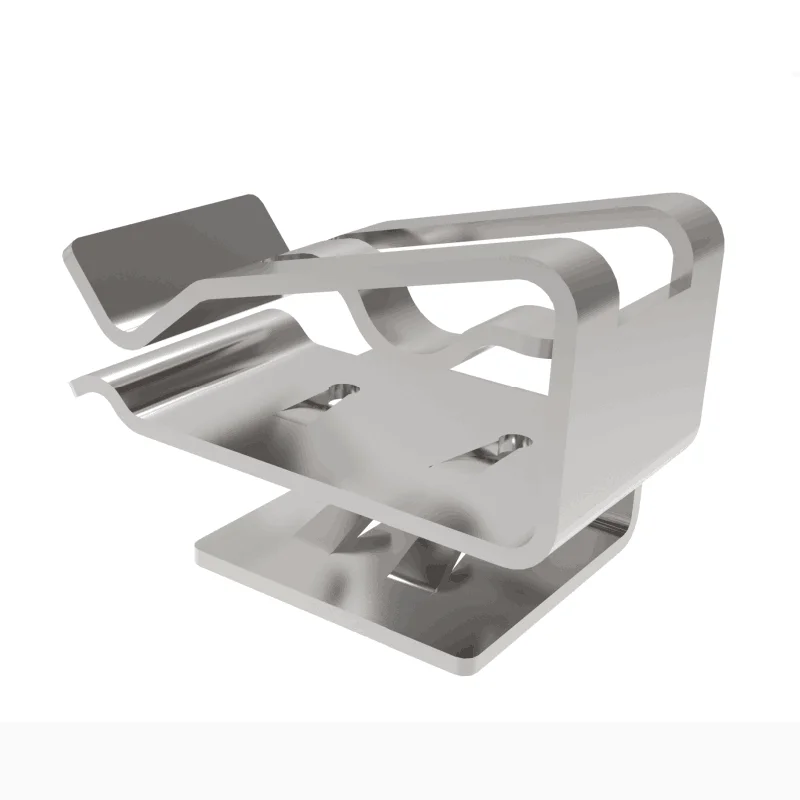

TP-CC-004
Natural colour
for two cable lines

Cable Φ max: 7.0 mm
Cable Φ min: 4.0 mm
Panel thickness: 1.5-2.0 mm

Packing: you can choose it or according to your standard
1000pcs/poly bag
100pcs/poly bag
8000pcs/carton



TP-CC-005
Natural colour
for four cable lines

Cable Φ max: 7.0 mm
Cable Φ min: 4.0 mm
Panel thickness: 1.5-2.0 mm

Packing: you can choose it or according to your standard
1000pcs/poly bag
100pcs/poly bag
4000pcs/carton


Specification


item
Solar Cable Clips
Place of Origin
China
Fujian
Brand Name
TRIP SOLAR
Model Number
TP-CC-002
Wind Load
60M/S
Snow Load
1.4KN/M2
Warranty
10 years
Material
Sus304
Color
Natural
Solar panel
Framed Solar Panel
Certificate
SGS Test report
Duration
25years
MOQ
1000 pcs


Product Application

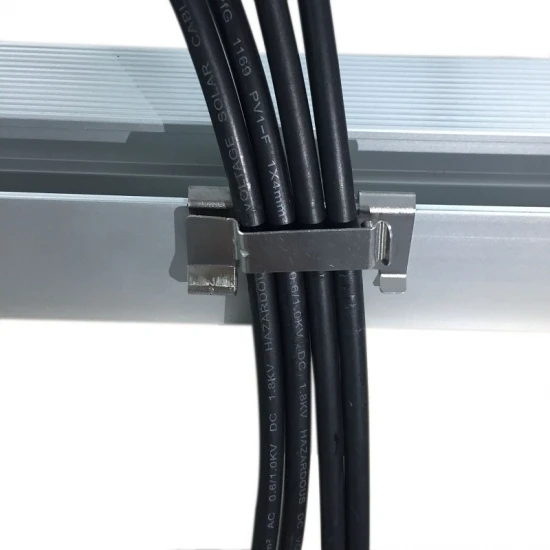

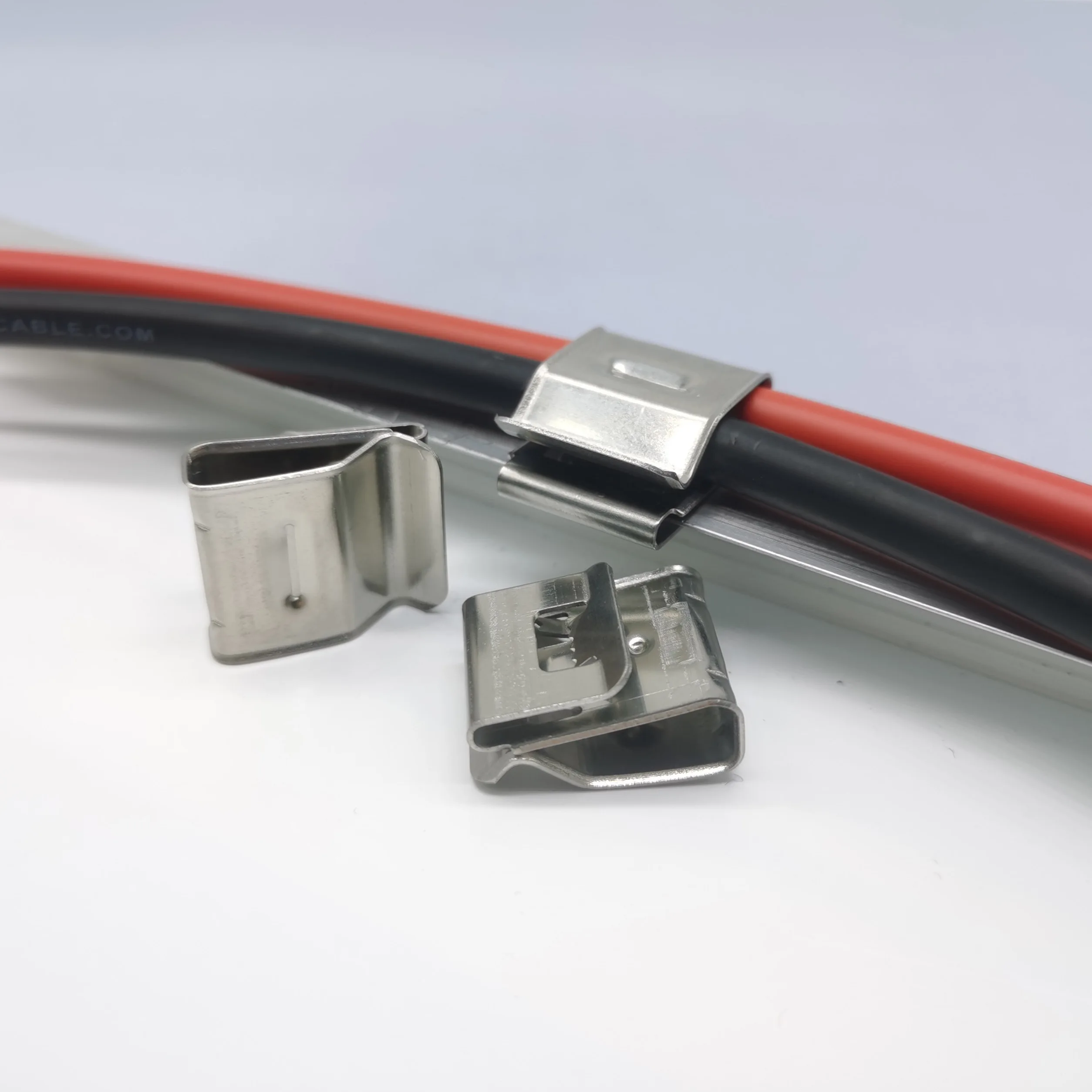

The cable clips install behind the solar panel and fix the cable line.


Different style for your choose according to your request.


Factory direct sales

We are factory, there are many in stock for Z mounting bracket, fast delivery, large qty, better price, contact us! tia@tripsolar.com

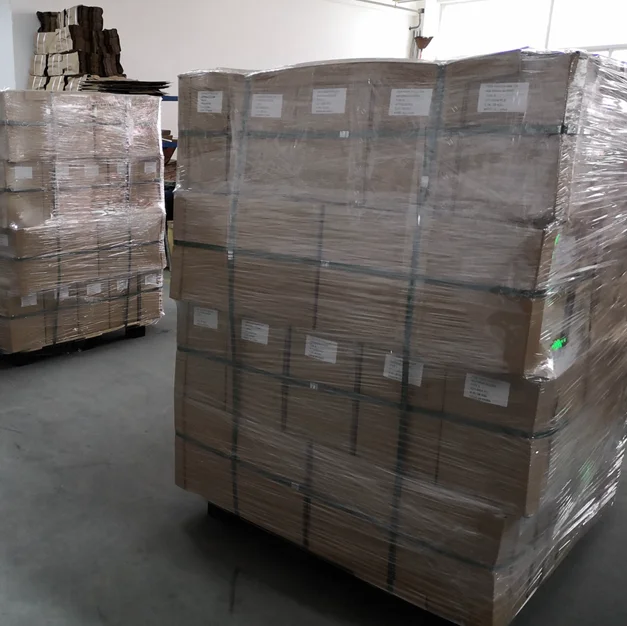

Packing & Delivery

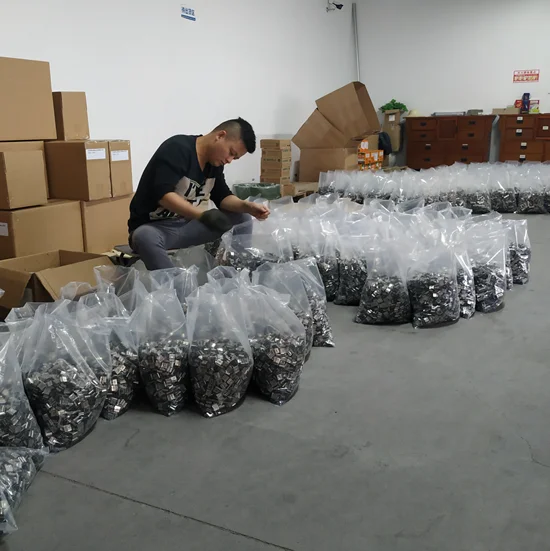

mass prodcution


pack the cable clips in poly bag


then into the carton/paller





Packing is good strength and waterproof: Kraft paper, band, wood pallet and waterproof film

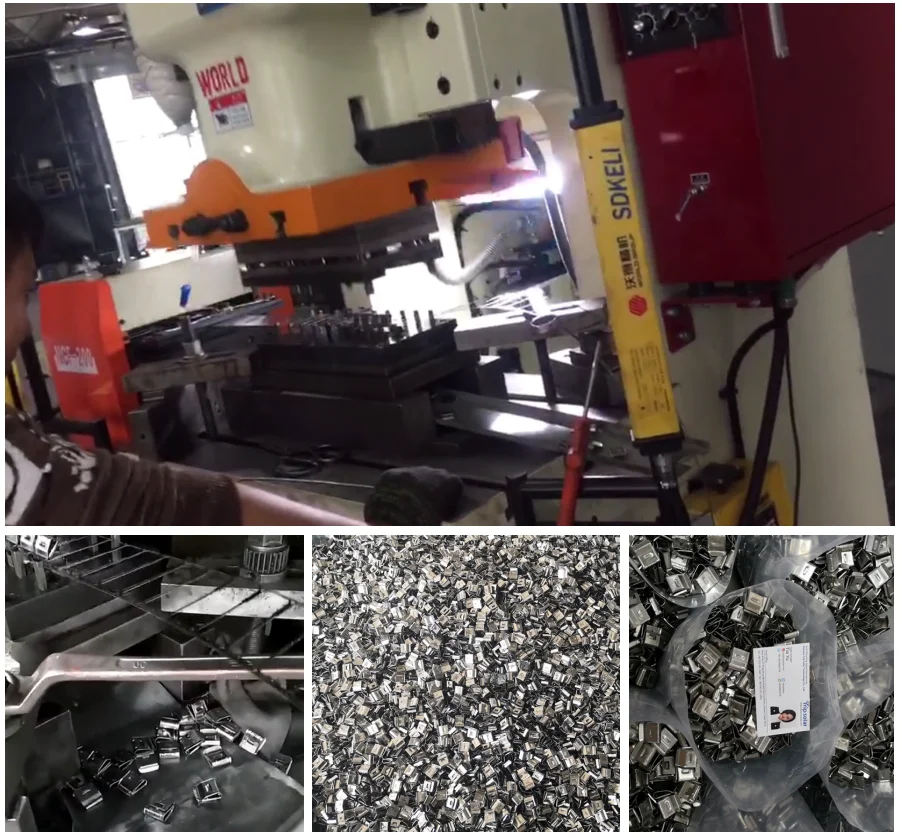

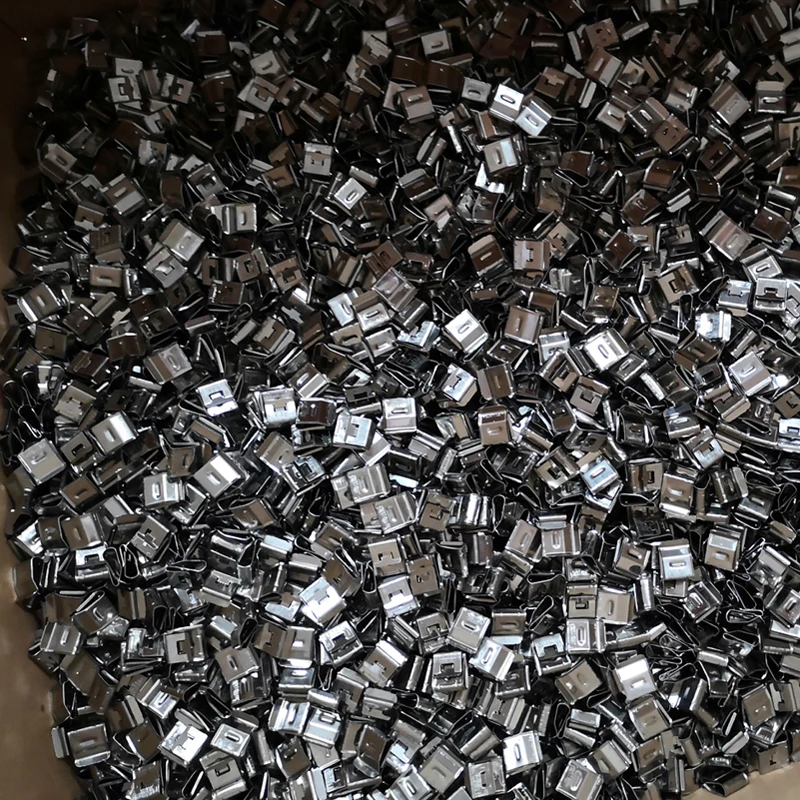

Production




Related Product

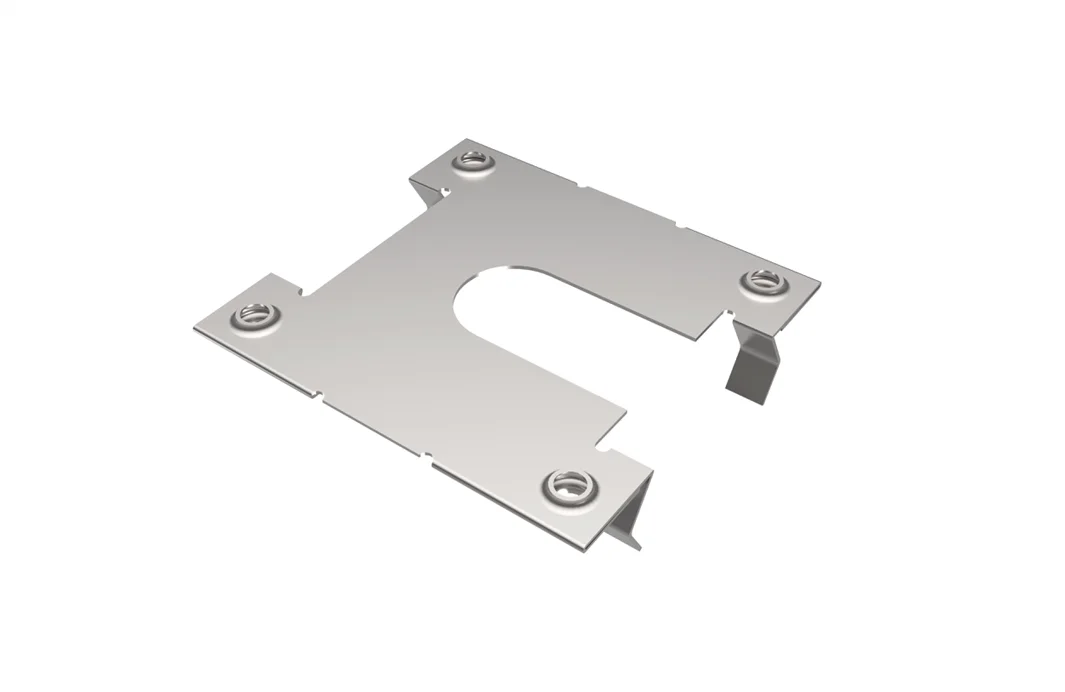

TP-GC-1
Solar grounding clips
Piering into anodized aluminum, providing a gas tight connection which prevents oxidation.

TP-GC-2
Solar grounding clips
Piering into anodized aluminum, providing a gas tight connection which prevents oxidation.

TP-GC-3
Solar grounding clips
Piering into anodized aluminum, providing a gas tight connection which prevents oxidation.

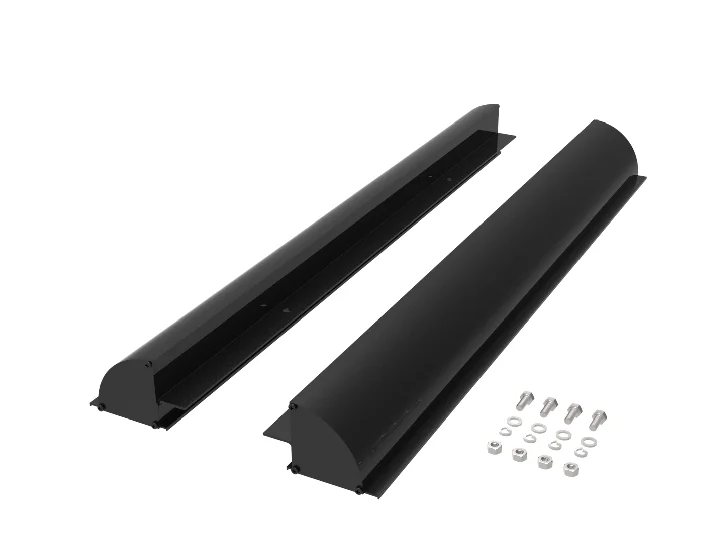

TP-AMB01A
Aluminum mounting brackets
550mm or 670mm or customized
Natural or black
PC cover for the end

TP-AMB03
Aluminum mounting brackets
550mm or 670mm or customized
Natural or black
Aluminum cover for the end

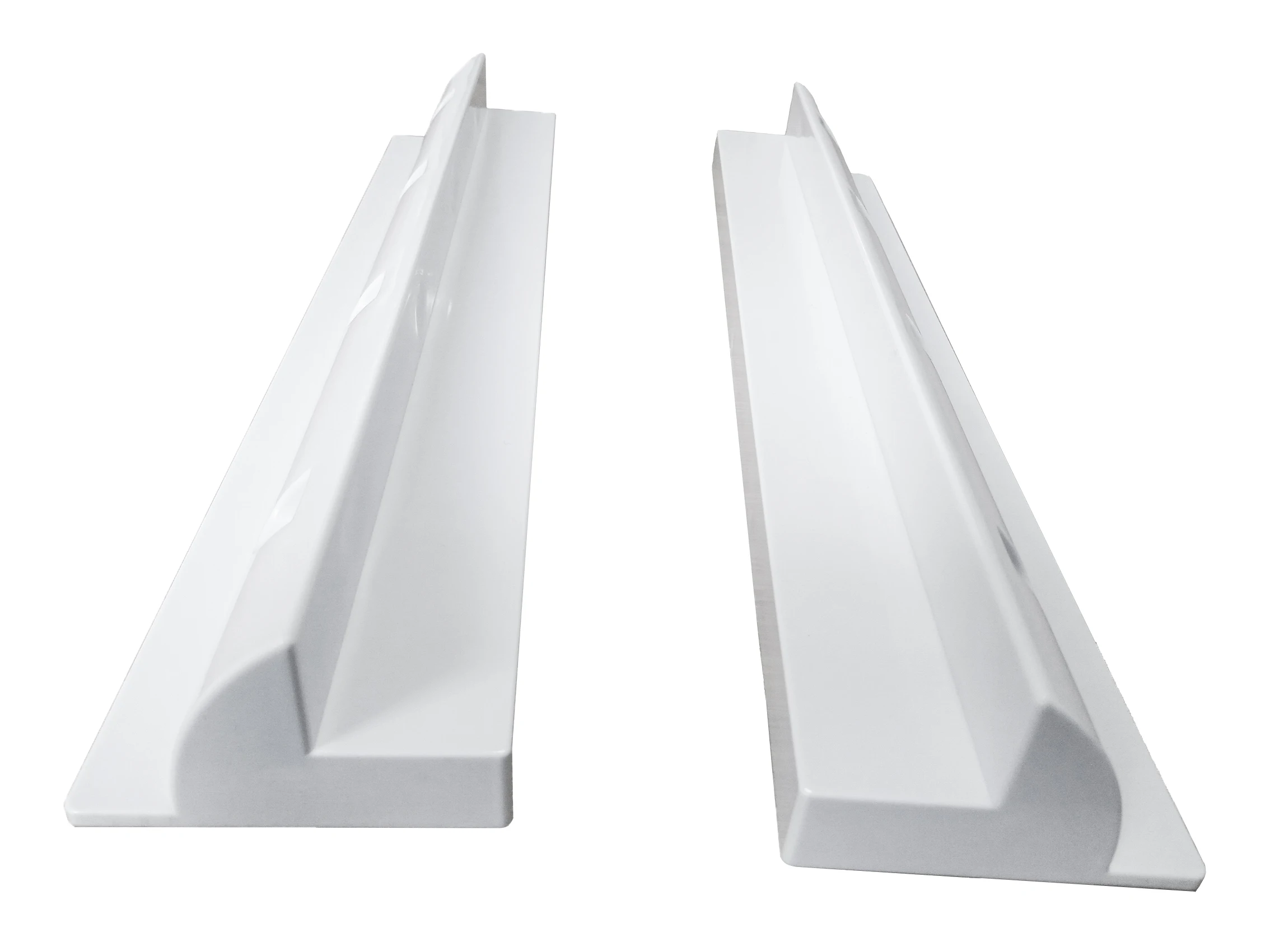

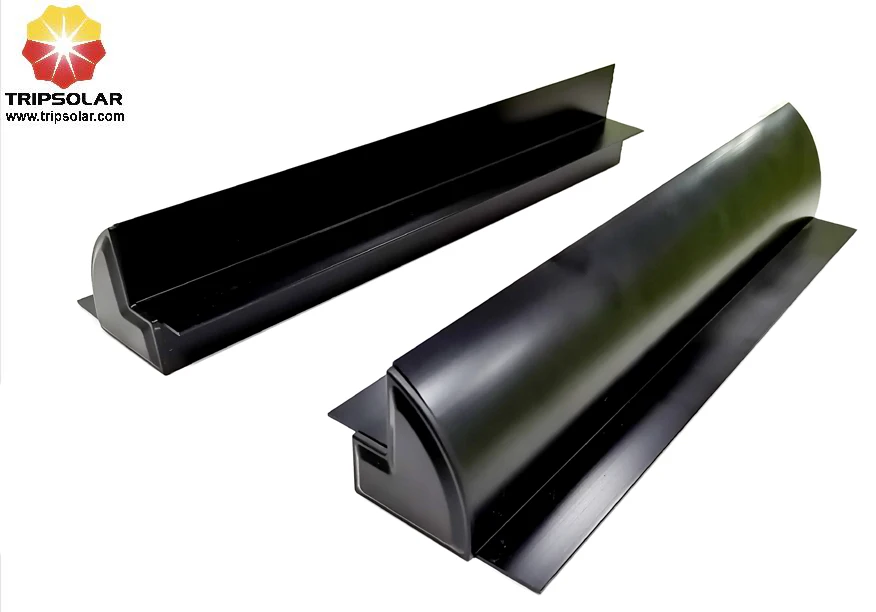

TP-ABS-010
ABS Mounting brackets
550mm
Natural or black

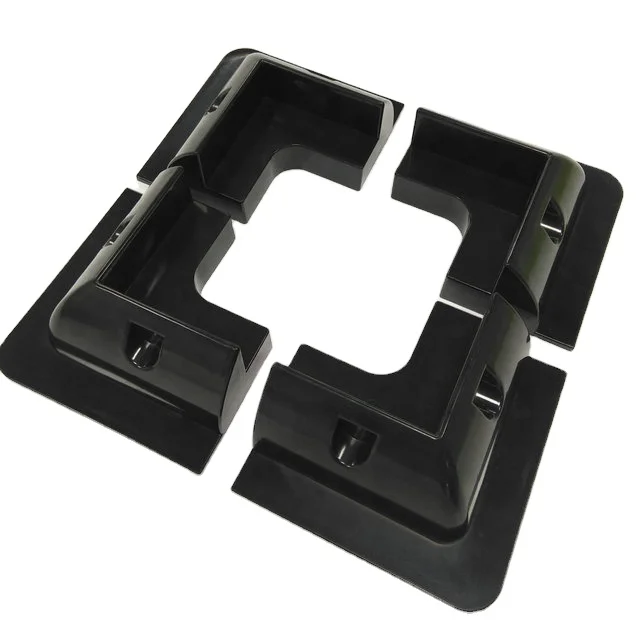

TP-ABS-001
Solar Panel Corner Mounts,
4pcs per set,Black

TP-TR02
Triangle Mounting System, suitable for 680mm solar panel

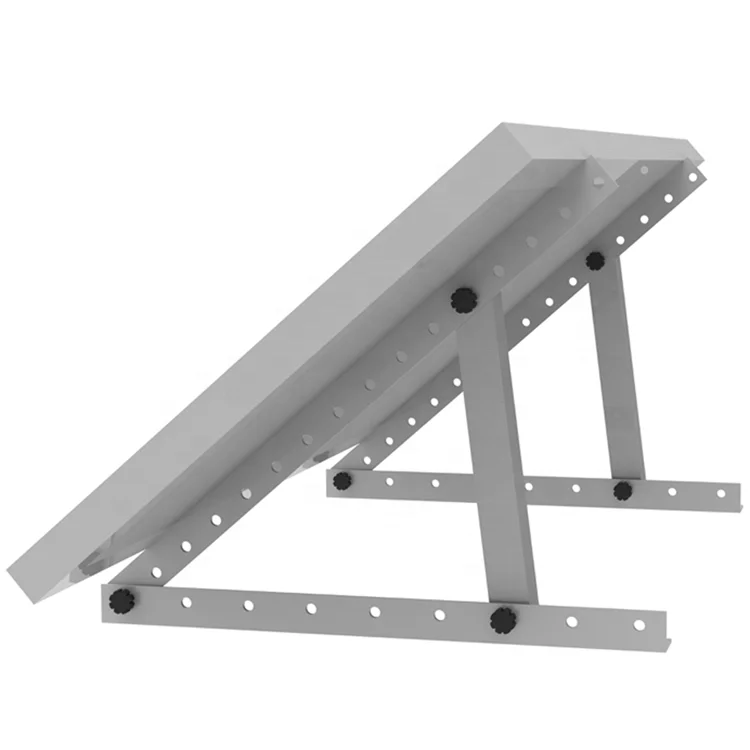

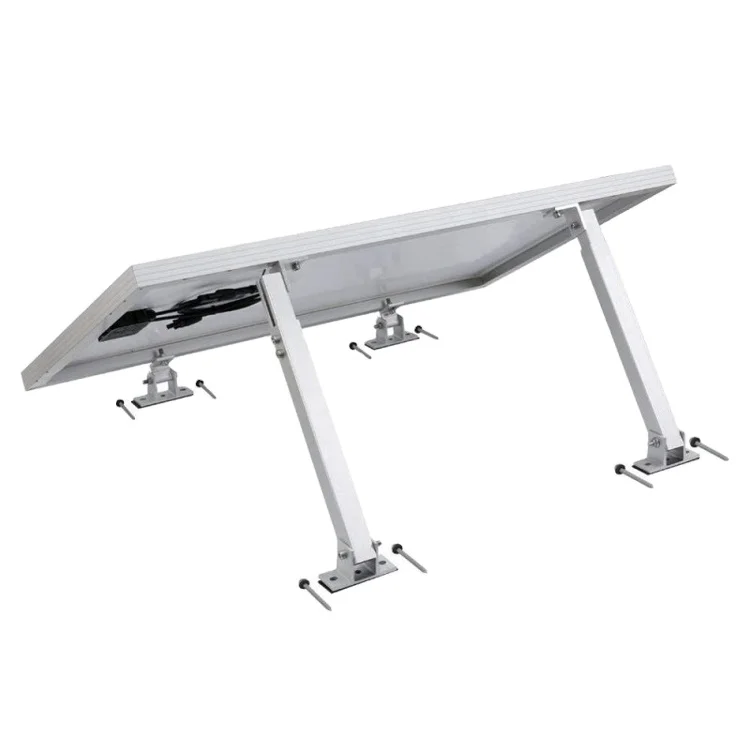

TP-AD02
Adjustable Mounting System,

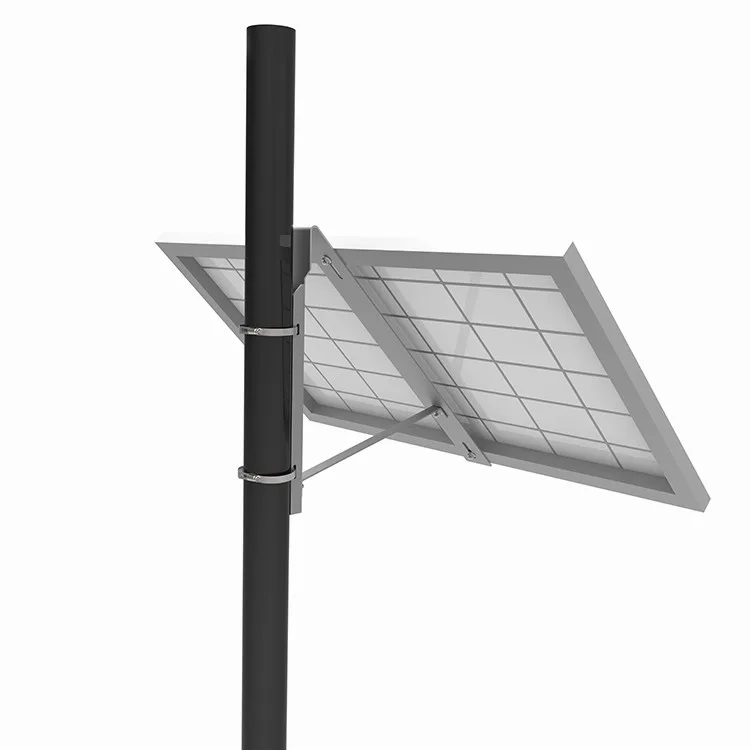

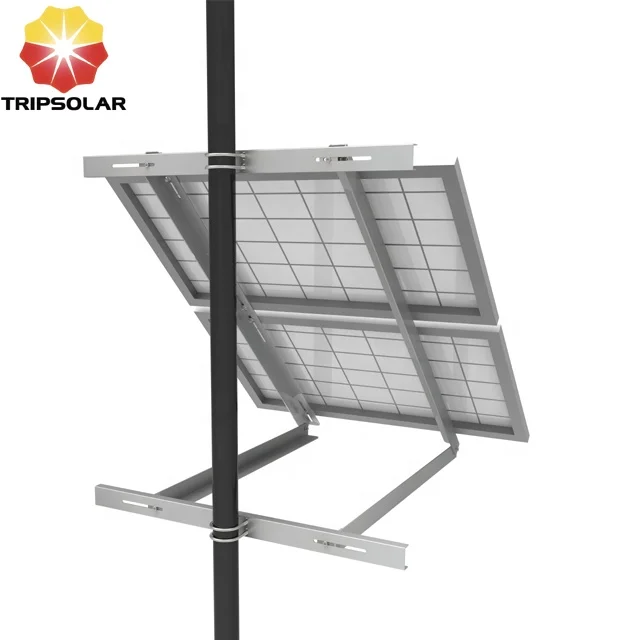

TP-P1#
Side pole mounts
TP-P2#
Side pole mount

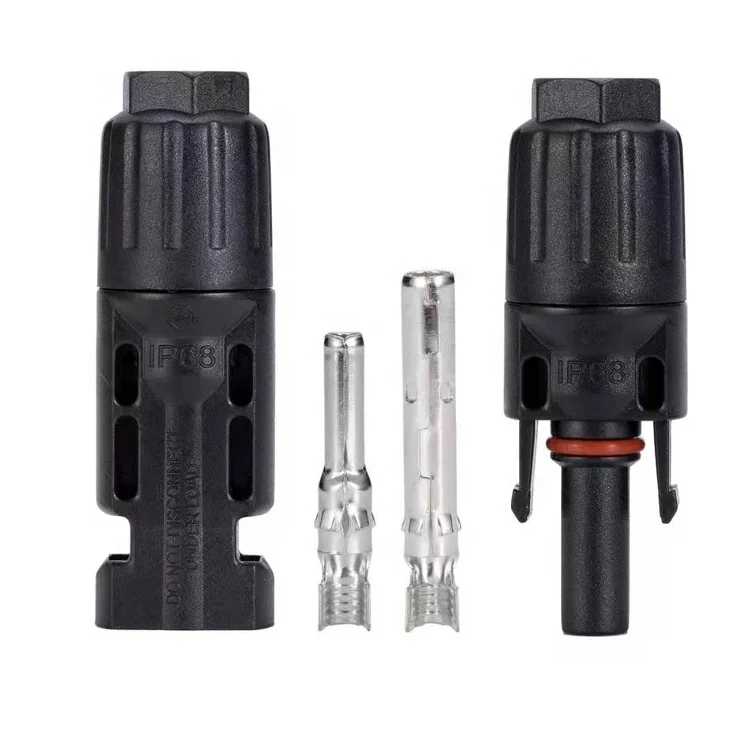

TP-MC-1
1000V DC(IEC), solar cable connector


Company Profile








Solar is public energy, Solution is our profession.

Xiamen Trip Solar Technology Co., Ltd (Tripsolar) was established in 2018 and owns 4400 square meters production line and warehouse, Tripsolar is Alibaba SGS assessed supplier. Located in Xiamen City, Fujian Province, China. Our products is solar mounting system, such as solar floating system, solar carport system, solar ground system, solar roof system, solar RV system and so on. We have roughly 55 workers in our own holding factory. 13 people for sales department, 3 for develop team, 3 for Quality team, and the rest ones for production team, material purchasing, and some internal work. After 3 years of development, we have a professional team.

Since 2018.Tripsolar is Alibaba.com Assessed Supplier four years in a row.

Since 2018, the company has reintroduced advanced equipment, with an monthly production capacity of over 50 MW, and built its own solar station at the same time. So far, the company has sold to all over the world, including America, Europe, Oceania, Asia and Africa.

As long as you put forward your requirements, our team will give you a solution. provide the drawing of mounting structure and customized service.

Trip Solar insists on "Professional and Innovation" on products research and development, provides effective guarantee to
customers with "Professional", and create more value with "Innovation".

In conclusion, Quality first, Best faith priority, we want to manufacture best solar mounting solution for our customers.
