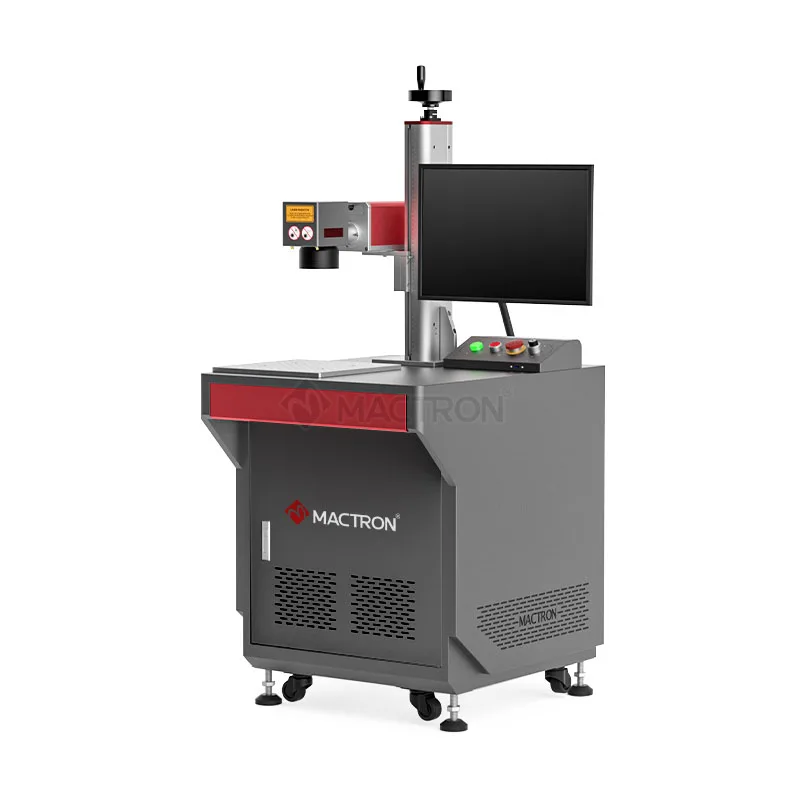

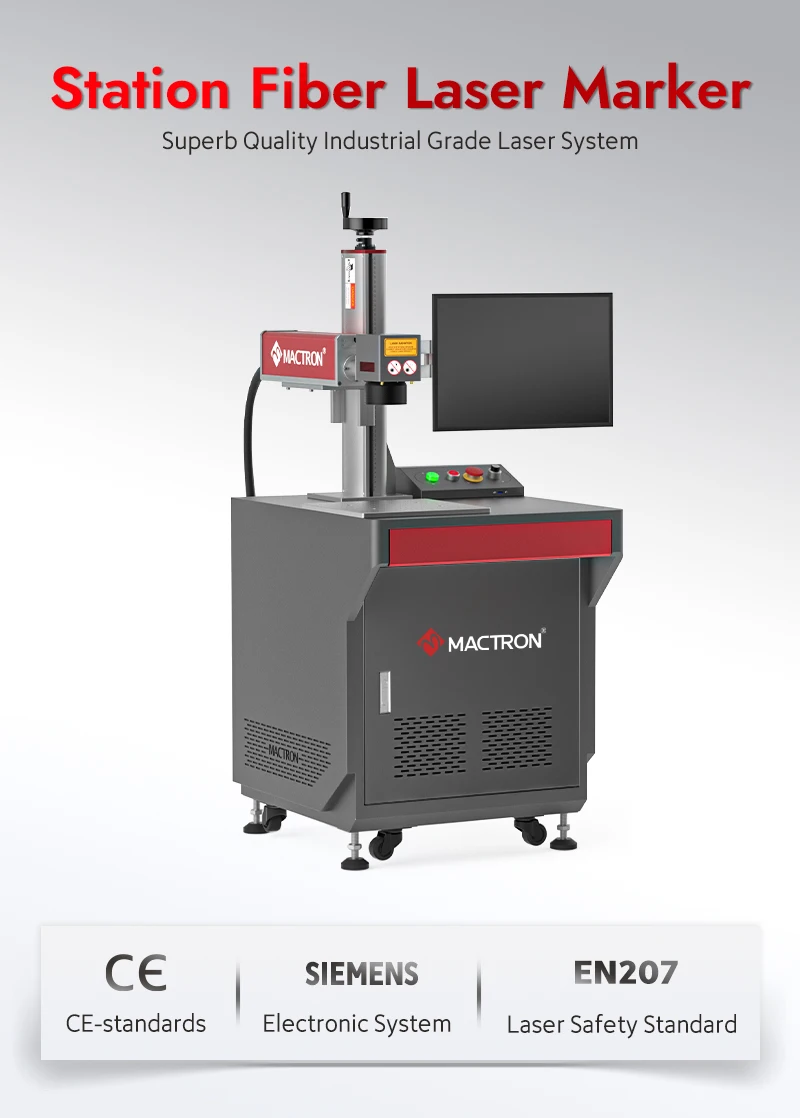

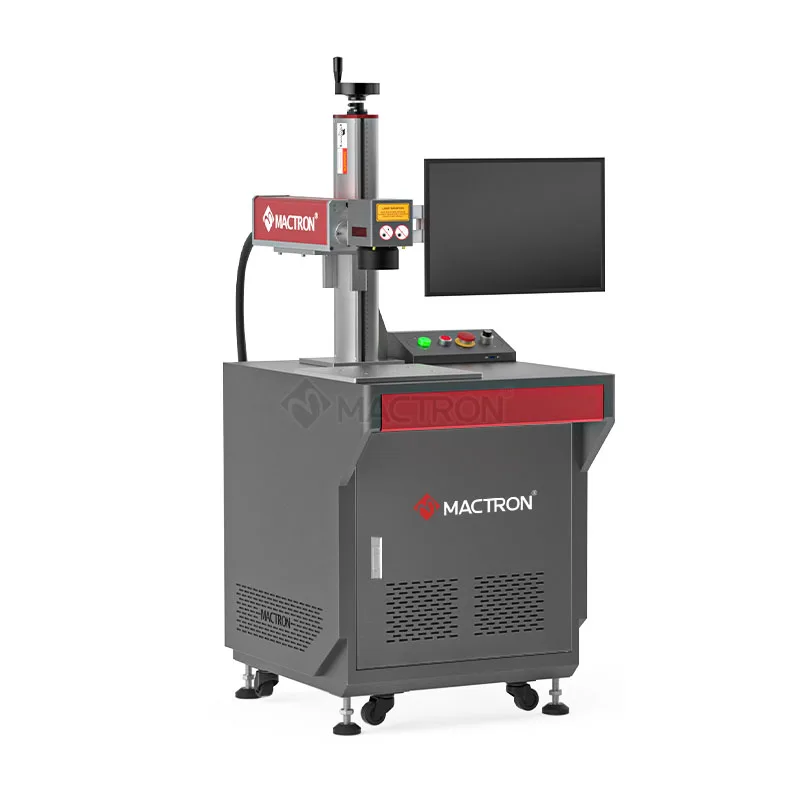

50W Keyboard Fiber Laser Marking Machine with Laser Marking XY Table Price
- Category: >>>
- Supplier: Dongguan Mactron Technology Co. Ltd.
Share on (1600969090743):
Product Overview
Description
Product Description
MT-F series fiber laser marking machine is with high quality and high performance. Based on the needs of domestic and foreign markets, the machine is equipped with core optical devices, including fiber laser and scanning galvanometer imported from world famous brands. They enhance the performance and stability, and greatly lower the failure rate. Marking has non-touched process, permanent effect, humanized operation, and stable running, lifetime up to 100,000 hours. The machine series is armed with our self-developed high-speed marking control card and powerful software, compatible software output of AutoCAD, CorelDRAW, AI, etc. It can realize automatic edition and correction of characters, signs, graphs images, bar codes, two-dimensional codes, automatically increased serial numbers.
MODEL | MT-F20 | MT-F30 | MT-F50 | MT-F60 | MT-F80 | MT-F100 | |||||
Laser Type | Q-Switched Pulse Fiber Laser / MOPA Pulse Fiber Laser | ||||||||||
Wavelength (nm) | 1064 | ||||||||||
Laser Power (W) | 20 | 30 | 50 | 60 | 80 | 100 | |||||
Pulse Energy (mJ) | 0.66 / 0.8 | 1 / 0.8 | 1 / 1.25 | 1.5 | |||||||
Repetition Rate (kHz) | 30-60 / 1-600 or 1-4000 | 50-100 / 1-600 | 1-4000 | ||||||||
Pulse Duration (ns) | 120-150 / 200 or 2-350 | 120-150 / 200 | 2-500 | ||||||||
Beam Quality (M2) | <1.5 / 1.4 | <1.6 / 1.5 or 1.4 | <1.6 / 1.8 | <1.4 or 1.5 | |||||||
Output Power (%) | 10 - 100 | ||||||||||
Marking Specifications | ■ Font formats: TTF, JSF, DMF, SHX fonts etc. ■ Vector formats: PLT, DST, AI, DXF, SVG, GBR, NC, CAD, CDR, DWG, BOT, etc. ■ Barcode formats: Code39, EAN, PDF417, DATAMATRIX, QR, 2D codes etc. ■ Bitmap formats: JPC, BMP, JPG, JPEG, PNG, etc. | ||||||||||
Speed | Up to 8000 mm/s (314.96 in/s) | ||||||||||
Beam Quality (M2) | Minimum Line 0.01 mm (0.0004 in) | ||||||||||
Minimum Character | 0.2 mm (0.008 in) | ||||||||||
Z axis type | Manual / Motorized & Programmable (optional) | ||||||||||

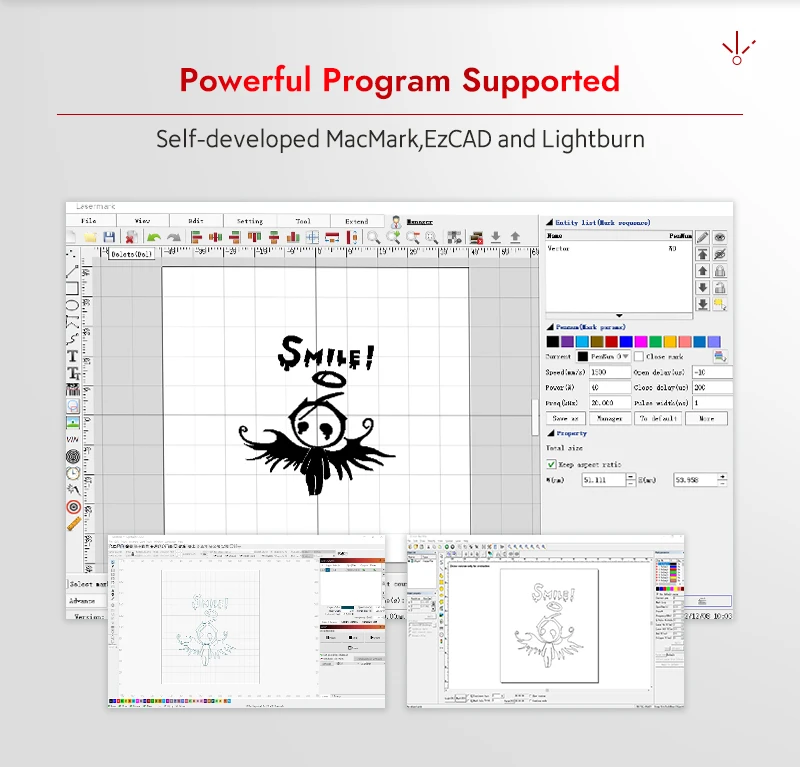

Software | MacMark / PC software EzCAD (on separate, external, optional Windows OS PC) | ||||||||||
Communication interfaces | USB; Terminal block I/O; (standard) Laser Safety Dedicated I/O; RS232; Ethernet TCP/IP (optional) | ||||||||||

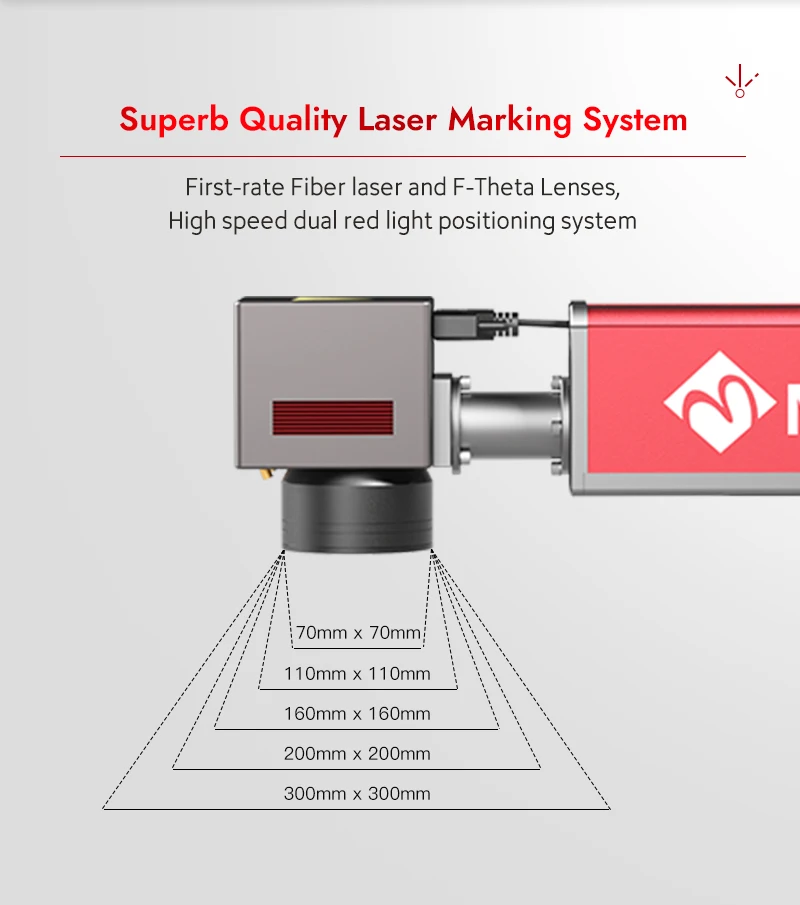

Marking Area - Available lenses | ■ Standard: F160: 110 mm (4.33 in) x 110 mm (4.33in) ■ Optional: F100: 70 mm (2.76 in) x 70 mm (2.76 in), F254: 160 mm (6.29 in) x 160 mm (6.29 in), F330: 200 mm (7.87 in) x 200 mm (7.87 in), F450: 300 mm (11.8 in) x 300 mm (11.8 in) | ||||||||||
Cooling | Air-cooled, auto overheat protection | ||||||||||
Laser safety classification | Class 4 | ||||||||||
Operating Temperature | 10°C to 40°C (50F to 104F) | ||||||||||
Humidity | 10%- 90%, non-condensing | ||||||||||
Electrical Requirements | L/N/PE 100 - 240 VAC 50/60Hz ( According to local electricity supply ) | ||||||||||
Power consumption rate | 400 W (800 W Max) | 600 W (1000W Max) | |||||||||
Product Features

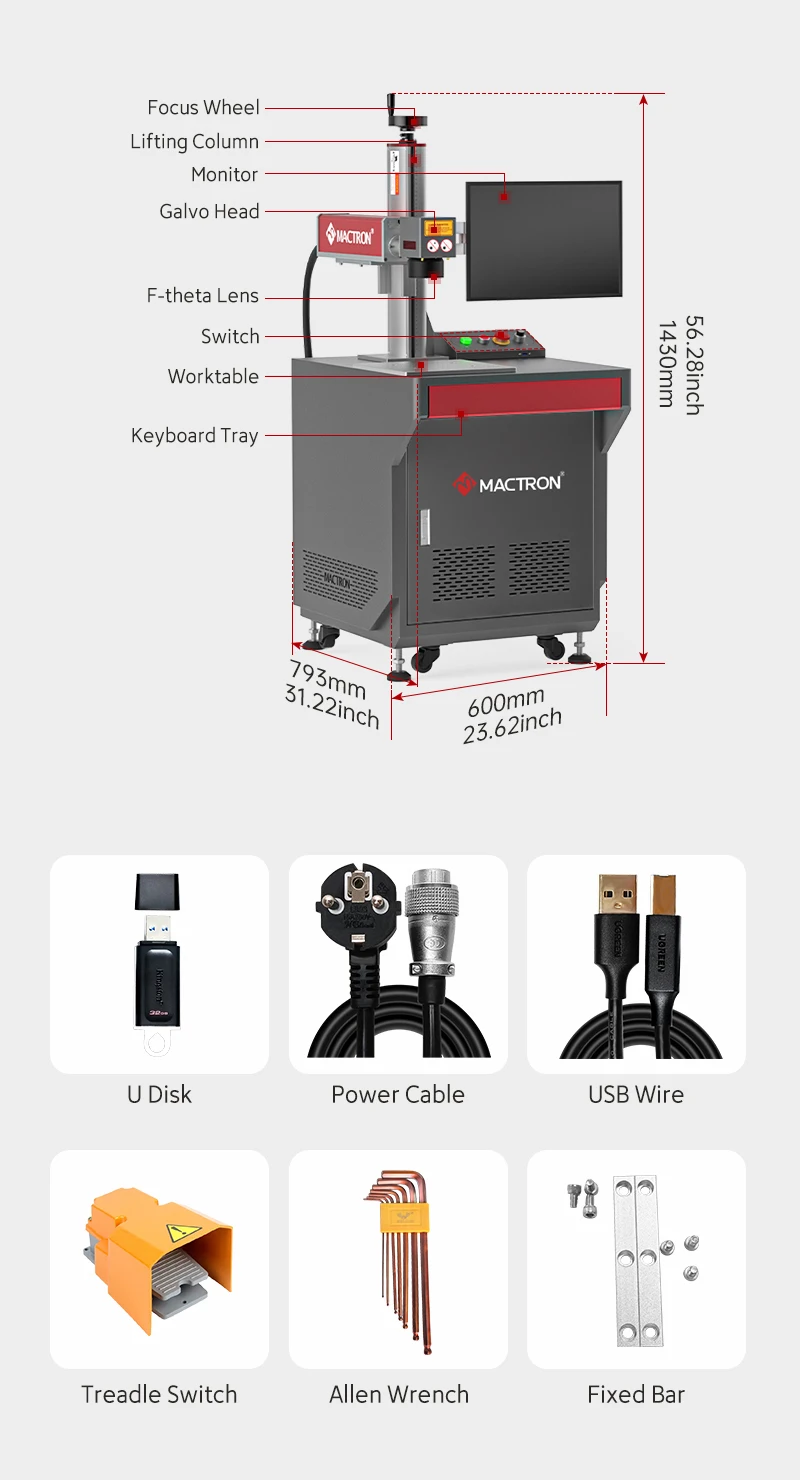

Packaging List
Samples Show
Customer Reviews
Other Products

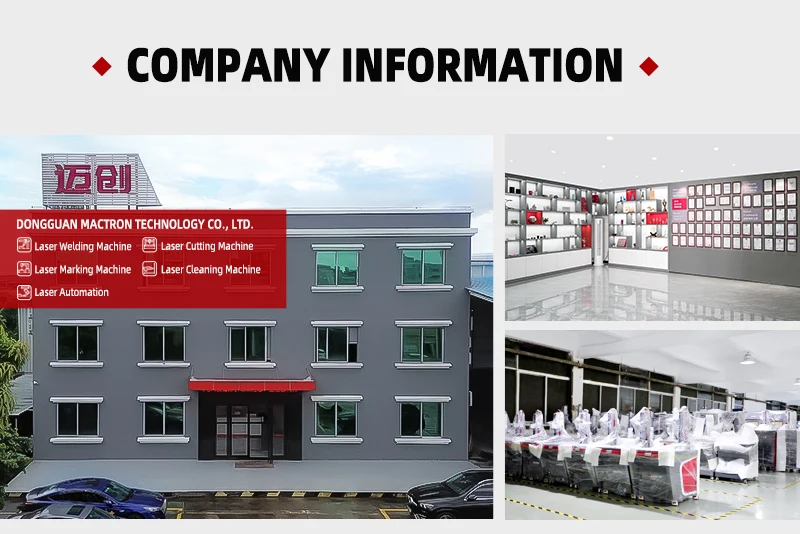

Company Profile
Founded in 2008, Dongguan Mactron Technology Co., Ltd (Short For: MACTRON ) was formerly known as Mactron Technology (Hong Kong) Co., Limited., with two brands: MACTRON and LYUSTEC, specializing in developing, manufacturing and selling of industrial laser equipment system and customized automation devices. At present, it has developed into a global laser intelligent equipment service provider integrating laser equipment, precision machinery, software engineering and modern management.
Mactron's mainly product is including:
Laser Marking Machine, Laser Cutting Machine, Laser Welding Machine, Laser Engraving Machine, Laser Cleaning Machine, Laser automation and industry intelligence solutions. The laser equipment system is widely used in many fields, including electronic communications, clothing, leather, jewelry, hardware tools, printing and packaging, advertising decoration, automobile and motorcycle parts, mechanical molds, and aviation components, craft gifts, sanitary ware, lighting, home appliances and many other industries.
Laser Marking Machine, Laser Cutting Machine, Laser Welding Machine, Laser Engraving Machine, Laser Cleaning Machine, Laser automation and industry intelligence solutions. The laser equipment system is widely used in many fields, including electronic communications, clothing, leather, jewelry, hardware tools, printing and packaging, advertising decoration, automobile and motorcycle parts, mechanical molds, and aviation components, craft gifts, sanitary ware, lighting, home appliances and many other industries.
Mactron Technology's business tenet is "Do Honest Business ".
Mactron Technology's managerial spirit: "Solidarity, Exertion, Truthfulness, Innovation"
Mactron Technology's managerial spirit: "Solidarity, Exertion, Truthfulness, Innovation"
Certifications
RFQ
Q: What's working area of our fiber laser marking machine?
A: Our standard size is option.
Q: What's the laser power of your fiber laser marking machine?
A: We have laser power from 10-200w, able to different metals with varied thickness.
Q: What's delivery time?
A: Generally speaking, lead time is 7-10 working days after receiving the payment. Depends on the quantity of order.
Q: How is your packing?
A: We have 3 layers package. For the inside layer, the machine is covered by waterproof plastic film. In the middle, the machine is covered by foam, to protect the machine from shaking. For the outside, we adopt wooden cases free of fumigation.
Q: How to operate the fiber laser engraving marking machine? Is training necessary?
A: The machine is mainly controlled by software. It's very easy, not complicated. We can teach on the Internet. Generally speaking, an operator, who is not familiar with Metal Engraving Machine Laser Engraving before, can still operate it very well. According to customers' requests, we can send our technician to customers' factory for machine training or customers can come to our factory for machine training if needed.
Q: Which countries are your laser machinery sold to?
A: Our laser machines sell all over the world, such as United States, Mexico, Brazil, Australia, Singapore, Saudi Arabia, Turkey, India, Italy, UK, Germany, Poland, Spain, Romania and many other countries.
A: Our standard size is option.
Q: What's the laser power of your fiber laser marking machine?
A: We have laser power from 10-200w, able to different metals with varied thickness.
Q: What's delivery time?
A: Generally speaking, lead time is 7-10 working days after receiving the payment. Depends on the quantity of order.
Q: How is your packing?
A: We have 3 layers package. For the inside layer, the machine is covered by waterproof plastic film. In the middle, the machine is covered by foam, to protect the machine from shaking. For the outside, we adopt wooden cases free of fumigation.
Q: How to operate the fiber laser engraving marking machine? Is training necessary?
A: The machine is mainly controlled by software. It's very easy, not complicated. We can teach on the Internet. Generally speaking, an operator, who is not familiar with Metal Engraving Machine Laser Engraving before, can still operate it very well. According to customers' requests, we can send our technician to customers' factory for machine training or customers can come to our factory for machine training if needed.
Q: Which countries are your laser machinery sold to?
A: Our laser machines sell all over the world, such as United States, Mexico, Brazil, Australia, Singapore, Saudi Arabia, Turkey, India, Italy, UK, Germany, Poland, Spain, Romania and many other countries.
