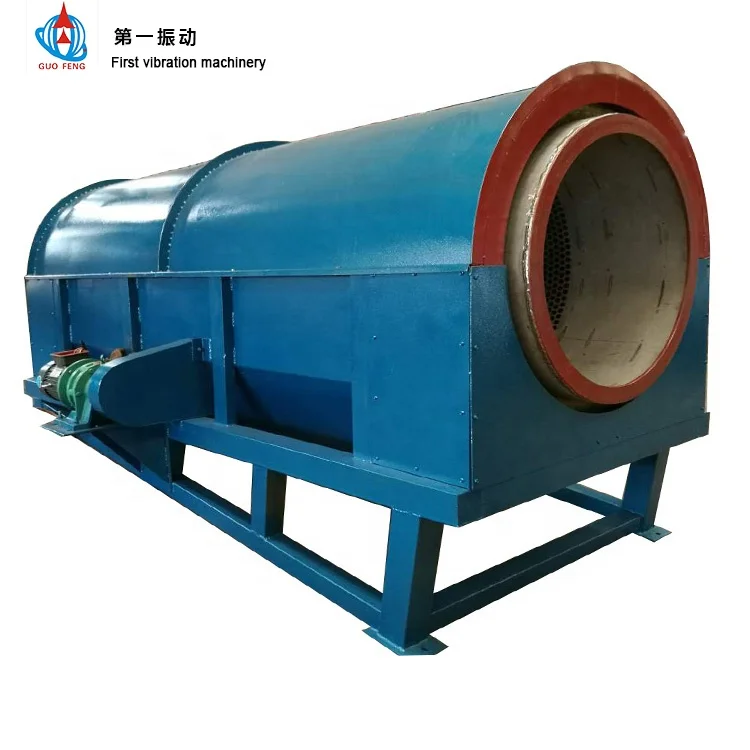

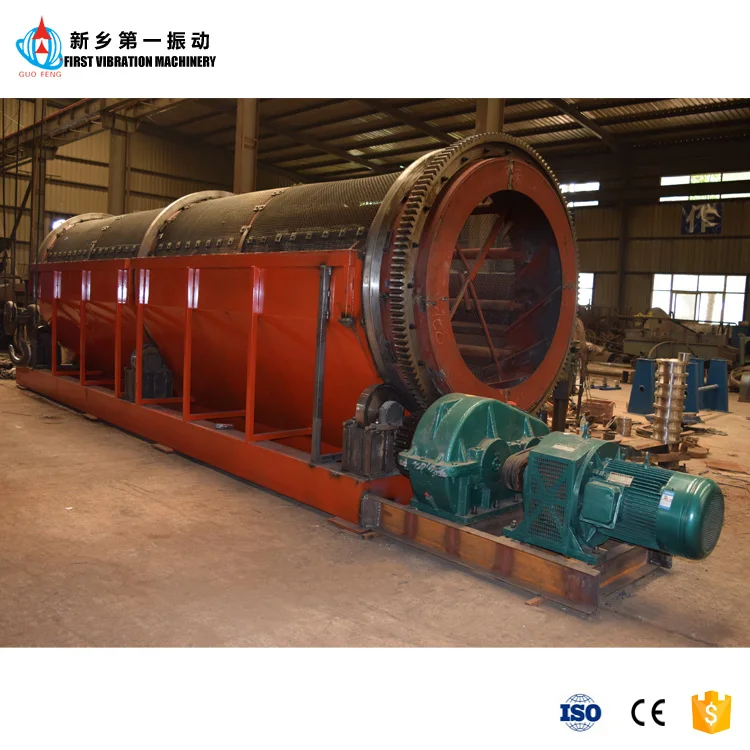

Municipal Solid Garbage Waste trommel screen msw trommel screen
- Category: >>>
- Supplier: Xinxiang First Vibration Machinery Factory Co. Ltd.
Share on (1600969098909):
Product Overview
Description
Product Description
New Design Trommel Screen Rotary Drum Sieve for Gold
YTS trommel screen machine is well known for its large processing capacity of compound fertilizer.and it is also a good choice for the classification of refractory materials, coal, sand , sandstone block, limestone,metallic or non-metallic minerals,etc
Working principle

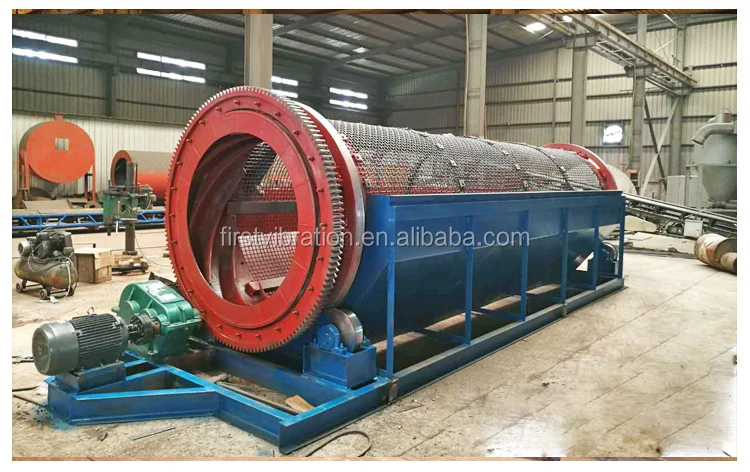

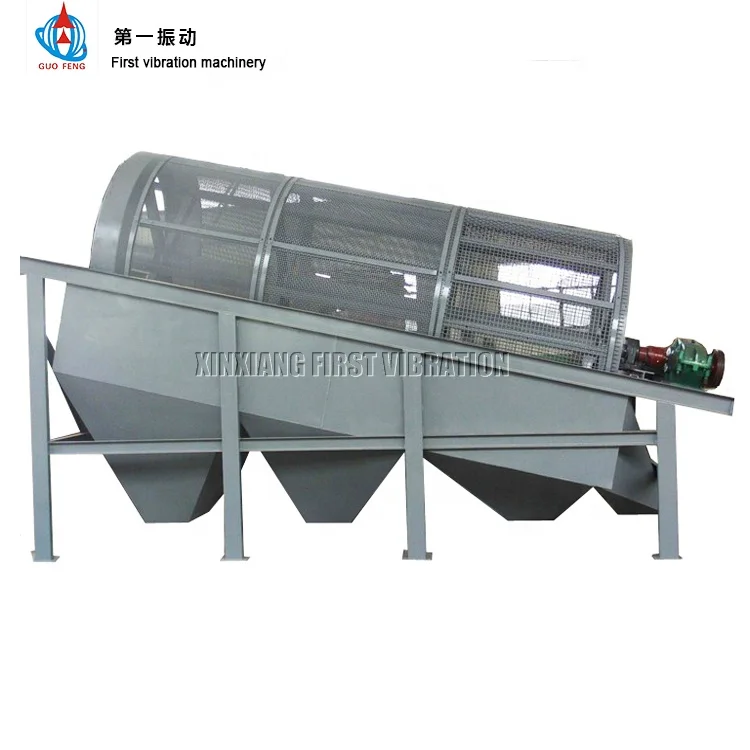

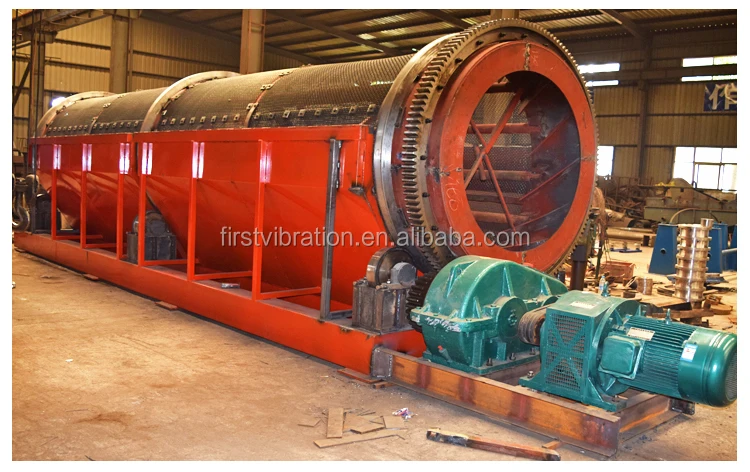

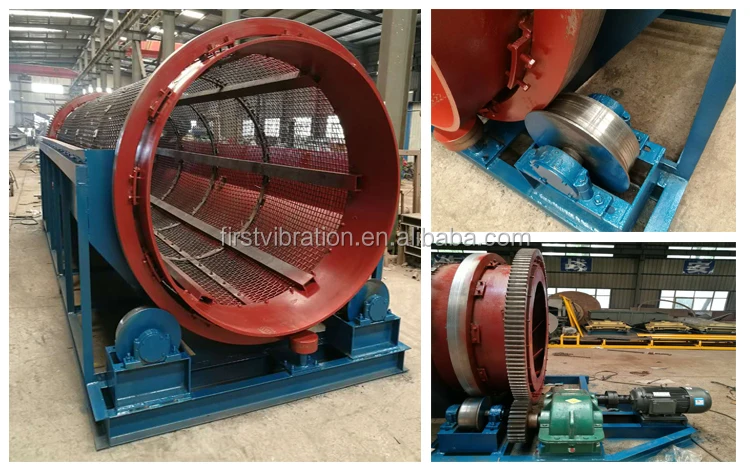

The main structure of trommel screen machine is sieving cylinder, which is composed of several circular shape of the screen.The whole and ground plane is in heeling condition.External sealed the isolation cover seal is to prevent the pollution of the environment. The speed reducing system enables the screening cylinder rotates at a certain speed.Thus the material is separated by sieving cylinder from top to bottom.Afterwards fine material is discharged from the lower front part of sieving cylinder.While coarse material discharged from the tail end of the screening cylinder.
Applied field
YTS trommel screen machine is often used for the classification of refractory materials, coal, sand , sandstone block, limestone,metallic or non-metallic minerals,etc.
Specification
Model | Length | Mesh size | Power | Rotary speed | Capacity |
YTS600 | 2-4m | 5-35mm | 2.2-3KW | 20rpm | 10m3/h |
YTS800 | 2-4m | 5-40mm | 2.2-5.5KW | 18rpm | 14m3/h |
YTS1000 | 2-4m | 5-45mm | 3-7.5KW | 16rpm | 16m3/h |
YTS1200 | 2-8m | 5-50mm | 4-11KW | 15rpm | 20m3/h |
YTS1500 | 2-8m | 5-60mm | 4-15KW | 12rpm | 32m3/h |
YTS2000 | 2-8m | 5-90mm | 5.5-18.5KW | 8rpm | 45m3/h |

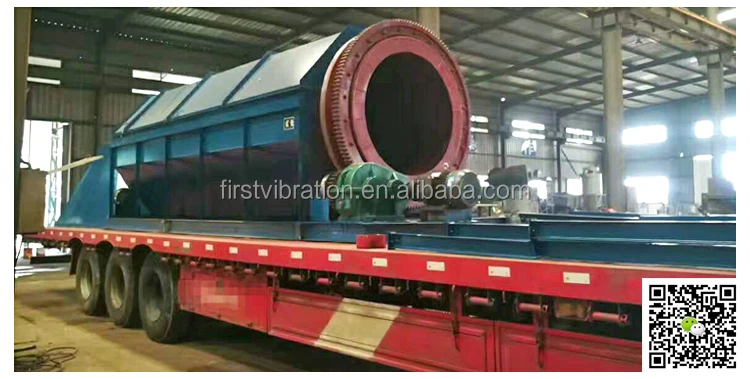

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
