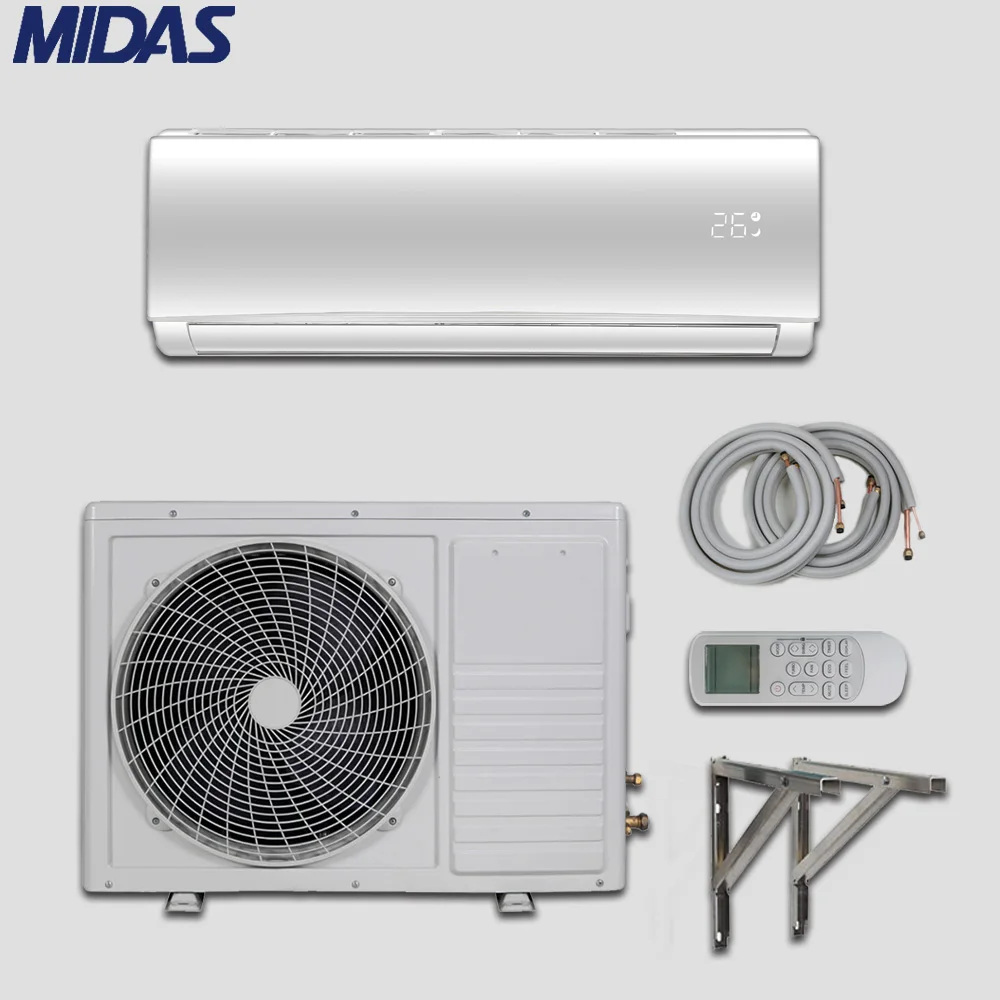

MIDAS Room Air Conditioner Fast Cooling AC 18000BTU General Split Heat Pump Air Conditioner
- Category: >>>
- Supplier: Shenzhen Midas Electronics Co. Ltd.
Share on (1600969119650):
Product Overview
Description
Power supply | Ph-V-Hz | 220-240V- 50Hz, 1Ph | ||
Cooling | Capacity | Btu/h | 18000 | |
Input | W | 1860 | ||
Rated current | A | 8.2 | ||
EER | W/W | 2.84 | ||
Heating | Capacity | Btu/h | 18000 | |
Input | W | 1700 | ||
Rated current | A | 7.8 | ||
COP | W/W | 3.10 | ||
Max. input consumption | W | 2700 | ||
Max. current | A | 12.3 | ||
Starting current | A | 41 | ||
Compressor | Model | PA200M2AS-4KU2 | ||
Type | ROTARY | |||
Brand | GMCC | |||
Capacity | Btu/h | 16975/17179 | ||
Input | W | 1670/1795 | ||
Rated current(RLA) | A | 7.85/8.15 | ||
Locked rotor Amp(LRA) | A | 41 | ||
Thermal protector | ----- | |||
Thermal protector position | INTERNAL | |||
Capacitor | uF | 45 | ||
Refrigerant oil/oil charge | ml | ESTEL OIL VG74 · 620 | ||
Indoor fan motor | Model | RPG45C | ||
Input | W | 72 | ||
Capacitor | uF | 3.0 | ||
Speed(Hi/Mi/Lo) | r/min | 1180 / 1100 / 900 | ||
Indoor coil | a.Number of rows | 2 | ||
b.Tube pitch(a)x row pitch(b) | mm | 21x13.37 | ||
c.Fin spacing | mm | 1.3 | ||
d.Fin type (code) | Hydrophilic aluminium | |||
e.Tube outside dia.and type | mm | Φ7,innergroove tube | ||
f.Coil length x height x width | mm | 780x315x26.74 | ||
g.Number of circuits | 5 | |||
Indoor air flow (Hi/Mi/Lo) | m3/h | 1050/980/800 | ||
Indoor noise level (Hi/Mi/Lo) | dB(A) | 48/46/39 | ||

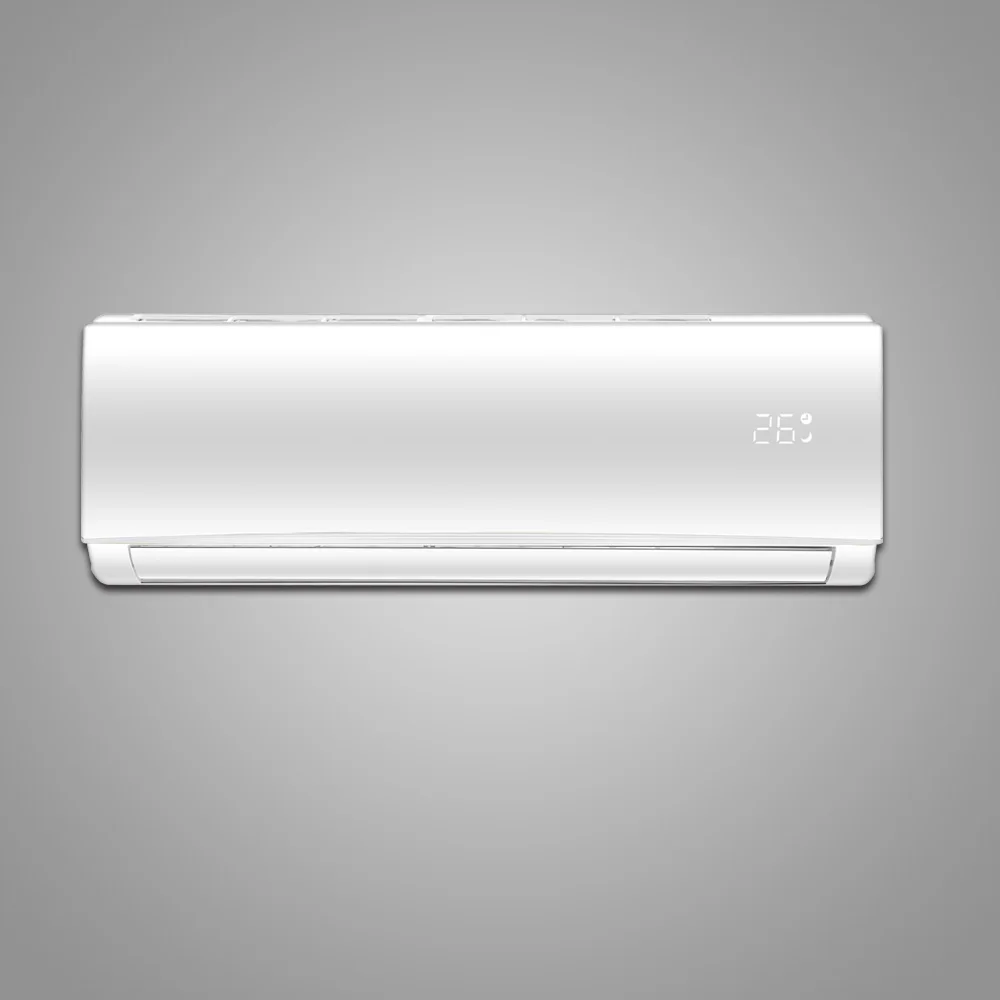

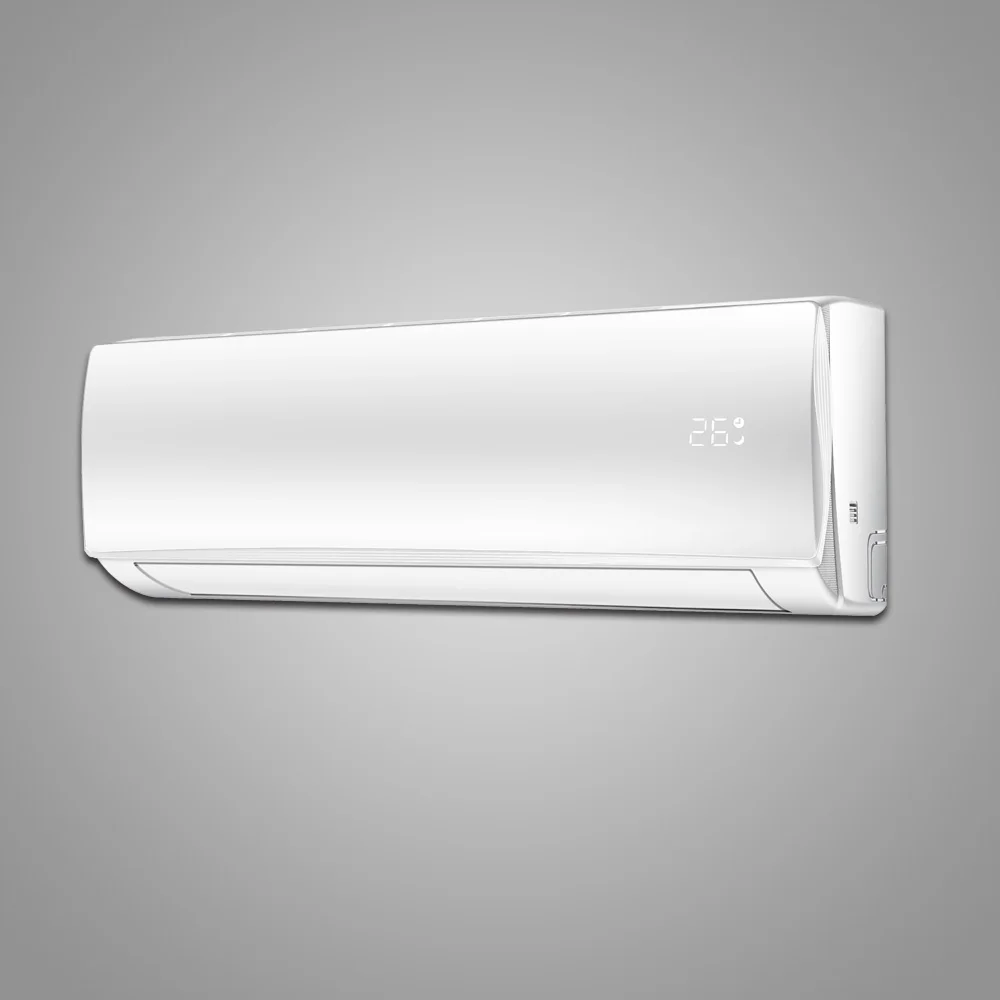

Indoor unit | Dimension(W*D*H) | mm | 1045x235x315 | |
Packing (W*D*H) | mm | 1135x395x315 | ||
Net/Gross weight | Kg | 12 / 15 | ||
Outdoor fan motor | Model | YDK48-6H(A) | ||
Input | W | 110 | ||
Capacitor | uF | 3.0 | ||
Speed | r/min | 890 / -- / -- | ||
Outdoor coil | a.Number of rows | 2 | ||
b.Tube pitch(a)x row pitch(b) | mm | 21x13.37 | ||
c.Fin spacing | mm | 1.4 | ||
d.Fin type (code) | Hydrophilic aluminium | |||
e.Tube outside dia.and type | mm | Φ7,innergroove tube | ||
f.Coil length x height x width | mm | 660x546x26.74 | ||
g.Number of circuits | 3 | |||
Outdoor noise level | dB(A) | 59 | ||

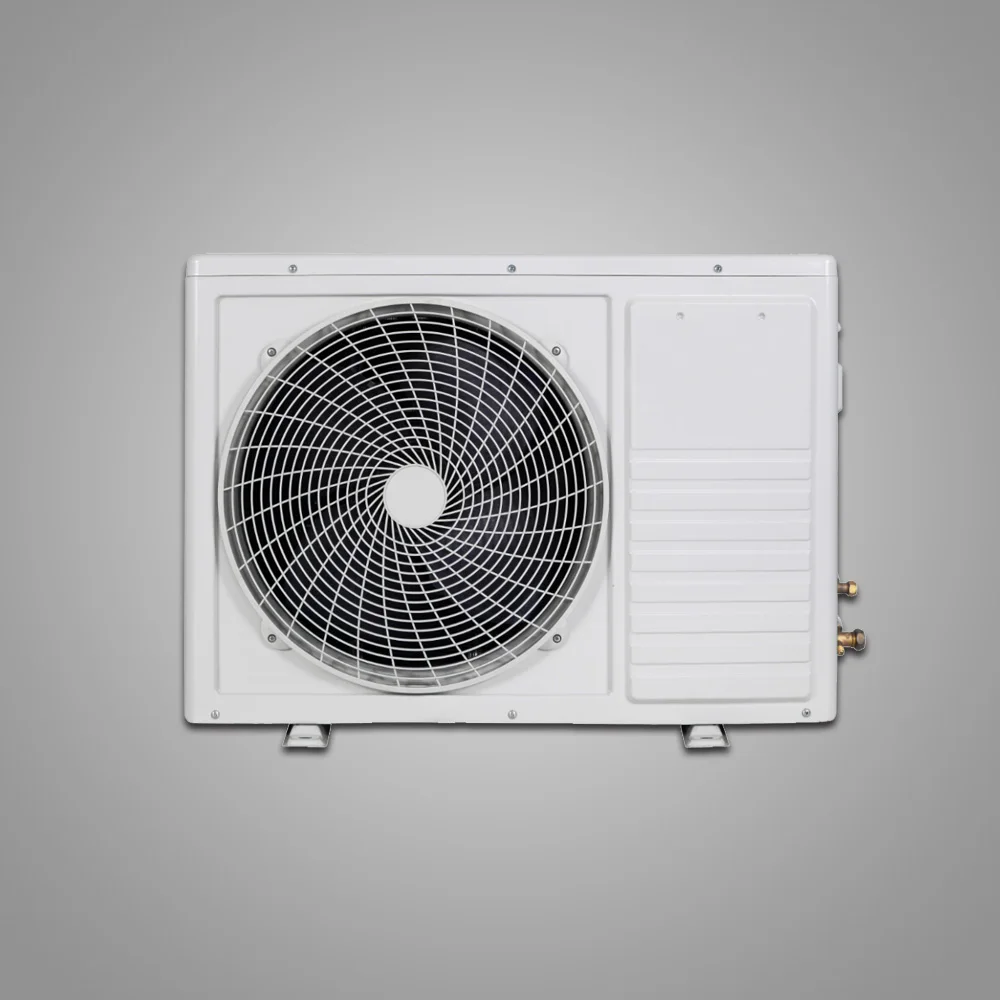

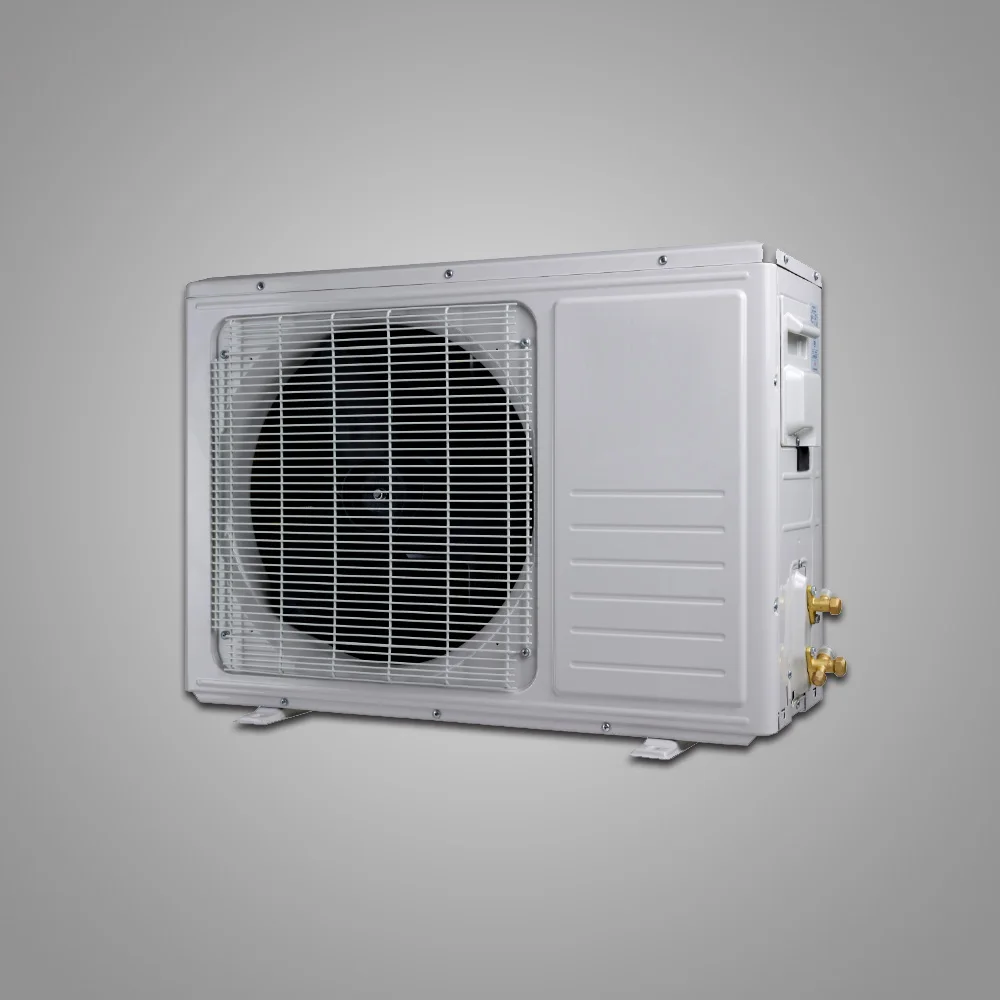

Outdoor unit | Dimension(W*D*H) | mm | 760x285x590 | |
Packing (W*D*H) | mm | 887x355x645 | ||
Net/Gross weight | Kg | 35.5 / 38 | ||
Refrigerant type | g | R410A/1280g | ||
Design pressure | MPa | 4.2/1.5 | ||

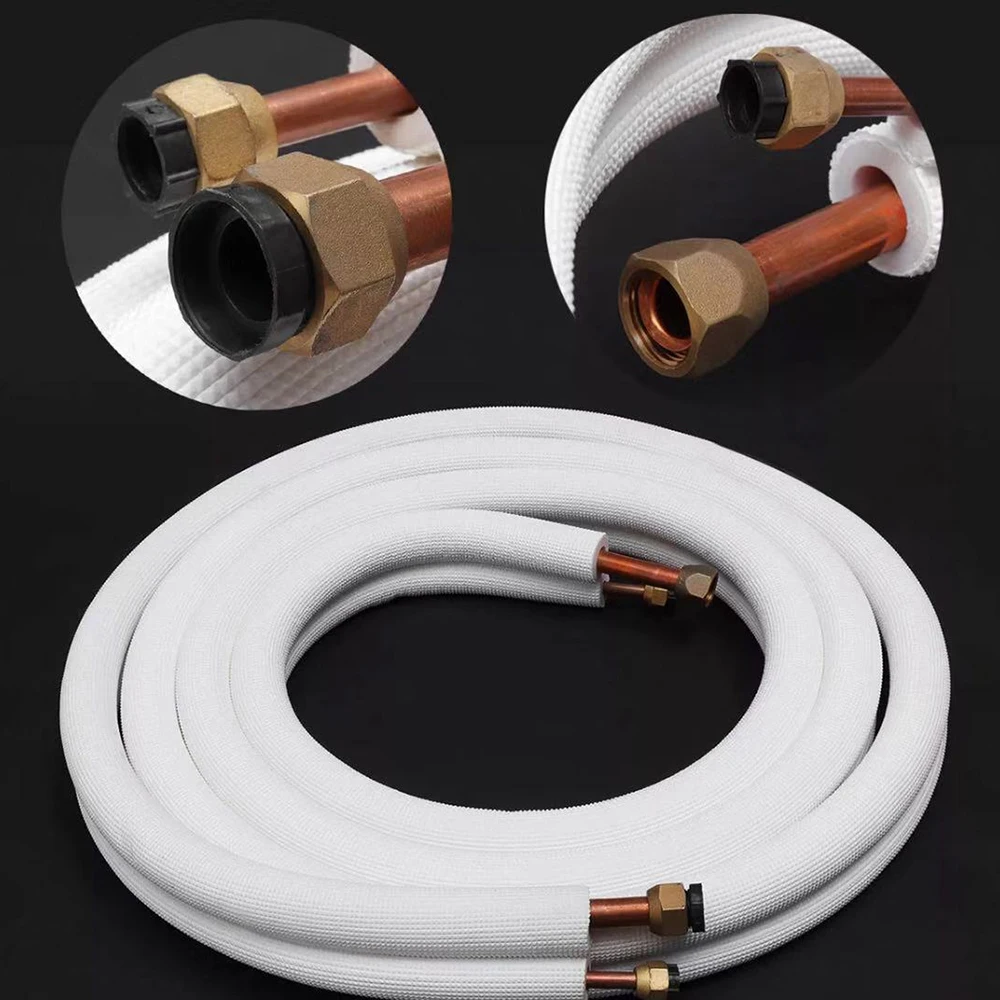

Refrigerant piping | Liquid side/ Gas side | mm(inch) | Φ6.35/Φ12.7(1/4"/1/2") | |
Max. refrigerant pipe length | m | 25 | ||
Max. difference in level | m | 10 | ||
Connection wiring | 2.5(Optional) | |||
Plug type | 2.5x3 | |||
Thermostat type | Remote Control | |||
Operation temperature | ℃ | 17-30 | ||
Room temperature | Indoor(cooling/ heating) | ℃ | 17-32/0-30 | |
Outdoor(cooling/heating) | ℃ | 18-43/-7-24 | ||
Application area (Cooling Standard) | m2 | 24-35 | ||
Qty’per 20’ /40’ /40'HQ | 78/166/190 | |||
