Seplos EU stock new mason 280 3.0 vision seplos BMS 48V 16S 280ah/300ah BOX WITH SEPLOS BMS free shipping
- Category: >>>
- Supplier: Changsha Deligreen Power Co. Ltd.
Share on (1600969162040):
Product Overview
Description
EU Poland stock Best Seplos 3.0 vision seplos mason 280 diy kit 15KWH 3 vision active balancer 48V available

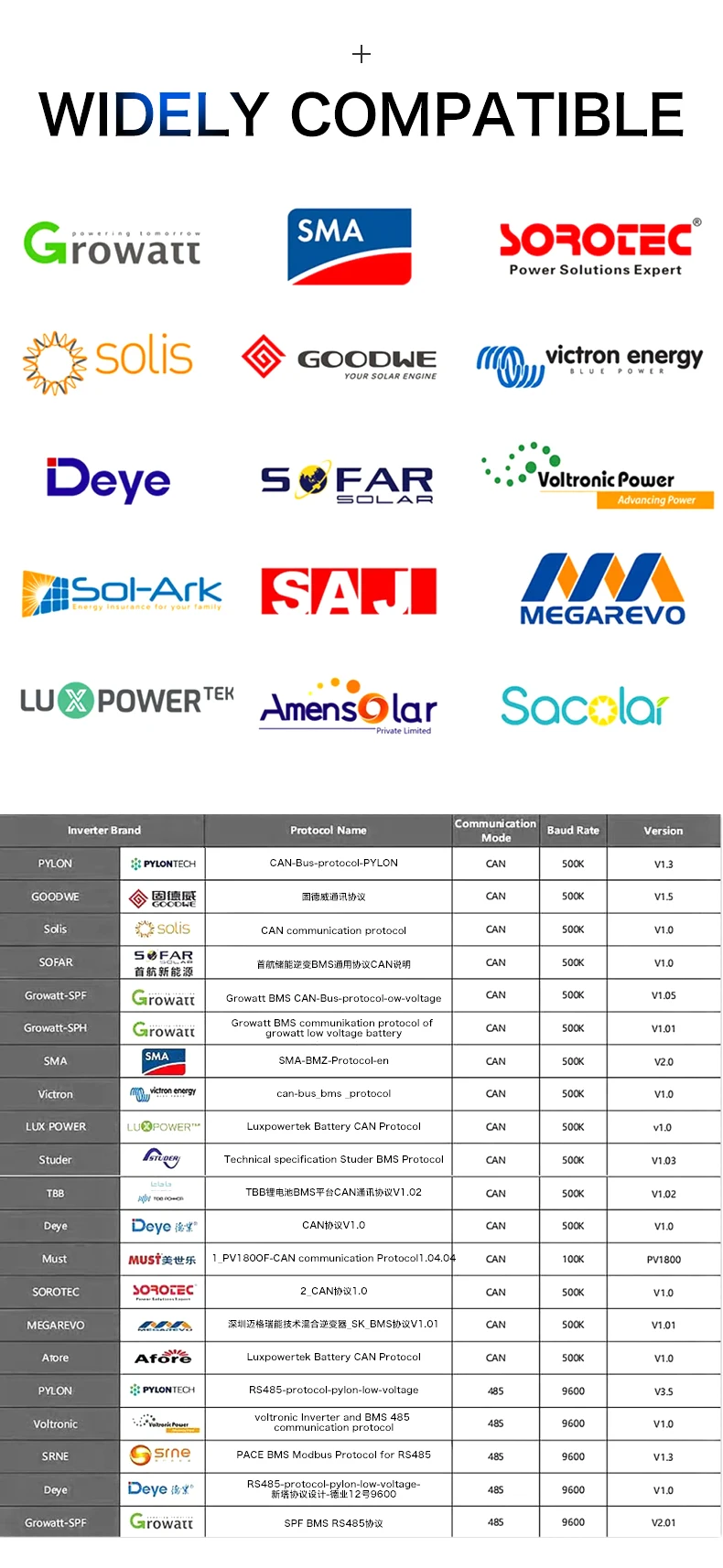

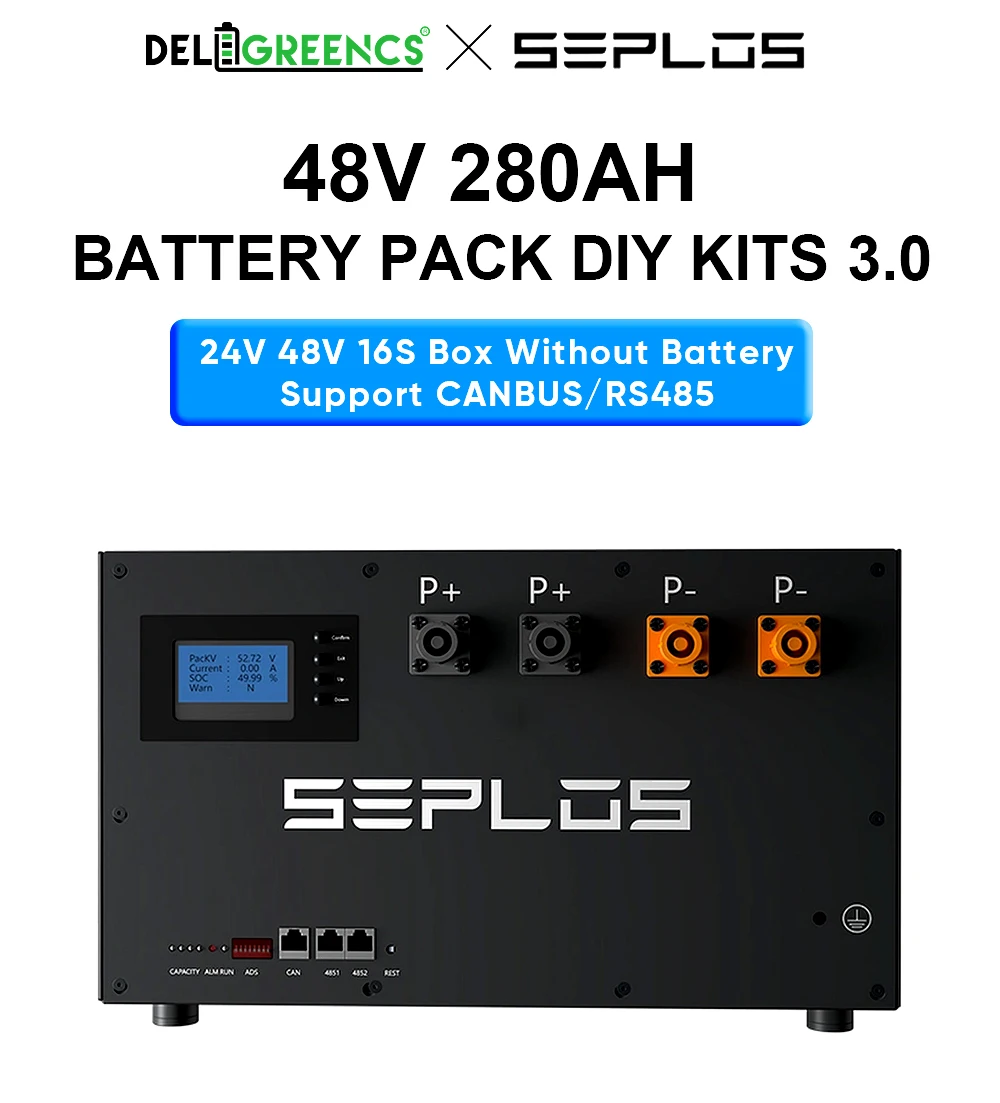

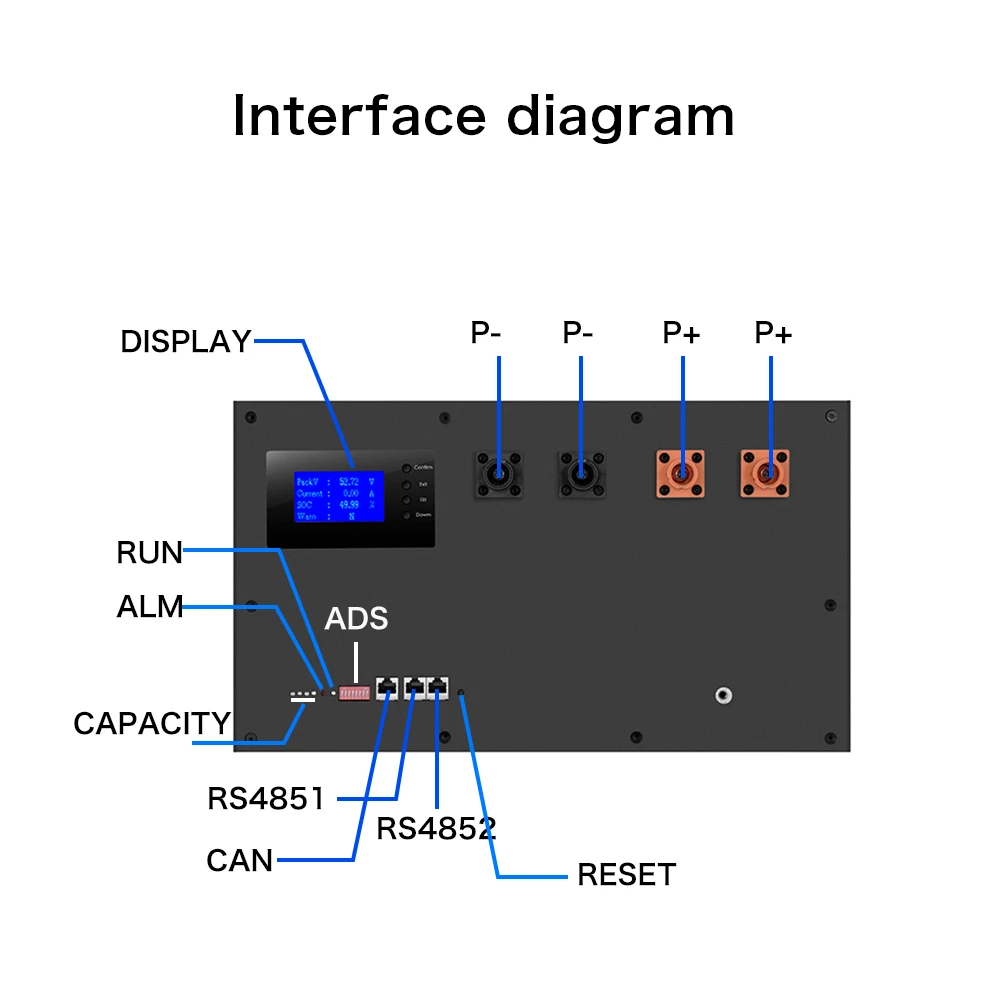

This is the new launched item---16S 48V 280AH/320AH DIY Battery kits, BMS included, support communication with inverters for RS 485 and CAN.
For a DIY users, only need to buy 16pcs battery cells+ this kits, more professional and beautiful.

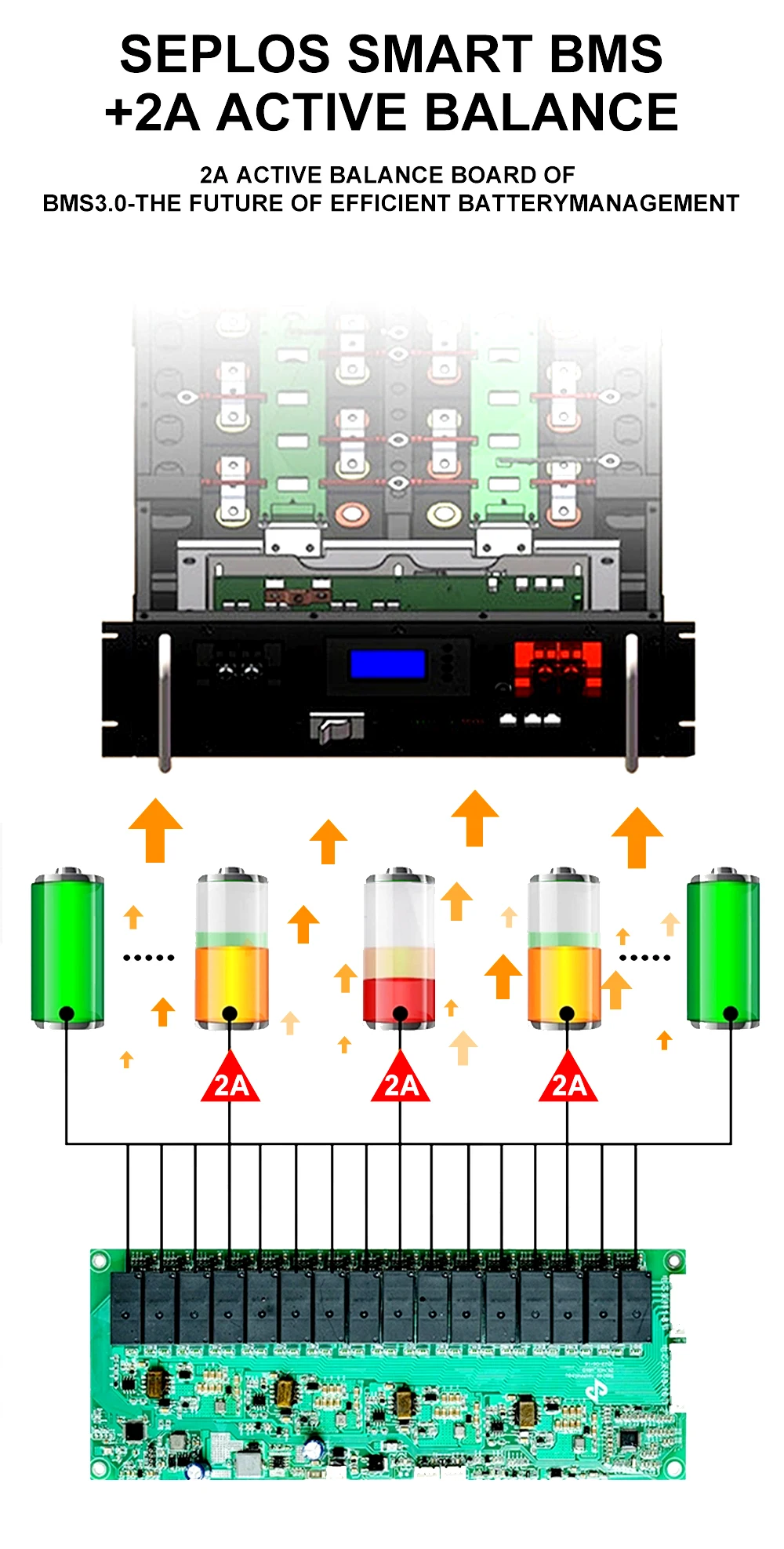

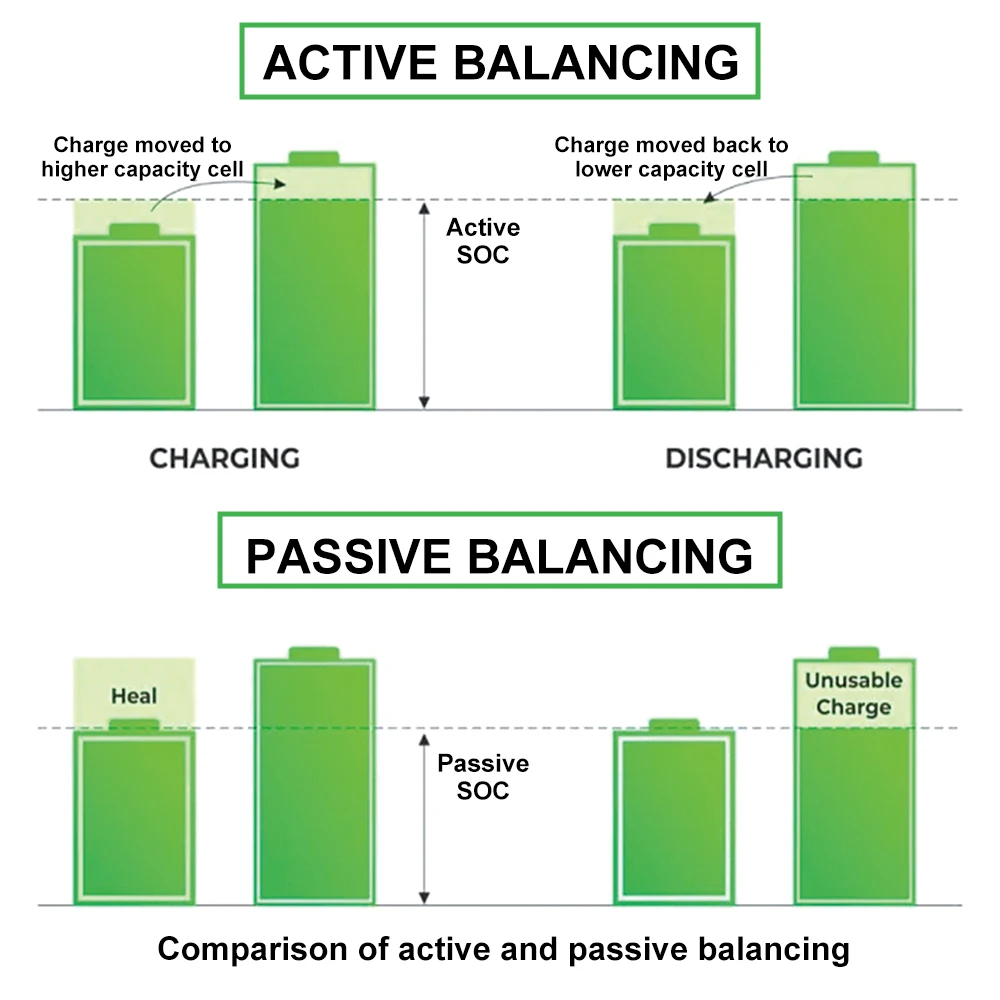

3.0 Vision with active balancer

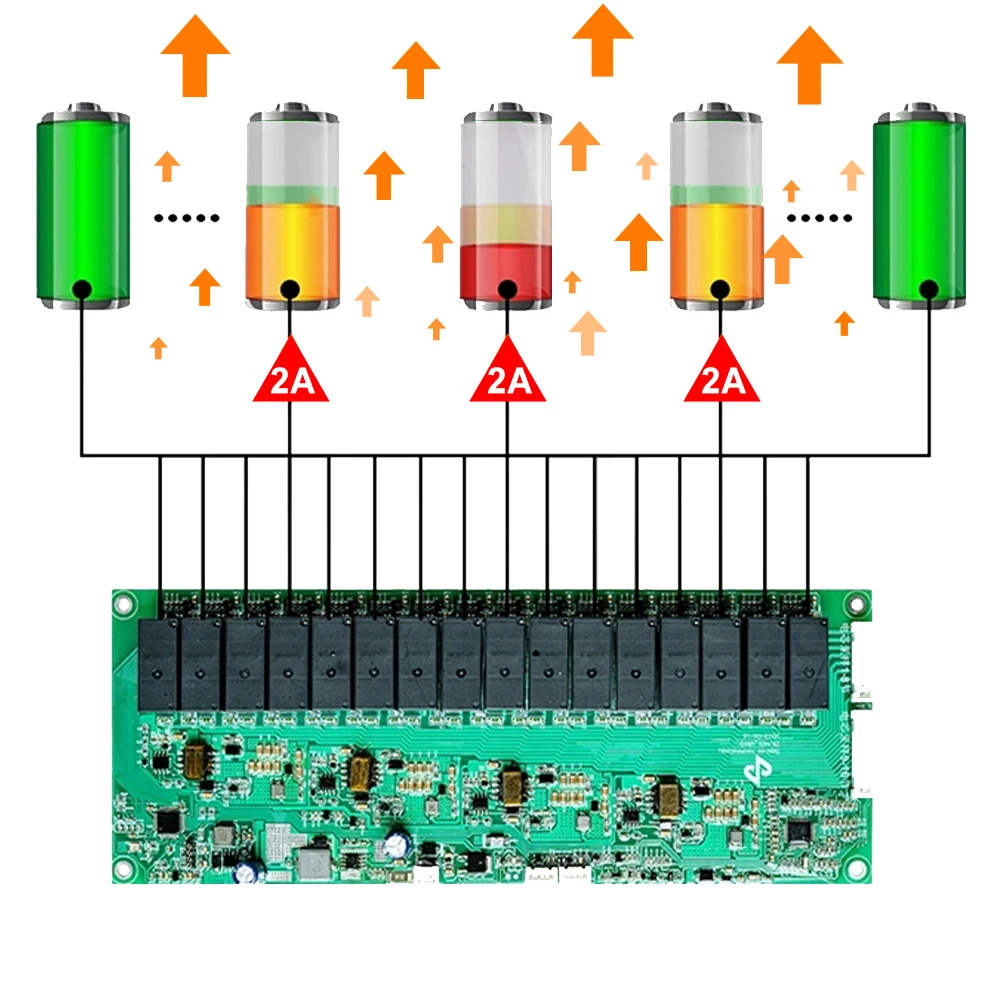

balancing current to 2A
ADVANTAGES:
1. Build a 48V 280AH/320AH battery pack more professional and easier.
2. Cost saving and time saving.
3. Safer
4. Installation easily, and beautiful.
5. Support parallel and rack mounted.
6. All accessories included, even a screw.
7. LCD included, monitor your battery cells clearly.
EU Poland stock Best Seplos 3.0 vision seplos mason 280 diy kit 15KWH 3 vision active balancer 48V available
EU warehouse for 2.0 vision--no active balancing available
EU warehouse for 3.0 vision with active balancer also available
The old vision and new vision main differ: with active balancer and without active balancer .
EU Poland stock Best Seplos 3.0 vision seplos mason 280 diy kit 15KWH 3 vision active balancer 48V available
EU stock item list:
48V 280ah/300ah mason kits
EV E280ah, LF280K, 6000 times life
CALB 280ah, 9000 times life
EV E 105ah, 3C, grade A
12v 100ah pack
bms
active balancer
EU Poland stock Best Seplos 3.0 vision seplos mason 280 diy kit 15KWH 3 vision active balancer 48V available

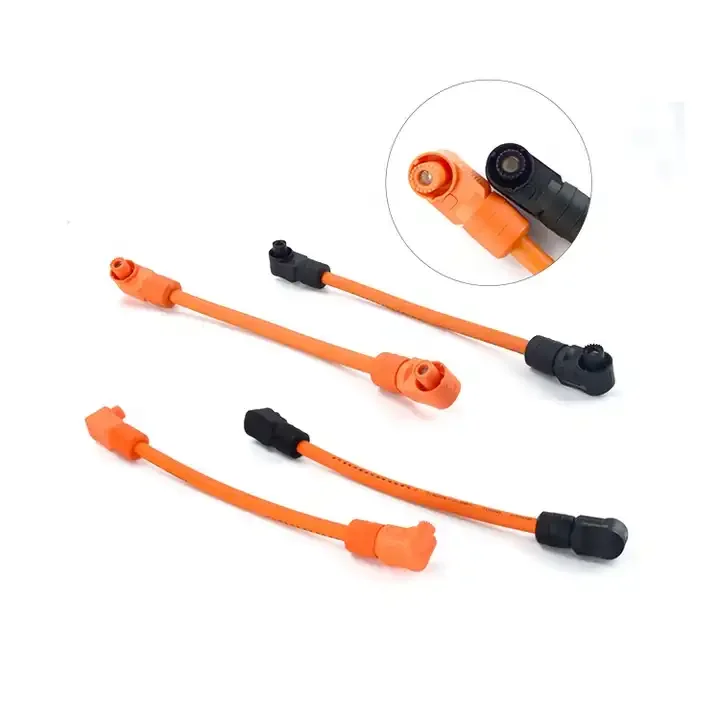

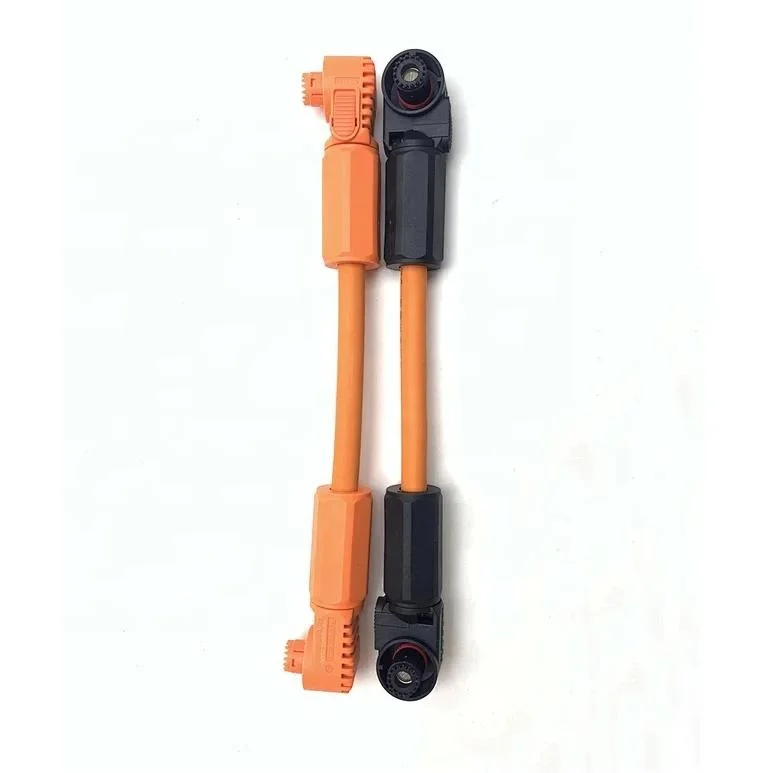

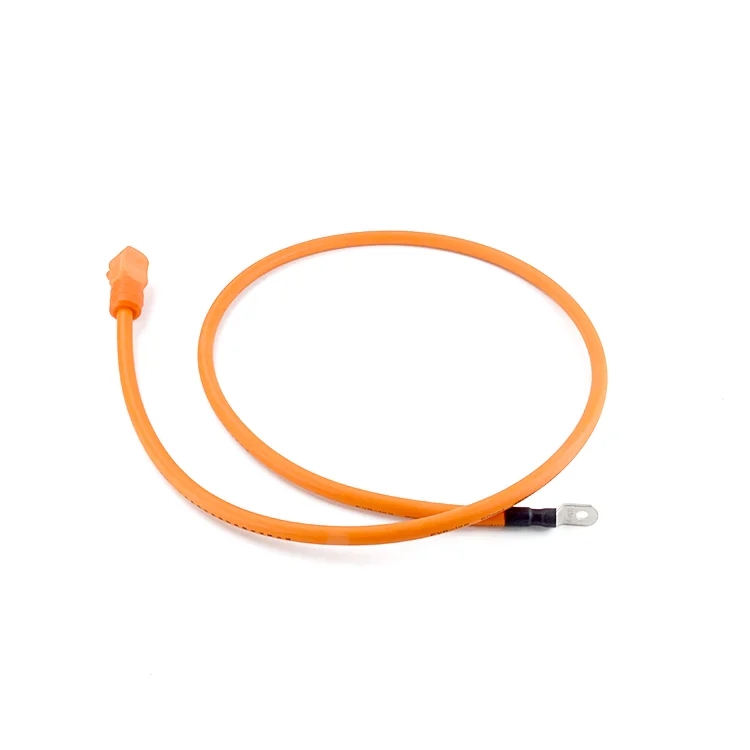

For battery parallel cable is available, 30cm

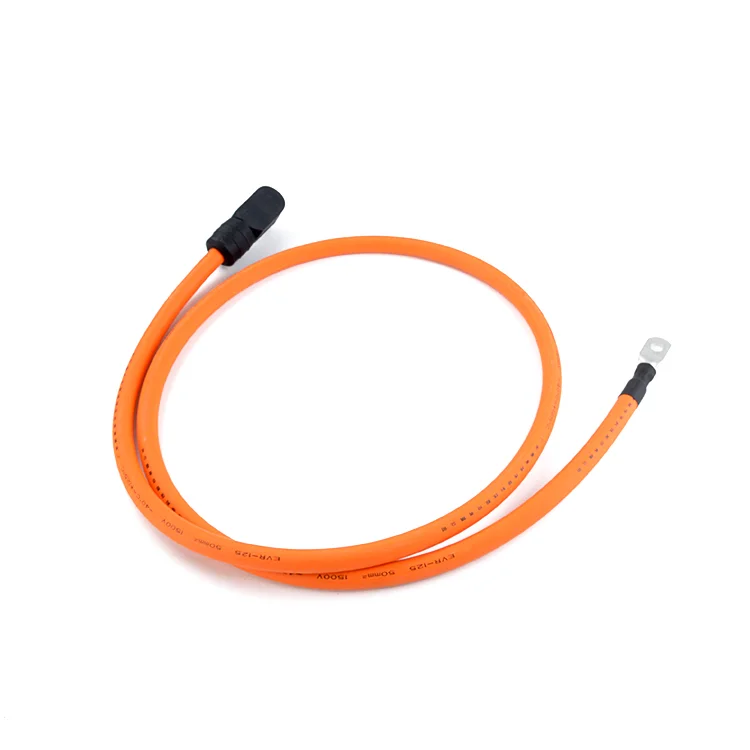

For battery connect to inverter cable also available, 1M/2M/3M/4M/5M...... as customer choice .
EU Poland stock Best Seplos 3.0 vision seplos mason 280 diy kit 15KWH 3 vision active balancer 48V available
EU stock item list:
48V 280ah/300ah mason kits
EV E280ah, LF280K, 6000 times life
CALB 280ah, 9000 times life
EV E 105ah, 3C, grade A
12v 100ah pack
bms
active balancer
Packing List :

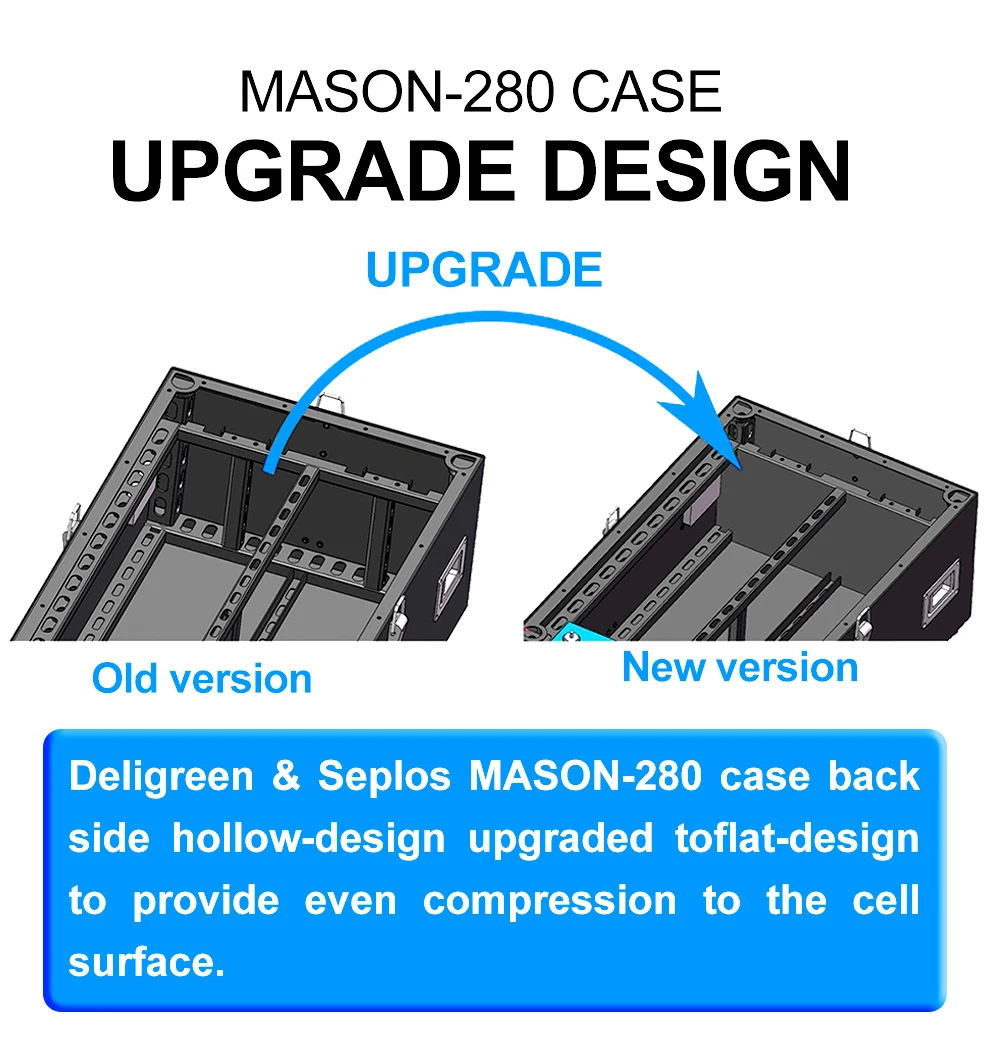

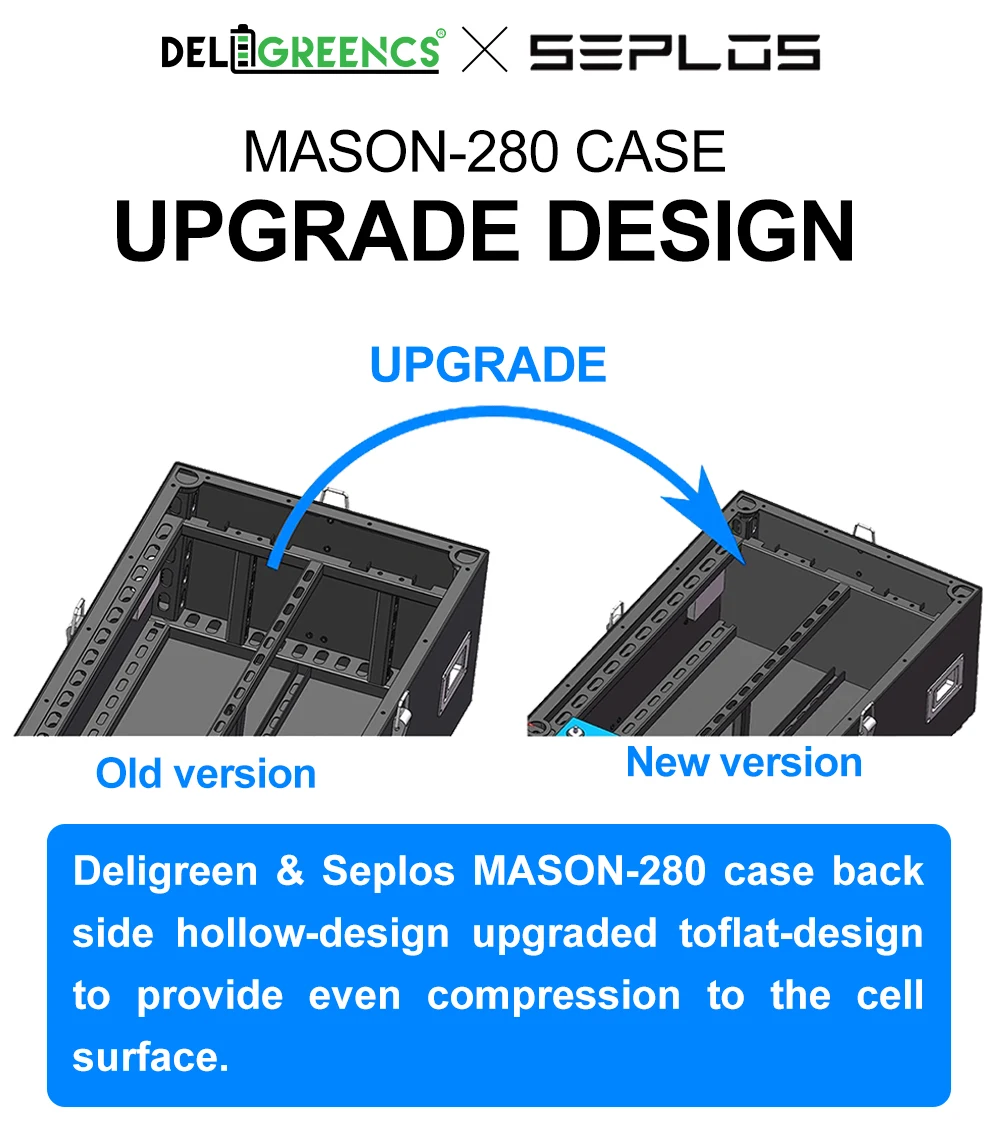

1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)

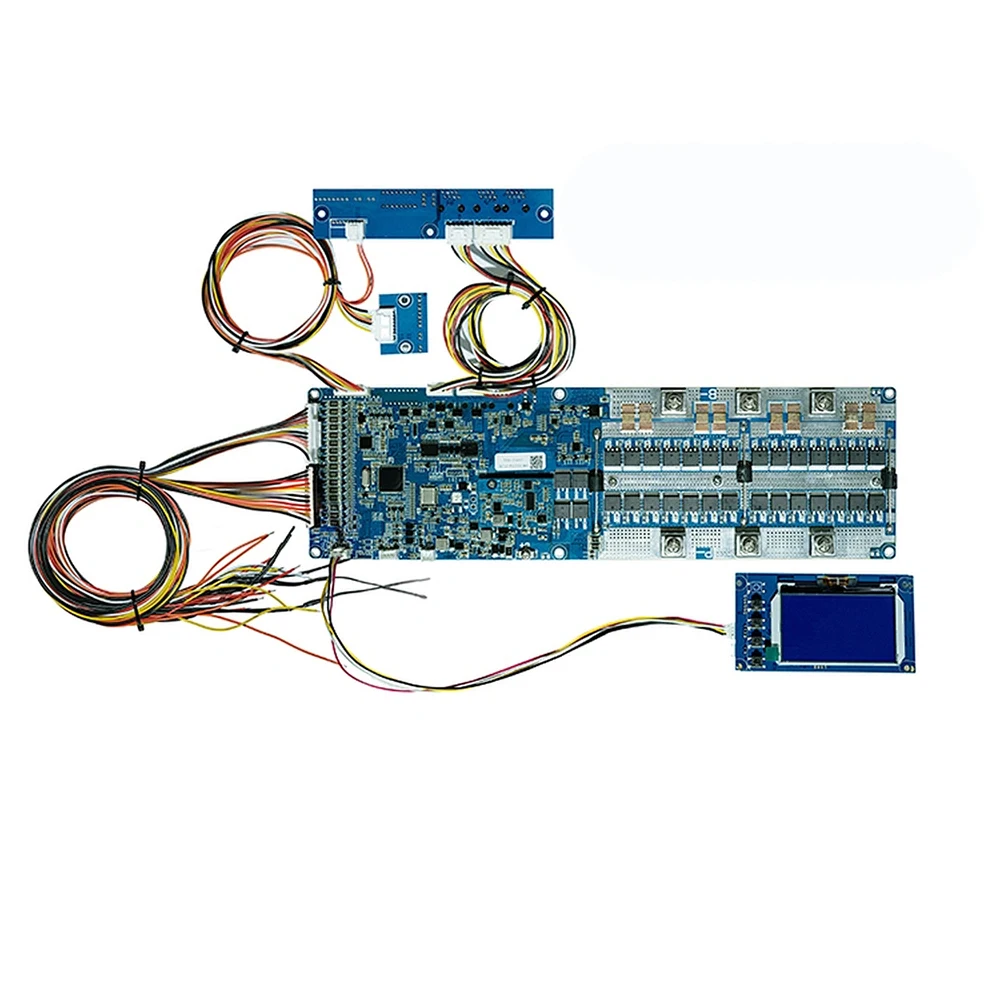

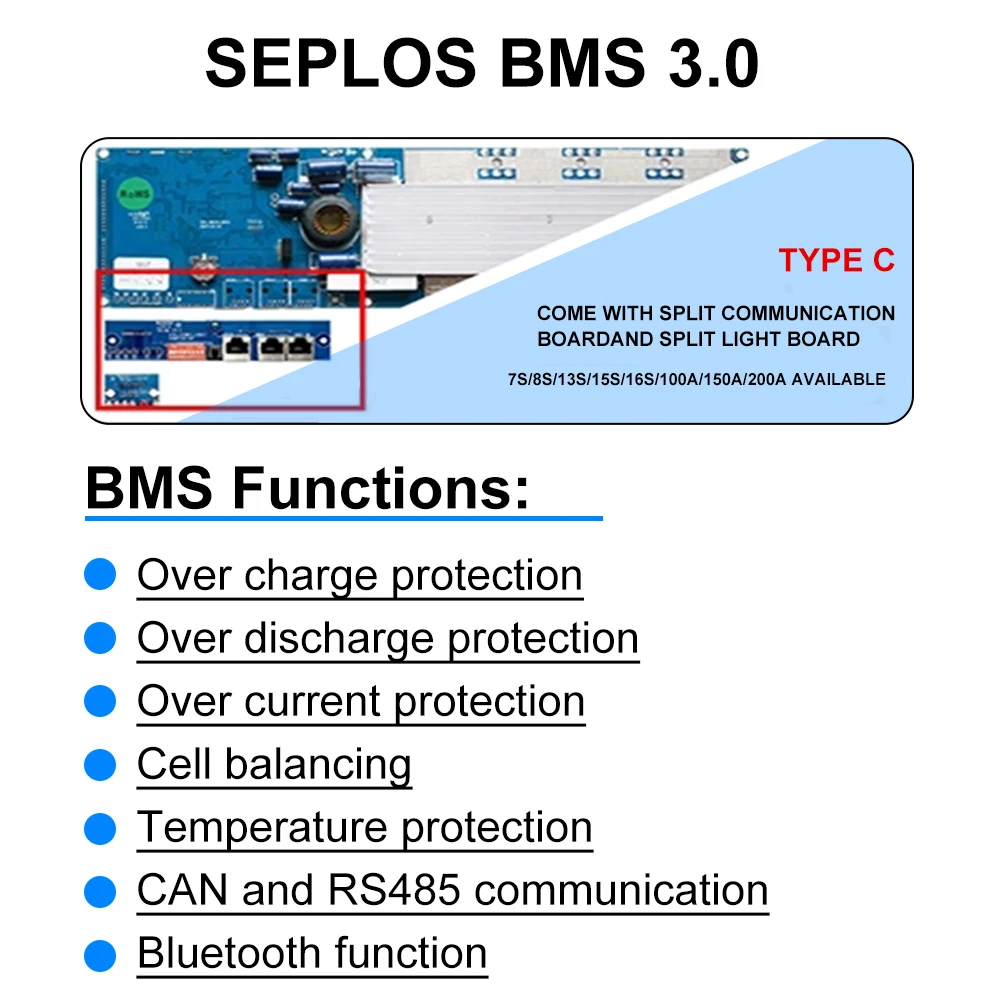

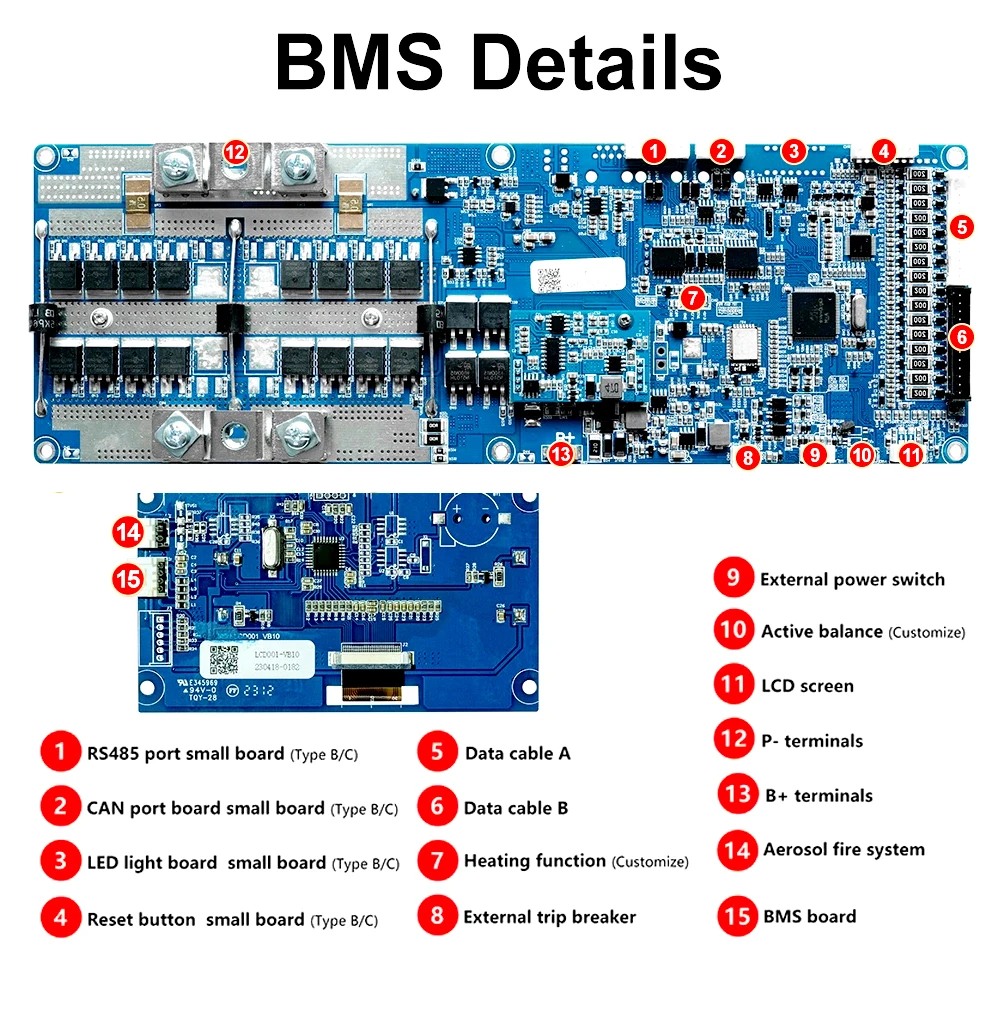

1 * 48V 200A 16S SEPLOS BMS(48V 150A 16S SEPLOS BMS)1 * 58V 400A Fuse
4 * Handle
2 * PCB Board for BMS and Cell Connection
3 * Upper and Lower Latch lock
1 * LCD Screen
1 * LCD Screen Sticker
4 * Button Cap
3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)
2 * Battery Terminals (P+ Terminal and P- Terminal)
Other components includes:
6 * Copper bus bars (BMS connection)
15 * Aluminum bus bars (Cell connection)
10 * Epoxy sheet (Between cell and the case)
26 * EVA Tape (Between cells)
1 * PC sheet (Top cover)
Screws Details:
12 * Phillip Hex M4 * 8mm (PCB board fix)
9 * Phillip Hex M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix)
7 * Phillip Hex M6 * 25mm + Washer + Spring Set(Front Panel fix)
10 * Phillip Round M3 * 8mm + Washer + Spring Set(BMS and LCD Screen fix)
12 * Phillip Pan M5 * 10mm (Latch fix)
16 * Hexagan Socket Pan M4 * 10mm (P+/P- Terminals fix)
42 * Hexagan Socket Countersunk M4 * 10mm (Handle and battery case)
4 * Phillip Hex M6 * 14mm + Washer + Spring Set(foot fix)
5 * Phillip Hex M8 * 10mm + Washer + Spring Set (P+/P- Bus bar fix)
8 * Phillip Round M5 * 10mm + Washer
1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)
1 * 48V 200A 16S SEPLOS BMS(48V 150A 16S SEPLOS BMS)1 * 58V 400A Fuse
4 * Handle
2 * PCB Board for BMS and Cell Connection
3 * Upper and Lower Latch lock
1 * LCD Screen
1 * LCD Screen Sticker
4 * Button Cap
3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)
2 * Battery Terminals (P+ Terminal and P- Terminal)
Other components includes:
6 * Copper bus bars (BMS connection)
15 * Aluminum bus bars (Cell connection)
10 * Epoxy sheet (Between cell and the case)
26 * EVA Tape (Between cells)
1 * PC sheet (Top cover)
Screws Details:
12 * Phillip Hex M4 * 8mm (PCB board fix)
9 * Phillip Hex M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix)
7 * Phillip Hex M6 * 25mm + Washer + Spring Set(Front Panel fix)
10 * Phillip Round M3 * 8mm + Washer + Spring Set(BMS and LCD Screen fix)
12 * Phillip Pan M5 * 10mm (Latch fix)
16 * Hexagan Socket Pan M4 * 10mm (P+/P- Terminals fix)
42 * Hexagan Socket Countersunk M4 * 10mm (Handle and battery case)
4 * Phillip Hex M6 * 14mm + Washer + Spring Set(foot fix)
5 * Phillip Hex M8 * 10mm + Washer + Spring Set (P+/P- Bus bar fix)
8 * Phillip Round M5 * 10mm + Washer
