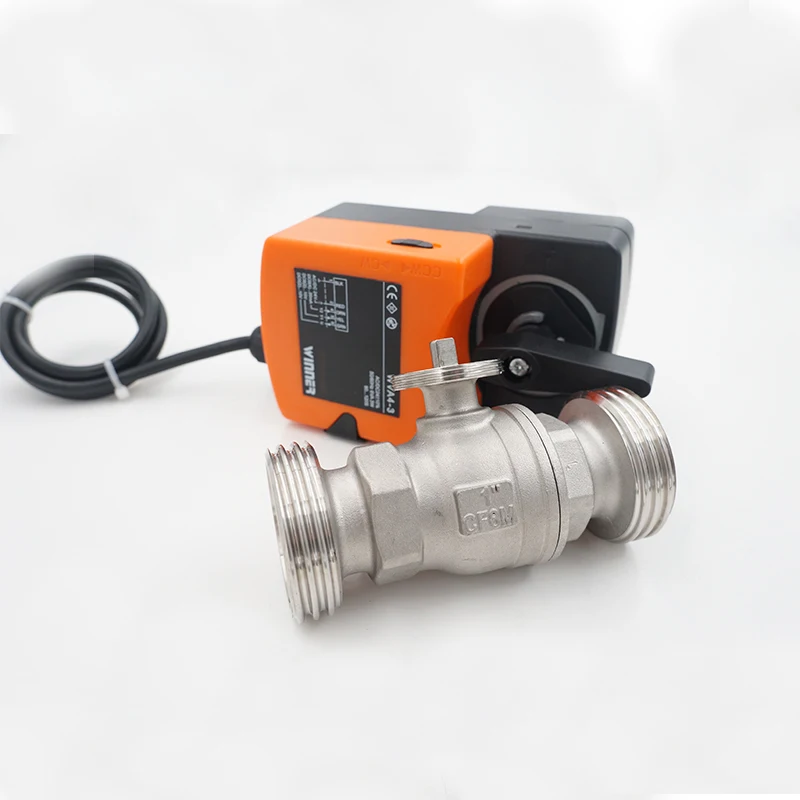

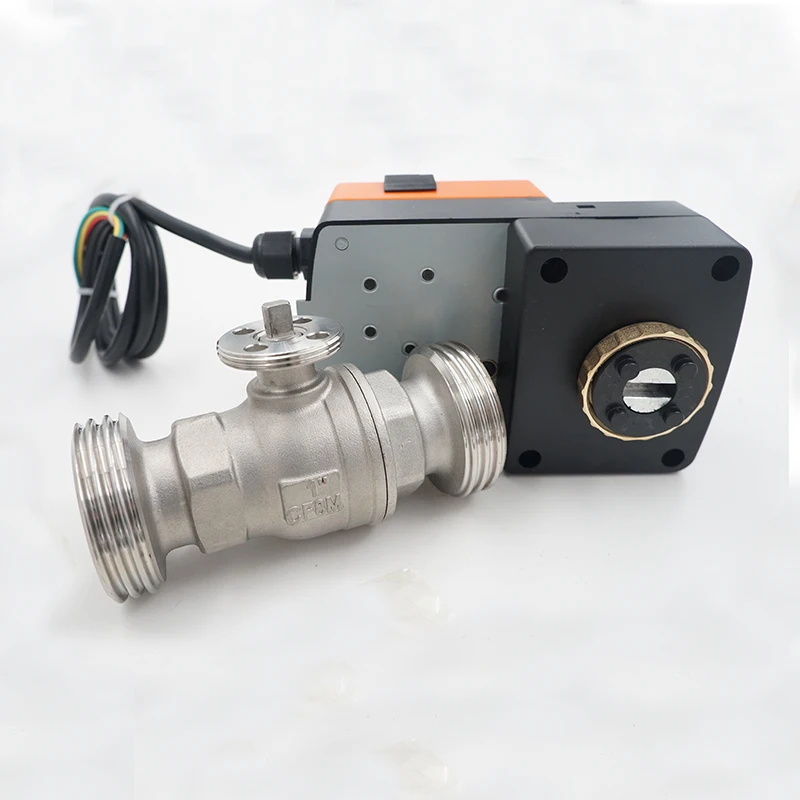

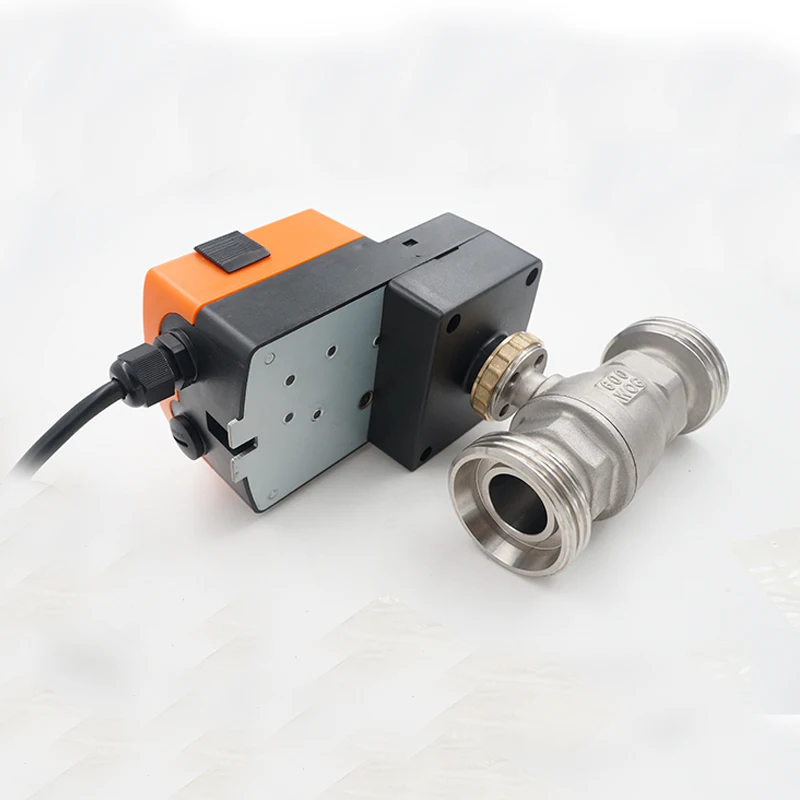

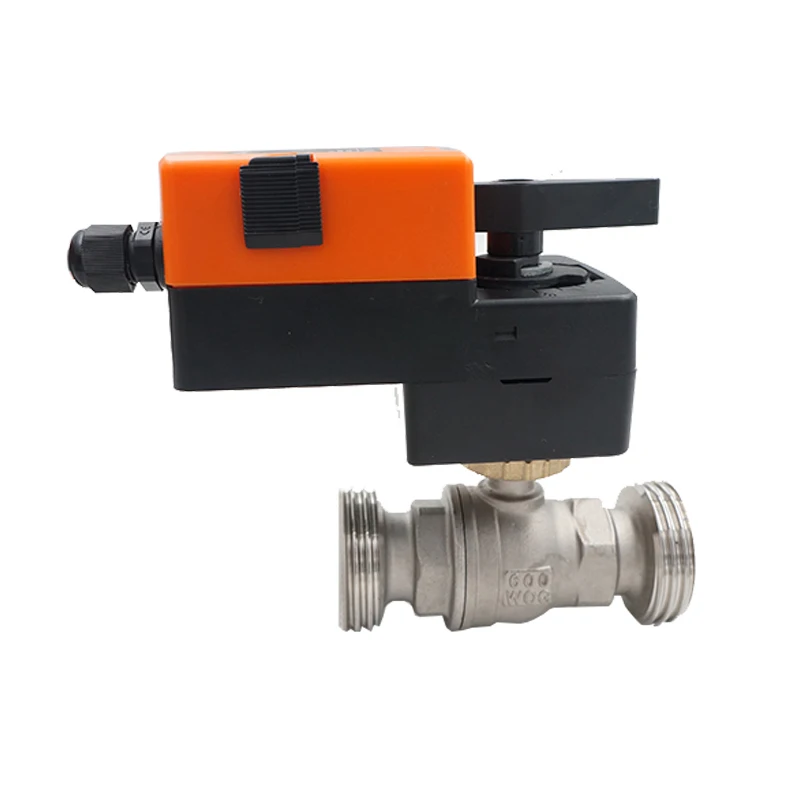

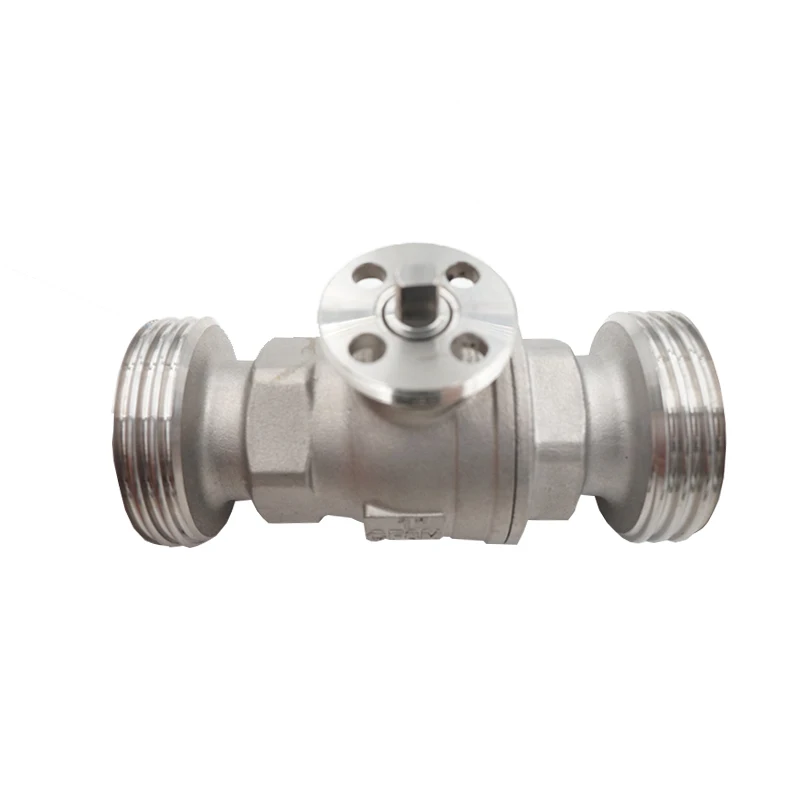

Winvall 24VAC/DC Male Thread Proportional Valves 0 10V 4 20mA Motorized Water Control Valve Electric 2 Way Stainless Steel
- Category: >>>
- Supplier: Winner Ball Valves Company Limited
Share on (1600969190834):
Product Overview
Description
Product Description
Winvall control ball valve is motor-operated by a type of WAV4-3… actuator. The actuator is controlled by a modulating on/off , 3-point or proportional control system and move the ball of the valve, to the opening position dictated by the control signal.
Control ball valves are widely used in HVAC system, heating system, water treatment equipment, and water running control in industrial automation, such as: AHU, flesh air-handling unit, differential pressure control unit and heat exchanger for flow regulation and on/off control.
Specification
Brand Name | Winvall |
Application | Home Kitchen |
Temperature of Media | Medium Temperature |
Power | Electric |
Media | Water |
Port Size | 1/2'', 3/4'', 1'' |
Structure | BALL |
Pipe connector | internal thread |
Actuator type | 0-10V |
Rated pressure | PN20 |
Control type | on/off |
Protect rank: | IP54 |
Operation time: | 50S-90S |
Medium | cold/hot water with 50% glycol |
Actuator No. | Working Voltage | Actuator Type | Output Torque | Consumption | Valve Body |
WVA4-3... | 24V AC/DC | 0-10v/4-20mA | 4N.m 6N.m 10N.m | 6VA | WSBV215M WSBV215M WSBV215M |
Model No. | Valve Type | Inch | Kvs(m³/h) | Pmax(KPa) | Ps(KPa) |
WSBV215M | 2-way | 1/2'' | 8.97 | 1000 | 1400 |
WSBV220M | 2-way | 3/4'' | 15.94 | 1000 | 1400 |
WSBV225M | 2-way | 1'' | 24.85 | 1000 | 1400 |
